Power Box Rake Attachment

  • Model: 23702
  • UPC/EAN: 21038237022

$10,665.00 USD

Please contact your local dealer

Available at select retailers:

  • Adjustable yoke design
  • Adjustable Wheels

Overview

The Toro Power Box Rake is the perfect tool for seed bed and sod bed preparation. The rotary drum on the power box rake pulverizes rough soil, cuts high spots and fills low spots in one pass; while removing rocks and debris. Pure carbide teeth design produces the best possible seeded sub-soil, which promote superior moisture retention and rapid seed growth.

Features

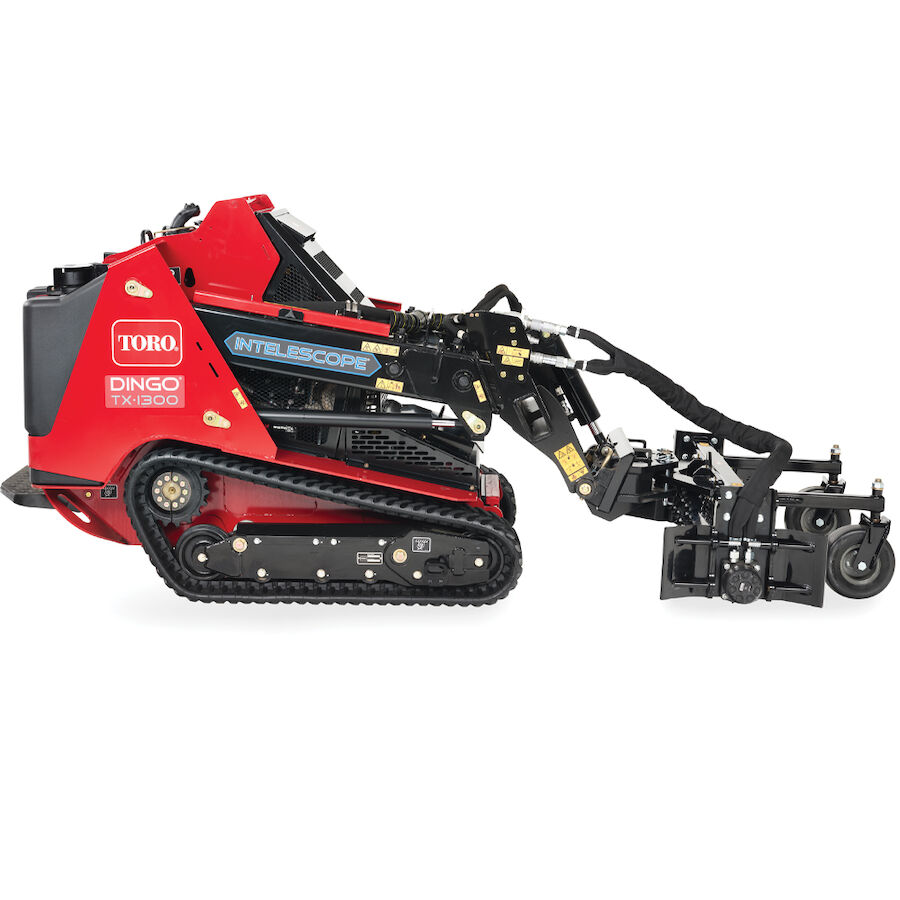

TX1300 using the power box rake near a lake
Adjustable Wheels
Makes depth changes easy. Set adjustable wheels low to quickly remove existing landscapes. Easily adjust depth to fill, plane and pulverize soil.

Specifications

Depth 58.5 in. / 148 cm
Height 18.5 in. / 47 cm
Models Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700, eDingo 500
Offset Distance 3 in. / 7.6 cm
Raking Width 48 in. / 121.9 cm
Roller Angle 30 degrees
Weight 487 lbs / 220.9 kg
Width 58.5 in. / 148 cm

Parts & Manuals

Select your model year from the options below to view parts & manuals.

23702 Serial #
323000000-999999999
322000001-322999999
