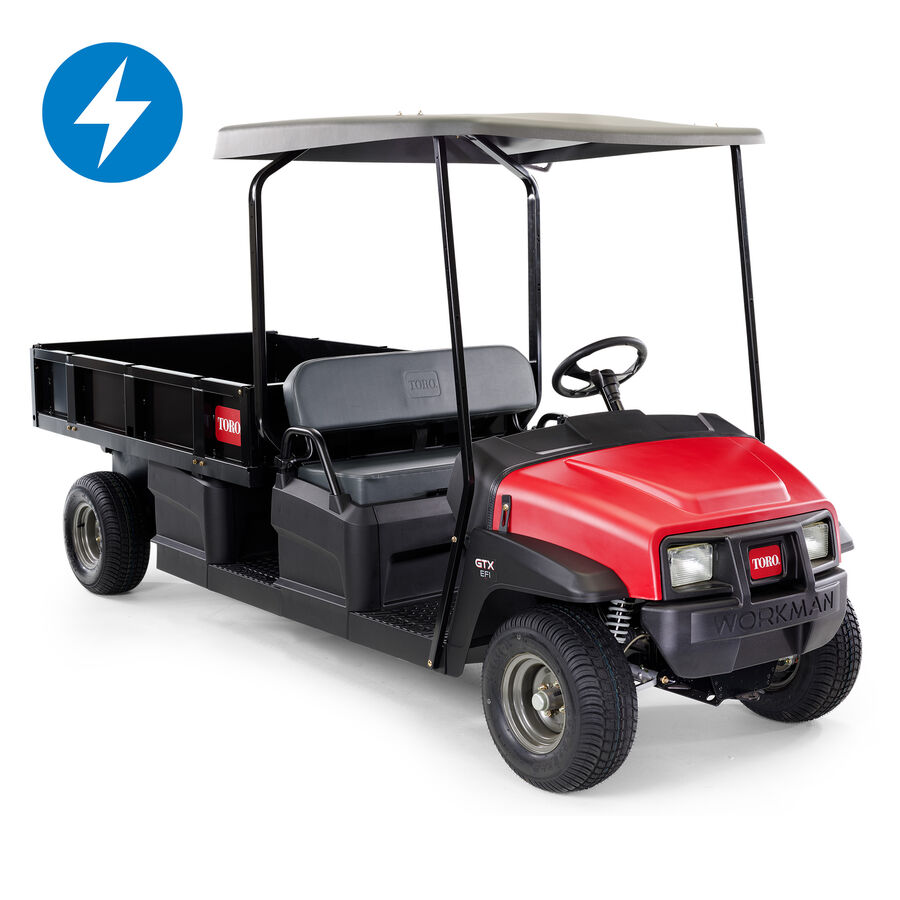

Workman® GTX Extended Utility Vehicle

  • Model: 07412EX
See All Items in Workman® GTX Series
  • Additional 3" (7.6cm) of increased ground clearance, and stylish turf friendly tires with modern aluminum wheels.
  • An improved power to weight ratio boosts payload capacity and productivity.
  • Ergonomically designed steering wheel and intuitive controls that make operation simple and easy.
  • Coil-over shocks on all four tires delivers greater suspension travel and adjustability resulting in a smoother ride and minimized operator fatigue.
  • Front and rear attachment points for garbage cans, hose reels or walk spreaders free up the bed for more hauling capacity.
  • Automotive-grade rack and pinion steering system provides more control and lowers steering effort.
  • Virtually unbreakable exterior components and a powder coated frame and underbody give the Workman GTX superior durability.
  • Standard USB port makes a dead battery on the job a thing of the past.
  • Reliable and consistent stopping power

Overview

The Workman® GTX Series is a grounds and turf crossover vehicle that boasts an unequalled combination of comfort, utility and control, making it simply superior to the competition. Its increased power, improved steering and exclusive suspension and braking systems make the Workman GTX the most versatile, practical and comfortable utility vehicle in its class.

Available in gas or electric options, the Workman GTX features hundreds of configurable options that include front and rear attachments, a flat bed and four-seat option, to name a few. So whether you are running to different jobs around the property, moving people or materials, or transporting tools to crews that need them, the Workman GTX has the power and versatility to get the job done right.


Electric = Electric Model

Features

workman-gtx-series-feature-lifted-models
Lifted Models
Workman GTX Lifted models boast and additional 3" (7.6cm) of increased ground clearance, and stylish turf friendly 22-inch (55.8 cm) turf tires with modern 12-inch (30.5 cm) aluminum wheels. Available in both EFI Gas and Lithium-Ion powertrain options.
workman-gtx-series-feature-power
Power
Whether you choose the EFI gasoline, Lithium-Ion Battery, or Lead-Acid Battery electric Workman GTX, power and performance come standard. An improved power to weight ratio boosts payload capacity and productivity. The Workman GTX is the smarter, more efficient way to get the job done!
workman-gtx-series-feature-comfort
Comfort
The deluxe bench seat features Elastomeric Vibration Control (ELC) for additional comfort in rough terrain. The GTX also features an ergonomically designed steering wheel and intuitive controls that make operation simple and easy.
workman-gtx-series-feature-suspension
Suspension
Coil-over shocks on all four tires delivers greater suspension travel and adjustability resulting in a smoother ride and minimized operator fatigue. We also made it the only vehicle in its class to feature a split frame to further increase ride comfort.
workman-gtx-series-feature-versatility
Versatility

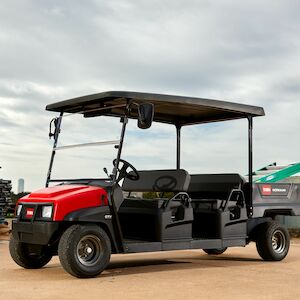

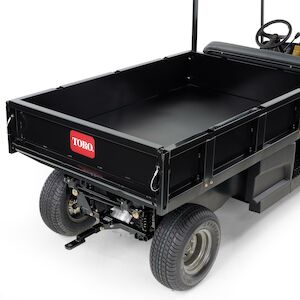

The Workman GTX is adaptable for any task. Two or four-seat configurations come with bench or bucket seats. Front and rear attachment points for garbage cans, hose reels or walk spreaders free up the bed for more hauling capacity. Steel 4 and 6-foot flat beds are also available.
workman-gtx-series-feature-control
Control
An automotive-grade rack and pinion steering system provides more control and lowers steering effort, while operating loaded or empty. This allows operators to focus on the task at hand and nothing else.
workman-gtx-series-feature-durability
Durability
Virtually unbreakable exterior components and a powder coated frame and underbody give the Workman GTX superior durability. How do we know? We pushed it to the limits with the most punishing lab tests and gave it no mercy in real-world challenges with customers. The Workman GTX has been through it all so you can run it hard, day after day with confidence.
workman-gtx-series-feature-detailing
Detailing
We didn't think of everything. You did. We just listened. Full access for service. Storage is abundant and a standard USB port makes a dead battery on the job a thing of the past.
workman-gtx-series-feature-braking
Braking
The Workman GTX features class-exclusive hydraulic disc brakes. Minimal maintenance, no cable adjustment and less pedal force than mechanical cable brakes affords the Workman GTX reliable and consistent stopping power.

Specifications

Battery Eight Trojan® T-125 Advanced Deep Cycle 6V batteries featuring a single port fill system and water level indicators.
Brakes - Front Hydraulic Disc
Brakes - Rear Hydraulic disc
Cargo Capacity 800 lbs. (363 kg)
Charger On-board high efficiency 1kW smart charger with 85-265VAC global input, temperature controlled, sealed & waterproof, remote indicator viewable at charge port
Controller 540 amps max with regenerative motor braking, roll-away protection, thermal cutback, sealed/waterproof, status light, and three power modes
Crated Model No
Drivetrain Battery
Electric Motor Brushless high-torque AC induction motor with 5.0kW continuous power
Fuel / Power Source Battery
Gauges/Instrumentation Hour meter, battery level indicator, USB port, headlight switch, on/off ignition key switch, gear selector and parking brake lever. Two cup holders, radio holder, and three in-dash storage compartments.
Ground Clearance Front: 9" (22.8 cm) Rear: 6" (15.2 cm)
Height 2-Seat with Bed: 50.2" (127 cm) 4-Seat with Bed: 50.2" (127 cm) 2-Seat with 6' Flat Bed: 50.2" (127 cm)
Horn Standard
Inside Turning Radius 100" (254 cm)
Lights Standard LED Headlights
Optional Accessories Canopy, windshield, flat-bed, cargo box, storage box, trash can mount, bed racking, brush guard, brake/tail/signal lights, ROPS, cab
Outside Turning Radius 31' (9.45 m)
Power Train (Engine Description) 48V brushless AC induction drive
Product Length 2-Seat with Bed: 119" (302 cm) 4-Seat with Bed: 144" (366 cm) 2-Seat with 6' Flat Bed: 156" (396 cm)
Rear Draw Bar Standard
Roll-Over Protection (ROPS) Optional
Starting Pedal Start
Steering System Description Manual rack and pinion steering system with ergonomically positioned column. Steering wheel has 2.75 turns lock-to-lock with 13.75" (35 cm) diameter.
Suspension - Front Modified MacPherson Strut, adjustable coil over shocks
Suspension - Rear Articulating swing arm, adjustable coil over shocks
Tires - Front 20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
Tires - Rear 20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
Total Vehicle Capacity 1,200 lbs. (544 kg)
Towing Capacity 680 lbs. (1500 kg)
Traction Drive (System) 2WD
Vehicle Configuration Extended
Vehicle Type Light Duty
Weight 2-Seat with Bed: 1,395 lbs. (633 kg) 4-Seat with Bed: 1,670 lbs. (757 kg) 2-Seat with 6' Flat Bed: 1,784 lbs. (809 kg)
Wheelbase 2-Seat with Bed: 77.8" (197 cm) 4-Seat with Bed: 114" (290 cm) 2-Seat with 6' Flat Bed: 114" (290 cm)

Accessories

Hose Reel Mount Kit
Hose Reel Mount Kit (Part # 07027)
Trash Can Mount
Trash Can Mount (Part # 07028)
Bed Racking
Bed Racking (Part # 07031)
Toro Genuine Parts Logo
ROPS Kit (Part # 07032)
Plastic Cargo Bed
Plastic Cargo Bed (Part # 07046)
Bench Seat Kit
Bench Seat Kit (Part # 07047)
Bucket Seat Kit
Bucket Seat Kit (Part # 07048)
Toro Genuine Parts Logo
Extension Kit (Part # 07049)
Fold Down Rear Facing Seat
Fold Down Rear Facing Seat (Part # 07123)
Canopy (4-Passenger)
Canopy (4-Passenger) (Part # 07141)
ROPS Certified Cab
ROPS Certified Cab (Part # 07142)
Electric Lift Kit
Electric Lift Kit (Part # 07143)
Brush Guard
Brush Guard (Part # 07145)
Front Receiver for Brush Guard
Front Receiver for Brush Guard (Part # 07146)
Toro Genuine Parts Logo
Front Receiver Without Brush Guard (Part # 07147)
6 ft / 1.8 m Flat Bed
6 ft / 1.8 m Flat Bed (Part # 07149)
Under Hood Storage Kit
Under Hood Storage Kit (Part # 07156)
L-Track Kit
L-Track Kit (Part # 07158)
Range Cage
Range Cage (Part # 07161)
Electric Lift Kit (6 ft Bed)
Electric Lift Kit (6 ft Bed) (Part # 07168)
Canopy With ROPS
Canopy With ROPS (Part # 07169)
Flatbed Solid Side Kit
Flatbed Solid Side Kit (Part # 07180)
Toro Genuine Parts Logo
Flatbed Fold-Down Side Rail Kit (Part # 07181)
Steel Bed Rear Attachment Receiver
Steel Bed Rear Attachment Receiver (Part # 07186)
Toro Genuine Parts Logo
Canopy Mount Kit (Part # 07199)
Van Box
Van Box (Part # 07440)
Toro Genuine Parts Logo
Full Shelf For Van Box (Part # 07441)
Steel Cargo Bed Base
Steel Cargo Bed Base (Part # 07450)
Solid Side Steel Cargo Bed
Solid Side Steel Cargo Bed (Part # 07451)
2-Person Canopy
2-Person Canopy (Part # 07921)
Toro Genuine Parts Logo
4-Person Canopy (Part # 07922)
Windshield For Canopy
Windshield For Canopy (Part # 07923)
Toro Genuine Parts Logo
Side Bed Racking (Part # 08148)
Image Not Found
TIRE-20 8.00-10 (Part # 116-7333)
Exterior Mirror Kit
Exterior Mirror Kit (Part # 130-5448)
Toro Genuine Parts Logo
Interior Mirror Kit (Part # 130-5449)
Beacon Kit
Beacon Kit (Part # 130-5484)
Work Lights Kit
Work Lights Kit (Part # 130-5485)
Toro Genuine Parts Logo
Washer Fluid Kit (Part # 130-5615)
Seat Cover, Small
Seat Cover, Small (Part # 131-6690)
Genuine OEM Part 131-8319
20.5 Inch Tire & Wheel Assembly (Part # 131-8319)
Toro Genuine Parts Logo
Hand Pump Hose (Part # 131-8522)
Toro Genuine Parts Logo
Reverse Alarm Kit (Part # 131-8549)
Toro Genuine Parts Logo
Power Point Kit (Part # 131-8550)
Toro Genuine Parts Logo
Power Converter Kit (Part # 133-0959)
Toro Genuine Parts Logo
Wide Angle Mirror Kit (Part # 133-1009)
Toro Genuine Parts Logo
Wide Angle Mirror Kit (Part # 133-1038)
48V Horn Kit
48V Horn Kit (Part # 133-3017)
Toro Genuine Parts Logo
Radio Bracket Mount (Part # 133-7111-03)
Ram Ball Mount
Ram Ball Mount (Part # 133-7116)
Toro Genuine Parts Logo
Flat Bed Cab Mount Kit (Part # 133-7198)
Toro Genuine Parts Logo
Service Hood (Part # 133-7209)
Toro Genuine Parts Logo
Door Mount Mirror Kit (Part # 136-1997)
Small Bedrack Mount Grip Kit
Small Bedrack Mount Grip Kit (Part # 136-6311)
Large Bedrack Mount Grip Kit
Large Bedrack Mount Grip Kit (Part # 136-6312)
Toro Genuine Parts Logo
Glove Box Cover Kit (Part # 137-2883)
Toro Genuine Parts Logo
Water Deionizer (Part # 137-2884)
Toro Genuine Parts Logo
Skid Plate (Part # 137-2887-03)
Wireless Hour Meter Kit
Wireless Hour Meter Kit (Part # 139-4627)
Image Not Found
Brake and Signal LED Light Kit, Workman GTX Gasoline Utility Vehicle o (Part # 140-4785)
Toro Genuine Parts Logo
Wireless Hour Meter Kit (Part # 144-2436)
Image Not Found
LAMP KIT-HOMOLOGATION, LED (Part # 147-2798)
20 x 10 - 10 6-Ply Multi Traction C/S Tire
20 x 10 - 10 6-Ply Multi Traction C/S Tire (Part # 94-5236)

Documents

Title Documents
WorkmanGTX_Accessories_020723.pdf PDF - Brochure-en-us
WorkmanGTX_Sell_Sheet_020723.pdf PDF - Sellsheet-en-us

Parts & Manuals

Select your model year from the options below to view parts & manuals.



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
