Armrests | Standard |
---|---|
Blade Tip Speed | 18,995 ft/min / 5,789 m/min |
Box Dimension | 82 in. x 63 in. x 35 in. / 208.3 cm x 160.0 cm x 88.9 cm |
CARB Compliant | Not CARB Compliant |
Caster Tires | 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) |
Controls | Dual Wrap Around Levers |
Cup Holder | Standard |
Cutting Width | 60 in / 152 cm |
Deck Design | 60 in. (152.4 cm) IronForged™ Fabricated Deck |
Deck Material | 10 Gauge Steel |
Discharge Chute | Side |
Drive Tires | 20 in. x 10 in. (50.8 cm x 25.4 cm) |
Drive Type | Rear-Wheel Drive |
Engine | 24.5 hp** Toro Commercial V-Twin 708 cc |
Engine Brand | Toro |
Engine Displacement (cc) | 708 cc |
Engine Horsepower | 24.5 hp |

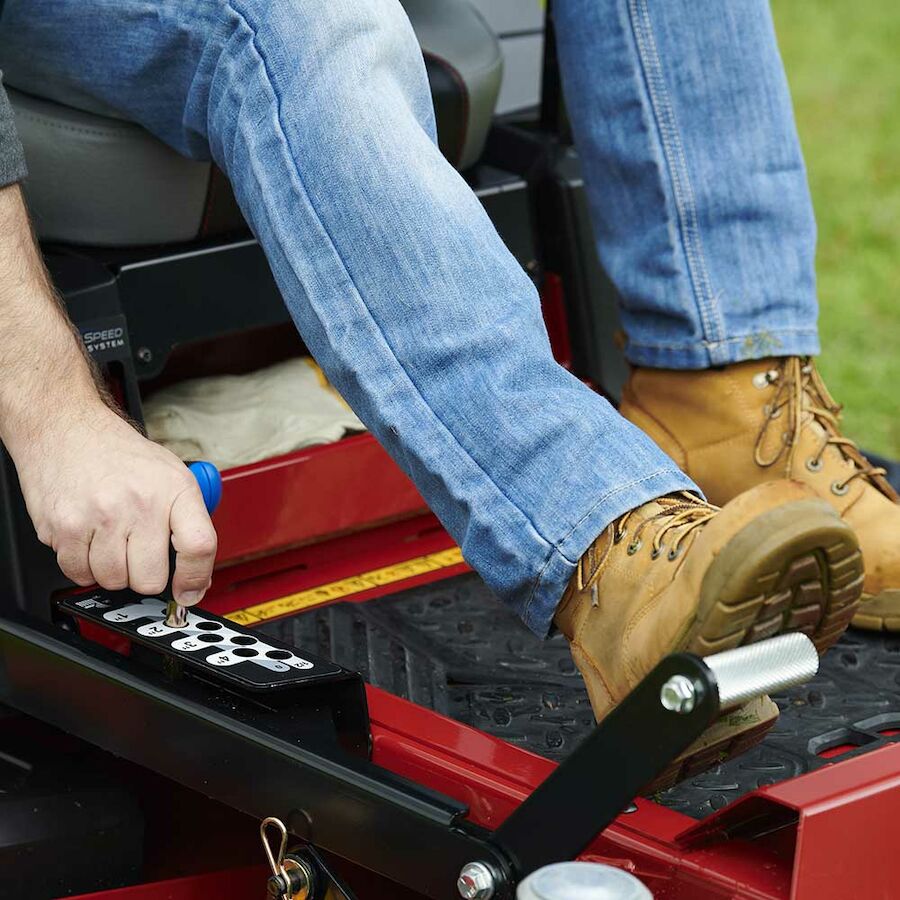

Foot Operated Height of Cut | Standard |
Forward Ground/Transport Speed | Up to 7.0 mph / 11.2 kph |
Fuel Capacity | 3 gal. / 11.4 L / 12 Qt. |
Fuel Type | Gasoline |
Height of Cut | 1.5 - 4.5 in. / 3.8 - 11.4 cm |
Hitch Bracket | Standard |
Hour Meter | Standard |
Number of Blades | 3 |
Product Features | Cup Holder, Electric Start, High Back Seat, Hitch Bracket, Hour meter, IronForged Deck, Smart Speed, Tool-less Oil Change |
Product Type | TimeCutter |
Product Use | Residential |
Recommended Oil Type | 10W-30 |
Seat | 18" Handcrafted High Back with Arm Rests - Knob Adjustment |
Start Type | Electric |
Steering Controls | Dual Wrap Around Levers |
Steering Dampeners | Pro-Control Dampers |
Terrain Type | Flat with Obstacles |
Tires | 13 in. x 6.5 in. (33 cm x 16.5 cm) Front, 20 in. x 10 in. (50.8 cm x 25.4 cm) Rear |
Tow Speed | Up to 4.0 mph / 6.4 kph |
Transmission | Dual Hydrostatic HG-ZT2800 |
Trim Speed | Up to 5.5 mph / 8.8 kph |
Washout Port | Standard |
Weight | 657 lbs / 298 kg |
Yard Size | Up to 4 acres |
Disclaimer
Title | Documents |
---|
Select your model year from the options below to view parts & manuals.
**See dealer for Warranty details.
