Professional Z Master® Serie 2000 122 cm Benzinrasenmäher 74456TE

Professional Z Master® Serie 2000 122 cm Benzinrasenmäher 74456TE

Professional Z Master® Serie 2000 122 cm Benzinrasenmäher 74456TE

Produktinformationen

  • Modellnr.: 74456TE
  • Seriennr.: 414401000 - 999999999
  • Produkttyp: Riding Products

Ein Ersatzteil in Bauteilzeichnungen suchen:

Ergebnisse anzeigen

Zeichnungstitel ET-Nr. Beschreibung
Titel



Caster Assembly
Caster Assembly
Console and Guard Assembly
Console and Guard Assembly
Deck Assembly
Deck Assembly

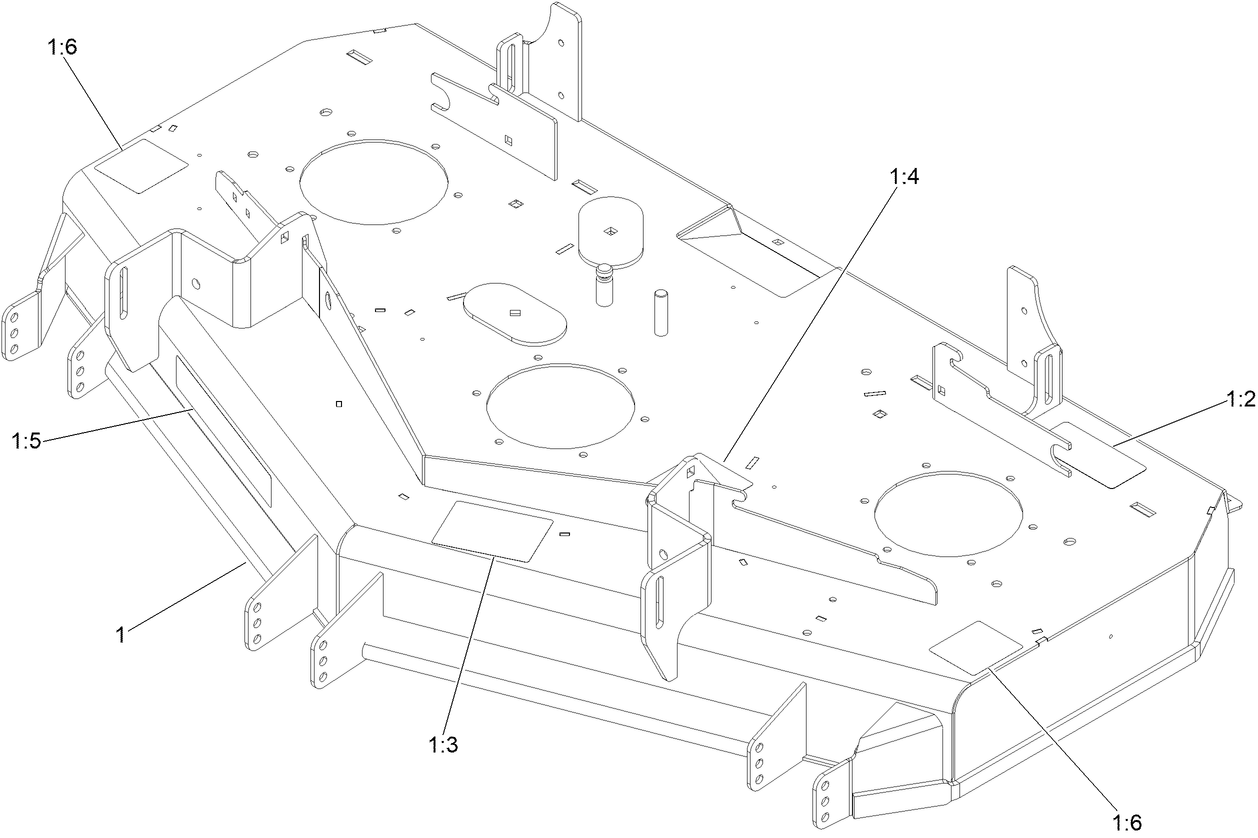

Deck Decal Assembly No. 134-4546
Deck Decal Assembly No. 134-4546

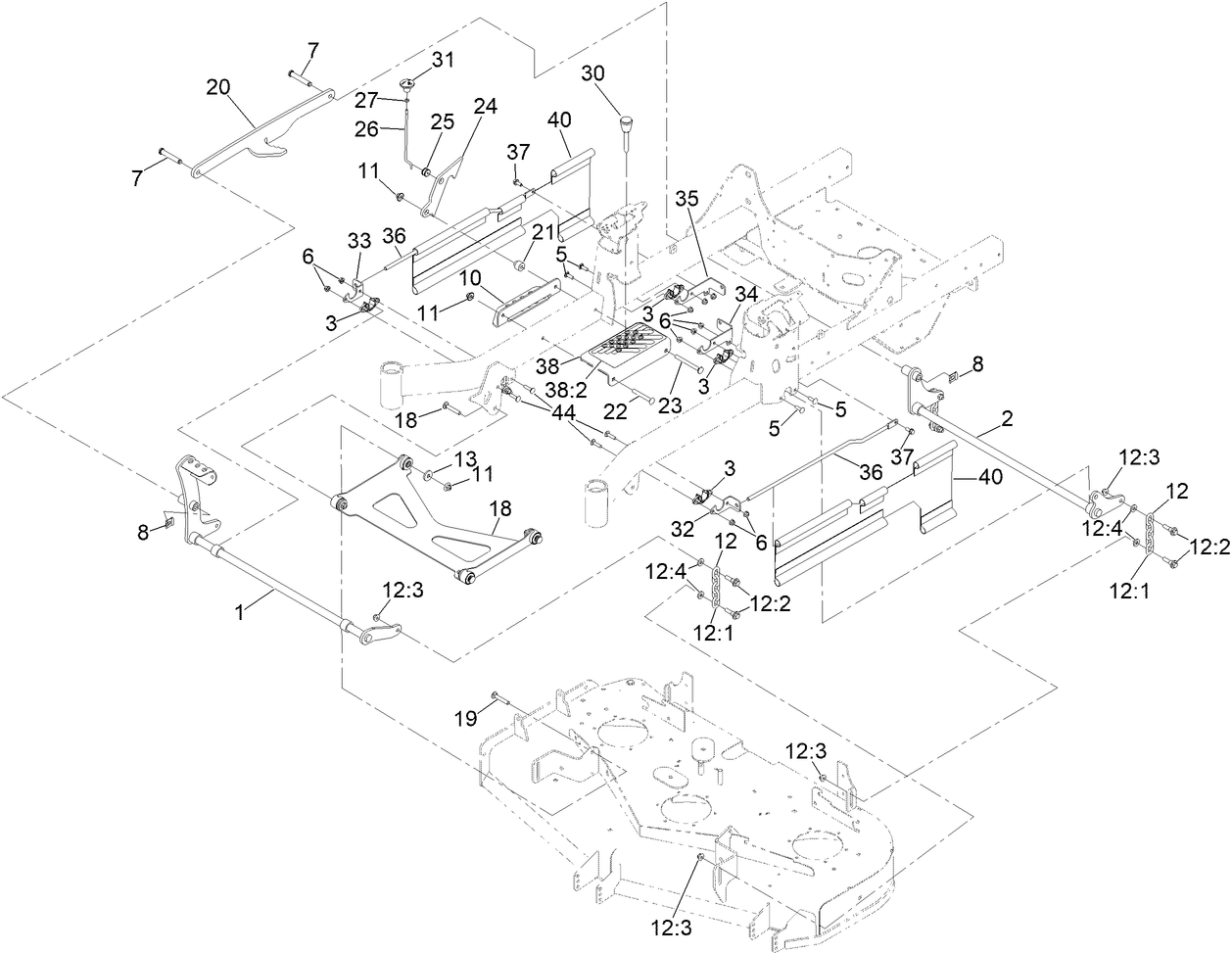

Deck Lift Assembly
Deck Lift Assembly
Deck Strut Assembly No. 126-8365
Deck Strut Assembly No. 126-8365
Electrical Assembly
Electrical Assembly
Engine, Clutch and Muffler Assembly
Engine, Clutch and Muffler Assembly
Fork and Caster Assembly
Fork and Caster Assembly
Frame and Roll-Over Protection System Assembly
Frame and Roll-Over Protection System Assembly
Fuel Assembly
Fuel Assembly
Fuel Tank Assembly No. 126-4724
Fuel Tank Assembly No. 126-4724
Harness Assembly No. 126-5803
Harness Assembly No. 126-5803
Hydraulic Drive Assembly
Hydraulic Drive Assembly
LH and RH Motion Control Assembly
LH and RH Motion Control Assembly
LH Transaxle Assembly No. 126-4882
LH Transaxle Assembly No. 126-4882

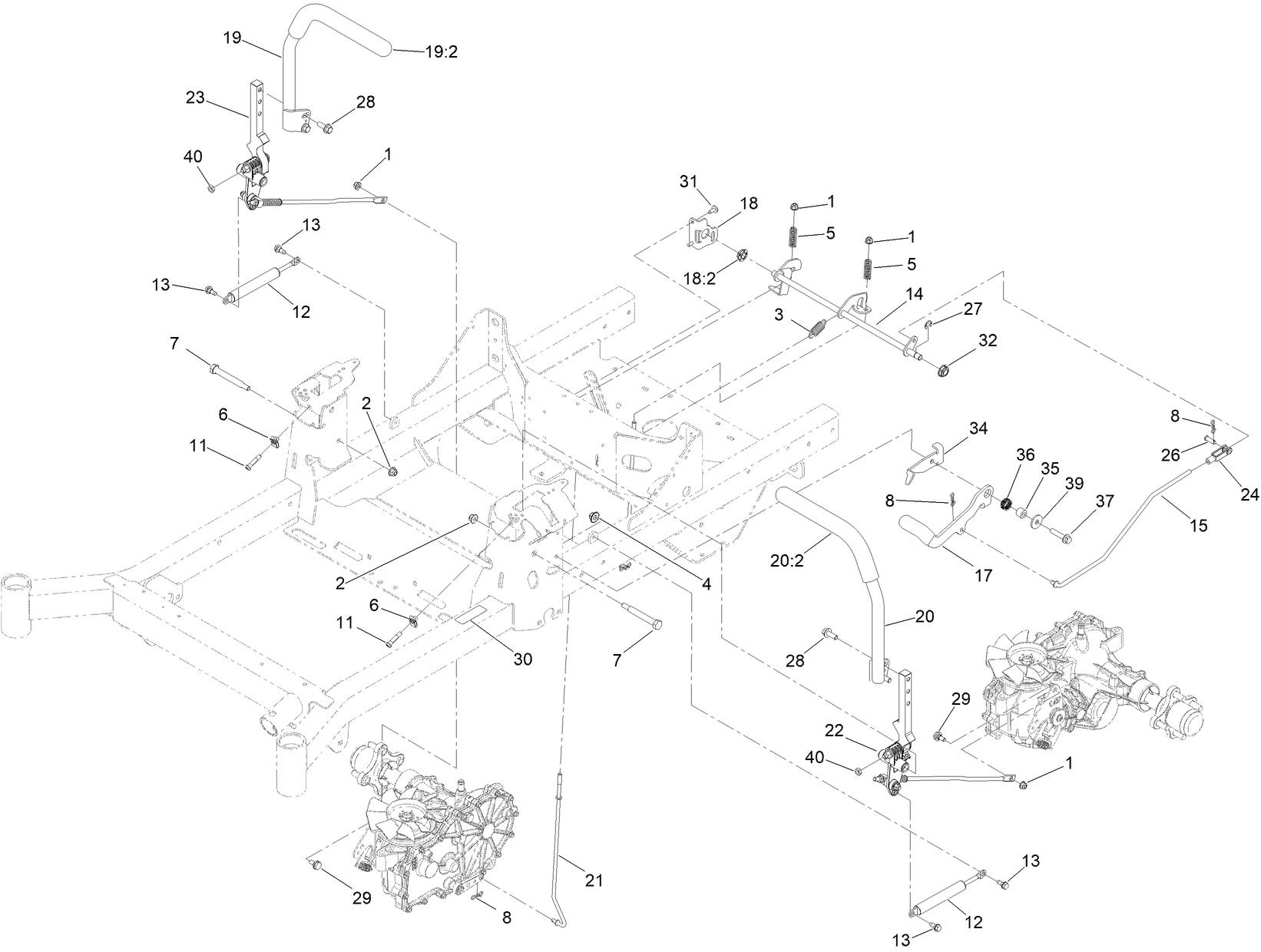

Motion Control Assembly
Motion Control Assembly
Rear Wheel Assembly
Rear Wheel Assembly
RH Transaxle Assembly No. 126-4883
RH Transaxle Assembly No. 126-4883
Roll-Over Protection System Assembly No. 136-8987
Roll-Over Protection System Assembly No. 136-8987
Seat Assembly No. 144-3771
Seat Assembly No. 144-3771

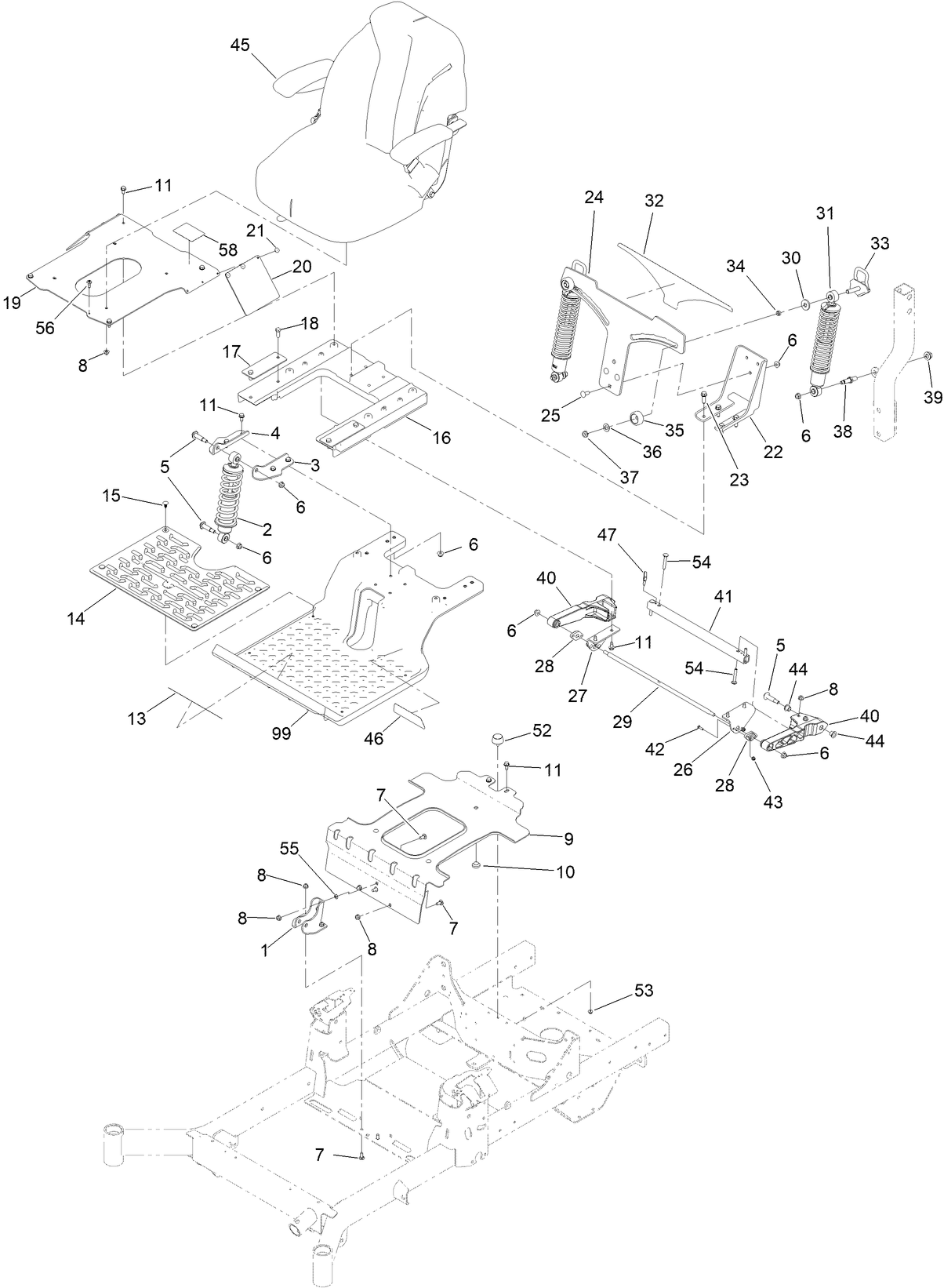

Suspension Platform and Seat Assembly
Suspension Platform and Seat Assembly
Download des Ersatzteilkatalogs
Bedienungsanleitung
Ersatzteilkatalog
Inbetriebnahmeanweisung
Produktgarantie
EU/UK-Konformitätserklärung
KIT - ROAD LIGHTS Z-MASTER 2000 (Bestellnummer 02935)
HYPR-OIL 500 -QUART (Bestellnummer 114-4713)
HYPR-OIL 500-GALLON (Bestellnummer 114-4714)
HYPR-OIL 500-5 GALLON (Bestellnummer 114-4715)
KIT-HYDRO TORO, H-G (Bestellnummer 121-3783)
PORT-POWER, 12V (Bestellnummer 126-6499)
Sunshade Kit (Bestellnummer 126-8077)
COVER-HITCH (Bestellnummer 126-8299)
Trash Container Kit, TITAN HD Riding Mower (Bestellnummer 126-8379)
KIT-CASTER WEIGHT (Bestellnummer 126-8639)
Jack Kit, Zero-Turn-Radius Side-Discharge or Rear-Discharge Riding Mow (Bestellnummer 127-6666)
KIT-ENGINE MAINT KAWASAKI FX [TORO] (Bestellnummer 133-1307)
BLADE-ROTARY, 16.5IN (HI FLOW) (Bestellnummer 133-2137)
BLADE-ROTARY, ATOMIC 16.5 (Bestellnummer 133-2160)
BLADE-ROTARY, RECYCLING 16.5IN (Bestellnummer 133-2163)
BLADE (6 PACK) 16.5IN HI FLOW 48IN DE (Bestellnummer 133-2176)
BLADE (6 PACK) 16.5IN RECYCLE 48IN DE (Bestellnummer 133-2179)
BLADE (6 PACK) 16.5IN ATOMIC 48IN DEC (Bestellnummer 133-2182)
BUCKET-5 GALLON (Bestellnummer 133-2533)
RECYLER KIT - TITAN 48 RD (Bestellnummer 134-4277)
Single Side Mirror Kit (Bestellnummer 134-8275)
ROPS Pin Kit, TITAN HD Riding Mower (Bestellnummer 136-1683)
HD Shock and Spring Kit, TimeCutter HD Riding Mower (Bestellnummer 137-2042)
Spark Arrestor
Spark Arrestor (Bestellnummer 137-8098)
ASM-SEMI PNEUMATIC 13X6.50-6 (Bestellnummer 140-4896)
Tilt Sensor-Radius (Bestellnummer 142-2802)
KIT-LIGHT (MID-MOUNT ZRT MOWER) (Bestellnummer 144-1992)
HARDTOP SUN CANOPY (Bestellnummer 144-3719)
HANDLE EXTENSION KIT (Bestellnummer 145-3615)
Bucket Mount Kit, Z Master Professional 2000 Series Riding Mower (Bestellnummer 145-3687)
Universal Mount Kit, Z Master Professional 2000 Series Riding Mower (Bestellnummer 145-3688)
Trimmer Mount Kit, Z Master Professional 2000 Series Riding Mower (Bestellnummer 145-3689)
KIT-TITAN HD TRIPLE THREAT ATTACHMENT (Bestellnummer 145-3691)
Toro Deluxe Z Cover (Bestellnummer 490-7319)

Modellnr.

74456TE

Seriennr.

414401000 - 999999999

Produktname

Professional Z Master® Serie 2000 122 cm Benzinrasenmäher 74456TE

Produktmarke

Toro

Produkttyp

Riding Products

Chassistyp

ZRT - LCE

Arbeitsbreite

122cm

Auswurf

Rear

Motor/Motorhersteller

Kawasaki

Motor/Motorgröße

726cc

Motor/Motortyp

4 Cycle

Anlasser

Electric

Getriebetyp

Hydrostatic

Getriebetyp

Rear WD
