GrandStand® 91 cm Stand-on Mower - Side Discharge
GrandStand® 91 cm Stand-on Mower - Side Discharge
Product Information
- Model number: 74534TE
- Serial number: 311000001 - 311999999
- Product Type: Riding Products

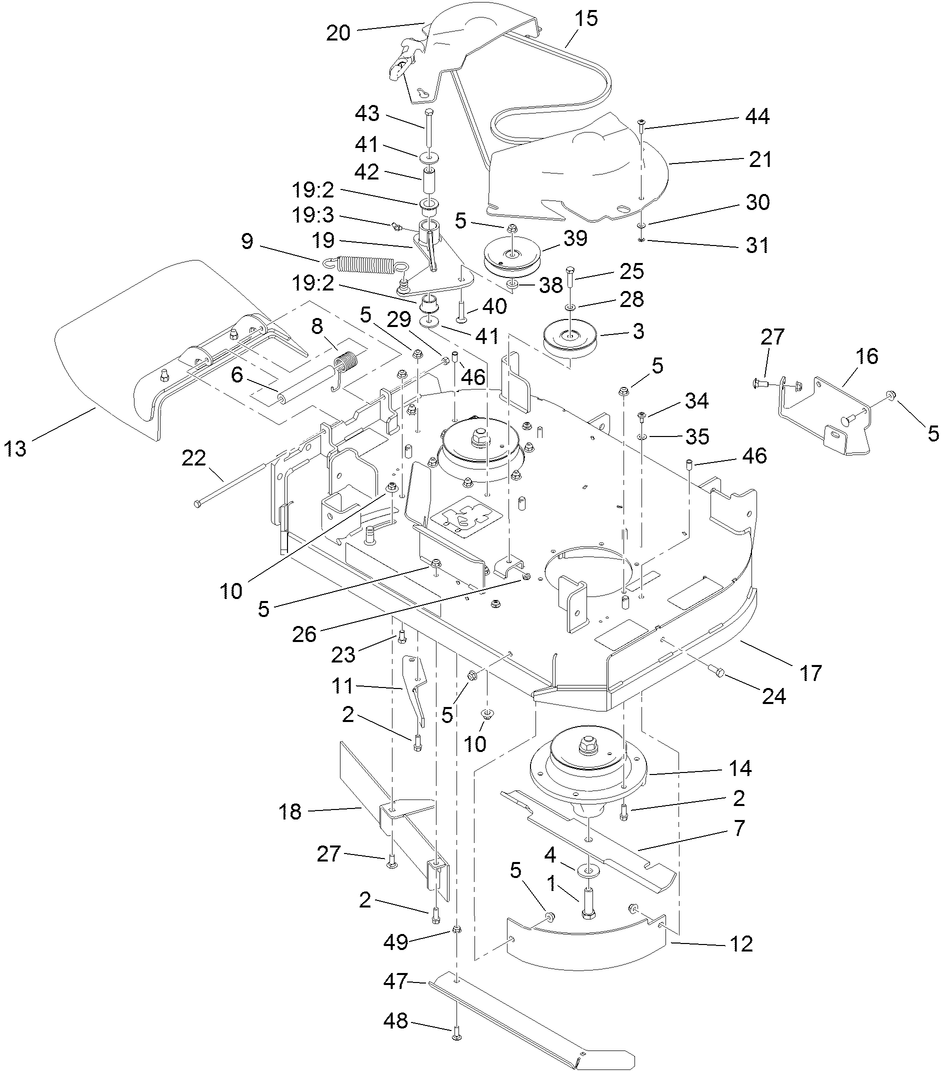

Search for a part within assembly drawings:
Showing Results
| Drawing Title | Part Number | Description |
|---|---|---|
| Title |
Model number
74534TE
Serial number
311000001 - 311999999
Product Name
GrandStand® 91 cm Stand-on Mower - Side Discharge
Product Brand
Toro
Product Type
Riding Products
Product Series
Professional Grade Stand-on Mowers
Chassis Type
Stand On
Swath
91cm
Discharge
Side
Engine/Motor Manufacturer
Kawasaki
Engine/Motor Size
18 hp
Engine/Motor Type
4 Cycle
Engine Starter
Electric
Transmission Type
Hydrostatic
Traction Type
2wd
Engine: Battery
12V 300CCA
Engine: Spark Plug
NGK BPR4ES
Engine: Spark Plug Gap
.030"/ .76mm
Engine: Ignition Coil Air Gap
.008-.016" / .2-.4mm
Engine: Engine Oil Type
1.8 qt (1.7L) 10w-30 engine oil API SF or higher
Engine: Engine Speed
2600±100 RPM
Drive System: Gearbox Lubricant
HYPR-OIL 500 / 15w-50 Synthetic Motor Oil
Chassis: Height of Cut Range
1" - 5" (25-127mm)
Chassis: Tire Pressure
12-14psi (83-97kPa)
Drive System: Ground Speed
Up to 8 mph
