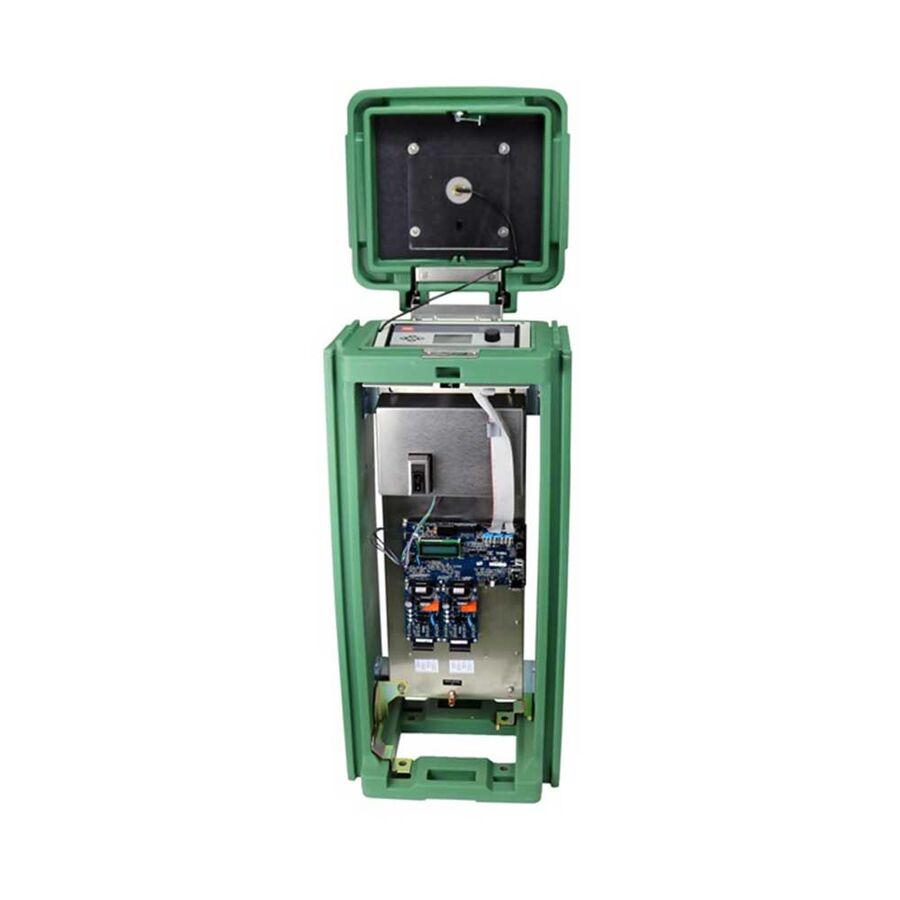

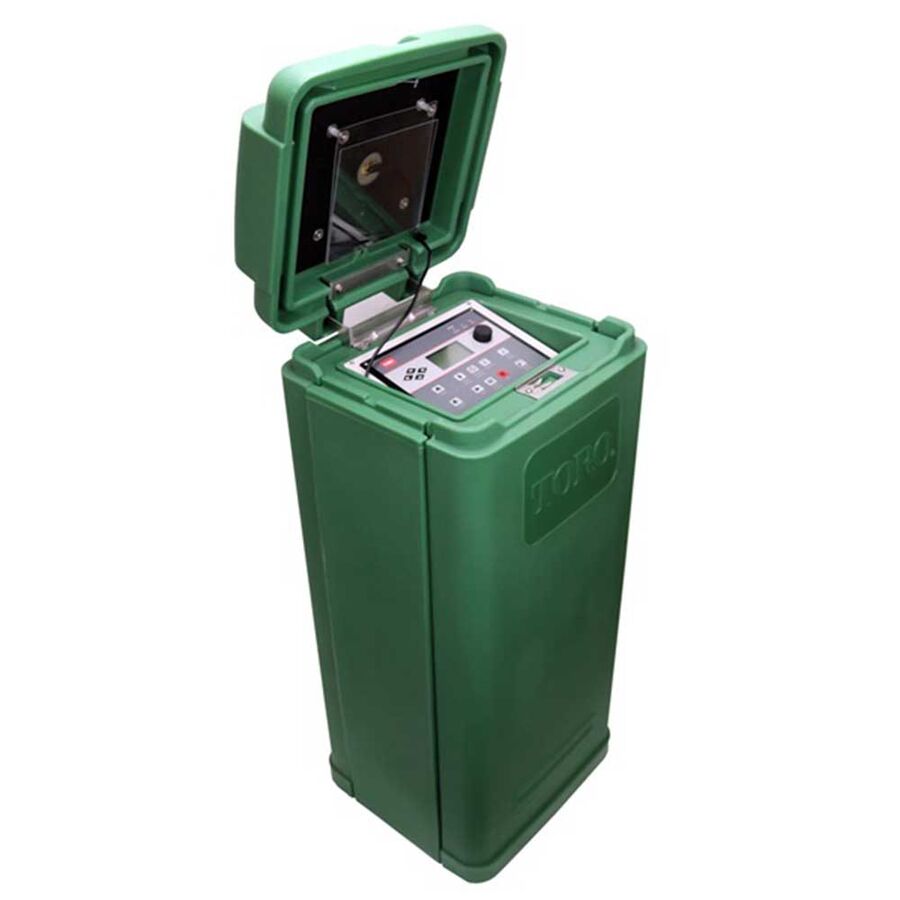

Lynx® Smart Hub

  • Model: Lynx Smart Hub
  • System can be expanded. Adds, moves and changes are easy - just plug and play allowing cost-effective upgrades.
  • Runs automatic programs
  • Two-way Communication

Overview

Lynx® Smart Hub combines the benefits of satellites and decoders and delivers intelligent simplicity. This new field controller adds the security, programmability and sensing capabilities of a satellite system to the benefits and simplicity of the Lynx® GDC 2-Wire Control System. Moreover, the Smart Hub provides flexibility to provide unique solutions to golf courses whether in colder, rainy climates or warmer, drier climates.

Features

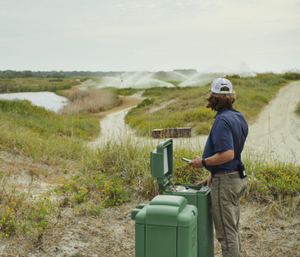

Easily Expandable
Easily Expandable
System can be expanded. Adds, moves and changes are easy - just plug and play allowing cost-effective upgrades.

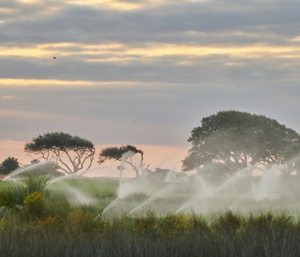

Runs automatic programs
Runs automatic programs
The Smart Hub stores and runs a fully flow-managed irrigation schedule, even if central computer is offline.
Two-way Communication
Two-way Communication
Two-way communication between the central and every sprinkler enables the addition of more SMART features. Creates a convenient connection point for soil, flow and status sensors

Specifications

Dimensions Enclosure: Plastic Pedestal: 43.2 cm W x 101.6 cm H x 40.6 cm D; Powder Coated Steel Wall Mount: 35.6 cm W x 33 cm H x 15.2 cm D
Number of Programs 64 stand-alone programs
Number of Stations 1,000 stations per Lynx Smart Hub. 5,000 stations for the entire Lynx Smart Hub system. 100 simultaneous stations per output board.
Operating Temperature 0° to 60°C
Output Power Output Voltage: 40 V AC; Output Current: 75 VA max, Class 2, SELV
Power Input Voltage: 100-240 V AC, 50/60 Hz; Input Current: 1.6 A/1.0 A (115/230)

Documents

Title Documents
200-7786_Lynx Smart Hub Brochure_GB_EMEA.pdf PDF - Brochure-en-GB



Warranty

For complete product warranty information, contact Toro Customer Service

**See dealer for Warranty details.
