Groundsmaster 3500-G Rotary Mower

Groundsmaster 3500-G Rotary Mower

Groundsmaster 3500-G Rotary Mower

Product Information

Model #: 30809
Serial #: 315000001 - 315999999
Product Type: Riding Products

Parts

Search for a part within assembly drawings:

Showing Results

Drawing Title	Part Number	Description
Title

2-Spool Control Valve Assembly

2-Spool Control Valve Assembly

2-Spool Control Valve Assembly No. 95-8581

2-Spool Control Valve Assembly No. 95-8581

Air Cleaner and Exhaust Assembly

Air Cleaner and Exhaust Assembly

Air Cleaner Assembly No. 93-2190

Air Cleaner Assembly No. 93-2190

Alternator and Pulley Assembly

Alternator and Pulley Assembly

Alternator Components Assembly

Alternator Components Assembly

Battery Assembly

Battery Assembly

Brake Assembly No. 104-7705

Brake Assembly No. 104-7705

Cam Shaft and Idle Gear Shaft Assembly

Cam Shaft and Idle Gear Shaft Assembly

Chamber, Blade and Spindle Assembly

Chamber, Blade and Spindle Assembly

Control Panel Assembly

Control Panel Assembly

Crankcase Assembly

Crankcase Assembly

Cylinder Head Assembly

Cylinder Head Assembly

Cylinder Head Cover Assembly

Cylinder Head Cover Assembly

Electronic Control Unit Assembly

Electronic Control Unit Assembly

Engine Installation Assembly

Engine Installation Assembly

Exhaust Manifold Assembly

Exhaust Manifold Assembly

Floorplate Assembly

Floorplate Assembly

Flywheel and Sensor Switch Assembly

Flywheel and Sensor Switch Assembly

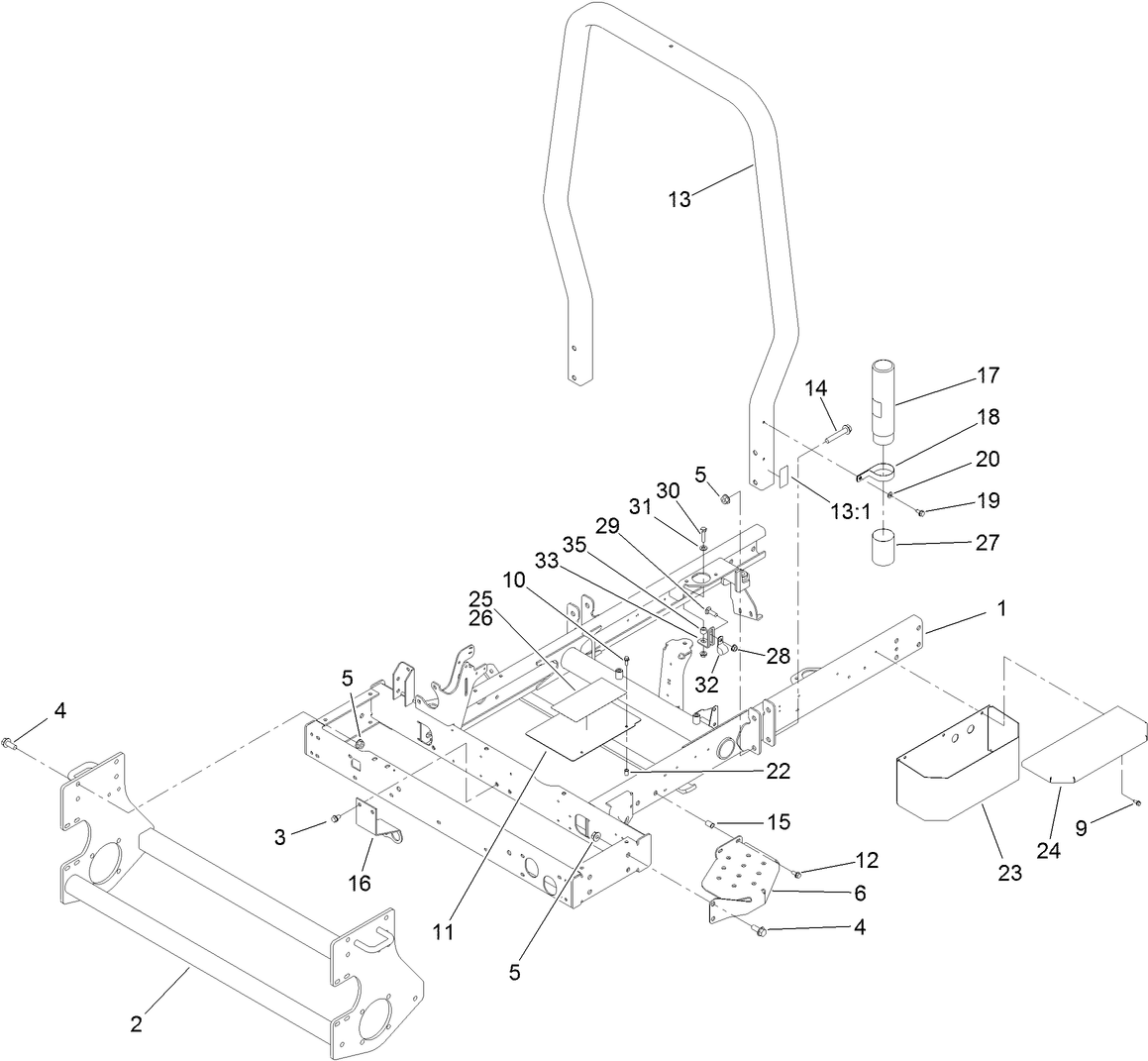

Frame and Roll-Over Protection System Assembly

Frame and Roll-Over Protection System Assembly

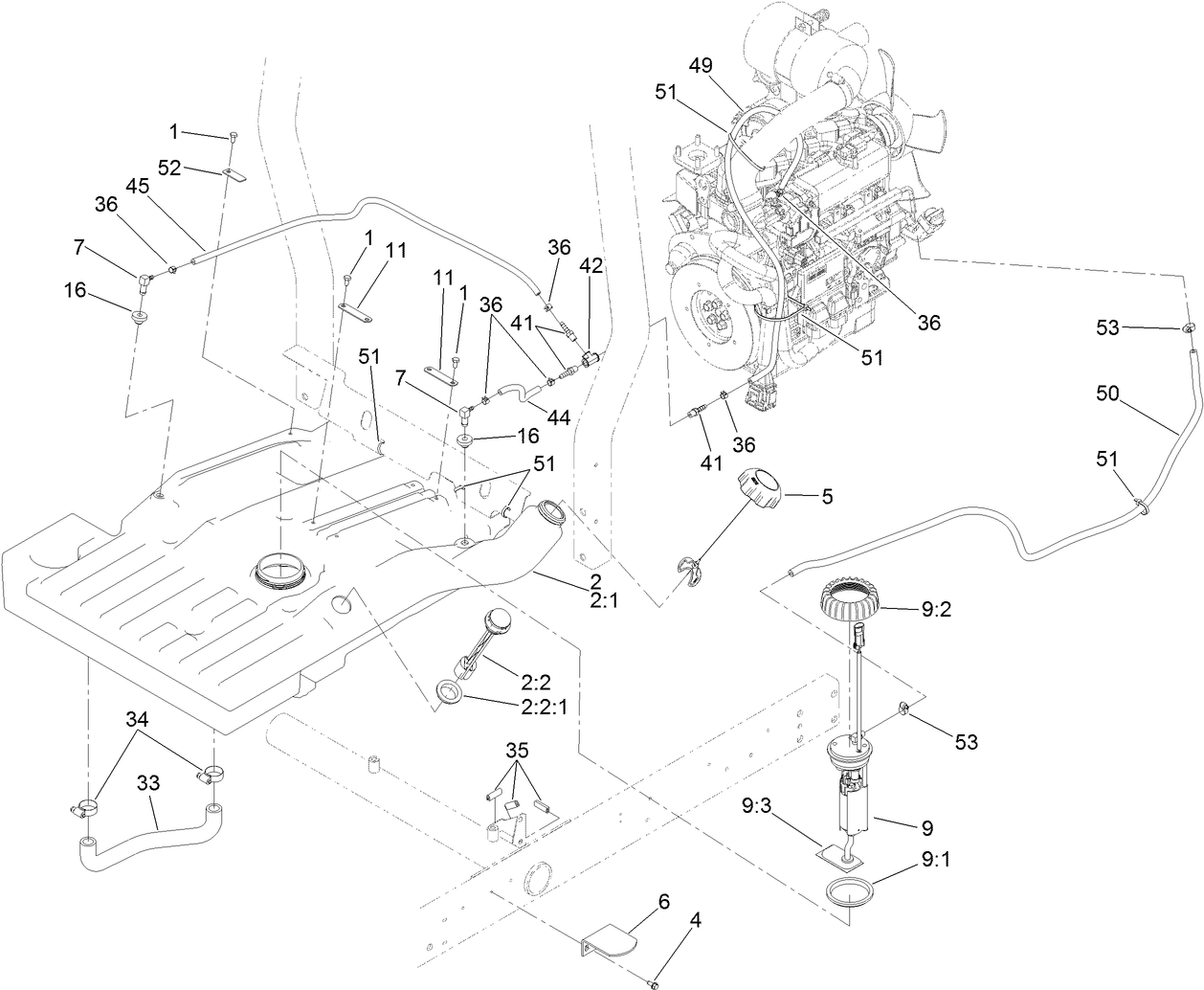

Fuel Tank Assembly

Fuel Tank Assembly

Gear Case and Oil Filter Cartridge Assembly

Gear Case and Oil Filter Cartridge Assembly

Gear Motor Assembly No. 117-5141

Gear Motor Assembly No. 117-5141

Gear Pump and Piston Pump Assembly

Gear Pump and Piston Pump Assembly

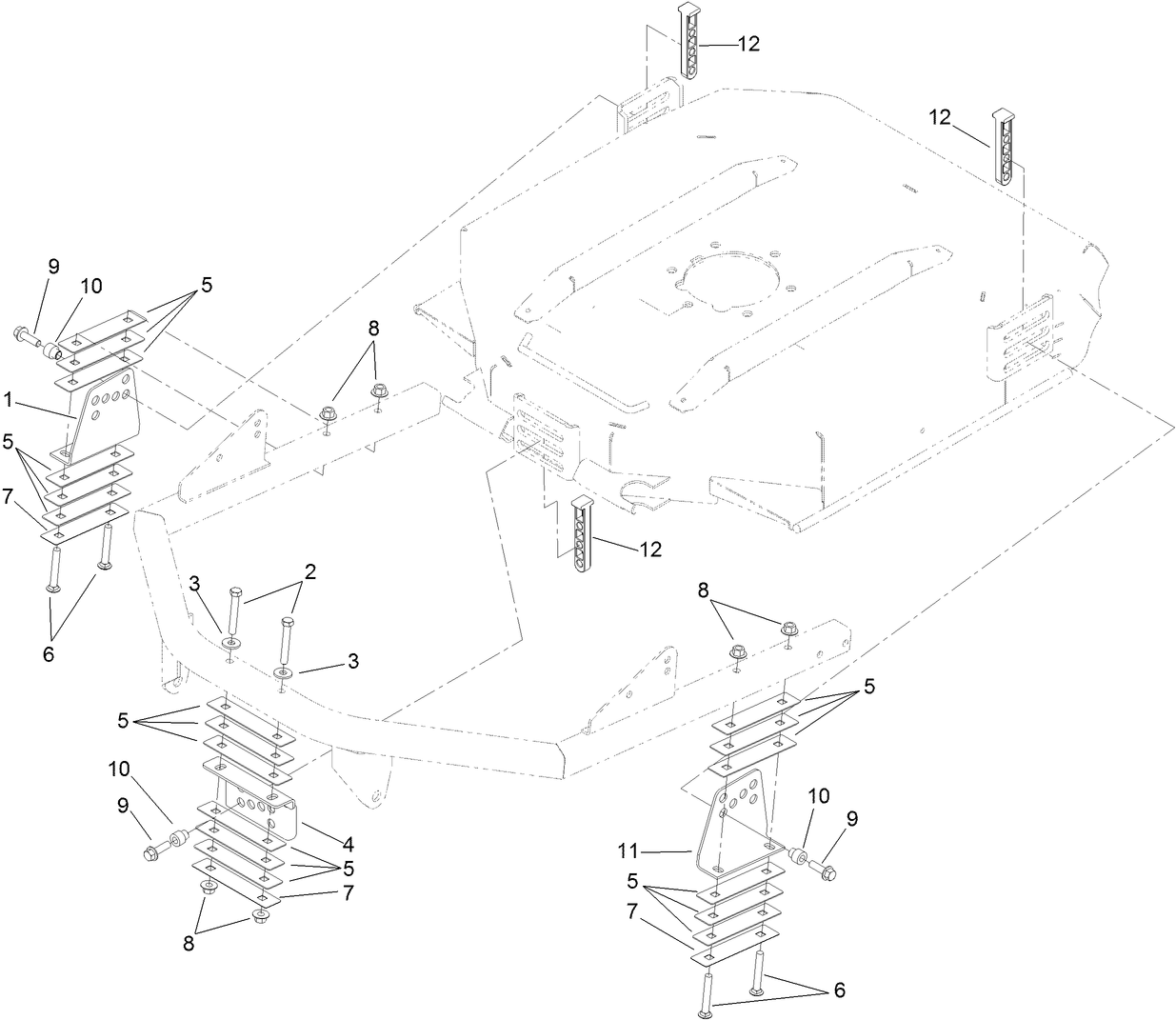

Height-of-Cut Bracket Assembly

Height-of-Cut Bracket Assembly

Hood Assembly

Hydraulic Cylinder Assembly No. 112-9916

Hydraulic Cylinder Assembly No. 112-9916

Hydraulic Cylinder Assembly No. 94-8141

Hydraulic Cylinder Assembly No. 94-8141

Hydraulic Gear Pump Assembly No. 108-9036

Hydraulic Gear Pump Assembly No. 108-9036

Hydraulic Manifold Assembly No. 121-3570

Hydraulic Manifold Assembly No. 121-3570

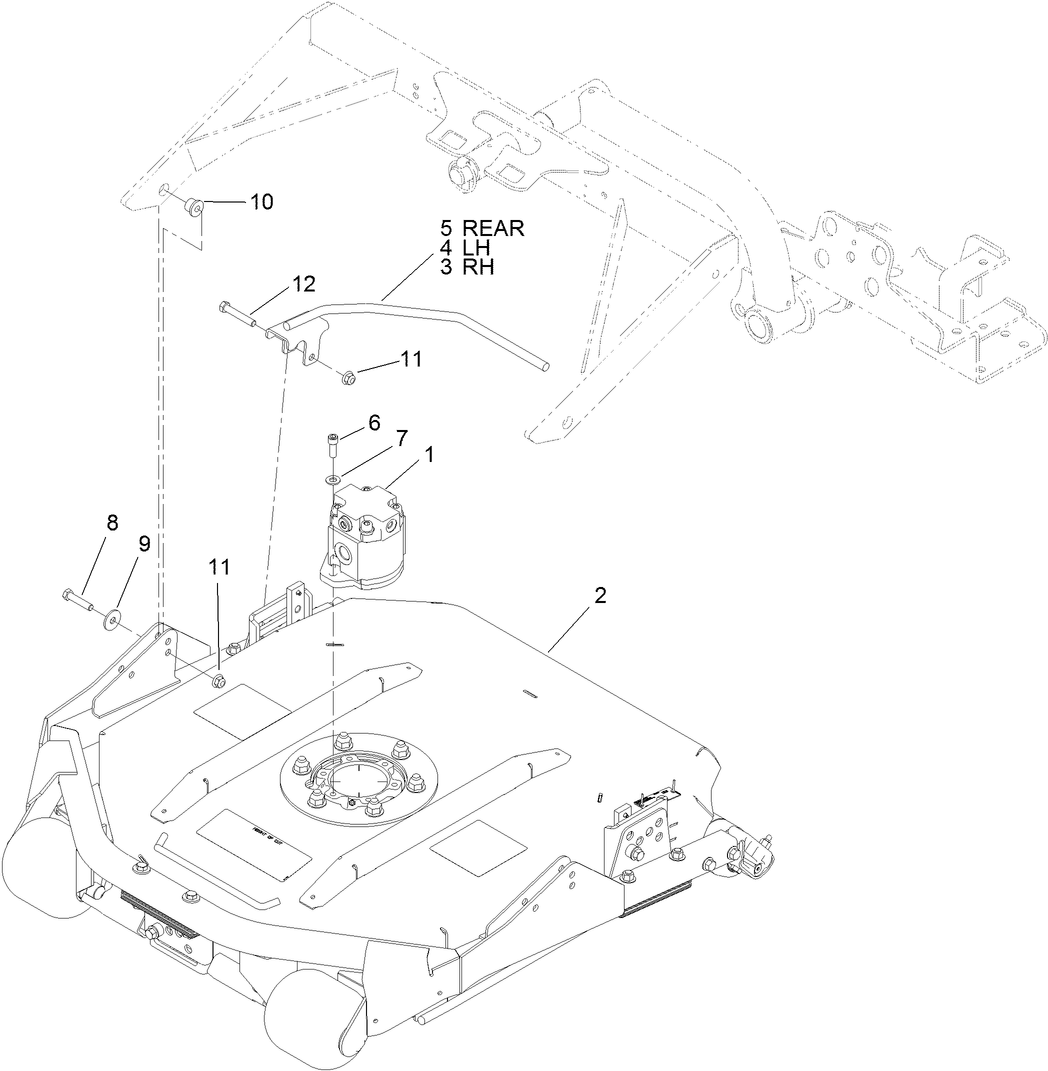

Hydraulic Motor and Cutting Unit Assembly

Hydraulic Motor and Cutting Unit Assembly

Hydraulic Motor Assembly No. 110-8785

Hydraulic Motor Assembly No. 110-8785

Hydraulic Motor Assembly No. 110-8786

Hydraulic Motor Assembly No. 110-8786

Hydraulic Motor Assembly No. 95-8694

Hydraulic Motor Assembly No. 95-8694

Hydraulic Pump Assembly No. 104-4890

Hydraulic Pump Assembly No. 104-4890

Hydraulic Tank and Filter Assembly

Hydraulic Tank and Filter Assembly

Injection and Fuel Pump Covers Assembly

Injection and Fuel Pump Covers Assembly

Inlet Manifold Assembly

Inlet Manifold Assembly

Lift Hydraulic Assembly

Lift Hydraulic Assembly

Lower Engine Gasket Kit

Lower Engine Gasket Kit

Main Bearing Case Assembly

Main Bearing Case Assembly

Mow Hydraulic Assembly

Mow Hydraulic Assembly

Neutral Arm Assembly

Neutral Arm Assembly

Oil Pan Assembly

Oil Pan Assembly

Oil Pump, Dipstick and Guide Assembly

Oil Pump, Dipstick and Guide Assembly

Operator Manual and Miscellaneous Engine Parts

Operator Manual and Miscellaneous Engine Parts

Parking Brake and Dash Cover Assembly

Parking Brake and Dash Cover Assembly

Piston and Crankshaft Assembly

Piston and Crankshaft Assembly

Radiator and Oil Cooler Assembly

Radiator and Oil Cooler Assembly

Rear Fork and Wheel Assembly

Rear Fork and Wheel Assembly

Rear Lift Arm and Carrier Frame Assembly

Rear Lift Arm and Carrier Frame Assembly

Roller and Carrier Frame Assembly

Roller and Carrier Frame Assembly

Roller Assembly No. 112-5265

Roller Assembly No. 112-5265

Scissor Frame and Link Assembly

Scissor Frame and Link Assembly

Seat Assembly

Sidewinder Carrier Assembly

Sidewinder Carrier Assembly

Sidewinder Hydraulic Assembly

Sidewinder Hydraulic Assembly

Spindle Assembly No. 115-3435

Spindle Assembly No. 115-3435

Starter Components Assembly

Starter Components Assembly

Starter Installation Assembly

Starter Installation Assembly

Steering Arm Assembly

Steering Arm Assembly

Steering Hydraulic Assembly

Steering Hydraulic Assembly

Steering Valve Assembly No. 121-7856

Steering Valve Assembly No. 121-7856

Traction Hydraulic Assembly

Traction Hydraulic Assembly

Traction Pedal Assembly

Traction Pedal Assembly

Upper Engine Gasket Kit

Upper Engine Gasket Kit

Valve and Rocker Arm Assembly

Valve and Rocker Arm Assembly

Water Flange and Thermostat Assembly

Water Flange and Thermostat Assembly

Water Pump and Cooler Fan Assembly

Water Pump and Cooler Fan Assembly

Wheel Motor and Brake Assembly

Wheel Motor and Brake Assembly

Wire Harness Assembly

Wire Harness Assembly

Download Parts Catalog

Manuals

Operator's Manual

Service Bulletin

Service Manual

Parts Catalog

Schematic Drawing - Electrical

Schematic Drawing - Hydraulic
