Groundsmaster 3500-G Rotary Mower

Groundsmaster 3500-G Rotary Mower

Groundsmaster 3500-G Rotary Mower

Product Information

Model #: 30809
Serial #: 400700001 - 402700000
Product Type: Riding Products

Parts

Search for a part within assembly drawings:

Showing Results

Drawing Title	Part Number	Description
Title

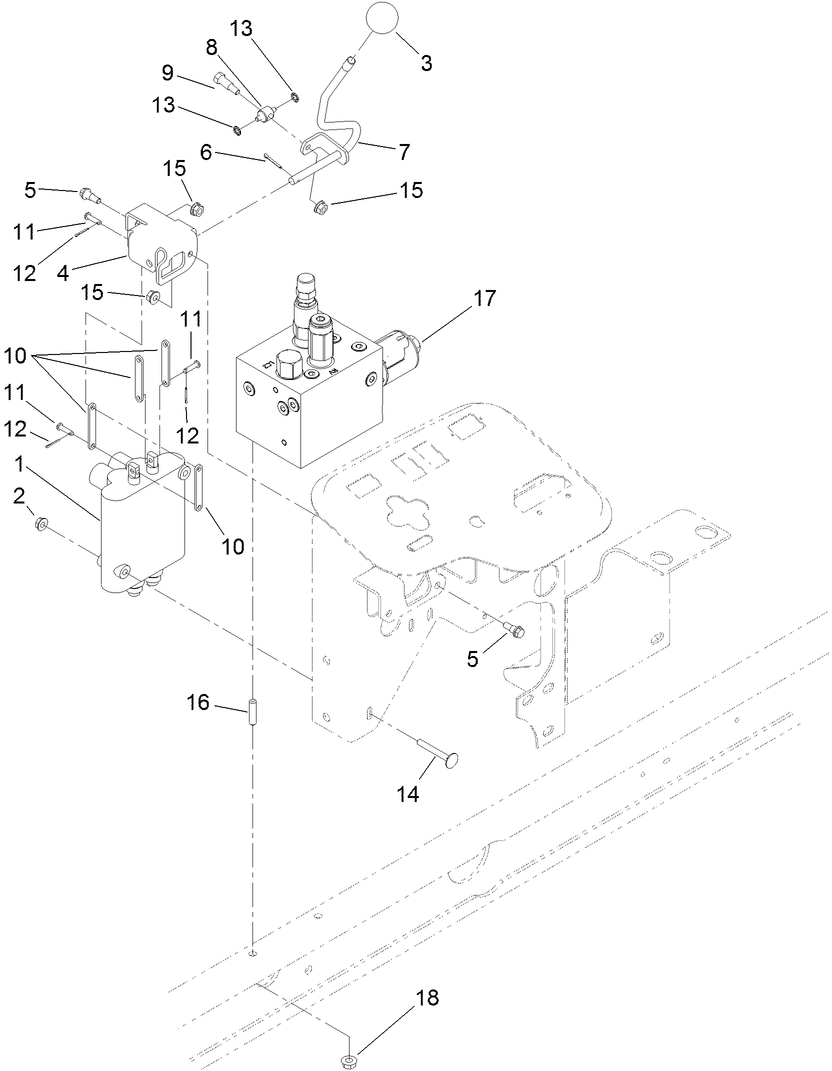

2-Spool Control Valve Assembly

2-Spool Control Valve Assembly

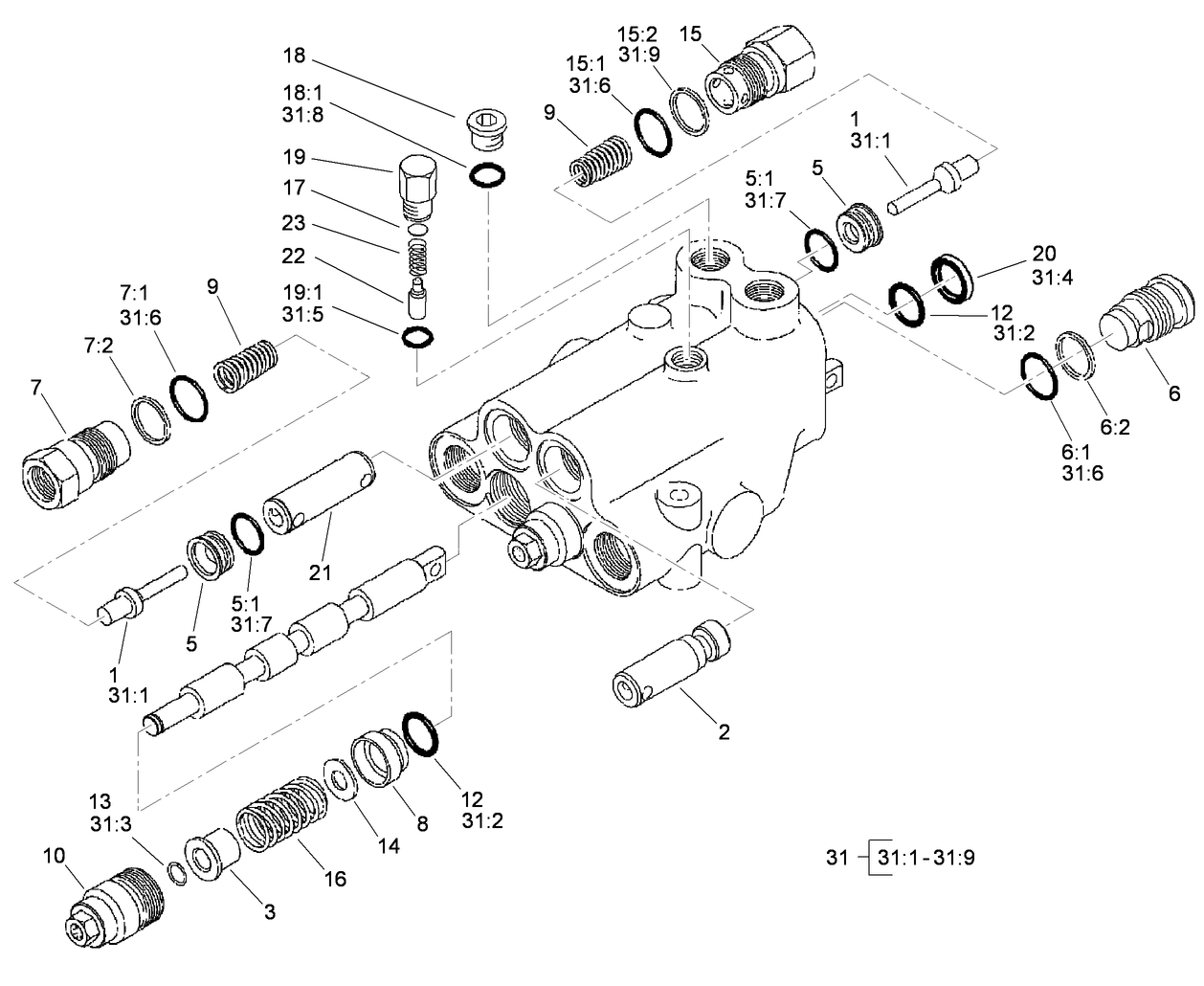

2-Spool Control Valve Assembly No. 95-8581

2-Spool Control Valve Assembly No. 95-8581

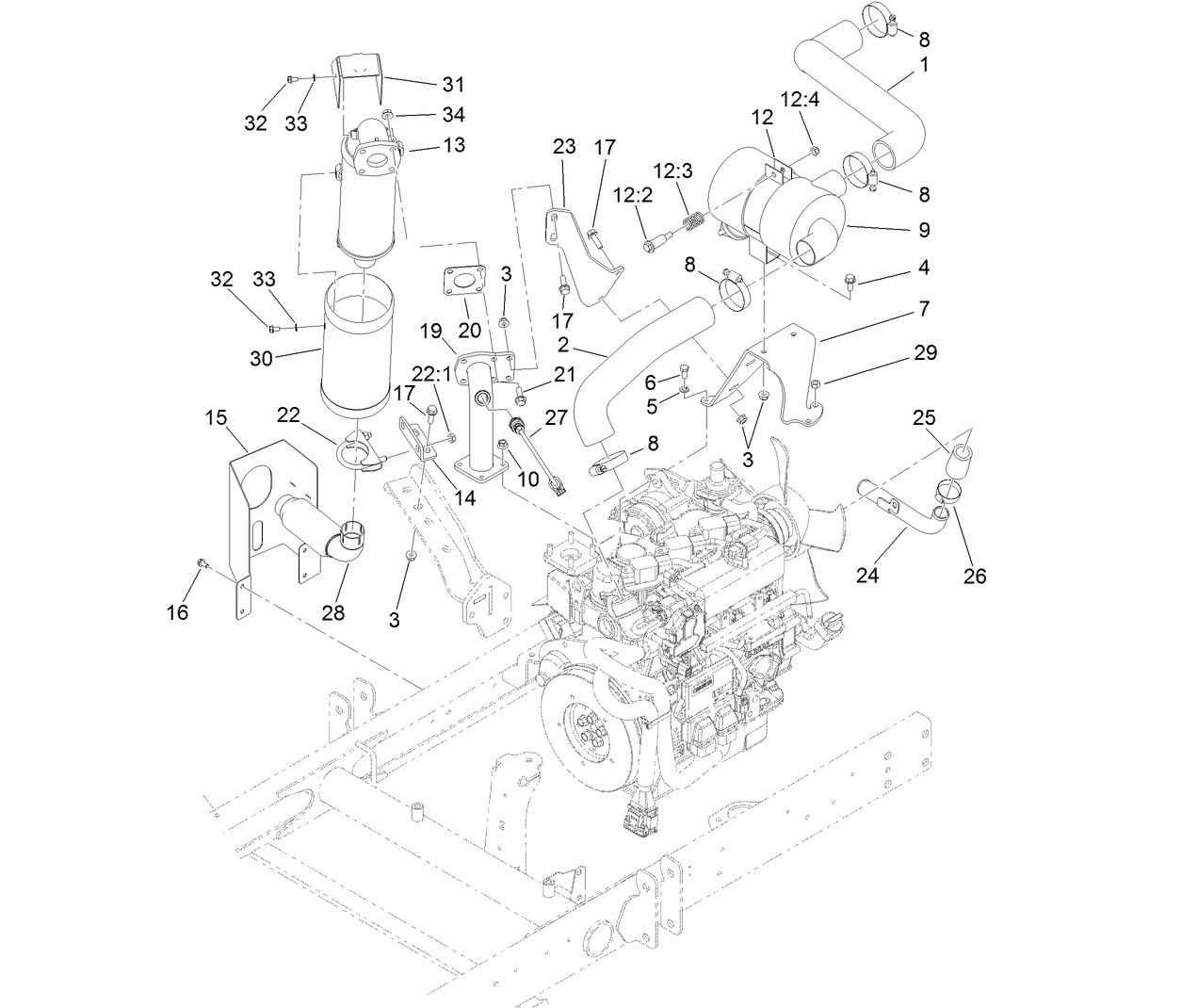

Air Cleaner and Exhaust Assembly

Air Cleaner and Exhaust Assembly

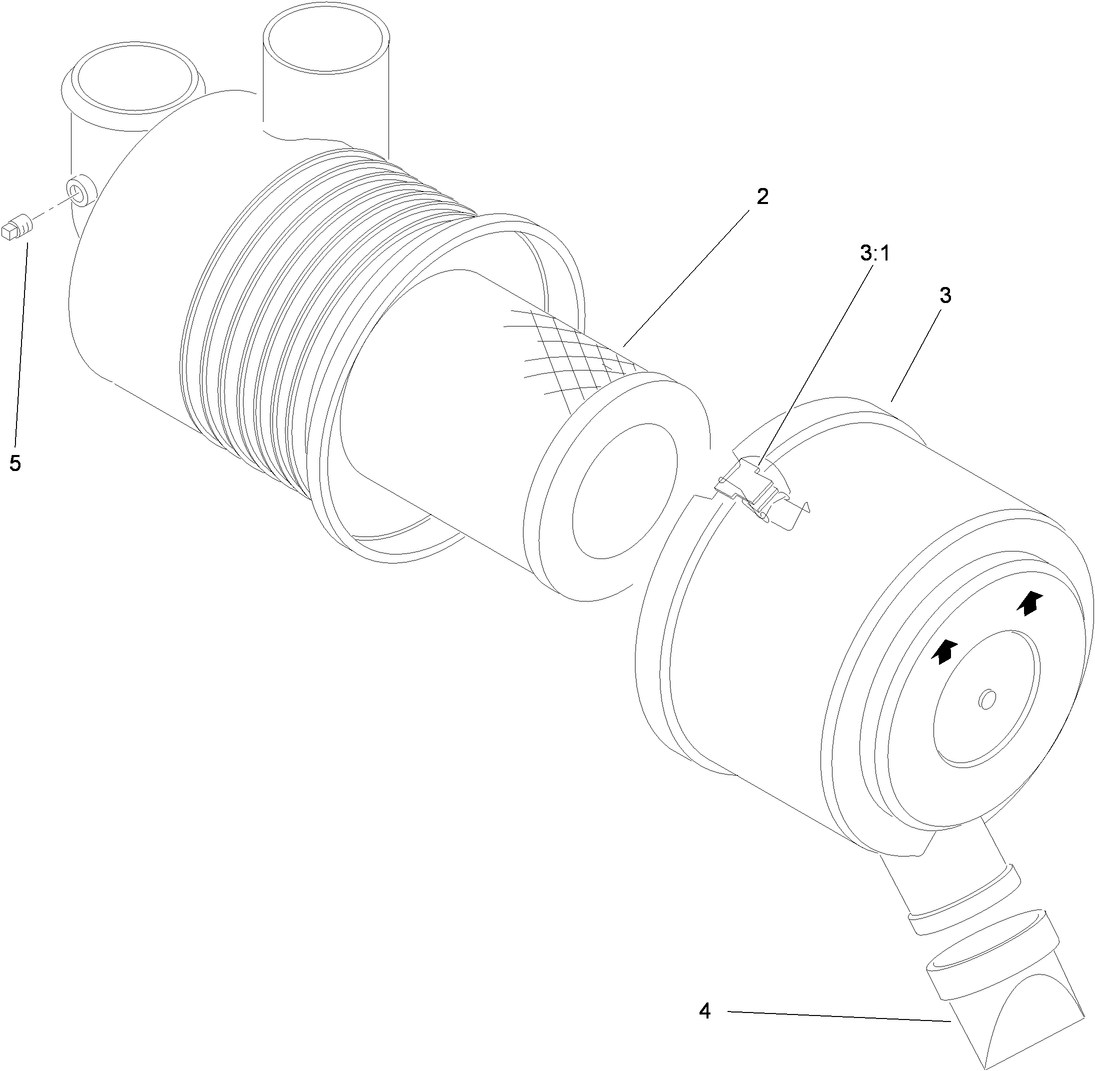

Air Cleaner Assembly No. 93-2190

Air Cleaner Assembly No. 93-2190

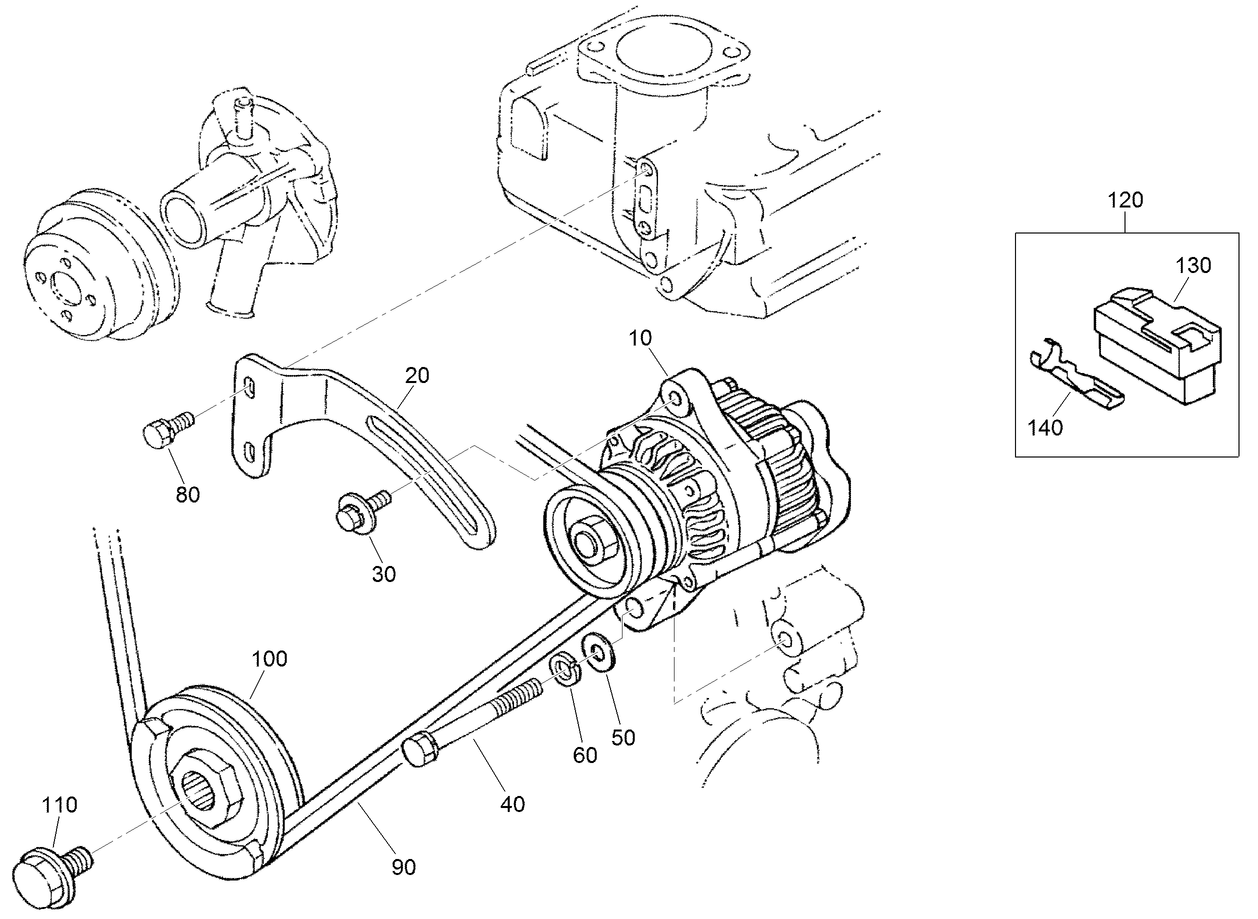

Alternator and Pulley Assembly

Alternator and Pulley Assembly

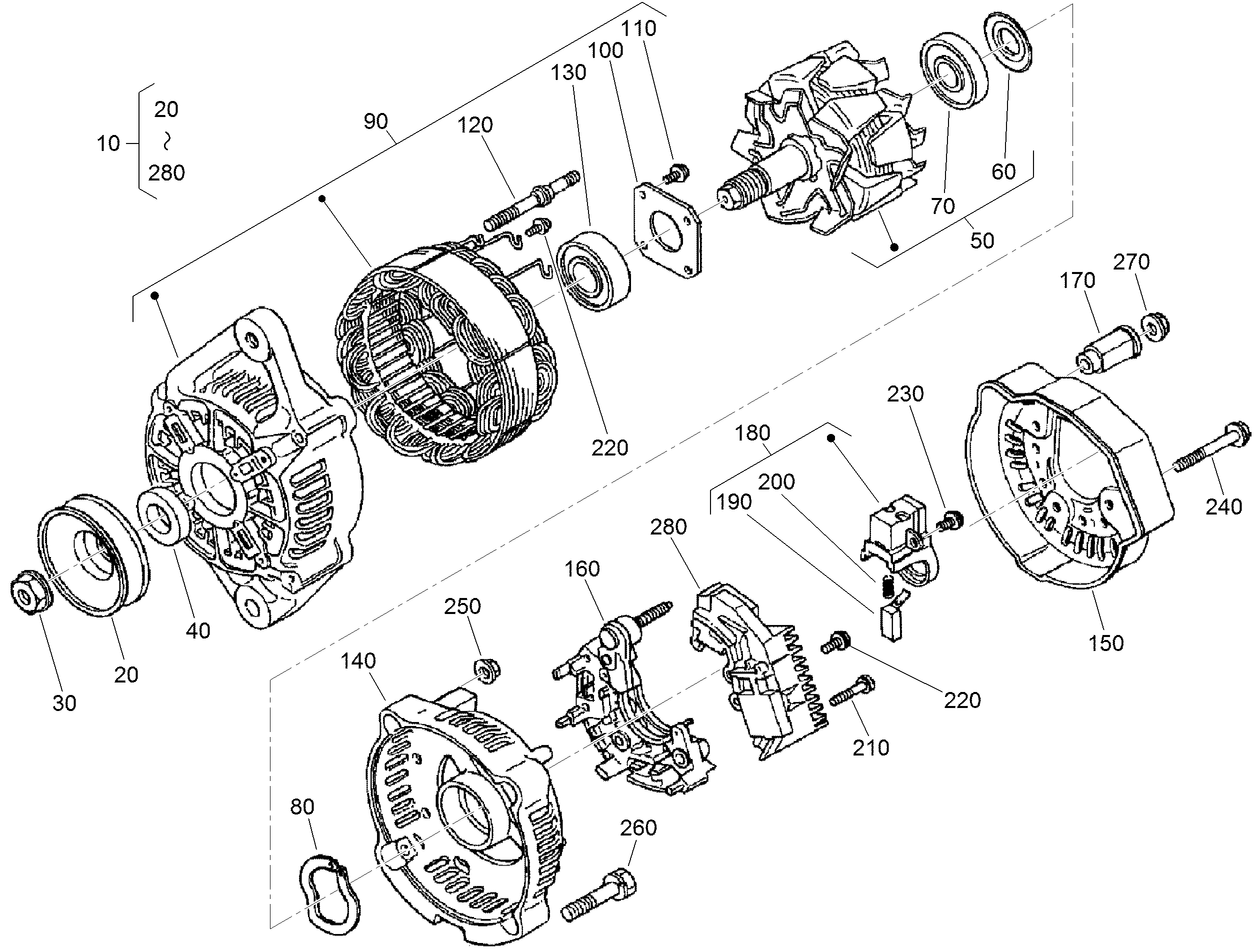

Alternator Components Assembly

Alternator Components Assembly

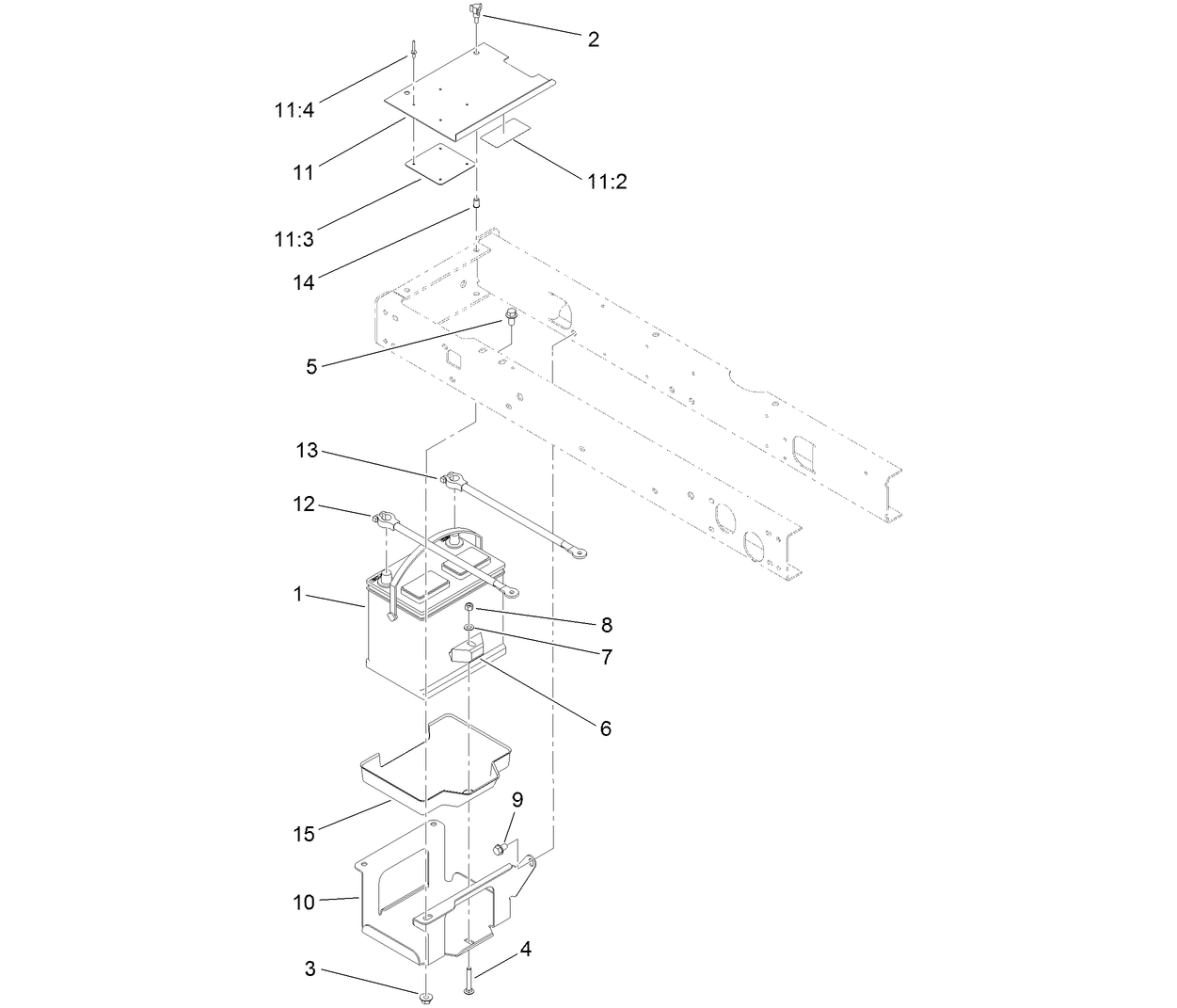

Battery Assembly

Battery Assembly

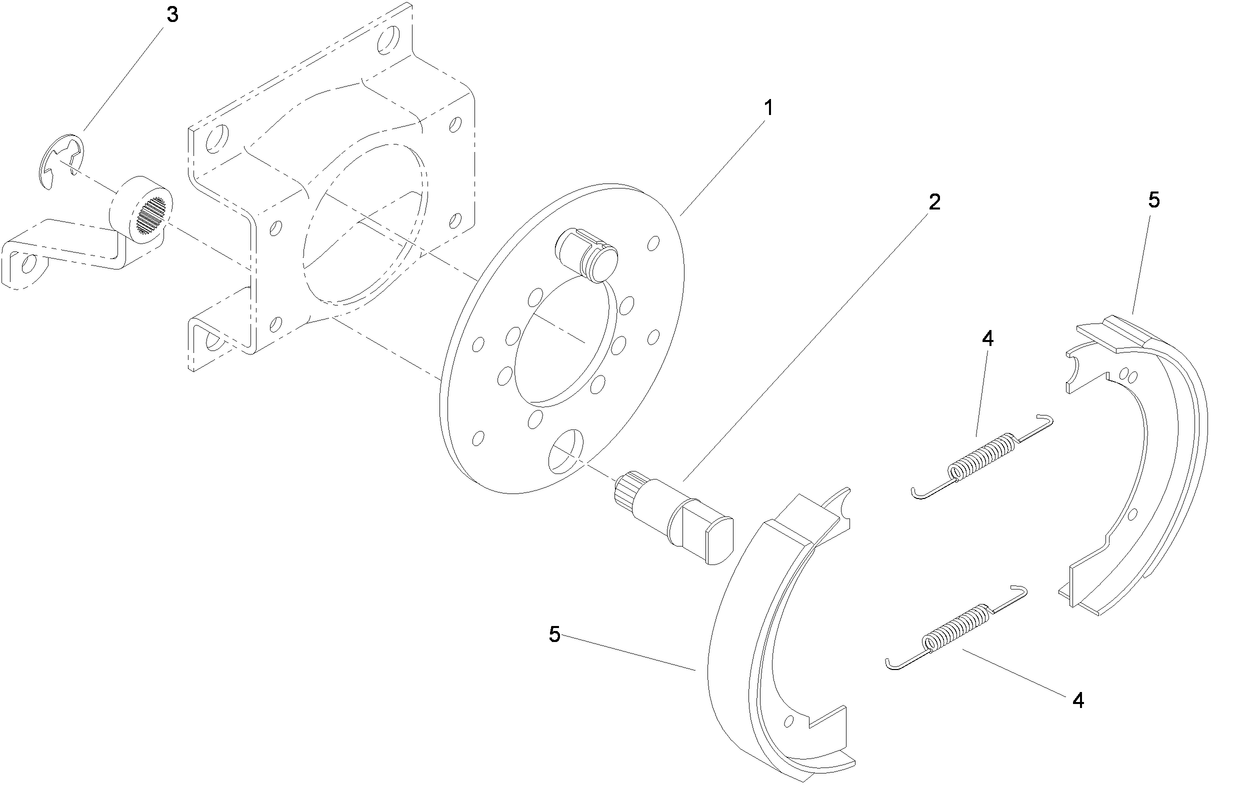

Brake Assembly No. 104-7705

Brake Assembly No. 104-7705

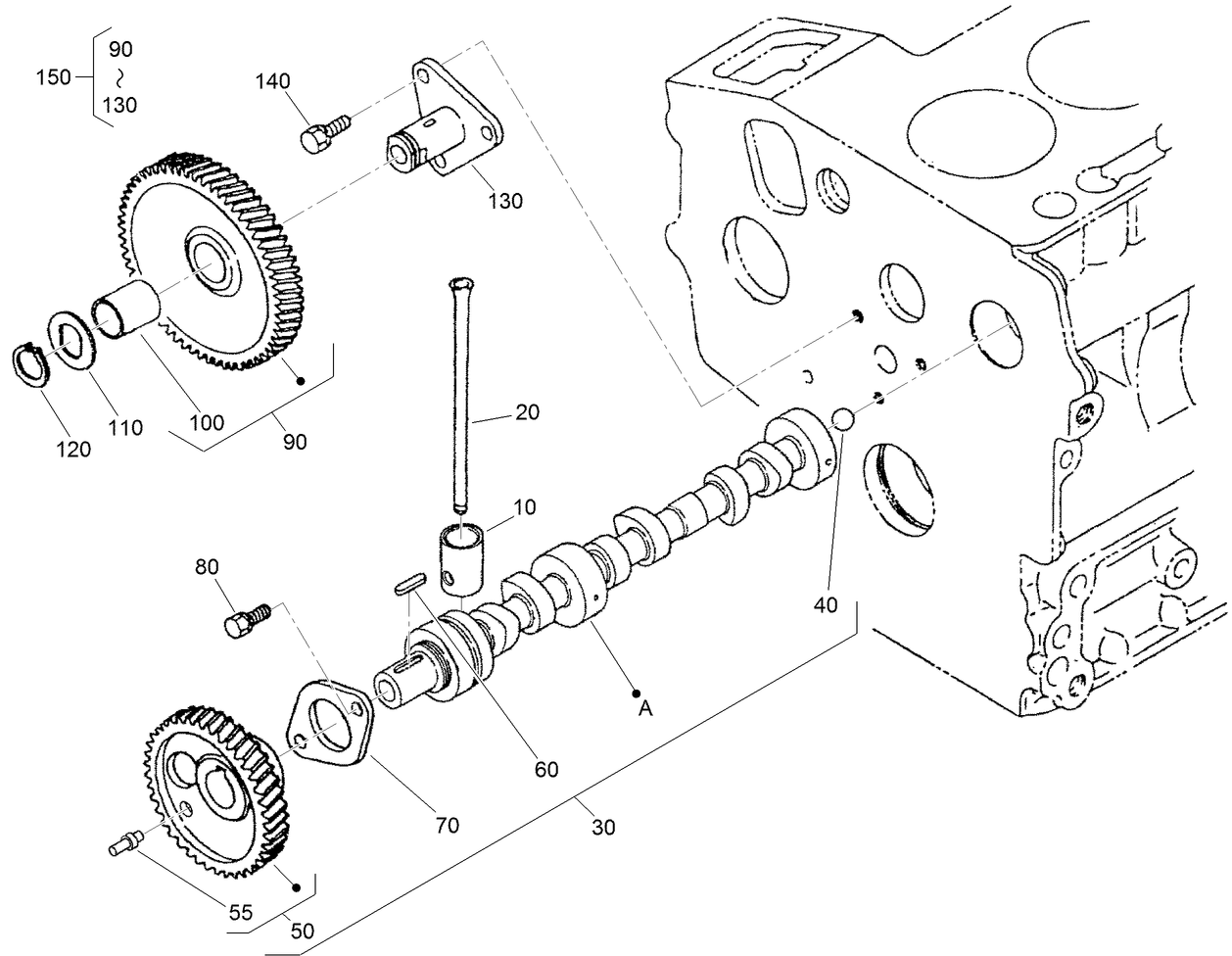

Cam Shaft and Idle Gear Shaft Assembly

Cam Shaft and Idle Gear Shaft Assembly

Chamber, Blade and Spindle Assembly

Chamber, Blade and Spindle Assembly

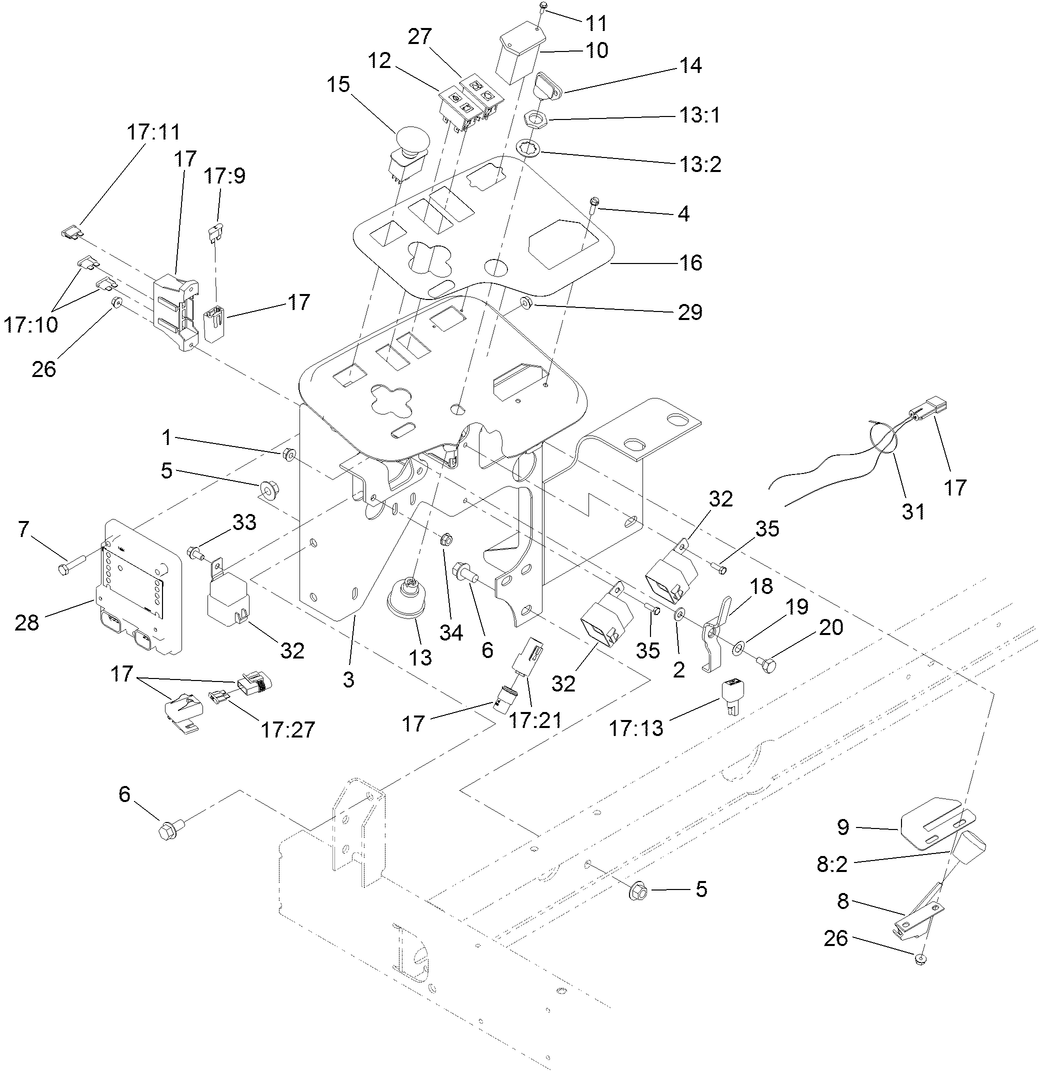

Control Panel Assembly

Control Panel Assembly

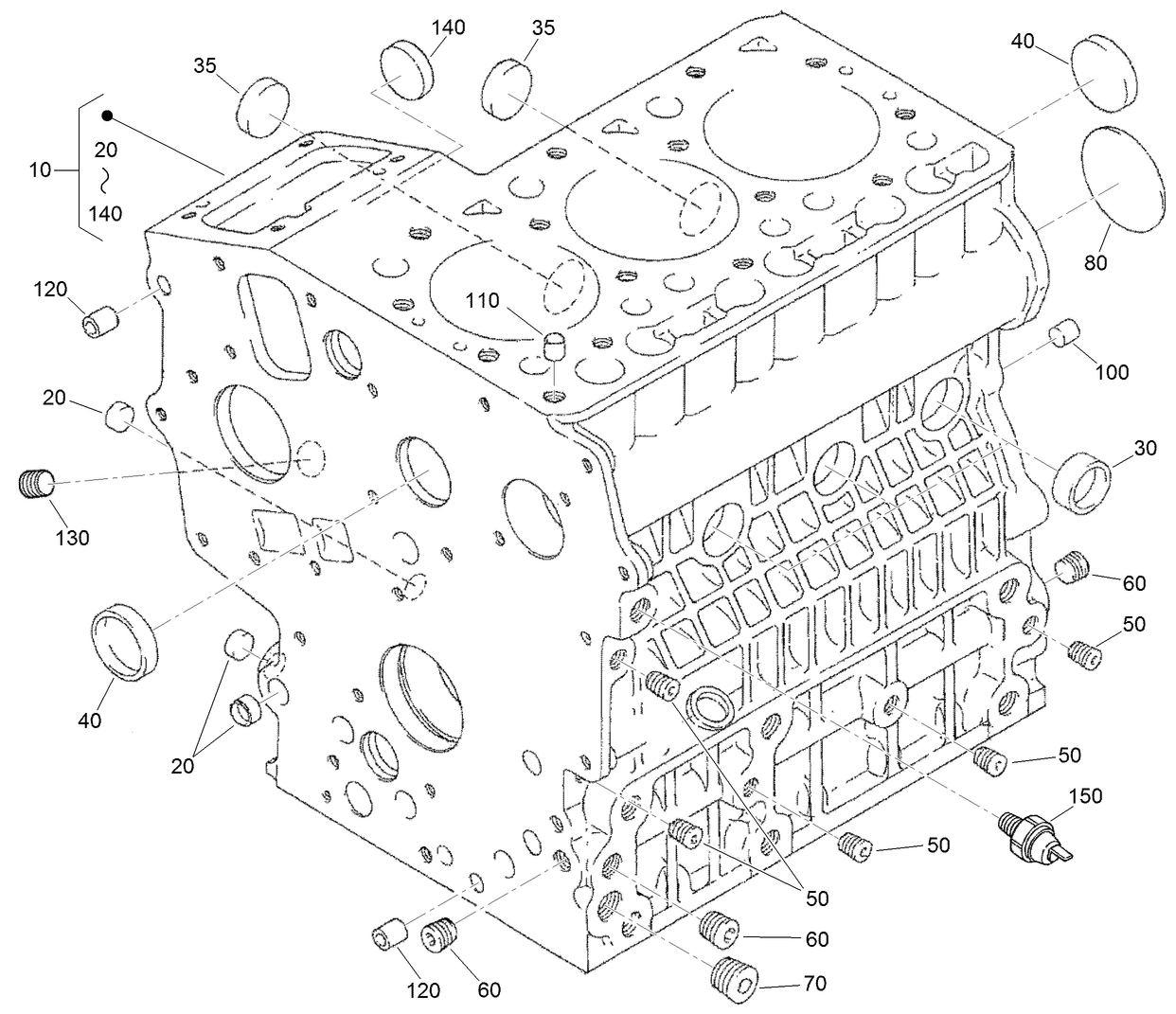

Crankcase Assembly

Crankcase Assembly

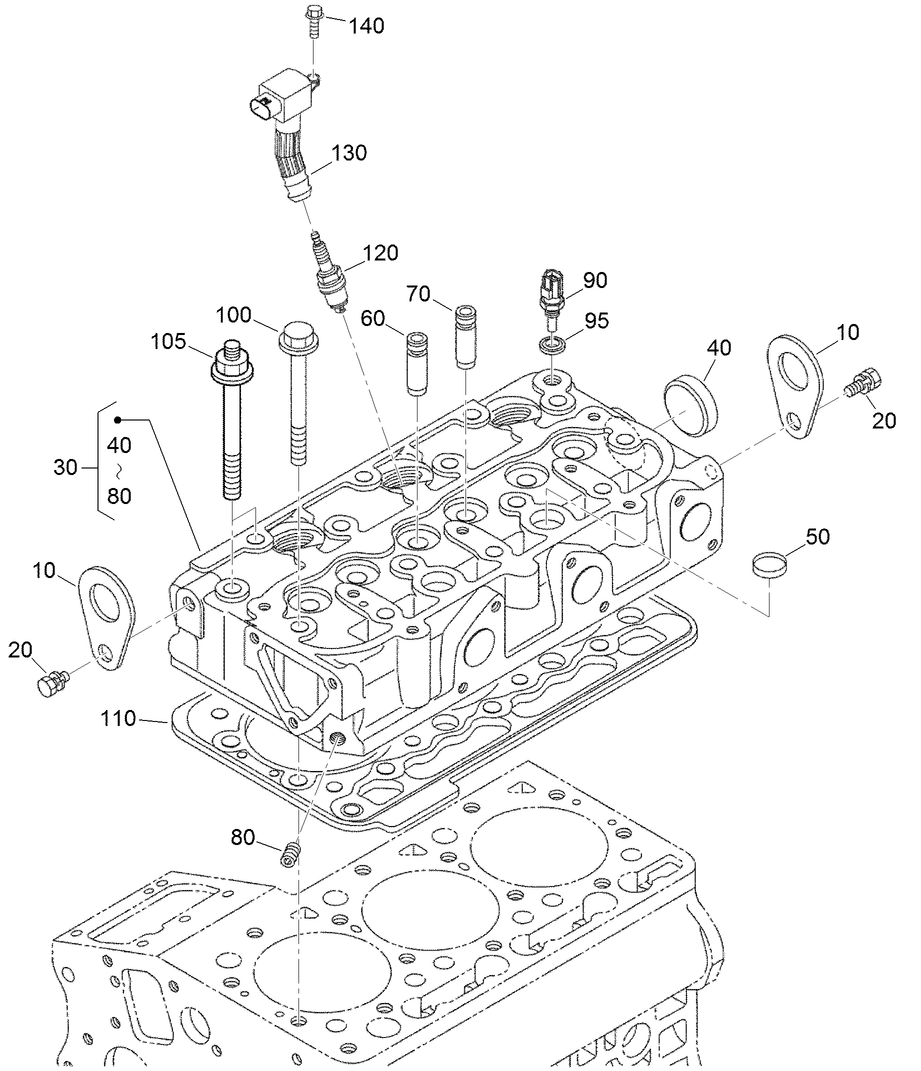

Cylinder Head Assembly

Cylinder Head Assembly

Cylinder Head Cover Assembly

Cylinder Head Cover Assembly

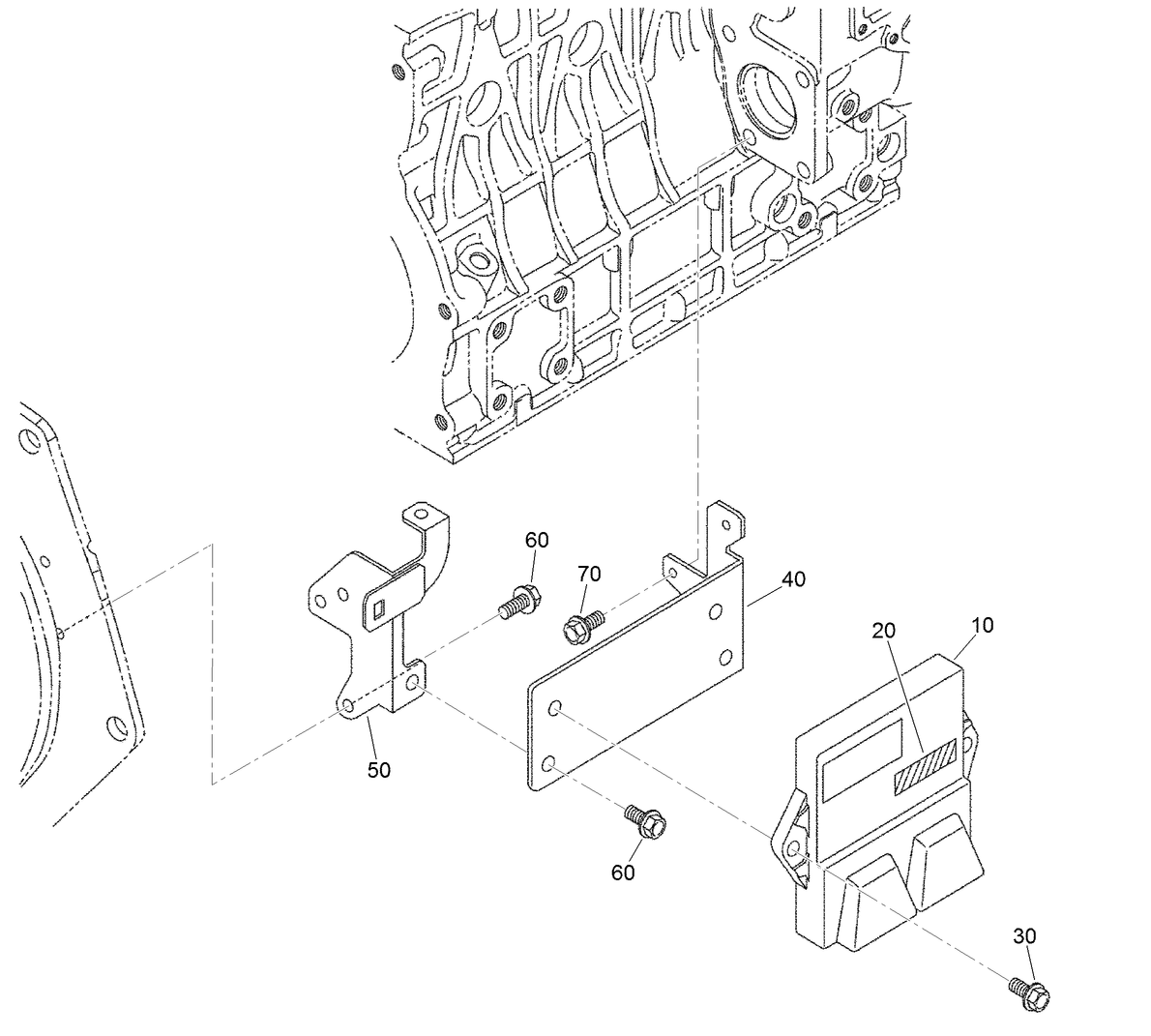

Electronic Control Unit Assembly

Electronic Control Unit Assembly

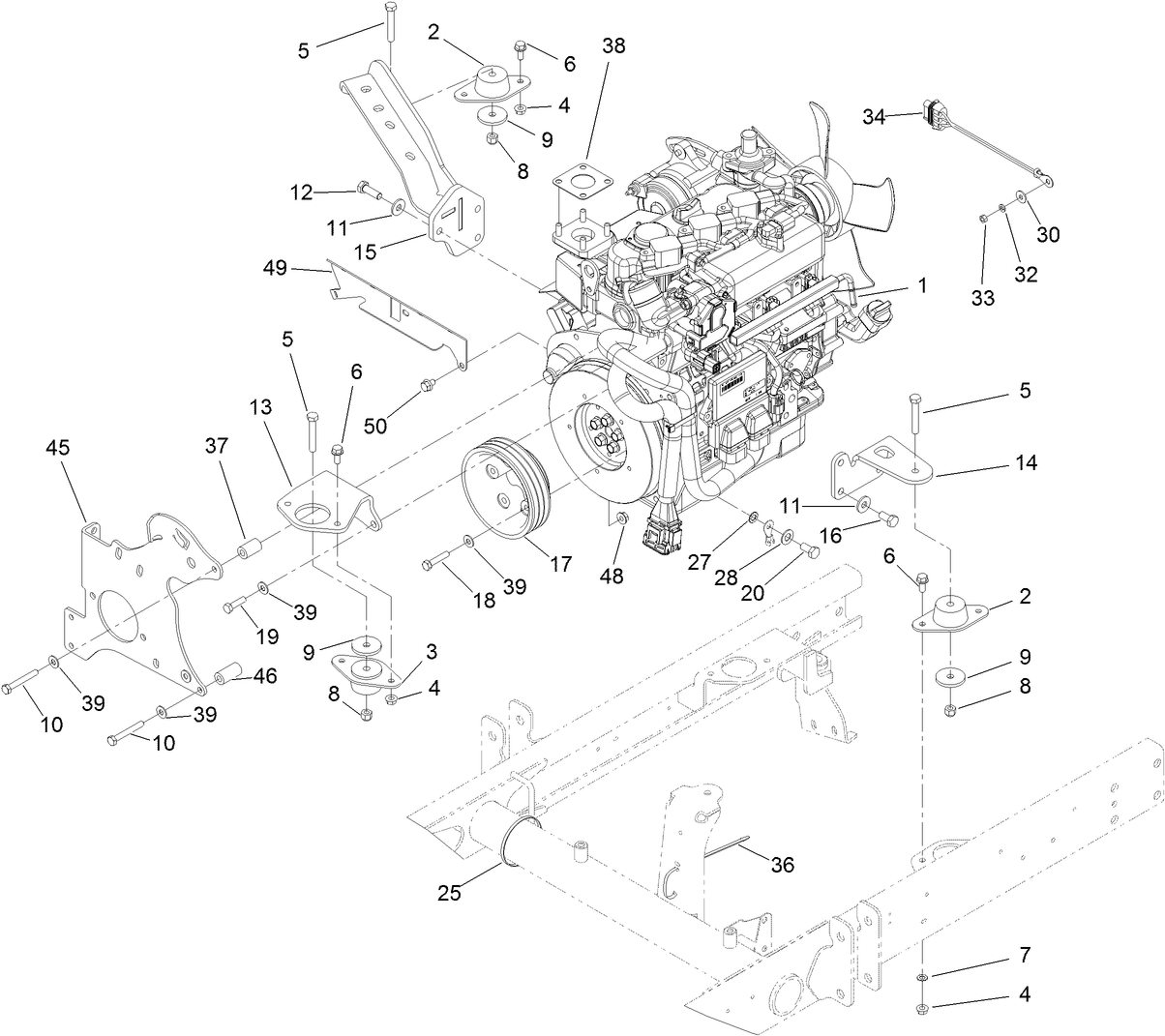

Engine Installation Assembly

Engine Installation Assembly

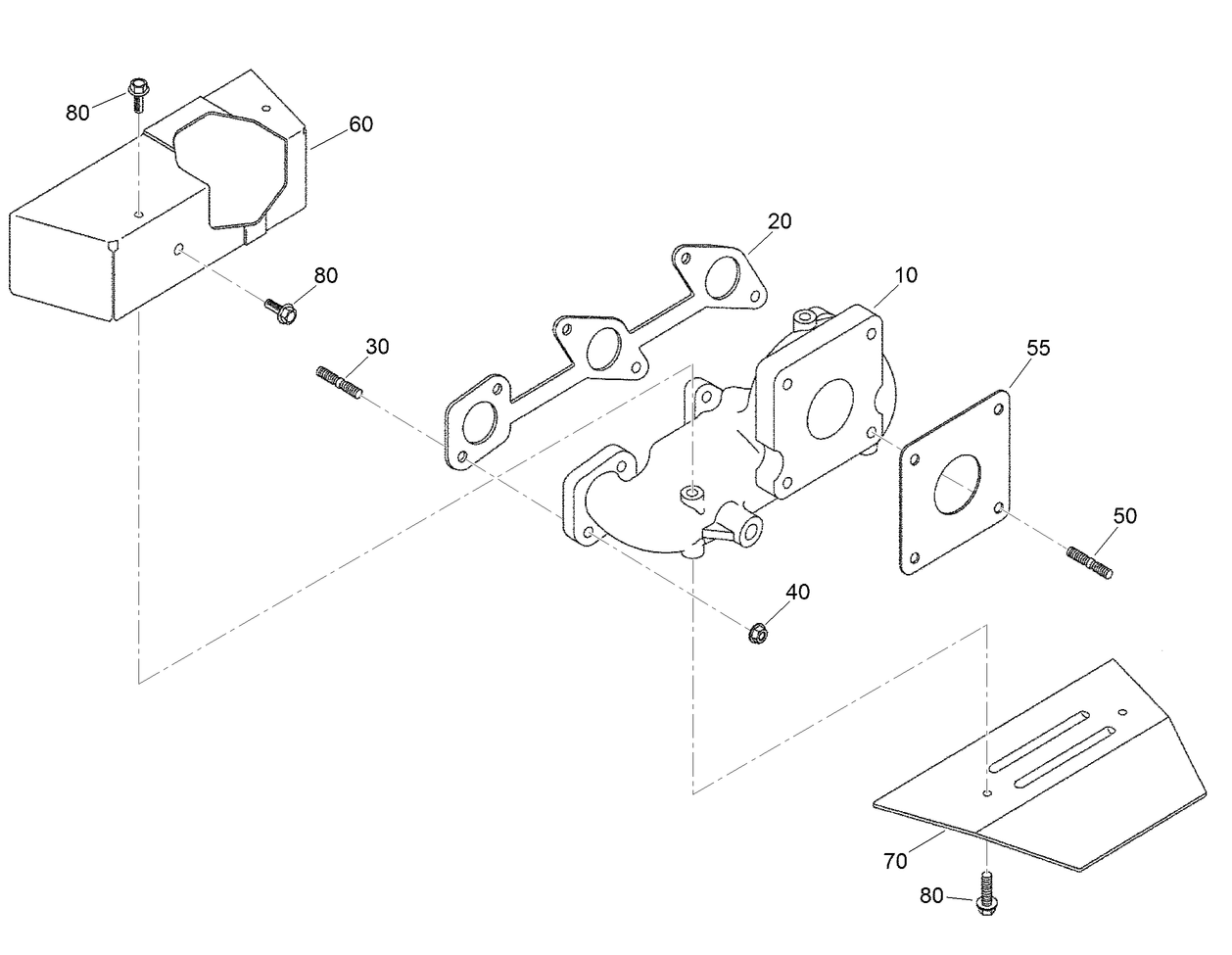

Exhaust Manifold Assembly

Exhaust Manifold Assembly

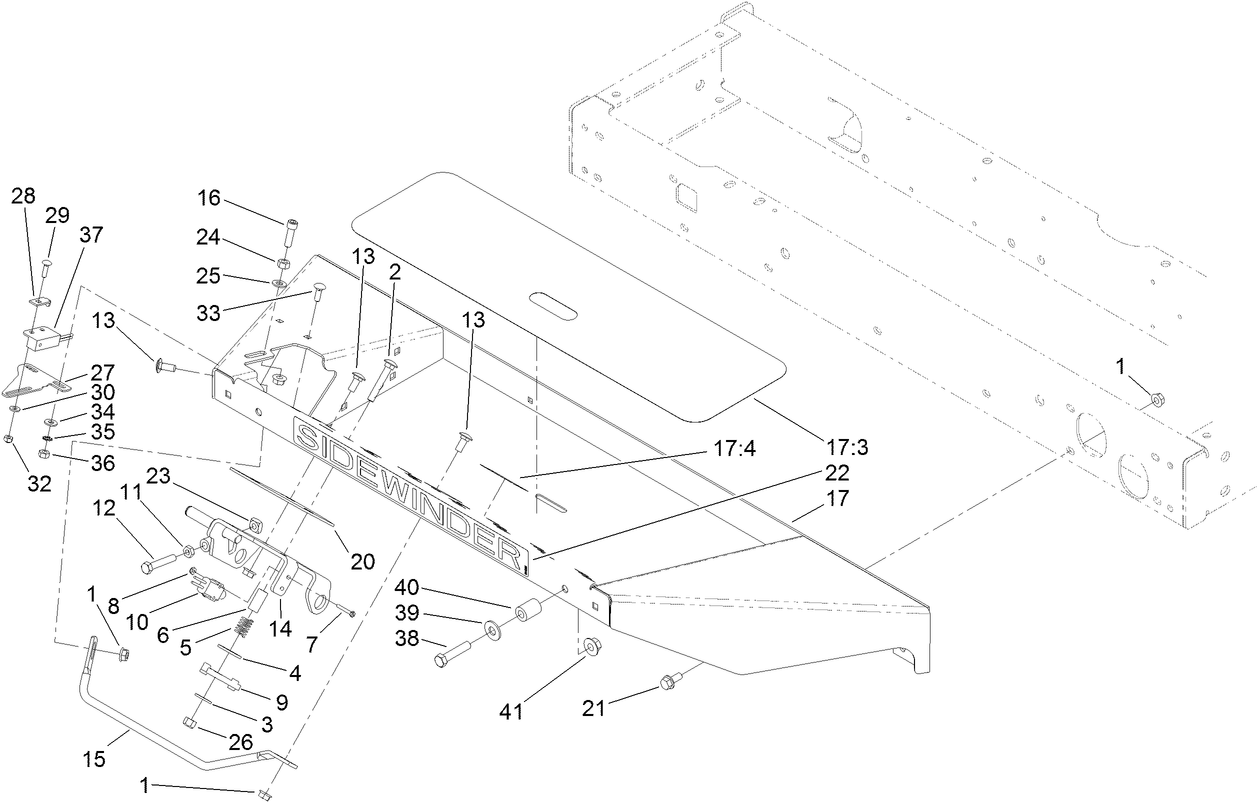

Floorplate Assembly

Floorplate Assembly

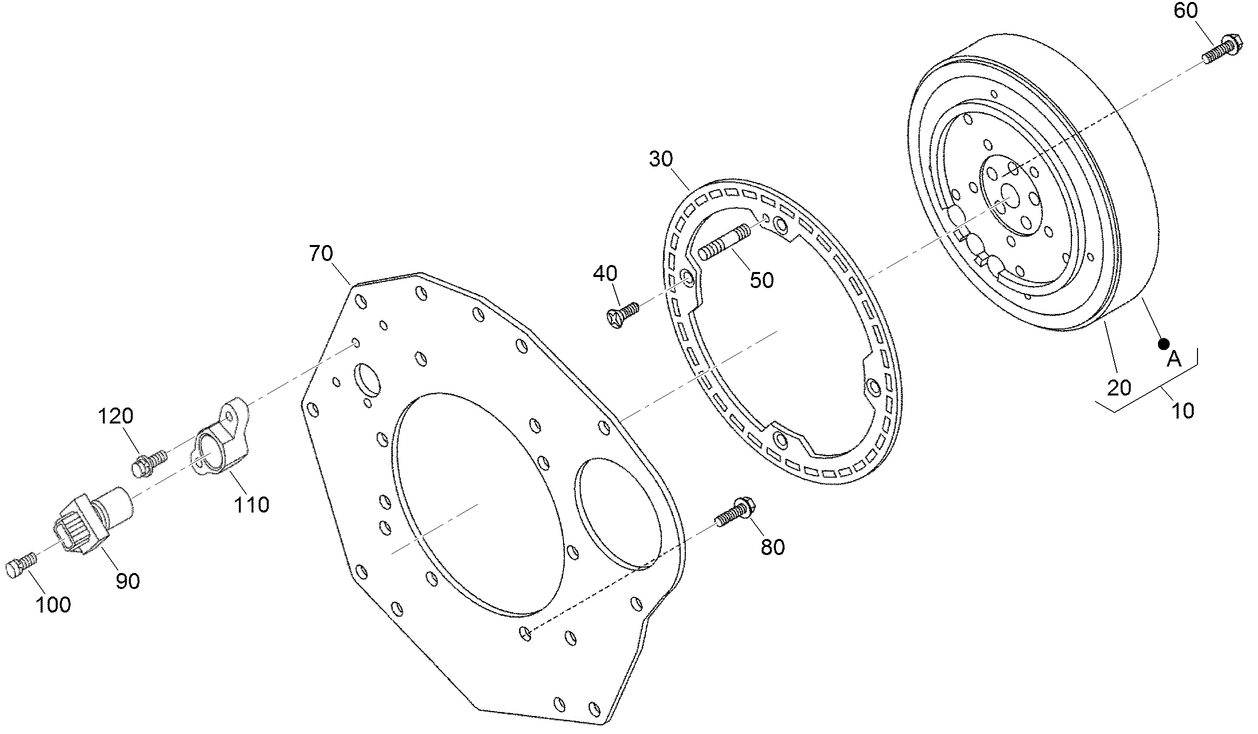

Flywheel and Sensor Switch Assembly

Flywheel and Sensor Switch Assembly

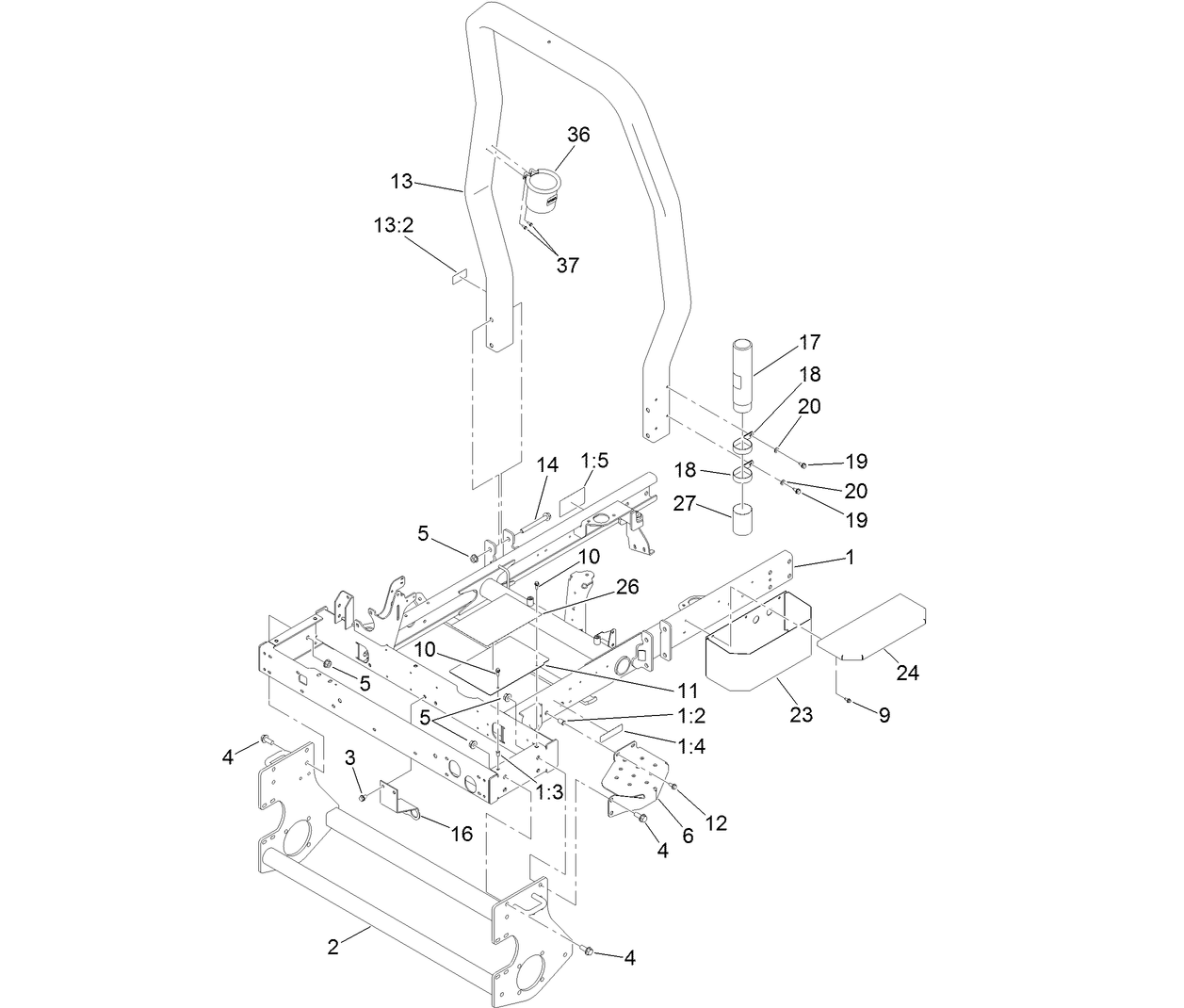

Frame and Roll-Over Protection System Assembly

Frame and Roll-Over Protection System Assembly

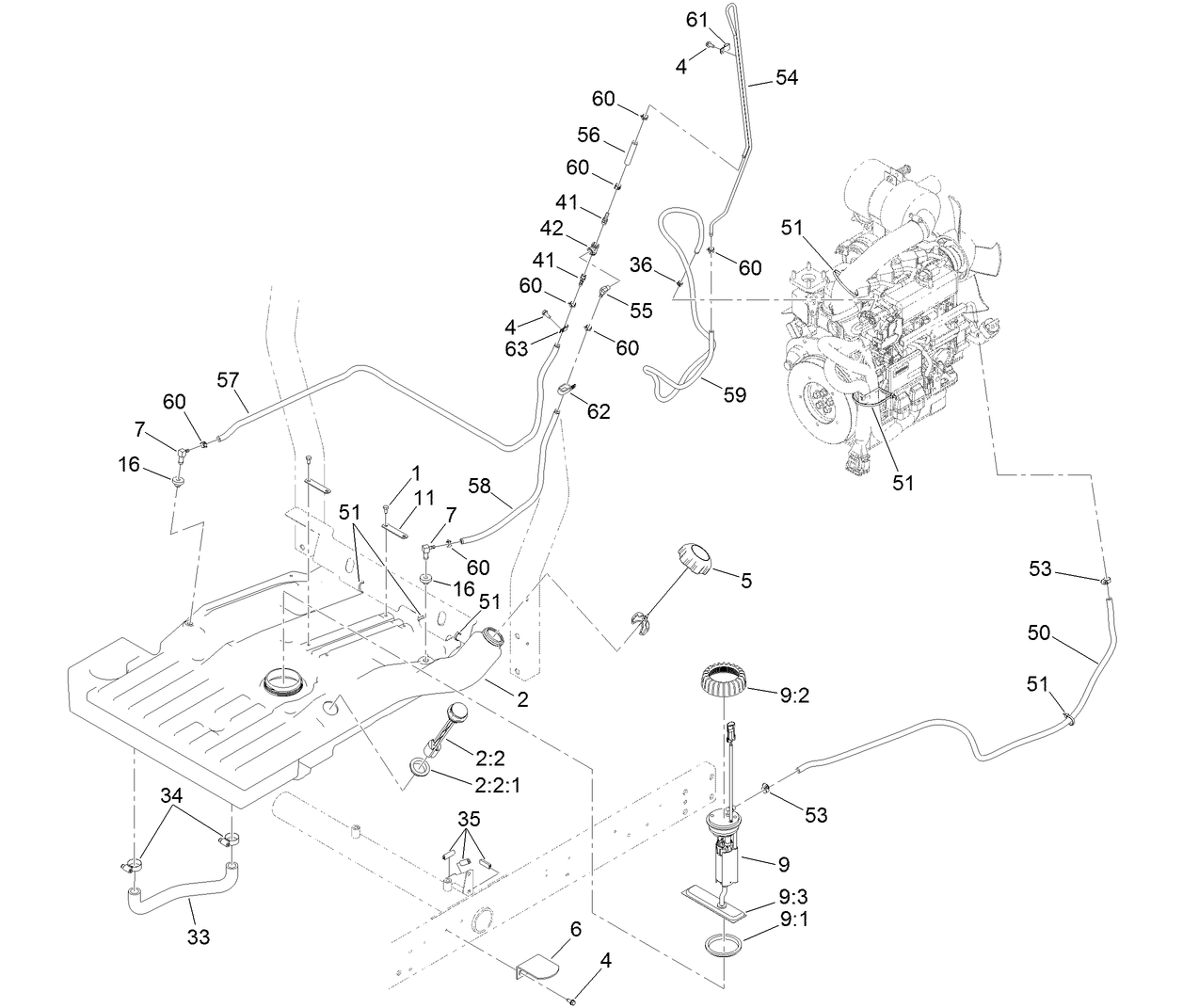

Fuel Tank Assembly

Fuel Tank Assembly

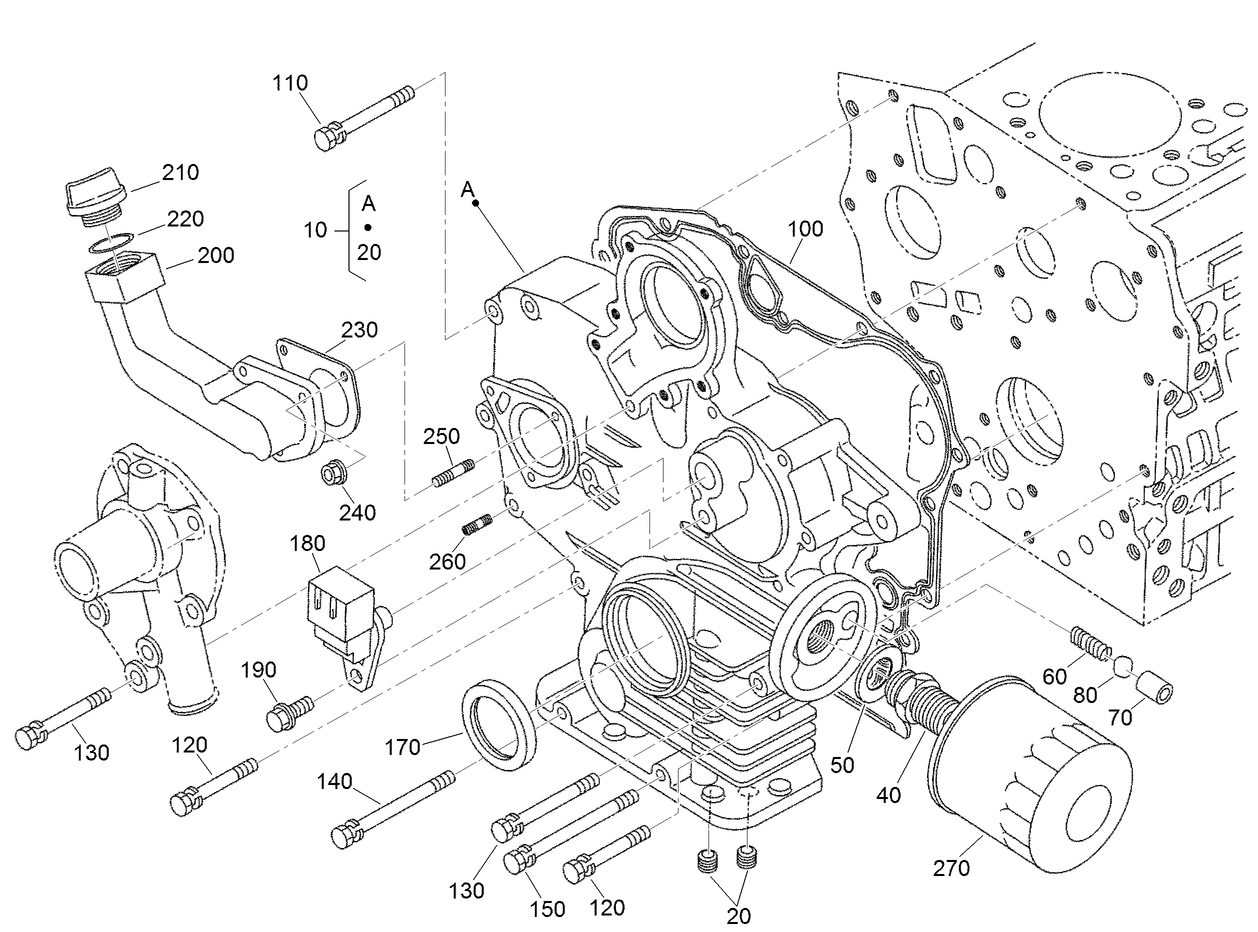

Gear Case and Oil Filter Cartridge Assembly

Gear Case and Oil Filter Cartridge Assembly

Gear Motor Assembly No. 117-5141

Gear Motor Assembly No. 117-5141

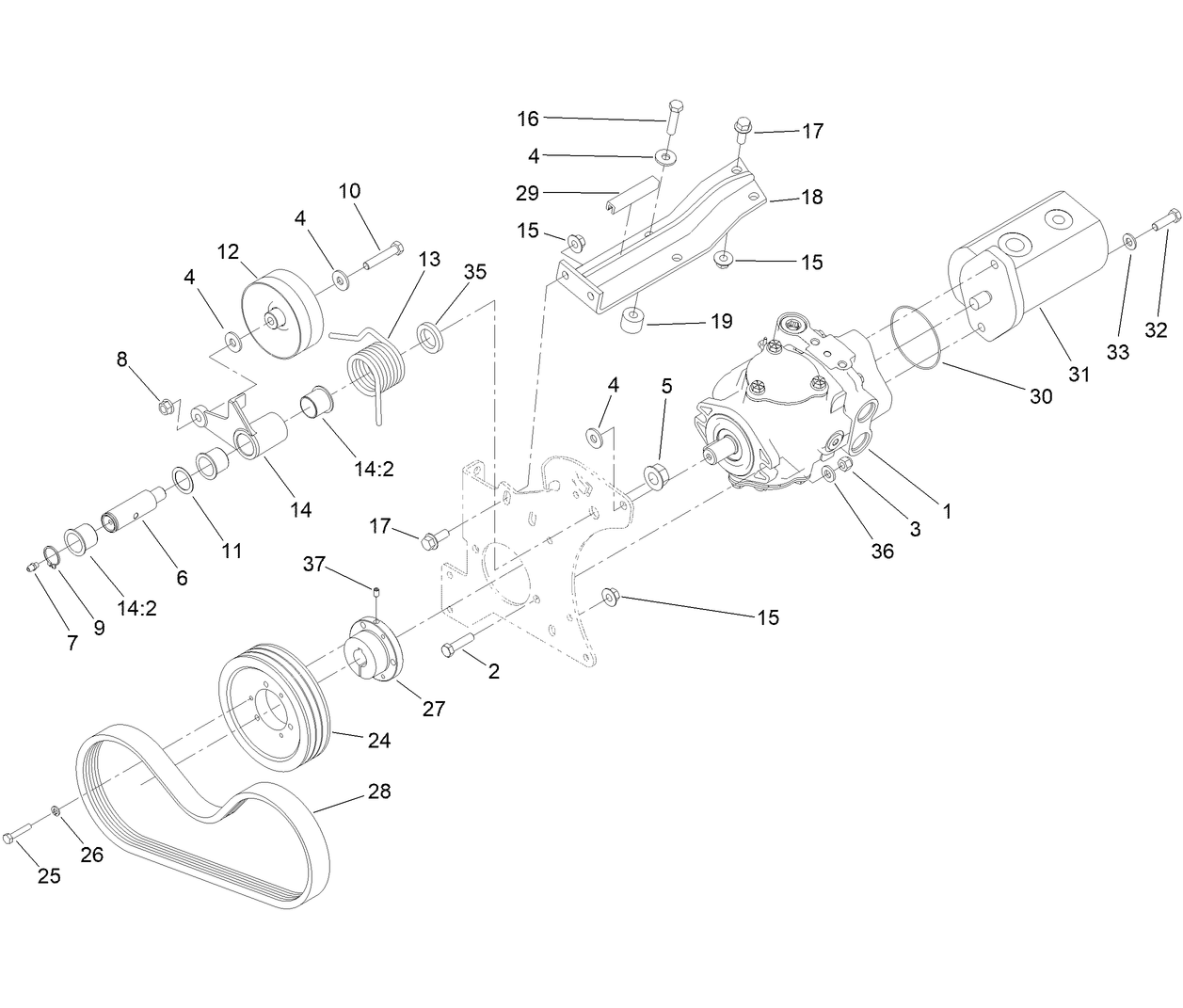

Gear Pump and Piston Pump Assembly

Gear Pump and Piston Pump Assembly

Height-of-Cut Bracket Assembly

Height-of-Cut Bracket Assembly

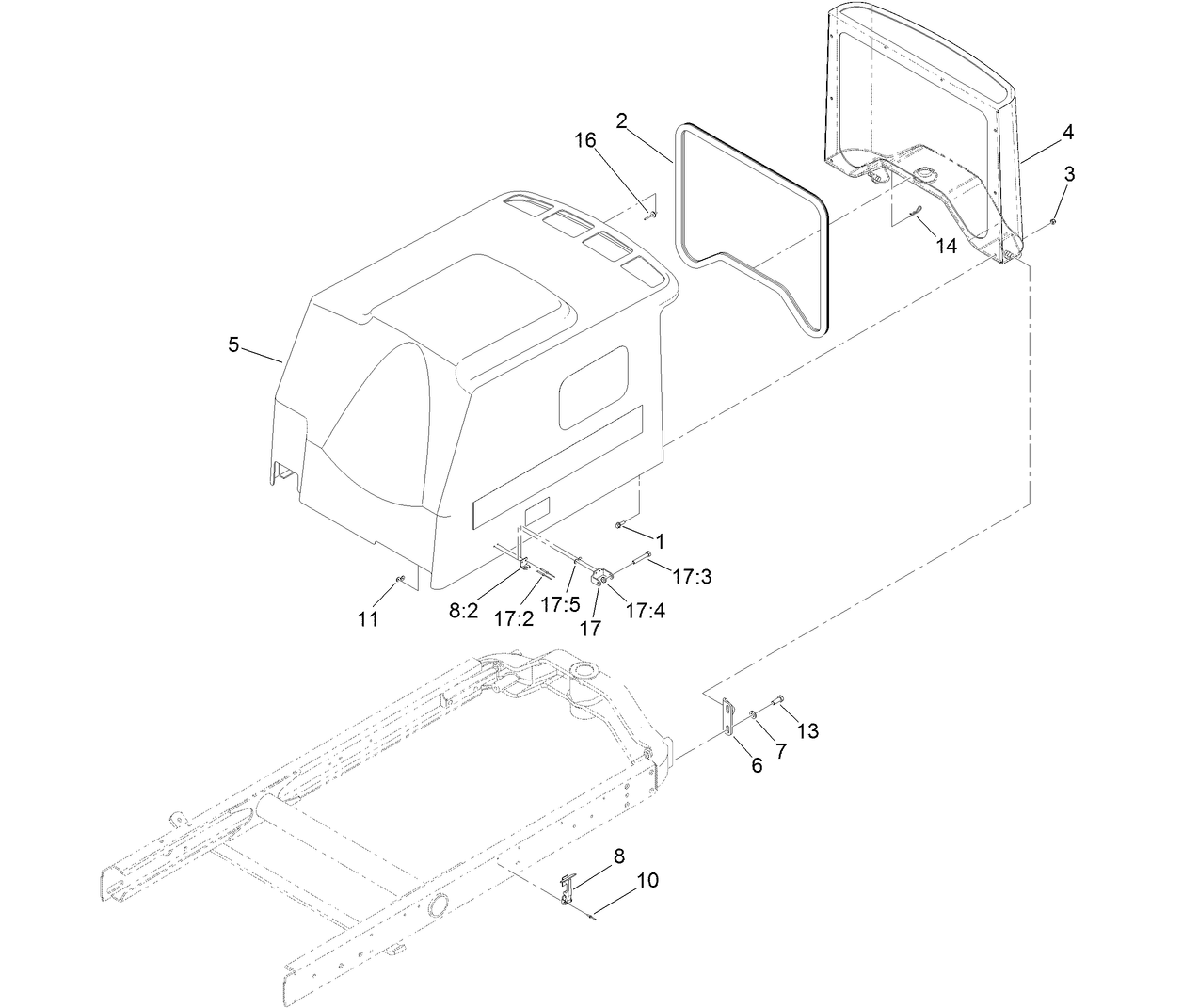

Hood Assembly

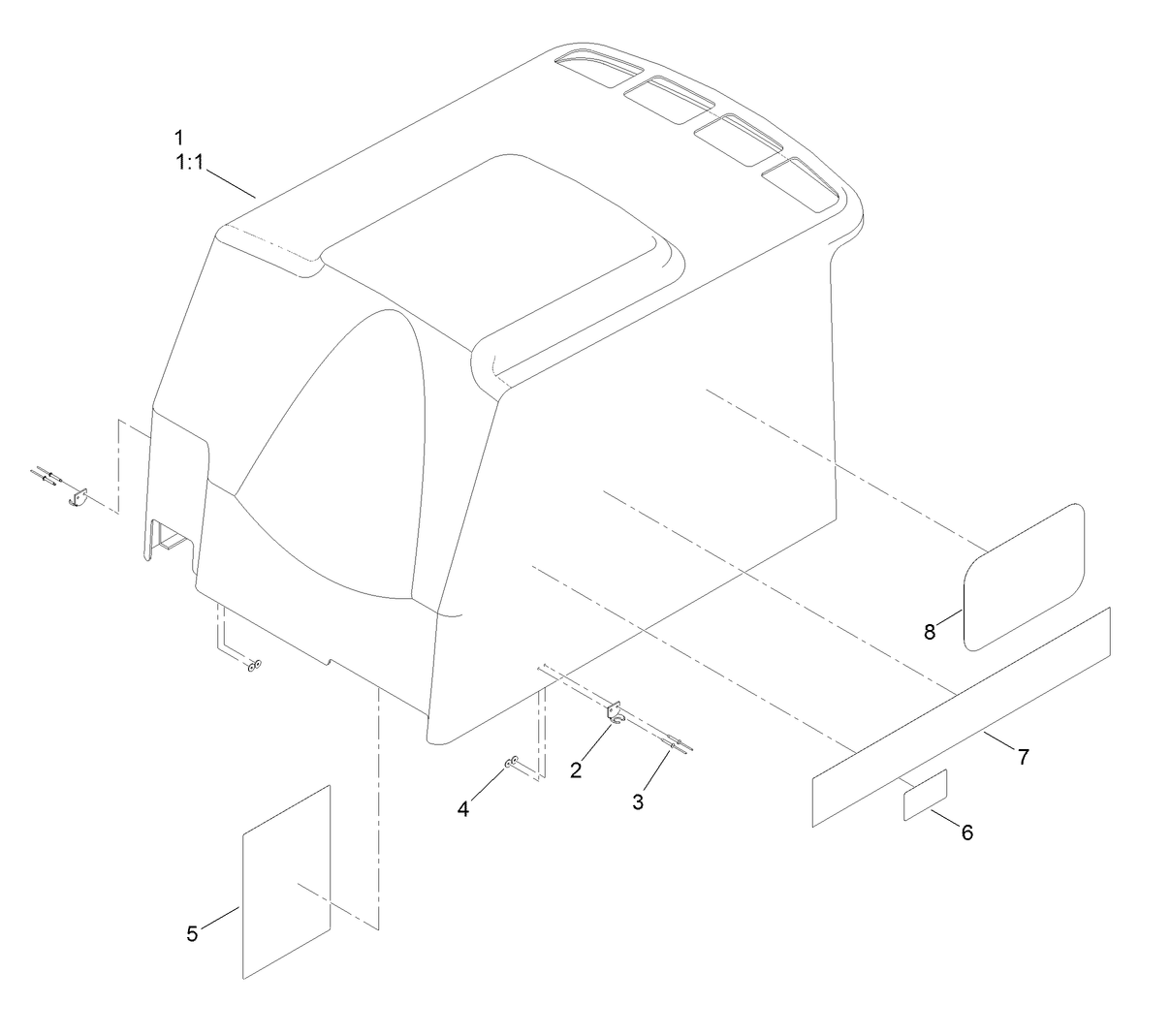

Hood Assembly No. 121-3632

Hood Assembly No. 121-3632

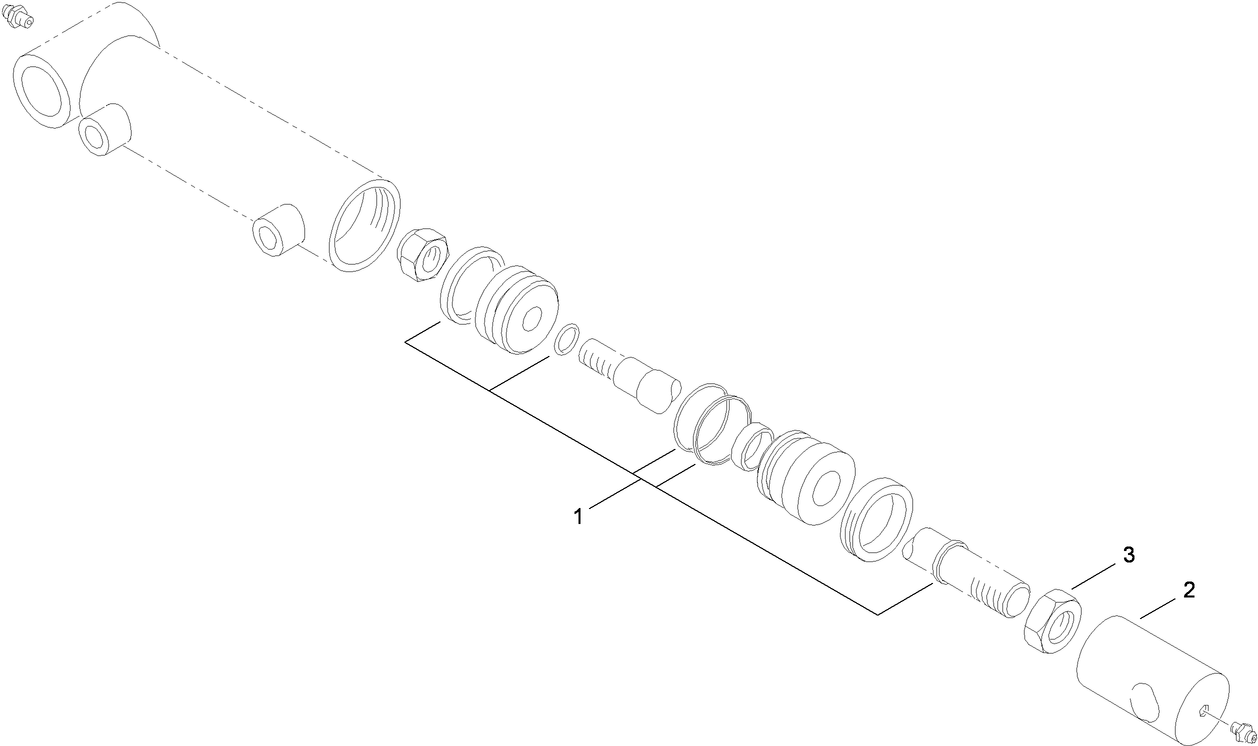

Hydraulic Cylinder Assembly No. 112-9916

Hydraulic Cylinder Assembly No. 112-9916

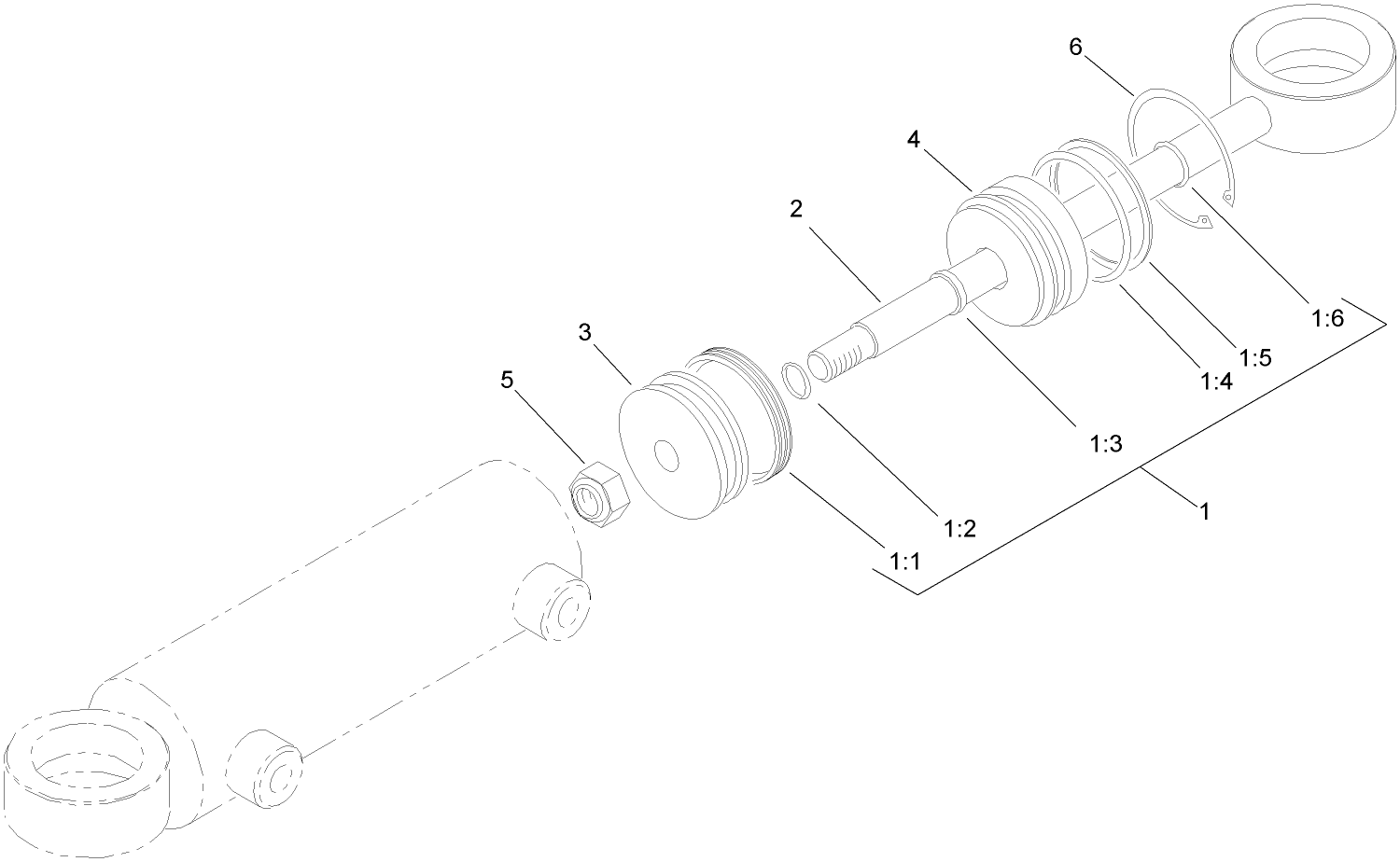

Hydraulic Cylinder Assembly No. 94-8141

Hydraulic Cylinder Assembly No. 94-8141

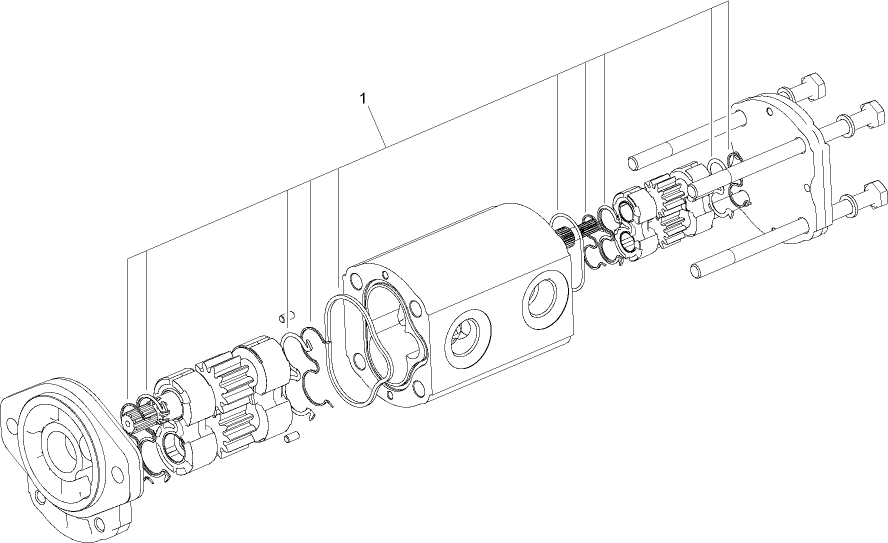

Hydraulic Gear Pump Assembly No. 108-9036

Hydraulic Gear Pump Assembly No. 108-9036

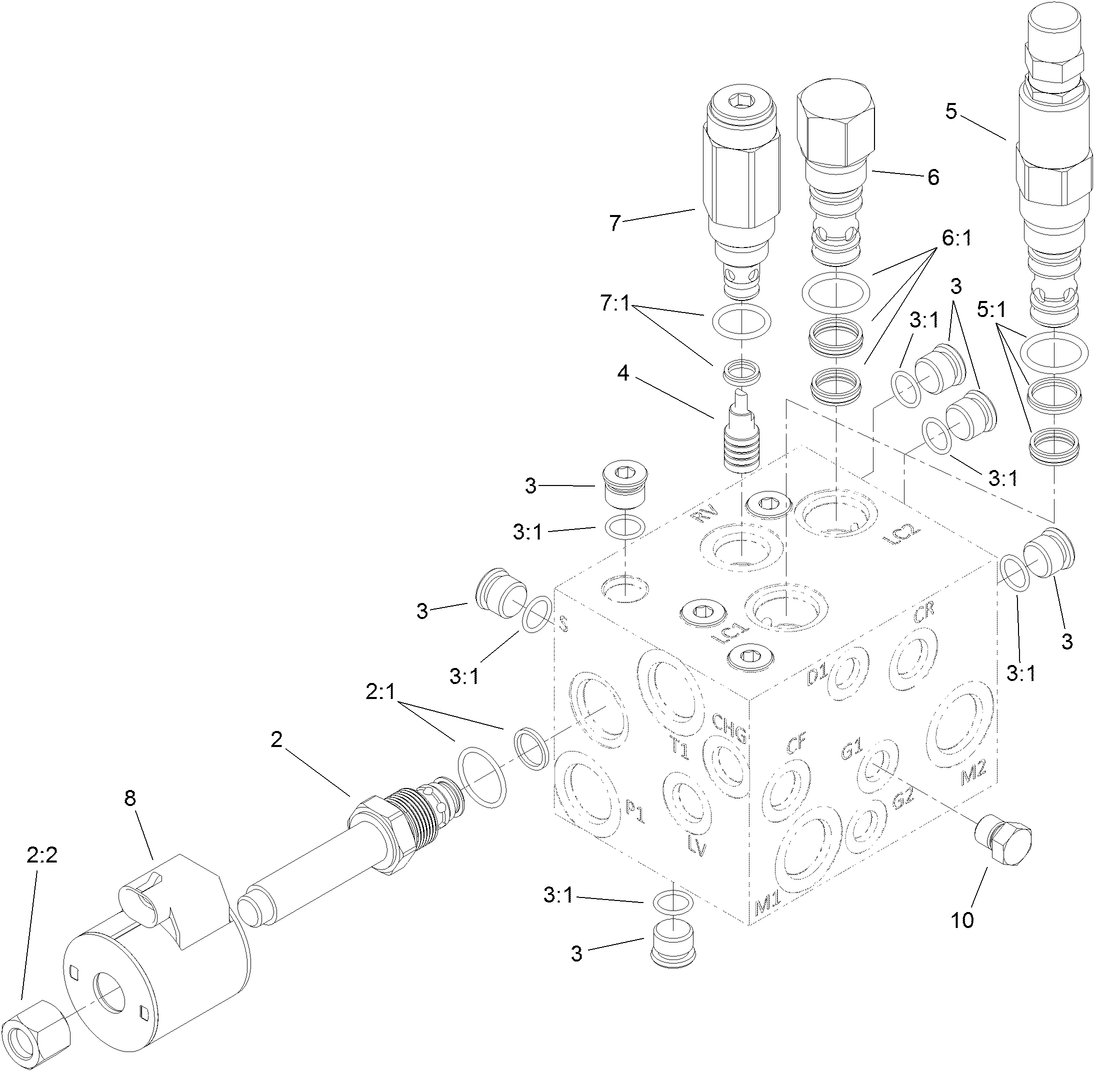

Hydraulic Manifold Assembly No. 121-3570

Hydraulic Manifold Assembly No. 121-3570

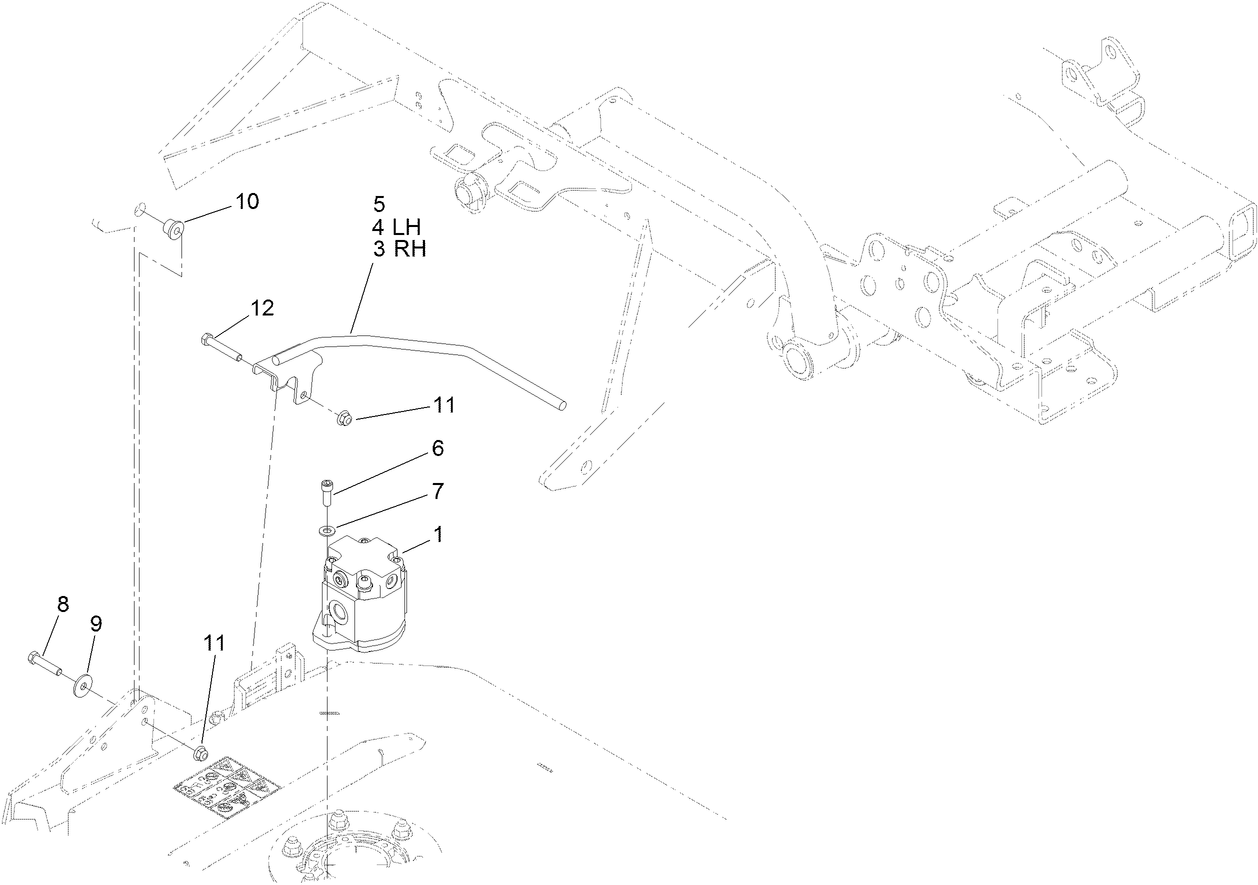

Hydraulic Motor and Foot Guard Assembly

Hydraulic Motor and Foot Guard Assembly

Hydraulic Motor Assembly No. 110-8785

Hydraulic Motor Assembly No. 110-8785

Hydraulic Motor Assembly No. 110-8786

Hydraulic Motor Assembly No. 110-8786

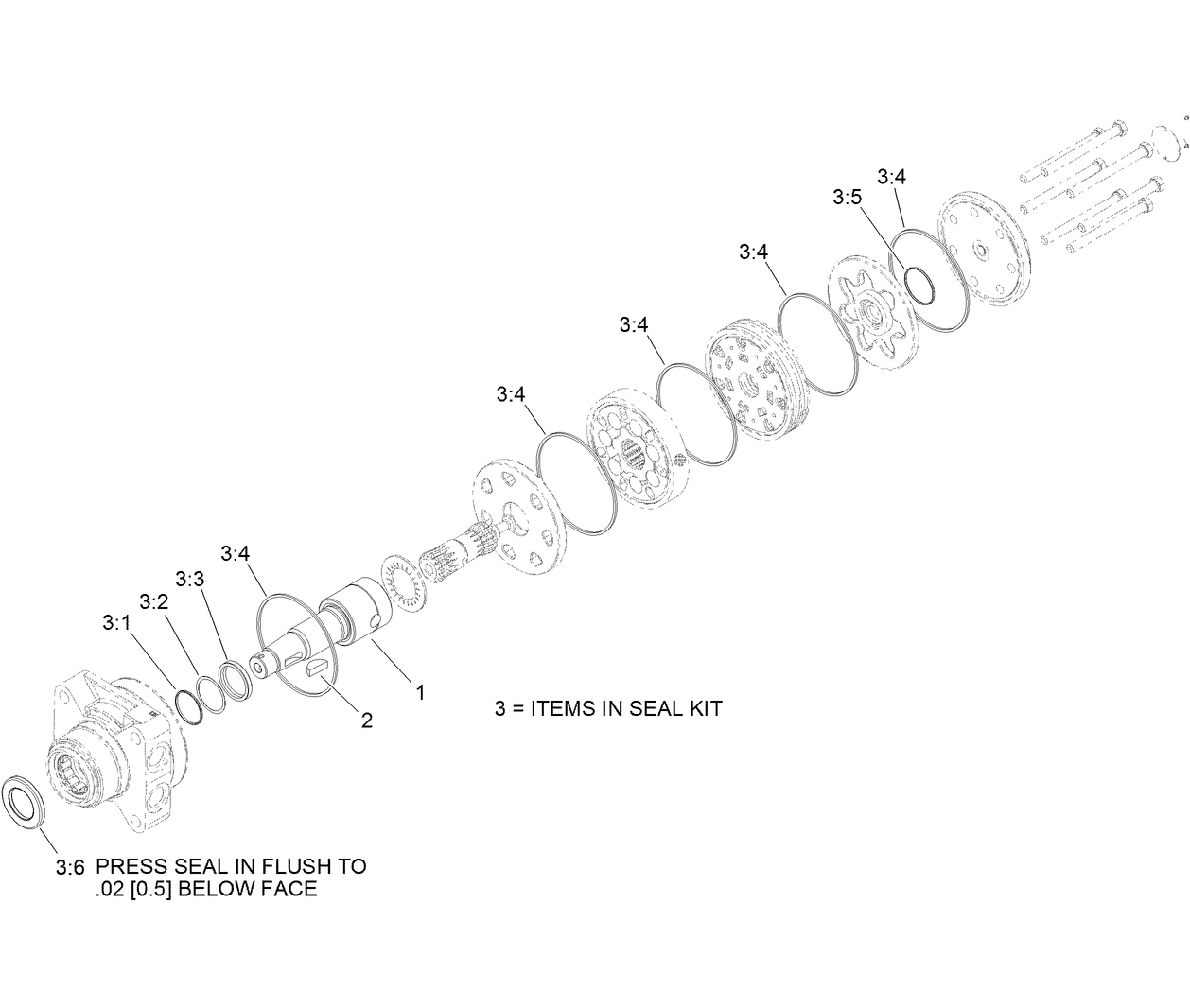

Hydraulic Motor Assembly No. 95-8694

Hydraulic Motor Assembly No. 95-8694

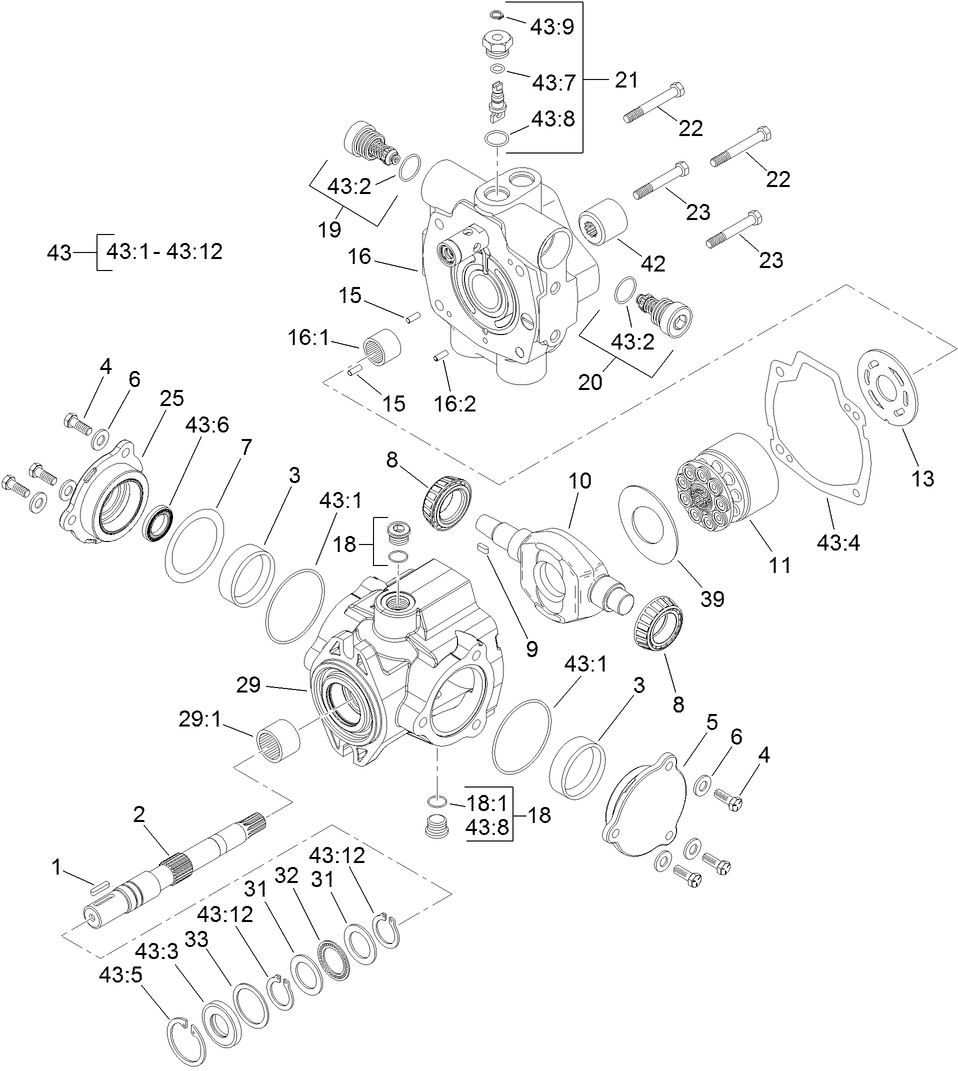

Hydraulic Pump Assembly No. 104-4890

Hydraulic Pump Assembly No. 104-4890

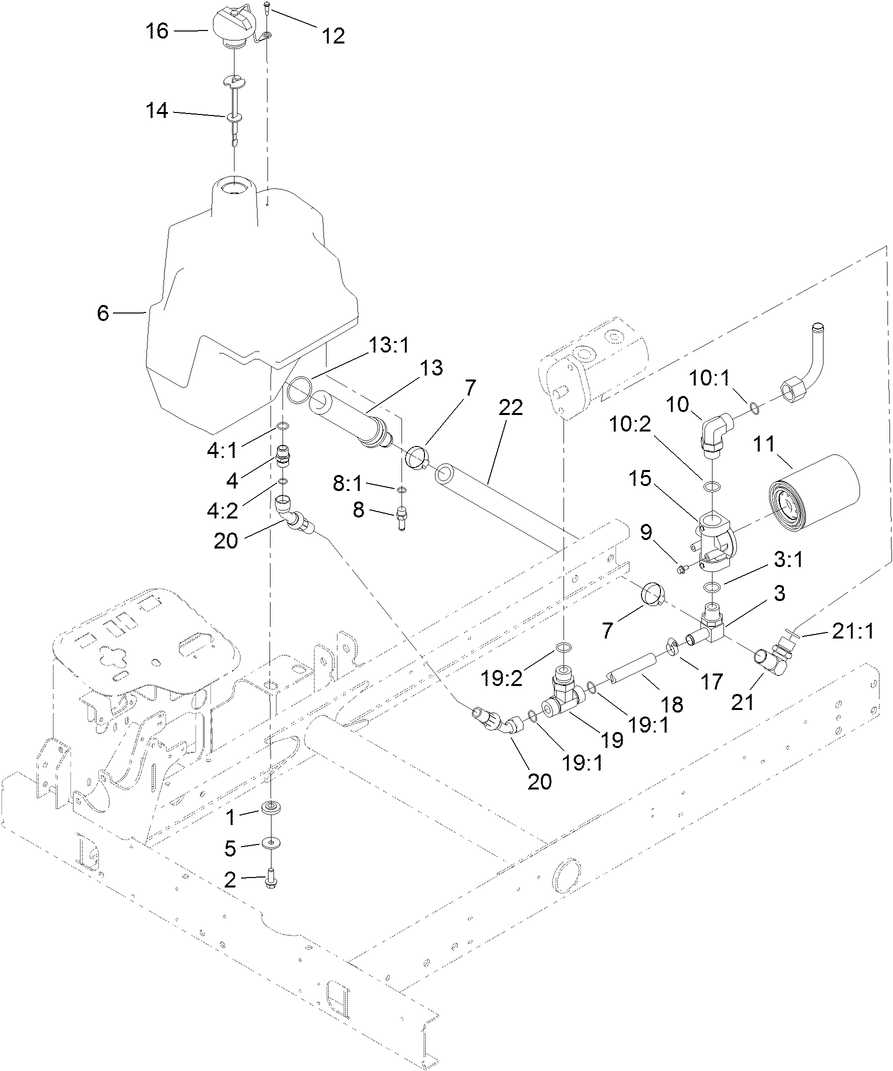

Hydraulic Tank and Filter Assembly

Hydraulic Tank and Filter Assembly

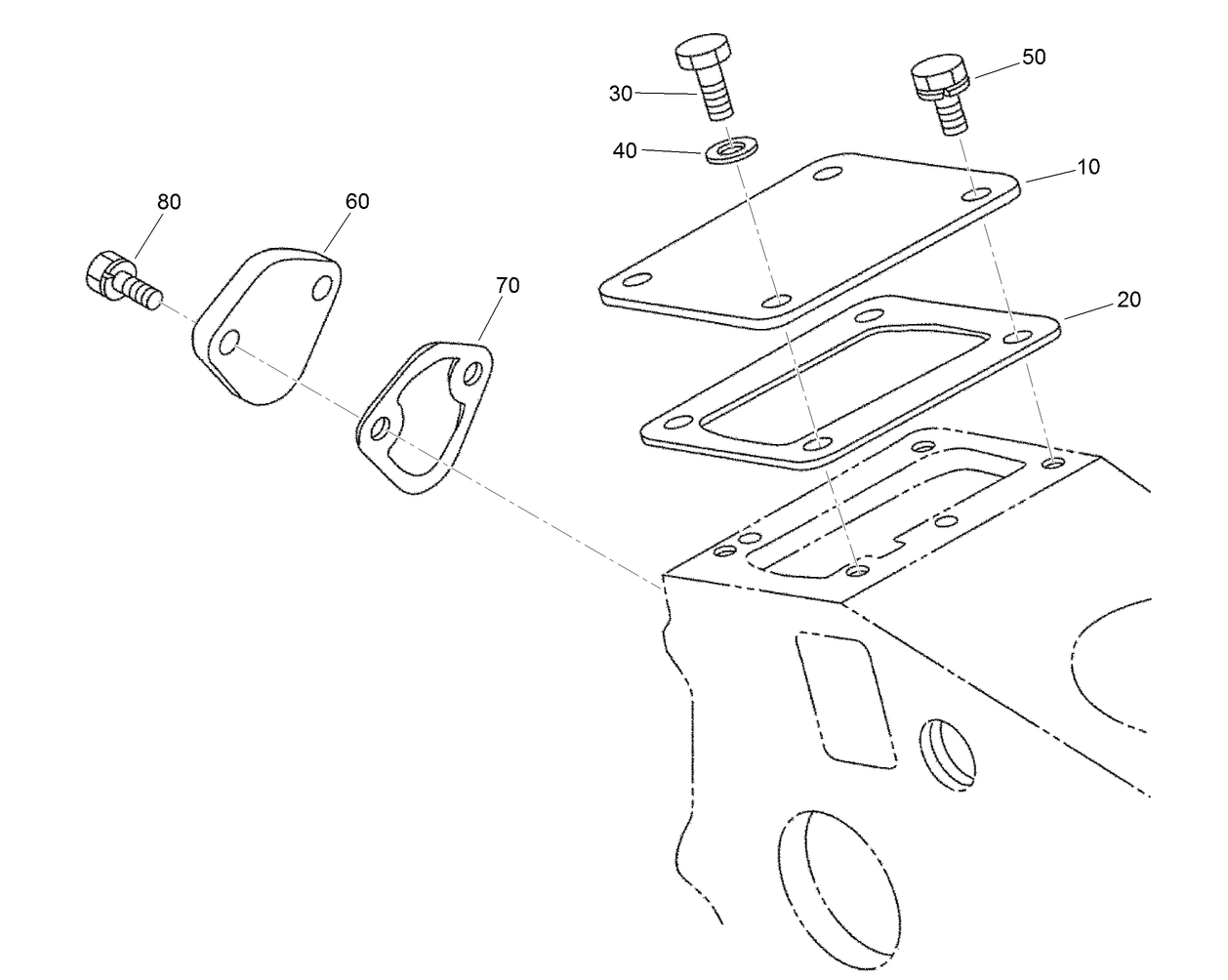

Injection and Fuel Pump Covers Assembly

Injection and Fuel Pump Covers Assembly

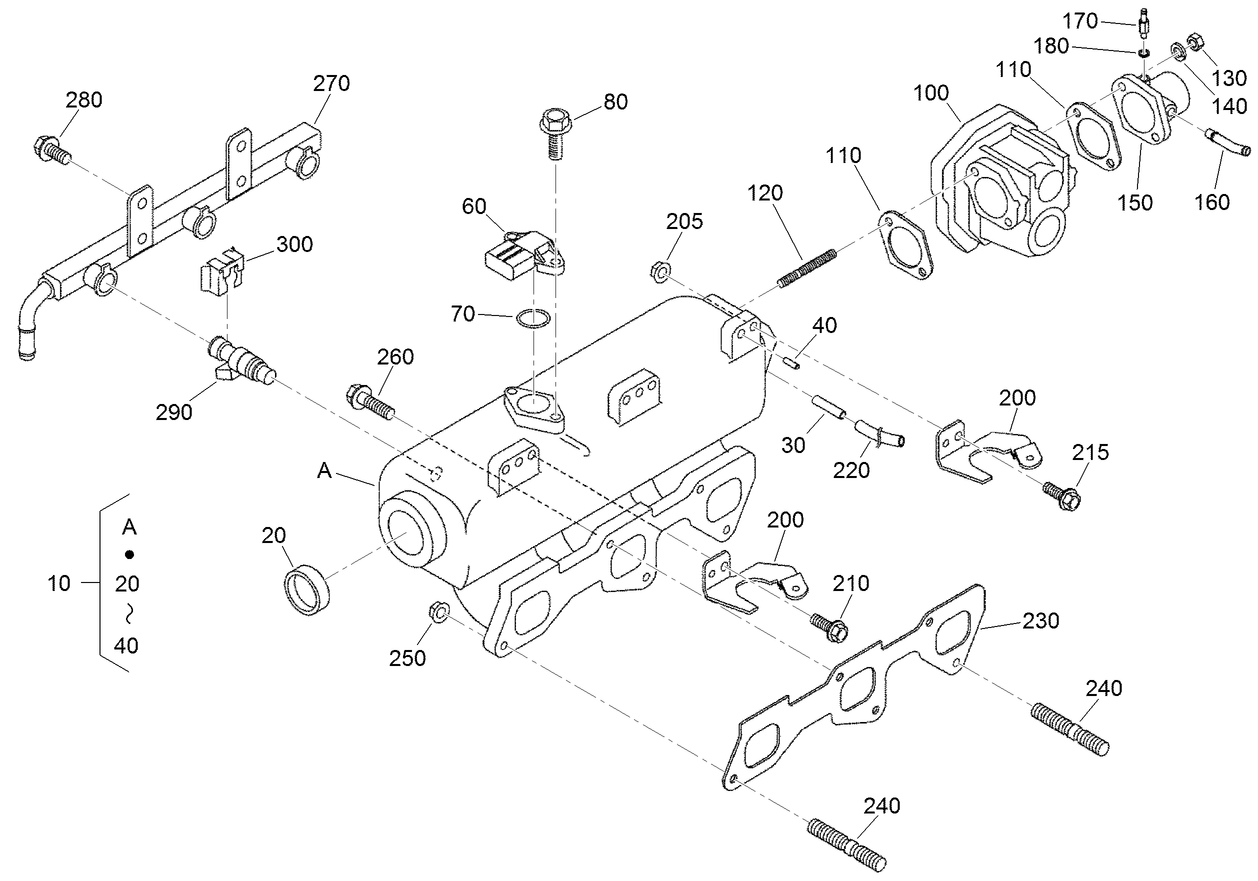

Inlet Manifold Assembly

Inlet Manifold Assembly

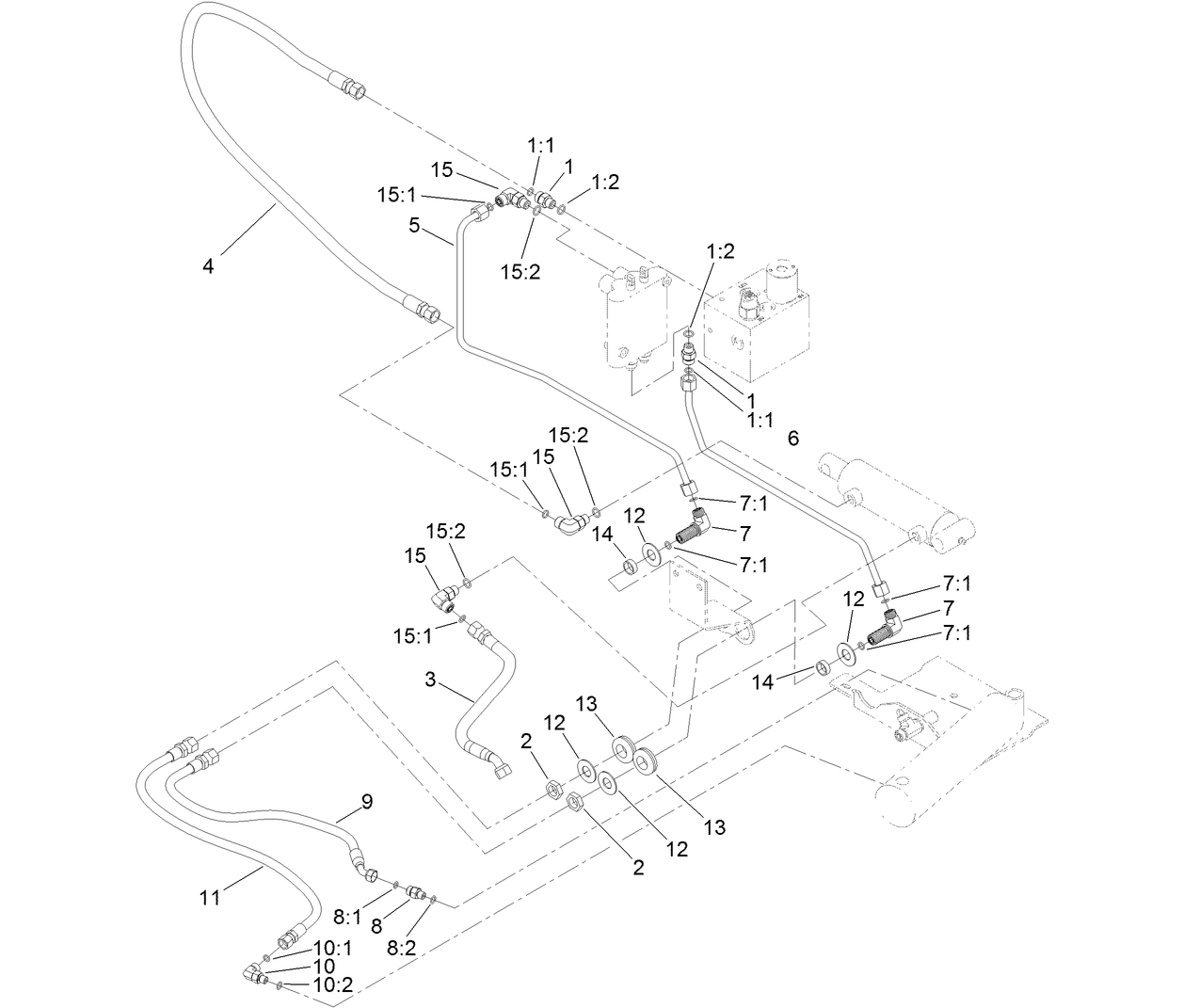

Lift Hydraulic Assembly

Lift Hydraulic Assembly

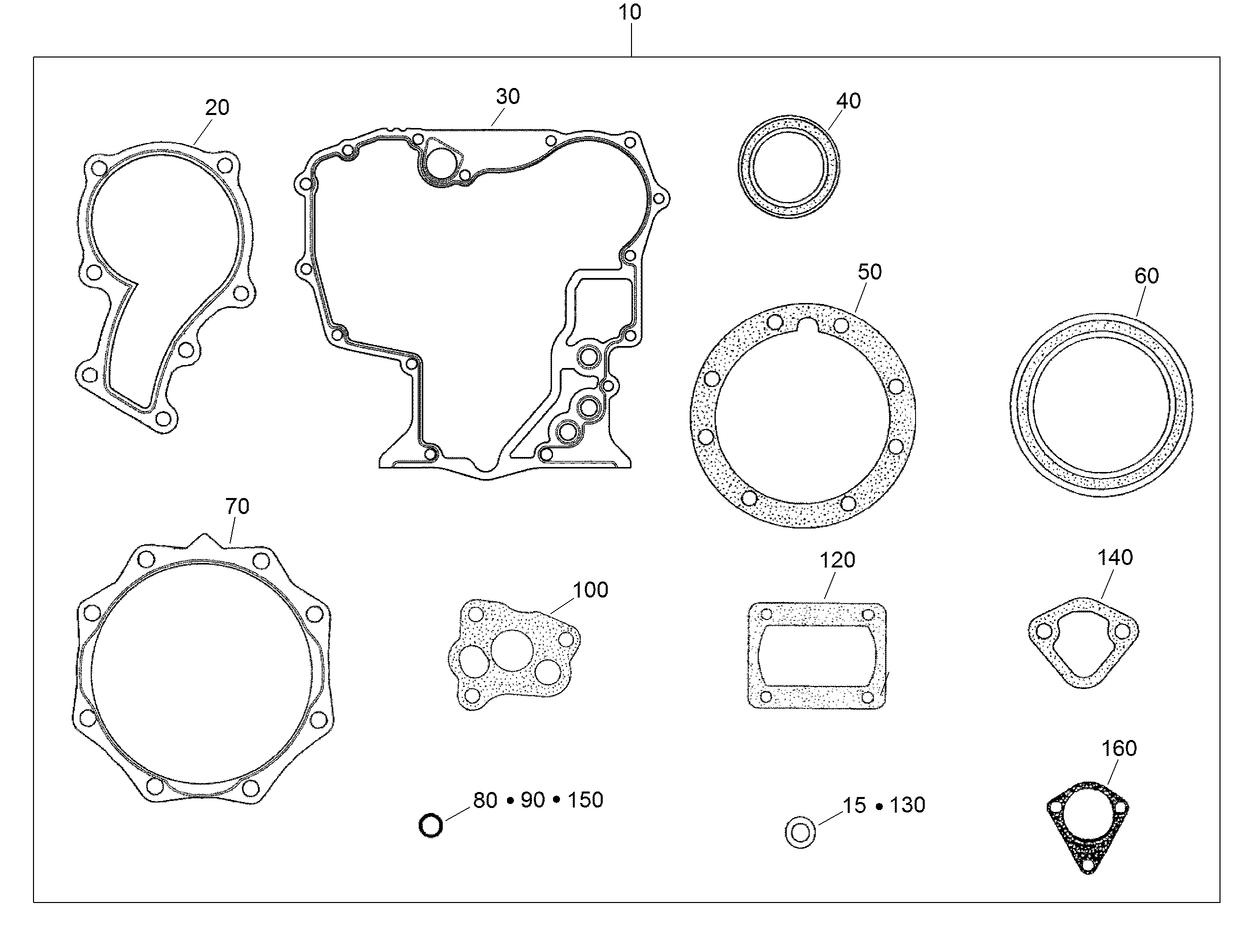

Lower Engine Gasket Kit

Lower Engine Gasket Kit

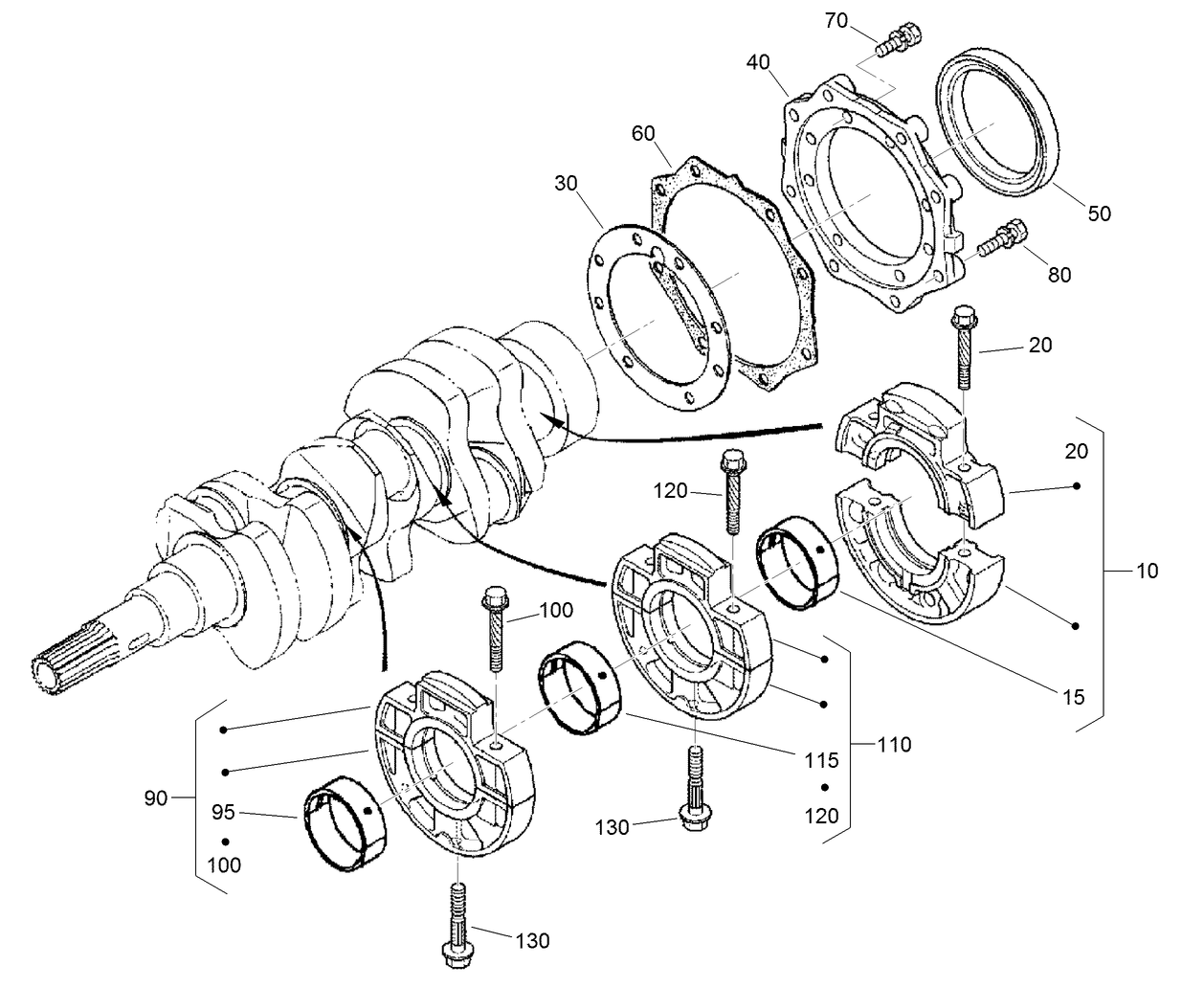

Main Bearing Case Assembly

Main Bearing Case Assembly

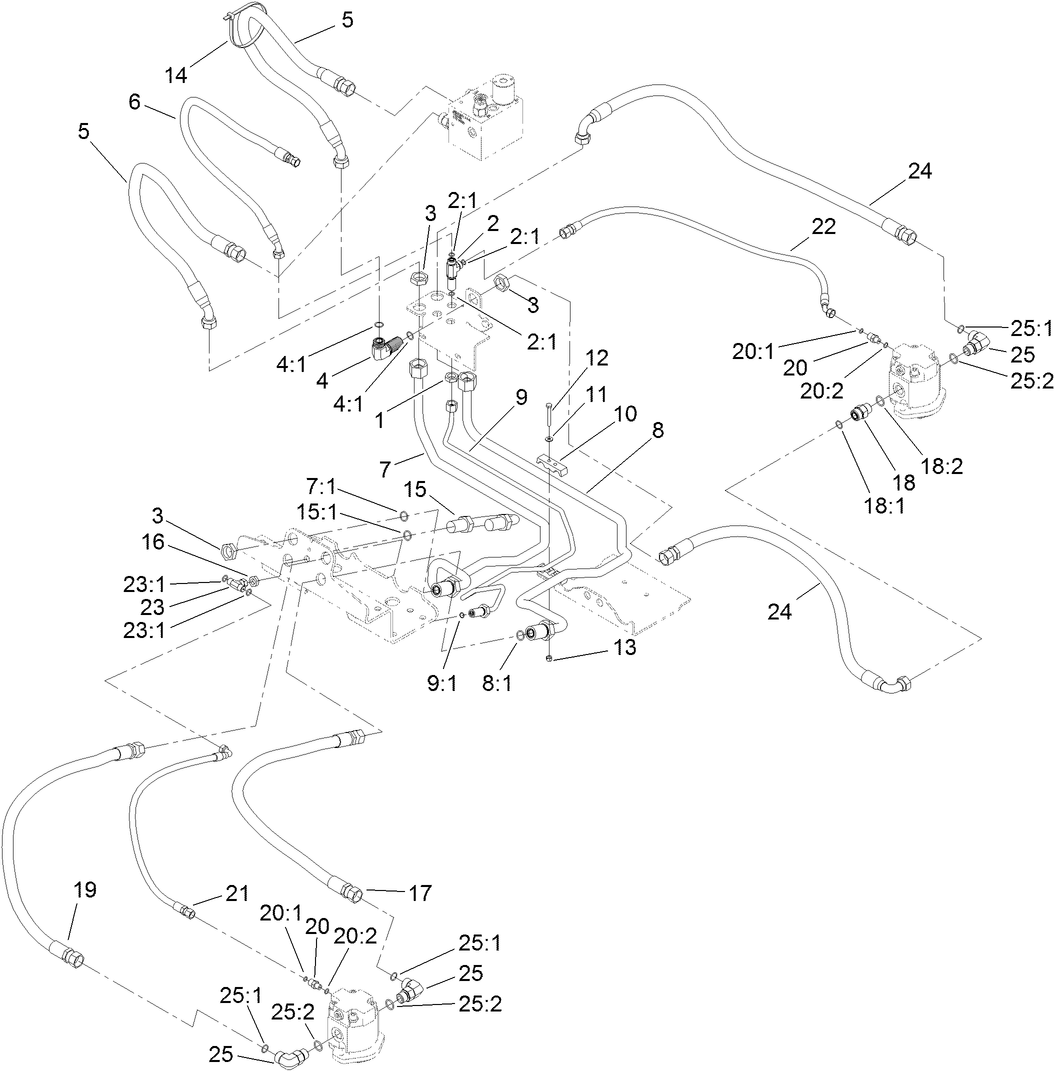

Mow Hydraulic Assembly

Mow Hydraulic Assembly

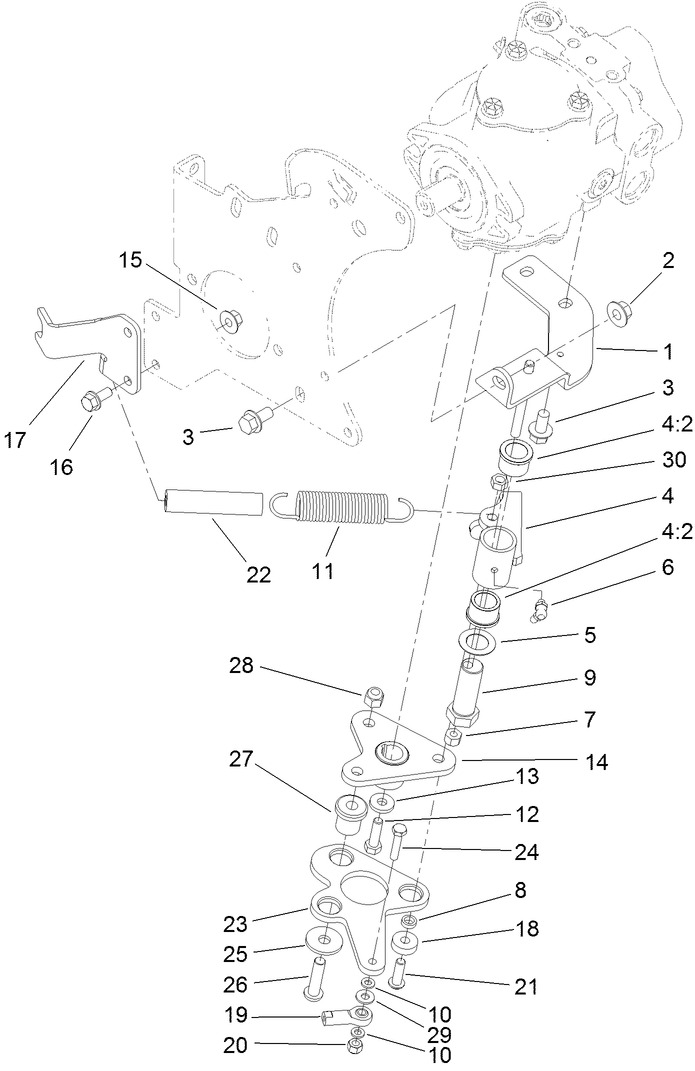

Neutral Arm Assembly

Neutral Arm Assembly

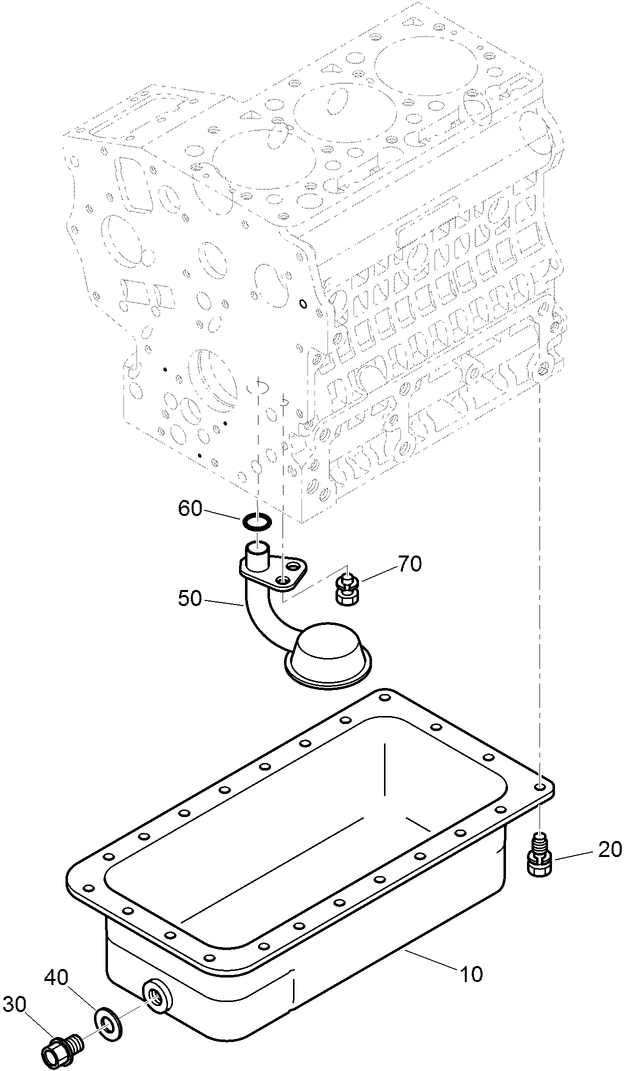

Oil Pan Assembly

Oil Pan Assembly

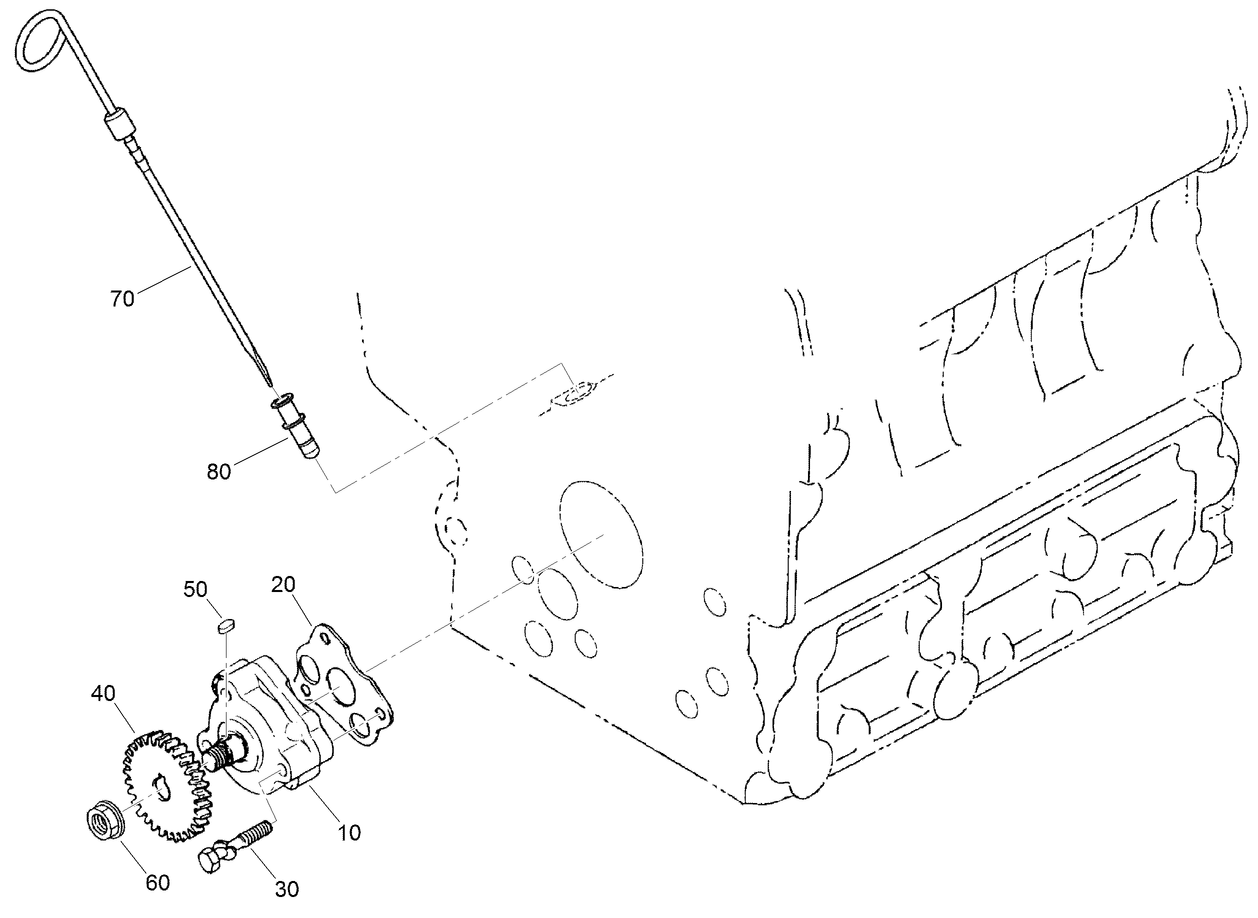

Oil Pump, Dipstick and Guide Assembly

Oil Pump, Dipstick and Guide Assembly

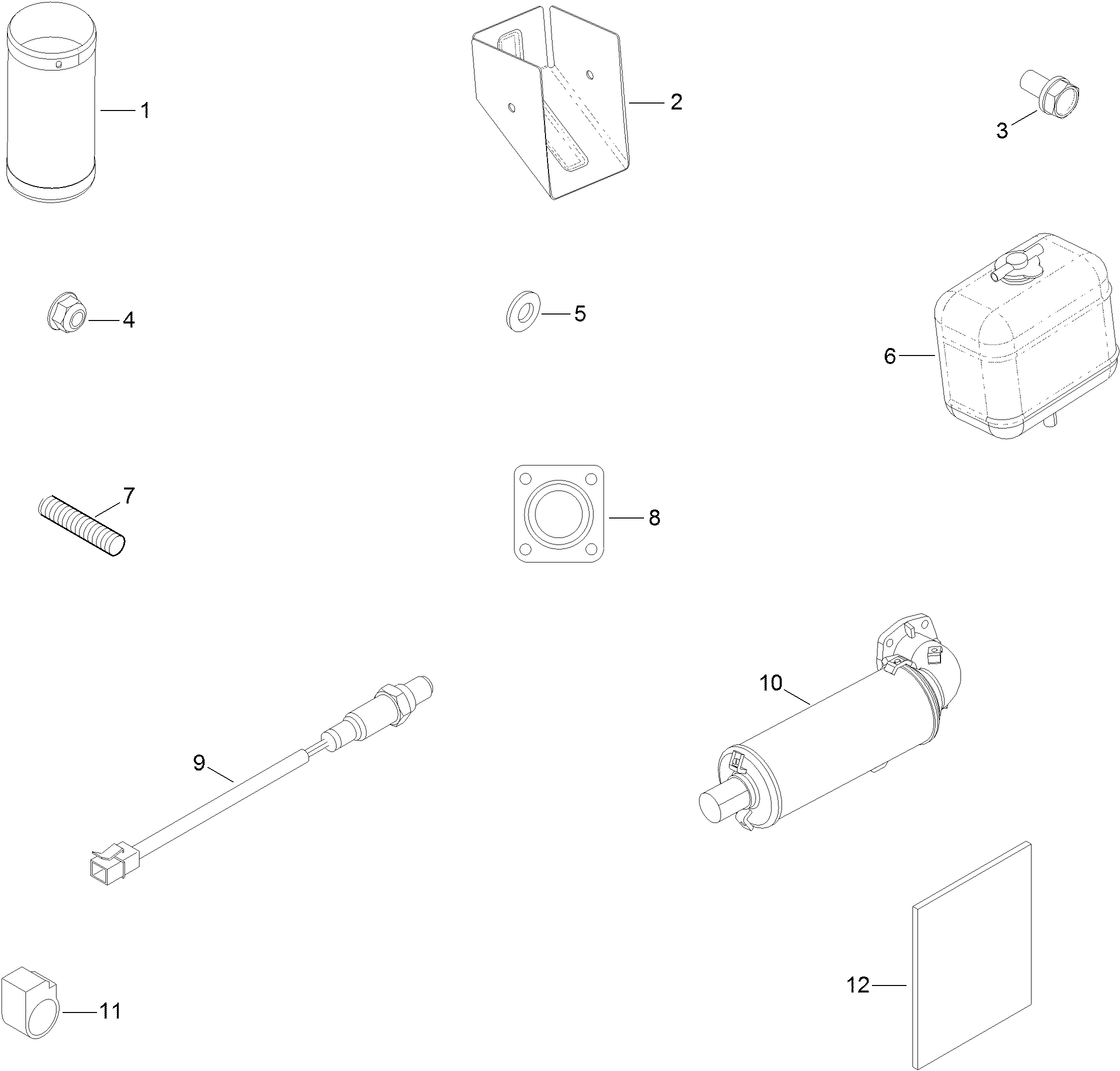

Operator Manual and Miscellaneous Engine Parts

Operator Manual and Miscellaneous Engine Parts

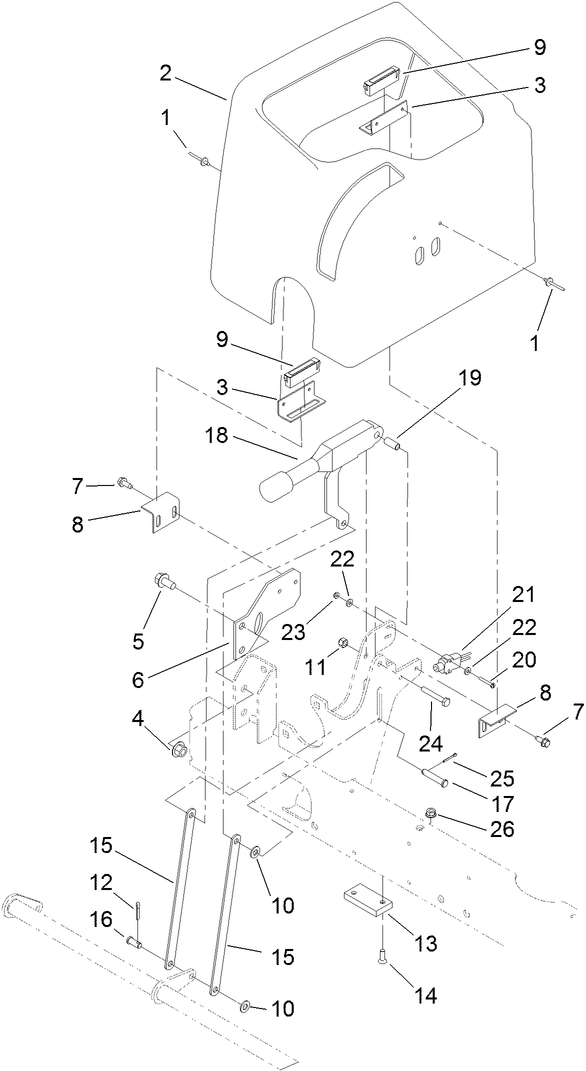

Parking Brake and Dash Cover Assembly

Parking Brake and Dash Cover Assembly

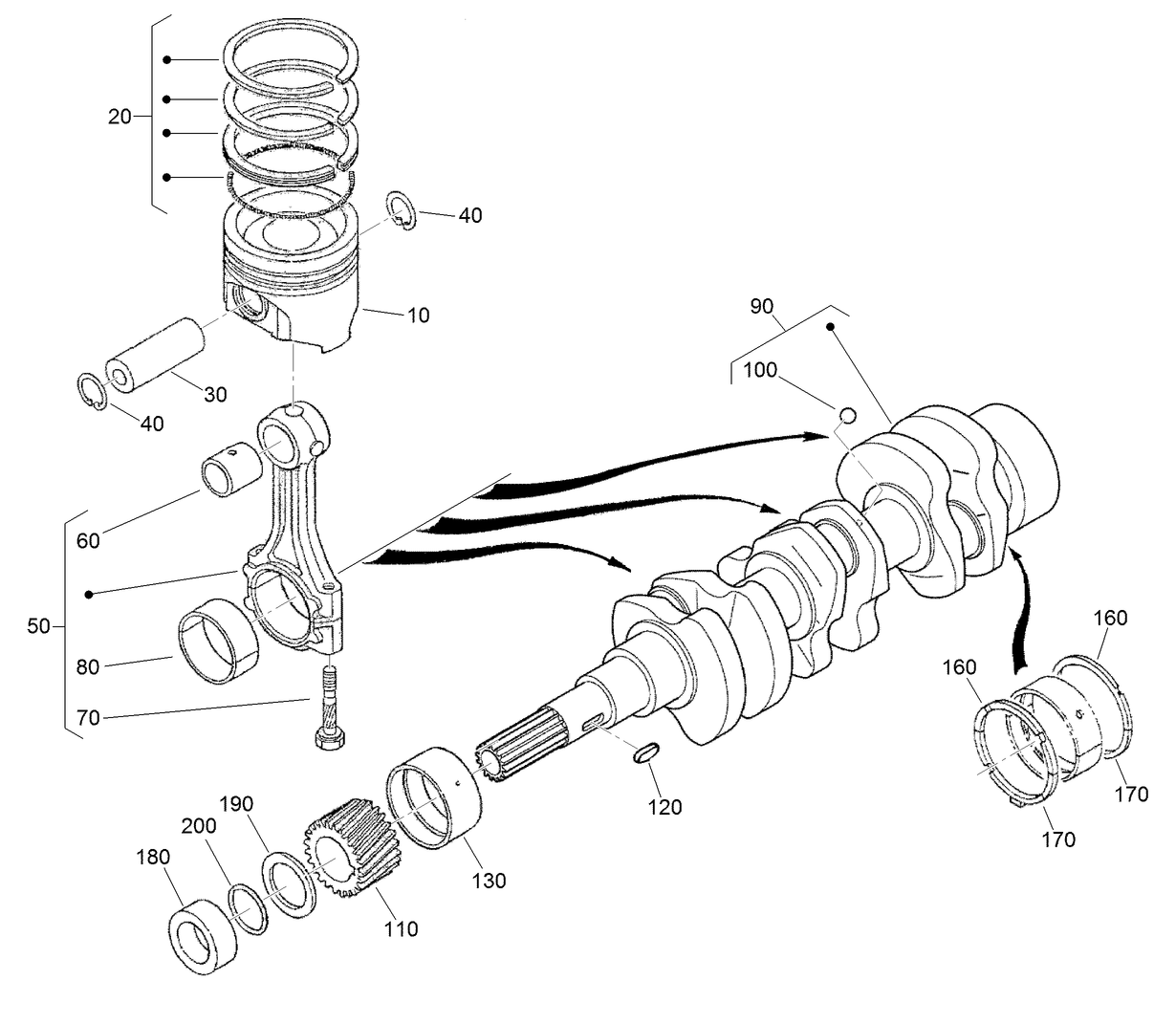

Piston and Crankshaft Assembly

Piston and Crankshaft Assembly

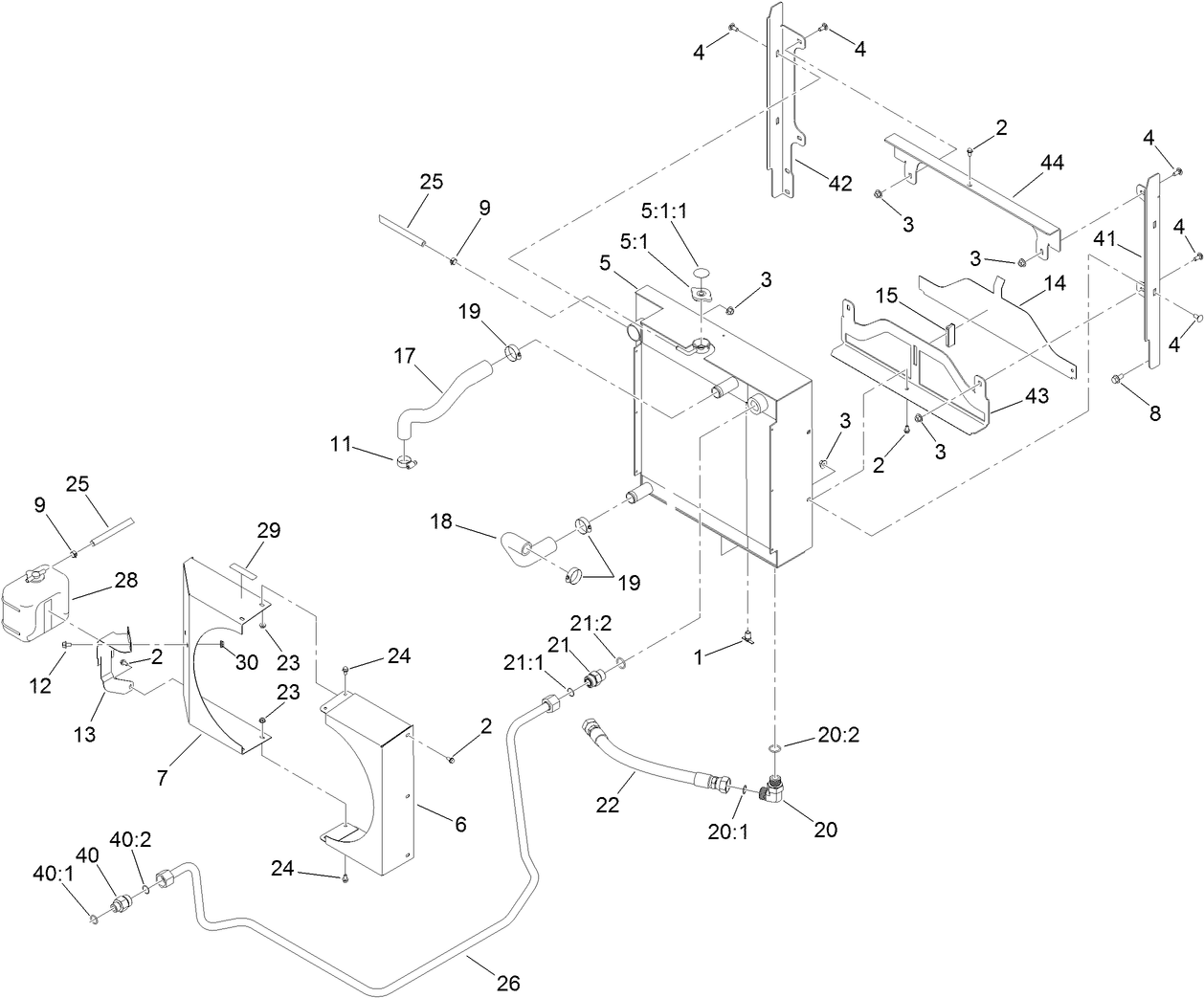

Radiator and Oil Cooler Assembly

Radiator and Oil Cooler Assembly

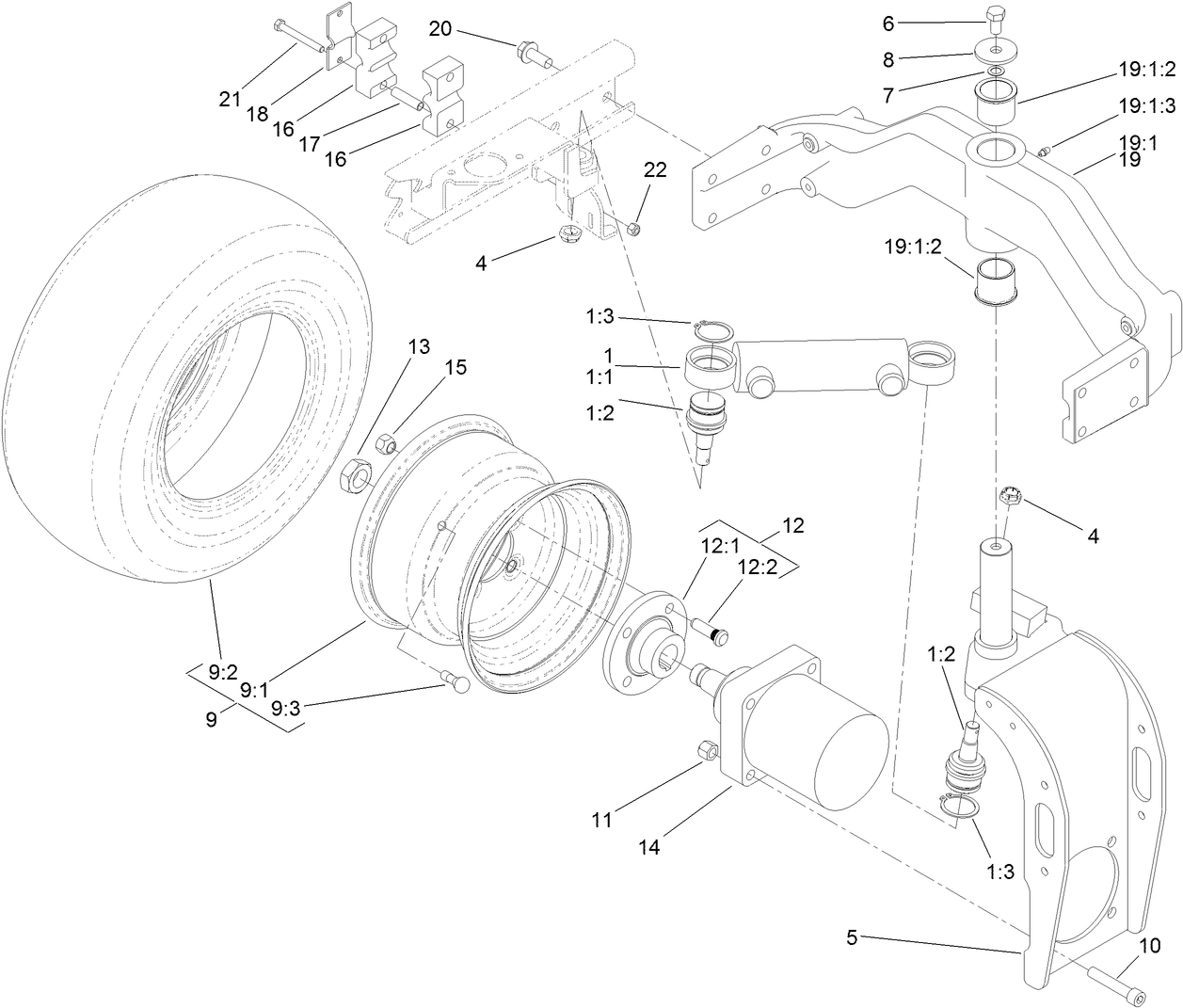

Rear Fork and Wheel Assembly

Rear Fork and Wheel Assembly

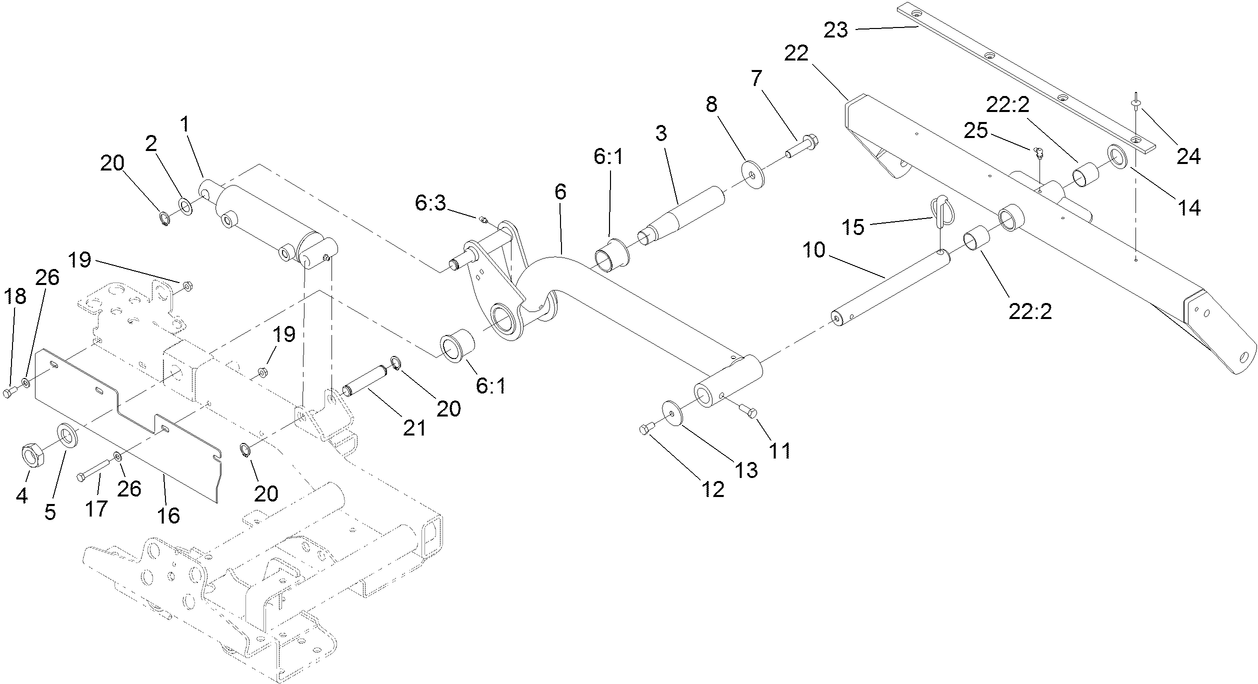

Rear Lift Arm and Carrier Frame Assembly

Rear Lift Arm and Carrier Frame Assembly

Roller and Carrier Frame Assembly

Roller and Carrier Frame Assembly

Roller Assembly No. 112-5265

Roller Assembly No. 112-5265

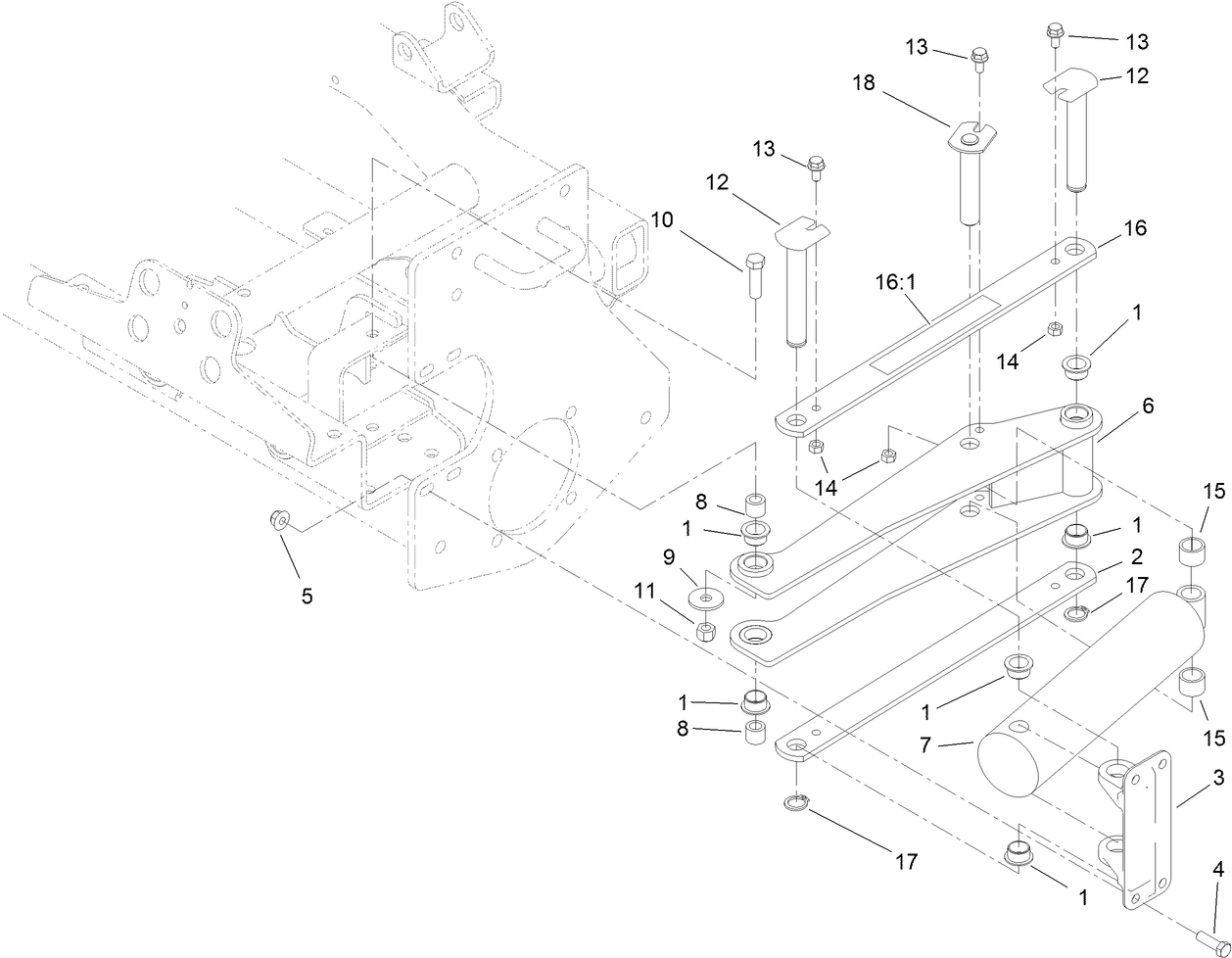

Scissor Frame and Link Assembly

Scissor Frame and Link Assembly

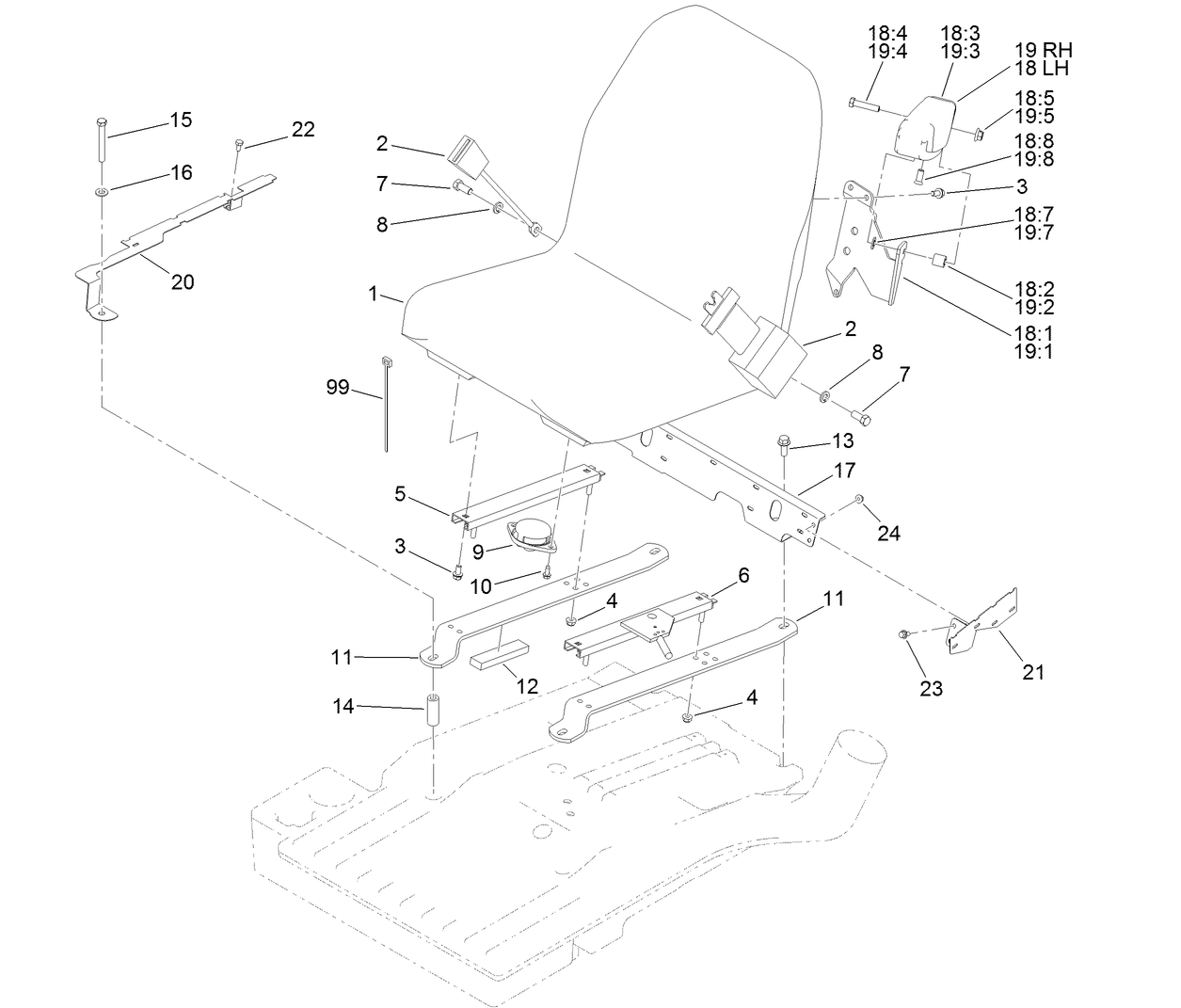

Seat Assembly

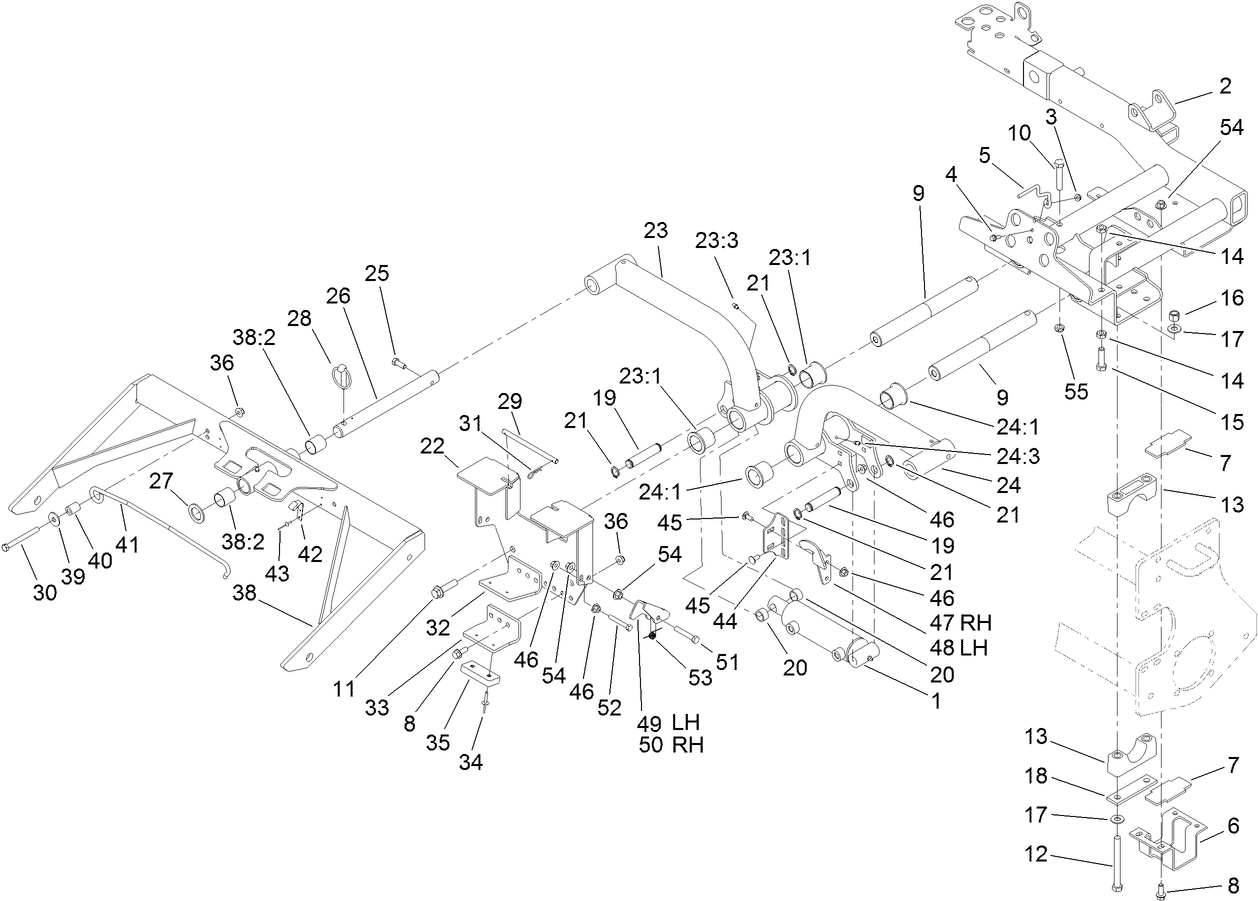

Sidewinder Carrier Assembly

Sidewinder Carrier Assembly

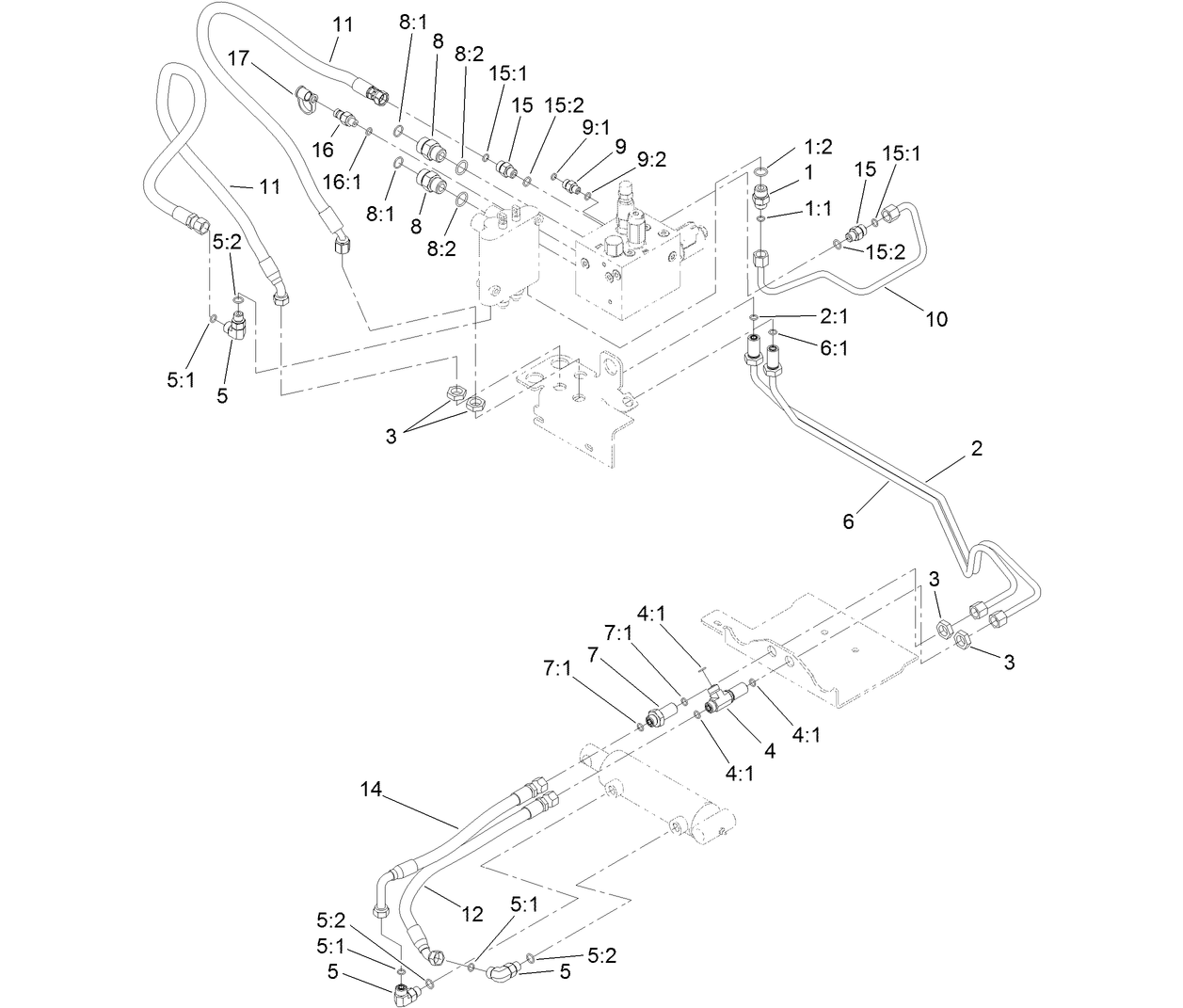

Sidewinder Hydraulic Assembly

Sidewinder Hydraulic Assembly

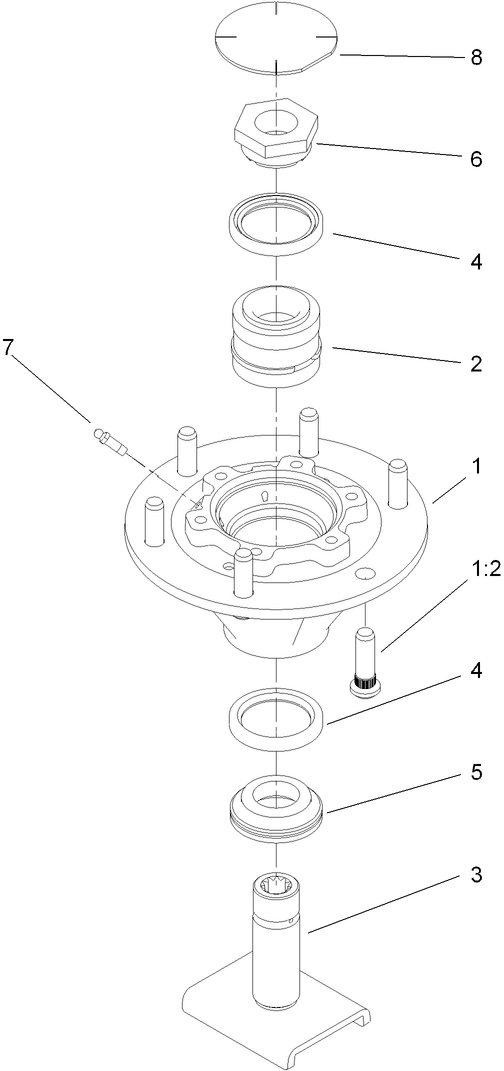

Spindle Assembly No. 115-3435

Spindle Assembly No. 115-3435

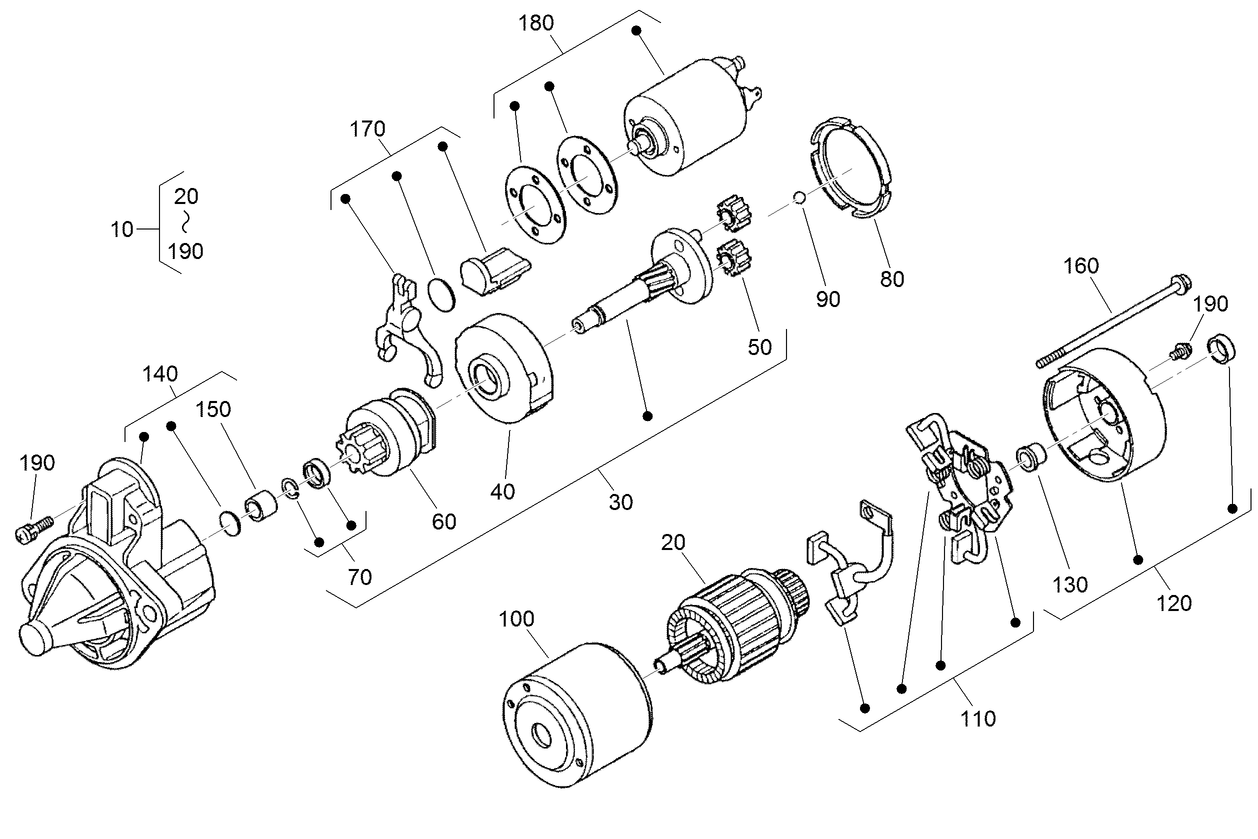

Starter Components Assembly

Starter Components Assembly

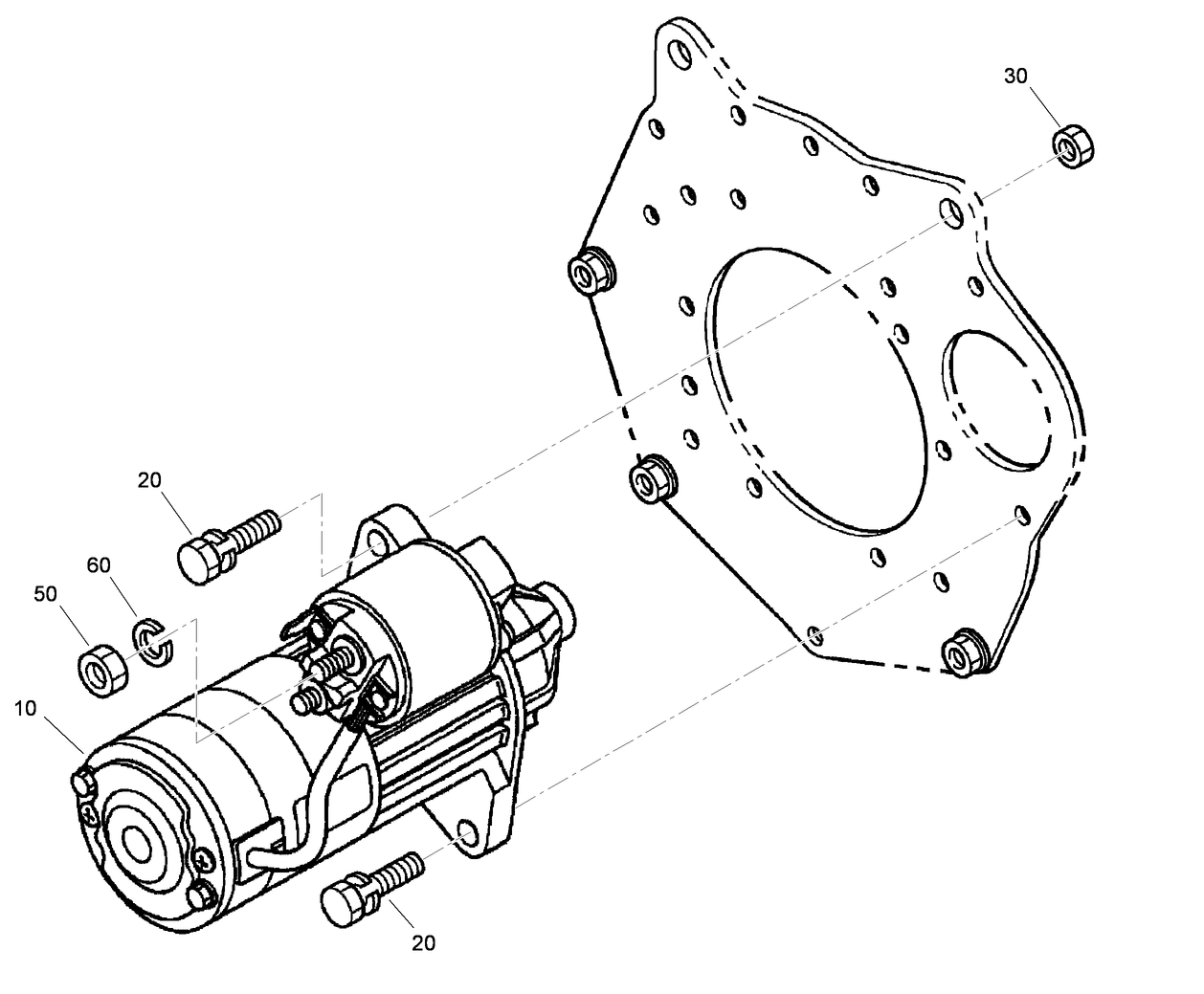

Starter Installation Assembly

Starter Installation Assembly

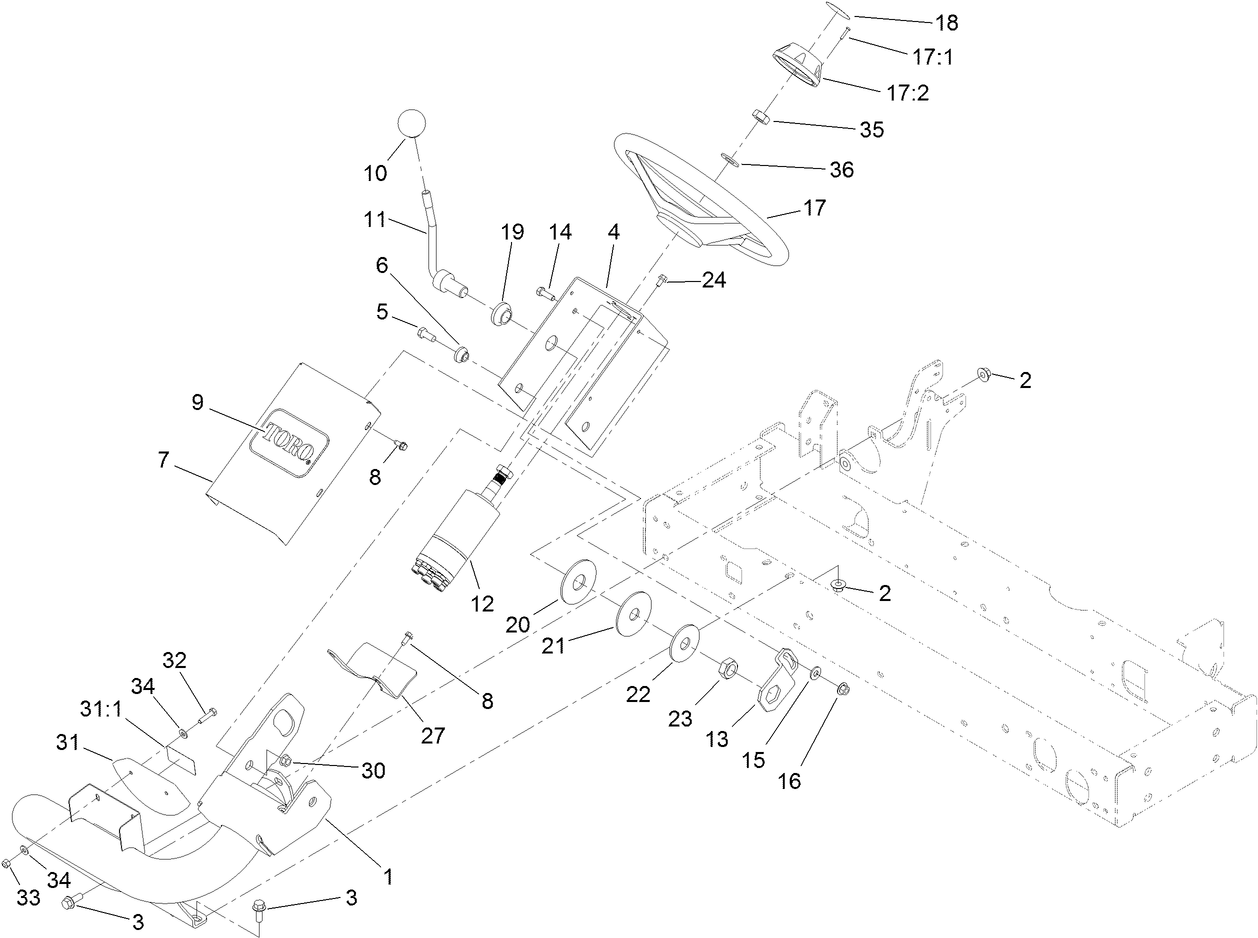

Steering Arm Assembly

Steering Arm Assembly

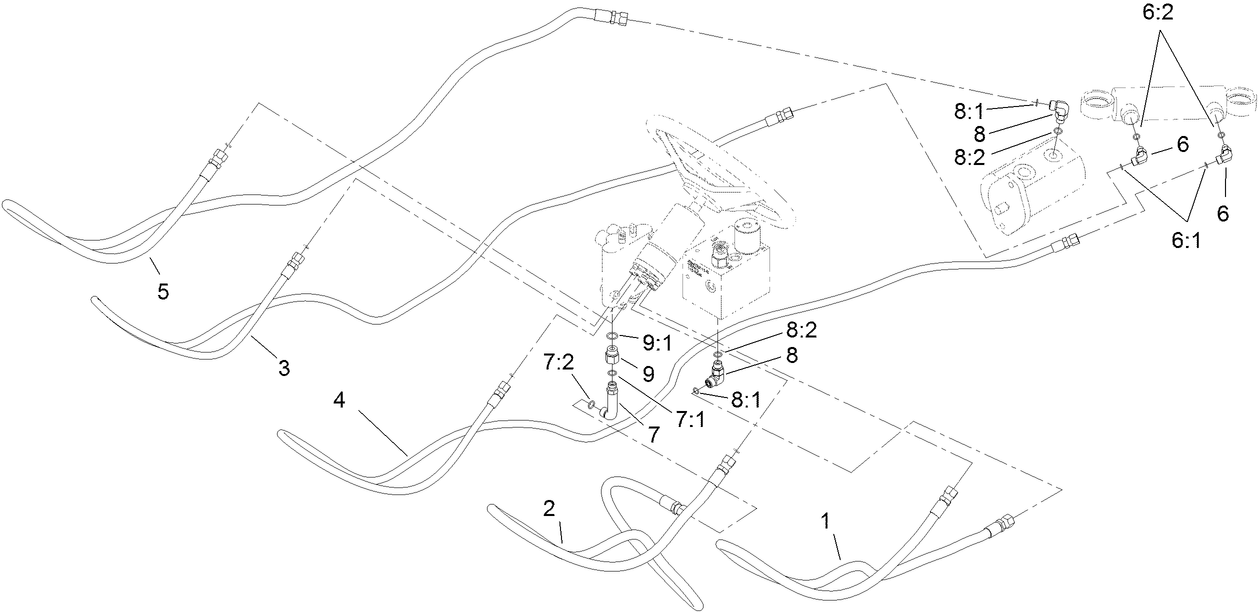

Steering Hydraulic Assembly

Steering Hydraulic Assembly

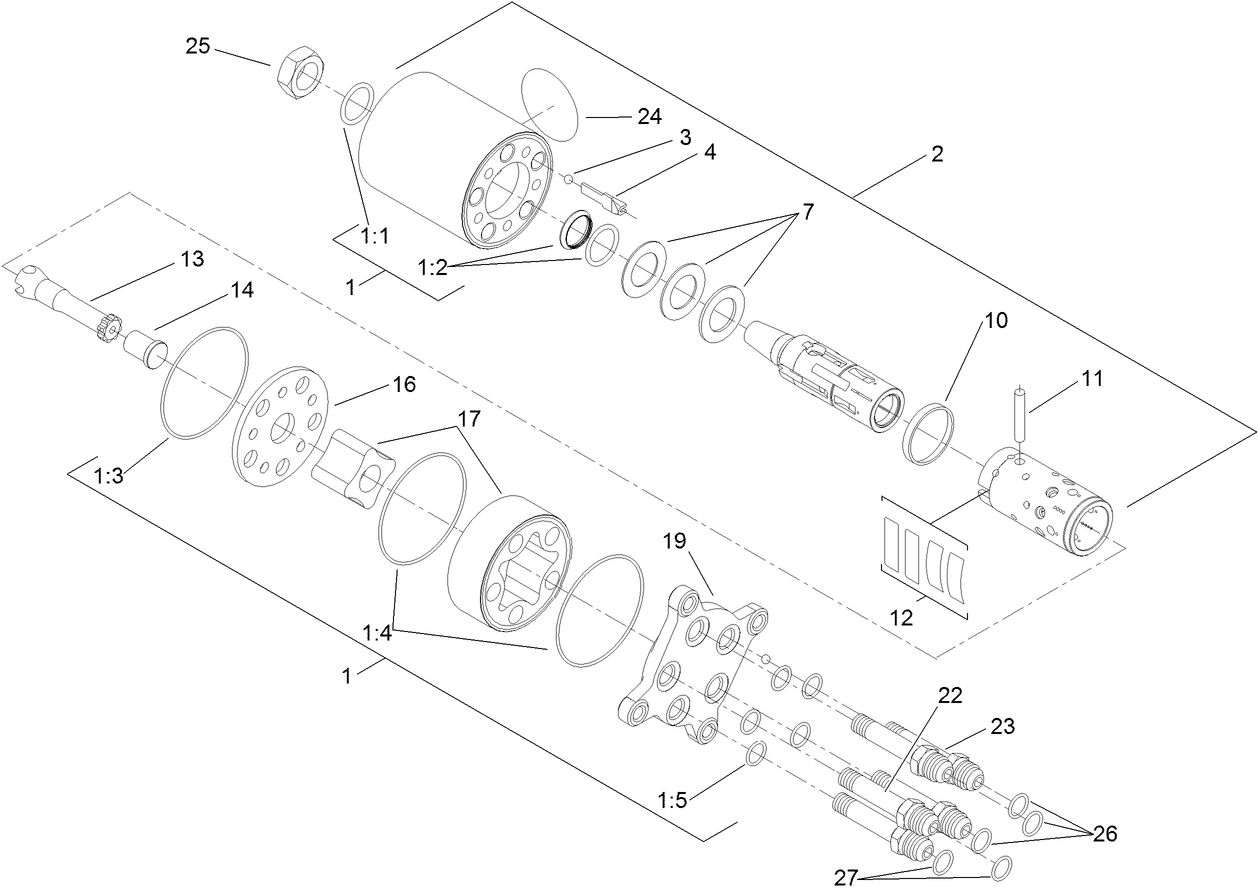

Steering Valve Assembly No. 121-7856

Steering Valve Assembly No. 121-7856

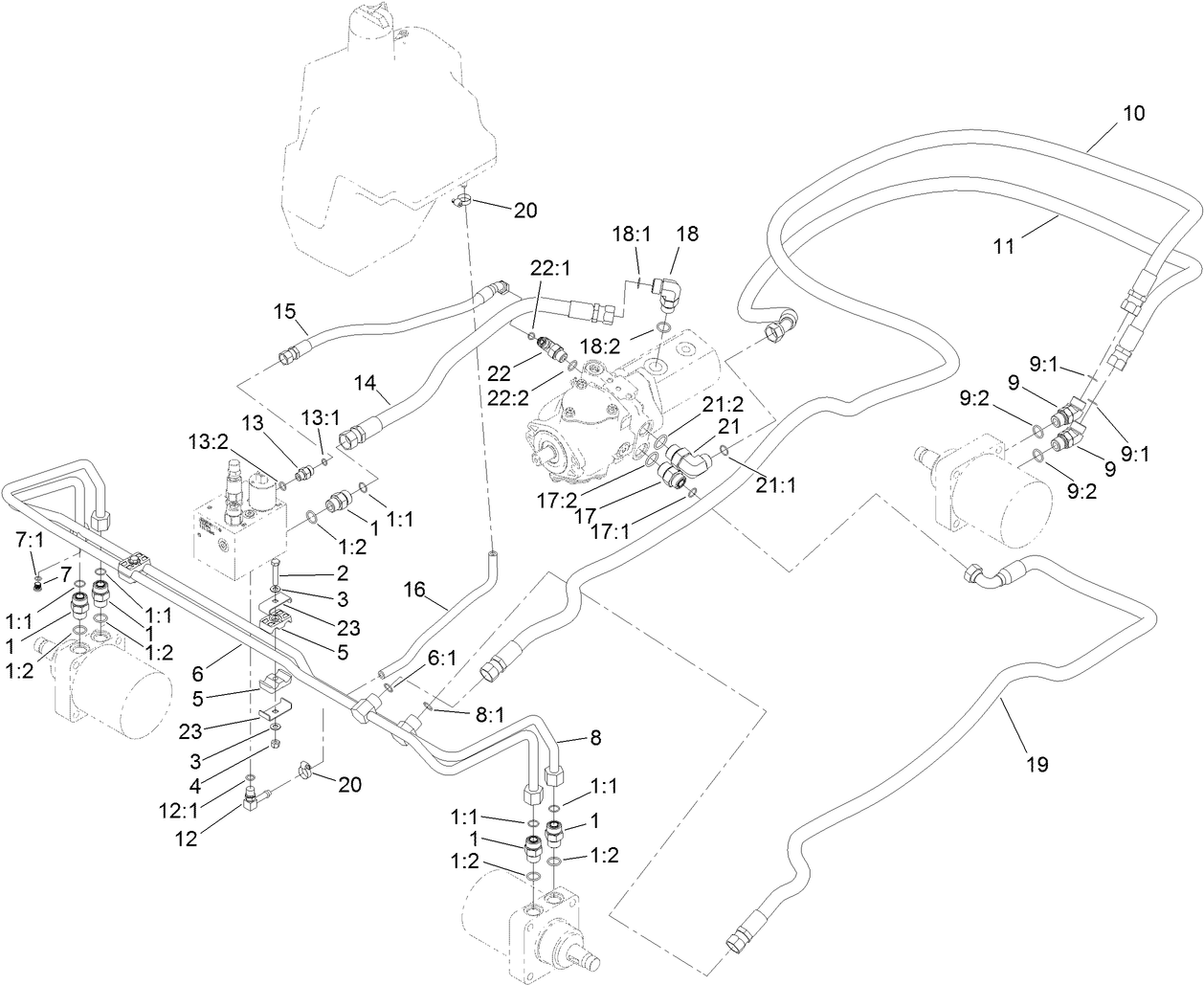

Traction Hydraulic Assembly

Traction Hydraulic Assembly

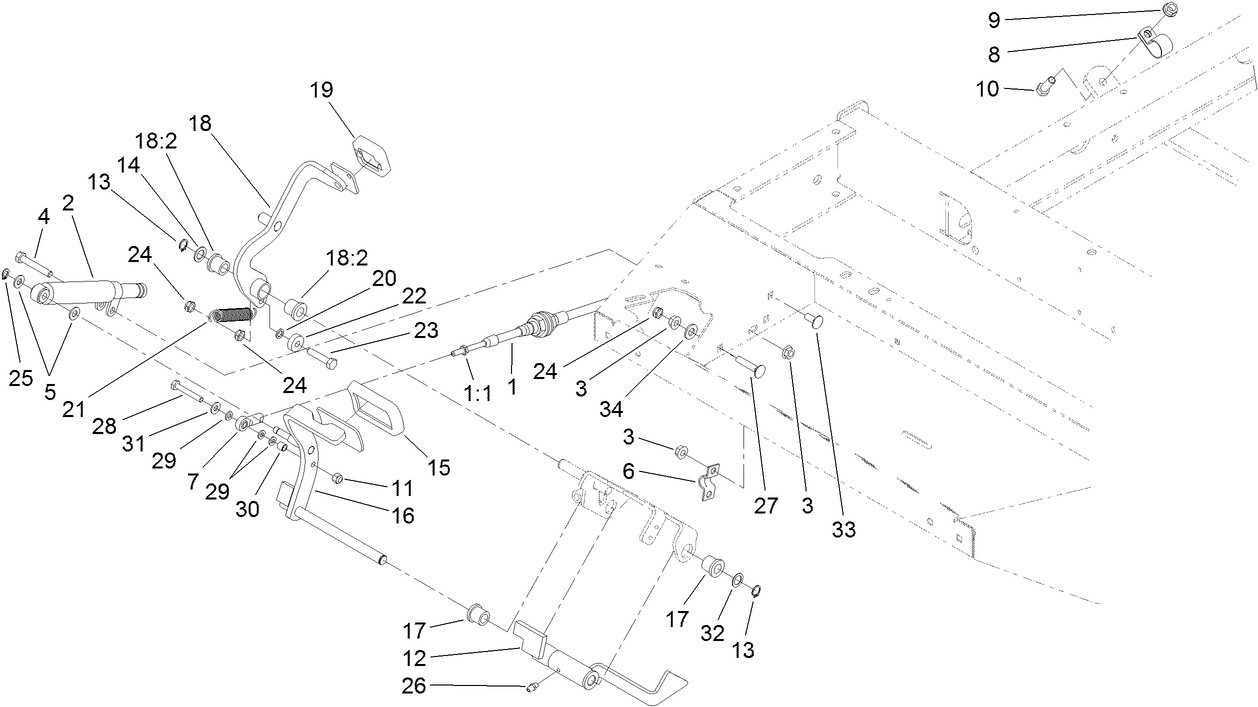

Traction Pedal Assembly

Traction Pedal Assembly

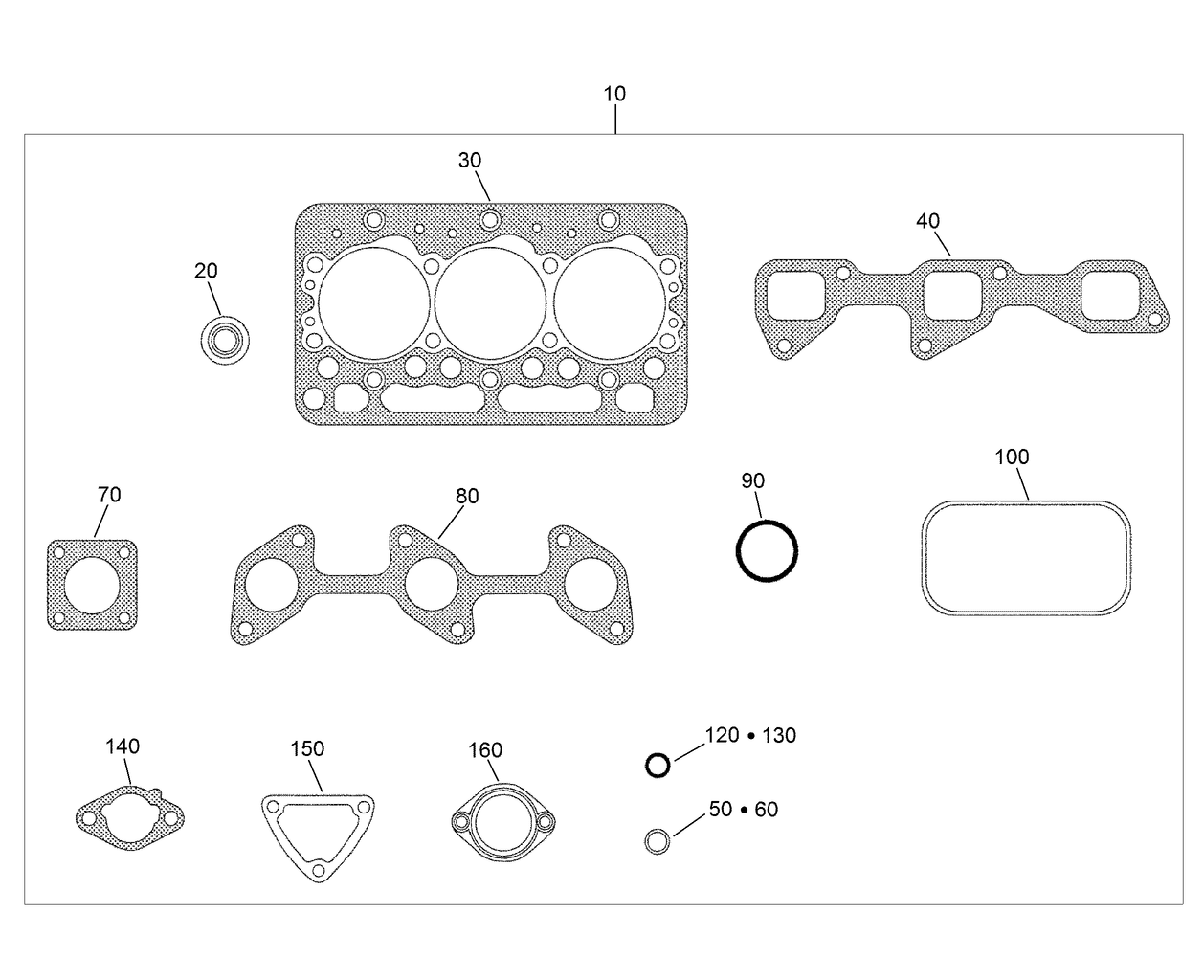

Upper Engine Gasket Kit

Upper Engine Gasket Kit

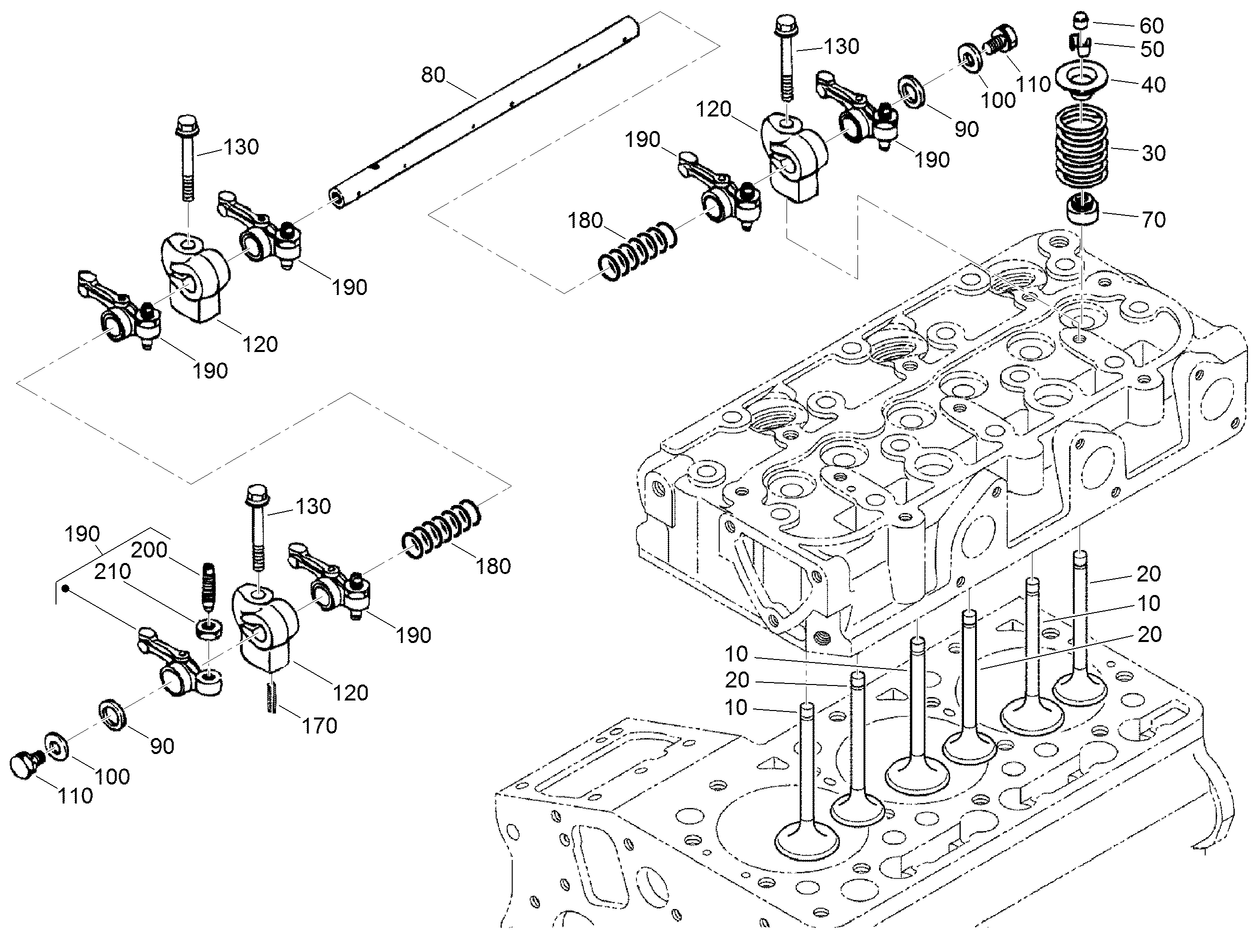

Valve and Rocker Arm Assembly

Valve and Rocker Arm Assembly

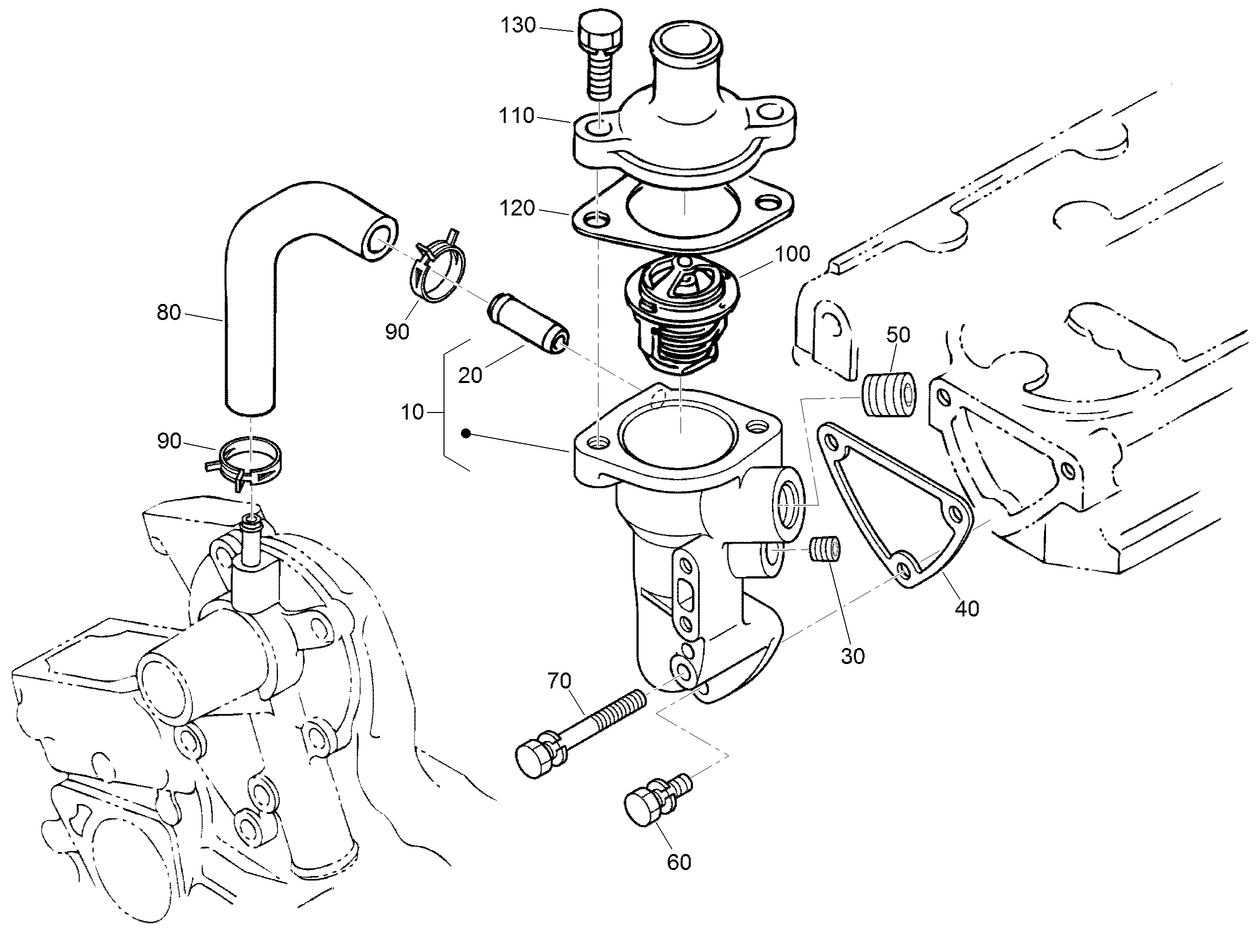

Water Flange and Thermostat Assembly

Water Flange and Thermostat Assembly

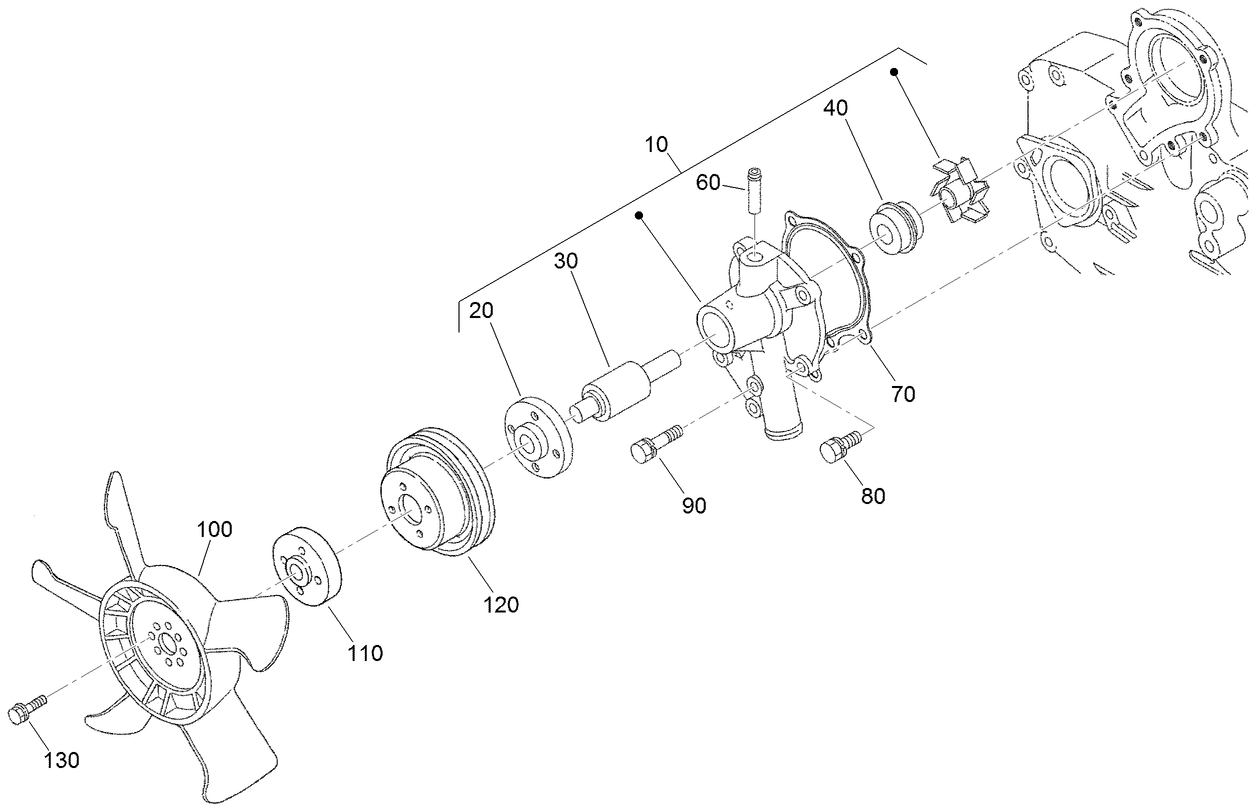

Water Pump and Cooler Fan Assembly

Water Pump and Cooler Fan Assembly

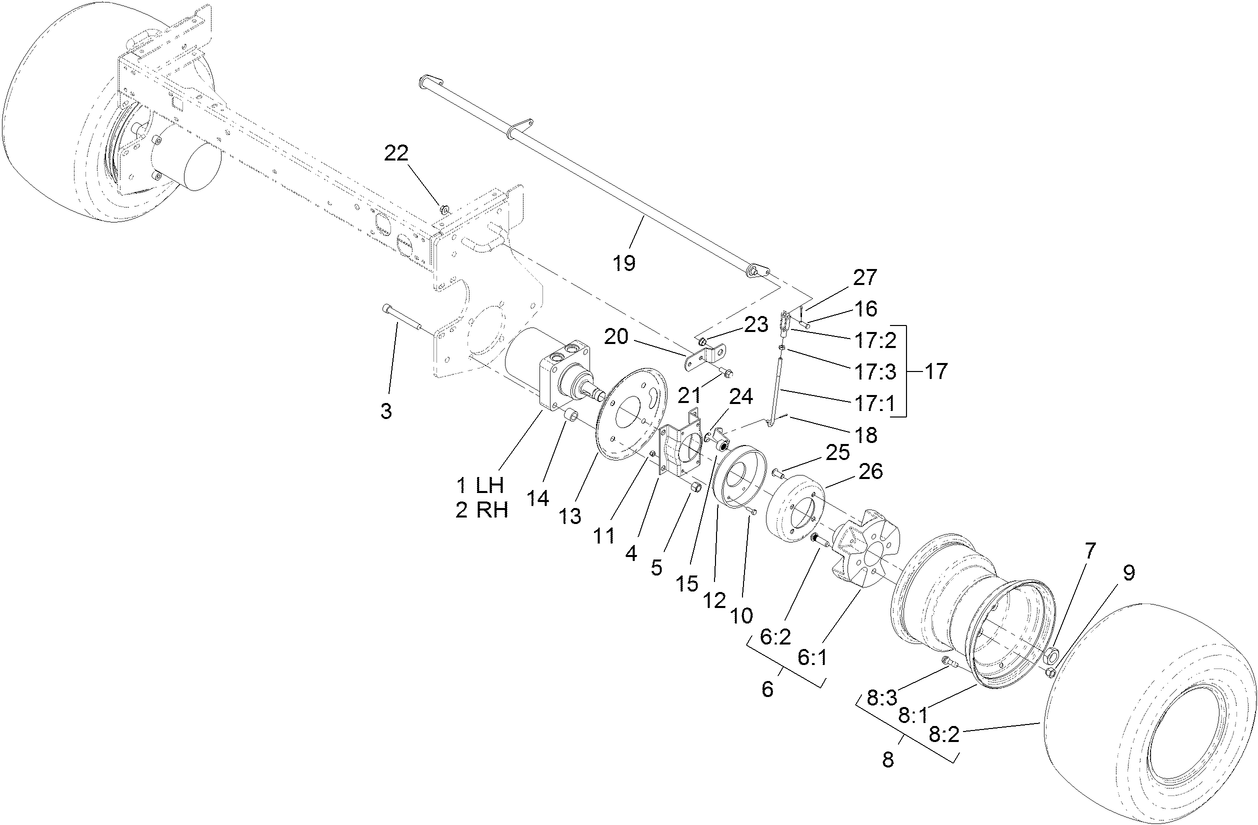

Wheel Motor and Brake Assembly

Wheel Motor and Brake Assembly

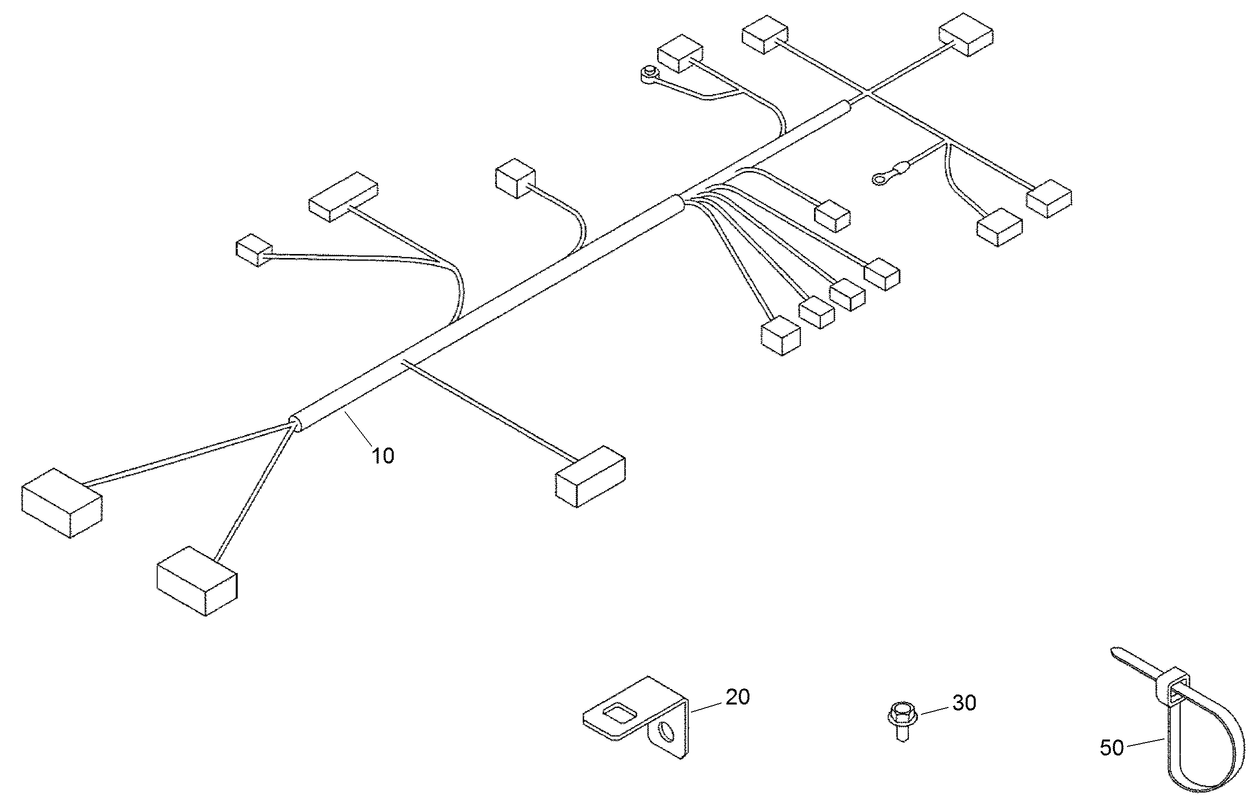

Wire Harness Assembly

Wire Harness Assembly

Download Parts Catalog

Manuals

Operator's Manual

Service Bulletin

Service Manual

Parts Catalog

Schematic Drawing - Electrical

Schematic Drawing - Hydraulic

Accessories (37)

Cooling Fan

Operator Cooling Fan (Part # 03247)

Keep cool in the warm temps with this overhead cooling fan.

Switch Panel (Part # 03248)

Universal Sunshade

Roller Scraper Kit (Part # 104-5168)

Genuine OEM Part 104-5183

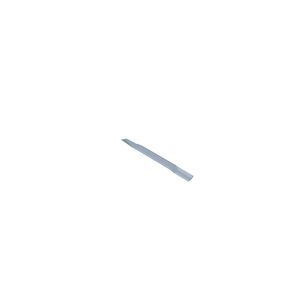

27.00 Inch High Sail/Lift Blade (Part # 104-5183)

Toro 27.00 Inch OEM High Sail/Flow blade This Sharp replacement blade provides a crisp, clean cut time after time. You can count on the reliability of this Toro replacement High Sail/Flow rotary mower blade. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

Genuine OEM Part 105-9810-03

27.00 Inch Angle Sail Blade (Part # 105-9810-03)

Toro 27.00 Inch Angle OEM Sail blade. Angle Sail blades Leave a clean fresh cut leaving your grass exactly how you want it. Angle Sail blades preforms best when dealing with low height of cuts (HOC). Angle Sails reduced tendency to throw grass to the sides. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure correct part.

Genuine OEM Part 107-0235-03

27.00 Inch Atomic® Mulching Blade (Part # 107-0235-03)

Toro 27.00 Inch OEM Atomic® mulching blade. The Toro Atomic® mulching blade is commonly referenced as a "Gator Style" or Gator Blade". The Atomic® Mulching Blade Provides the best quality of cut while mulching. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure correct part.

Genuine OEM Part 108-1462

6 Blade Service Pack- 27.00 Inch Atomic® Mulching Blade (Part # 108-1462)

Toro 27.00 Inch OEM Atomic® mulching 6-blade service pack (Part number 107-0235-03). The Toro Atomic® mulching blade is commonly referenced as a "Gator Style" or Gator Blade". The Atomic® Mulching Blade Provides the best quality of cut while mulching. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure correct part.

Genuine OEM Part 108-9026

27in. Blade Combo (Part # 108-9026)

Alternative blade option.

Wireless Hourmeter System

Wireless Hourmeter System (Part # 115-4754)

Auxiliary Antenna Kit (Part # 115-9524)

Base Station Kit (Part # 115-9542)

Repeater Kit (Part # 115-9543)

Genuine OEM Part 131-7800

5.50 Inch Roller Assembly (Part # 131-7800)

Toro 5.50 Inch OEM Roller Assembly. This roller has a 5.00 inch diameter. This assembly comes with a roller, tube shaft, spacer tube & spacer washer. This is a small little roller wheel used to protect your equipment from hitting the ground. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.

Toro High Back Seat Cover

Toro High Back Seat Cover (Part # 133-1308)

Toro genuine high back seat covers will take a beating and endure the daily wear and tear you put on it. These seat covers are carefully crafted and sewn from the highest quality, waterproof material, nylon/polyester fabric that ensures that your factory seats will always be protected. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

Toro 5 Gallon PX Extended Life Hydraulic Fluid

Toro 5 Gallon PX Extended Life Hydraulic Fluid (Part # 133-8086)

Toro 5 Gallon PX Extended Life Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Toro 55 Gallon PX Extended Life Hydraulic Fluid

Toro 55 Gallon PX Extended Life Hydraulic Fluid (Part # 133-8087)

Toro 55 Gallon PX Extended Life Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Genuine OEM Part 136-2881

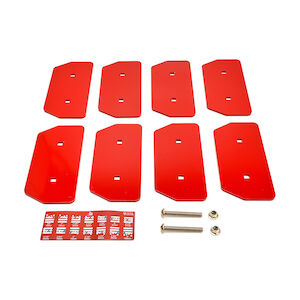

Ballast Kit (Part # 136-2881)

Contains 136-2880-01 @ 8, 32122-54 @ 2, 104-8301 @ 2, 121-3627 @ 1

Wheel Weight Kit

Wheel Weight Kit (Part # 136-3315)

Genuine OEM Part 136-3421

LH Liftarm ASM, 72in. (Part # 136-3421)

Genuine OEM Part 136-3423

RH Liftarm ASM, 72in. (Part # 136-3423)

Genuine OEM Part 137-6145

27.00 Inch Greenmaster Sectional Roller Assembly (Part # 137-6145)

Toro 27.00 Inch OEM Greenmaster Sectional Roller Assembly. This Roller has a 3.00 inch diameter. This Assembly comes with the roller tube, roller shaft, oil seals, stainless steel bearings, seals, set screws, lock nuts, grease fittings, grease & the roller rebuild kit. A sectional roller broken up into section, consisting of smooth rollers with a gap between one another. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.

Beacon Sunshade Kit

Beacon Sunshade Kit (Part # 138-2699)

Stay cool and productive when mowing with a canopy.

LED Worklights

LED Worklights (Part # 138-2700)

Provide extra light for everyday operations.

Wire Harness (Part # 138-2993)

Hydraulic Booster (Part # 145-5286)

Bimini Canvas Sunshade

Bimini Canvas Sunshade (Part # 30358)

Stay cool and productive when mowing with a canopy.

Premium Seat Kit

Premium Seat Kit (Part # 30629)

Upgrade your comfort and design with premium seating.

Universal Sunshade (White)

Universal Sunshade (White) (Part # 30669)

Stay cool and productive when mowing with a canopy.

Universal Sunshade (Red)

Universal Sunshade (Red) (Part # 30671)

Stay cool and productive when mowing with a canopy.

Rotary Cutting Unit (Part # 30834)

Leaf Mulching Kit

Leaf Mulching Kit (Part # 30836)

LED Work Light Kit (Part # 31692)

Provide extra light for everyday operations.

Red Paint (Gallon) (Part # 361-11)

Genuine OEM Part

Dark Metallic Gray Paint (Part # 361-12)

Genuine OEM Part

Semi-Gloss Black Paint (Part # 361-9)

Genuine OEM Part

Genuine OEM Part 44965

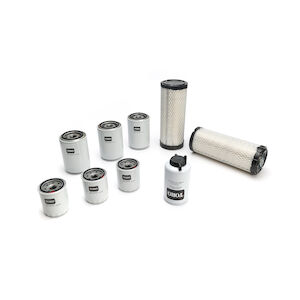

MVP KIT, 1000-HOUR, GM3500-G (Part # 44965)
