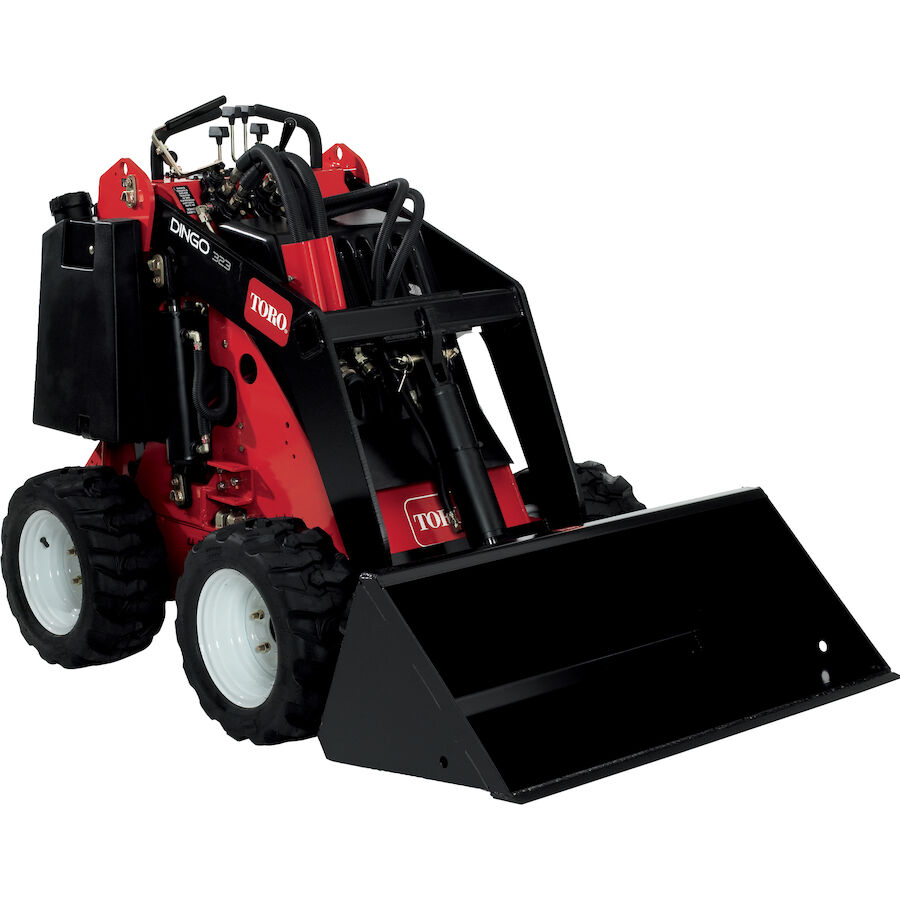

Dingo® 323 Mini Skid Steer

Model: 22318

Find a Dealer

Patented 4-Paw Independent Four-Wheel Drive
2-Pump Hydraulic System
Easy-to-reach 4-stick fingertip hand controls

Top

Find a Dealer

Overview

Equipped with the Toro designed 4-Paw®, independent 4-wheel drive system, the Dingo® 323 at 3000 psi (206.7 bar) offers incredible power and durability. Delivering 10.8 gpm (40.9 lpm) of hydraulic power with this 23 hp (17.2 kw) Kohler engine will guarantee jobsite productivity.

Features

Dingo 320D wheeled digging holes using the auger attachment

4-Paw® Independent 4-Wheel Drive

Four independent wheel motors deliver hydraulic flow and pressure to all our wheels for improved traction and mobility. Fewer moving parts also mean less maintenance.

Dingo 322 with the grapple rake carrying a rock.

Two Transport Speeds

Low speed sends more hydraulic power to the attachment and high speed sends more power to the wheels. The low speed option also helps new operators shorten their learning curve.

Highly Maneuverable

Short wheelbase design offers excellent maneuverability. Get into tight spaces where only hand labor could go before.

Dingo 320-D with the soil cultivator attachment

Fingertip Controls

Easy-to-reach 4-stick fingertip hand controls enable all functions from the operator position. The operator controls all movements of the machine and attachments with his fingertips.

Specifications

Air Filter	Two-stage, heavy-duty, remote
Cooling System	Air Cooled
Displacement (cc)	674
Displacement (cu. in.)	41
Dump Angle	34 degrees
Dump Height (cm)	119
Dump Height (inches)	47
Engine Make	Kohler
Engine Model	Command Series CH23
Fuel Tank (gallons)	11.2
Fuel Tank (liters)	42.4
Fuel Type	Gasoline
Ground Clearance (cm)	14.7
Ground Clearance (inches)	5.8
Ground Speed Forward (mph)	3.7
Ground Speed Foward (km/h)	6
Ground Speed Reverse (km/h)	6
Ground Speed Reverse (mph)	3.7
Hinge Pin Height (cm)	167.6
Hinge Pin Height (inches)	66
Hydraulic Pressure	3250 psi
Loader Arms	Radial
Manufacturer's Gross HP Rating (HP)	23
Manufacturer's Gross HP Rating (kW)	17.2
Max Operating Height (cm)	231.6
Max Operating Height (inches)	91.2
Oil Capacity (liters)	1.9
Oil Capacity (quarts)	2
Overall Height (cm)	123.7
Overall Height (inches)	48.7
Overall Length w/bucket (cm)	208.8
Overall Length w/bucket (inches)	82.2
Overall Length w/o bucket (cm)	157.5
Overall Length w/o bucket (inches)	62
Overall Width (cm)	102.8
Overall Width (inches)	40.5
Rated Operating Capacity - 35% of Tip Capacity (kg)	233
Rated Operating Capacity - 35% of Tip Capacity (lbs)	515
Reach – Fully Raised (cm)	28
Reach – Fully Raised (inches)	28
Reservoir Capacity (gallons)	17
Reservoir Capacity (liters)	64
RPM	3600
Tip Capacity (kg)	467
Tip Capacity (lbs)	1030
Weight (kg)	711
Weight (lbs)	1567
Wheelbase (inches)	28

Accessories

Tire Chain Kit, Dingo (Part # 100-4140)

HELMET-FACE SHIELD (Part # 100-4143)

Narrow Tire Assembly (Part # 104-0572)

Inner Tube (Part # 105-4070)

Genuine OEM Part

Rubber Foot Mat (Part # 105-5805)

Tire Tube (Part # 106396)

TUBE-TIRE [18 - 8] (Part # 107-2491)

SPARE TIRE KIT ASM (Part # 144-0105)

TIRE AND WHEEL ASM, RH (Part # 144-2574)

TIRE AND WHEEL ASM, LH (Part # 144-2575)

Light Kit (Part # 144-7101)

Light kit fits: Dingo TX 427, TX 525 - LED (650 LM)

TIRE AND WHEEL ASM (Part # 147-6040)

Adjustable Forks, TX 1000 Compact Utility Loaders (Part # 22341)

CE CONVERSION KIT-WHEELED DINGO-PETROL (Part # 22366)

Loader Bucket Attachment (Part # 22409)

Use this standard bucket for moving rock, dirt, sand or other materials off and around the job site. The hardened steel cutting edge offers improved cutting and digging capability for better performance to handle tough digging conditions and affords superior wear. Capacity = 4 cubic feet (1 cu. m.).

Light Materials Loader Bucket Attachment (Part # 22410)

Designed for moving light materials like chip-bark, mulch, snow and loam. The larger capacity bucket, 6.4 cubic feet (.2 cu. m.), is great for handling larger loads of lighter materials. The hardened steel cutting edge allows for improved cutting and digging capability for better performance to handle tough digging conditions and affords superior wear.

Utility Blade Attachment (Part # 22414)

The Toro Dingo hydraulic blade greatly increases the versatility of your Dingo system. This incredibly versatile attachment can be used for a variety of earth or snow moving jobs. Fill trenches where rows of trees have been planted or irrigation pipes have been installed. Keep your hydraulic blade working in the winter by pushing snow from sidewalks in one pass.

Bore Drive Head Attachment (Part # 22420)

The Toro® Dingo® boring unit allows you to dig under sidewalks and driveways to simplify irrigation and cable installations. Shorter rod lengths and the ability to lower the bore head below grade allow you to work in both confined and open areas, increasing your productivity.

Rod and Reamer Kit (Part # 22421)

Easily bore under driveways and sidewalks to simplify irrigation and cable installations. Use with Bore Drive Head attachment model 22420. Working depth: 19". Bits and reamers up to 3.5" in diameter.

Multi-Purpose Tool, Dingo (Part # 22423)

Power Box Rake Attachment (Part # 22426)

The Toro Power Box Rake is the perfect tool for seed bed and sod bed preparation. The rotary drum on the power box rake pulverizes rough soil, cuts high spots and fills low spots in one pass; while removing rocks and debris. Pure carbide teeth design produces the best possible seeded sub-soil, which promote superior moisture retention and rapid seed growth.

Stump Grinder Attachment (Part # 22429)

The Toro® Dingo® Stump Grinder easily attaches to either Dingo or Dingo TX compact utility loaders. Make grinding stumps quicker and more productive with the stump grinder attachment for your Toro Dingo.

Tree Fork Attachment (Part # 22438)

The Toro Dingo hydraulic tree forks can help you plant trees and large shrubs quickly and effortlessly, plus move all sorts of materials around your garden center or nursery. The Dingo Compact Utility Loader is especially easy to maneuver, helping you transport and position trees or shrubs exactly where you want them.

Cement Mixer Attachment (Part # 22442)

This unique attachment will mix and pour up to 200 pounds (90.7 kg) of dry cement. The specially designed auger flighting inside the cement bowl keeps the cement in the bowl during mixing. This same auger design permits cement to be poured into fence post holes with the posts in place!

Tiller Attachment (Part # 22445)

The Toro Dingo tiller attachment greatly increases the productivity and performance of your Dingo system. Break through hard soil conditions up to 6" (15.2 cm) deep. Avoid clogging the tiller by using one easy hand control to reverse the direction of the tiller to clear jams from rocks and debris.

High Torque Trencher Attachment (Part # 22473)

High-torque trencher head with heavy-duty drive system guarantees performance in the toughest soil conditions from rock to caliche. Dig trenches up to 50" (127 cm) below grade. Heavy-duty nose roller bearing and reversible abrasion-resistant boom give you years of dependable use.

High Speed Trencher Attachment (Part # 22474)

Ideal for fast, efficient trenching in most soil conditions. Great for cable, pipe or irrigation installations.

Narrow Loader Bucket Attachment (Part # 22520)

Handle compact construction and remodeling sites by moving through 36" (91.4 cm) gates without a problem. This 35" (88 cm) wide bucket allows you to get through narrow spaces, including gates and doorways. Move rock, dirt, sand or other materials off and around the job site. Great for use on any Dingo® model equipped with narrow wheels and tires.

Grapple Rake Attachment (Part # 22577)

The Toro grapple rake attachment allows operators to grab, drag, lift, and place materials with ease. The grapple has two heavy-duty cylinders capable of producing 3000 pounds of clamping force at the tine tips, insuring you can "grab-ahold" and not let go.

High Torque Auger Attachment (Part # 22805)

In any drive head, there is a tradeoff between torque (power) and speed (revolutions per minute). The high torque head provides a large amount of torque to the auger at a slower speed. The high torque translates into the Dingo's capability to dig 30" (76.2 cm) holes up to 6' (1.8 m) deep in clay, gravel, sandstone and many other conditions where lower torque heads get stuck.

Mini Skid Steer Auger Attachment (Part # 22806)

This attachment swivels in all directions to create plumb holes on uneven terrain. The higher speed of this auger power head is ideal for augers up to 24" (61cm) in diameter. Quickly change between auger bit sizes to dig holes for fence posts, footings, irrigation heads and more!

18" Auger Bit (Part # 22814)

18" auger bit requires auger power head attachment 22805 or 22806.

24" Auger Bit (Part # 22815)

24" auger bit requires auger power head attachment 22805 or 22806.

12" Auger Extension (Part # 22818)

Add extension to any auger to increase depth.

24" Auger Extension (Part # 22819)

Add extension to any auger to increase depth.

6" Full Flight Auger Bit (Part # 22820)

6" full flight auger bit requires auger power head attachment 22805 or 22806.

9" Full Flight Auger Bit (Part # 22821)

9" full flight auger bit requires auger power head attachment 22805 or 22806.

12" Full Flight Auger Bit (Part # 22822)

12" full flight auger bit requires auger power head attachment 22805 or 22806.

15" Full Flight Auger Bit (Part # 22823)

15" full flight auger bit requires auger power head attachment 22805 or 22806.

Vibratory Plow Attachment (Part # 22911)

The Toro® Dingo® vibratory plow attachment greatly reduces a contractor's time spent on irrigation and cable installations. Exclusively designed and built by Toro specifically for use on the Dingo, the vibratory plow optimizes pipe-pulling performance while minimizing turf damage during an installation. Also, use the chuted blade and spool carrier to install wire or cable.

Soil Cultivator Attachmnet (Part # 23102)

The soil cultivator is the ultimate attachment for soil preparation! This incredibly versatile attachment can be used to cultivate and level soil as well as blend landscape materials, compost and fertilizer. This attachment will also bury debris such as stones, soil clods and grass. It transforms rough terrain into a perfect planting bed in one pass.

Concrete Breaker, Dingo Compact Utility Loaders (Part # 23135)

Backhoe, Dingo Compact Utility Loader (Part # 23163)

Leveler Attachment (Part # 23165)

This versatile and highly productive tool is a must have attachment for all job sites. Use to grade, finish, and spread landscape materials, backfill trenches, and break up the turf. Also great for carrying and transporting materials around the job site.

Tube (Part # 232-37)

Spark Arrestor (Part # 98-9099)

Toro OEM spark arrestor prevents carbon build ups from being ejected from the engine and igniting a fire.

Hydraulic Relief Valve Kit, Dingo (Part # 99-4360)
