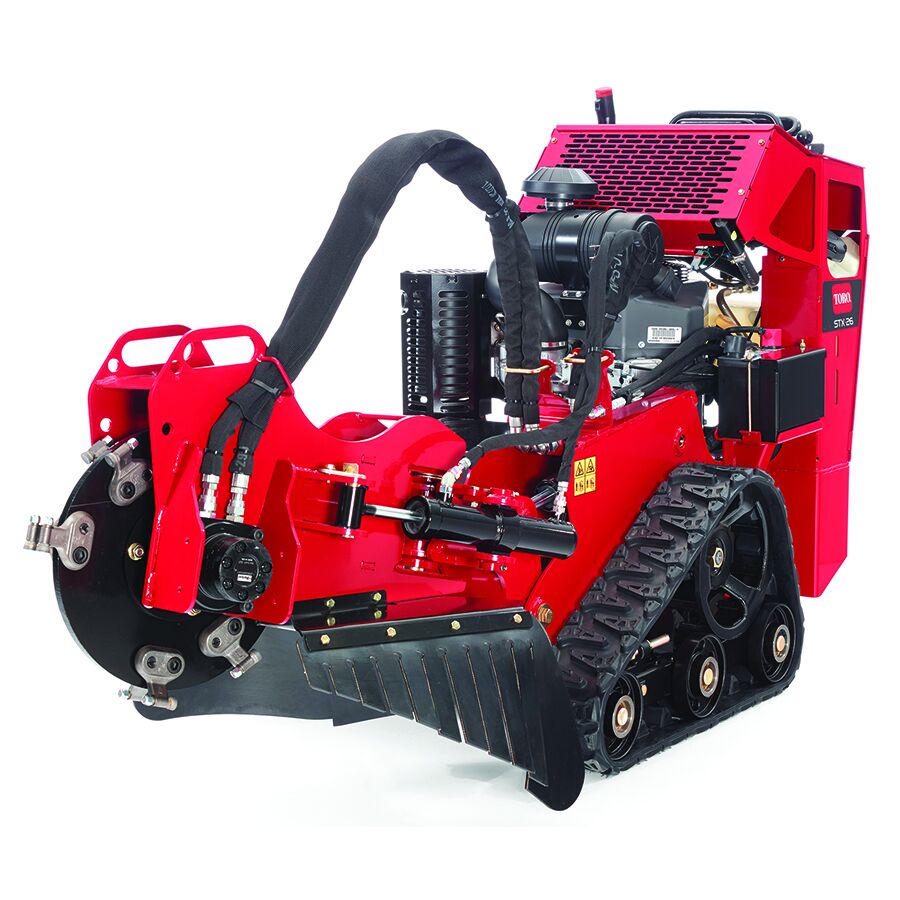

Toro STX-26 Stump Grinder

  • Model: 23208
  • Intelli-Sweep® automatically adjusts cutting head sweep speed
  • Turn stumps to chips quickly
  • Hydraulically driven cutting head
  • No tire ruts or flat tires

Overview

Some dedicated stump grinders are over-complicated. Not the Toro STX. Its patented Toro® Dingo® TX-style control system has two simple levers that are simple to learn, master and use. Combine these easy-to-use controls with tracks and transport speeds exceeding 4 mph, and you get maximum productivity. The Intelli-Sweep® feature automatically slows the sweep speed of the cutting head based on the load of the wheel, so heavy cutting loads won’t bog down the engine. The tracks travel easily over muddy areas, with the low center of gravity adds side hill stability for access to any job, in any condition. In addition, the hydraulically driven head means no chance of expensive belts breaking or slipping, and no adjusting tension - guaranteeing optimal performs time after time.

Features

STX26 stump grinding a medium stump
Intelli-Sweep®
Intelli-Sweep® automatically adjusts cutting head sweep speed based on the load on the wheel, so the engine runs efficiently during heavy loads. This reduces machine stress, increases productivity and minimizes maintenance.
STX38 stump grinding in the dirt
Faster and Easier
From pine to oak, the Toro STX hydraulic stump grinder turns stumps to chips quickly and efficiently.
STX38 stump grinding a large stump
Advanced Cutter Head
Hydraulically driven cutting head with 20 gpm hydraulic flow directly to cutter head for maximum performance.
ST26 stump grinding with a man wearing a hard hat and shield
High-Drive Track System
Low center of gravity and large footprint increases stability on hillsides. Tracks handle soft, wet ground conditions, climb curbs and allow zero-turn capability.

Specifications

Cooling System Air Cooled
Cutter Depth Below Grade (inches) 12.5
Cutter Height Above Grade (cm) 83.8
Cutter Height Above Grade (inches) 33
Engine Make Kawasaki
Engine Model FX-730V Twin Cylinder
Fuel Type Gasoline
Ground Speed Forward (km/h) 6.7
Ground Speed Forward (mph) 4.2
Ground Speed Reverse (km/h) 2.5
Ground Speed Reverse (mph) 1.6
Head Swing Arc Length (cm) 119.3
Head Swing Arc Length (inches) 47
Head Swing Sweep Arc (cm) 119.3
Head Swing Sweep Arc (inches) 47
Hydraulic Flow Traction 13.5 gpm hydraulic flow to cutter head; 10 gpm of hydraulic flow to each track
Overall Height (cm) 116.8
Overall Height (inches) 46
Overall Length (cm) 198.1
Overall Length (inches) 78
Overall Width (cm) 86.3
Overall Width (inches) 34
Weight (kg) 544.3
Weight (lbs) 1200
Wheelbase (cm) 48.2
Wheelbase (inches) 19

Accessories

PX HYD FLUID (5 GAL) (Part # 133-8086)
PX HYD FLUID (55 GAL) (Part # 133-8087)
OIL-30/10W-30 SYNTHETIC (Part # 138-6053)
PX HYDRAULIC FLUID-4 PK GALLON (Part # 138-9460)
DECAL KIT - HERC (Part # 145-6940)
Empty Image Container
CE KIT STX-26 STUMP GRINDER (Part # 22368)
Red Paint - Gallon Can (Part # 361-11)
PAINT-SPRAY, TORO SEMI-GLOSS BLACK (Part # 361-9)
10W30 4-CYCLE ENGINE OIL 32 OZ BOTTLE (Part # 38280)
SCREEN - SPARK ARRESTOR (Part # 94-8157)
