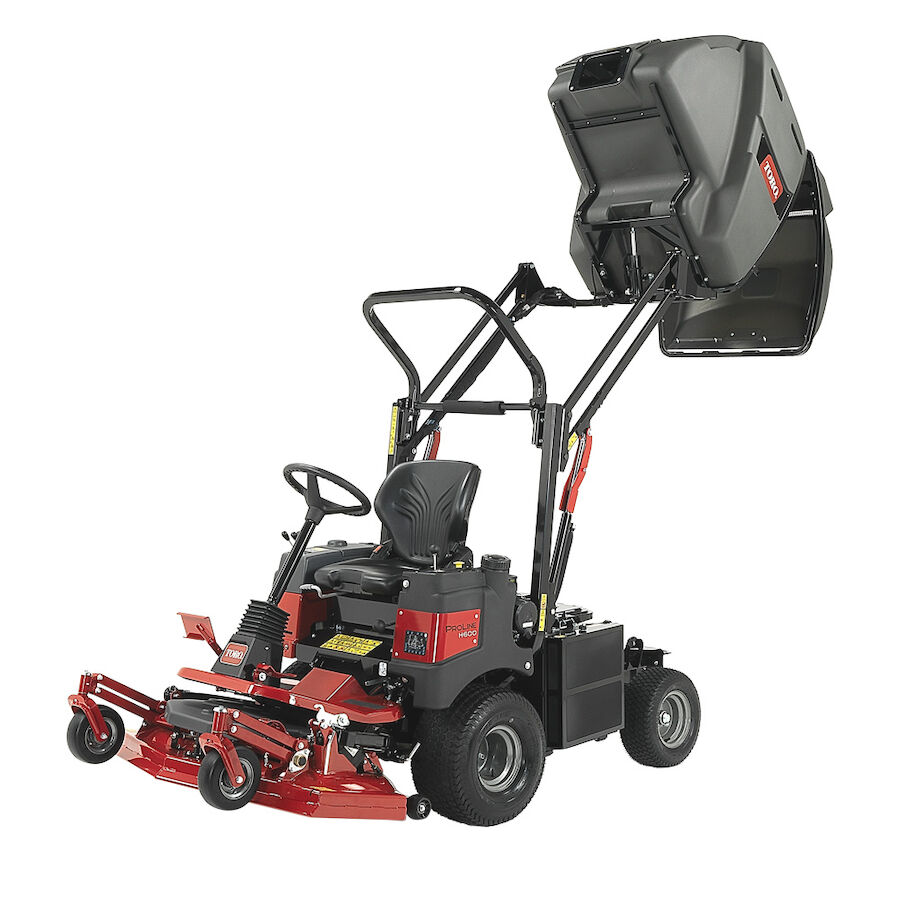

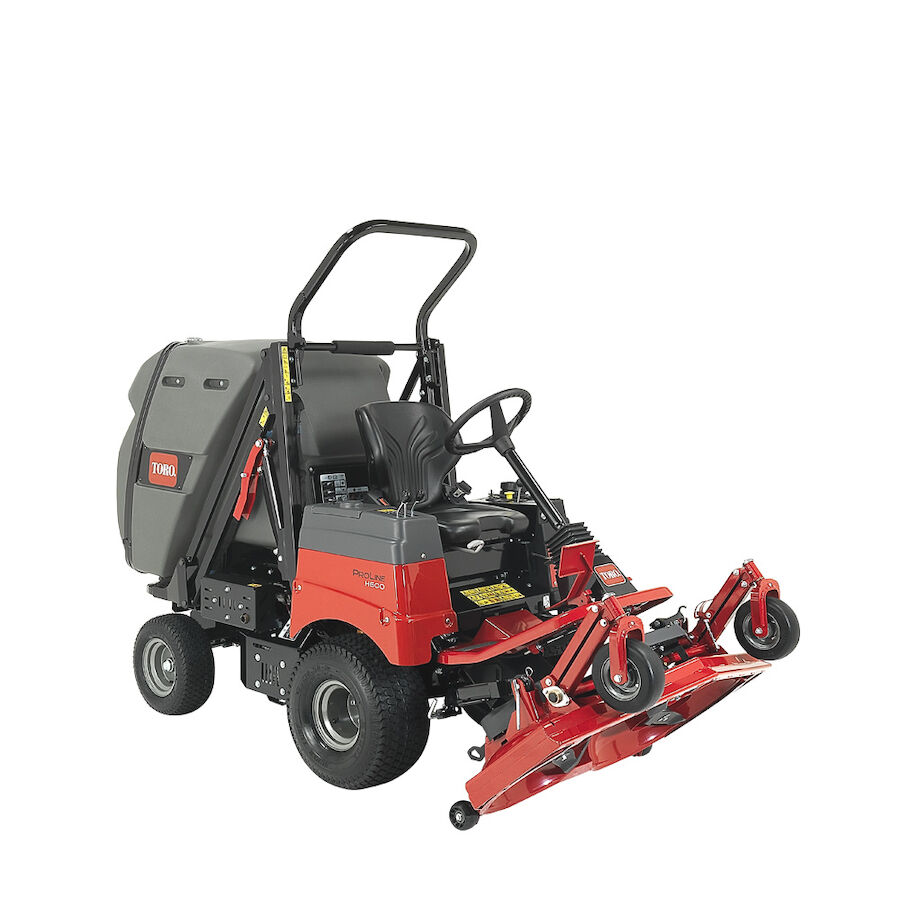

ProLine H600 Central Collect Mower 1.13 m (44.5") Cutting Width

  • Model: 31040
  • UPC/EAN: 5015704310404
Find a Dealer
  • Innovative sensor technology automatically shuts off the mowing deck when the hopper reaches full capacity.
  • Dumping clippings is easy with the 1.9 m high lift system which can directly dump into truck beds and trailers.
  • With a huge 700 L hopper, you can get the job done efficiently – mow, collect and dispose up to 7,500 m2 per hour.

Overview

The Toro ProLine H600 rotary mower features a compact width of 1.13 m and turning circle of 64 cm, allowing you to easily get to and around tight spaces. Thanks to its high capacity cutting deck, huge hopper of 700 litres and automatic grass distribution feature, you can get the job done efficiently—mow, collect and dispose up to 1.85 acres (7,500 m2) per hour. The powerful 18 hp (13.2 kW) Kubota diesel engine is Stage V compliant with a ground speed of up to 8 mph. The innovative sensor technology automatically shuts off the mowing deck when the hopper reaches full capacity. Dumping clippings is easy with the 1.9 m high lift system which can directly dump into truck beds and trailers!

Features

Adjustable Full Hopper Sensor
Adjustable Full Hopper Sensor
The innovative sensor technology automatically shuts off the mowing deck when the hopper reaches full capacity.
Effortless Disposal
Effortless Disposal
Dumping clippings is easy with the 1.9 m high lift system which can directly dump into truck beds and trailers.
Maximum Efficiency
Maximum Efficiency
With a huge 700 L hopper, you can get the job done efficiently – mow, collect and dispose up to 7,500 m2 per hour.

Specifications

Controls Tilt adjustable steering column, Parking brake, Engine throttle lever, Electronic height of cut adjustment, operated from the operator seat, Hydraulic controls for deck lift / lower, hopper lift / lower and hopper tilt, Ignition key switch, PTO switch, Engine hour meter, Forward / Reverse Pedal, Differential lock Pedal, Battery charge indicator, Oil pressure warning indicator, Glow plug indicator, Engine temperature warning indicator, Fuel guage
Fuel Capacity 22 Litres (5.5 US Gal)
Fuel Type Diesel
Height 1,930mm (76") (1,510mm (59.4") Hopper)
Height of Cut Range 25mm - 90mm (1" - 3.5"), adjustable from Operator seat
Hydraulic Fluid Capacity 6.7 L (1.68 Gal)
Length 2,710mm (106.7")
Power Train (Engine Description) Kubota D722 3-Cyl Diesel, Stage V / Tier IV
PTO Clutch Electromagnetic w/ integral blade brake
Seat Grammer w/ fore/aft & backrest adjust
Traction Drive 2WD
Turning Circle (Diameter) 640mm (25.2")
Weight 635kg (1,400 lbs)

Parts & Manuals

Select your model year from the options below to view parts & manuals.

31040 Serial number
324000175-999999999
324000167-324000174
324000000-324000166
323000101-323999999
323000000-323000100



Warranty

For complete product warranty information, contact Toro Customer Service

**See dealer for Warranty details.
