Discontinued

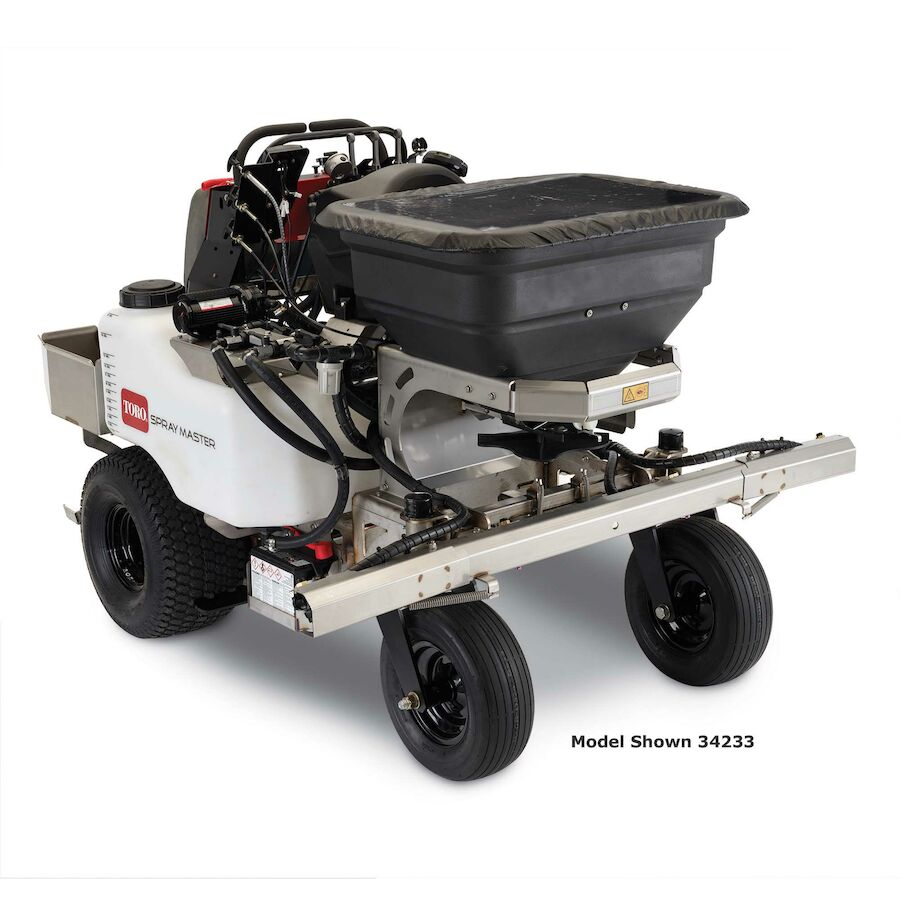

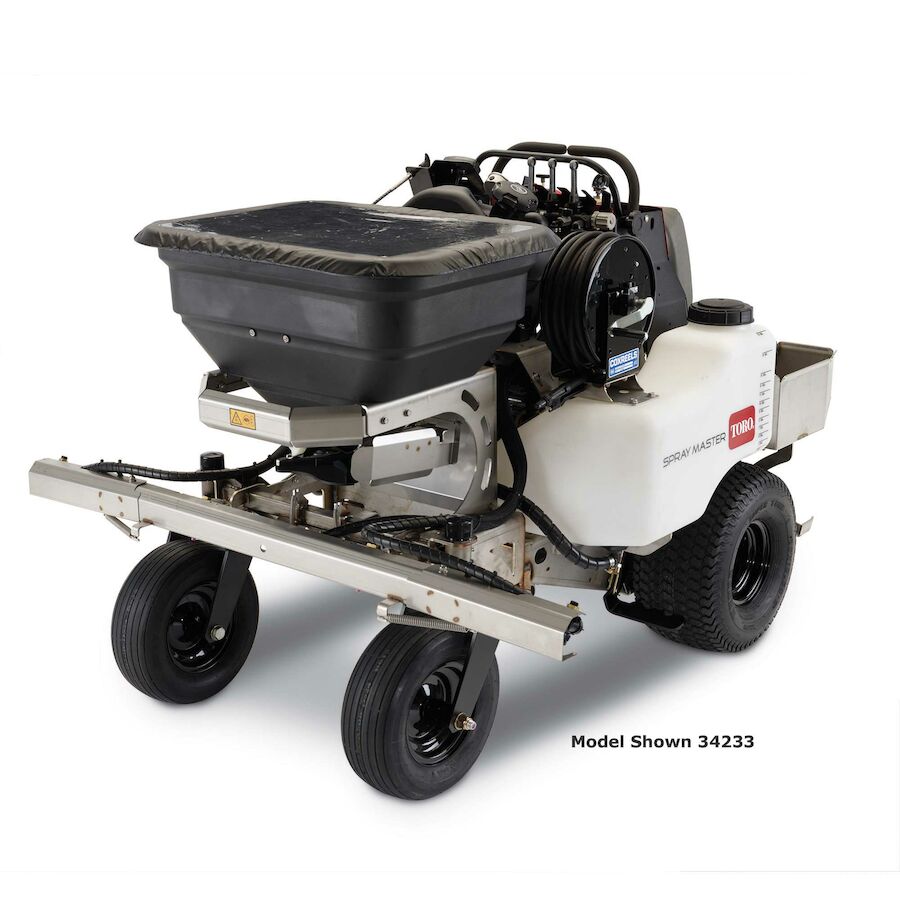

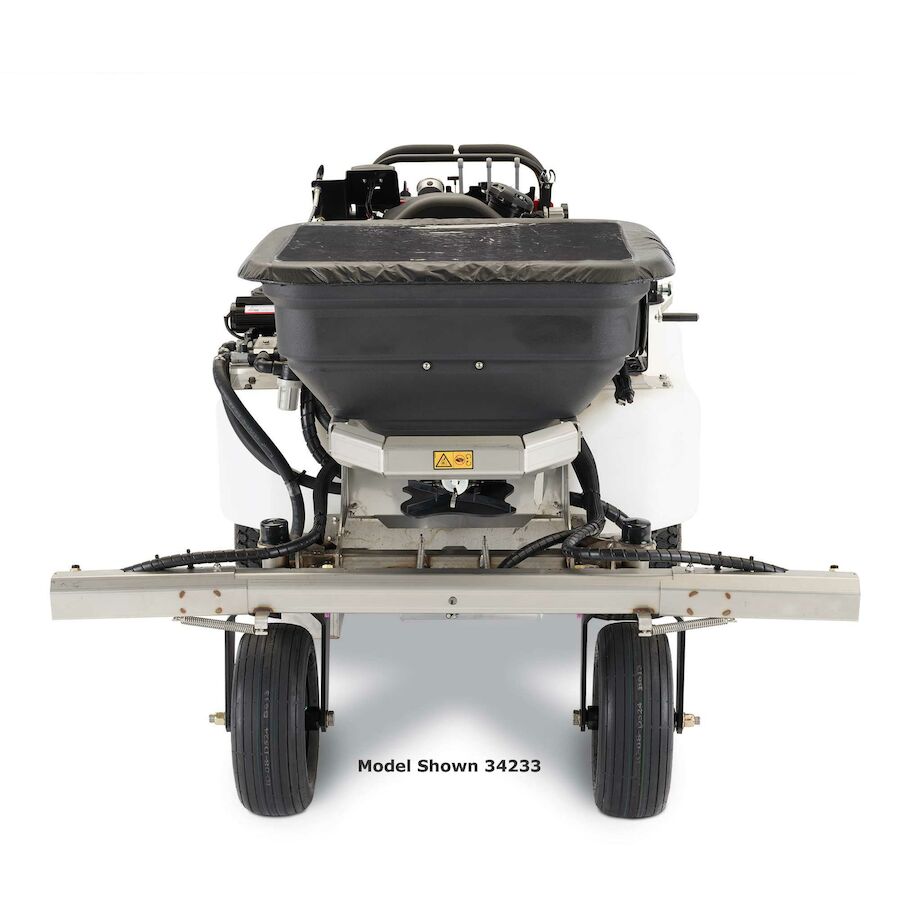

Stand-On Spray Master Max XL

  • Model: 34237
  • UPC/EAN: 21038342375
  • Easy Fluid Check - Check your fluid levels with just a glance with new white tanks.
  • Simplified Steering - Control forward/reverse and left/right steering.
  • Ride in Style - Custom-stitched seat pad with Toro bullhorn logo.

Overview

Uneven applications cost you valuable time and money, not to mention unhappy clients. Eliminate the need for a manual pressure regulator and get precise liquid and granular spreads with Toro's Dual Smart Hour Meters. Check your fluid levels with just a glance with new white tanks. This lean-to-steer model is also designed to work seamlessly on any sized property. And as a Toro owner, you'll have access to nearly 3,000 servicing dealers across the U.S. and Canada ready to assist you. Count on it.

Features

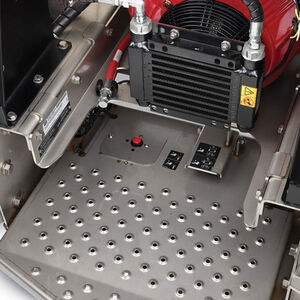

Foot Button
Foot Button
Quick on and off for easy spot spraying.

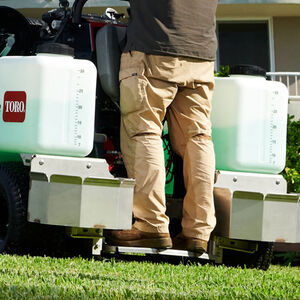

Easy Fluid Check
Easy Fluid Check
Easily check fluid levels with new white tanks.
Large Capacity
Large Capacity
Maximize ground coverage and reduce re-fill stops with two 15-gallon spray tanks, 220 lb. hopper capacity, and a 5-gallon fuel tank.

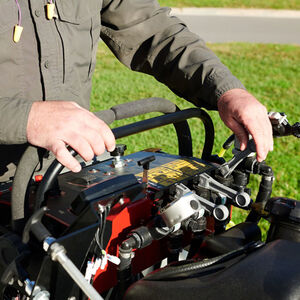

Simplified Steering
Simplified Steering
Make adjustments on the fly with one hand with control forward/reverse and left/right steering.

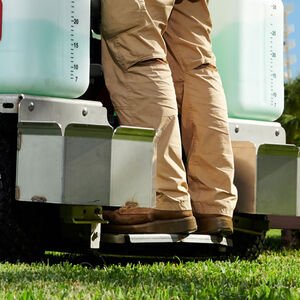

Ride in Comfort
Ride in Comfort
Ride in comfort and reduce operator fatigue with suspension in the foot plate.

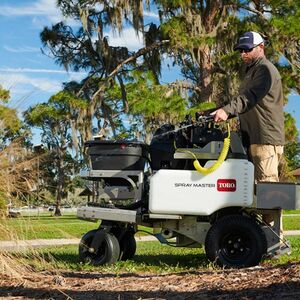

Onboard Spray Hose
Onboard Spray Hose
Ensure everything is covered with onboard spray hoses for spot spraying.

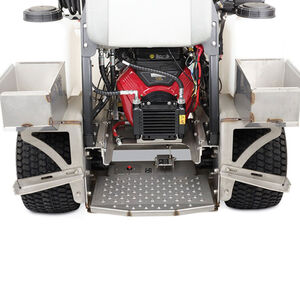

Commercial Grade Hydraulic Pumps and Wheel Motors
Commercial Grade Hydraulic Pumps and Wheel Motors
Developed for precise turf applications and ultimate longevity.
Ride in Style
Ride in Style
Ride in style with a custom-stitched hip pad featuring Toro's bullhorn logo.

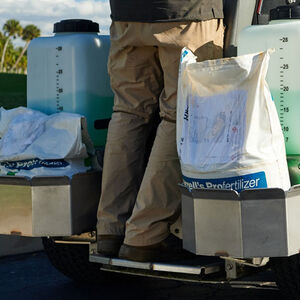

Fertilizer Trays
Fertilizer Trays
Carry up to 100 lbs of additional fertilizer with 2 fertilizer trays (50 lbs per tray).

Specifications

Deflector Shield Stainless Steel
Engine Vanguard Commercial 16HP 479cc
Engine Brand Vanguard
Engine Displacement (cc) 479 cc
Engine Horsepower 16.0 hp
Engine Orientation Horizontal
Fertilizer Capacity 320 lbs
Fuel Capacity 5 gal. / 18.9 L / 20 Qt.
Fuel Type Gasoline
Ground Speed Up to 8.0 mph / 12.8 kph
Hopper Capacity 220 lbs
Pump Capacity 7 GPM
Spinner Motor Hydraulic
Spot Spray Hose 75 ft Coil Hose
Spray Capacity (gallons) 60
Spray Width 2 ft, 6 ft, 8 ft or 10 ft / 0.6 m, 1.8 m, 2.4 m or 3.0 m
Spreader Hopper Capacity (lbs) 220
Spreading Width Adjustable from 3 ft to 25 ft / 0.9 m to 7.6 m
Start Type Electric
Transmission Pump and Wheel Motor

Accessories

Image Not Found
Foam Marker Kit (Part # 135-6663)
Image Not Found
7 Gallon Auxiliary Tank Kit (Part # 142-2269)
Image Not Found
7 Gallon Isolated Tank Kit (Part # 142-2270)
Image Not Found
30 Gallon Auxiliary Tank Kit (Part # 142-2271)
Image Not Found
TIP-SPRAY, 015 (Part # 142-3306)
Image Not Found
TIP-SPRAY, 02 (Part # 142-3307)
Empty Image Container
Toro 025 Lavender Spray Tio (Part # 142-3308)
Image Not Found
TIP-SPRAY, 03 (Part # 142-3309)
Image Not Found
TIP-SPRAY, 04 (Part # 142-3310)
Image Not Found
TIP-SPRAY, 05 (Part # 142-3311)
Image Not Found
TIP-SPRAY, 06 (Part # 142-3312)

Parts & Manuals

Select your model year from the options below to view parts & manuals.

34237 Serial #
407088178-999999999
400000000-407088177



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
