21 in (53 cm) Heavy Duty Self-Propelled BBC Kawasaki

21 in (53 cm) Heavy Duty Self-Propelled BBC Kawasaki

21 in (53 cm) Heavy Duty Self-Propelled BBC Kawasaki

Product Information

  • Model #: 22298
  • Serial #: 403500000 - 405399999
  • Product Type: Walk Behind Mowers

Search for a part within assembly drawings:

Showing Results

Drawing Title Part Number Description
Title

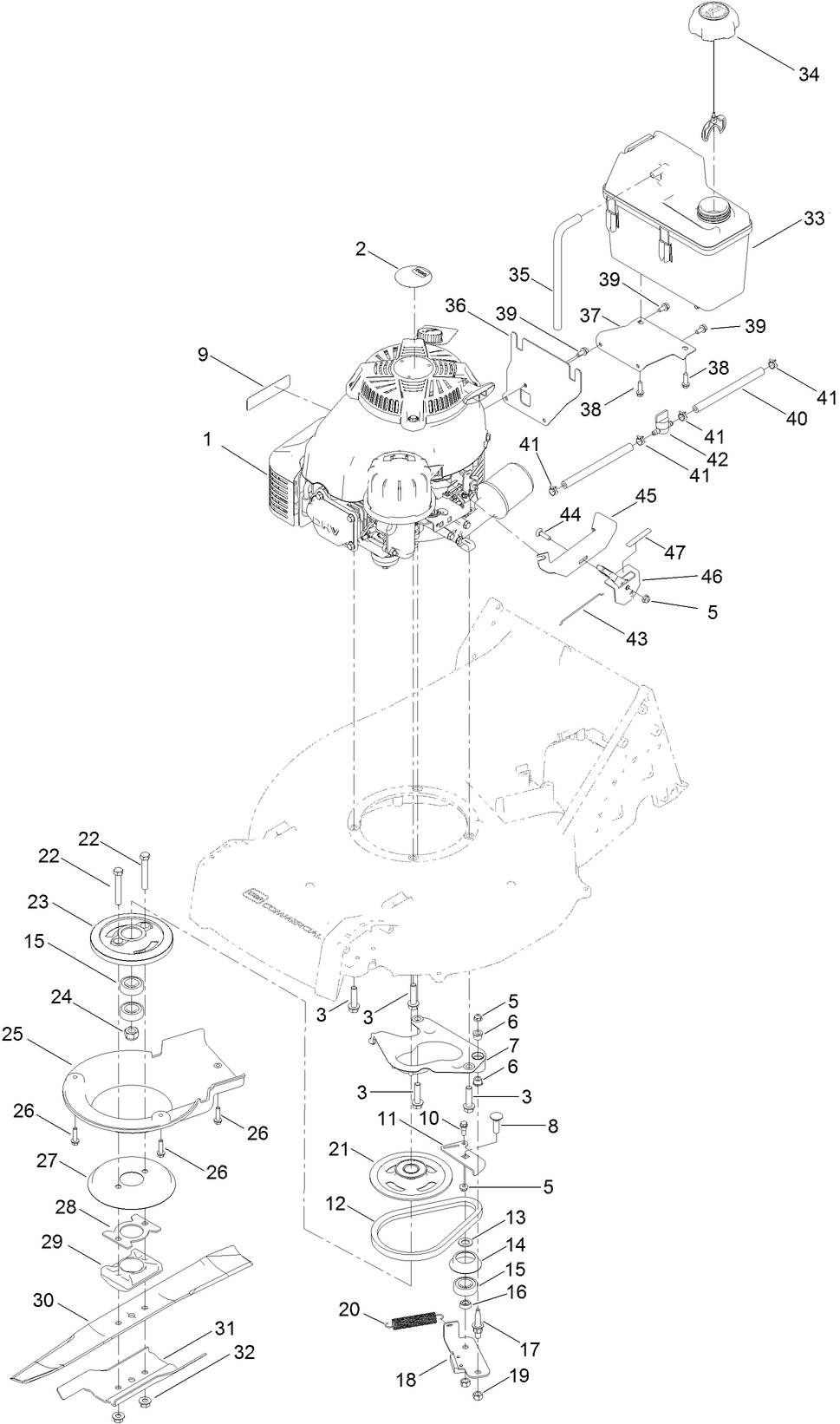

Engine and Fuel Tank Assembly
Engine and Fuel Tank Assembly
Grass Bag Assembly
Grass Bag Assembly

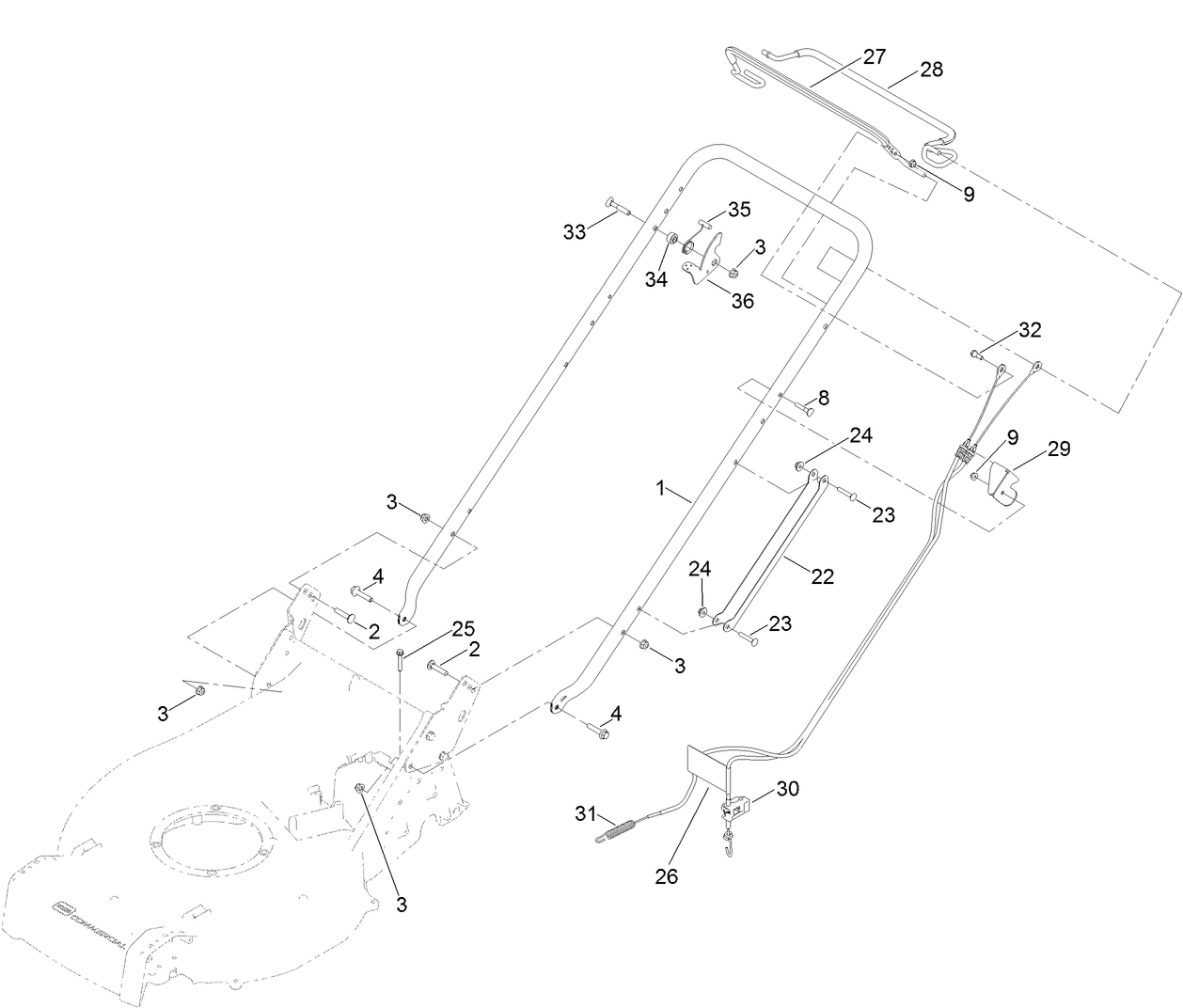

Handle and Control Assembly
Handle and Control Assembly
Height-of-Cut Assembly
Height-of-Cut Assembly
Housing Assembly
Housing Assembly
Transmission and Rear Wheel Assembly
Transmission and Rear Wheel Assembly
Transmission Assembly No. 131-5350
Transmission Assembly No. 131-5350
Download Parts Catalog
Operator's Manual
Parts Catalog
Product Warranty
Quick Start Guide
ACMA Declaration of Conformity
21 Inch Standard Blade
21 Inch Standard Blade (Part # 125-1072-03)
This Toro OEM 21-inch bagging replacement blade is designed with a straight, aerodynamic profile that cuts grass cleanly and channels clippings efficiently toward the discharge opening or bagger. The blade's geometry prioritizes clean discharge over mulching, making it the right choice when collecting clippings in a bag or side-discharging onto a lawn. Compatible with multiple Toro riding lawn mowers models — verify your model and serial number before ordering.
Anti-Scalp Cup
Anti-Scalp Cup (Part # 125-8440)
This genuine Toro OEM anti-scalp cup is designed for Toro walk-behind power mowers and prevents the deck from making direct contact with the ground when passing over raised spots, bumps, or when turning. The anti-scalp cup contacts the ground first, lifting the deck slightly and preventing the blade from cutting too deep or stripping turf. It is a wear item that can crack or break over time, particularly on rough or stony ground. Replacing a damaged anti-scalp cup prevents lawn damage and protects the mower deck from impact damage. Verify your model and serial number before ordering.
Rear Discharge Kit
Rear Discharge Kit (Part # 130-9734)
This genuine Toro OEM rear discharge kit is designed to convert a compatible Toro bagging walk-behind mower to side discharge operation. Side discharge is faster and more efficient in conditions where bagging is not required — including long, dry grass and large open areas where clippings can be dispersed without collecting. Verify your model and serial number before ordering.

Model #

22298

Serial #

403500000 - 405399999

Product Name

21 in (53 cm) Heavy Duty Self-Propelled BBC Kawasaki

Product Brand

Toro

Product Type

Walk Behind Mowers

Product Series

21" Commercial

Chassis Type

Cast Deck WPM

Swath

21 inch

Discharge

Recycler & Rear Bagger

Engine/Motor Manufacturer

Kawasaki

Engine/Motor Type

4 Cycle

Engine Starter

Recoil

Transmission Type

Gear

Traction Type

Rear WD

Engine: Spark Plug

NGK BPR5ES

Engine: Spark Plug Gap

.030"/ .76mm

Chassis: Height of Cut Range

1" - 4.5" (25-114mm)

Engine: Engine Speed

3300±100 RPM

Engine: Engine Oil Type

29 oz. (.85 L) w/ filter; 22 oz. (.65 L) w/o filter; 30W or 10W30 API SF, SG, SH, SJ, SL, or higher
