21 in (53 cm) Heavy Duty Self-Propelled BBC Kawasaki

  • Model: 22298
  • UPC/EAN: 21038222981
See All Items in 21 in. Commercial Heavy-Duty Walk Behind Lawn Mowers
  • Powered by a Kawasaki FJ180V KAI engine with heavy-duty air filter, spin on oil filter, and a 1 gallon fuel tank
  • Increase productivity with the Blade Brake Clutch (BBC) system that disengages the blades without shutting down engine
  • Cut in more conditions with heights ranging from 1 in. to 4.5 in.
  • Large 9 in. x 2 in. lightweight co-polymer wheels provide a light footprint that is easy on turf
  • The wide opening and ramped profile of the tunnel maximize bag fill.
  • The large 2.1 bushel bag features an easy-empty design, making quick work of clipping disposal.
  • Recycler® Cutting System - optimized for exceptional mulching and bagging performance
  • Designed for durability, featuring a tubular engine guard, replaceable steel deck wear plates and steel cable routing guards
  • Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Overview

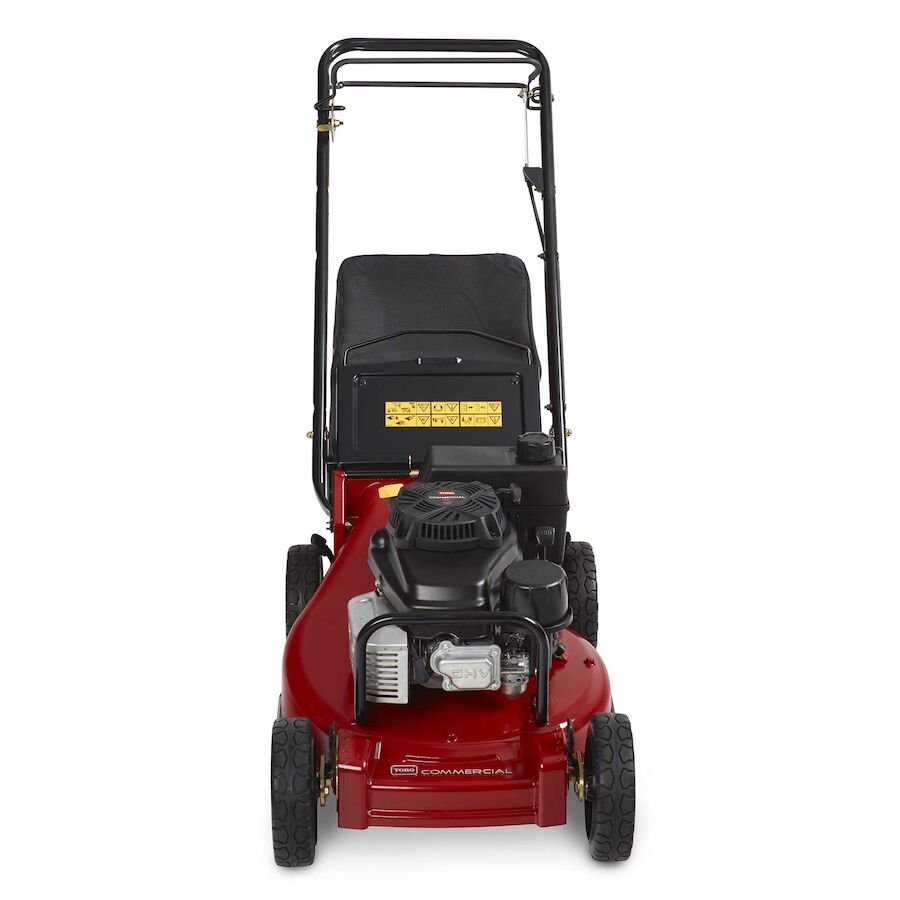

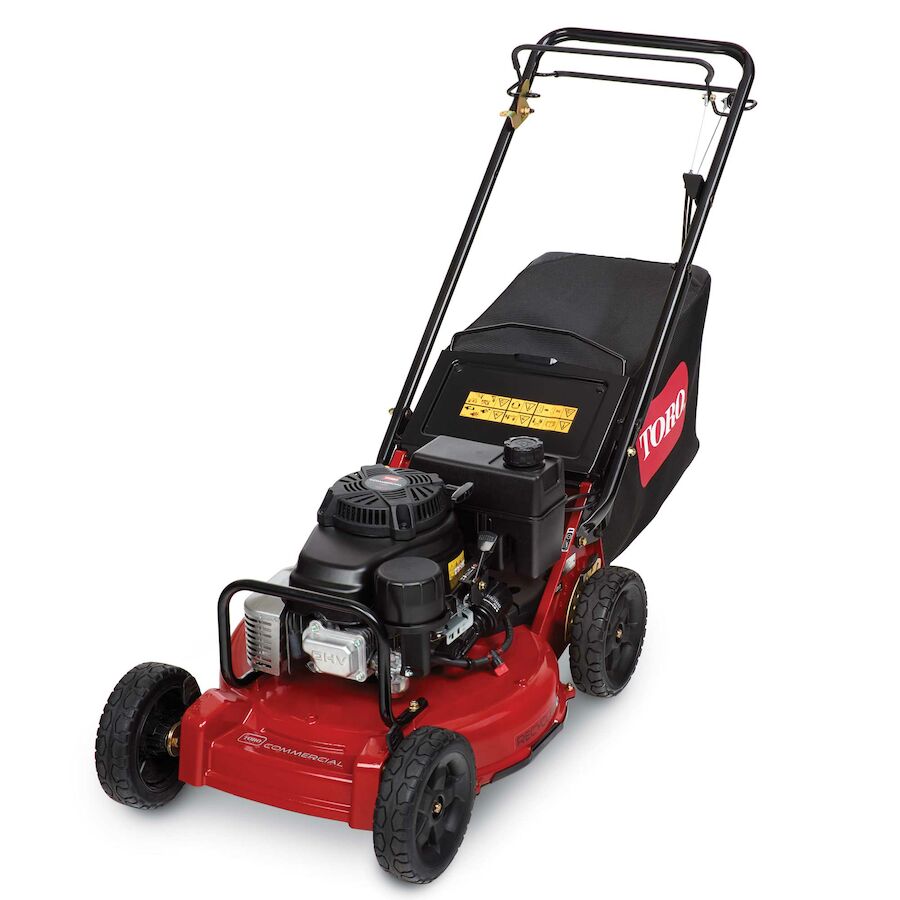

Toro 21 in (53 cm) heavy duty commercial walk behind lawn mower with dual action single lever control system, blade brake clutch, 3 speed transmission, self propel rear wheel drive, commercial grade Kawasaki BBC ZS FJ180V engine.

For the best productivity, we've included a 1 gallon fuel tank, Recycler cutting deck and the large, easy-empty bagging system.

The deck is made of corrosion-resistant aluminum alloy, cables are protected with steel cable guards mounted to the handle bar. And a tubular engine guard is attached to the front of the deck for tackling the toughest conditions. It's everything you want in a heavy-duty walk behind. Toro 21 in (53 cm) heavy duty commercial walk behind lawn mower with dual action single lever control system, blade brake clutch, 3 speed transmission, self propel rear wheel drive, commercial grade Kawasaki BBC ZS FJ180V engine.

Features

Premium Kawasaki Engine FJ180V KAI
Premium Kawasaki Engine
Powered by a premium commercial-grade Kawasaki FJ180V KAI engine featuring a sealed, maintenance-free transmission, heavy-duty air filter, spin-on oil filter, and a 1 gallon fuel tank.
Blade Brake Clutch System
Blade Brake Clutch System
Allows the operator to disengage the blades without shutting down the engine. Ideal in bagging situations when you need to empty the bag or to pick up an obstacle that's in your path.
4-Point Height-of-Cut
4-Point Height of Cut
The robust design provides maximum life and durability. Front spring arms are contained within the wheels for ultimate protection. Cut in more conditions with heights ranging from 1in. to 4.5 in.
Commercial Grade Wheel
Commercial-Grade Wheels
Tough co-polymer wheels feature precision ball bearings for long life with less downtime and lower replacement costs. These large 9 in. x 2 in. wheels also provide a light footprint that is easy on the turf.
Rear Bagging System
Rear Bagging System
The wide opening and ramped profile of the tunnel maximize bag fill.
Easy Empty Bag
Easy Empty Bag
The large 2.1 bushel bag features an easy-empty design, making quick work of clipping disposal.
Recycler Cutting System
Recycler® Cutting System
This patented cutting system cuts and recuts grass clippings into fine mulch and directs them deep into the turf to provide a "just bagged" appearance.
Steel Deck Wear Plate
Steel Deck Wear Plate
Extend the life of your mowing deck with replaceable steel wear plates that protect against bottom and side impacts.

(Replacement wear plate part # 125-1047-03)
Horizon360 system used by contractor
Horizon360® Business Management Software.
Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

For more information click here.

Specifications

Bagger Capacity 2.1 bushels
Blade Design 0.135 in. / 0.343 cm Thick Steel
Blade Engagement Blade Brake Clutch (BBC)
Blade Tip Speed 18,000 ft/min / 5,486 m/min
Box Dimensions 43.5 in. x 23.5 in. x 20.25 in. / 110.5 cm x 59.7 cm x 51.4 cm
CARB Compliant CARB Compliant
Crankshaft 1" (25 mm) w/Steel Protector
Deck Design Recycler Cutting System / Rear Bagging System
Deck Material Die Cast Aluminum Alloy
Deck Size 21 in / 53 cm
Drive System Self-Propel
Engine Kawasaki FJ180V KAI
Engine Brand Kawasaki
Forward Ground/Transport Speed Up to 4.2 mph / 6.7 kph
Fuel Capacity 1 gal. / 3.8 L / 4 Qt.
Fuel Type Gasoline
Height of Cut 1.0 - 4.5 in. / 2.5 - 11.4 cm
Lubrication Splash Lubrication
Mulch, Bag, Side Discharge Bag standard, Mulch standard
Number of Blades 1
Product Type Walk Behind Mowers
Product Use Commercial
Self Propel System Variable Speed
Start Type Pull Cord
Steering Controls Dual-Action Single-Bail
Transmission 3-Speed Rear Wheel Drive
Weight 124 lbs / 56.2 kg

Disclaimer

*See your Toro dealer for warranty details.

Accessories

Genuine OEM Part 125-1072-03
21 Inch Bagging Blade (Part # 125-1072-03)
Genuine OEM Part 125-8440
Anti-Scalp Cup (Part # 125-8440)
Genuine OEM Part 130-9734
Rear Discharge Kit (Part # 130-9734)

Documents

Title Documents
21 in Commercial Heavy-Duty Mowers Brochure PDF - Sellsheet-en-us



Warranty

1-Year Limited Unit, 3-Year Limited Engine

**See dealer for Warranty details.
