42 in. (107 cm) TimeCutter® Zero Turn Mower

42 in. (107 cm) TimeCutter® Zero Turn Mower

42 in. (107 cm) TimeCutter® Zero Turn Mower

Product Information

  • Model #: 75748
  • Serial #: 414400000 - 414999999
  • Product Type: Riding Products

Search for a part within assembly drawings:

Showing Results

Drawing Title Part Number Description
Title



42in Deck and Decal Assembly
42in Deck and Decal Assembly
Brake Assembly
Brake Assembly
Clutch Assembly
Clutch Assembly

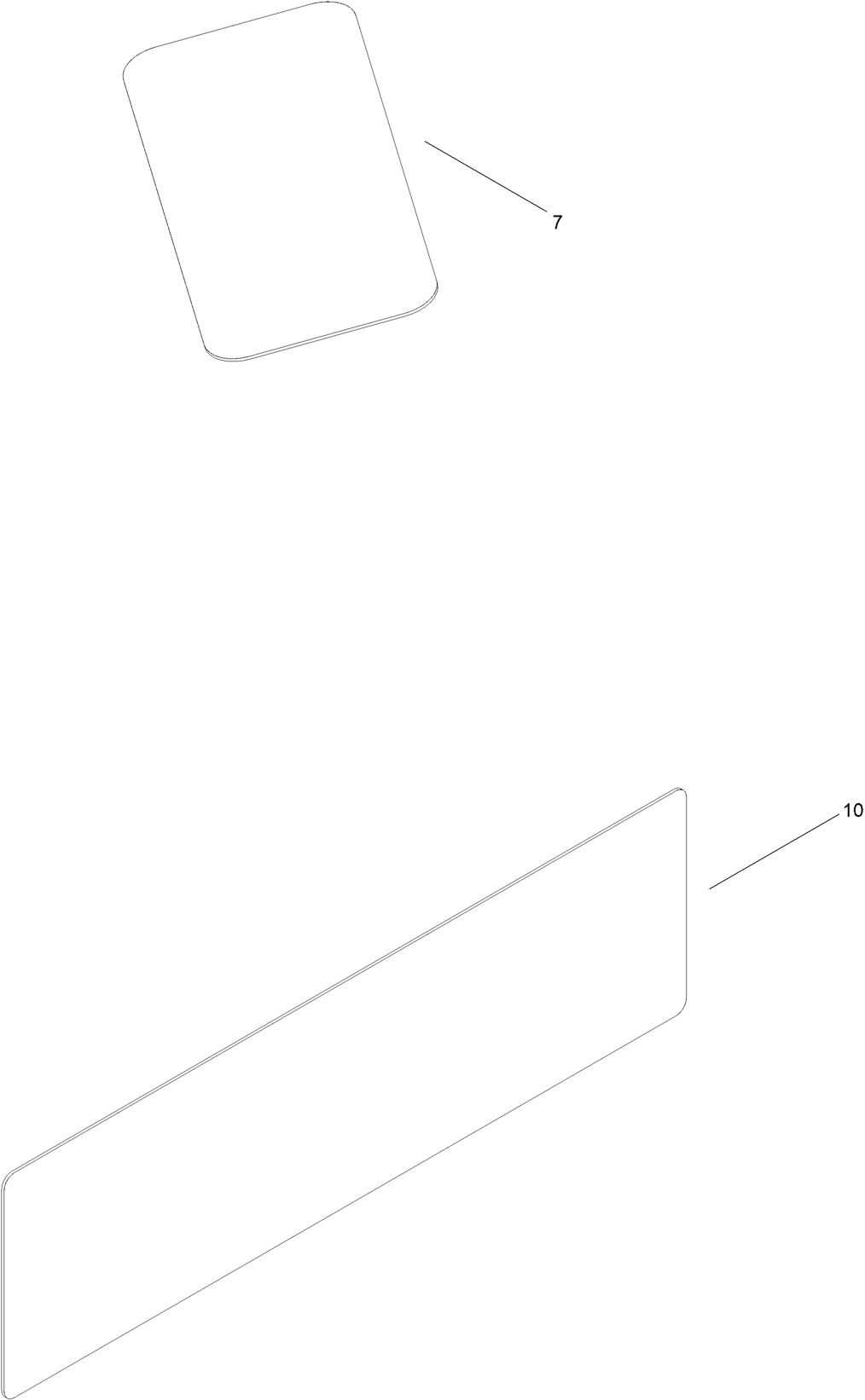

Decal Assembly
Decal Assembly
Deck Lift Assembly
Deck Lift Assembly
Electrical Assembly
Electrical Assembly
Engine and Muffler Assembly
Engine and Muffler Assembly
Frame Assembly
Frame Assembly
Fuel and Body Styling Assembly
Fuel and Body Styling Assembly
LH Hydro Transmission Assembly No. 139-7450
LH Hydro Transmission Assembly No. 139-7450
Motion Control Assembly
Motion Control Assembly
Rear Tire Assembly
Rear Tire Assembly
RH Hydro Transmission Assembly No. 139-7451
RH Hydro Transmission Assembly No. 139-7451
Seat Assembly No. 147-5157
Seat Assembly No. 147-5157
Seat Pan Assembly
Seat Pan Assembly
Tire and Caster Assembly
Tire and Caster Assembly
Traction Drive Assembly
Traction Drive Assembly
Download Parts Catalog
Operator's Manual
Service Manual
Parts Catalog
Setup Instructions
Product Warranty
Seat Cover for Models With out Arm Rest
Seat Cover for Models With out Arm Rest (Part # 117-0096)
Protect your investment with a customized seat cover. Toro's seat cover for use on TimeCutter 18 in. seats without armrests will make old seats look new and protects new seats from future wear and tear. The fabric is coated for maximum water resistance and repellency and is cushioned for extra comfort. For serial numbers 412000001 & up only.
Riding Mower Jack Kit
Riding Mower Jack Kit (Part # 127-6666)
This genuine Toro OEM riding mower jack kit is designed to safely lift and support your Toro riding mower or zero turn, giving you safe, stable under-deck access for blade changes, belt replacements, and routine maintenance. It is one of the most practical purchase-stage accessories for any new mower owner — investing in a proper jack from day one avoids improvised lifting methods that risk injury and equipment damage. Verify your model and serial number before ordering.
Premium Fuel Treatment (0.5 oz.)
Premium Fuel Treatment (0.5 oz.) (Part # 130-2393)
This genuine Toro OEM Premium Fuel Treatment is formulated to protect 2-cycle and 4-cycle small engines from the harmful effects of ethanol-blended fuels, which can absorb moisture and degrade over time — leaving gum, varnish, and corrosive deposits in carburetors, fuel lines, and fuel system components. Adding fuel treatment with every fill-up from the first use is one of the simplest preventative maintenance steps available, and is especially important for equipment that will sit unused for extended periods such as seasonal storage. Refer to the product label for the correct dosage.
4-CYCLE FUEL, SNOW AND LAWN, 32OZ CAN (Part # 131-3823)
Genuine OEM Part 131-6572
Premium Fuel Treatment (12 oz.) (Part # 131-6572)
Toro Premium Fuel Treatment helps ensure clean, reliable engine performance and protection. Toro Premium Fuel Treatment is designed to protect small 2-cycle and 4-cycle engines from the effects of ethanol-blended fuels, which can degrade over time and leave harmful deposits in carburetors and fuel systems. Using a fuel stabilizer with every fill-up is particularly important for equipment that sits unused for extended periods, such as mowers stored over winter.
42 in. Replacement High Lift Cutting Blade Kit for TimeCutter Zero-Turn Mowers
42 in. Replacement High Lift Cutting Blade Kit for TimeCutter Zero-Turn Mowers (Part # 137-1999-03P)
Genuine OEM Part
42 in. Recycler Kit for TimeCutter SS and SW 2018 and After Models
42 in. Recycler Kit for TimeCutter SS and SW 2018 and After Models (Part # 137-7042)
By adding the Toro Recycler system to your Toro 42 in. TimeCutter SS or SW, you create your own natural fertilizer. The 42 in. Recycler Kit, when installed on compatible 42 in. deck Toro zero turn riding mowers, gives it the capability to mulch grass by cutting it multiple times turning it into fine clipping pieces. These are returned under the mower back into the soil to serve as natural fertilizer.
42in Bagging Enhancement Kit
42in Bagging Enhancement Kit (Part # 137-7048)
This bagging enhancement kit can be used with 42 in. Toro TimeCutter MX and SWX fabricated deck model 2012 and newer. It will enhance bagging performance in extreme conditions such as heavy, wet grass or autumn leaf bagging. Refer to the operator manual for installation and use.
TimeCutter Front Weight Kit
TimeCutter Front Weight Kit (Part # 140-2050)
This weight kit is required to get the best performance of Toro attachments such as the Cargo Carrier (79030) or the Brinly-Hardy rear mounted spreader or sprayer. The weight balances the machine installed with an attachment. The kit contains one 35 lb. weight and the hardware needed to install it. Can be easily removed when the attachment is not in use. The weight kit is included with the TimeCutter baggers (see baggers for details)
Assist Bar and Mount Kit for TimeCutter Mowers
Assist Bar and Mount Kit for TimeCutter Mowers (Part # 140-2052)
Toro's Assist Bar and Mount Kit Kit will help you to step in and out of your TimeCutter with ease. The telescoping bar adjusts to your height and will assist you when entering and exiting the machine. The non-slip step gives offers additional support.
TimeCutter LED Light Kit
TimeCutter LED Light Kit (Part # 140-2056)
The LED Light kit illuminates your mowing area during lowlight conditions and making moving easier and more efficient. This LED Light kit mounts to Toro Time Cutter models and is a genuine Toro LED Light Kit. The kit includes hardware, wire harness and instructions.
Deluxe Seat Kit
Deluxe Seat Kit (Part # 140-2057)
The Toro deluxe seat kit is made of water resistant, ultra tough fabric and contains a high density foam cushion. It also features a three lumbar support with an adjustable fold-forward and reclining backrest, making it more comfortable and adjustable to your preferred position. To best protect your investment and maintain optimal performance of your turf equipment, count on Toro genuine parts. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
TimeCutter Arm Rest Kit
TimeCutter Arm Rest Kit (Part # 140-2058)
The Toro Armrest kit provides extra comfort while using your Toro 32 and 42 in. TimeCutter SS, SW or MX manufactured in 2002 or later. The padded arm rests are contoured to provide comfortable support while still providing optimum motion for mower operation. The pivoting design provides easy seat access while getting on and off the mower.
Riding Mower Jack Mount Kit
Riding Mower Jack Mount Kit (Part # 140-2711)
Genuine Toro jack mount kit. Mounts to the front of the mower and allows the owner to raise the mower to gain access to the underside of the deck to check blades or wash the deck. To best protect your investment and maintain optimal performance of your turf equipment, count on Toro genuine parts. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
42 inch Striping Kit
42 inch Striping Kit (Part # 140-5198)
Genuine OEM Part
KIT, HOUR METER (Part # 147-8791)
DECK FOOTLIFT ASSIST KIT (Part # 161-4527)
FLOORMAT KIT (Part # 161-4528)
KIT-CASTER WHEEL (Part # 161-4530)
10W30 4-Cycle Engine Oil - 32 oz. Bottle
10W30 4-Cycle Engine Oil - 32 oz. Bottle (Part # 38280)
The Toro 38280 Premium 4-Cycle Lawn Mower Engine Oil 10W-30 is specially formulated to meet specific 4-cycle engine manufacturer requirements calling for 10W-30. This lawn mower engine oil provides the ultimate protection for all 4-cycle OPE engines. The lawn mower engine oil is developed with Toro engineering to meet the standards for all air-cooled, liquid-cooled and diesel engines. To maximize the performance of your Toro lawn mower, we highly recommend using this Toro lawn mower engine oil, which has been specifically formulated for best results. The lawn mower engine oil provides extreme performance in all temperatures, enhancing the life of your lawn mower's engine.
SAE 30 4-Cycle Lawn Mower Engine Oil 32 oz
SAE 30 4-Cycle Lawn Mower Engine Oil 32 oz (Part # 38903)
Toro SAE 30 4-cycle engine oil passed the strictest requirements in thousands of hours of testing in hundreds of engines before you filled your lawn mower. This oil meets or exceeds performance requirements of all OEM engines (Toro, Briggs & Stratton, KOLHER, Honda, and Tecumseh). The use of Toro SAE 30 4-cycle lawn mower oil minimizes molecular shearing for extended life in hot-air-cooled applications vs multi-grades (i.e., 10W-30).
Empty Image Container
Cover for TimeCutter Models (Part # 490-7516)
The Toro Z mower cover protects your investment by offering all-season protection. Toro covers are constructed of tough, waterproof, tear and abrasion-resistant 600-Denier polyester and will provide years of carefree protection for your mower. Toro covers protect against snow, sun damage, rain, dust, birds, tree sap and more. Toro covers also feature vents to minimize condensation and heat build-up and an elastic opening to ensure a snug, secure fit.
TimeCutter SS 42 inch Deck Belt
TimeCutter SS 42 inch Deck Belt (Part # 79004)
Genuine Toro deck belt for 42 inch. TimeCutter model years 2011 and newer. This replacement deck drive belt is a Kevlar corded Aramid fiber belt. Genuine Toro parts ensure your Toro mower performs as it's intended by providing the perfect fit and maximum performance.
TimeCutterTwin Bagger
TimeCutter 42 in. Stamped Deck Twin Bagger (Part # 79410)
The Toro TimeCutter Twin Bagger with its 6.43 bushel (8 cu. ft.) capacity makes quick work of taking care of grass clippings or fallen leaves. When paired with one of Toro's top discharge decks, its performance can't be beat. It assembles easily and once initially installed, can be removed and put back on without tools. Includes bagger, mount kit and front weights.
Find a Dealer
Toro Rollover Protection System Kit For TimeCutter Riding Mower
Toro Rollover Protection System Kit For TimeCutter Riding Mower (Part # 79485)
Toro ROPS rollover protection system kit 79485 and the use of an accompanying seatbelt can prevent an operator from being thrown from a machine or pinned under the mower should it overturn. There is no rollover protection when the roll bar is in the down position. Do not wear the seat belt when the roll bar is in the down position.
Slope Sensor Kit
Slope Sensor Kit (Part # 79486)
Genuine Toro slope sensor for sensing a tilt angle representing the orientation of the lawnmower with respect to a horizontal level plane. An signal indicator may provide a notice signal when the tilt angle exceeds a pre-determined check angle. To best protect your investment and maintain optimal performance of your turf equipment, count on Toro genuine parts. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

Model #

75748

Serial #

414400000 - 414999999

Product Name

42 in. (107 cm) TimeCutter® Zero Turn Mower

Product Brand

Toro

Product Type

Riding Products

Product Series

Zero Radius Turn, Consumer

Chassis Type

ZRT - Consumer

Swath

42 inch

Discharge

Side

Engine/Motor Manufacturer

Briggs & Stratton

Engine/Motor Size

500cc

Engine/Motor Type

4 Cycle

Engine Starter

Electric

Transmission Type

Hydrostatic

Traction Type

2wd

Engine: Spark Plug Gap

.030"/ .76mm

Chassis: Tire Pressure

13 psi / 90 kPa

Engine: Engine Oil Type

48 oz. (1.4 Liter) SAE 10w-30 /API SF or higher

Chassis: Height of Cut Range

1.5-4.5"; 1/2" increments

Engine: Engine Speed

3300±100 RPM

Engine: Battery

12V 230CCA

Engine: Ignition Coil Air Gap

0.011in (0.3mm)

Drive System: Ground Speed

Forward: 0-7 mph

Drive System: Gearbox Lubricant

HYPR-OIL 500 / 20w-50 Synthetic Motor Oil

Engine: Spark Plug

Champion XC92YC or Briggs & Stratton # 491055
