595 litres ProPass™ 200 Series Topdresser

  • Model: 44751
See All Items in ProPass™ 200 Series Topdresser
  • Quickly change from the twin spinner to the optional cross-conveyer and swivel kit.
  • The spinners are fixed at a downward angle of 4° to provide accurate and consistent penetration of material into the turf canopy.
  • Evenly apply materials to the turf from 2.74 m to 9.1 m with the patented sliding adjustment for positioning of the twin spinners. This unique drop zone system adjusts where material lands on the spinner disks, resulting in an even pattern across the entire spread width.
  • Eliminate guesswork from setting up your spread pattern. Choose your spread pattern, identify your colour and make your adjustments.
  • Allows fast settings and adjustments to all spread functions and you can store settings for future use. Fully operational up to 91 metres.
  • The ProPass™ is available in a utility vehicle mount style such as for mounting on a Workman® vehicle or can be ordered in a tow version.
  • A unique, four wheel walking beam suspension contains two separate axles so that all four wheels are always in contact with the ground regardless of terrain and an even weight distribution provides a light footprint on the turf.
  • Eliminates load shifting of material and uses a tight rubber seal on the sides preventing material from escaping.
  • Tailgate opens, closes and pivots on a wedge creating an angle to force wet or dry material through the gate in a consistent flow.

Overview

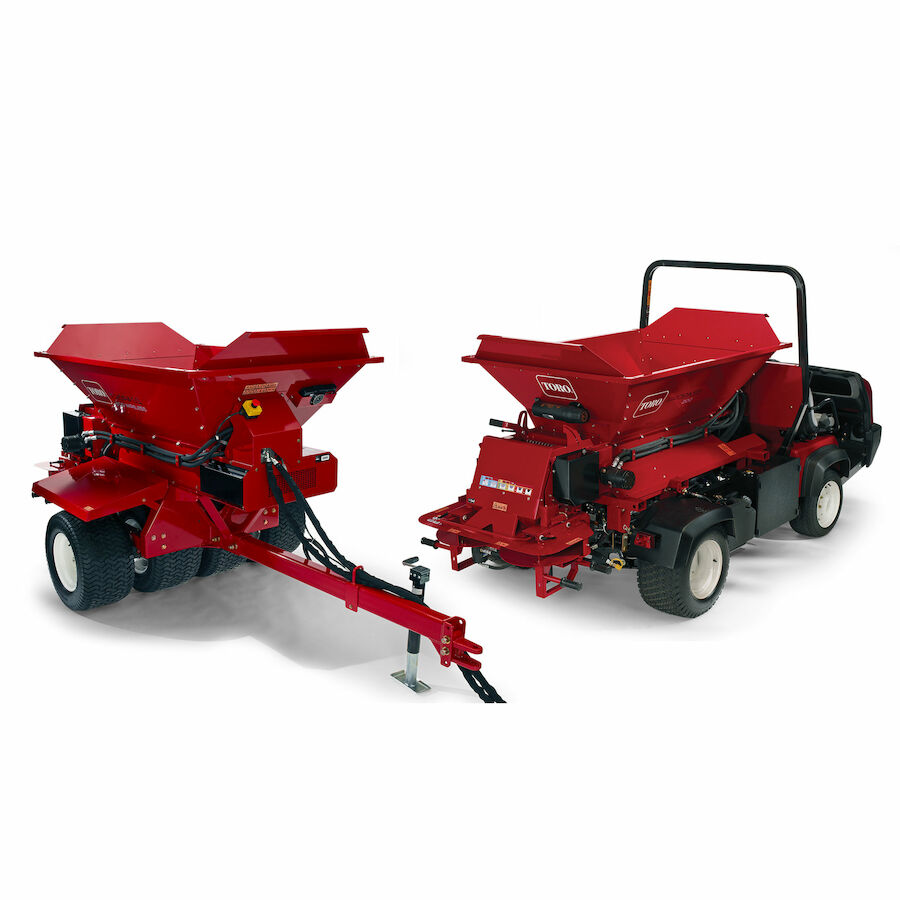

The Toro ProPass™ 200 broadcast style topdresser delivers extremely accurate spread patterns from ultra-light dustings to ultra-heavy aeration hole filling applications without any guesswork. A wireless controller provides the easiest method to set and control the spread functions. Available in both a utility vehicle mounted version and a towed version.

Series Models:

  • ProPass 200 – Bed Mounted or Tow Behind
  • ProPass 200 – Bed Mounted or Tow Behind with Wireless Controller

Features

Versatility
Versatility
Quickly change from the twin spinner to the optional cross-conveyer and swivel kit.
Twin Spinner Angle
Twin Spinner Angle
The spinners are fixed at a downward angle of 4° to provide accurate and consistent penetration of material into the turf canopy.
Spread Consistency
Spread Consistency
Evenly apply materials to the turf from 2.74 m to 9.1 m with the patented sliding adjustment for positioning of the twin spinners. This unique drop zone system adjusts where material lands on the spinner disks, resulting in an even pattern across the entire spread width.
Colour-Coded Operating System
Colour-Coded Operating System
Eliminate guesswork from setting up your spread pattern. Choose your spread pattern, identify your colour and make your adjustments.
Available Wireless Controller
Available Wireless Controller
Allows fast settings and adjustments to all spread functions and you can store settings for future use. Fully operational up to 91 metres.
Vehicle Mount or Tow-Behind
Vehicle Mount or Tow-Behind
The ProPass™ is available in a utility vehicle mount style such as for mounting on a Workman® vehicle or can be ordered in a tow version.
Walking Beam Suspension
Walking Beam Suspension
A unique, four wheel walking beam suspension contains two separate axles so that all four wheels are always in contact with the ground regardless of terrain and an even weight distribution provides a light footprint on the turf.
Smooth Belt
Smooth Belt
Eliminates load shifting of material and uses a tight rubber seal on the sides preventing material from escaping.
Wedge-Style Tailgate
Wedge-Style Tailgate
Tailgate opens, closes and pivots on a wedge creating an angle to force wet or dry material through the gate in a consistent flow.

Specifications

Conveyor Belt One-piece vulcanised, self-tracking (no seams or staples)
Height 1.4 m
Hopper Capacity 0.6 cu. m struck (0.71 cu. m heaped)
Hydraulic Connection 23 L/m @ 138 bar, maximum 38 L/m @ 190 bar
Length Bed-mounted: 1.98 m. Tow-behind: 3.4 m.
Operating Width (Working Width) Variable, up to 9.1 m
Optional Accessories Hydraulic Power Pack, Cross Conveyor / Swivel Kit
Payload (Tare) 907 kg
Recommended Tow Vehicle Requirement Towing capacity: 1542 kg. Tongue weight: 136 kg.
Tyres 24 x 13.00-12, 4-ply
Weight Bed-mounted: 288.5 kg in minimum configuration, 381.5 kg maximum. Tow-behind: 465.4 kg in minimum configuration, 628.7 kg maximum (dry with optional hydraulic power pack).
Width 1.65 m (65")
Wireless Controller Yes

Accessories

EXTENSION-HOPPER, FRONT (Part number 120-9393-01)
Safety Chain Kit (Part number 139-3179)
KIT-QUICK CONNECT HOSE ADAPTER (Part number 145-7646)
Red Spray Paint - Case of 6 (Part number 361-10)
Red Paint - Gallon Can (Part number 361-11)
PAINT-SPRAY, TORO SEMI-GLOSS BLACK (Part number 361-9)
Twin Spinner, ProPass 200 Top Dresser (Part number 44702)
Conveyor and Swivel Kit, ProPass 200 Top Dresser (Part number 44703)
Hose Assembly Kit, Tow-Type Chassis for ProPass 200 Top Dresser (Part number 44706)
Toro Workman Chassis, ProPass 200 Top Dresser (Part number 44707)
Storage Stand, ProPass 200 Top Dresser (Part number 44712)
Hydraulic Power Pack, ProPass 200 Top Dresser (Part number 44713)
PROPASS DEERE PRO GATOR MOUNT KIT (Part number 44714)
Hopper Vibrator Kit, ProPass Top Dresser and MH-400 Material Delivery (Part number 44723)
Tow Chassis and Fender Kit (Part number 44724)



Warranty

2-Year Limited

**See dealer for Warranty details.
