36 in. (91 cm) Fixed Deck Gear Drive T-Bar (50 State)

Fixed Deck Gear Drive
  • Model: 39674
Find a Dealer
  • Exclusive T-Bar steering controls - easy to use and reduces fatigue
  • 48" TURBO FORCE 7-gauge cutting deck w/patented adjustable baffle
  • 48" TURBO FORCE 7-gauge cutting deck w/patented adjustable baffle
  • Massive 9-3/8" (24 cm) diameter spindle
  • 5-Speed gearbox with 9 spline coupler
  • Horizon360®Business Management Software. Work More Efficiently. Run More Profitably.

Overview

14.5 HP Kawasaki® FS481V 603cc Engine with 36 in. (91.4 cm) TURBO FORCE cutting deck technology.

Features

T-Bar Steering Controls
T-Bar Steering Controls
Exclusive Toro T-Bar steering system is easy to use and ergonomically designed to reduce operator fatigue. Great for tracking in large open spaces and also maneuvering around obstacles. All around an intuitive control system.
Exclusive TURBO FORCE Deck
Exclusive TURBO FORCE Deck
High-capacity 7/10 gauge TURBO FORCE deck delivers unsurpassed strength, a superior cut, and increased productivity in extreme mowing conditions. Easily handles the most demanding conditions and resists damage from impacts and abrasion.
Rubber Discharge Chute
Rubber Discharge Chute
High performance rubber discharge chute allows for close trimming without damaging chute or landscape structures. Patented design provides exceptional clipping dispersion.

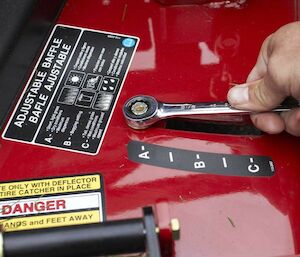

Patented Adjustable Baffle
Patented Adjustable Baffle
Allows operator to achieve maximum cutting performance by fine-tuning deck to conquer changing conditions, unique job sites or different times of the season. In extreme conditions, the baffle can be opened in order to conserve power and achieve faster mowing speeds. In less demanding conditions, the baffle can be closed to yield micro-sized particles and maximize discharge velocity.
Smarter Design in a Bullnose Bumper
Smarter Design in a Bullnose Bumper
7-gauge bull-nose bumper not only protects against frontal impacts, but also contains an integral underskirt to minimize blowout of debris and dust. The bottom, leading edge of the deck is raised 1/4" (6 mm), allowing grass to stand more upright when entering the cutting chamber, ensuring a level cut. Leaf "plowing" during spring and fall clean-up also is significantly reduced.
Rugged Spindle Assembly
Rugged Spindle Assembly
Rigorously tested to ensure that it can survive impacts that would destroy lesser spindles. The cast iron housing, with a massive 9-3/8" (23.8 cm) diameter base, absorbs impact loads and distributes them across a broader area of the robust deck shell. Built with maintenance-free sealed ball bearings.
Extended Life Drive System
Extended Life Drive System
Extended life drive system with Husqvarna Peerless 700 series transmission, featuring a 9-spline drive coupler.
A Flat Crisp Cut With Precision Blades
A Flat Crisp Cut With Precision Blades
(.250) thick precision blades resist flexing to provide a flat, crisp cut. High-strength, heat-treated alloy steel survives impacts and provides resistance to the rapid wear commonly associated with abrasive conditions. Options include Recycler® and Atomic® mulching blades, medium sail Bahai blades, and low sail sand blades.
Horizon360 system used by contractor
Horizon360®Business Management Software.
Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

For more informationclick here.

Specifications

Adjustable Discharge Standard
Adjustable Discharge Baffle Standard
Air Filter 2-Stage Air Cleaner
Blade Tip Speed 18,500 ft/min / 5,638 m/min
Box Dimension 78 in. x 49.5 in. x 52.25 in. / 198.1 cm x 125.7 cm x 132.7 cm
Brake System 6 in. (15 cm) Band Brakes
CARB Compliant CARB Compliant
Caster Tires 9 in. x 3.5 in. - 4 in. (23 cm x 9 cm - 10 cm)
Cutting Width 36 in / 91 cm
Deck Design 36" (91.4 cm) TURBO FORCE
Discharge Chute High-Performance 5/16" (8 mm) Rubber
Drive System 5-Speed Transmission
Drive Tires 13 in. x 6.5 in. - 6 in. (33 cm x 15 cm - 16.5 cm)
Engine 14.5 hp* Kawasaki® FS481V 603 cc
Engine Brand Kawasaki
Engine Displacement (cc) 603 cc
Engine Horsepower 14.5 hp
Forward Ground/Transport Speed Up to 6.2 mph / 9.9 kph
Fuel Capacity 5 gal. / 18.9 L / 20 Qt.
Fuel Type Gasoline
Height of Cut 1.0 - 4.25 in. / 2.5 - 10.8 cm
Mulch, Bag, Side Discharge Side discharge standard
Number of Blades 2
Product Type Walk Behind Mowers
Product Use Commercial
Spindle Housing 9.375 in / 23.8 cm Diameter Cast Iron
Start Type Pull Cord, Recoil
Steering Controls T-Bar
Transmission 5-Speed Gearbox with 9 Spline Coupler

Disclaimer

*The gross horsepower of this engine was laboratory rated by the engine manufacturer in accordance with SAE J1940. As configured to meet safety, emission, and operating requirements, the actual engine horsepower on this class of mower will be significantly lower.

Parts & Manuals

Select your model year from the options below to view parts & manuals.

39674 Serial #
410300000-999999999
405670000-410299999
404320000-405669999
400000000-404319999
316000001-316999999
315000001-315999999
314000001-314999999
313000001-313999999



Warranty

3-Year

**See dealer for Warranty details.
