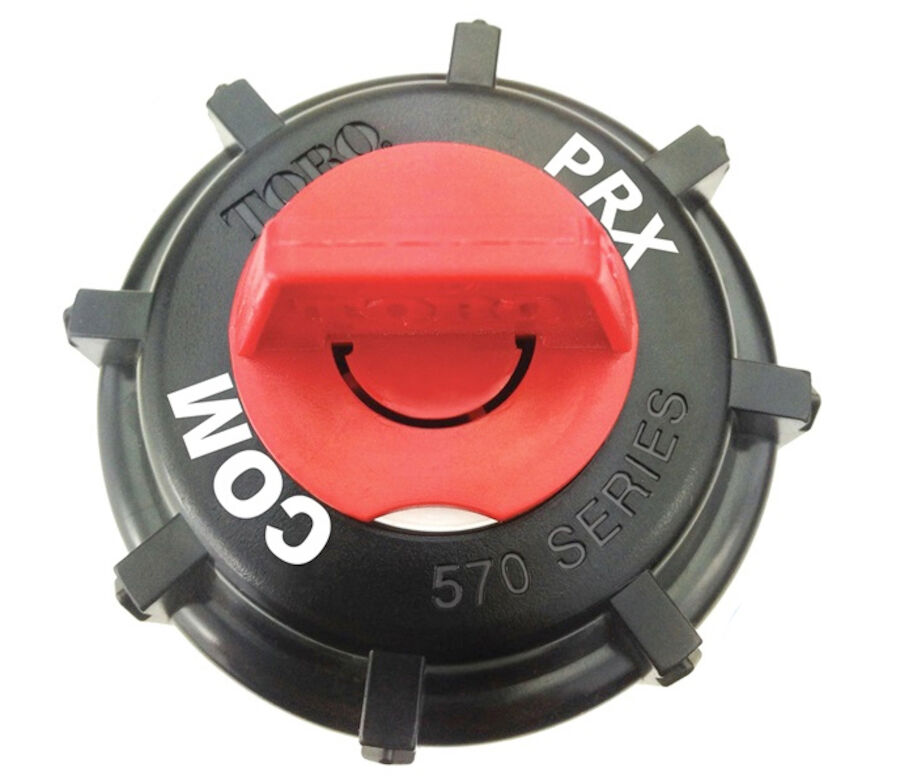

570Z PRX Series

  • Model: 570Z PRX Series
  • X-Flow shut-off technology is factory installed and holds back 99% of water that would be wasted to a compromised head
  • Pressure regulating – factory installed regulator operates at a standard 2 bar (30 psi) to prevent misting and water waste
  • Zero-flush seal prevents water waste at start up, allowing more heads to be installed on same line
  • Ratcheting riser feature for easy and reliable arc adjustment
  • Less visible, reducing damage from exposure or vandals.
  • Built into the riser and restricts water loss by 99% if the nozzle is removed or damaged, eliminating potential erosion or safety concerns. Allows for “dry” nozzle and filter-replacement or maintenance, while the system is running.
  • Maintains constant 2.1 bar outlet pressure, which minimises misting and fogging caused by pressures above 2.1 bar.
  • Robust retraction spring and enhanced seal material ensures positive pop-up and retraction on all 570Z models.
  • Less visible, reducing damage from exposure or vandals.

Overview

570Z PRX This model comes complete with both the X-Flow and pressure regulation-perfect for high or varying pressure, including long lines and slopes.

Features

X-flow® Water Shut-off Device
X-flow® Water Shut-off Device
Built into the riser and restricts water loss by 99% if the nozzle is removed or damaged, eliminating potential erosion or safety concerns. Allows for “dry” nozzle and filter-replacement or maintenance, while the system is running.
Patented In-riser Pressure Regulator
Patented In-riser Pressure Regulator
Maintains constant 2.1 bar outlet pressure, which minimises misting and fogging caused by pressures above 2.1 bar.
Zero Flush Wiper Seal
Zero Flush Wiper Seal
Prevents flushing on pop-up, allowing more sprinklers on the same line.
Enhanced Retraction Spring and Wiper Seal
Enhanced Retraction Spring and Wiper Seal
Robust retraction spring and enhanced seal material ensures positive pop-up and retraction on all 570Z models.
X-flow® Water Shut-off Device
X-flow® Water Shut-off Device
Built into the riser and restricts water loss by 99% if the nozzle is removed or damaged, eliminating potential erosion or safety concerns. Allows for “dry” nozzle and filter-replacement or maintenance, while the system is running.
Enhanced Retraction Spring and Wiper Seal
Enhanced Retraction Spring and Wiper Seal
Robust retraction spring and enhanced seal material ensures positive pop-up and retraction on all 570Z models.
Small 50 mm (2") Diameter Cap
Small 50 mm (2") Diameter Cap
Less visible, reducing damage from exposure or vandals.

Specifications

Body Style Side Inlet Option
Cap Diameter 51 mm
Flow 0.05-4.5 GPM
Inlet ½" (12.7 mm) NPT female threaded
Maximum Operating Pressure 5.2 bar (75 psi)
Operating Pressure 20-75 PSI
Pop-Up Height 2", 3", 4", 6", 12" (50, 76, 100, 150, 300 mm)
Radius 2'-26' (0.6 - 7.9 m)
Recommended Operating Pressure 30 PSI (2.1 BAR)

Documents

Title Documents
570ZPRX Series Sprays Sellsheet PDF - Sellsheet-en-GB



Warranty

For complete product warranty information, contact Toro Customer Service

**See dealer for Warranty details.
