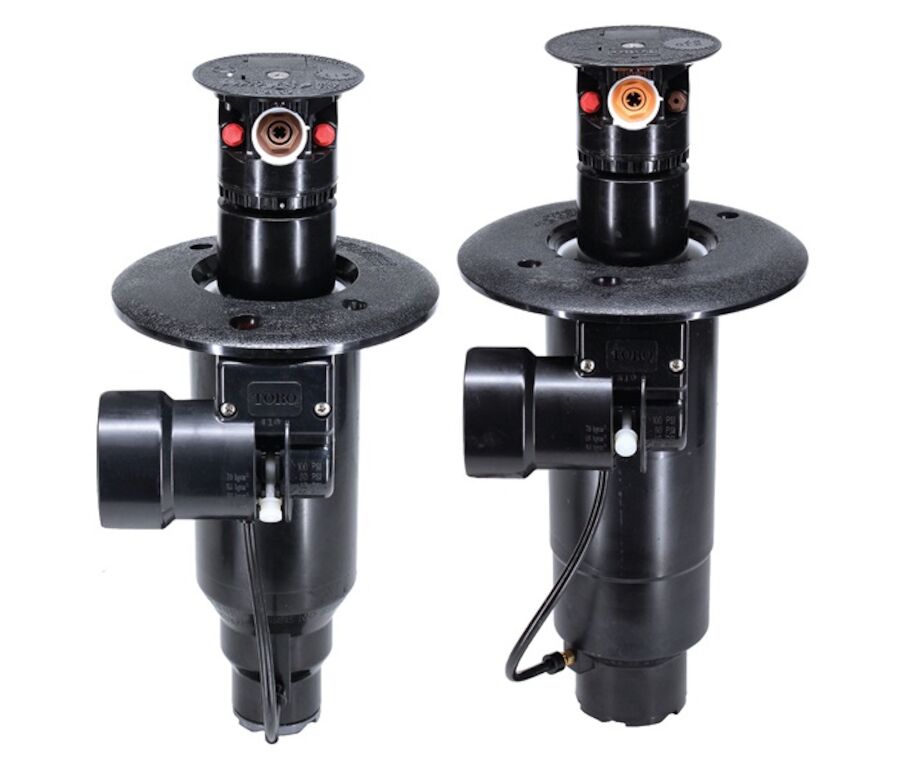

FLEX800™ 34/54 Series Golf Rotors

  • Model: FLEX800™ 34/54 Series Golf Rotors
  • Available in 2.5 cm inlet (FLX34) and 3.8 cm inlet (FLX54)
  • Conversion Assemblies available to economically upgrade your existing Toro system
  • Constant velocity full-circle drive ensures consistent rotation speeds for even water application.
  • Tailored for golf course irrigation, withstands harsh debris, high pressures, and heavy traffic. Patented X-Flow technology prevents water loss. Built-in shutoff device ensures water conservation. Perfect for bunkers, small tee boxes, and clubhouse areas.

Overview

The FLEX800™ 34/54 is the Toro® premium full-circle golf sprinkler series. The dual trajectory main nozzle provides exceptional nozzle performance at the 25° standard angle position and great performance in windy applications at the 15° low angle position. The consistency of the constant velocity full-circle drive ensures even water application across the coverage area each time you water.

Features

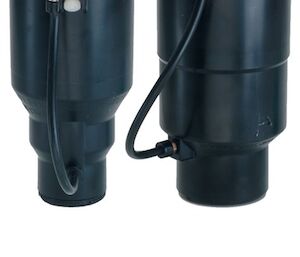

Available in 2.5 cm inlet (DT34) and 3.8 cm inlet (DT54)
Available in 2.5 cm inlet (DT34) and 3.8 cm inlet (DT54)
ACME, NPT and BSP threads

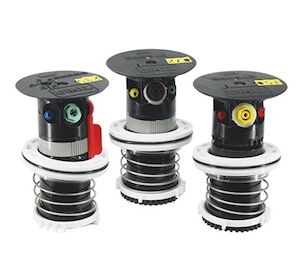

Conversion Assemblies available to economically upgrade your existing Toro system
Conversion Assemblies available to economically upgrade your existing Toro system
Conversion Assemblies available to economically upgrade your existing Toro system
Constant Velocity Full-circle Drive
Constant Velocity Full-circle Drive
Ensures consistent rotation speeds for even water application across the coverage area. This sprinkler is the correct choice for plain areas where a reliable water supply is needed.
Check Valve Standard
Check Valve Standard
Prevents low head drainage, puddling and soil erosion
Effluent Water Models Available
Effluent Water Models Available
Models are available with lavender marking to identify the use of non-potable water.

Specifications

Body Diameter FLX34: 16.5 cm; FLX54: 19.1 cm
Body Height FLX34: 25.4 cm; FLX54: 28.9 cm
Flow 49 to 234 L/min
Holding 0.20 Amps
Inlet 1" and 1½" NPT, BSP, ACME
Inrush 60 Hz, 0.12 Amps
Maximum Operating Pressure 2.8 bar (40 psi)
Pop-Up Height 82.6 mm
Precipitation Rate FLX34: Min = 8 mm/h; Max = 14 mm/h; FLX54: Min = 8 mm/h; Max = 15 mm/h
Radius 15.8 to 30.2 metres
Recommended Operating Pressure 60 - 100 PSI (4.1 - 6.9 BAR)
Trajectory 25 Degrees & 15 Degrees
Weight FLX34: 1.4 kg; FLX54: 1.7 kg



Warranty

For complete product warranty information, contact Toro Customer Service

**See dealer for Warranty details.
