Groundsmaster 4100 Rotary Mower

Informations produit

  • Nº Modèle : 30608
  • Nº Série : 315000501 - 315999999
  • Type de produit : Riding Products

Schémas d’assemblage

Rechercher une pièce dans des schémas d'assemblage :

Acoustic Foam Assembly
Acoustic Foam Assembly
Air Cleaner Assembly No. 99-5410
Air Cleaner Assembly No. 99-5410

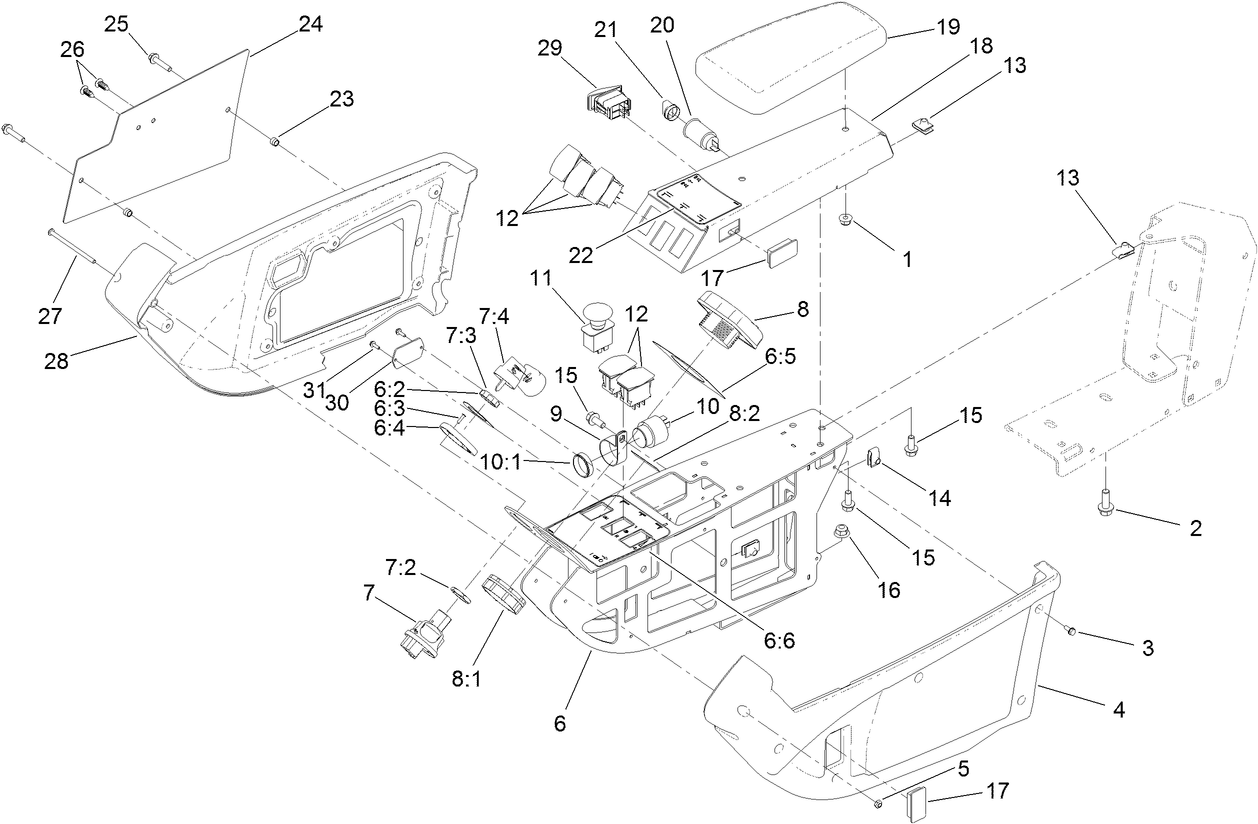

Armrest Control Panel Assembly
Armrest Control Panel Assembly
Axle Assembly Rear Axle Assembly No. 110-4750
Axle Assembly Rear Axle Assembly No. 110-4750
Axle Case Assembly Rear Axle Assembly No. 110-4750
Axle Case Assembly Rear Axle Assembly No. 110-4750
Axle Support Assembly Rear Axle Assembly No. 110-4750
Axle Support Assembly Rear Axle Assembly No. 110-4750
Battery Cable and Ground Assembly
Battery Cable and Ground Assembly
Battery, Rear Cover and Steer Valve Mount Assembly
Battery, Rear Cover and Steer Valve Mount Assembly
Bevel Gear Case Assembly Rear Axle Assembly No. 110-4750
Bevel Gear Case Assembly Rear Axle Assembly No. 110-4750
Bevel Gear Shaft Assembly Rear Axle Assembly No. 110-4750
Bevel Gear Shaft Assembly Rear Axle Assembly No. 110-4750
Bevel Pinion Shaft Assembly Rear Axle Assembly No. 110-4750
Bevel Pinion Shaft Assembly Rear Axle Assembly No. 110-4750
Brake Assembly No. 100-3069-03
Brake Assembly No. 100-3069-03
Brake Assembly No. 100-3070-03
Brake Assembly No. 100-3070-03

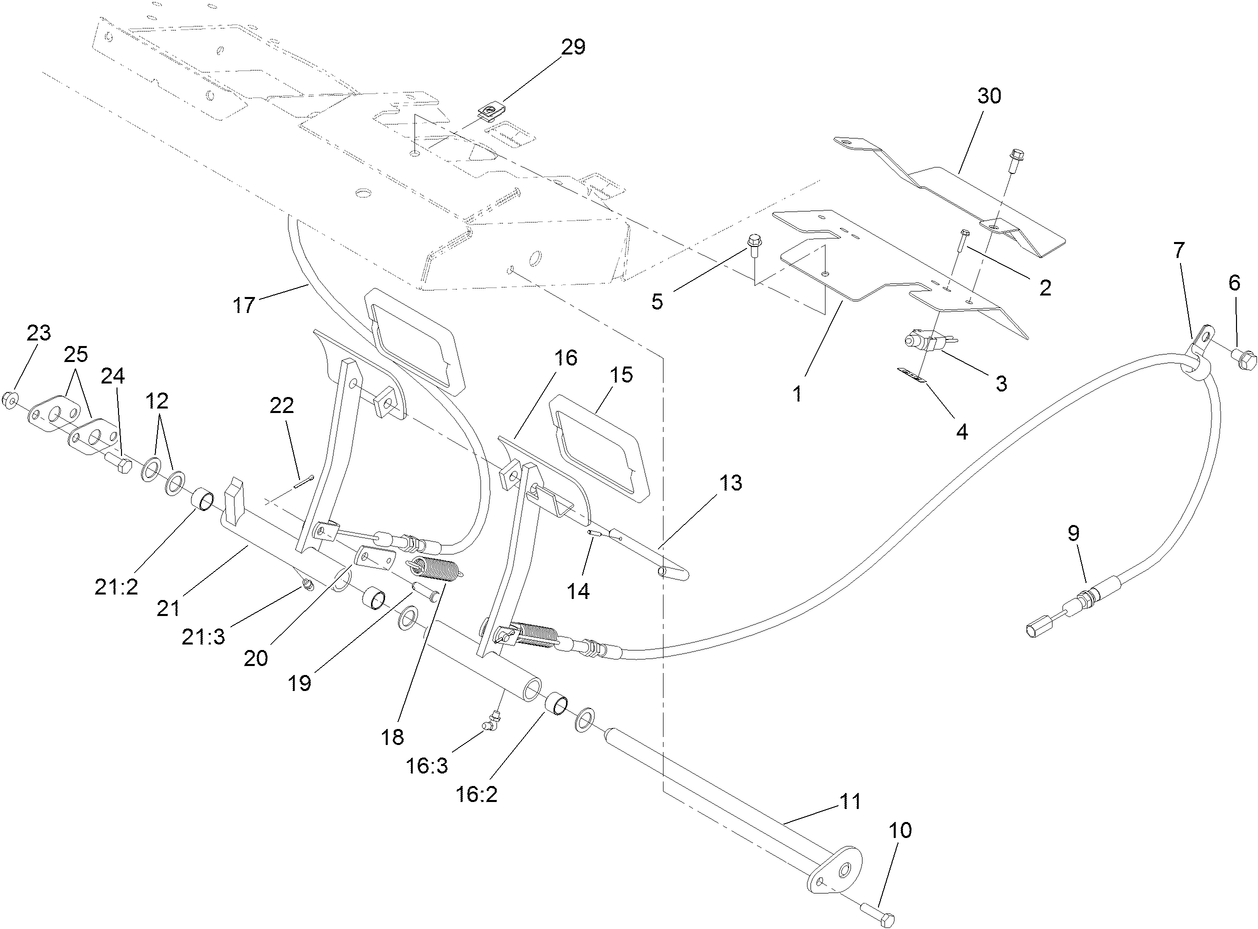

Brake Pedal Assembly
Brake Pedal Assembly
Camshaft and Driving Gear Assembly
Camshaft and Driving Gear Assembly

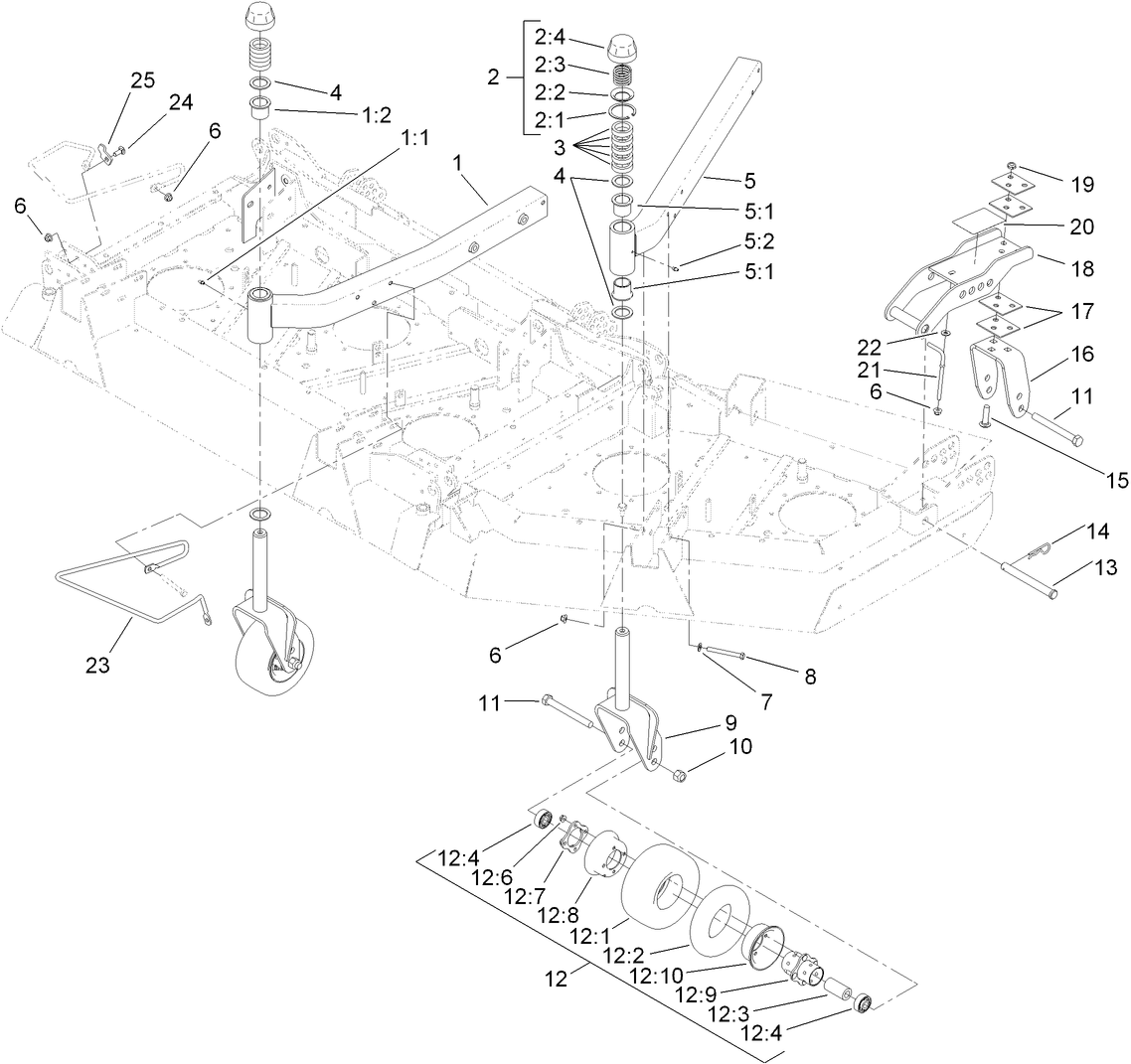

Caster Wheel Assembly
Caster Wheel Assembly

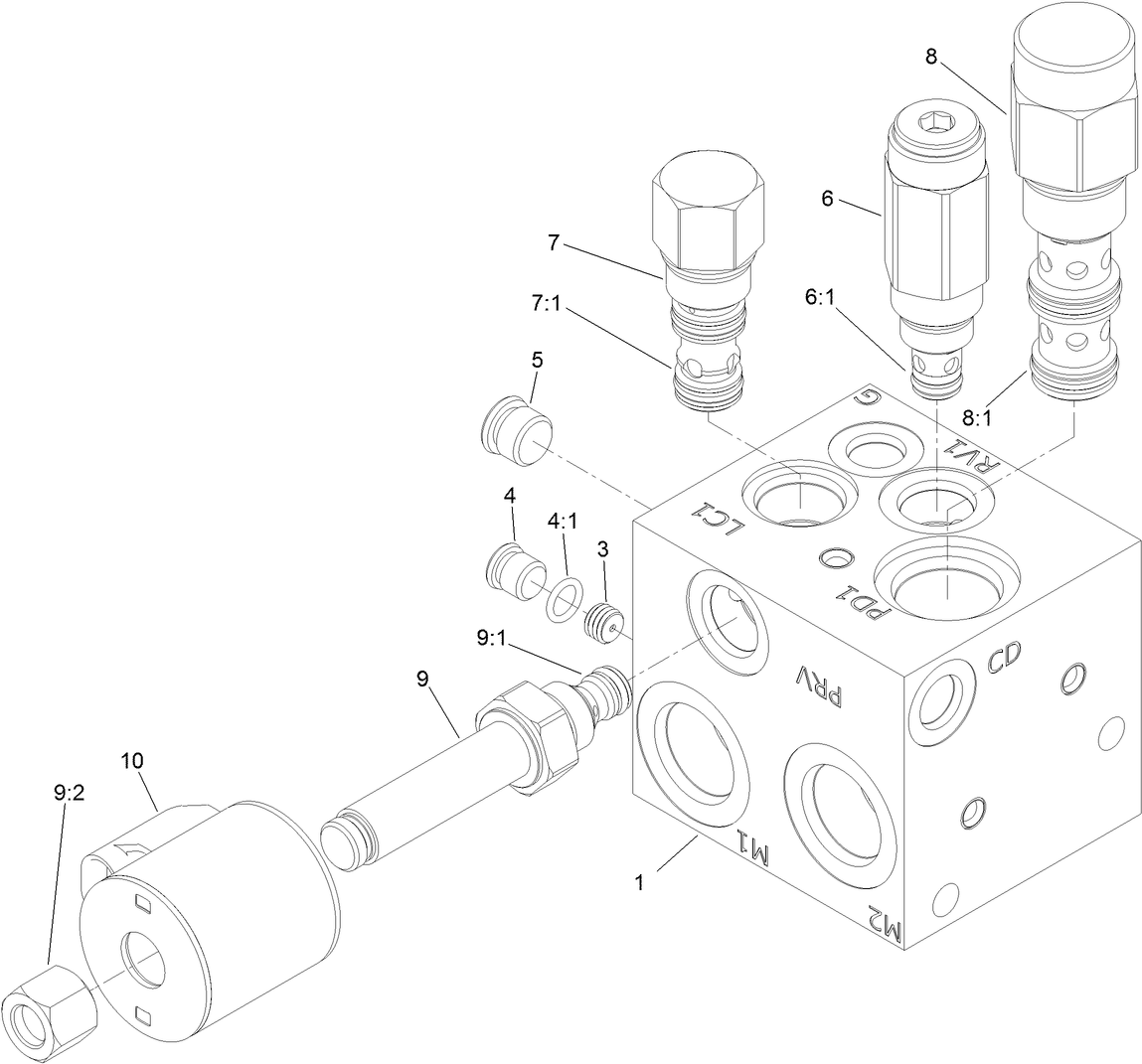

Center and Right Power-Take-Off Manifold Assembly No. 121-1537
Center and Right Power-Take-Off Manifold Assembly No. 121-1537

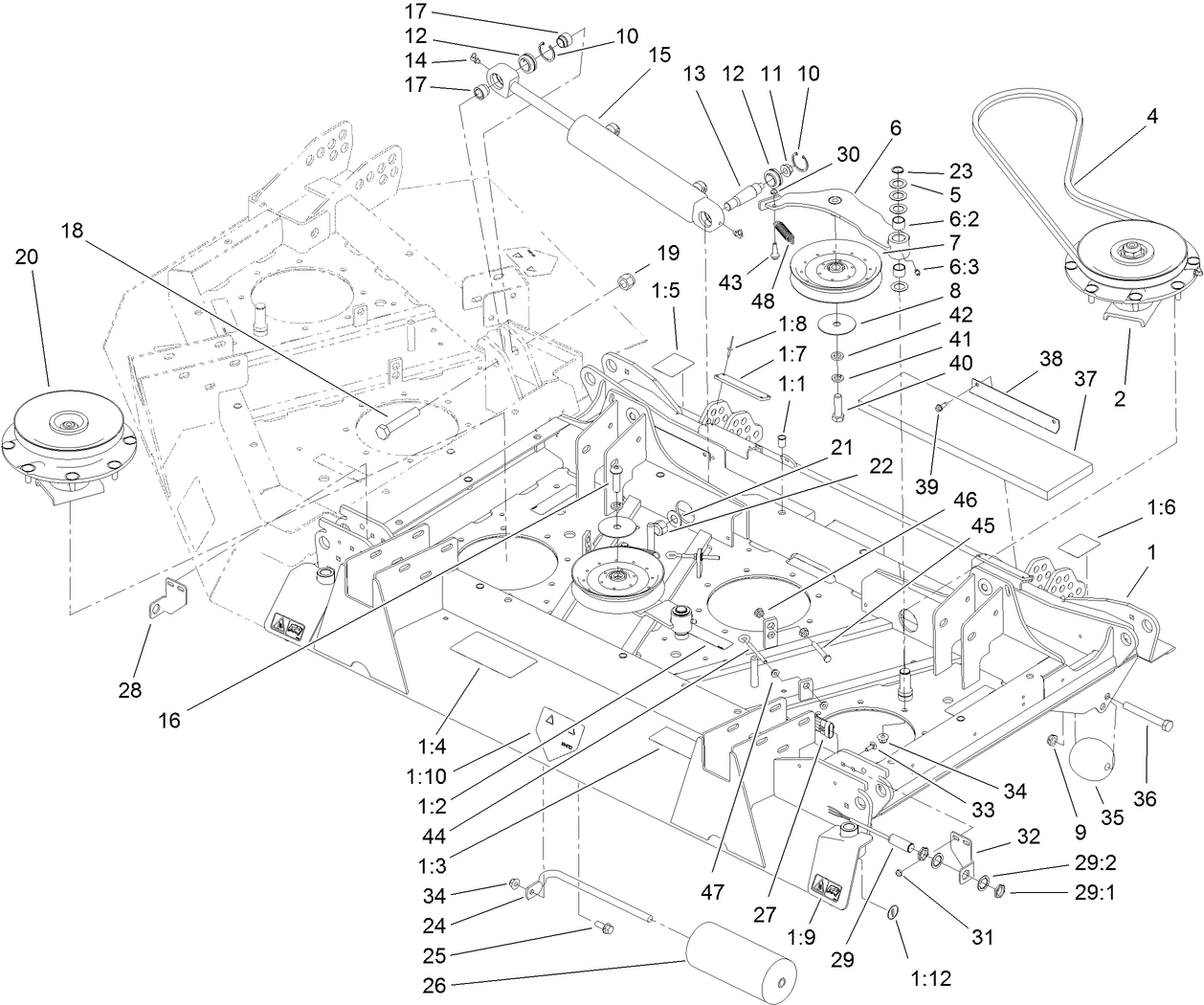

Center Deck Assembly
Center Deck Assembly
Combination Manifold Assembly
Combination Manifold Assembly
Combination Manifold Assembly No. 120-8842
Combination Manifold Assembly No. 120-8842
Cooling Water System Assembly
Cooling Water System Assembly
Crankshaft and Piston Assembly
Crankshaft and Piston Assembly

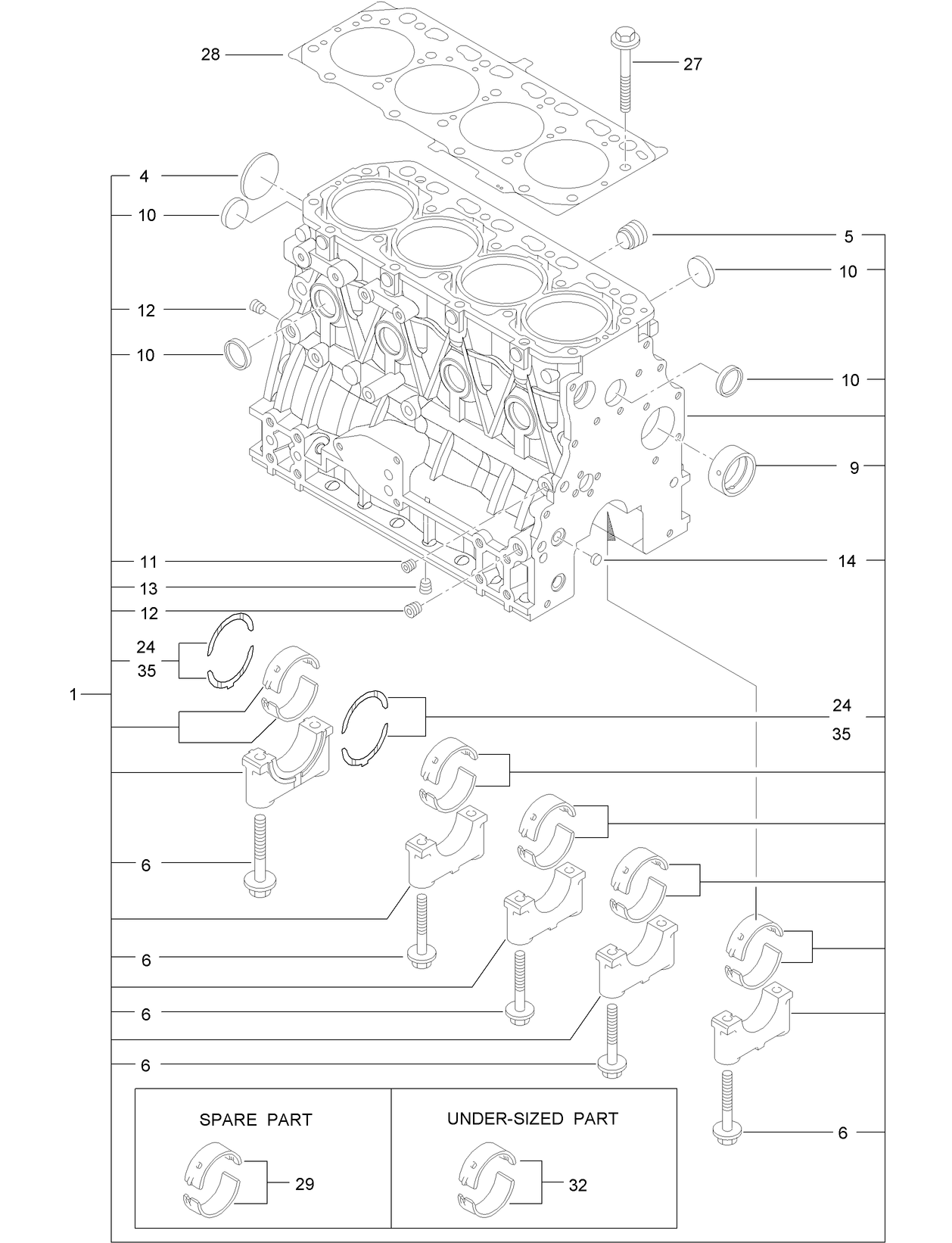

Cylinder Block Assembly
Cylinder Block Assembly
Cylinder Head and Cover Assembly
Cylinder Head and Cover Assembly

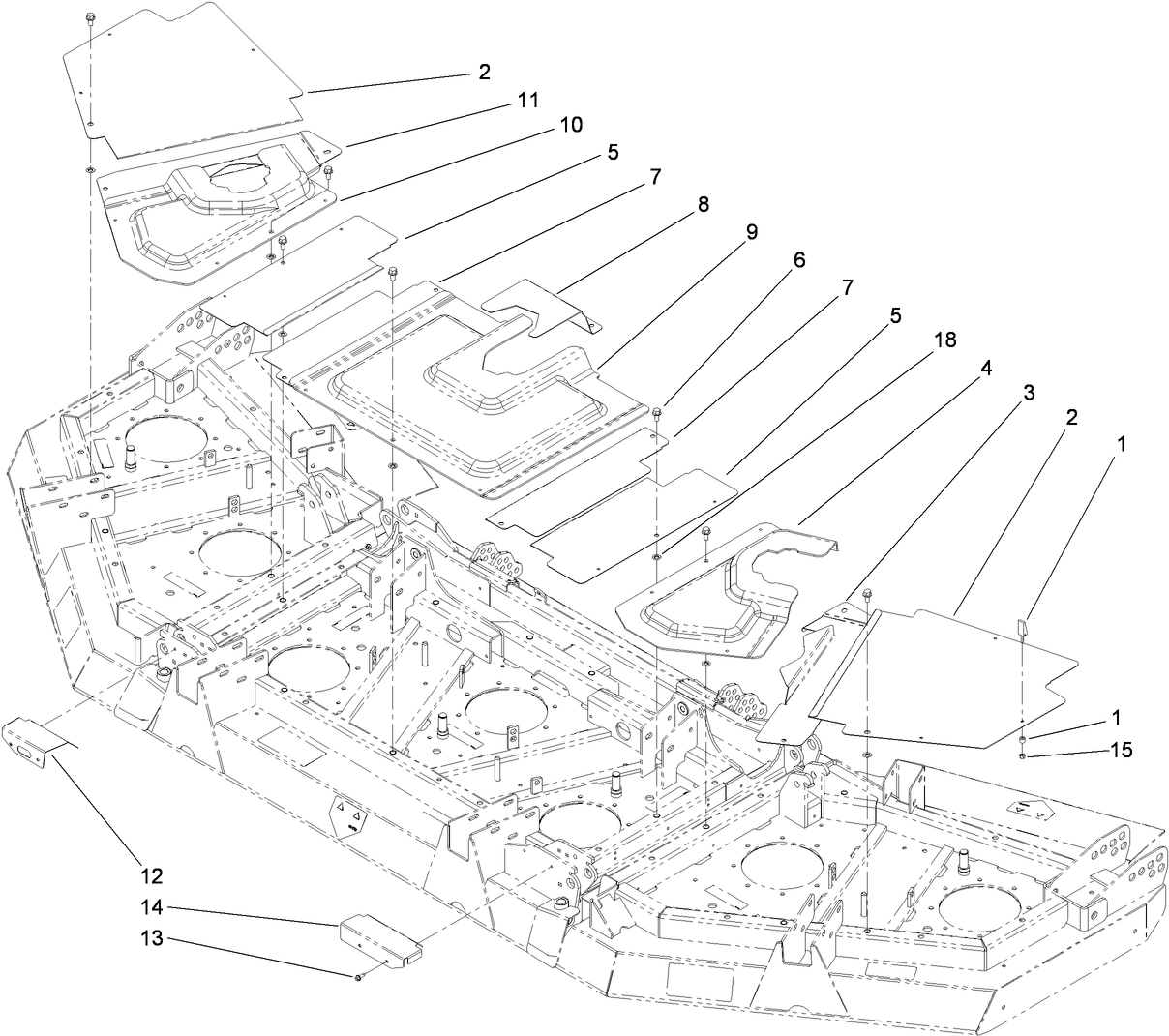

Deck Cover Assembly
Deck Cover Assembly
Diesel Particulate Filter Assembly
Diesel Particulate Filter Assembly
Differential Assembly Rear Axle Assembly No. 110-4750
Differential Assembly Rear Axle Assembly No. 110-4750

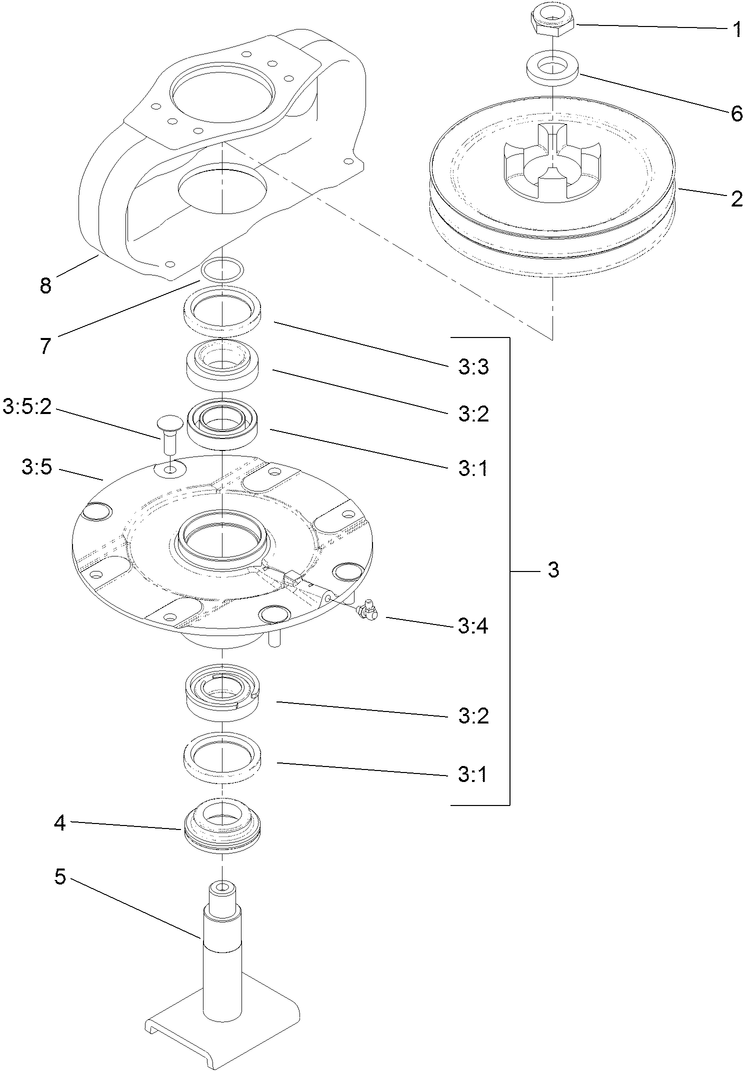

Double Driven Spindle Assembly No. 119-5298
Double Driven Spindle Assembly No. 119-5298

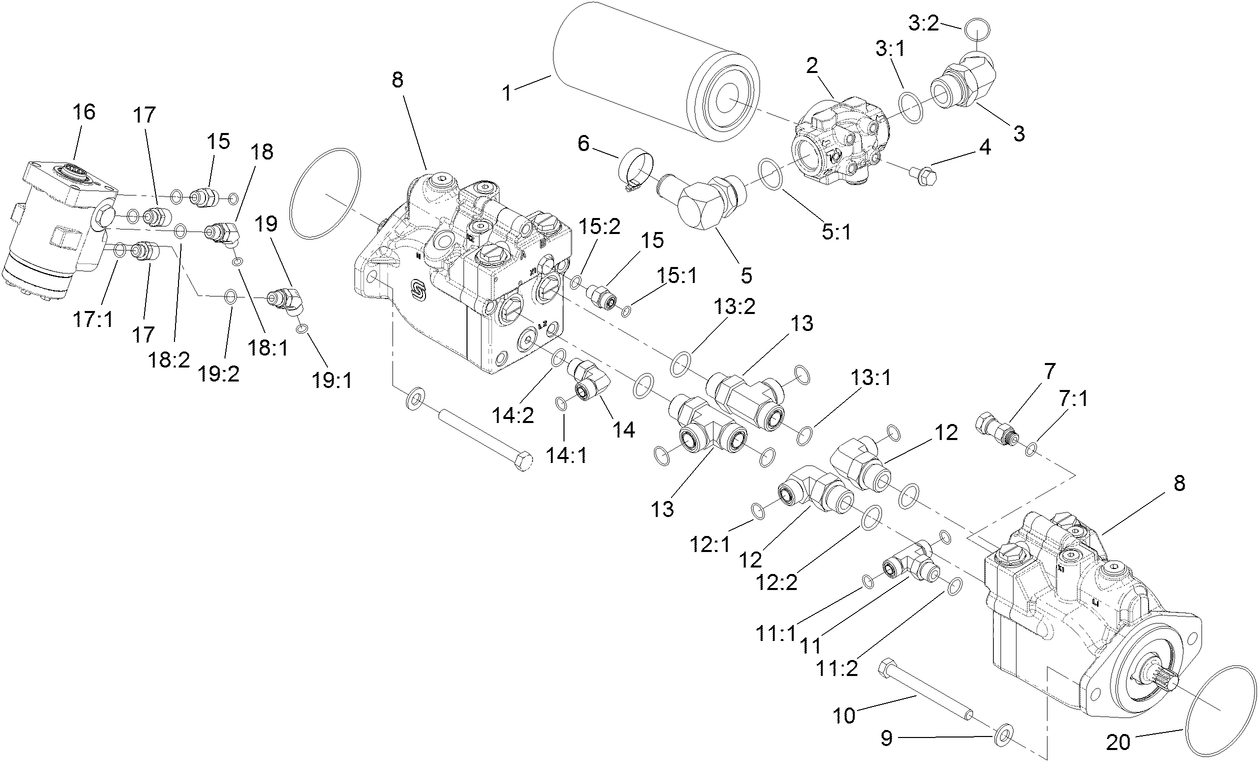

Drive Motor, Steer Valve and Filter Head Assembly
Drive Motor, Steer Valve and Filter Head Assembly
Driving Spindle Assembly No. 119-4547
Driving Spindle Assembly No. 119-4547
Electric Parts Assembly
Electric Parts Assembly
Engine and Controller Assembly
Engine and Controller Assembly
Engine Harness Assembly
Engine Harness Assembly
Exhaust Manifold Assembly
Exhaust Manifold Assembly
Fan Mounting and Hardlines Assembly
Fan Mounting and Hardlines Assembly
Fender and Step Support Assembly
Fender and Step Support Assembly
Fender, Tool Box and Cover Assembly
Fender, Tool Box and Cover Assembly

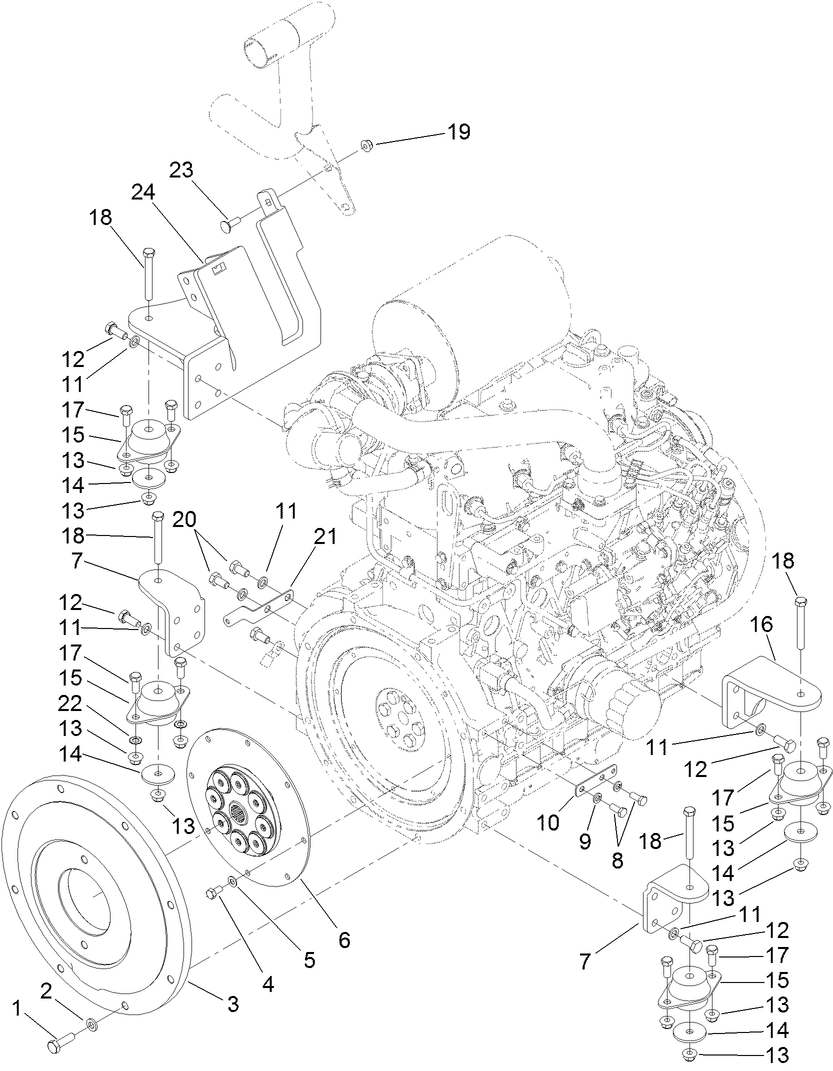

Flywheel and Motor Mount Assembly
Flywheel and Motor Mount Assembly
Flywheel Housing and Oil Sump Assembly
Flywheel Housing and Oil Sump Assembly

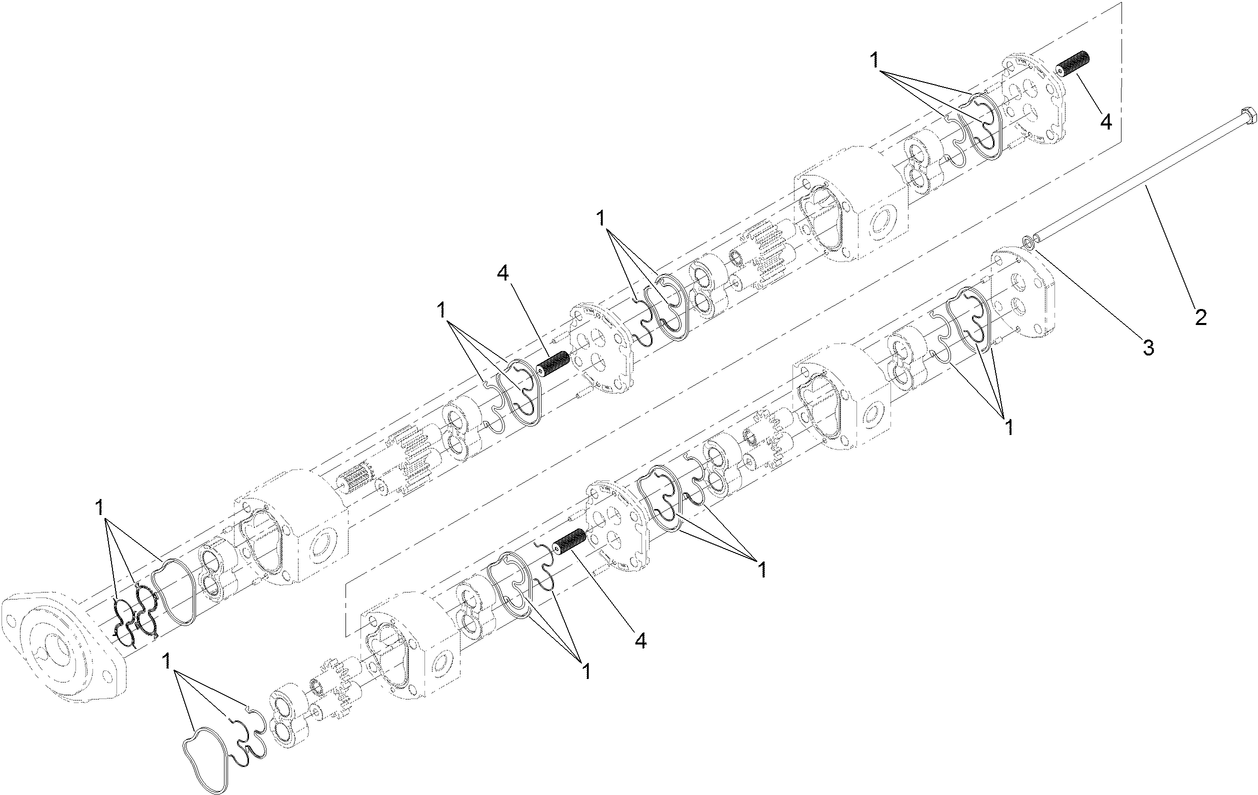

Four-Section Gear Pump Assembly No. 120-8906
Four-Section Gear Pump Assembly No. 120-8906

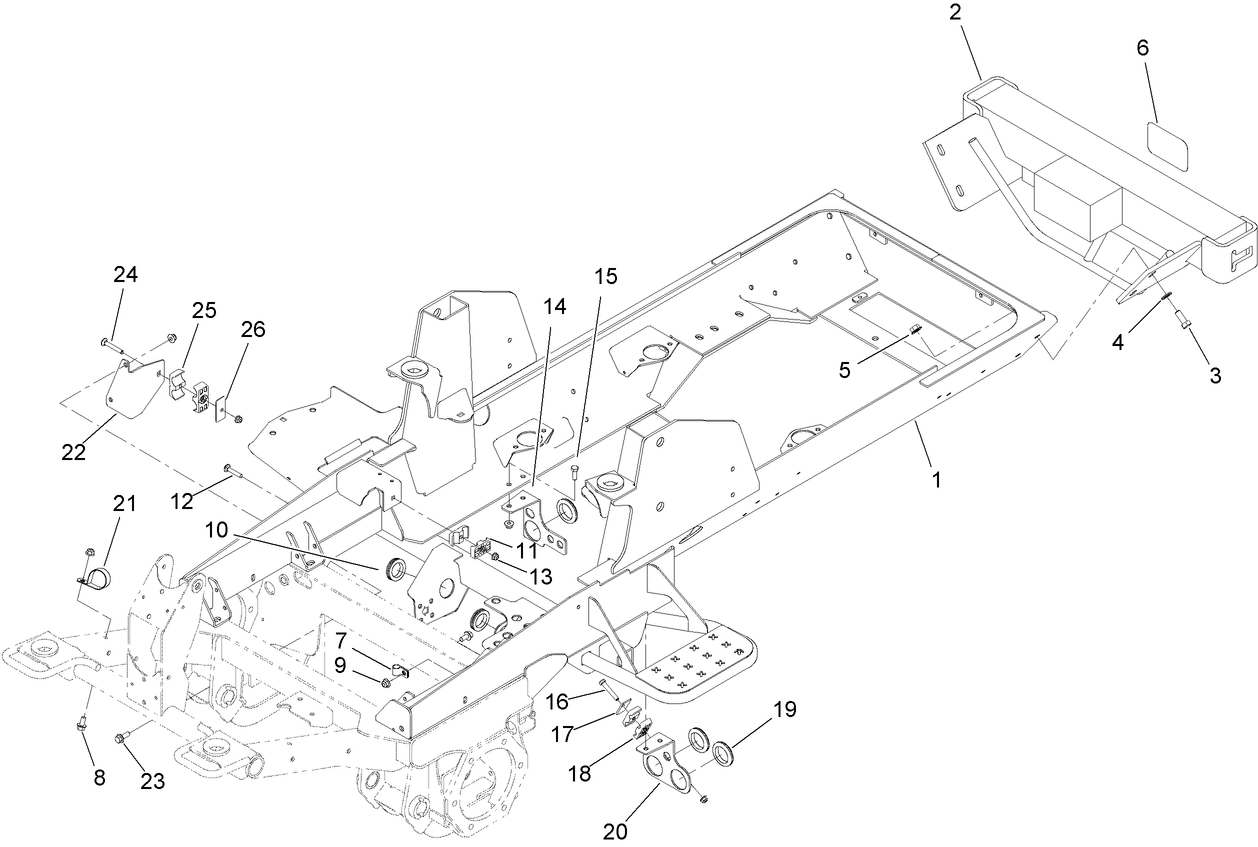

Frame and Bumper Assembly
Frame and Bumper Assembly

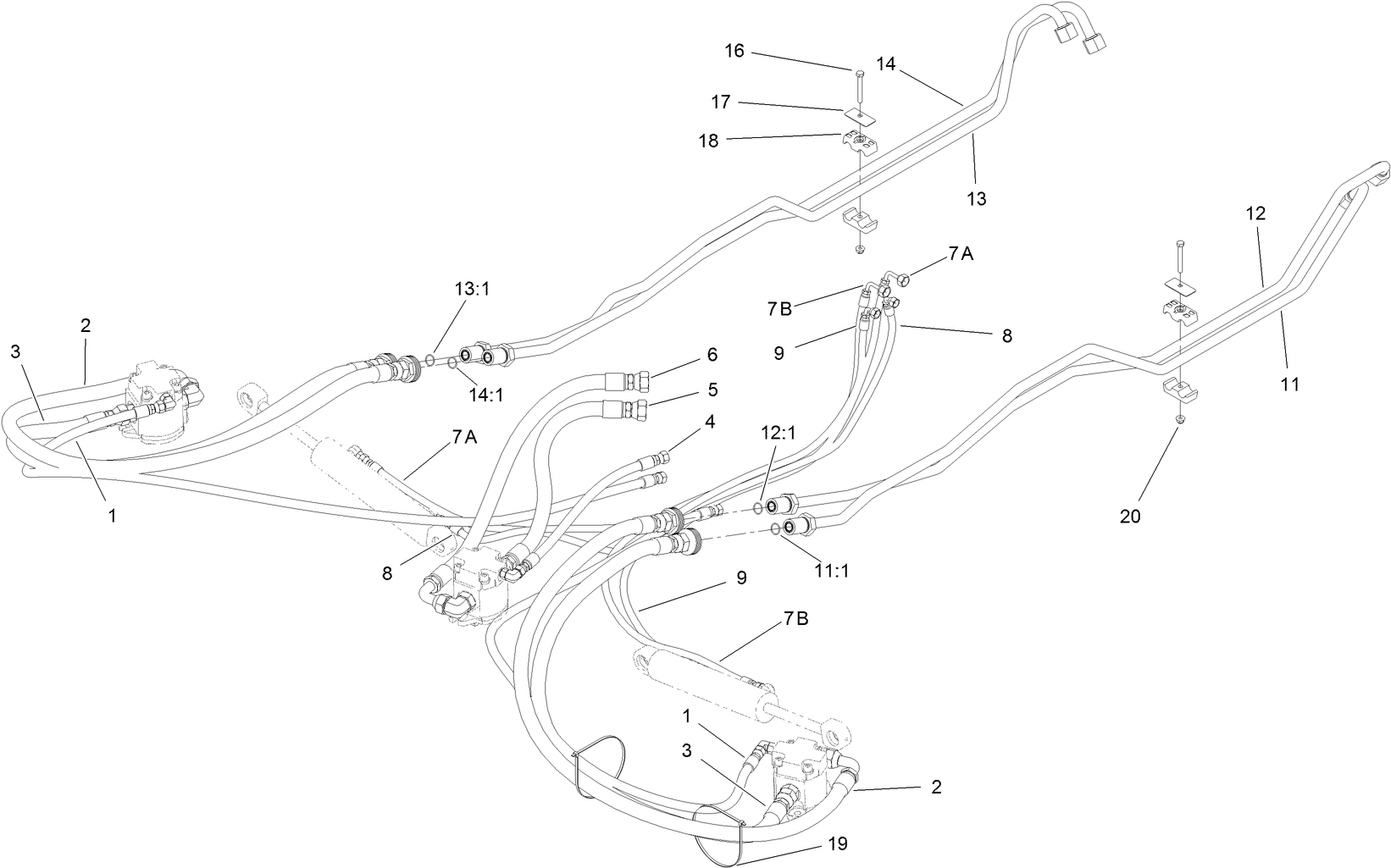

Front Deck Hose Routing Assembly
Front Deck Hose Routing Assembly

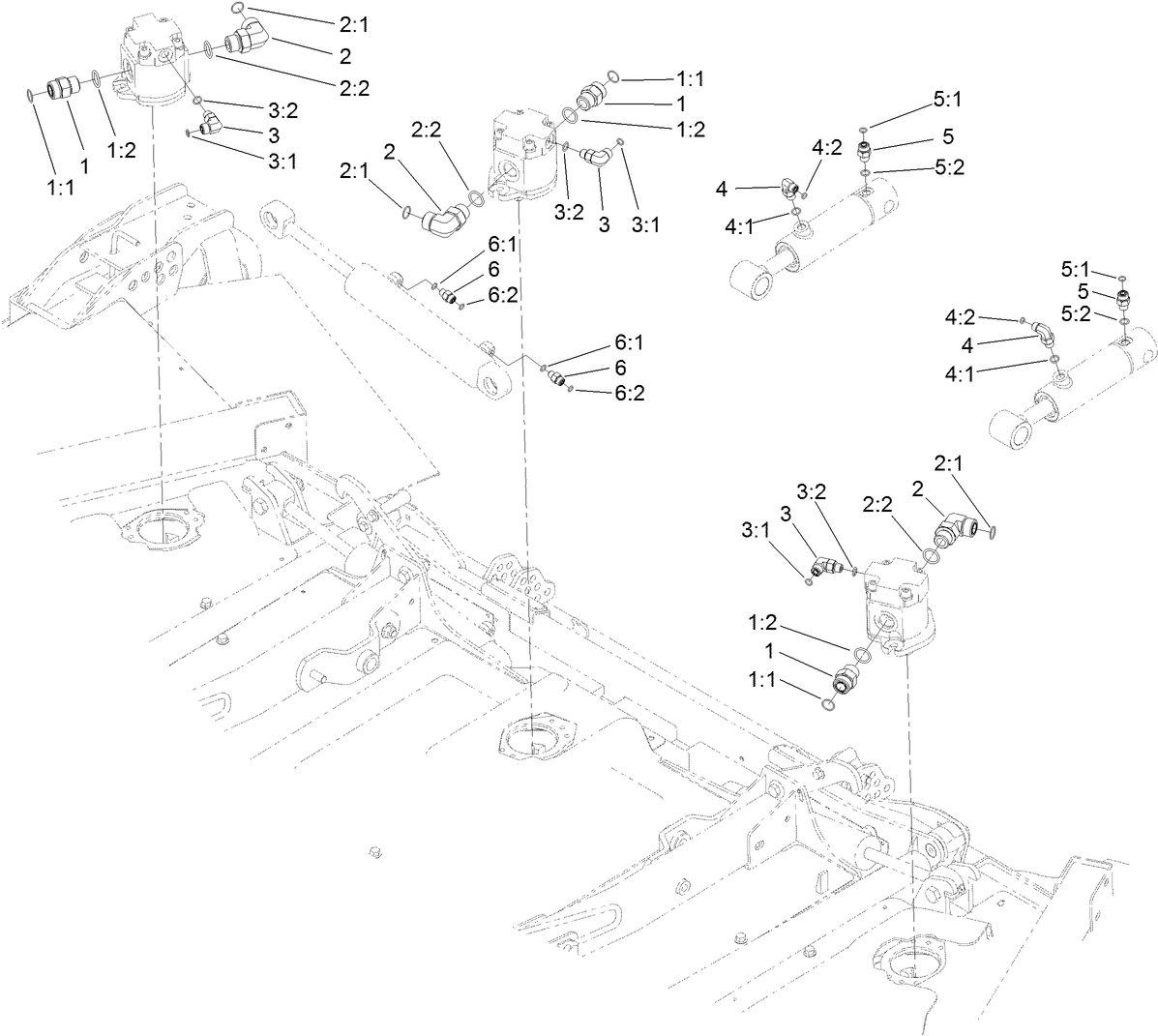

Front Deck Hydraulic Fitting Assembly
Front Deck Hydraulic Fitting Assembly

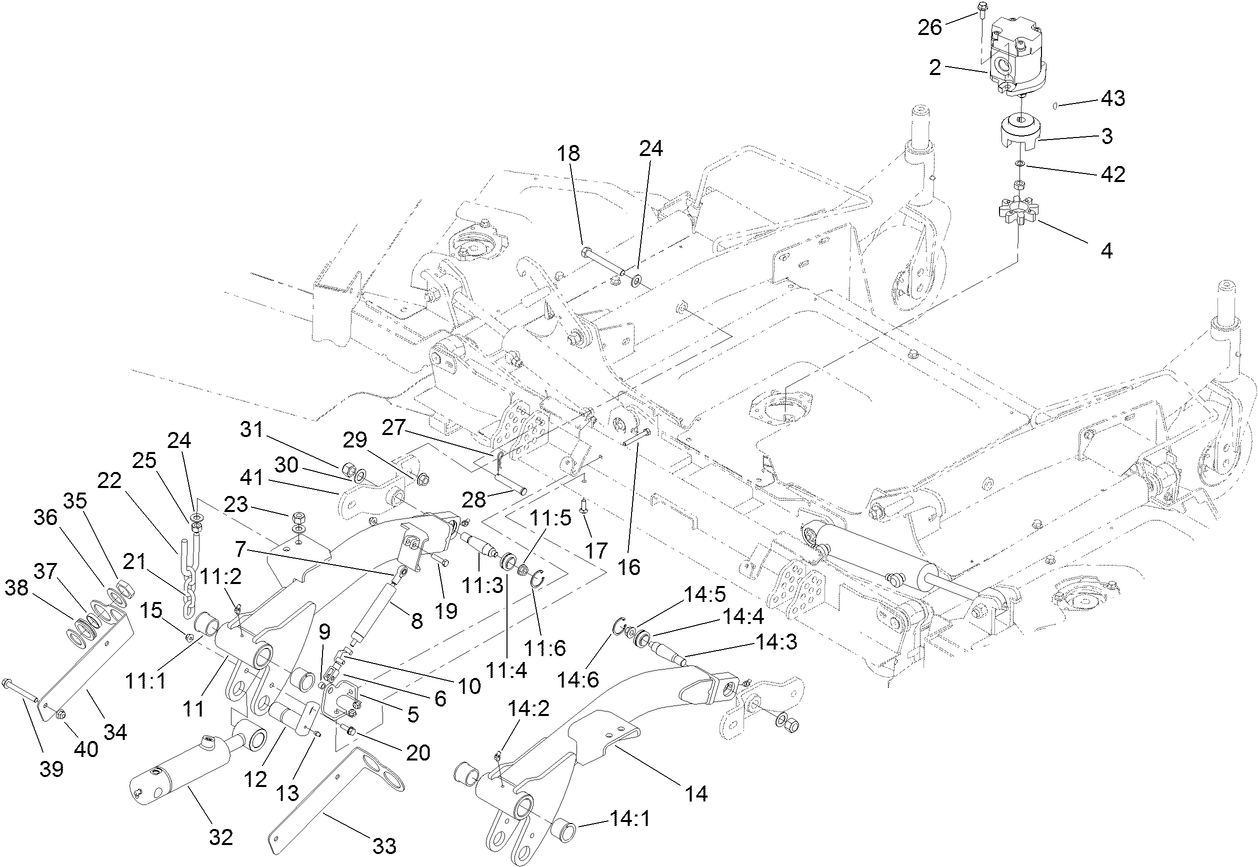

Front Deck Lift Arm Assembly
Front Deck Lift Arm Assembly

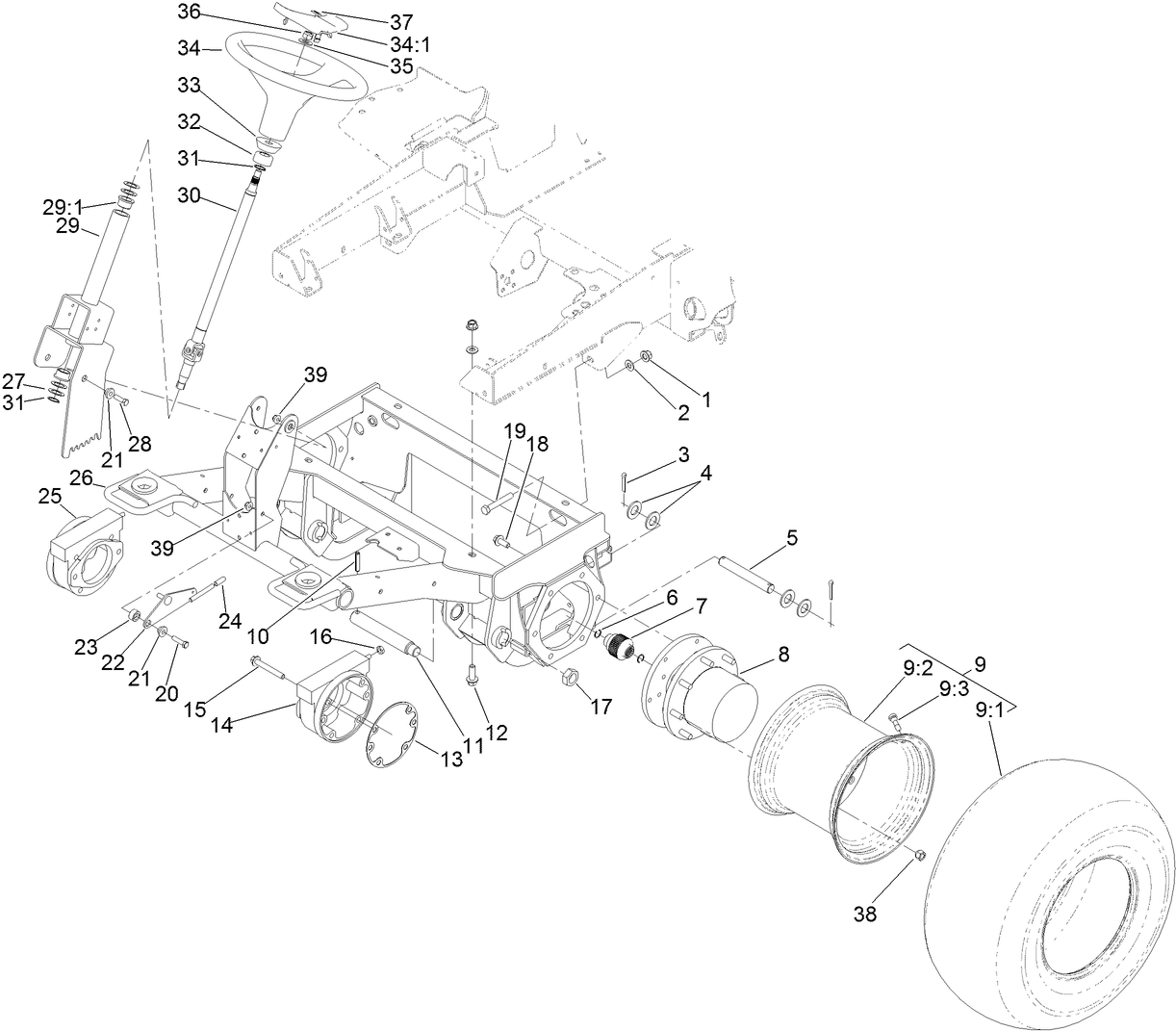

Front Frame and Steering Assembly
Front Frame and Steering Assembly
Fuel Injection Valve Assembly
Fuel Injection Valve Assembly
Fuel Line Assembly
Fuel Line Assembly
Fuel System Assembly
Fuel System Assembly
Fuel Tank and Air Cleaner Assembly
Fuel Tank and Air Cleaner Assembly
Fuel/Water Separator Assembly
Fuel/Water Separator Assembly

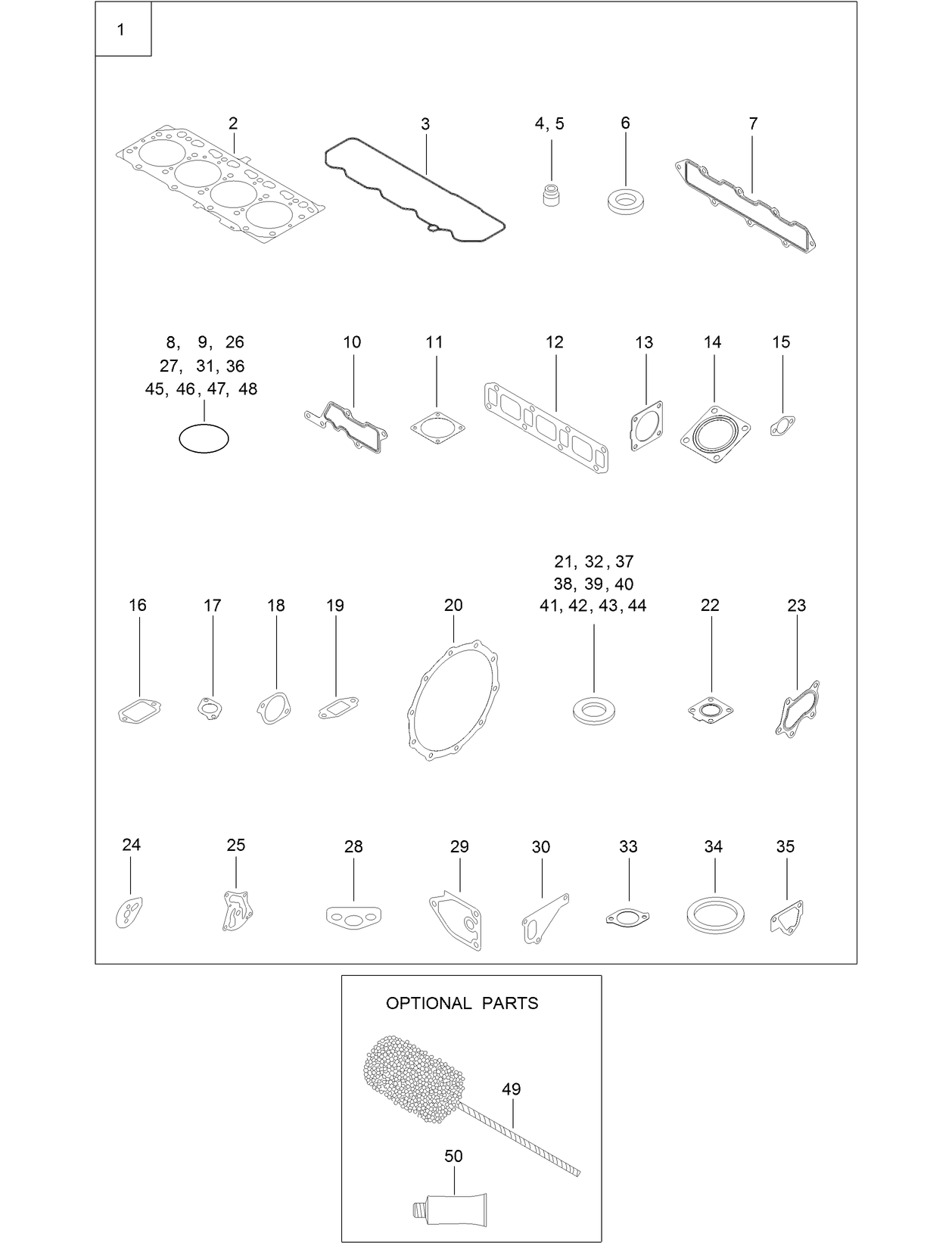

Gasket Set
Gasket Set
Gear Housing Assembly
Gear Housing Assembly
Generator Assembly
Generator Assembly
High Driven Spindle Assembly No. 119-4549
High Driven Spindle Assembly No. 119-4549

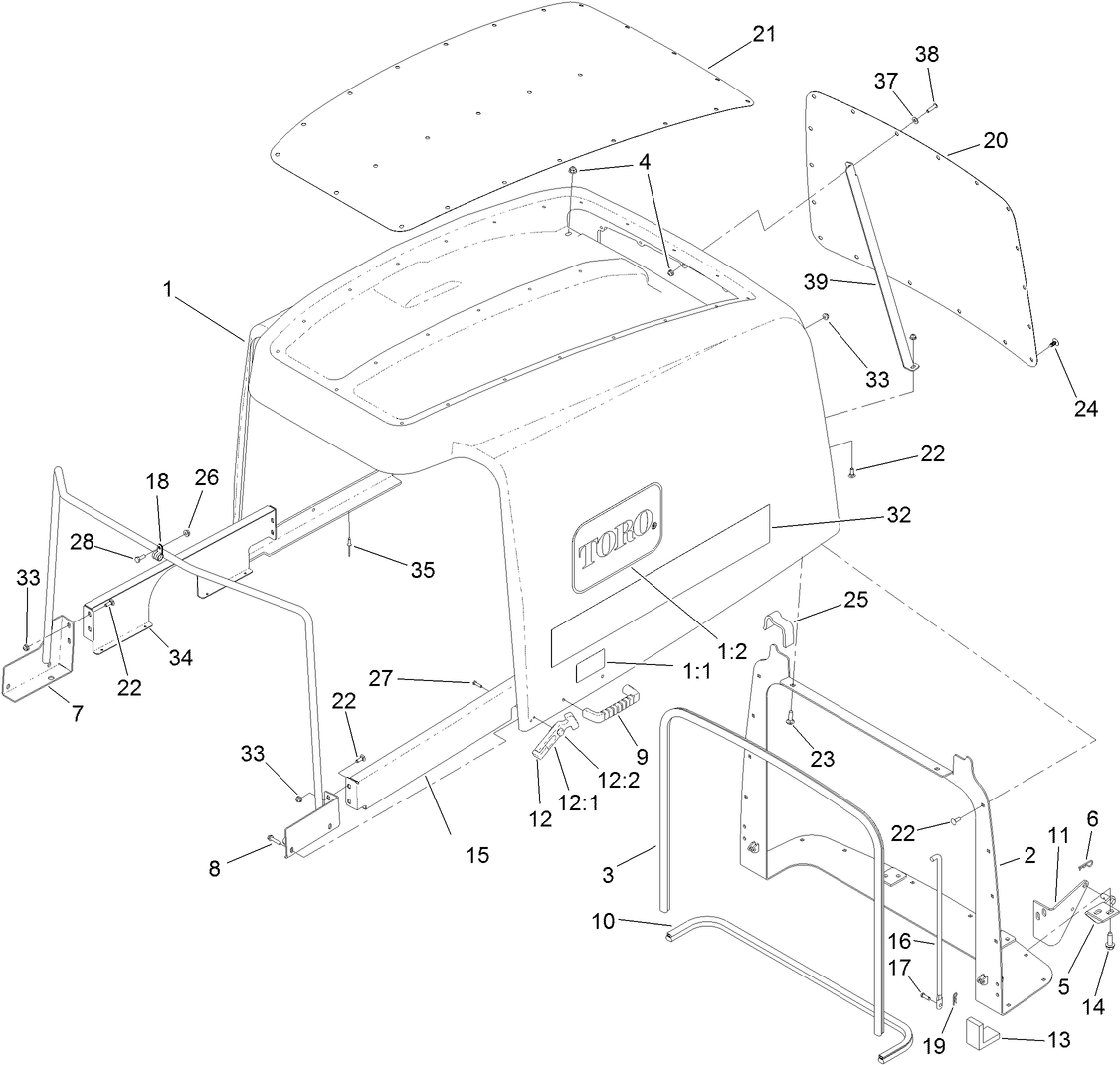

Hood Assembly
Hood Assembly

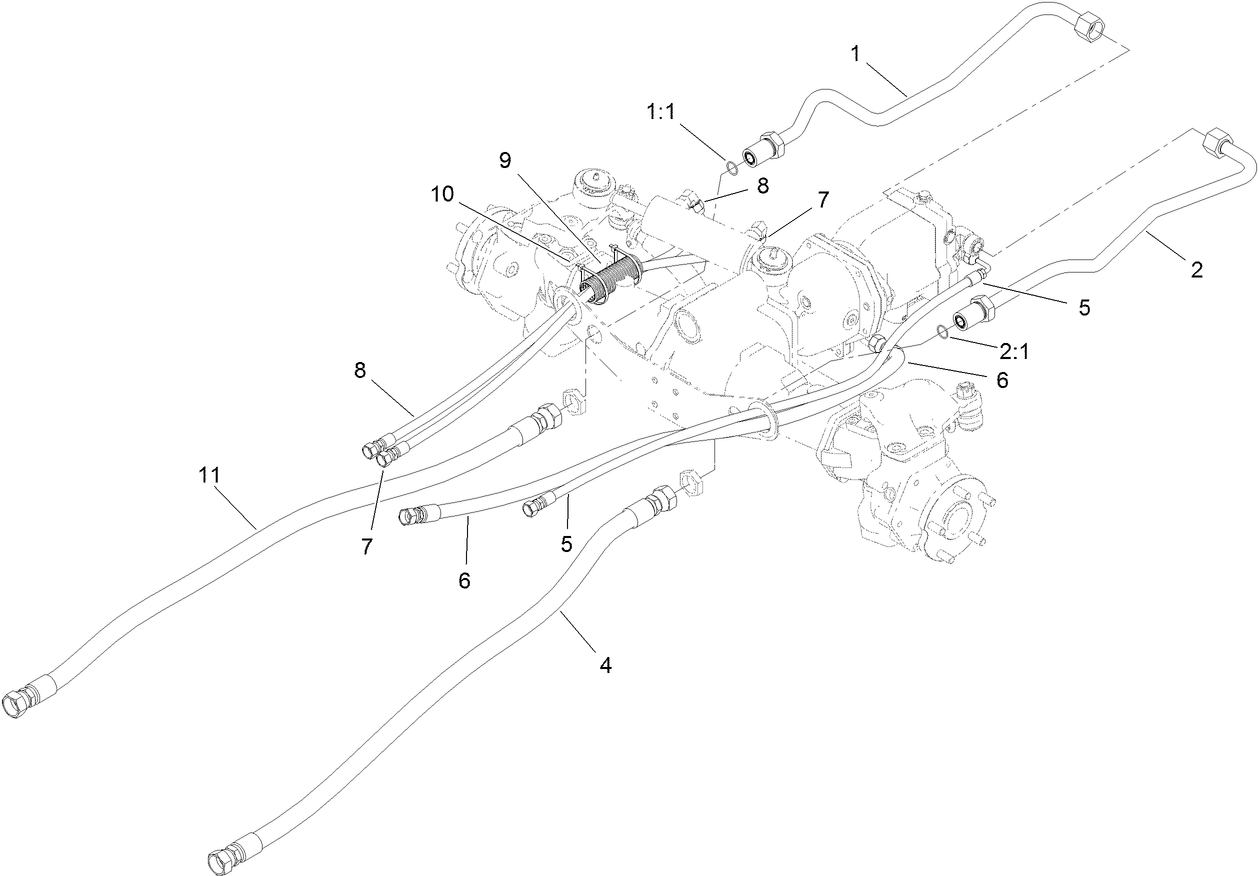

Hose and Tube Routing Assembly
Hose and Tube Routing Assembly

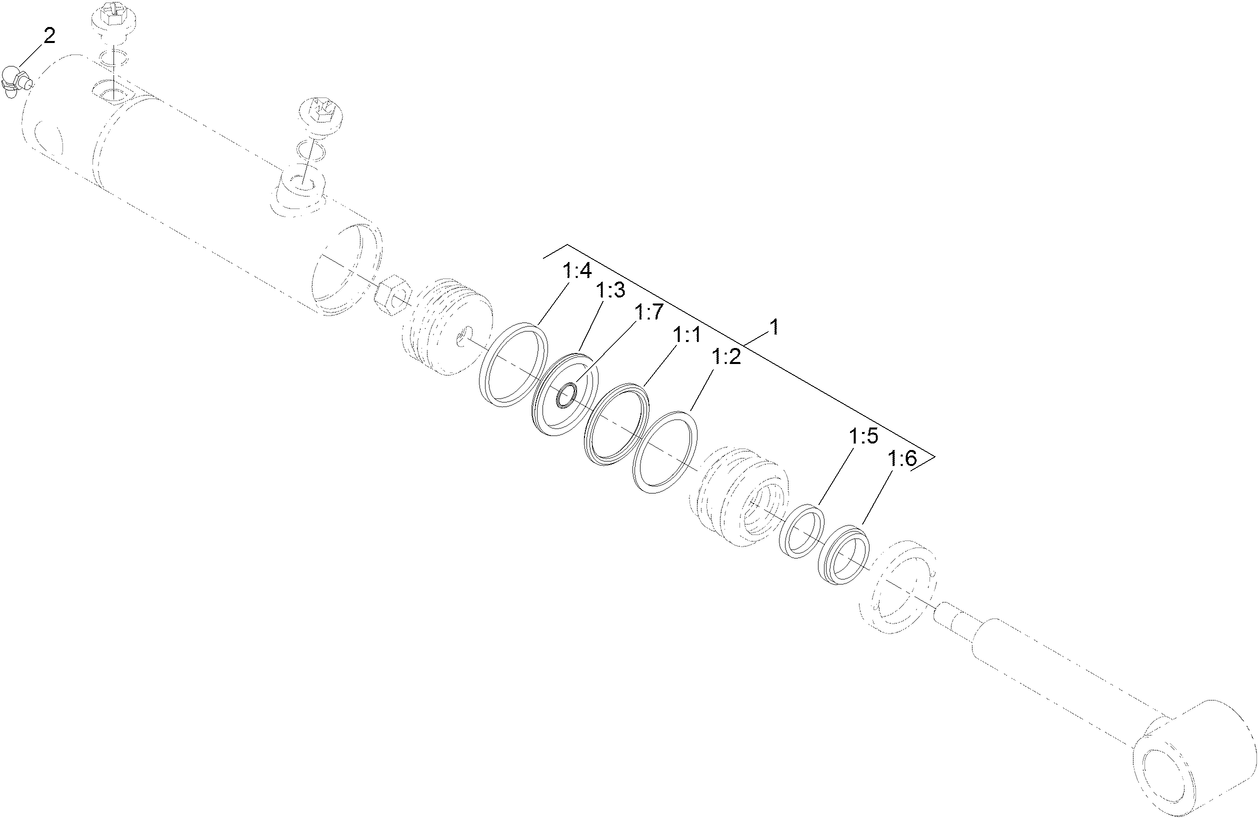

Hydraulic Cylinder Assembly No. 120-8822
Hydraulic Cylinder Assembly No. 120-8822
Hydraulic Fitting Assembly
Hydraulic Fitting Assembly
Hydraulic Motor Assembly No. 117-4769
Hydraulic Motor Assembly No. 117-4769
Hydraulic Motor Assembly No. 120-8814
Hydraulic Motor Assembly No. 120-8814

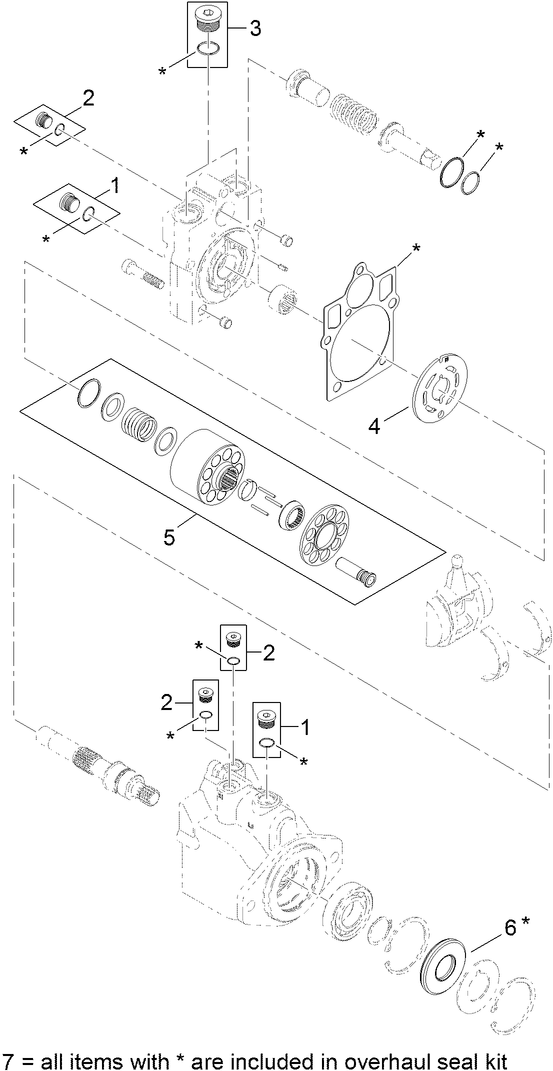

Hydraulic Motor Assembly No. 120-8913
Hydraulic Motor Assembly No. 120-8913
Hydraulic Motor Assembly No. 127-3694
Hydraulic Motor Assembly No. 127-3694
Hydraulic Reservoir Assembly
Hydraulic Reservoir Assembly

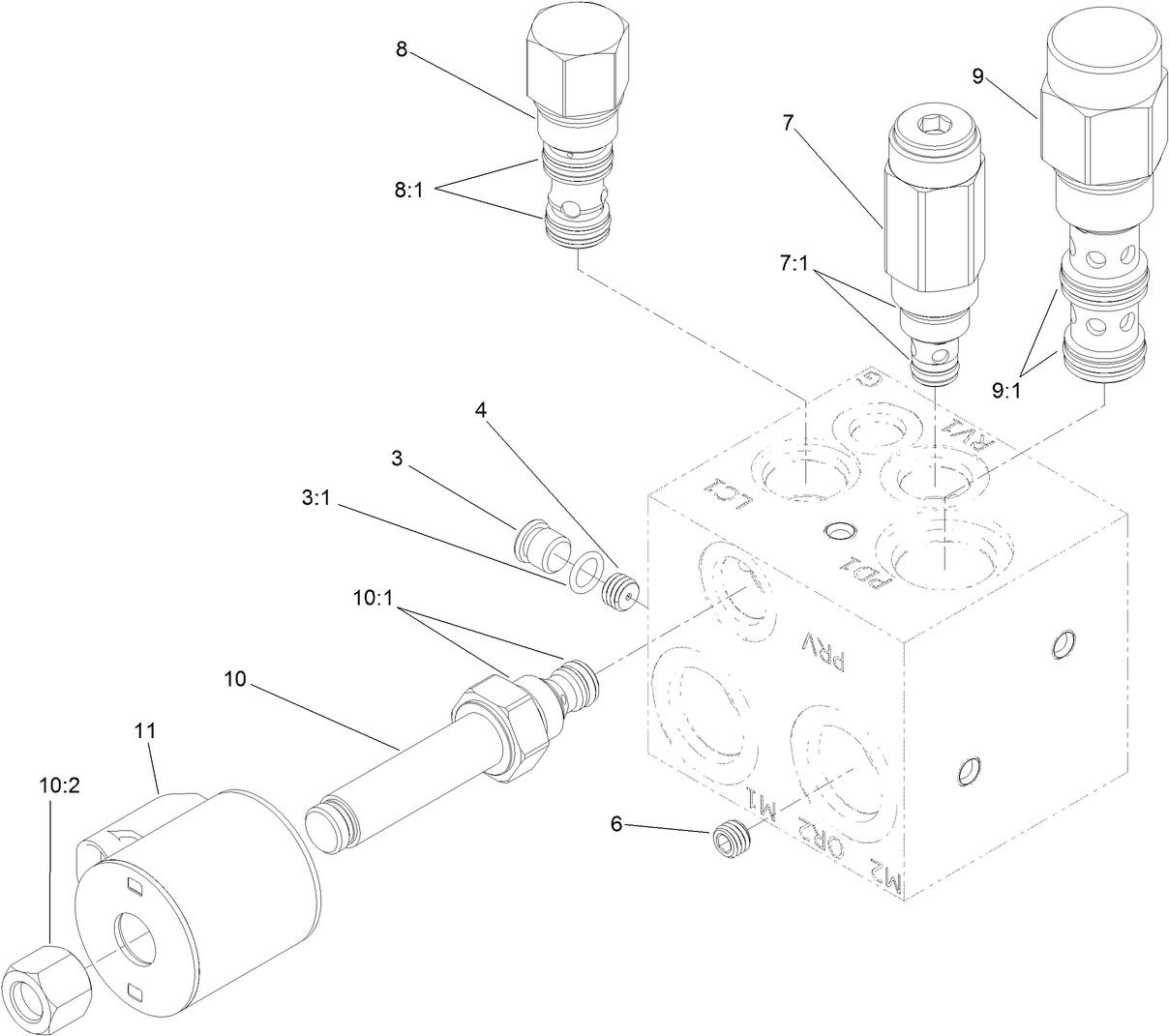

Left Power-Take-Off Manifold Assembly No. 121-1536
Left Power-Take-Off Manifold Assembly No. 121-1536

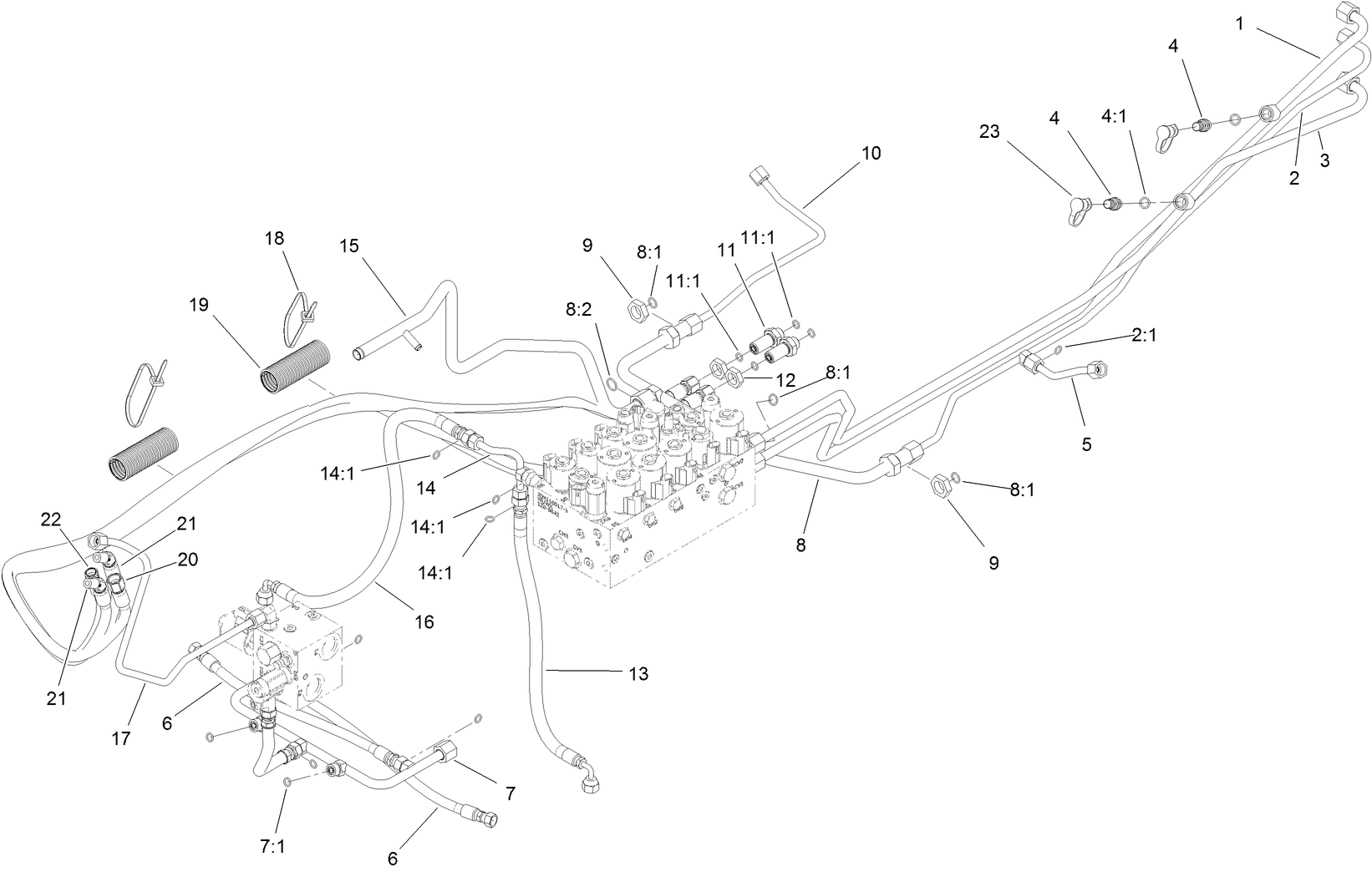

Lift, Steer and Fan Hydraulic Assembly
Lift, Steer and Fan Hydraulic Assembly

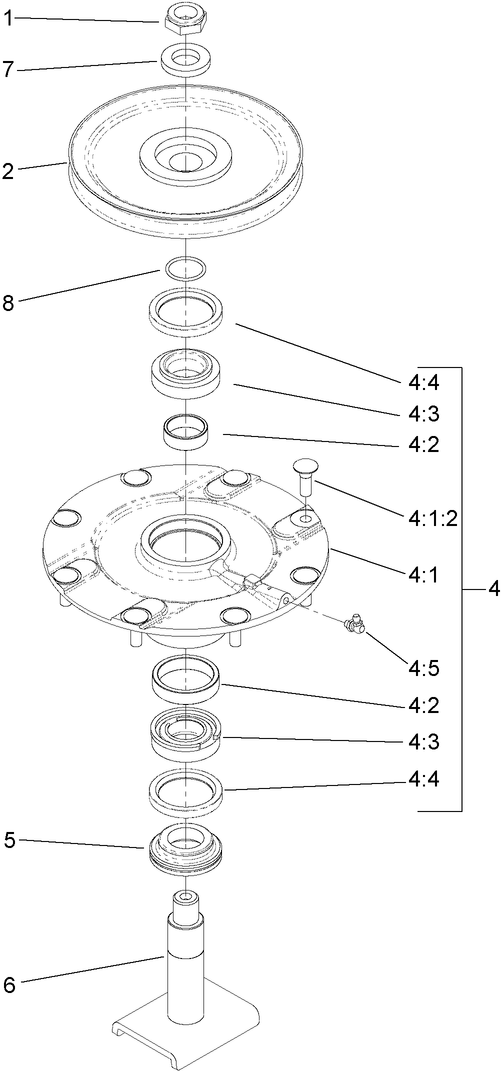

Low Driven Spindle Assembly No. 119-4776
Low Driven Spindle Assembly No. 119-4776
Lubrication and Oil System Assembly
Lubrication and Oil System Assembly
Lubrication Oil Line Assembly
Lubrication Oil Line Assembly

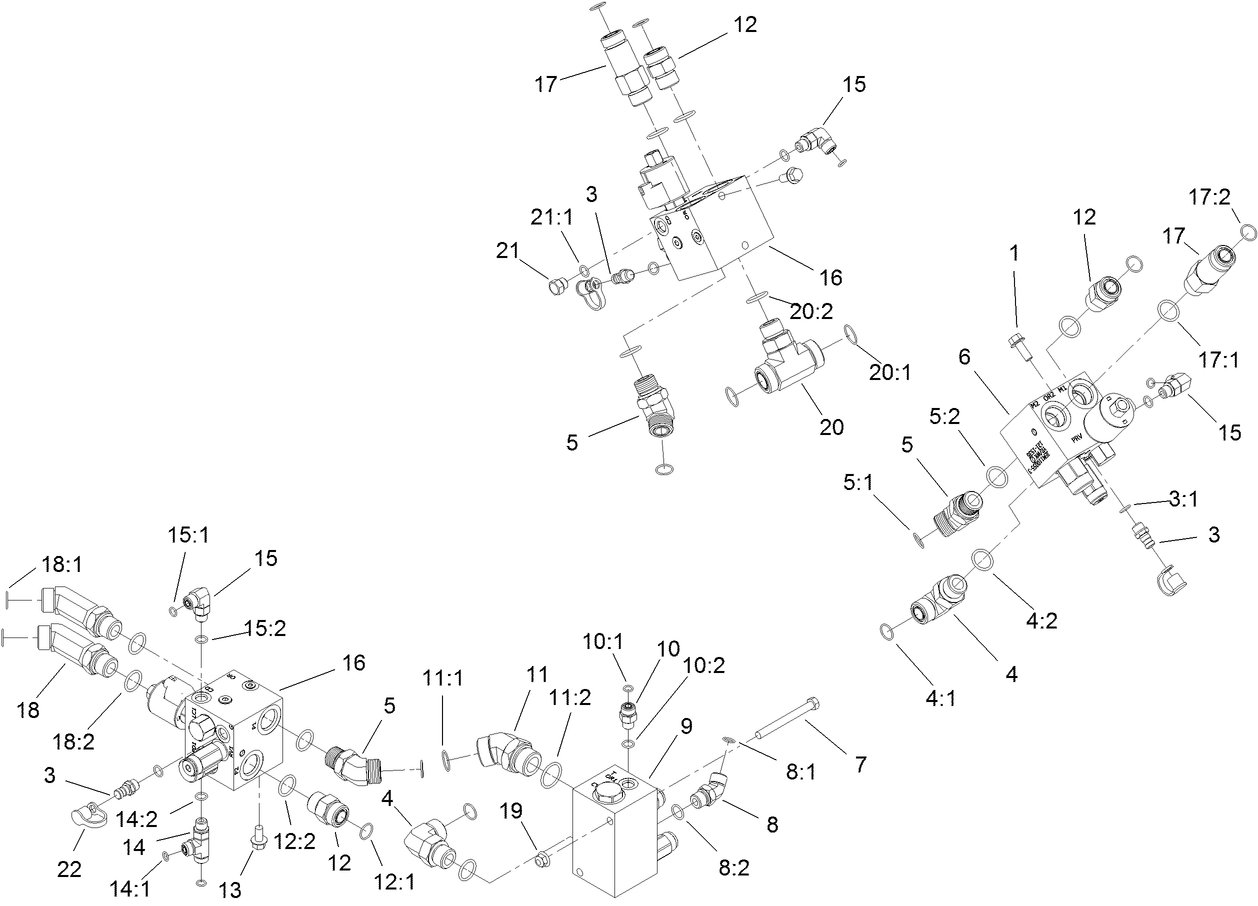

Manifold Block Assembly
Manifold Block Assembly

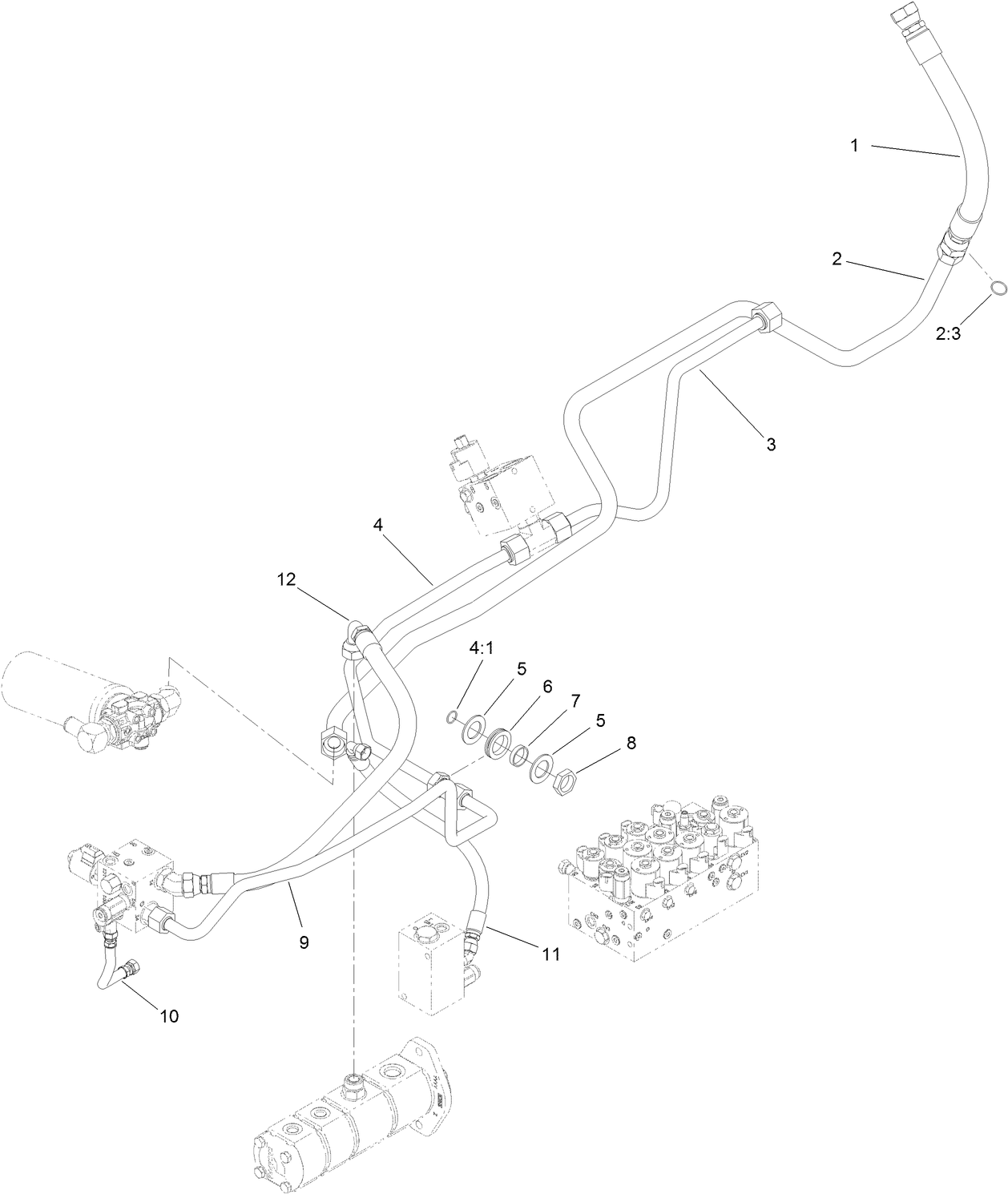

Oil Cooler Hydraulic Assembly
Oil Cooler Hydraulic Assembly
Parking Brake, Steering Tower and Power Center Assembly
Parking Brake, Steering Tower and Power Center Assembly

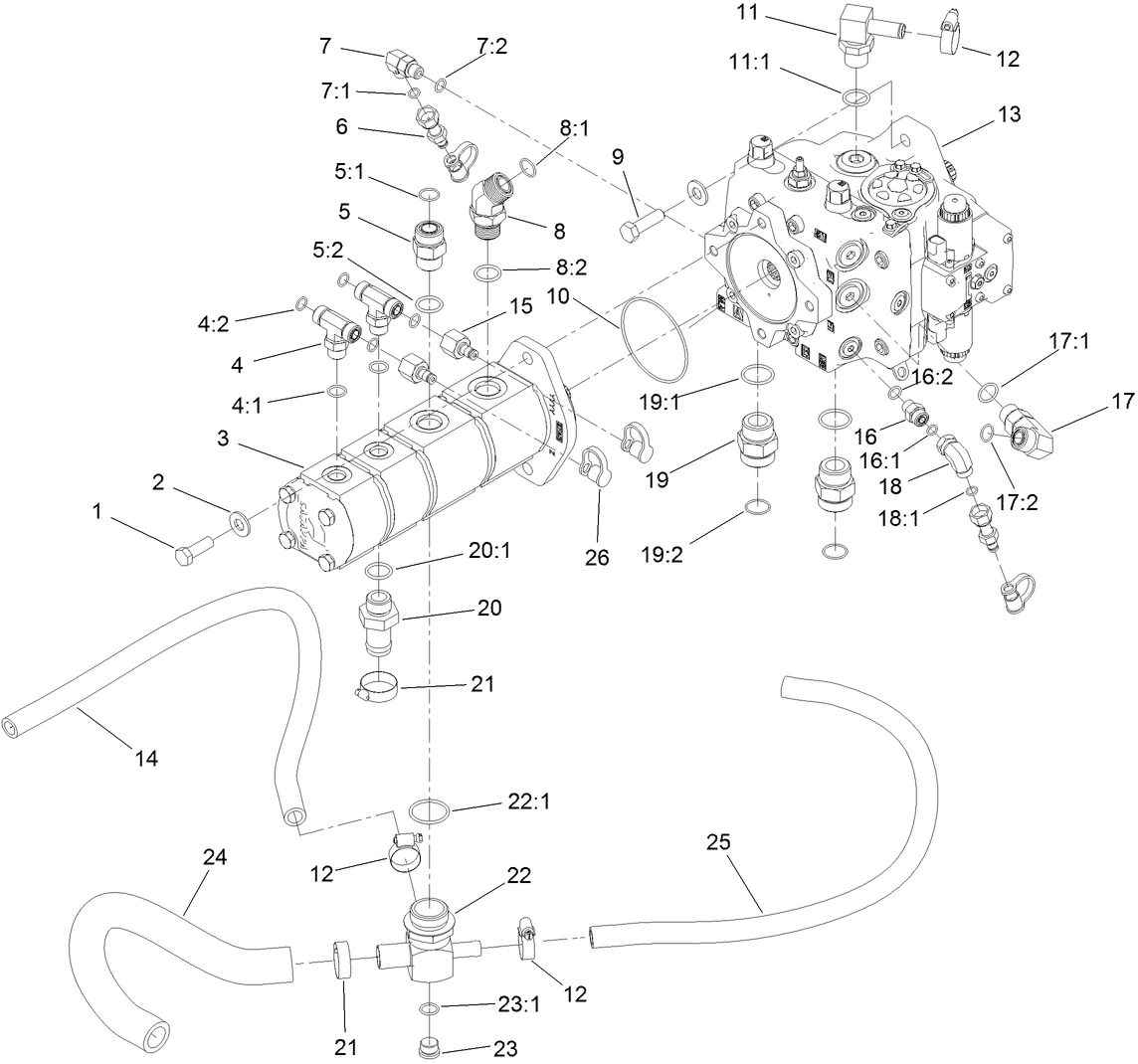

Piston Pump and Gear Pump Assembly
Piston Pump and Gear Pump Assembly
Piston Pump Assembly No. 120-9059
Piston Pump Assembly No. 120-9059
Planetary Assembly No. 105-4500
Planetary Assembly No. 105-4500

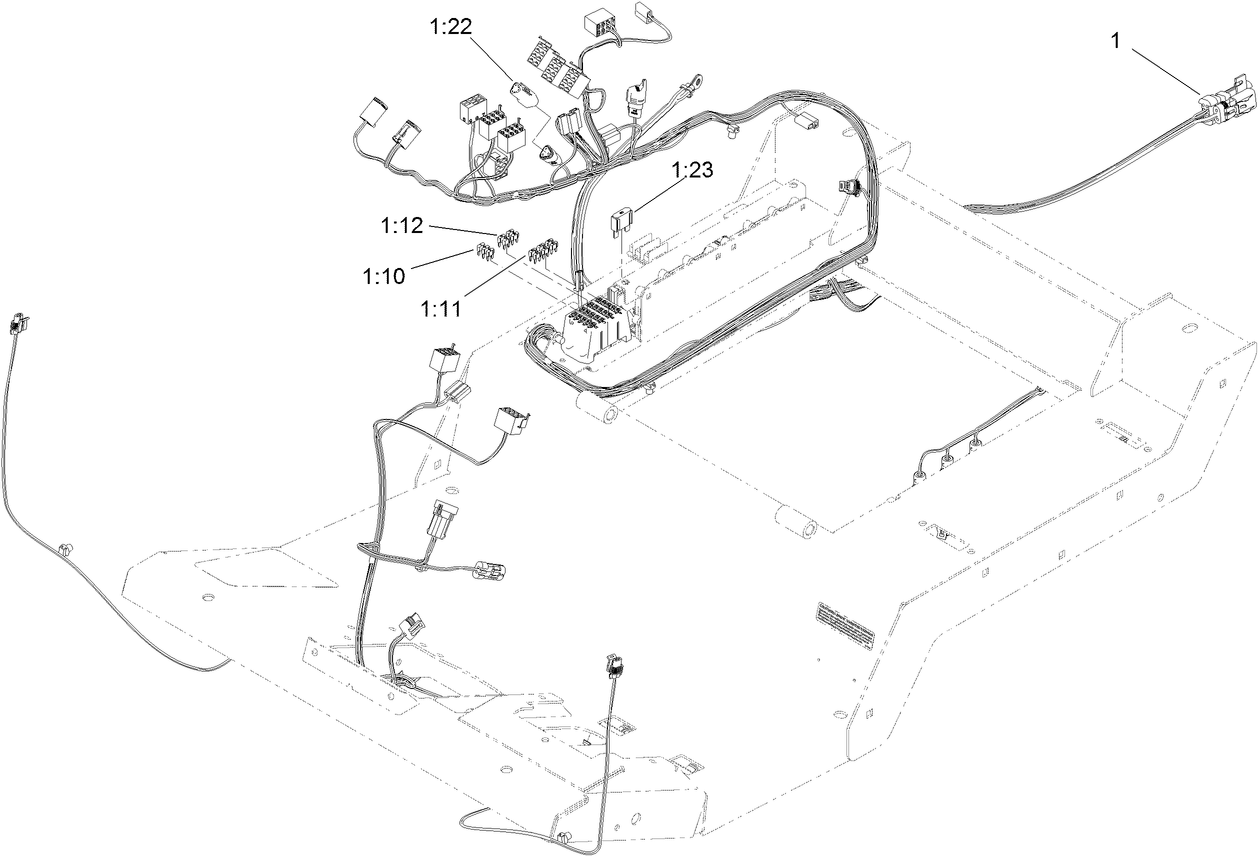

Platform Harness and Fuse Assembly
Platform Harness and Fuse Assembly
Radiator and Fan Assembly
Radiator and Fan Assembly

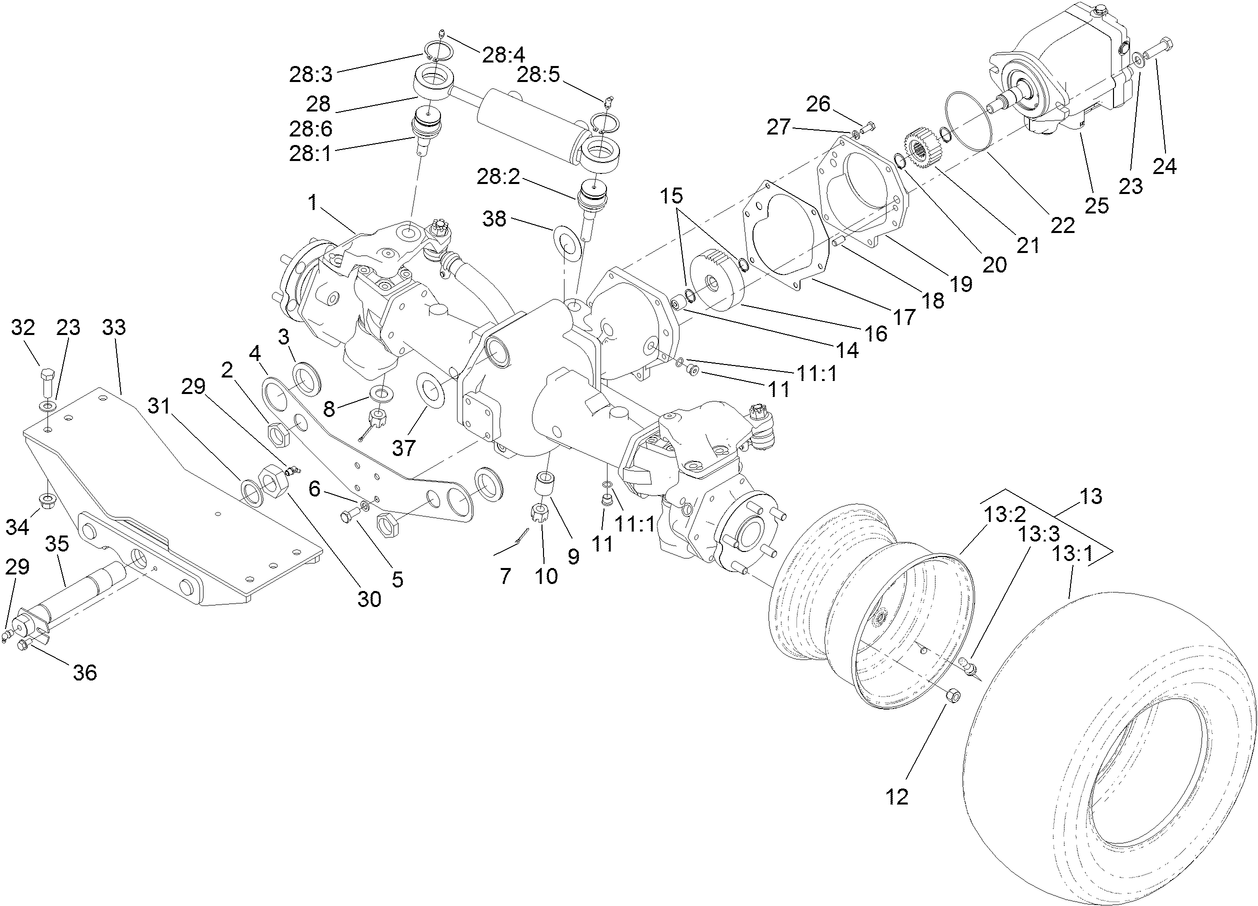

Rear Axle and Steering Cylinder Assembly
Rear Axle and Steering Cylinder Assembly

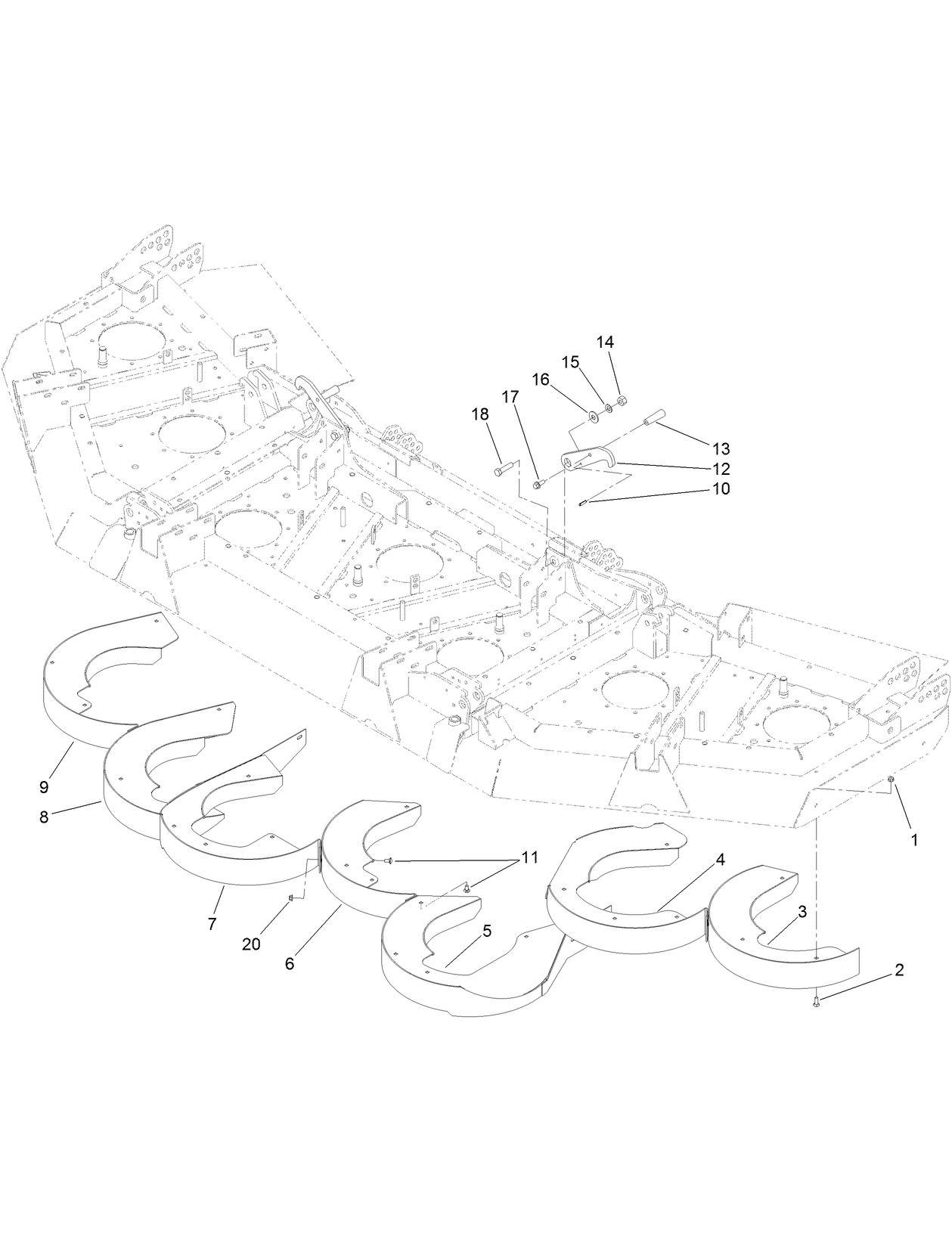

Rear Discharge Baffle Assembly
Rear Discharge Baffle Assembly
Rear Traction Manifold Assembly No. 121-1530
Rear Traction Manifold Assembly No. 121-1530

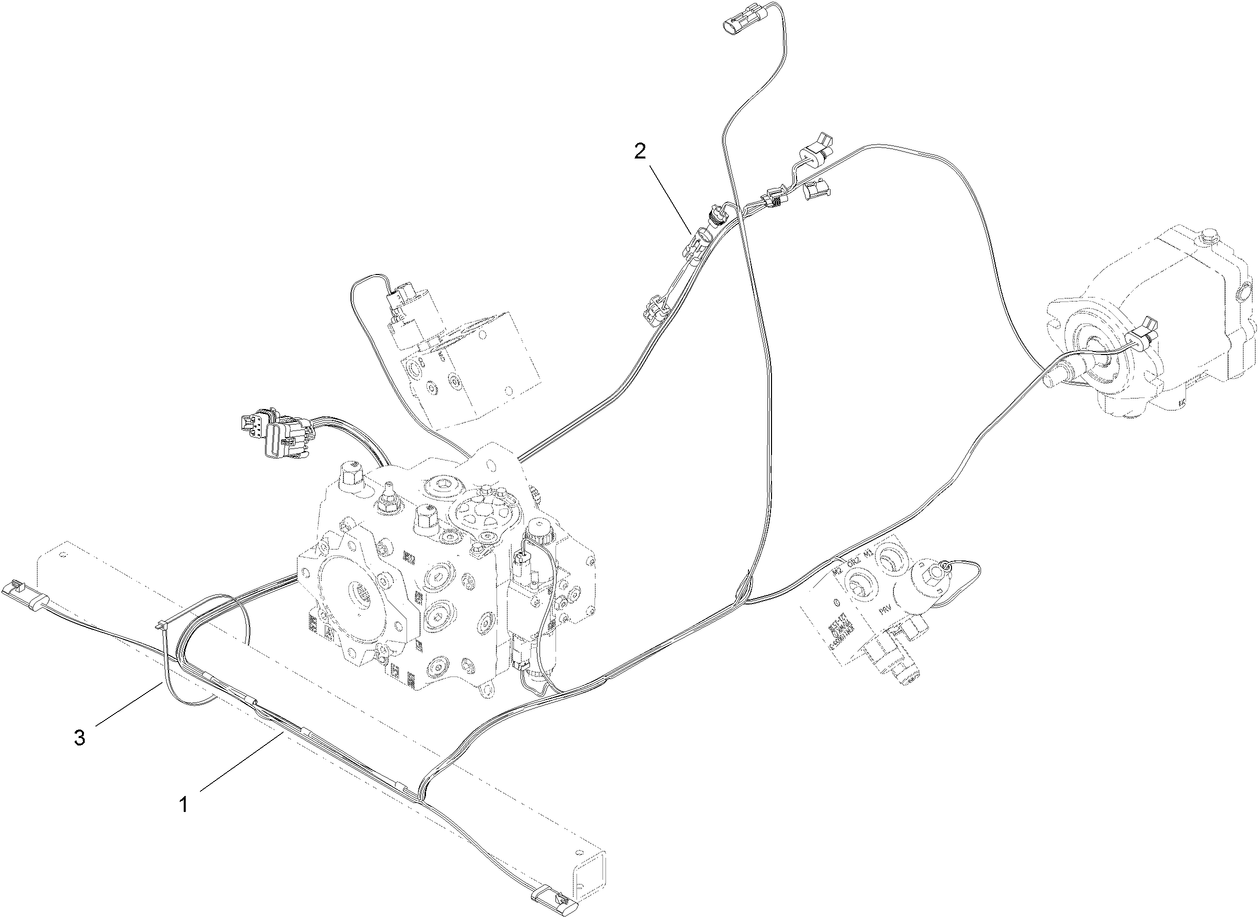

Rear Wire Harness Assembly
Rear Wire Harness Assembly

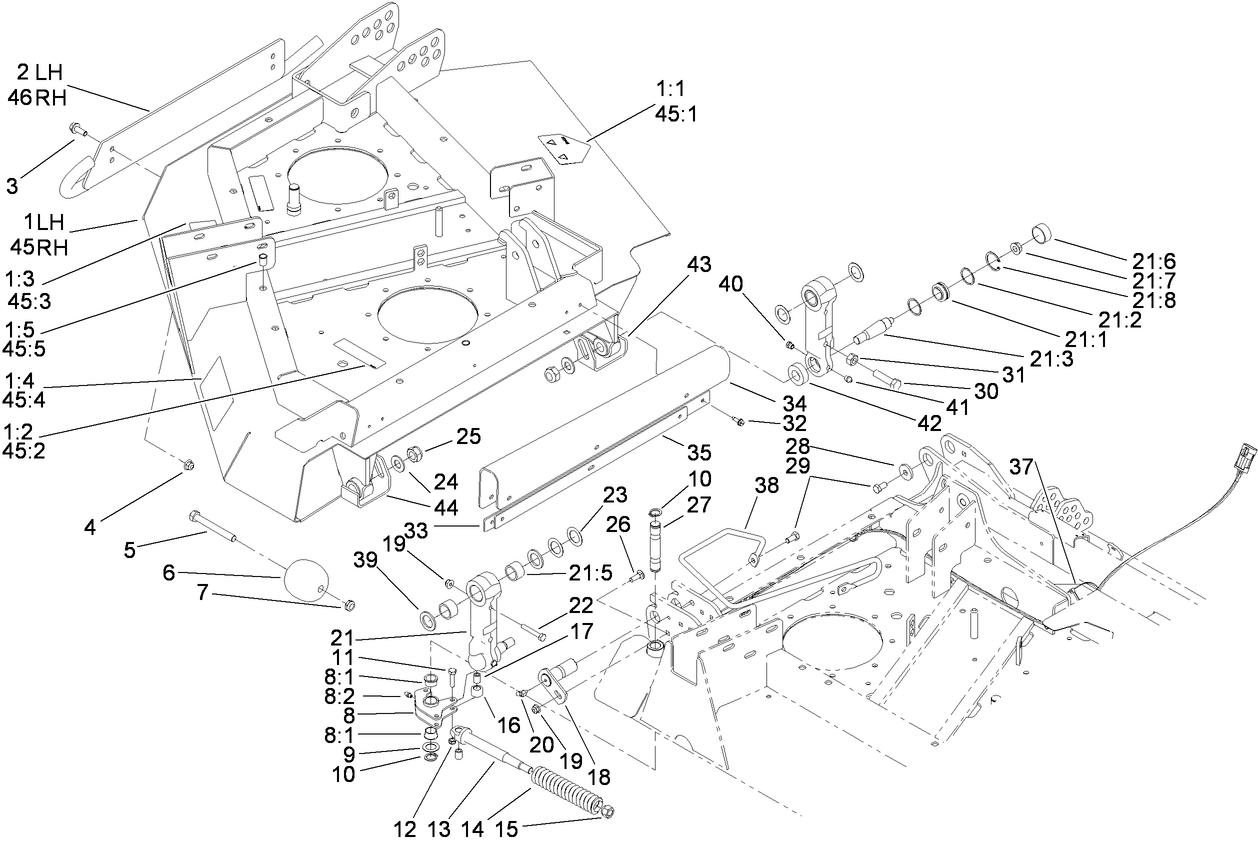

Right Hand and Left Hand Deck Installation Assembly
Right Hand and Left Hand Deck Installation Assembly

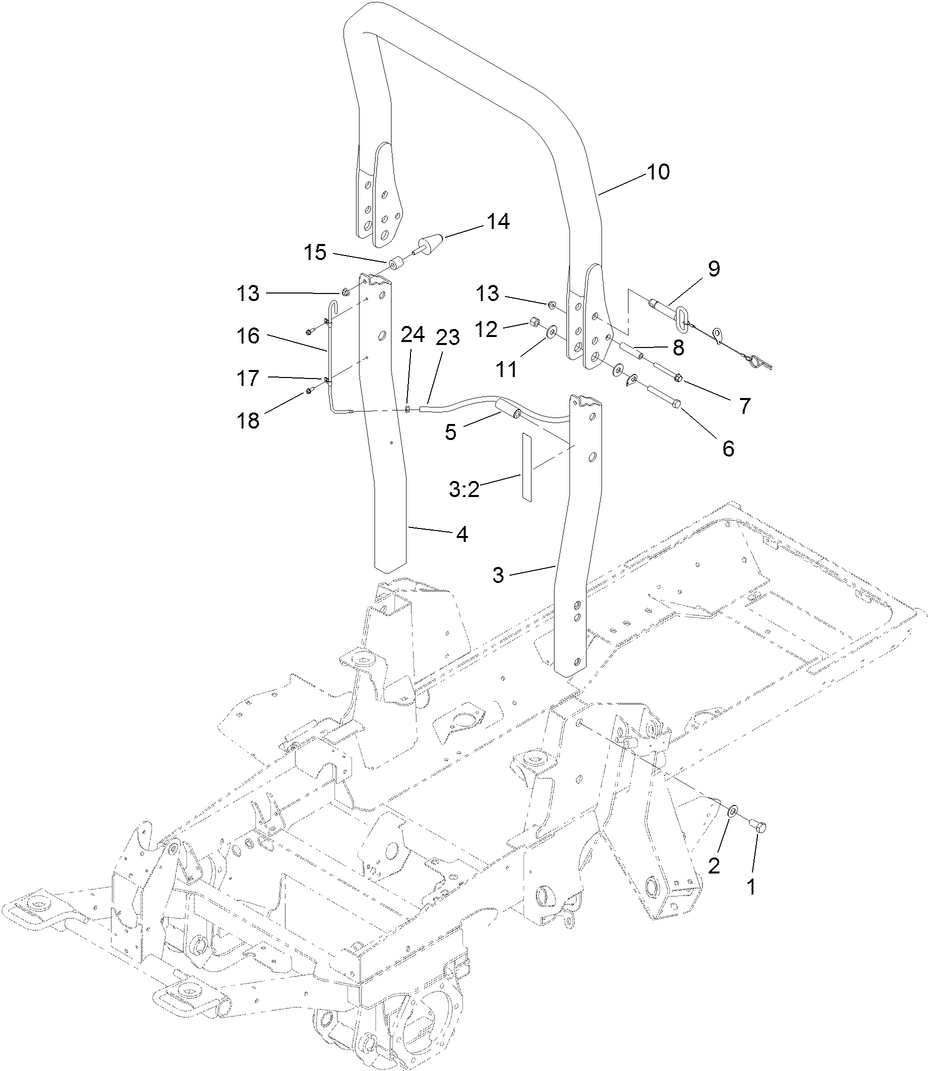

ROPS Assembly
ROPS Assembly

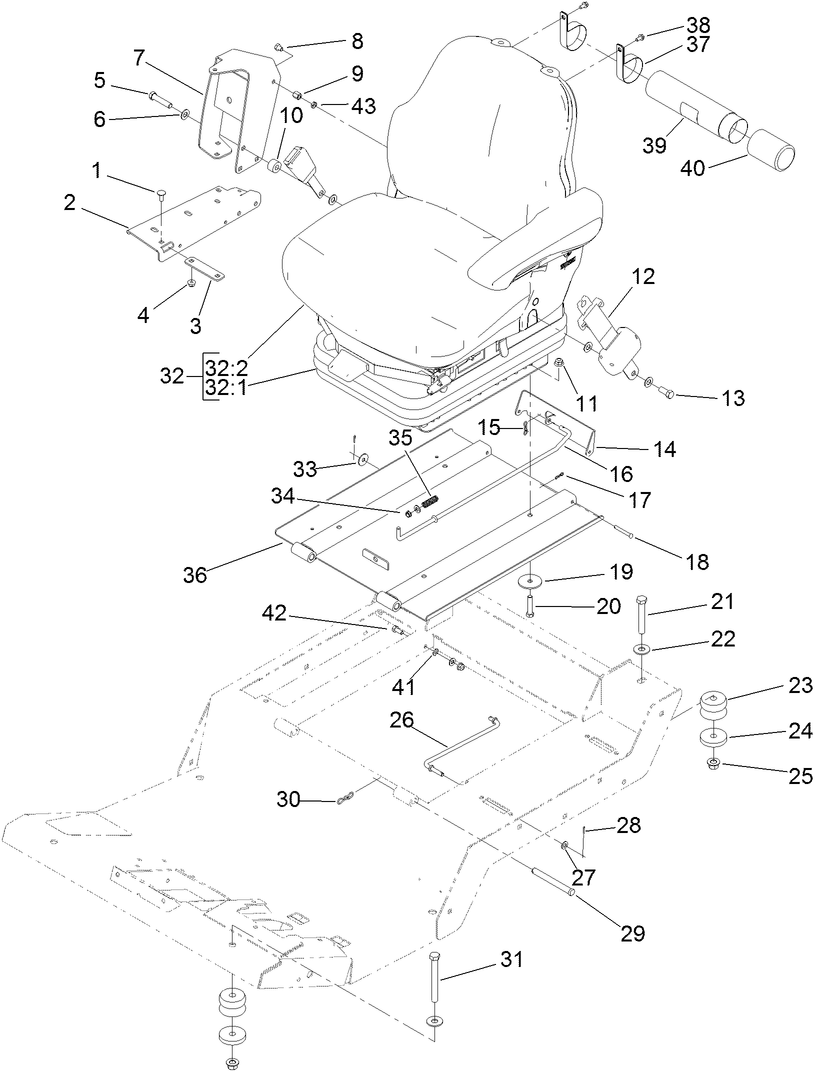

Seat Base and Seat Assembly
Seat Base and Seat Assembly
Seat Suspension Assembly No. 130-2702
Seat Suspension Assembly No. 130-2702

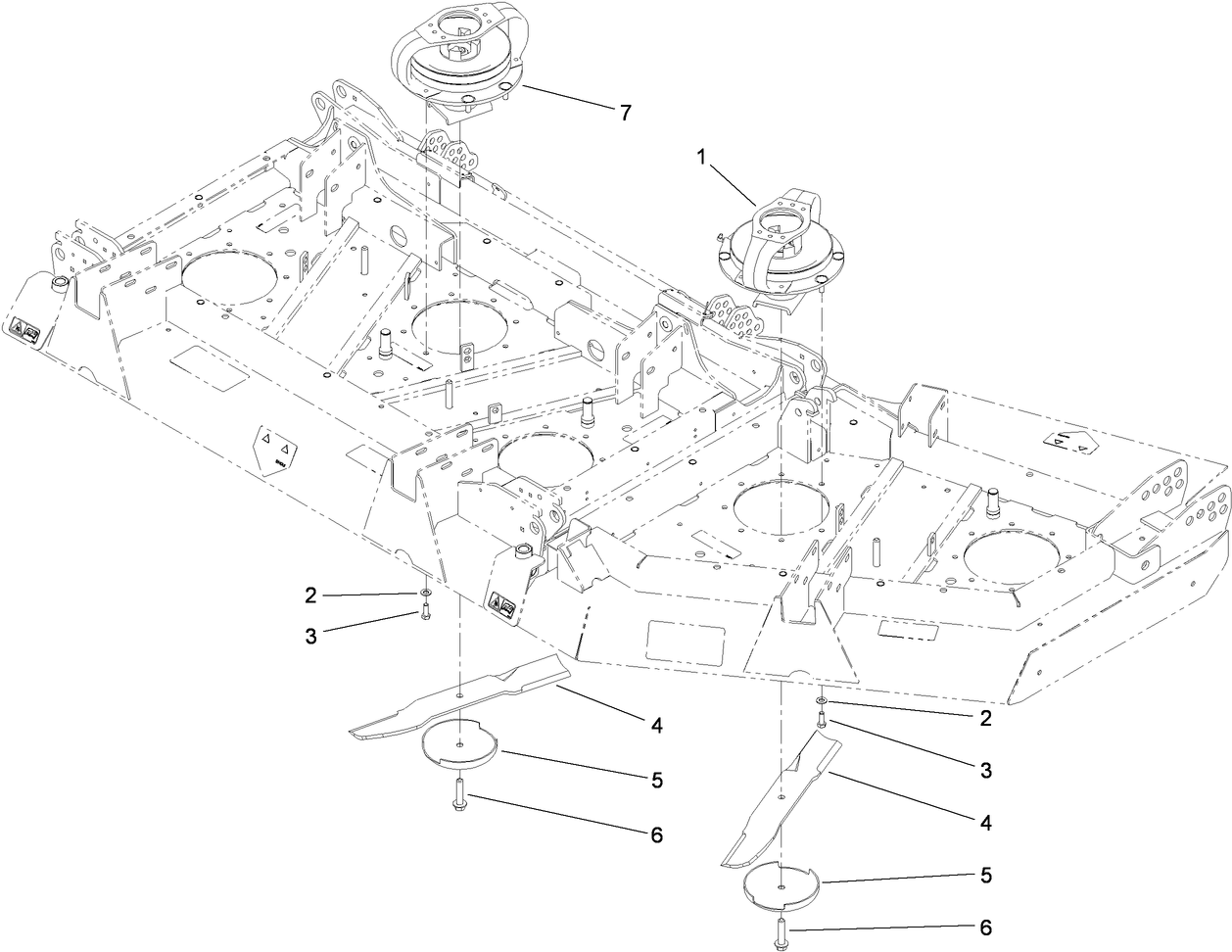

Spindle and Blade Assembly
Spindle and Blade Assembly
Starting Motor Assembly
Starting Motor Assembly
Steering Cylinder Assembly No. 121-1534
Steering Cylinder Assembly No. 121-1534
Steering Valve Assembly No. 130-7949
Steering Valve Assembly No. 130-7949
Suction Manifold Assembly
Suction Manifold Assembly

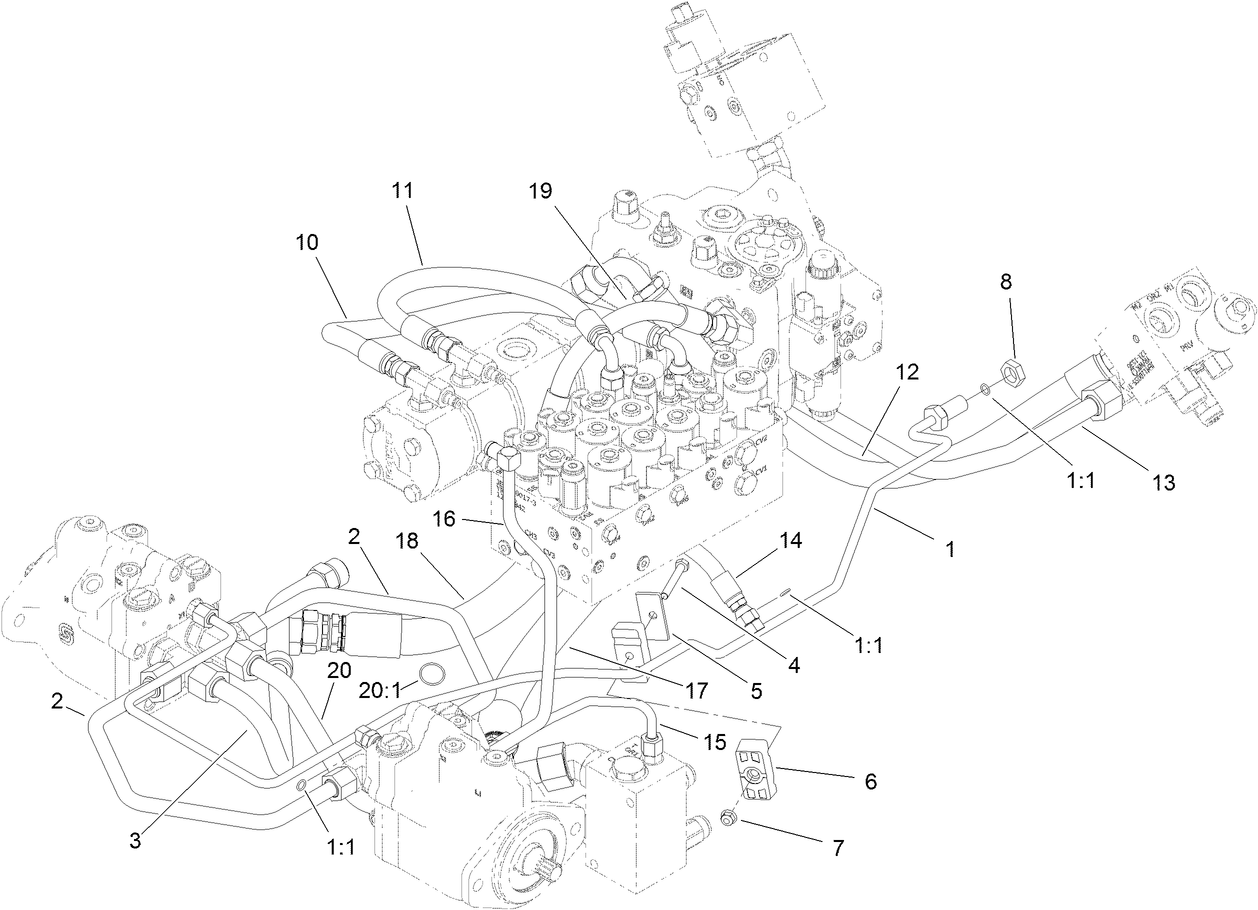

Traction Hydraulic Assembly
Traction Hydraulic Assembly
Traction Pedal and Platform Assembly
Traction Pedal and Platform Assembly
Turbine Assembly
Turbine Assembly
Vinyl Premium Seat Assembly No. 117-5676
Vinyl Premium Seat Assembly No. 117-5676

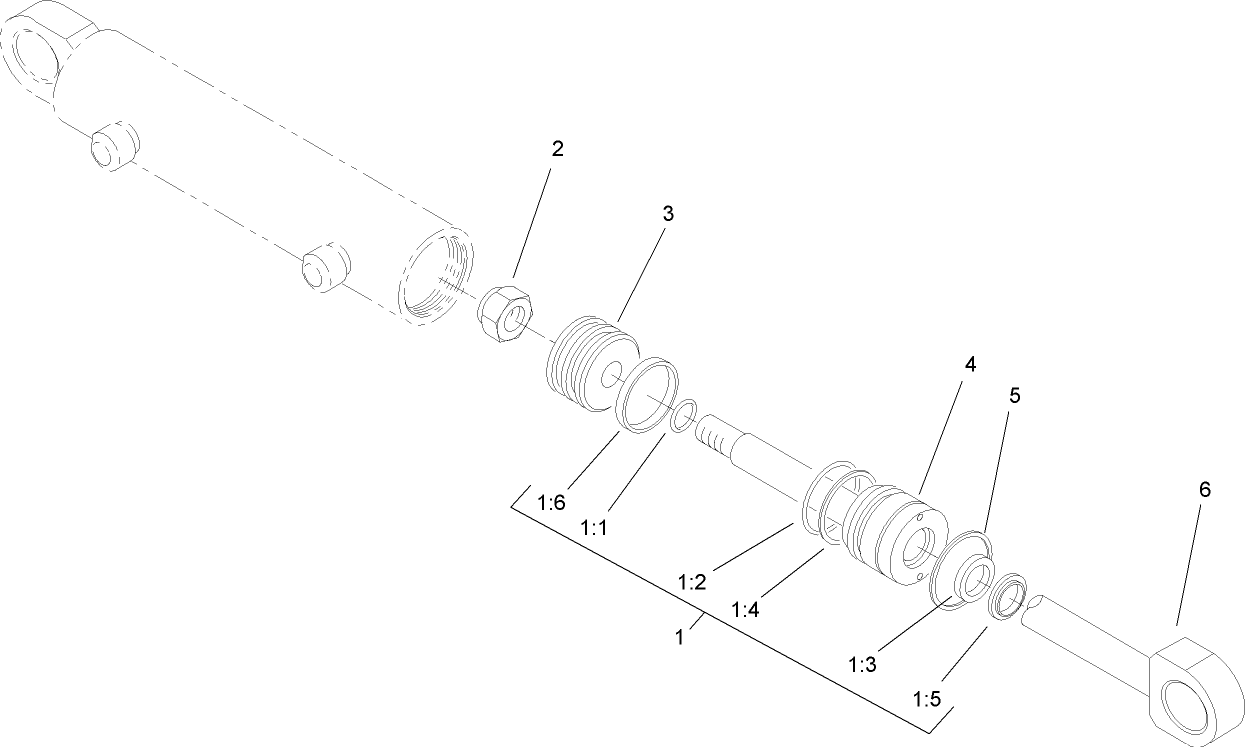

Wing Lift Cylinder Assembly No. 107-0190
Wing Lift Cylinder Assembly No. 107-0190
