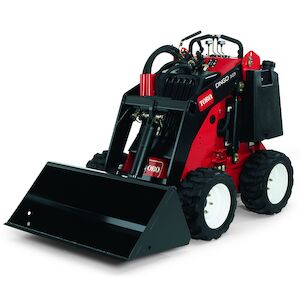

Dingo® 323
Product Information
- Model number: 22318
- Serial number: 250000301 - 250999999
- Product Type: Compact Utility Loaders
Loading...
Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
EU Declaration of Conformity
Tire Chain Kit, Dingo (Part number 100-4140)
HELMET-FACE SHIELD (Part number 100-4143)
Light Kit, Dingo TX and 4-Paw Traction Units (Part number 100-8840)
Light Kit, Dingo Chain-Drive Traction Units (Part number 100-8940)
Narrow Tire Assembly (Part number 104-0572)
Spool Carrier Kit, Dingo (Part number 104-2661)
Four-Spool Hydraulic Valve Kit, Dingo Model 22304 (Part number 104-7422)
Thigh Support Kit, Dingo Gas-Powered Wheel-Drive Traction Units (Part number 105-0330)
Sitework Tire Tube (Part number 105-4070)
Rubber Foot Mat (Part number 105-5805)
SEAL KIT (Part number 105-8396)
Tube-Tire (18 X 8.50-8) (Part number 106396)
SPARE TIRE KIT ASM (Part number 144-0105)
CE CONVERSION KIT-WHEELED DINGO-PETROL (Part number 22366)
6" Auger, Dingo (Part number 22402)
9" Auger, Dingo (Part number 22403)
15" Auger, Dingo (Part number 22405)
18" Auger, Dingo (Part number 22406)
24" Auger, Dingo (Part number 22407)
30" Auger, Dingo (Part number 22408)
Standard Bucket (Part number 22409)
Use this standard bucket for moving rock, dirt, sand or other materials off and around the job site. The hardened steel cutting edge offers improved cutting and digging capability for better performance to handle tough digging conditions and affords superior wear. Capacity = 1 m³ (4 cubic feet)
Light Materials Bucket (Part number 22410)
Designed for moving light materials like chip-bark, mulch, snow and loam. The larger capacity bucket, 0.2 m³, is great for handling larger loads of lighter materials. The hardened steel cutting edge allows for improved cutting and digging capability for better performance to handle tough digging conditions and affords superior wear.
Utility Blade (Part number 22414)
The Toro Dingo hydraulic blade greatly increases the versatility of your Dingo system. This incredibly versatile attachment can be used for a variety of earth or snow moving jobs. Fill trenches where rows of trees have been planted or irrigation pipes have been installed. Keep your hydraulic blade working in the winter by pushing snow from pavements in one pass.
Rotary Broom, Dingo (Part number 22415)
Counterweight, Dingo (Part number 22417)
Adjustable Forks, Dingo (Part number 22418)
Leveler, Dingo (Part number 22419)
Bore Drive Head (Part number 22420)
The Toro® Dingo® boring unit allows you to dig under pavements and driveways to simplify irrigation and cable installations. Shorter rod lengths and the ability to lower the bore head below grade allow you to work in both confined and open areas, increasing your productivity.
Rod and Reamer Kit (Part number 22421)
Easily bore under driveways and pavements to simplify irrigation and cable installations. Use with Bore Drive Head attachment model 22420. Working depth: 48 cm. Bits and reamers up to 8.9 cm (3.5") in diameter.
Multi-Purpose Tool Attachments (Part number 22423)
This versatile attachment is actually 3 tools in 1! Easily converts into a ripper, boom or tow-bar by simply changing a few pins. Use these tools to move, carry, lift, prep, rip, dig up, transport and haul.
Power Box Rake, Dingo Compact Utility Loader (Part number 22425)
Stump Grinder Attachment (Part number 22429)
The Toro® Dingo® Stump Grinder easily attaches to either Dingo or Dingo TX compact utility loaders. Make grinding stumps quicker and more productive with the stump grinder attachment for your Toro Dingo.
Hydraulic Tree Forks (Part number 22438)
The Toro Dingo hydraulic tree forks can help you plant trees and large shrubs quickly and effortlessly, plus move all sorts of materials around your garden center or nursery. The Dingo Compact Utility Loader is especially easy to manoeuvre, helping you transport and position trees or shrubs exactly where you want them.
Cement Mixer Attachment (Part number 22442)
This unique attachment will mix and pour up to 200 pounds (90.7 kg) of dry cement. The specially designed auger flighting inside the cement bowl keeps the cement in the bowl during mixing. This same auger design permits cement to be poured into fence post holes with the posts in place!
The Eliminator Scarifier/Groomer, Dingo (Part number 22443)
Tiller (Part number 22445)
The Toro Dingo tiller attachment greatly increases the productivity and performance of your Dingo system. Break through hard soil conditions up to 15 cm (6") deep. Avoid clogging the tiller by using one easy hand control to reverse the direction of the tiller to clear jams from rocks and debris.
12" Auger Extension, Dingo (Part number 22448)
24" Auger Extension, Dingo (Part number 22449)
Rock Auger, Dingo (Part number 22454)
Snowthrower, Dingo and Dingo TX (Part number 22456)
6" x 3' Trencher Rock Chain, Dingo (Part number 22463)
Trencher Crumber (Part number 22464)
Spring design, trencher accessory to help clean out trenches
6" x 3' Trencher Chain, Dingo (Part number 22467)
Trencher Head, Dingo Compact Utility Loader (Part number 22470)
High-Speed Trencher Head, Dingo Compact Utility Loader (Part number 22471)
Narrow Bucket (Part number 22520)
Handle compact construction and remodelling sites by moving through 91.4cm gates without a problem. This 87.6cm wide bucket allows you to get through narrow spaces, including gates and doorways. Move rock, dirt, sand or other materials off and around the job site. Great for use on any Dingo® model equipped with narrow wheels and tyres.
Over-Tire Rubber Tracks, Dingo (Part number 22662)
Steel Track Kit, Dingo (Part number 22665)
Auger Head, Dingo and Dingo TX (Part number 22802)
Universal Swivel Auger Head, Dingo and Dingo TX (Part number 22803)
Vibratory Plow, Dingo (Part number 22910)
Vibratory Plough (Part number 22911)
The Toro® Dingo® vibratory plow attachment greatly reduces a contractor's time spent on irrigation and cable installations. Exclusively designed and built by Toro specifically for use on the Dingo, the vibratory plow optimizes pipe-pulling performance while minimizing turf damage during an installation. Also, use the chuted blade and spool carrier to install wire or cable.
Soil Cultivator, Dingo Compact Utility Loader (Part number 23101)
Soil Cultivator (Part number 23102)
The soil cultivator is the ultimate attachment for soil preparation! This incredibly versatile attachment can be used to cultivate and level soil as well as blend landscape materials, compost and fertiliser. This attachment will also bury debris such as stones, soil clods and grass. It transforms rough terrain into a perfect planting bed in one pass.
Seeder Box Kit, Dingo Soil Cultivator (Part number 23120)
Concrete Breaker, Dingo Compact Utility Loaders (Part number 23135)
Backhoe Kit, Dingo (Part number 23161)
Backhoe, Dingo Compact Utility Loader (Part number 23163)
Adjustable Forks, Dingo Compact Utility Loader (Part number 23164)
Leveler (Part number 23165)
This versatile and highly productive tool is a must-have attachment for all job sites. Use to grade, finish, and spread landscape materials, backfill trenches, and break up the turf. Also great for carrying and transporting materials around the job site.
TUBE (Part number 232-37)
LH WHEEL AND TIRE ASM (Part number 98-2747)
ASM - WHEEL/TIRE (Part number 98-4709)
Spark Arrestor (Meets USDA Forest Service Standard 5100-1A) (Part number 98-9099)
RH WHEEL AND TIRE ASM (Part number 99-1447)
WHEEL AND TIRE ASM RH (PO (Part number 99-3140)
WHEEL AND TIRE ASM LH (PO (Part number 99-3141)
Hydraulic Relief Valve Kit, Dingo (Part number 99-4360)
-
Model number
22318 -
Serial number
250000301 - 250999999 -
Product Name
Dingo® 323 -
Product Brand
Toro -
Product Type
Compact Utility Loaders -
Product Series
Compact Utility Loaders -
Engine/Motor Manufacturer
KOHLER -
Engine/Motor Size
23 hp -
Engine/Motor Type
4 Cycle -
Engine Starter
Electric -
Transmission Type
Hydrostatic -
Traction Type
4wd
-
Engine: Battery
12V 340CCA -
Engine: Spark Plug Gap
.030"/ .76mm -
Chassis: Tire Pressure
15-20 PSI / 1-1.4kg sq. cm -
Drive System: Ground Speed
0-6.0km/hr / 0-3.7 mph -
Engine: Spark Plug
Champion Premium Gold 2071 -
Engine: Engine Oil Type
2.1 qts. -
Engine: Engine Speed
3600±75 RPM
