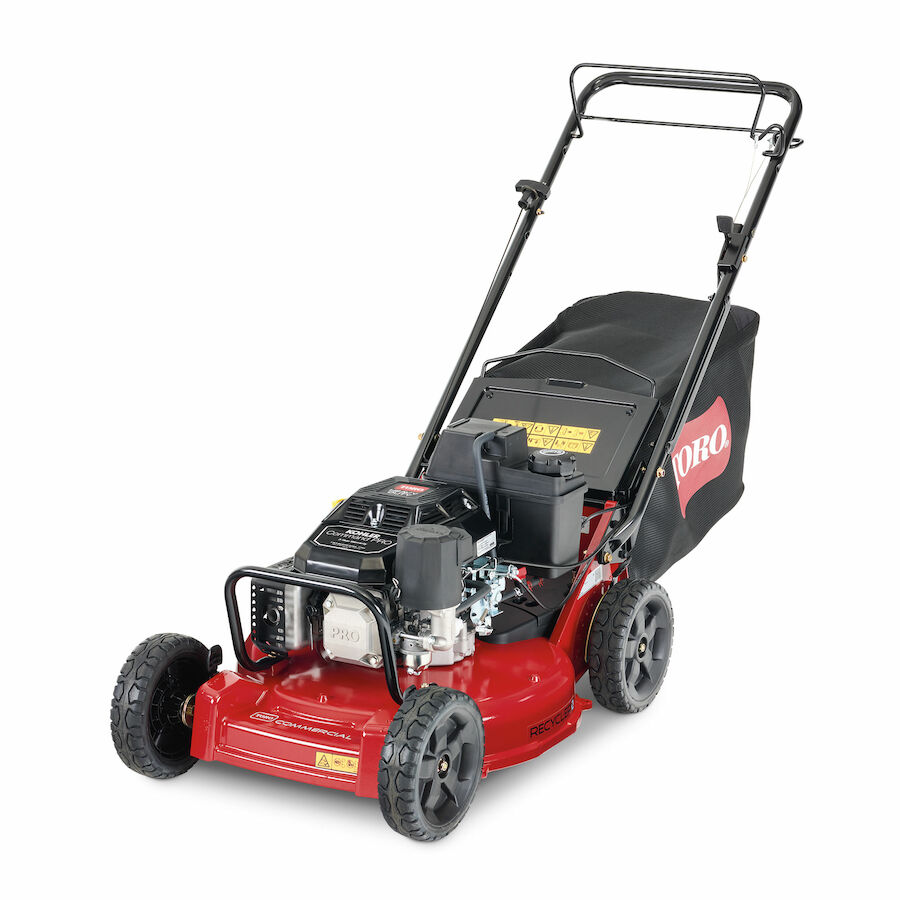

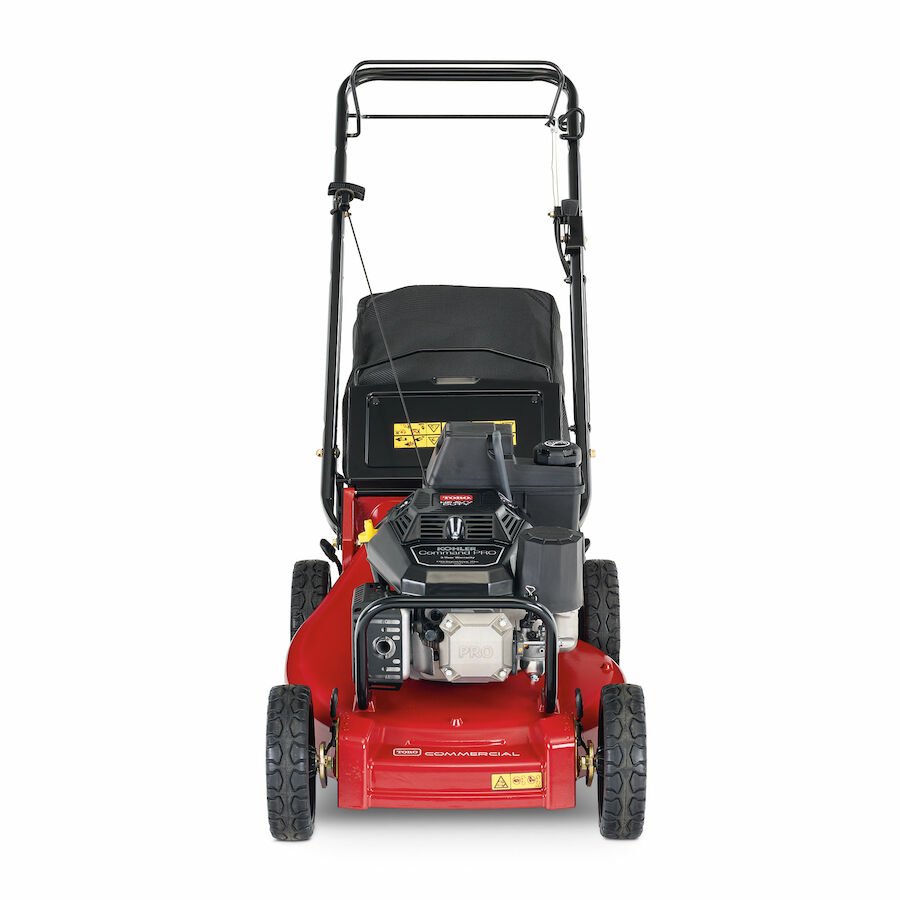

21 in. (53 cm) Heavy Duty Variable Speed Zone Start Kohler® 2-Bail

Cash Price: $1,599.00
  • Model: 22287
  • UPC/EAN: 21038222875
See All Items in 21 in. Commercial Heavy-Duty Walk Behind Lawn Mowers
Find a Dealer
  • Powered by a Kohler® CV173 engine.
  • Cut in more conditions with heights ranging from 1 in. to 4.5 in.
  • Large 9 in. x 2 in. lightweight co-polymer wheels provide a light footprint that is easy on turf
  • The large 2.1 bushel bag features an easy-empty design, making quick work of clipping disposal.
  • The wide opening and ramped profile of the tunnel maximize bag fill.
  • Recycler® Cutting System - optimized for exceptional mulching and bagging performance
  • Designed for durability, featuring a tubular engine guard, replaceable steel deck wear plates and steel cable routing guards
  • Horizon360®Business Management Software. Work More Efficiently. Run More Profitably.

Overview

This Toro 21 in. (53 cm) self propel, heavy duty walk behind mower features a premium commercial-grade Kohler® CV173 engine with zone start and a sealed, maintenance-free transmission. The 2-bail control system makes it easy to vary the speed where you need it.

For the best productivity, it has a Recycler cutting deck and the large, easy-empty bagging system.
The deck is made of corrosion-resistant aluminum alloy and cables are also protected with steel cable guards mounted to the handle bar. It's everything you want in a heavy-duty walk behind.

Features

Commercial-Grade Kohler Engine
Commercial-Grade Kohler Engine
Powered by a commercial-grade Kohler CV173 engine and 1 gallon fuel tank.
4-Point Height-of-Cut
4-Point Height of Cut
The robust design provides maximum life and durability. Front spring arms are contained within the wheels for ultimate protection. Cut in more conditions with heights ranging from 1in. to 4.5 in.
Commercial Grade Wheel
Commercial-Grade Wheels
Tough co-polymer wheels feature precision ball bearings for long life with less downtime and lower replacement costs. These large 9 in. x 2 in. wheels also provide a light footprint that is easy on the turf.
Easy Empty Bag
Easy Empty Bag
The large 2.1 bushel bag features an easy-empty design, making quick work of clipping disposal.
Rear Bagging System
Rear Bagging System
The wide opening and ramped profile of the tunnel maximize bag fill.
Recycler Cutting System
Recycler® Cutting System
This patented cutting system cuts and recuts grass clippings into fine mulch and directs them deep into the turf to provide a "just bagged" appearance.
Steel Deck Wear Plate
Steel Deck Wear Plate
Extend the life of your mowing deck with replaceable steel wear plates that protect against bottom and side impacts.

(Replacement wear plate part # 125-1047-03)

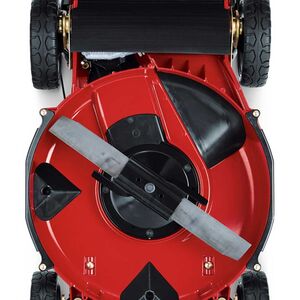

Crankshaft Protector
Crankshaft Protector
The crankshaft protector provides support to prevent damage from blade impact.
Horizon360 system used by contractor
Horizon360®Business Management Software.
Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

For more informationclick here.

Specifications

Bagger Capacity 2.1 bushels
Blade Design 0.135 in. / 0.343 cm Thick Steel
Blade Engagement Zone Start
Blade Tip Speed 18,000 ft/min / 5,486 m/min
Box Dimension 43.5 in. x 23.5 in. x 20.25 in. / 110.5 cm x 59.7 cm x 51.4 cm
CARB Compliant CARB Compliant
Crankshaft 1" (25 mm) w/Steel Protector
Cutting Width 21 in / 53 cm
Deck Design Recycler Cutting System / Rear Bagging System
Deck Material Die Cast Aluminum Alloy
Drive System Self-Propel
Engine Kohler® CV173
Engine Brand Kohler
Forward Ground/Transport Speed Up to 4.2 mph / 6.7 kph
Fuel Capacity 0.5 gal. / 1.9 L / 2 Qt.
Fuel Type Gasoline
Height of Cut 1.0 - 4.5 in. / 2.5 - 11.4 cm
Lubrication Splash Lubrication
Mulch, Bag, Side Discharge Bag standard, Mulch standard
Number of Blades 1
Product Type Walk Behind Mowers
Self Propel System Variable Speed
Start Type Pull Cord
Steering Controls 2-Bail
Tires 9 in. x 2 in. (22.8 cm x 5.1 cm) Rubber Tires
Transmission Variable Speed Rear Wheel Drive
Weight 124 lbs / 56.2 kg

Disclaimer

*See your Toro dealer for warranty details.

Documents

Title Documents
21 in Commercial Heavy-Duty Mowers Brochure PDF - Sellsheet-en-CA

Parts & Manuals

Select your model year from the options below to view parts & manuals.

22287 Serial #
420000000-999999999
415400000-419999999
414000000-415399999
410000000-413999999
409722975-409999999
407700000-409722974
400000000-407699999



Warranty

1-Year Limited Unit, 3-Year Limited Engine

**See dealer for Warranty details.
