Z149 Z Master, With 52" SFS Side Discharge Mower
Product Information
- Model number: 74179
- Serial number: 220000001 - 220000388
- Product Type: Riding Products
Loading...
Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Parts Catalogue

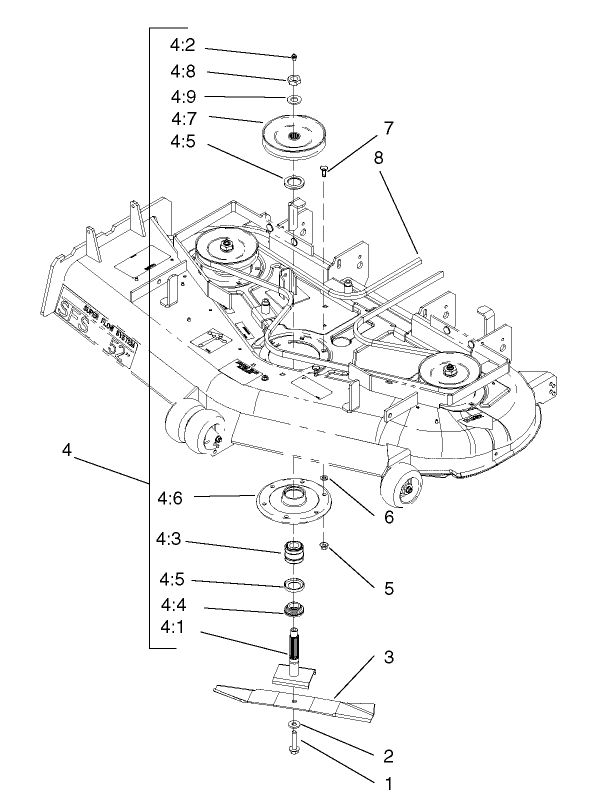

52" Splined Shaft for Dec Center Spindle (Part number 100-3972)
Toro Z-stand 100 series kit (Part number 105-1621)
Suspension Kit for Standard Seat (Part number 107-1892)
DFS Handle Kit (Part number 107-3089)
3bu. Soft Bagger, 36" and Larger Mower Decks (Part number 30104)
Steel Grass Catcher (Part number 30107)
Striping Kit - 44"/52" Mower (Part number 30121)
Blade-18in (Part number 56-2390-03)
Z100 Series 44"/52" Twin Soft Bagger (Part number 78455)
Bagger (Part number 78490)
Boot and Tube Kit (Part number 78493)
Z100 Series 52" Soft Bag/Blower Housing Kit (Part number 78497)
Twin Bagger (Part number 78507)
52" Deck Finishing Kit (Twin Bagger) (Part number 78509)
52" Recycler Kit (Part number 99-4586)
52" Striping Kit (Part number 99-4590)
52" MULCHING KIT (Part number 99-8530)
Hitch kit (Part number 99-8924)
-
Model number
74179 -
Serial number
220000001 - 220000388 -
Product Name
Z149 Z Master, With 52" SFS Side Discharge Mower -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Zero Radius Turn, 100 Series -
Swath
52 inch -
Discharge
Side -
Engine/Motor Manufacturer
Kawasaki -
Engine/Motor Size
19 hp -
Engine/Motor Type
4 Cycle CARB1, EPA1 -
Engine Starter
Electric -
Transmission Type
Hydrostatic
-
Engine: Engine Speed
3600±100 RPM -
Engine: Spark Plug
NGK BPR5ES -
Engine: Spark Plug Gap
.030"/ .76mm -
Drive System: Gearbox Lubricant
Mobil 1 15w-50 -
Drive System: Ground Speed
Infinite, 0 to 9.4 mph -
Engine: Battery
BCI Group U 1 -
Engine: Ignition Coil Air Gap
015-.020"/ .38-.5mm -
Chassis: Height of Cut Range
1.5" - 5" (38-127mm) -
Chassis: Tire Pressure
13 psi / 90 kPa
