TimeCutter Z5020 Riding Mower
Product Information
- Model number: 74399
- Serial number: 270000001 - 270999999
- Product Type: Riding Products
Loading...

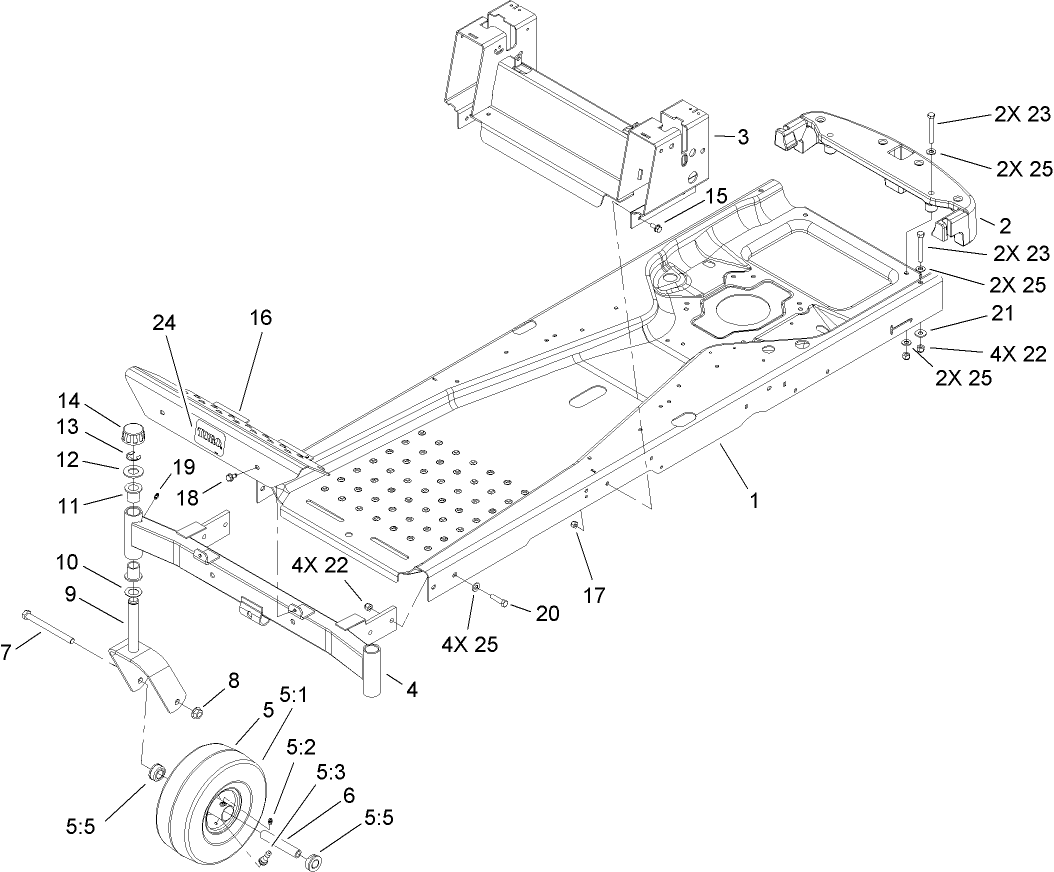

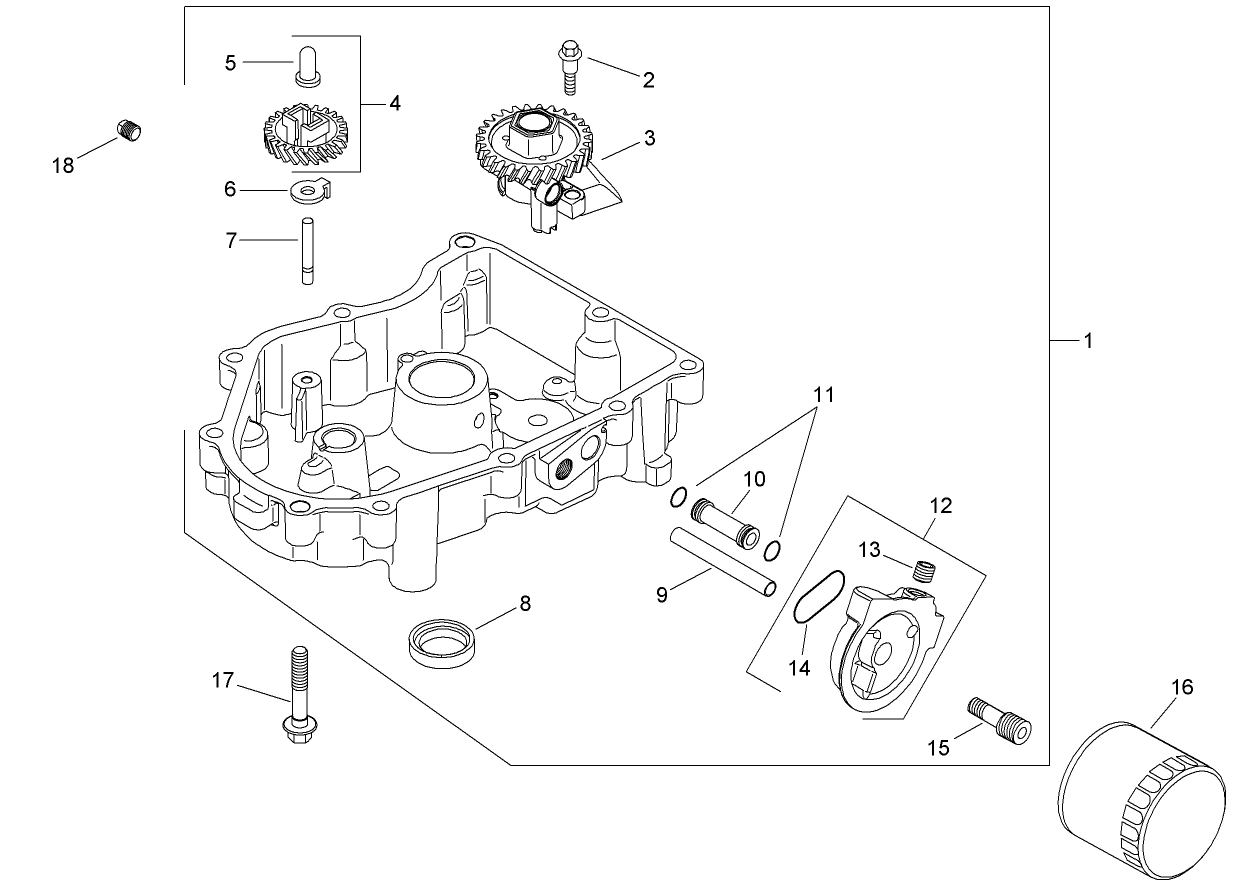

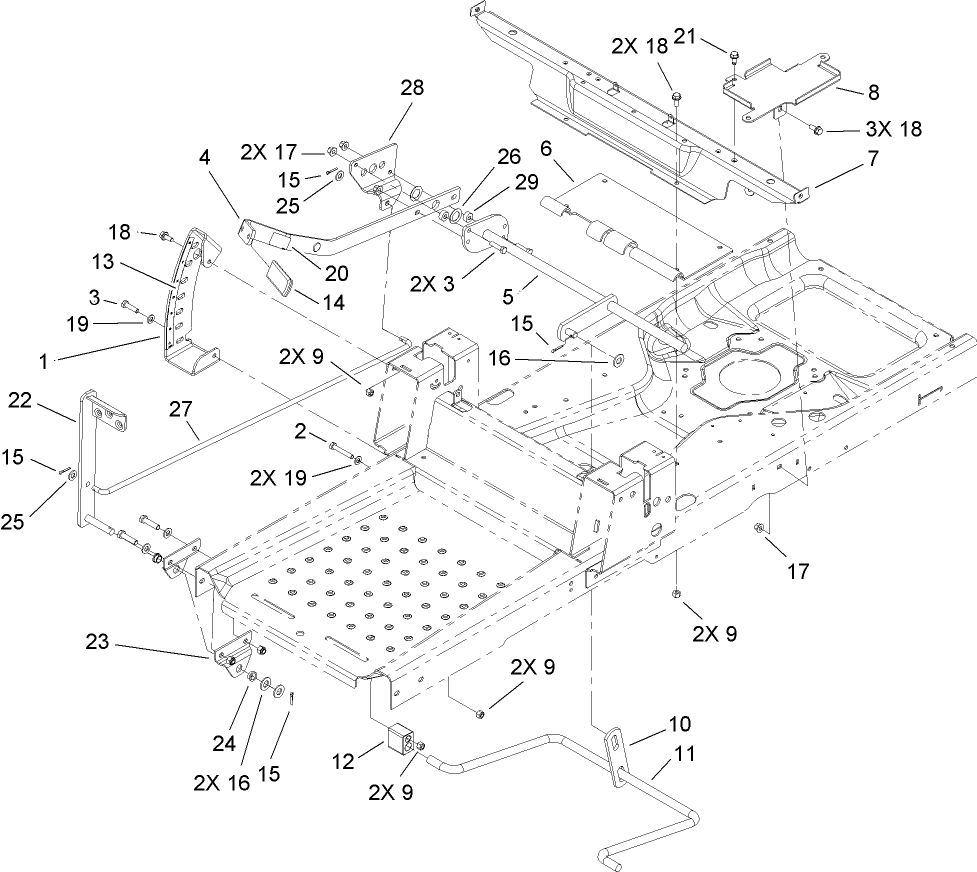

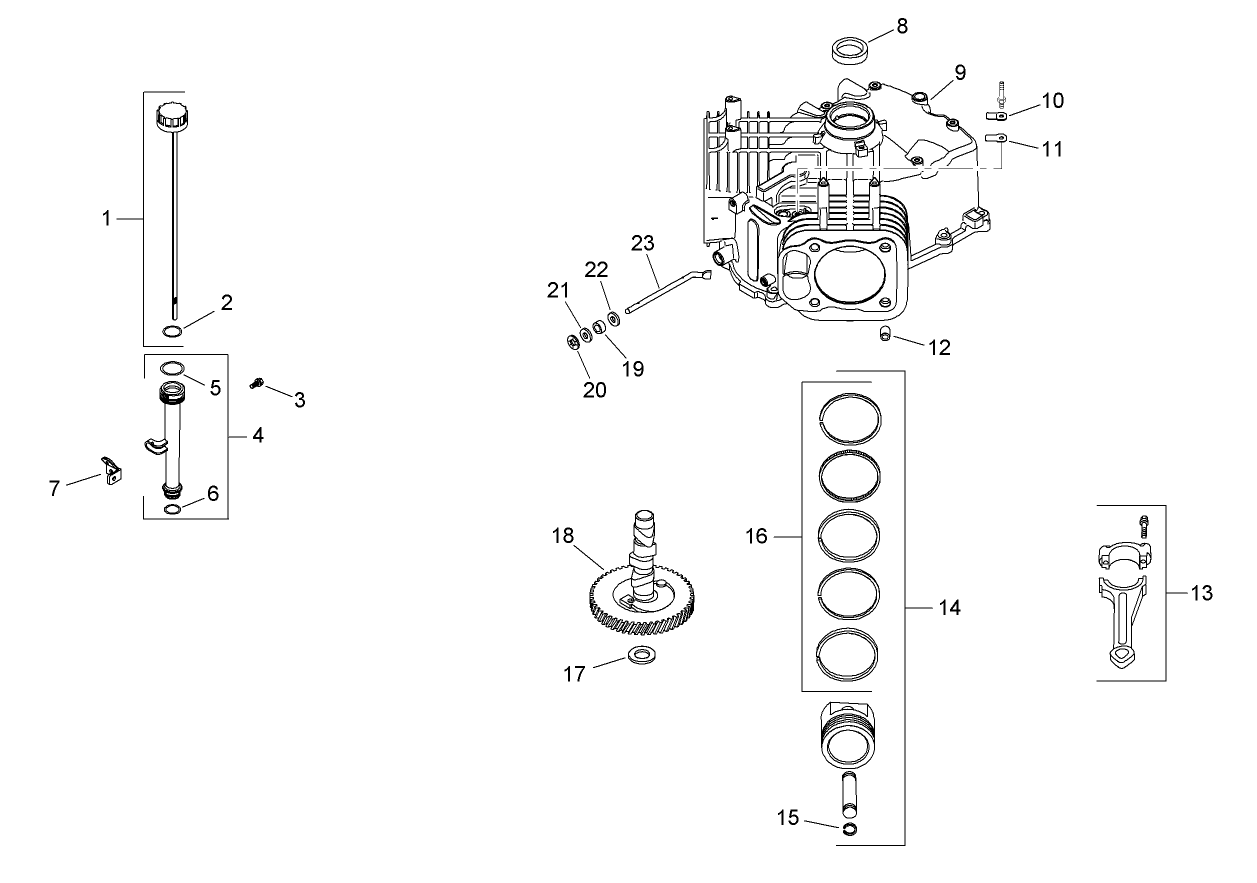

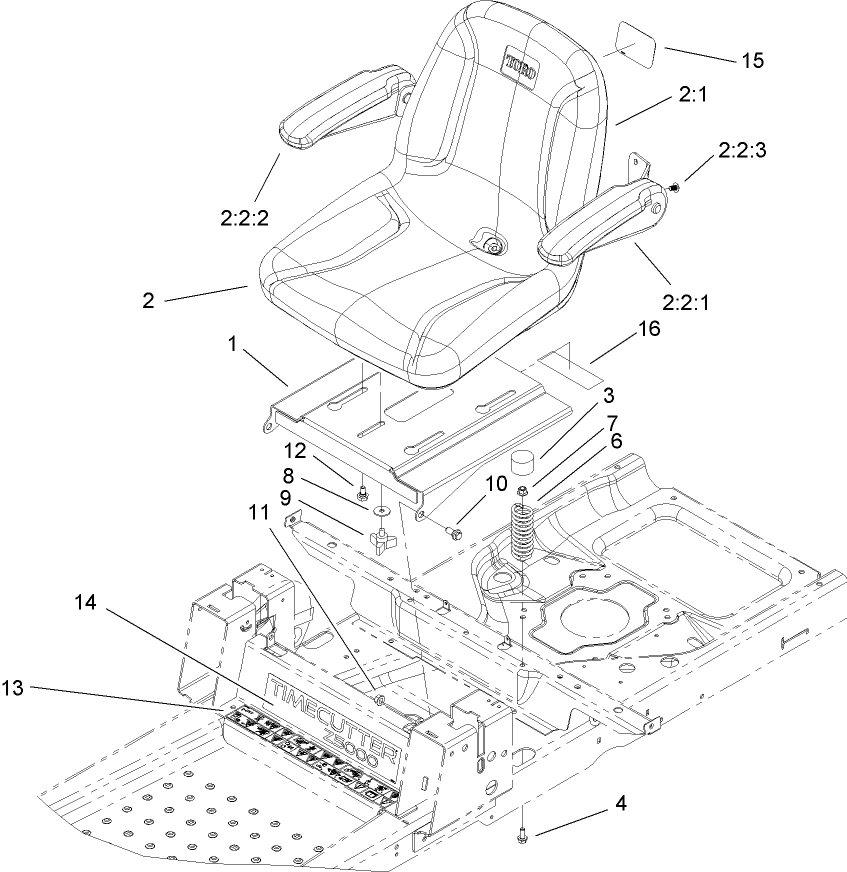

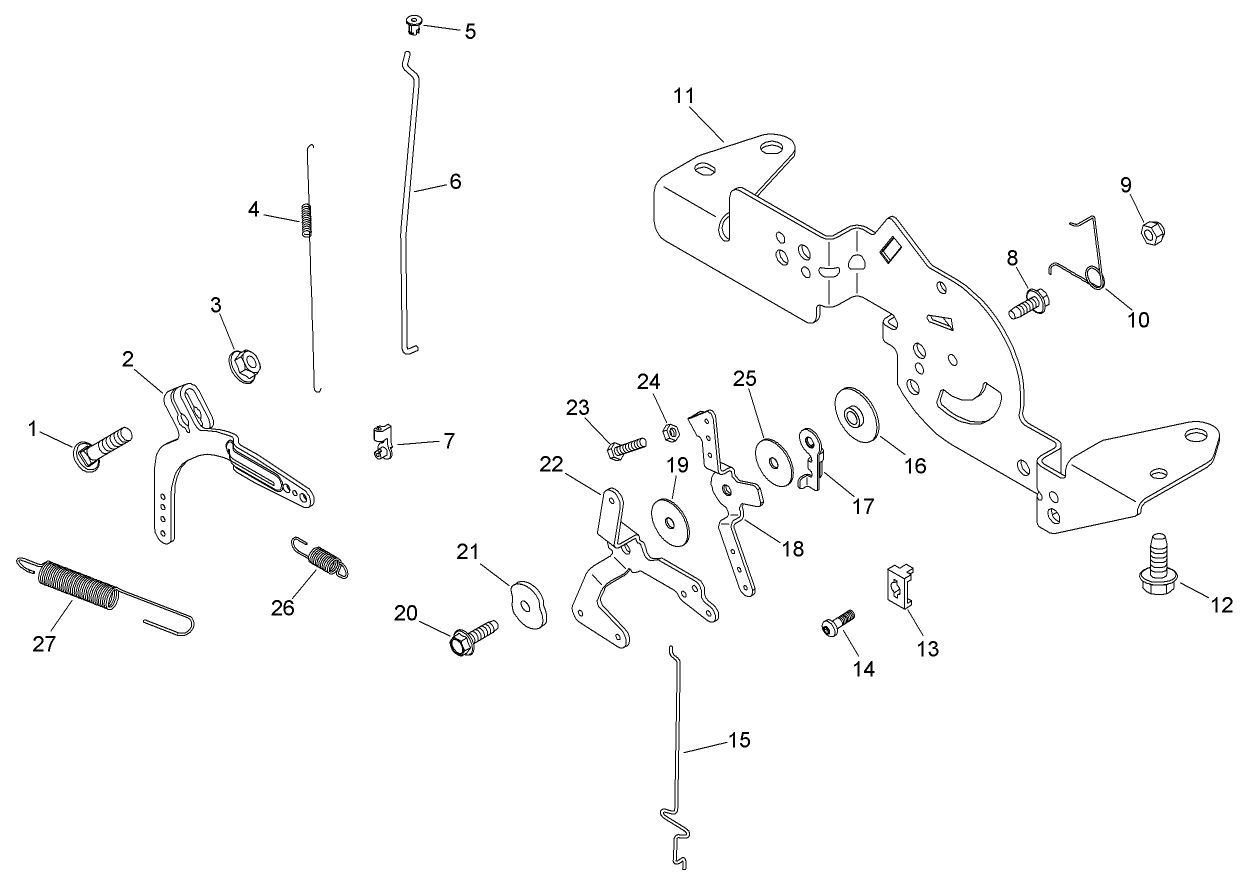

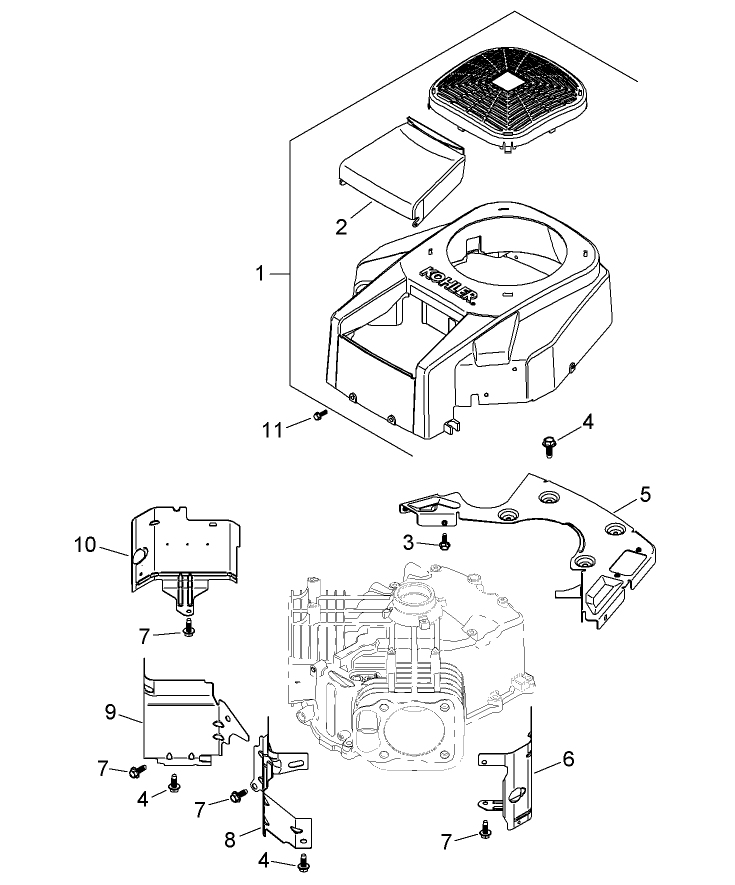

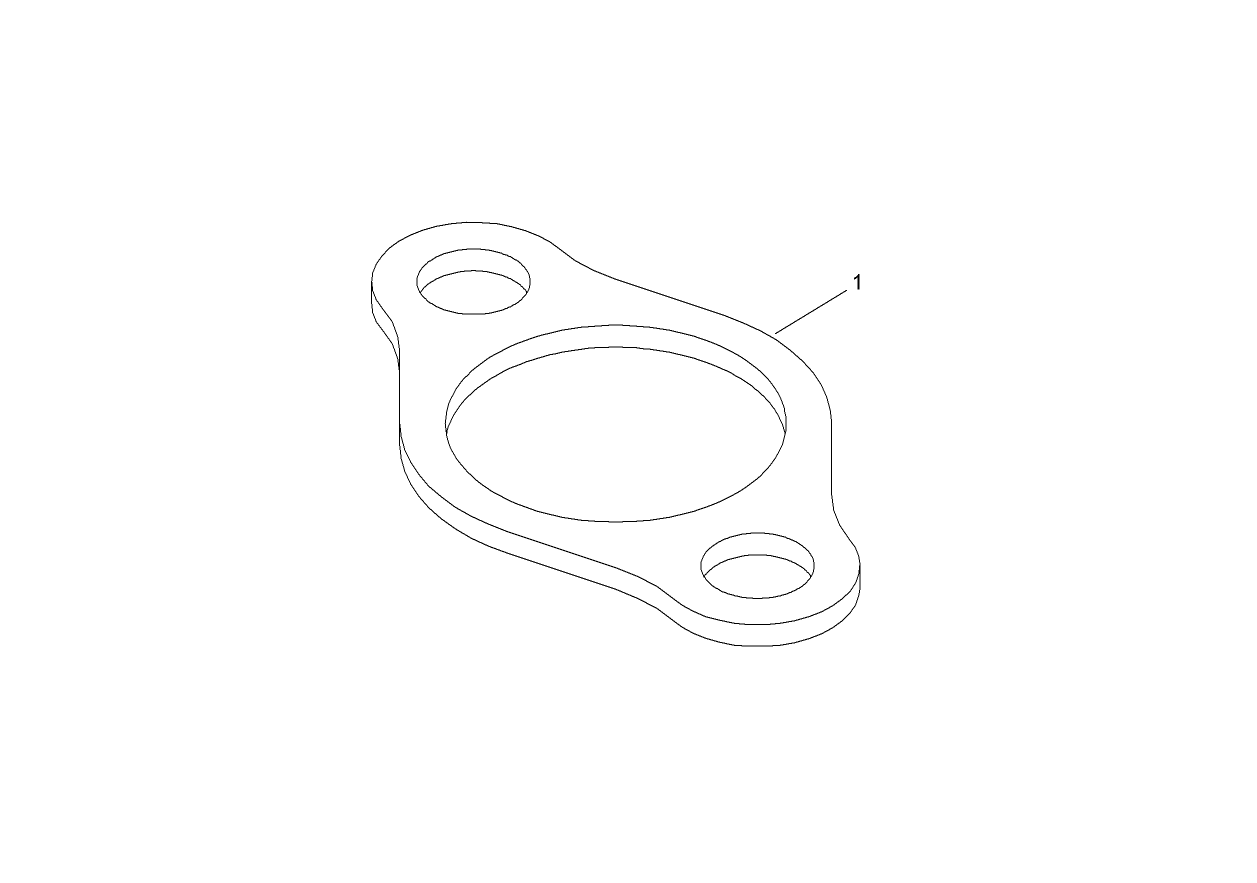

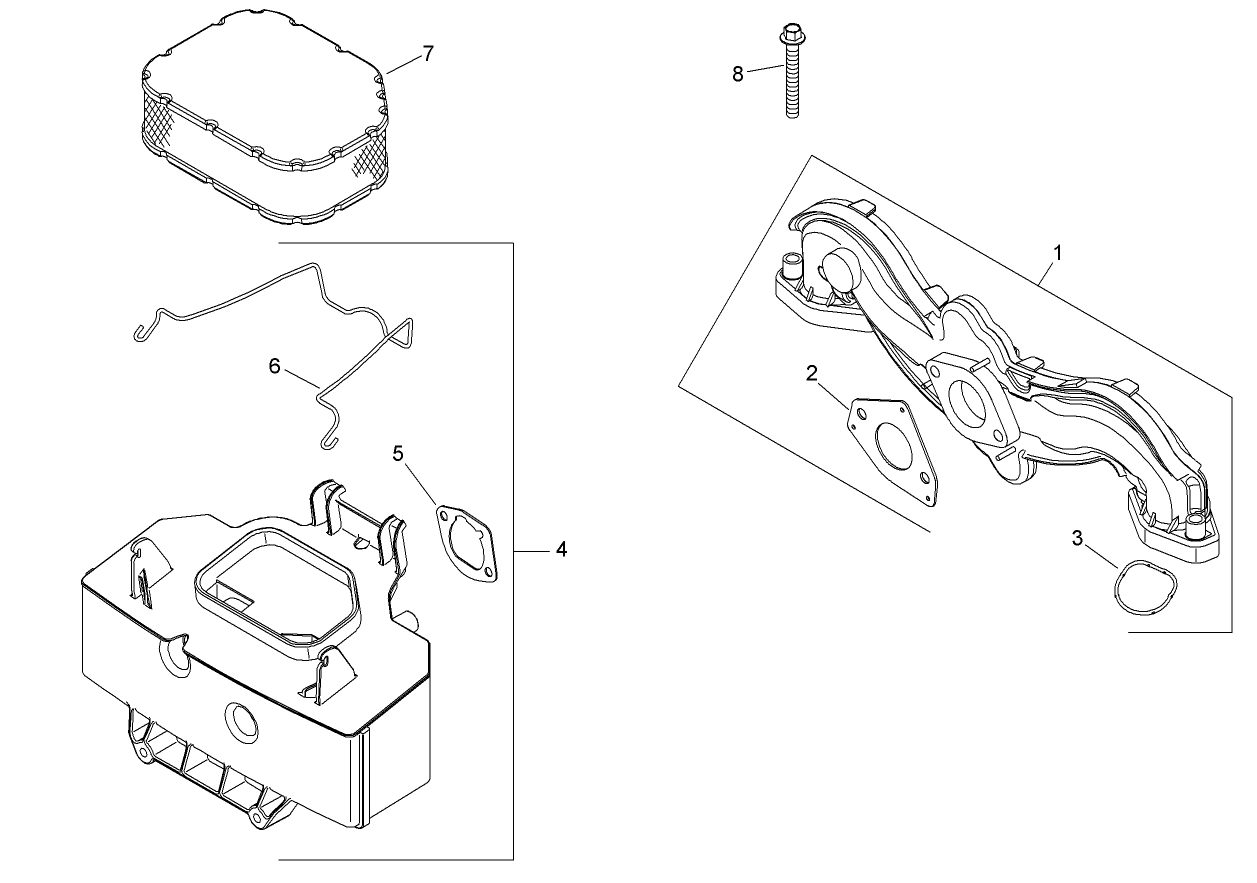

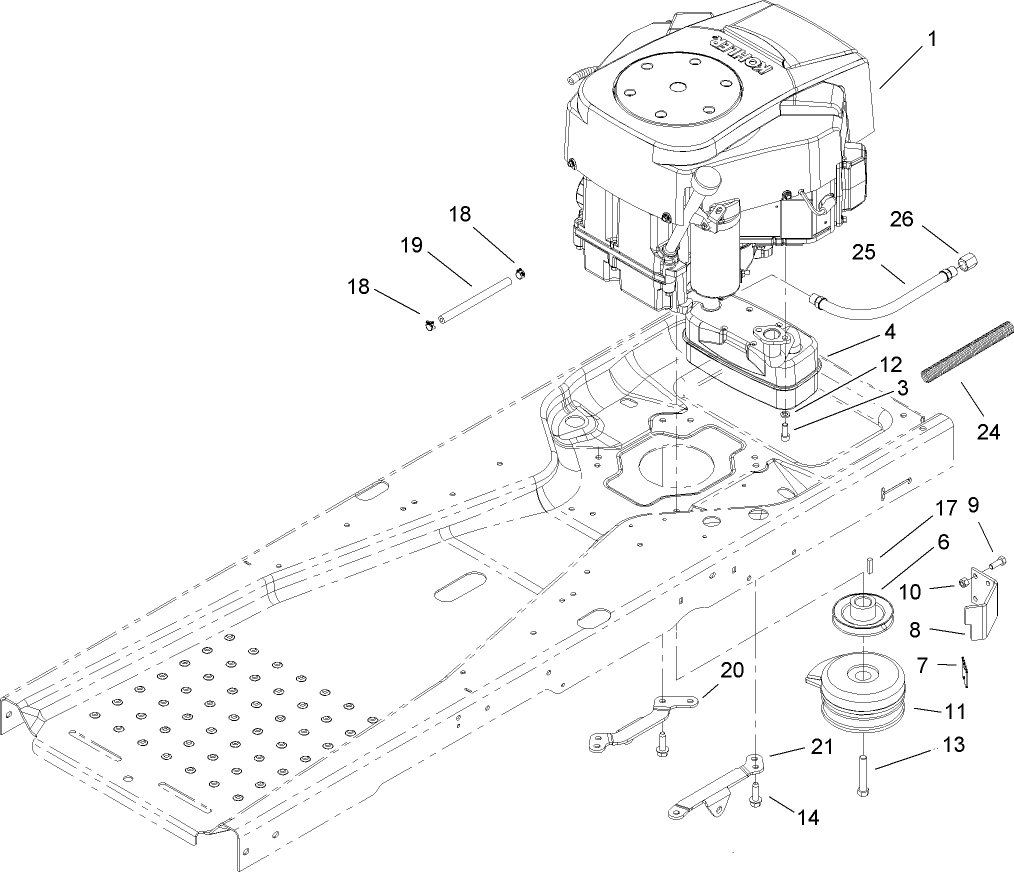

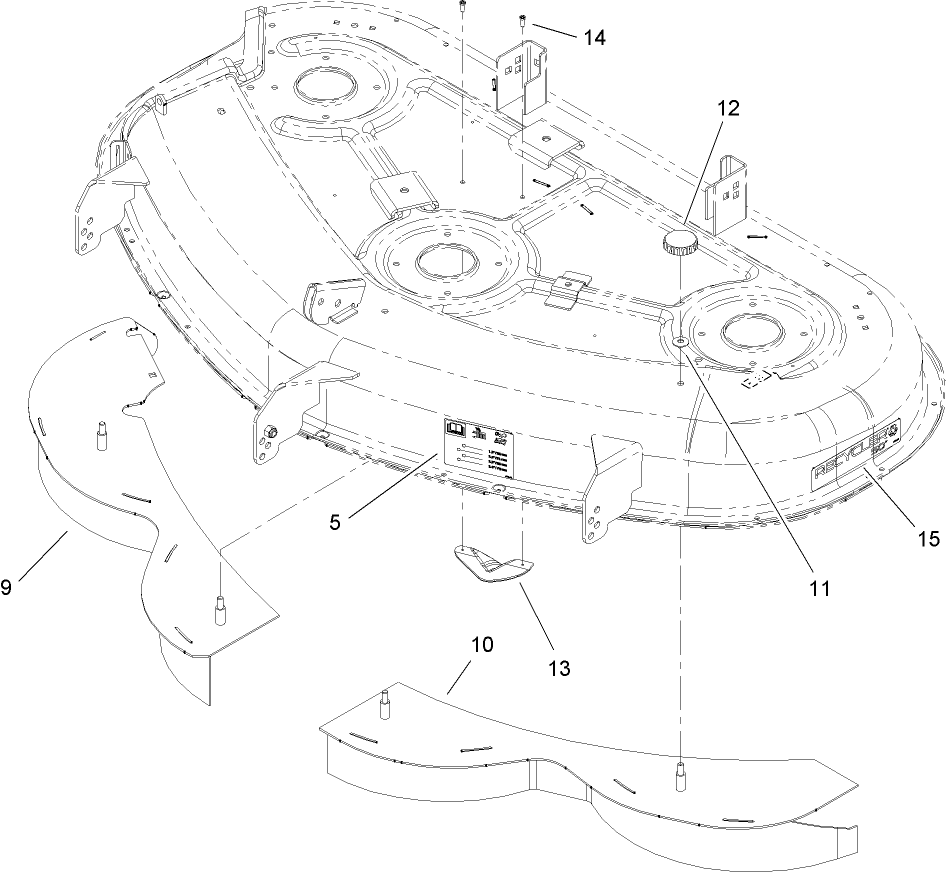

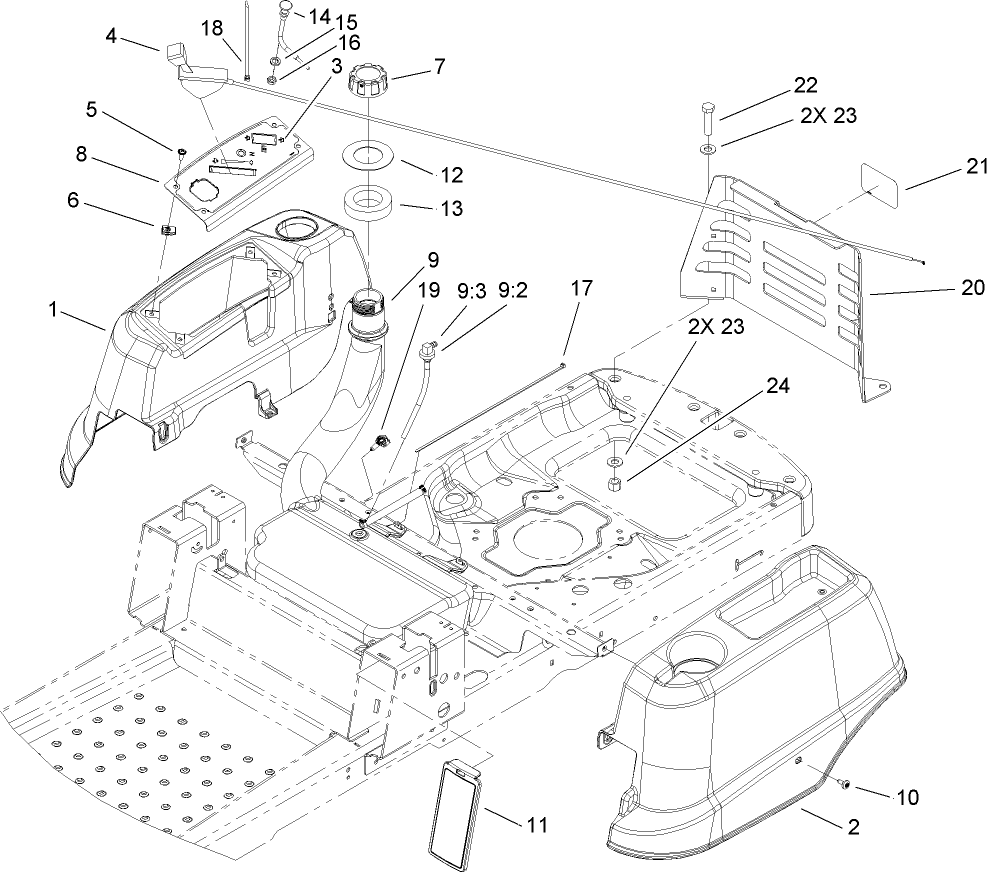

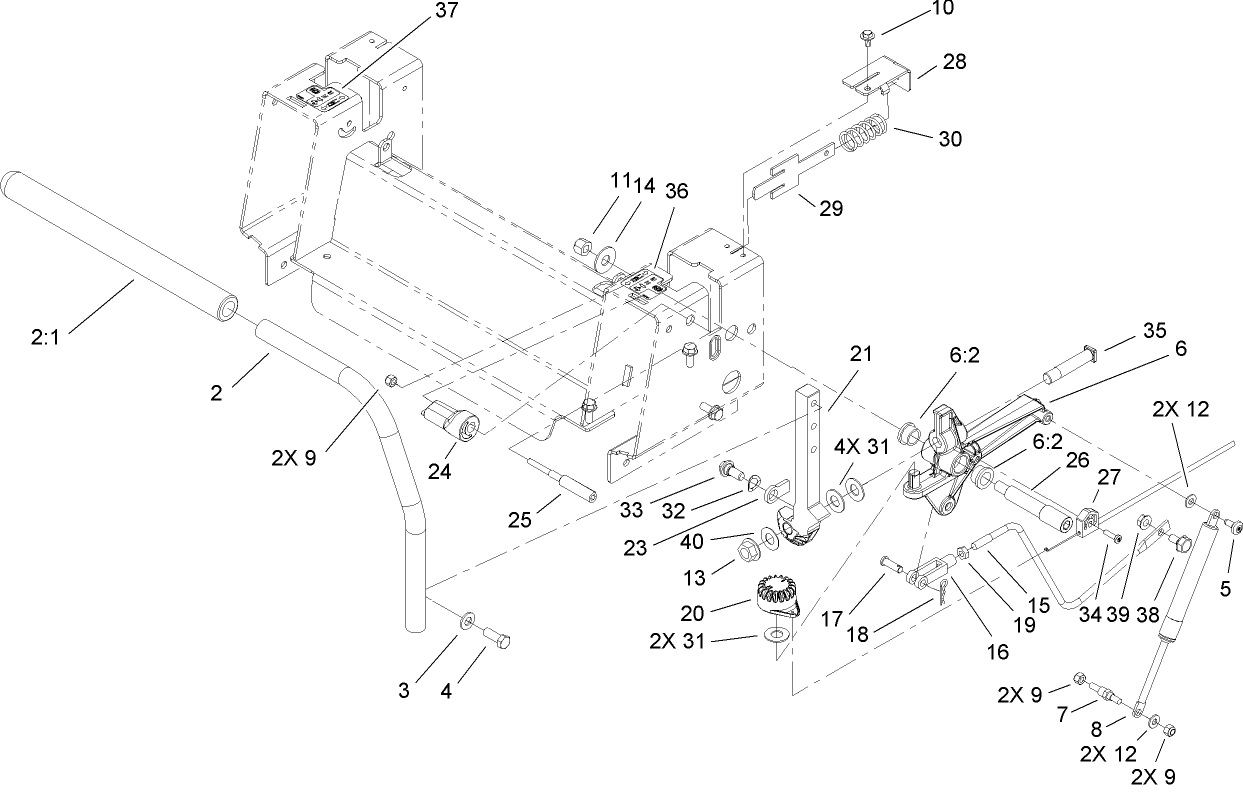

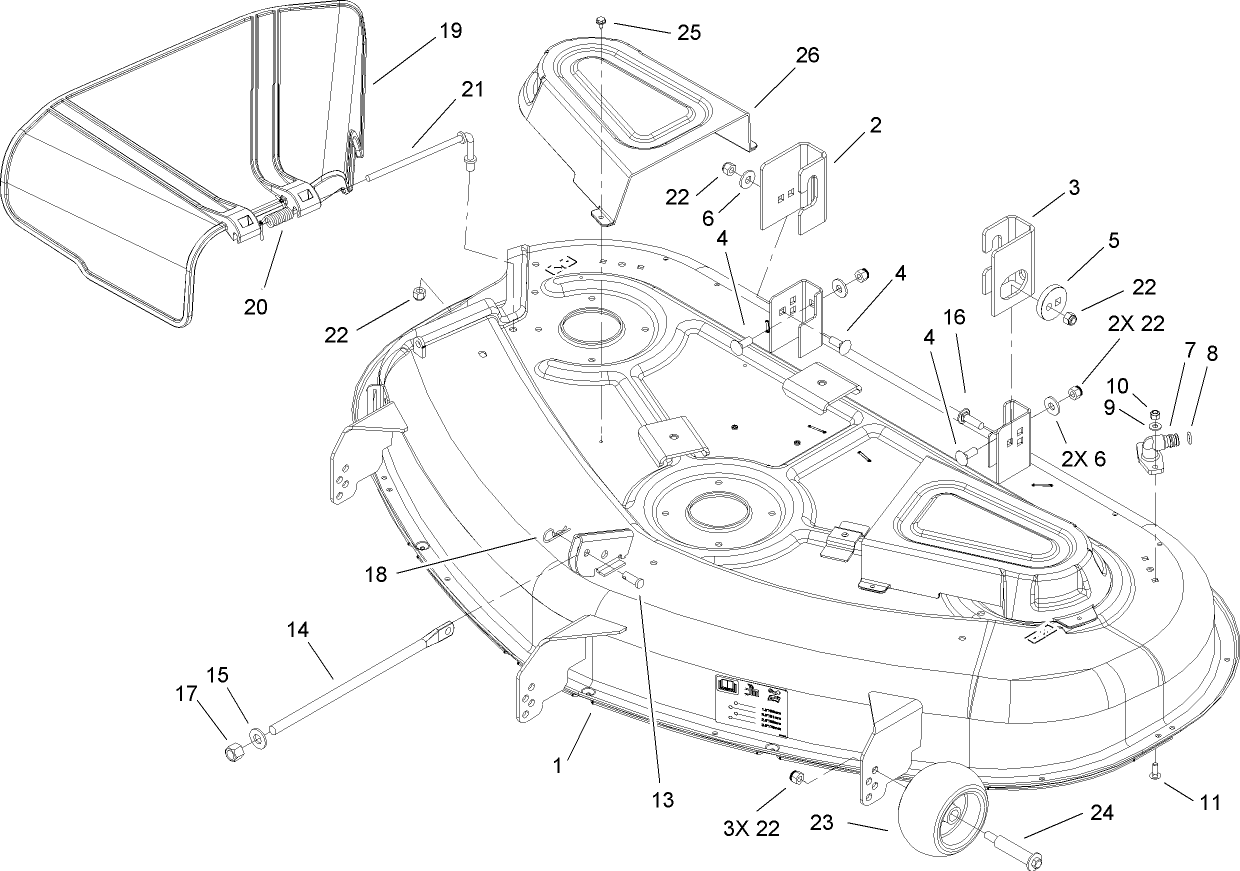

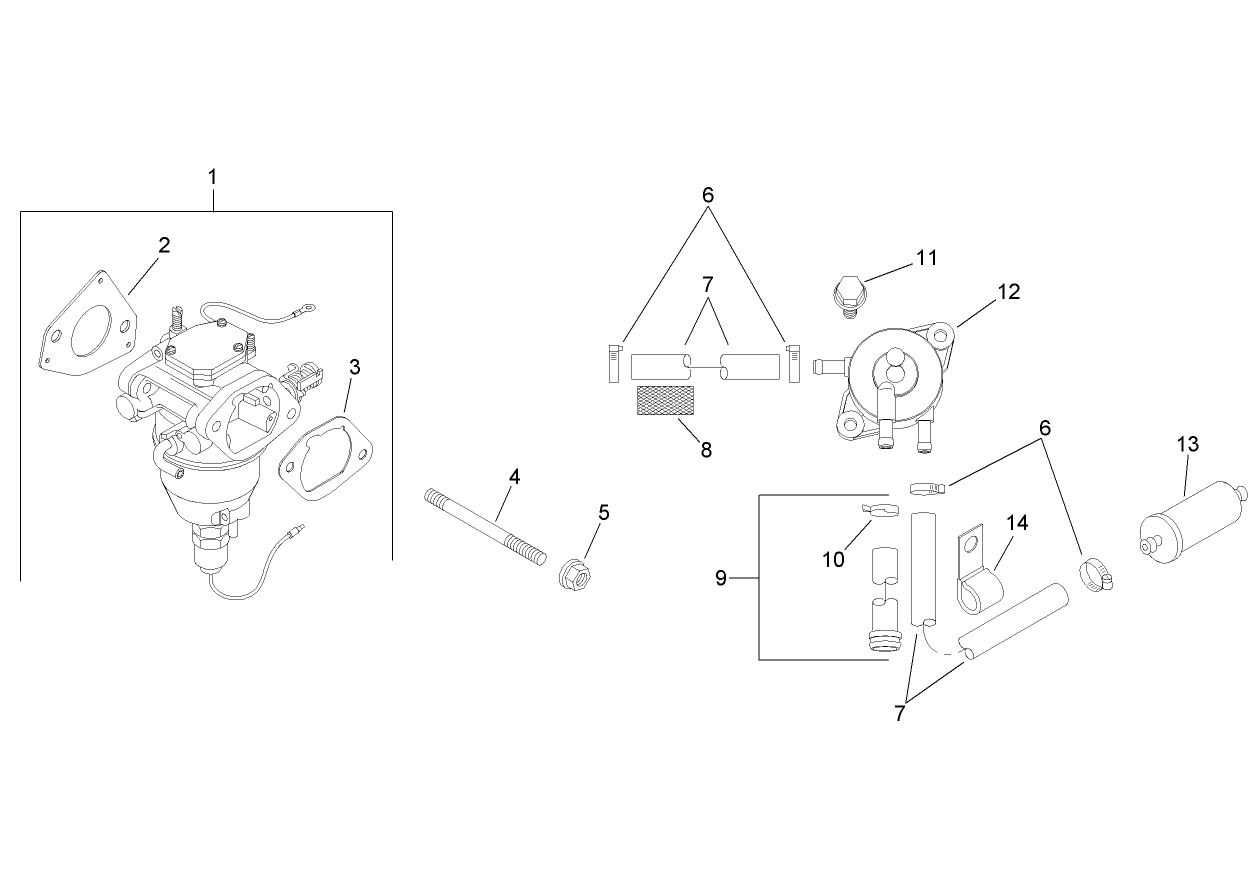

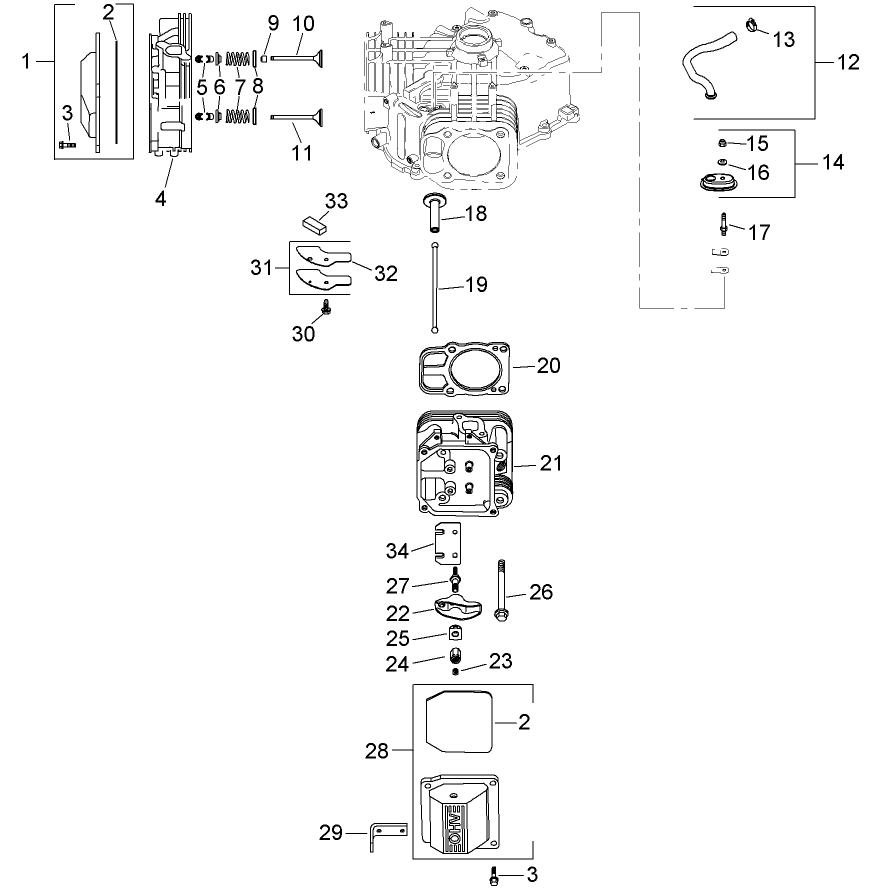

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Parts Catalogue
-
EU Declaration of Conformity
-
Setup Instructions
Hour Meter Kit, Zero-Turn-Radius Riding Mower (Part number 112-9763)
Deck Ring Kit, 50in Mowers for Zero-Turn-Radius Riding Mower (Part number 114-1608)
BLADE KIT - TIMECUTTER 50IN (Part number 79016P)
Engine Cover Kit, TimeCutter MZ Series Riding Mower (Part number 79314)
Floor Mat Kit, TimeCutter MZ Series Riding Mower (Part number 79315)
42in and 50in Twin Bagger, TimeCutter MZ Series Riding Mower (Part number 79324)
-
Model number
74399 -
Serial number
270000001 - 270999999 -
Product Name
TimeCutter Z5020 Riding Mower -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Zero Radius Turn, Consumer -
Chassis Type
ZRT - Consumer -
Swath
50 inch -
Discharge
Side -
Engine/Motor Manufacturer
Kohler -
Engine/Motor Size
23 hp -
Engine/Motor Type
4 Cycle CARB3 2006, EPA2 -
Engine Starter
Electric -
Transmission Type
Hydrostatic
-
Engine: Engine Speed
2825±75 RPM -
Engine: Ignition Coil Air Gap
.010" / .25mm -
Engine: Spark Plug Gap
.030"/ .76mm -
Drive System: Ground Speed
Fwd. 0 - 6 Rev. 0 - 3 mph -
Engine: Engine Oil Type
2.0 qts. 10w-30 -
Engine: Battery
12V -
Chassis: Height of Cut Range
1.5-4.5"; 1/2" increments -
Engine: Spark Plug
Champion XC12YC -
Chassis: Tire Pressure
Front 20 PSI / 1.4kg sq. cm, Rear 13 PSI / .9kg sq. cm
