53cm Super Recycler Lawn Mower
- Model number: 20792
- Serial number: 290000001 - 290999999
- Product Type: Walk Behind Mowers
Loading...

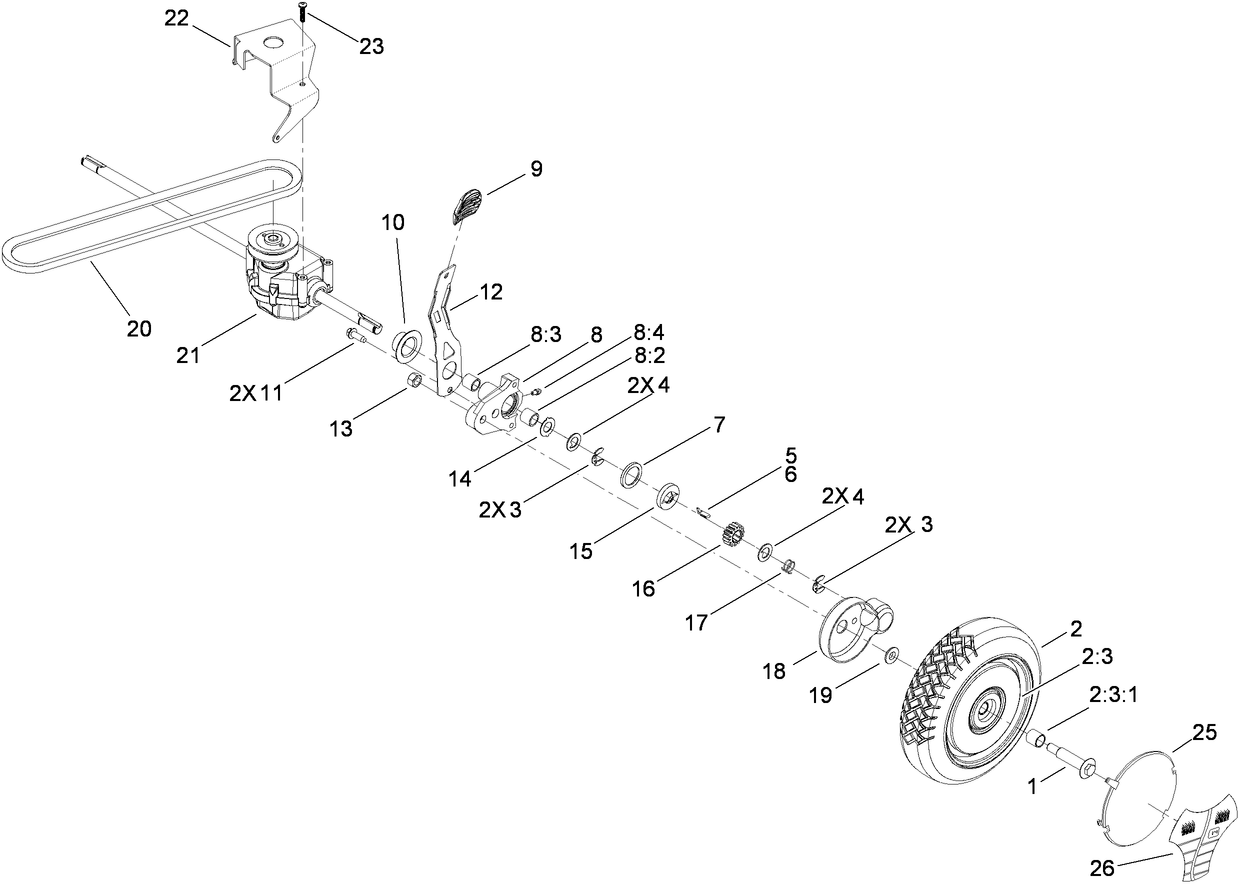

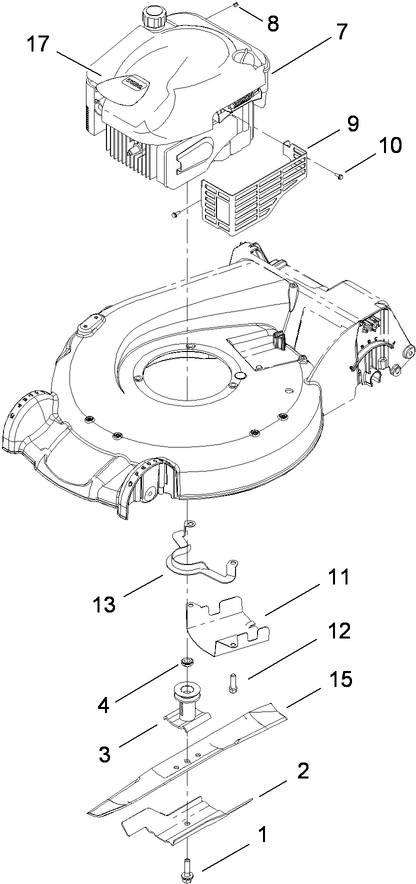

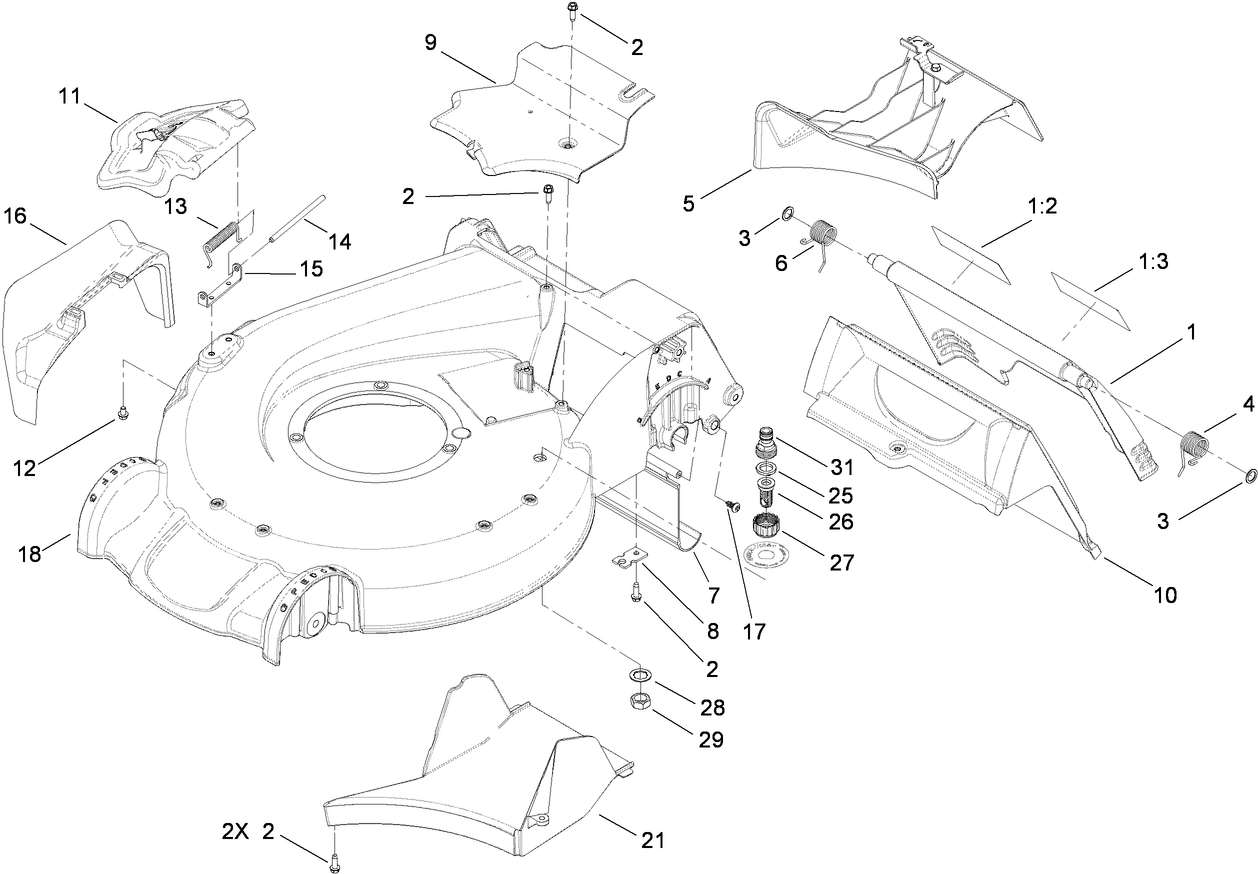

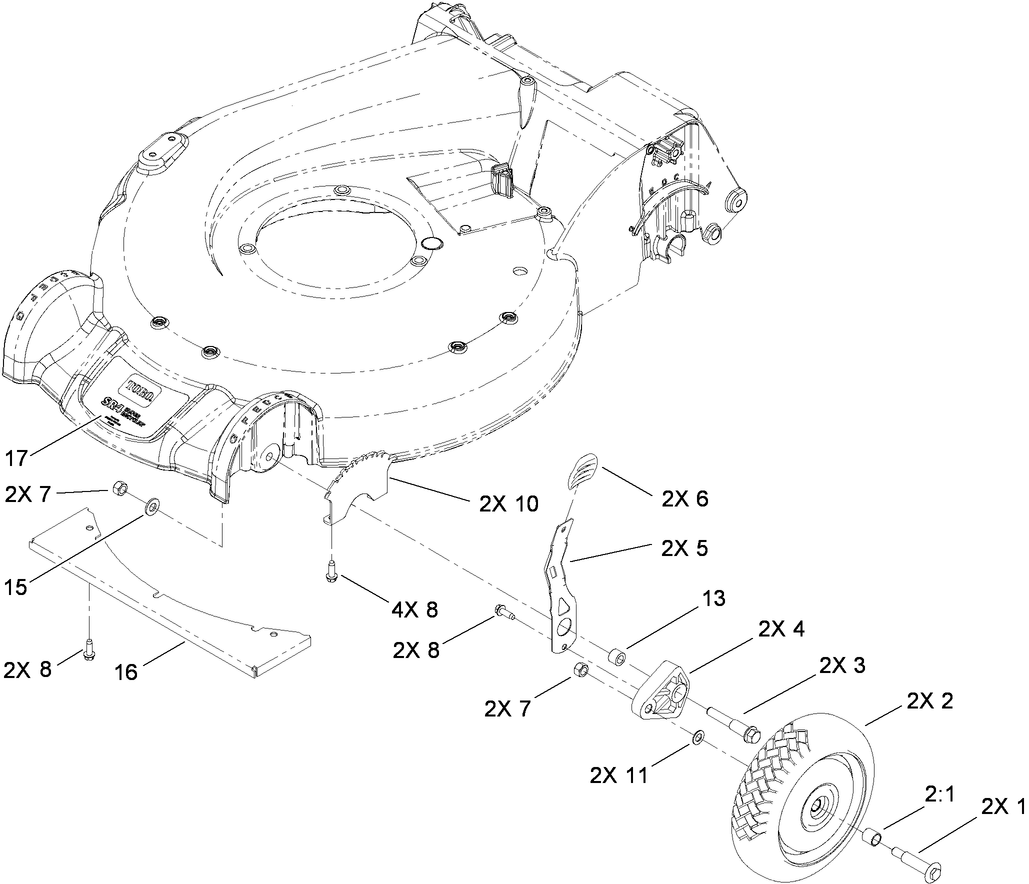

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
EU Declaration of Conformity
-
Service Manual
-
Model number: 108-8120
Traction Assist Handle Kit -
Model number: 490-7462
Toro Walk Mower Cover -
Model number: 490-7463
Plain Walk Mower Cover -
Model number: 59131
Dethatcher Kit
-
Model number
20792 -
Serial number
290000001 - 290999999 -
Product Name
53cm Super Recycler Lawn Mower -
Product Brand
Toro -
Product Type
Walk Behind Mowers -
Product Series
21" (53cm) 3 in 1 / Recycler -
Chassis Type
Cast Deck WPM -
Swath
53cm -
Discharge
Recycler & Side Discharge with Rear Bag -
Engine/Motor Manufacturer
Briggs & Stratton -
Engine/Motor Size
190cc -
Engine/Motor Type
4 Cycle EPA2 -
Engine Starter
Recoil -
Gear
-
Drive System: Gearbox Lubricant
3 oz. (85gm) #2 Lithium grease -
Engine: Ignition Coil Air Gap
.010" / .25mm -
Engine: Spark Plug
Champion RJ19LM -
Engine: Spark Plug Gap
.030"/ .76mm -
Drive System: Ground Speed
0-6.0km/hr / 0-3.7 mph -
Engine: Engine Speed
2800±100 RPM -
Chassis: Height of Cut Range
1.25-4.25", 1/2" increments -
Engine: Engine Oil Type
20 oz. (0.59 L) SAE 30 / API SF, SG, SH, SJ, SL, or higher
