GrandStand Mower, With 122cm TURBO FORCE Cutting Unit
Product Information
- Model number: 74568TE
- Serial number: 311000001 - 311999999
- Product Type: Riding Products
Loading...

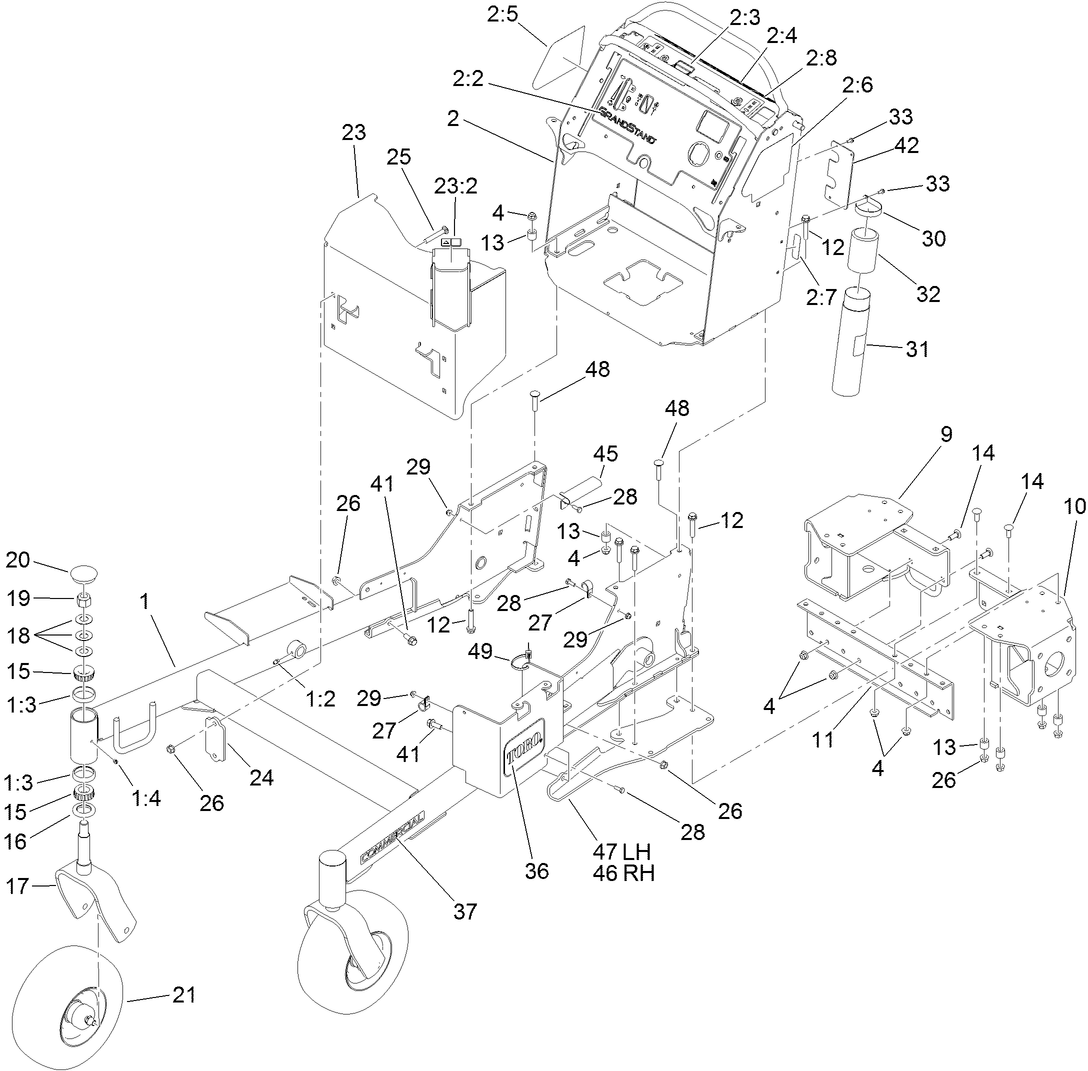

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Parts Catalogue
-
EU Declaration of Conformity
-
Setup Instructions
48" Standard High Lift Blade (Part number 107-3192-03)
BLADE-ROTARY, 16.5IN LOW FLOW (Part number 107-3193-03)
BLADE-ROTARY, 16.5IN MED FLOW (Part number 107-3194-03)
BLADE-ROTARY, 16.5IN ATOMIC (Part number 107-3195-03)
BLADE-ROTARY, 16.5IN RECYCLING (Part number 107-3196-03)
Bagging Enhancement Kit, Z400 Series Z Master Mowers (Part number 108-4091)
6 PACK-BLADE, HI FLOW - 16.5" (Part number 110-0414)
6 PACK-BLADE-LO FLOW - 16.5" (Part number 110-0415)
6 PACK-BLADE, 16.5" RECYCLER (Part number 110-0416)
6 PACK-BLADE, 16.5" ATOMIC (Part number 110-0417)
6 PACK-BLADE, 16.5" MID-FLOW (Part number 110-0418)
WEIGHT-CAST (Part number 112-7059-01)
Light Kit, GrandStand Mower (Part number 114-3505)
Striping Kit, GrandStand Mower with 48-inch or 52-inch Cutting Unit (Part number 114-3521)
HYPR-OIL 500 -QUART (Part number 114-4713)
HYPR-OIL 500-GALLON (Part number 114-4714)
HYPR-OIL 500-5 GALLON (Part number 114-4715)
Recycler Kit, 48in TURBO FORCE Cutting Unit for Walk-Behind/Stand-On M (Part number 117-0540)
Weight Kit, Commercial Walk-Behind/Stand-On Mowers (Part number 117-3620)
CHUTE GATE KIT, W/BAG 60" (Part number 119-7292)
TRASH BAG 60" ASM (Part number 119-7293)
Speed Control Kit, 2011 and After GrandStand Mower (Part number 119-7390)
3bu. Soft Bagger, 36" and Larger Mower Decks (Part number 30104)
-
Model number
74568TE -
Serial number
311000001 - 311999999 -
Product Name
GrandStand Mower, With 122cm TURBO FORCE Cutting Unit -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Professional Grade Stand-on Mowers -
Chassis Type
Stand On -
Swath
122cm -
Discharge
Side -
Engine/Motor Manufacturer
Kawasaki -
Engine/Motor Size
18.5 hp -
Engine/Motor Type
4 Cycle -
Engine Starter
Electric -
Transmission Type
Hydrostatic -
Traction Type
2wd
-
Engine: Engine Speed
3600±100 RPM -
Engine: Spark Plug
NGK BPR4ES -
Engine: Spark Plug Gap
.030"/ .76mm -
Engine: Ignition Coil Air Gap
.008-.016" / .2-.4mm -
Chassis: Tire Pressure
12-14 psi rear -
Engine: Battery
12V -
Engine: Engine Oil Type
67 oz. (2.1 Liter) SAE 10W-30 or 10W-40 -
Chassis: Height of Cut Range
1-5", 1/4" increments -
Drive System: Ground Speed
Fwd. 0 - 8 Rev. 0 - 3 mph -
Drive System: Gearbox Lubricant
HYPR-OIL 500 / 15w-50 Synthetic Motor Oil
