Sand Pro® 2040Z

Sand Pro® 2040Z

Sand Pro® 2040Z

Información sobre productos

  • Nº Modelo: 08706
  • N.º de serie: 316000001 - 316999999
  • Tipo de producto: Riding Products

Buscar una piezas en los dibujos de ensamblaje:

Mostrando resultados

Título del dibujo Número de pieza Descripción
Título



Battery and Electrical System Assembly
Battery and Electrical System Assembly
Brake Installation Assembly
Brake Installation Assembly

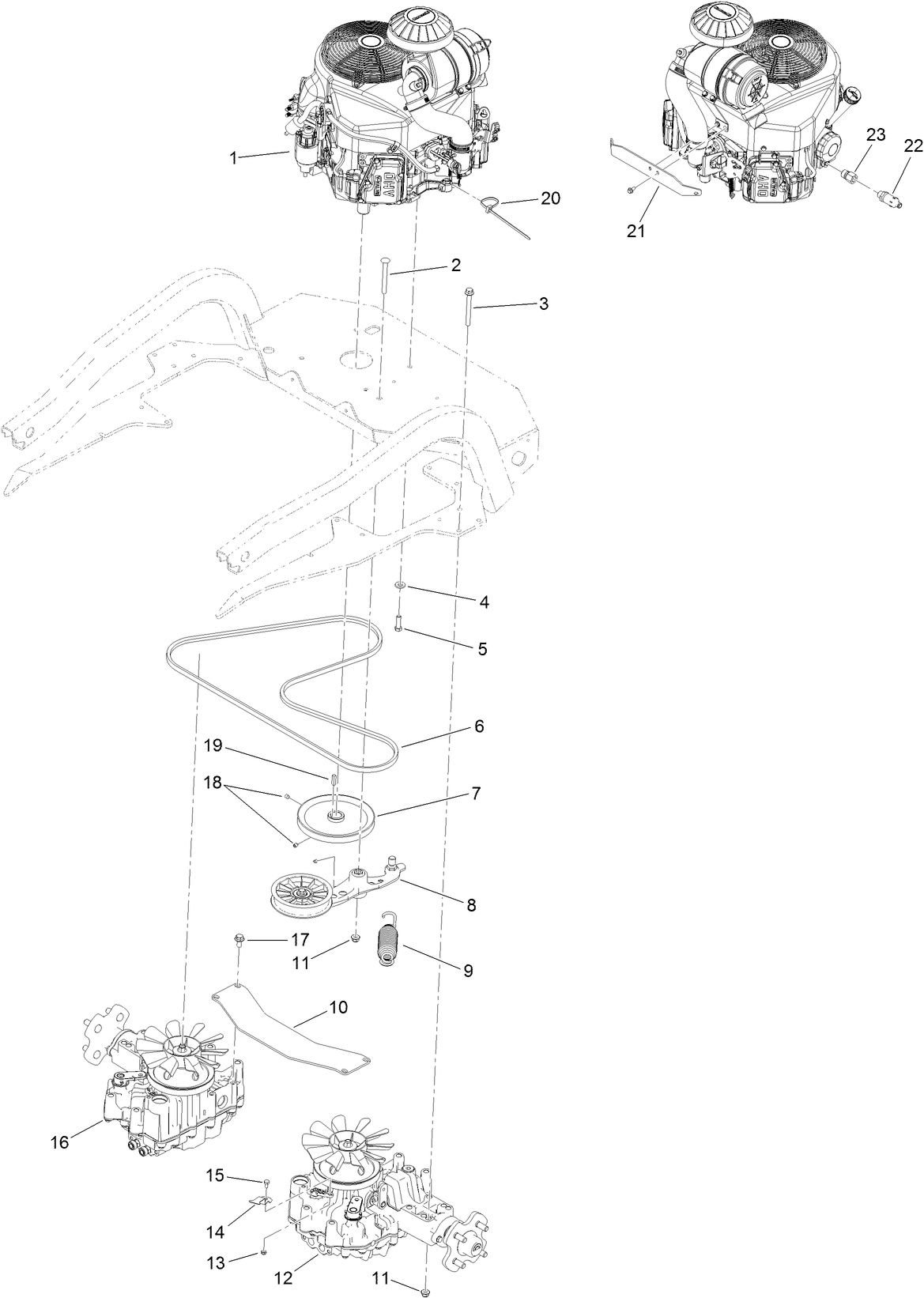

Engine and Transmission Assembly
Engine and Transmission Assembly
Engine Controls and Console Assembly
Engine Controls and Console Assembly
Exhaust Assembly
Exhaust Assembly
Fuel Tank and Emissions Recovery Assembly
Fuel Tank and Emissions Recovery Assembly
Hydraulic Cylinder Assembly No. 125-6466
Hydraulic Cylinder Assembly No. 125-6466
Hydraulic Manifold Assembly No. 127-7858
Hydraulic Manifold Assembly No. 127-7858
Hydraulic Tank Assembly
Hydraulic Tank Assembly

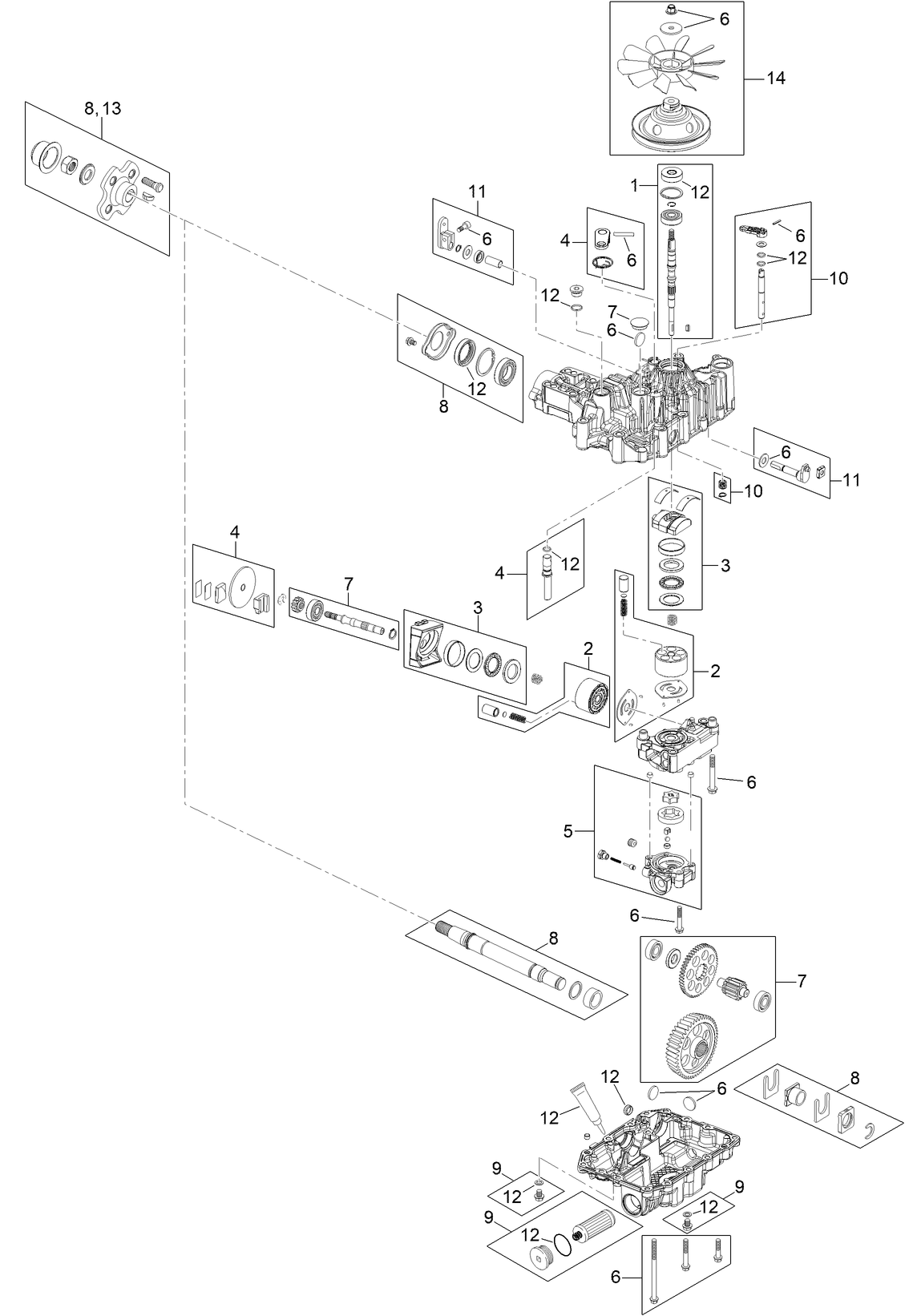

LH Transmission Assembly No. 127-4142
LH Transmission Assembly No. 127-4142
Lift Valve Installation Assembly
Lift Valve Installation Assembly

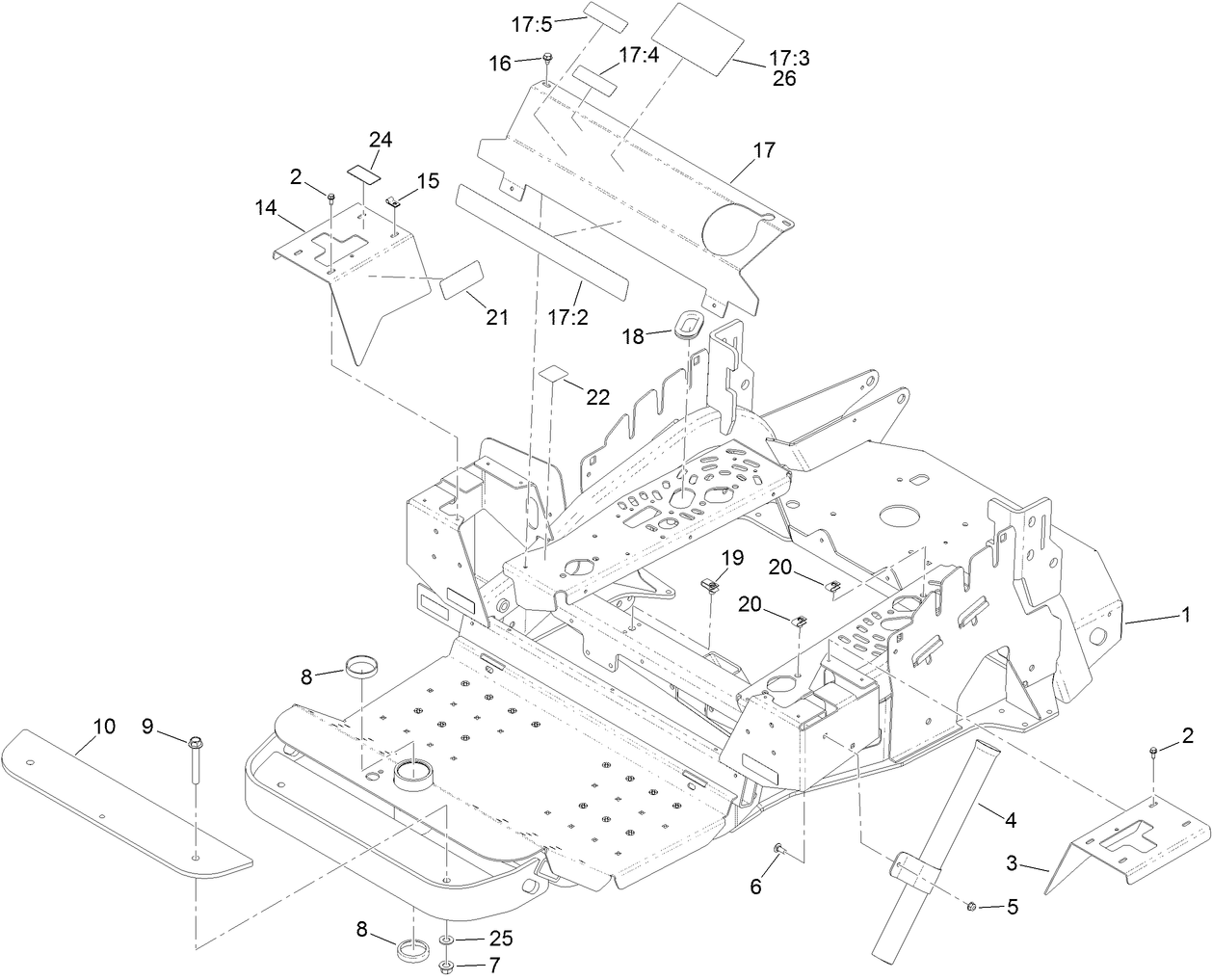

Main Frame Assembly
Main Frame Assembly
Motion Control Assembly
Motion Control Assembly
Pump Idler Assembly No. 116-1255
Pump Idler Assembly No. 116-1255

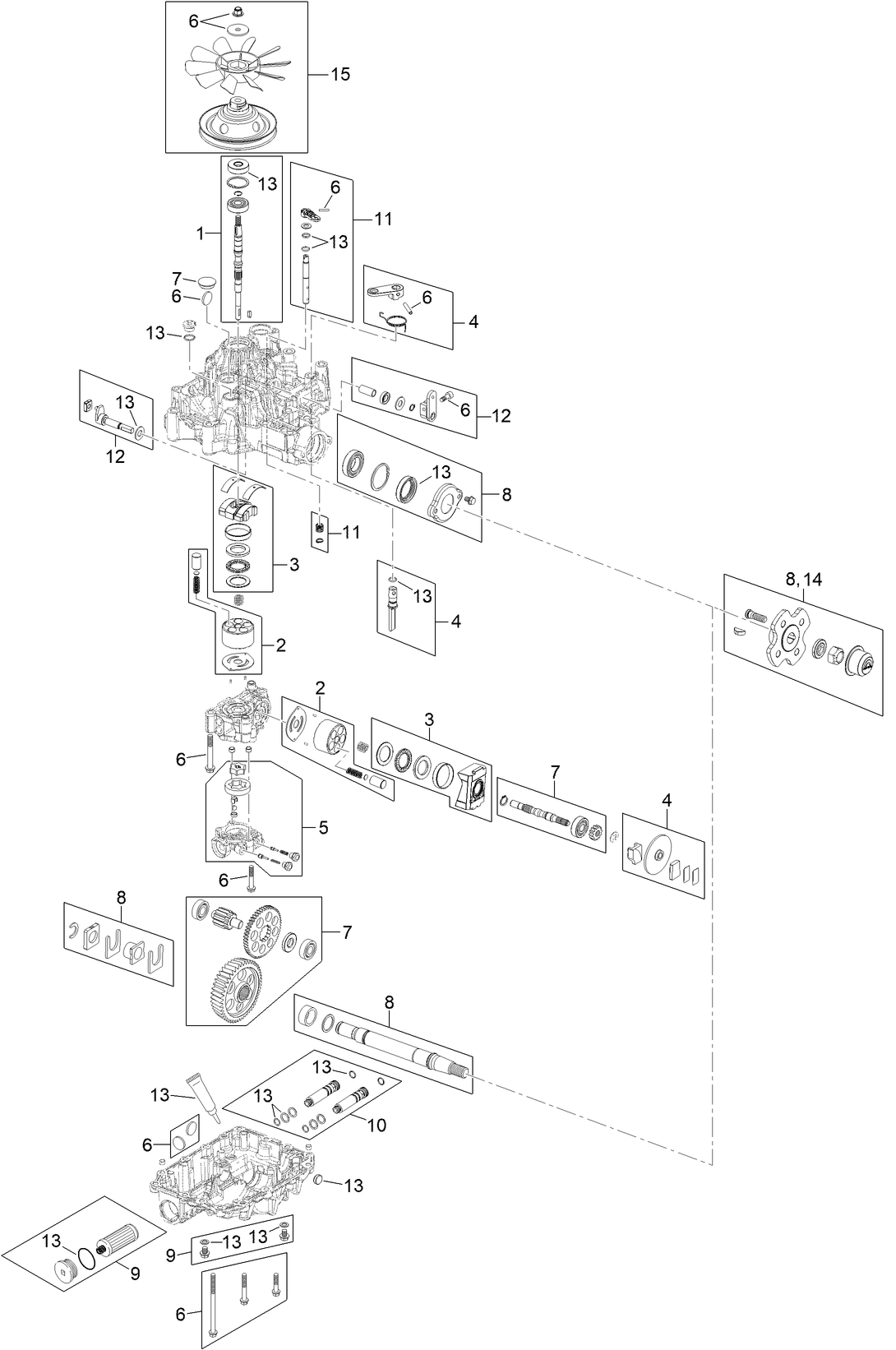

RH Transmission Assembly No. 127-4141
RH Transmission Assembly No. 127-4141
Roll-Over Protection System Assembly
Roll-Over Protection System Assembly
Seat Assembly
Seat Assembly
Seat Assembly No. 120-7886
Seat Assembly No. 120-7886
Tire and Caster Assembly
Tire and Caster Assembly
Descargar Catálogo de piezas
Manual del operador
Boletín de mantenimiento
Manual de mantenimiento
Catálogo de piezas
Esquema eléctrico
Declaración de Conformidad UE
Esquema Hidráulico
Logo Piezas auténticas Toro
Tooth Rake (Número de pieza 08716)
Create a smooth surface and clear debris.
Logo Piezas auténticas Toro
Nail Drag (Número de pieza 08717)
Create a smooth surface and clear debris with extra strength.
Logo Piezas auténticas Toro
Finishing Drag Mat Kit (Número de pieza 08718)
Clear any bumps or imperfections and ensure a clean final look.
Logo Piezas auténticas Toro
Finishing Brush Kit (Número de pieza 08719)
Clear any bumps or imperfections and ensure a clean final look.
Logo Piezas auténticas Toro
Speed Limiter Kit (Número de pieza 08720)
Set a maximum speed to ensure safety.
Logo Piezas auténticas Toro
Light Kit (Número de pieza 08721)
Increase visibility and safety.
400 HOUR MAINTENANCE KIT SP 2040Z (Número de pieza 08725)
Logo Piezas auténticas Toro
Spark Arrestor (Número de pieza 104-6540)
Premium Trans/Hyd Tractor Fluid Drum (Número de pieza 108-1183)
Premium Trans/Hyd Tractor Fluid Pail (Número de pieza 108-1184)
Toro 14 oz. All-Purpose Grease
Toro 14 oz. All-Purpose Grease (Número de pieza 108-1190)
Toro 14 oz. All-Purpose Grease. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.
FILTER-AIR (Número de pieza 108-3811)
BIMINI FOLDING SHADE ASM (Número de pieza 115-4510)
Fuel Stabilizer, 4 oz. (Número de pieza 117-0089)
Fuel Stabilizer, 16 oz. (Número de pieza 117-0090)
Oil Filter Replacement
Oil Filter Replacement (Número de pieza 119-5852)
This genuine Toro OEM replacement oil filter removes contaminants — including dirt, metal particles, and other debris — from your engine oil as it circulates, helping to protect critical engine components from wear and extending the life of both the oil and the engine. Refer to your operator manual for recommended replacement intervals and to confirm compatibility with your Toro equipment.
FILTER-FUEL (Número de pieza 121-4570)
Logo Piezas auténticas Toro
Toro 5 Gallon Premium Engine Oil 10W-30 (Número de pieza 121-6393)
Toro 5 Gallon Premium Engine Oil 10W-30. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.
TIRE ASM (Número de pieza 125-6462)
Bag Kit, Sand Pro 2040Z Traction Unit (Número de pieza 127-0359)
KIT-RUBBER TROWEL (Número de pieza 130-2629)
Rake Holder Kit, Sand Pro 2040Z Traction Unit (Número de pieza 130-7876)
Speed Plate Kit, Sand Pro 2040Z Traction Unit (Número de pieza 130-7877)
Seat Isolation Kit, Sand Pro 2040Z Traction Unit (Número de pieza 144-7065)
Logo Piezas auténticas Toro
Red Paint (Gallon) (Número de pieza 361-11)
Genuine OEM Part
Logo Piezas auténticas Toro
Dark Metallic Gray Paint (Número de pieza 361-12)
Genuine OEM Part
Logo Piezas auténticas Toro
Semi-Gloss Black Paint (Número de pieza 361-9)
Genuine OEM Part
Red Paint - Quart Can (Número de pieza 5340)
SPARK PLUG (Número de pieza 92-2153)
Logo Piezas auténticas Toro
Filter Gauge for Kohler Engines (Número de pieza 99-4664)
Toro genuine filter gauge. Toro would like to remind you that fitment can vary by sub model, serial number, and/or production date of your equipment. Verify your model and serial number to confirm compatibility before ordering.

Nº Modelo

08706

Nº Serie

316000001 - 316999999

Nombre del producto

Sand Pro® 2040Z

Marca del producto

Toro

Tipo de producto

Riding Products

Serie del producto

Sand Pro Series
