Groundsmaster® 4700

Groundsmaster® 4700

Groundsmaster® 4700

Información sobre productos

  • Nº Modelo: 30887
  • N.º de serie: 416500000 - 417192530
  • Tipo de producto: Riding Products

Buscar una piezas en los dibujos de ensamblaje:

Mostrando resultados

Título del dibujo Número de pieza Descripción
Título



3-Way Valve Manifold Assembly No. 138-6946
3-Way Valve Manifold Assembly No. 138-6946
Access Panel and Controller Assembly
Access Panel and Controller Assembly
Air Cleaner Assembly No. 99-5410
Air Cleaner Assembly No. 99-5410
Air Ride Seat Suspension Assembly No. 130-2702
Air Ride Seat Suspension Assembly No. 130-2702
Axle Assembly Rear Axle Assembly No. 110-4750
Axle Assembly Rear Axle Assembly No. 110-4750
Axle Case Assembly Rear Axle Assembly No. 110-4750
Axle Case Assembly Rear Axle Assembly No. 110-4750
Axle Support Assembly Rear Axle Assembly No. 110-4750
Axle Support Assembly Rear Axle Assembly No. 110-4750
Battery Mount Assembly
Battery Mount Assembly
Battery Storage Box Assembly No. 115-9100
Battery Storage Box Assembly No. 115-9100
Bevel Gear Case Assembly Rear Axle Assembly No. 110-4750
Bevel Gear Case Assembly Rear Axle Assembly No. 110-4750
Bevel Gear Shaft Assembly Rear Axle Assembly No. 110-4750
Bevel Gear Shaft Assembly Rear Axle Assembly No. 110-4750
Bevel Pinion Shaft Assembly Rear Axle Assembly No. 110-4750
Bevel Pinion Shaft Assembly Rear Axle Assembly No. 110-4750
Camshaft and Driving Gear Assembly
Camshaft and Driving Gear Assembly
Chamber, Blade and Spindle Assembly
Chamber, Blade and Spindle Assembly
Console Assembly
Console Assembly
Control Arm Switch Assembly
Control Arm Switch Assembly
Cooling Water System Assembly
Cooling Water System Assembly
Crankshaft and Piston Assembly
Crankshaft and Piston Assembly
Cylinder Block Assembly
Cylinder Block Assembly
Cylinder Head and Cover Assembly
Cylinder Head and Cover Assembly
Deck Lift Hydraulic Circuit Assembly
Deck Lift Hydraulic Circuit Assembly
Deck No. 1, 4 and 5 Hydraulic Assembly
Deck No. 1, 4 and 5 Hydraulic Assembly
Deck No. 2 and 3 Hydraulic Assembly
Deck No. 2 and 3 Hydraulic Assembly
Deck No. 6 and 7 Hydraulic Assembly
Deck No. 6 and 7 Hydraulic Assembly
Diesel Particulate Filter Assembly
Diesel Particulate Filter Assembly
Differential Assembly Rear Axle Assembly No. 110-4750
Differential Assembly Rear Axle Assembly No. 110-4750
Electric Parts Assembly
Electric Parts Assembly
Electrical Assembly
Electrical Assembly
Engine Mount Assembly
Engine Mount Assembly
Engine Wire Harness Assembly
Engine Wire Harness Assembly
Engine, Air Cleaner and Controller Assembly
Engine, Air Cleaner and Controller Assembly
Exhaust Manifold Assembly
Exhaust Manifold Assembly
Fan Drive Manifold Assembly No. 117-2395
Fan Drive Manifold Assembly No. 117-2395
Fan Mounting Assembly
Fan Mounting Assembly
Flywheel Assembly
Flywheel Assembly
Flywheel Housing and Oil Sump Assembly
Flywheel Housing and Oil Sump Assembly
Four Section Pump Assembly No. 114-4189
Four Section Pump Assembly No. 114-4189

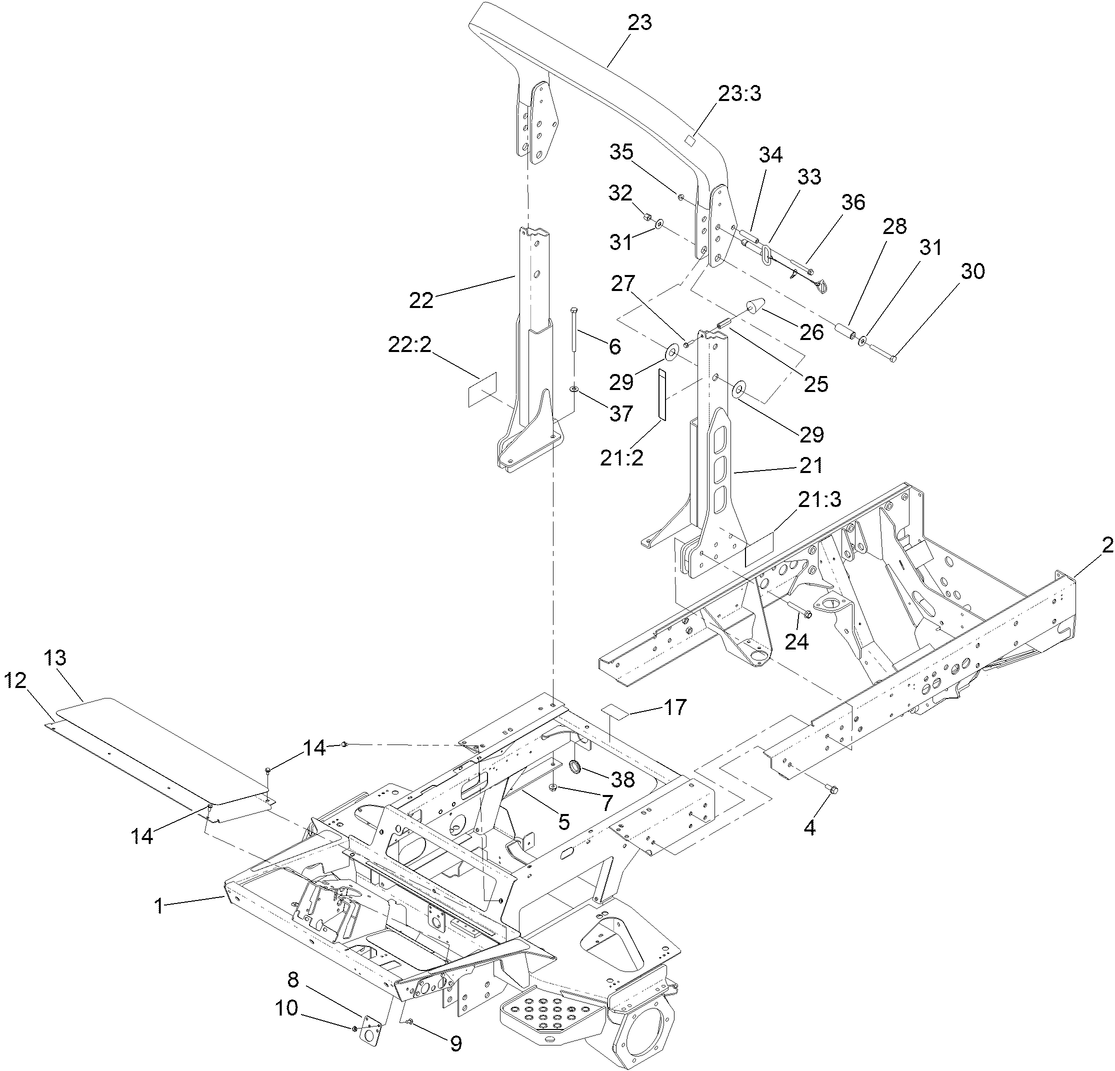

Frame and Roll-Over Protection System Assembly
Frame and Roll-Over Protection System Assembly
Front Frame Assembly No. 120-8086
Front Frame Assembly No. 120-8086
Front Shroud Assembly
Front Shroud Assembly
Front Wheel Drive Assembly
Front Wheel Drive Assembly
Fuel Injection Valve Assembly
Fuel Injection Valve Assembly
Fuel Line Assembly
Fuel Line Assembly
Fuel System Assembly
Fuel System Assembly
Fuel System Assembly
Fuel System Assembly
Gasket Set
Gasket Set
Gear Housing Assembly
Gear Housing Assembly
Gear Motor Assembly No. 117-5141
Gear Motor Assembly No. 117-5141
Generator Assembly
Generator Assembly
Height-of-Cut Bracket Assembly
Height-of-Cut Bracket Assembly
Hood Assembly
Hood Assembly
Hydraulic Motor Assembly No. 137-5571
Hydraulic Motor Assembly No. 137-5571
Hydraulic Mow Circuit Assembly
Hydraulic Mow Circuit Assembly
Hydraulic Pump Assembly No. 136-2940
Hydraulic Pump Assembly No. 136-2940
Hydraulic Steer Cylinder Assembly No. 127-6431
Hydraulic Steer Cylinder Assembly No. 127-6431
Hydraulic System Assembly
Hydraulic System Assembly
Hydraulic Tank Assembly
Hydraulic Tank Assembly
Hydraulic Traction Circuit Assembly
Hydraulic Traction Circuit Assembly
Hydraulic Traction Circuit Assembly
Hydraulic Traction Circuit Assembly
Hydraulic Valve Mounting Assembly
Hydraulic Valve Mounting Assembly

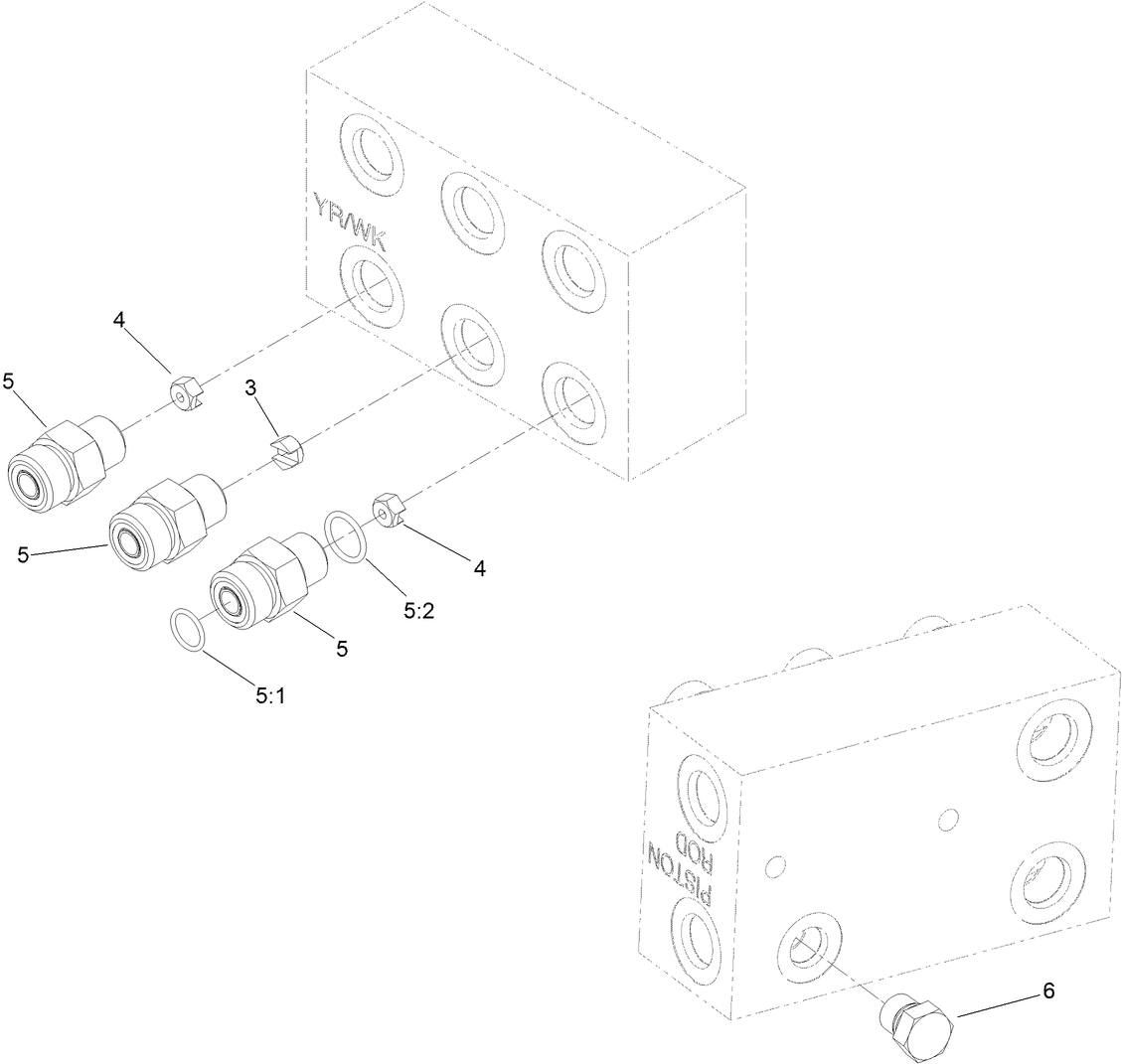

Junction Manifold Assembly
Junction Manifold Assembly
Junction Manifold Assembly No. 117-2394
Junction Manifold Assembly No. 117-2394
LH Brake Assembly No. 100-3070
LH Brake Assembly No. 100-3070
Lift Cylinder Assembly No. 127-6427
Lift Cylinder Assembly No. 127-6427
Lift Cylinder Assembly No. 127-6428
Lift Cylinder Assembly No. 127-6428
Lift Cylinder Assembly No. 127-6429
Lift Cylinder Assembly No. 127-6429
Lift Cylinder Assembly No. 127-6430
Lift Cylinder Assembly No. 127-6430
Lift Manifold Assembly
Lift Manifold Assembly

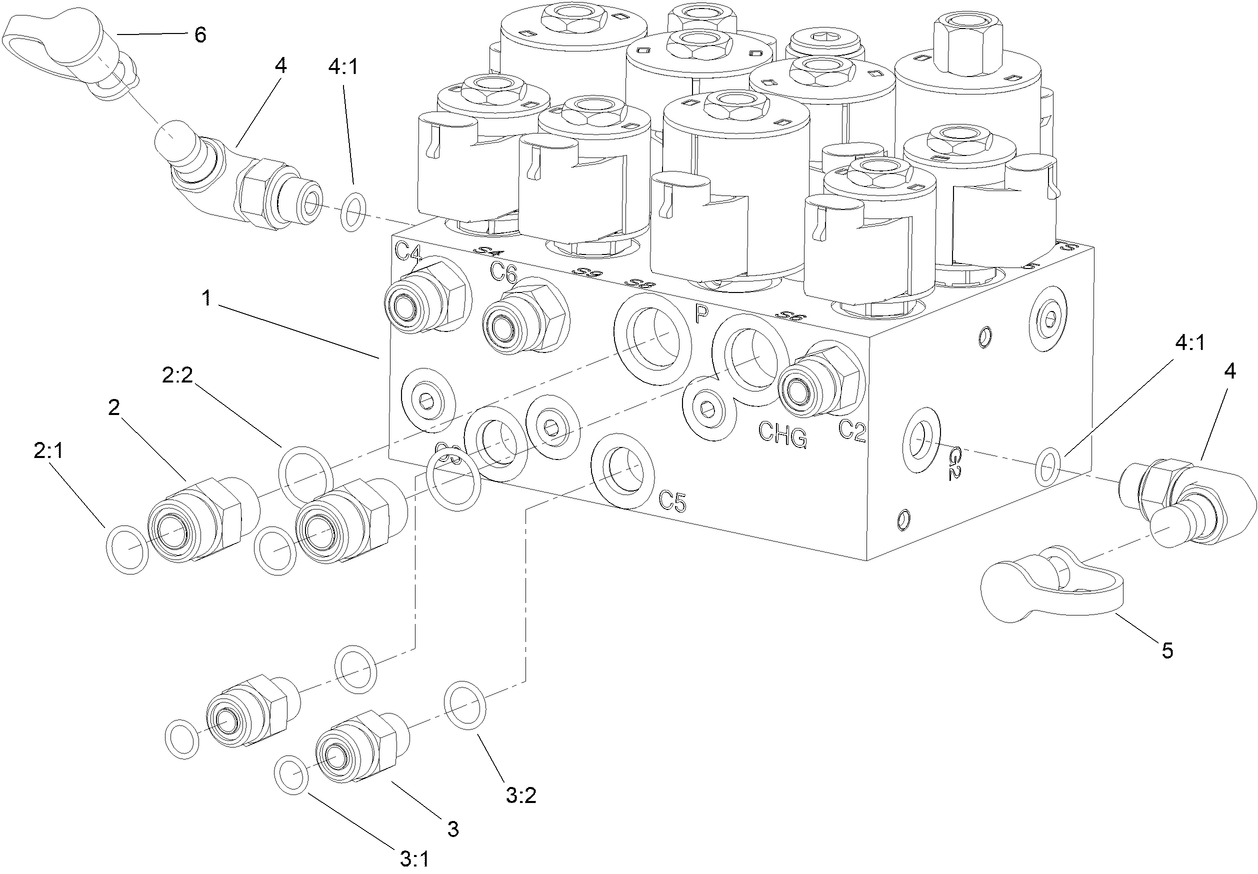

Lift Manifold Assembly No. 117-2389
Lift Manifold Assembly No. 117-2389
Lubrication and Oil System Assembly
Lubrication and Oil System Assembly
Lubrication Oil Line Assembly
Lubrication Oil Line Assembly

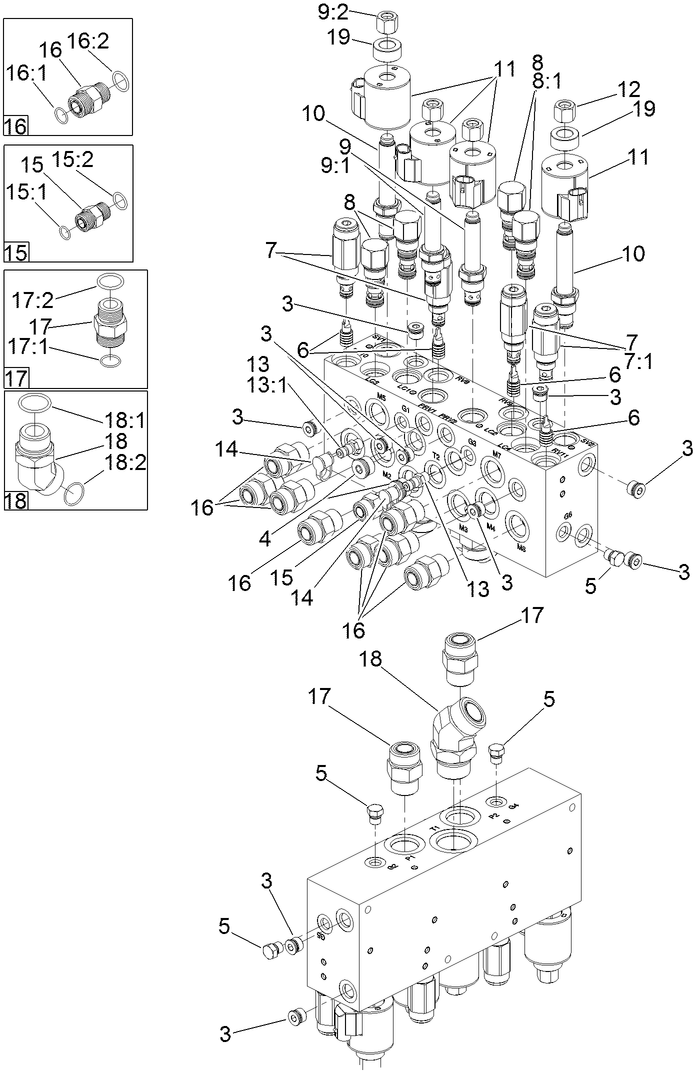

Mow Manifold Assembly No. 136-2916
Mow Manifold Assembly No. 136-2916
No. 1, No. 4 and No. 5 Lift Arm and Deck Assembly
No. 1, No. 4 and No. 5 Lift Arm and Deck Assembly
No. 2 and 3 Lift Arm and Deck Assembly
No. 2 and 3 Lift Arm and Deck Assembly

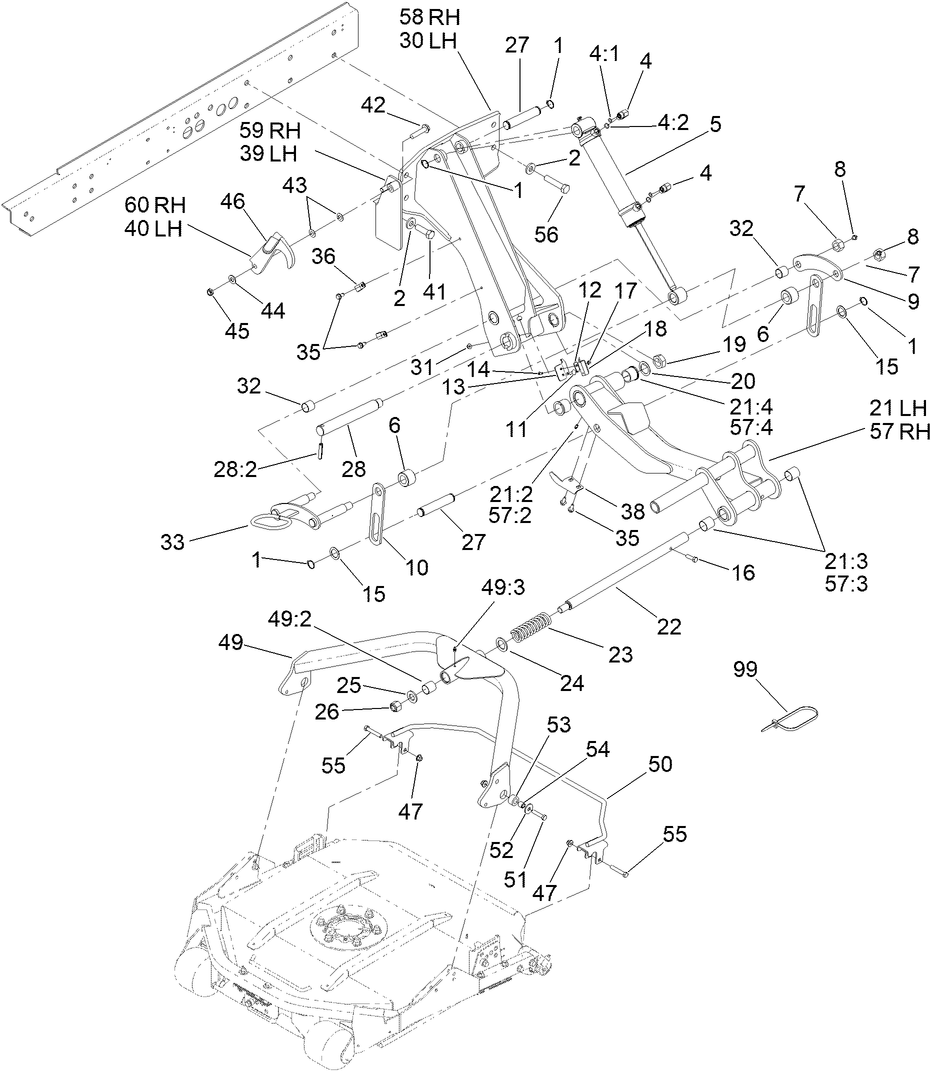

No. 6 and 7 Lift Arm and Deck Assembly
No. 6 and 7 Lift Arm and Deck Assembly
Pedal Assembly
Pedal Assembly
Piston Motor Assembly No. 136-2939
Piston Motor Assembly No. 136-2939
Planetary Assembly No. 136-2913
Planetary Assembly No. 136-2913
Radiator Assembly
Radiator Assembly
Rear Axle Assembly
Rear Axle Assembly
Rear Piston Motor No. 136-2938
Rear Piston Motor No. 136-2938
Rear Roller Assembly No. 137-6141
Rear Roller Assembly No. 137-6141
RH Brake Assembly No. 100-3069
RH Brake Assembly No. 100-3069
Roller and Carrier Frame Assembly
Roller and Carrier Frame Assembly
Seat Mounting Assembly
Seat Mounting Assembly
Spindle Assembly No. 121-3666
Spindle Assembly No. 121-3666
Starting Motor Assembly
Starting Motor Assembly
Steering and Brake Assembly
Steering and Brake Assembly
Steering Hydraulic Assembly
Steering Hydraulic Assembly
Steering Tilt Column Assembly No. 106-3622
Steering Tilt Column Assembly No. 106-3622
Steering Valve Assembly No. 114-8119
Steering Valve Assembly No. 114-8119
Storage Box Assembly No. 115-9101
Storage Box Assembly No. 115-9101
Suction Manifold Assembly
Suction Manifold Assembly
Traction Manifold Assembly No. 136-3341
Traction Manifold Assembly No. 136-3341
Turbine Assembly
Turbine Assembly
Vinyl Premium Seat Assembly No. 117-5676
Vinyl Premium Seat Assembly No. 117-5676
