SnowMax® 724 QXE Schneefräse 38721

SnowMax® 724 QXE Schneefräse 38721

SnowMax® 724 QXE Schneefräse 38721

Produktinformationen

  • Modellnr.: 38721
  • Seriennr.: 400000000 - 408999999
  • Produkttyp: Snowthrowers

Ein Ersatzteil in Bauteilzeichnungen suchen:

Ergebnisse anzeigen

Zeichnungstitel ET-Nr. Beschreibung
Titel



Blower Housing and Shrouds Assembly
Blower Housing and Shrouds Assembly

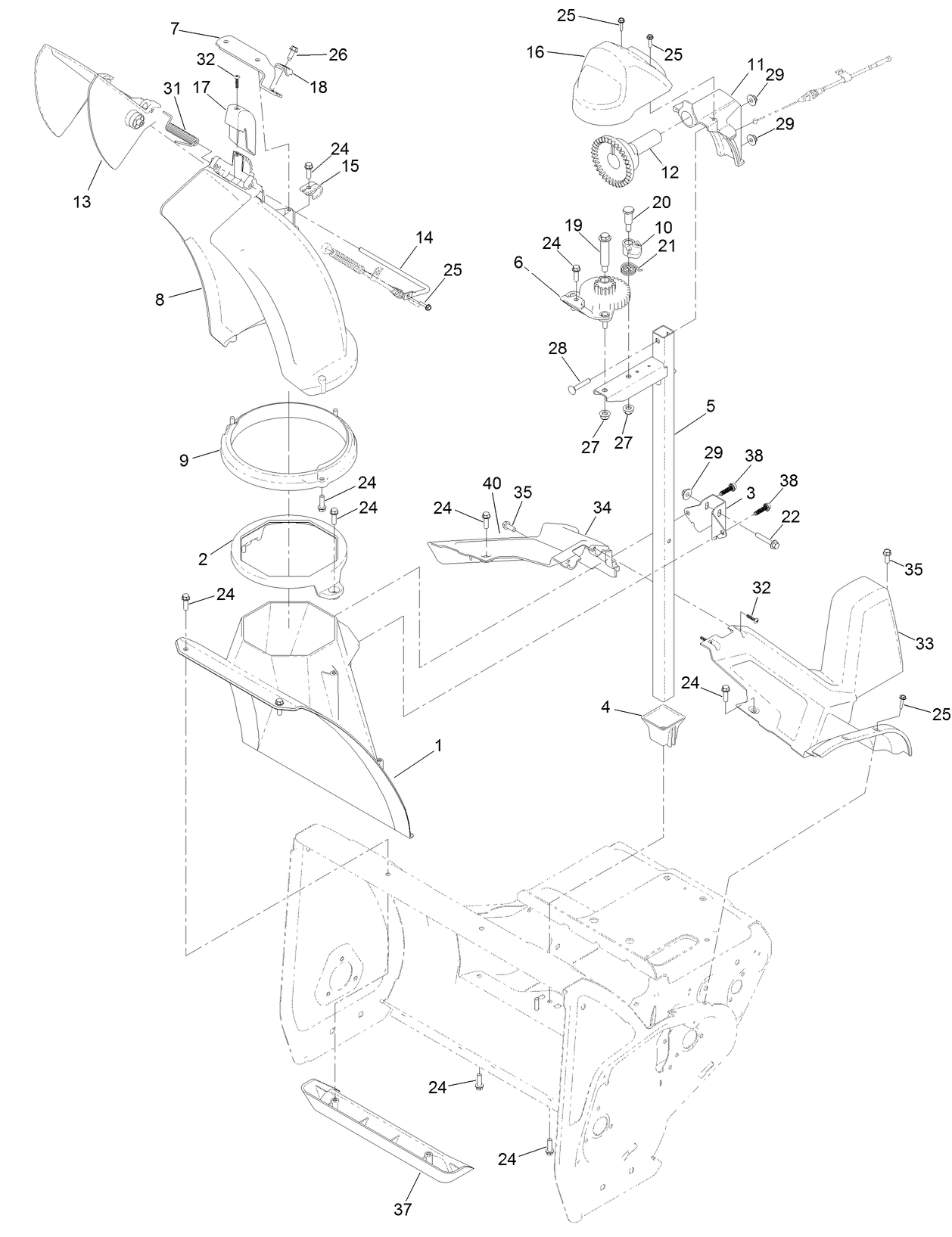

Chute Assembly
Chute Assembly
Crankcase Assembly
Crankcase Assembly

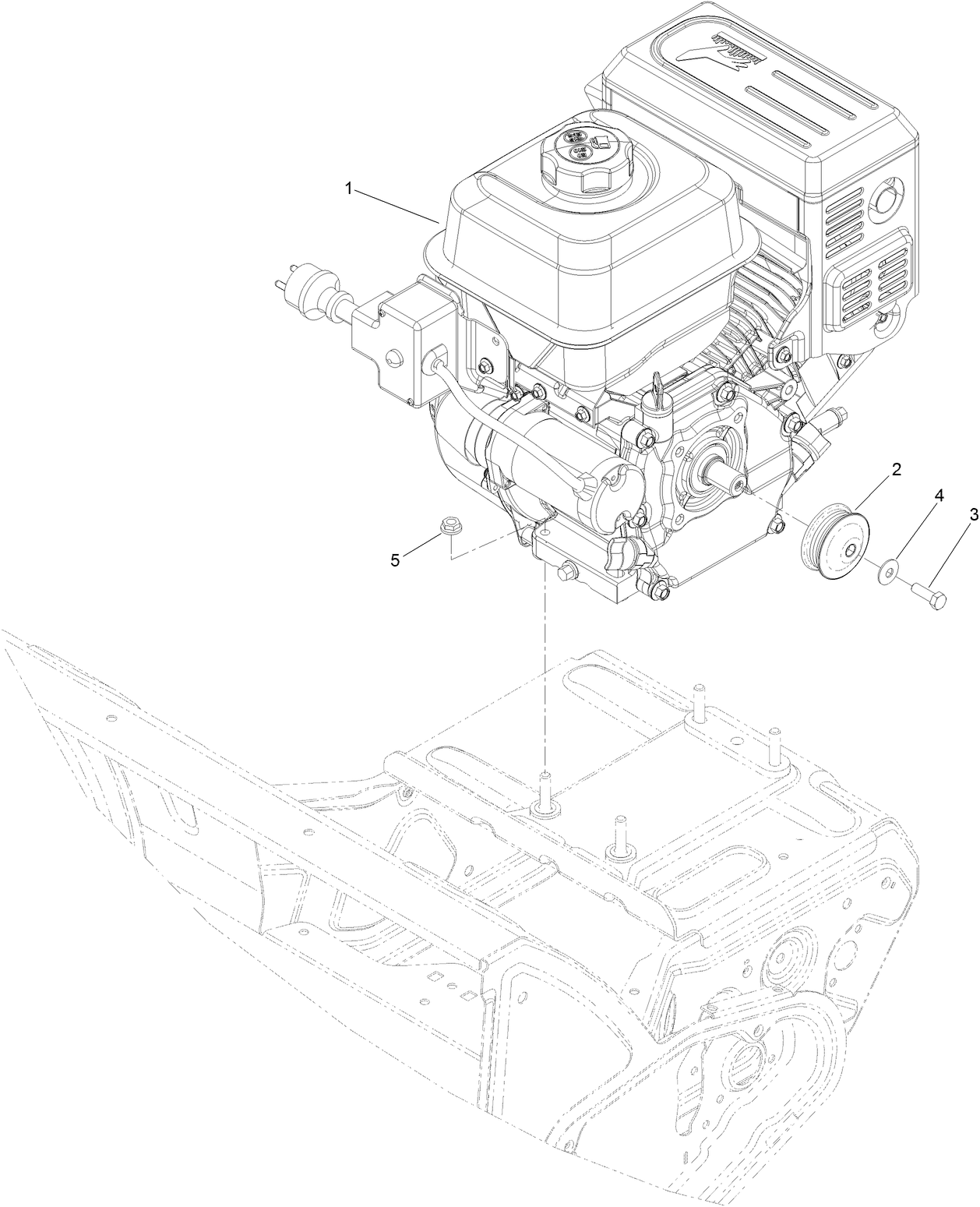

Engine Assembly
Engine Assembly

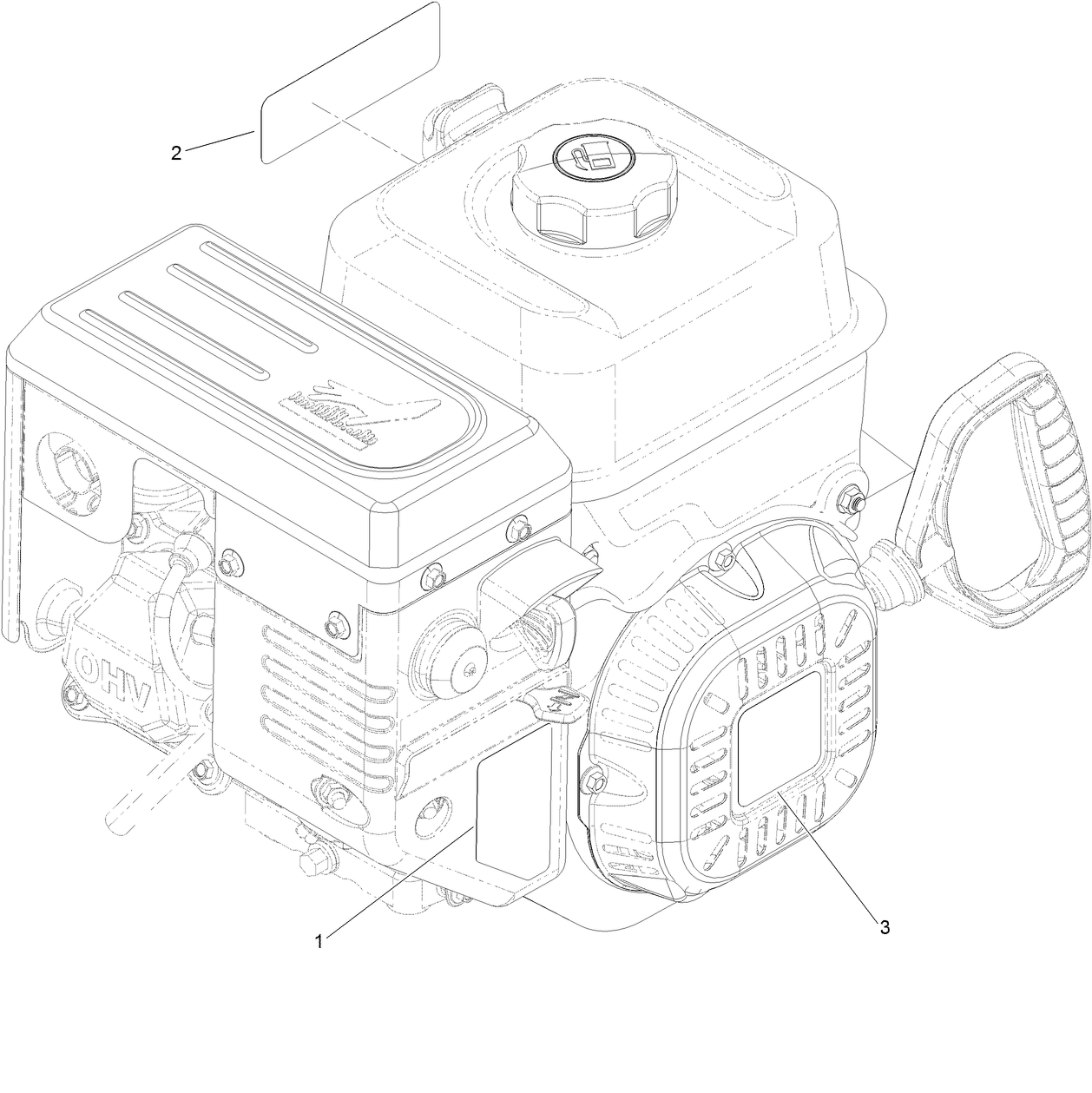

Engine Decal Assembly
Engine Decal Assembly
Fuel System and Carburetor Assembly
Fuel System and Carburetor Assembly
Governor Assembly
Governor Assembly

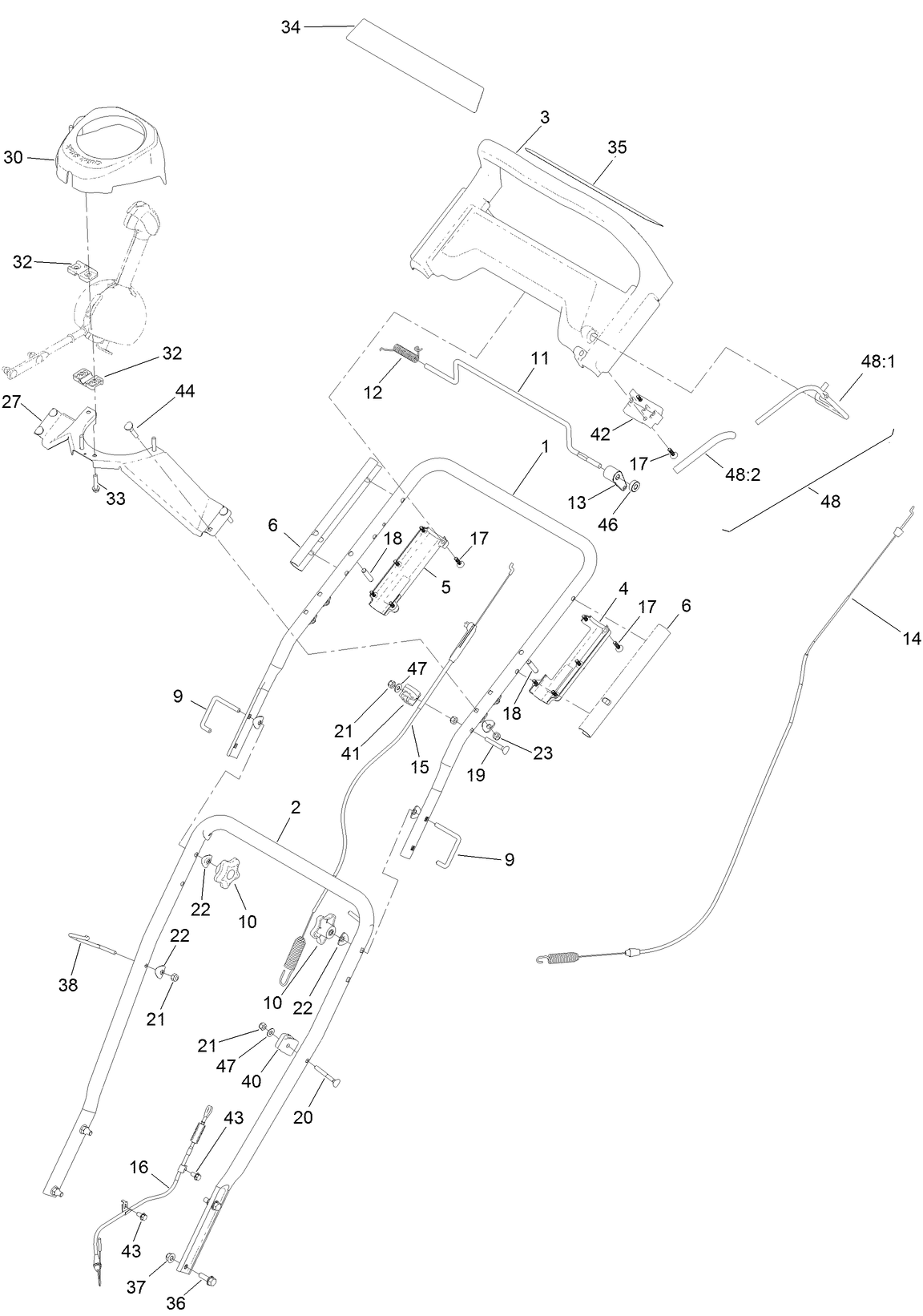

Handle and Control Assembly
Handle and Control Assembly

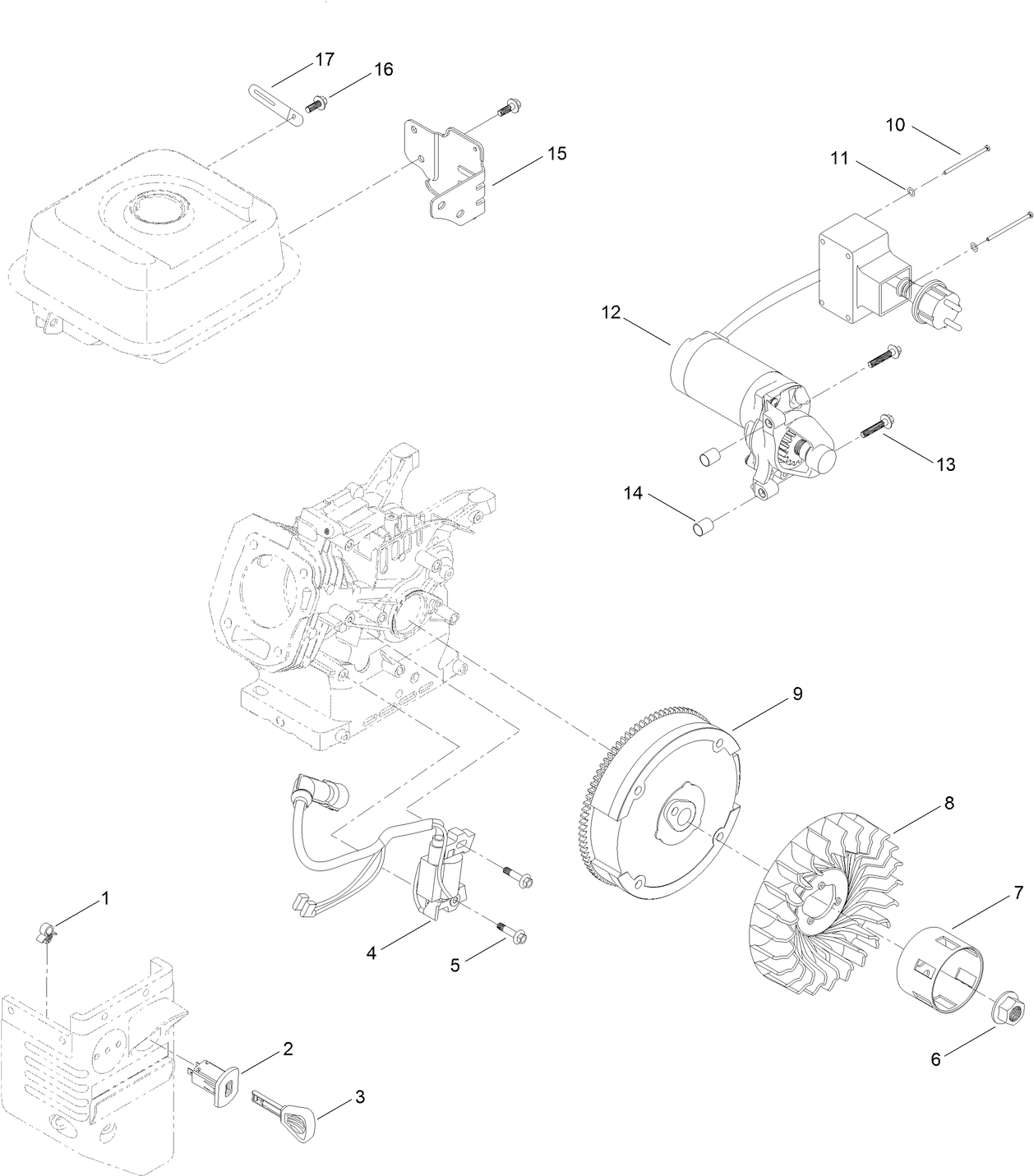

Ignition and Electrical Assembly
Ignition and Electrical Assembly
Intake and Exhaust Assembly
Intake and Exhaust Assembly
Lever Chute Control Assembly
Lever Chute Control Assembly

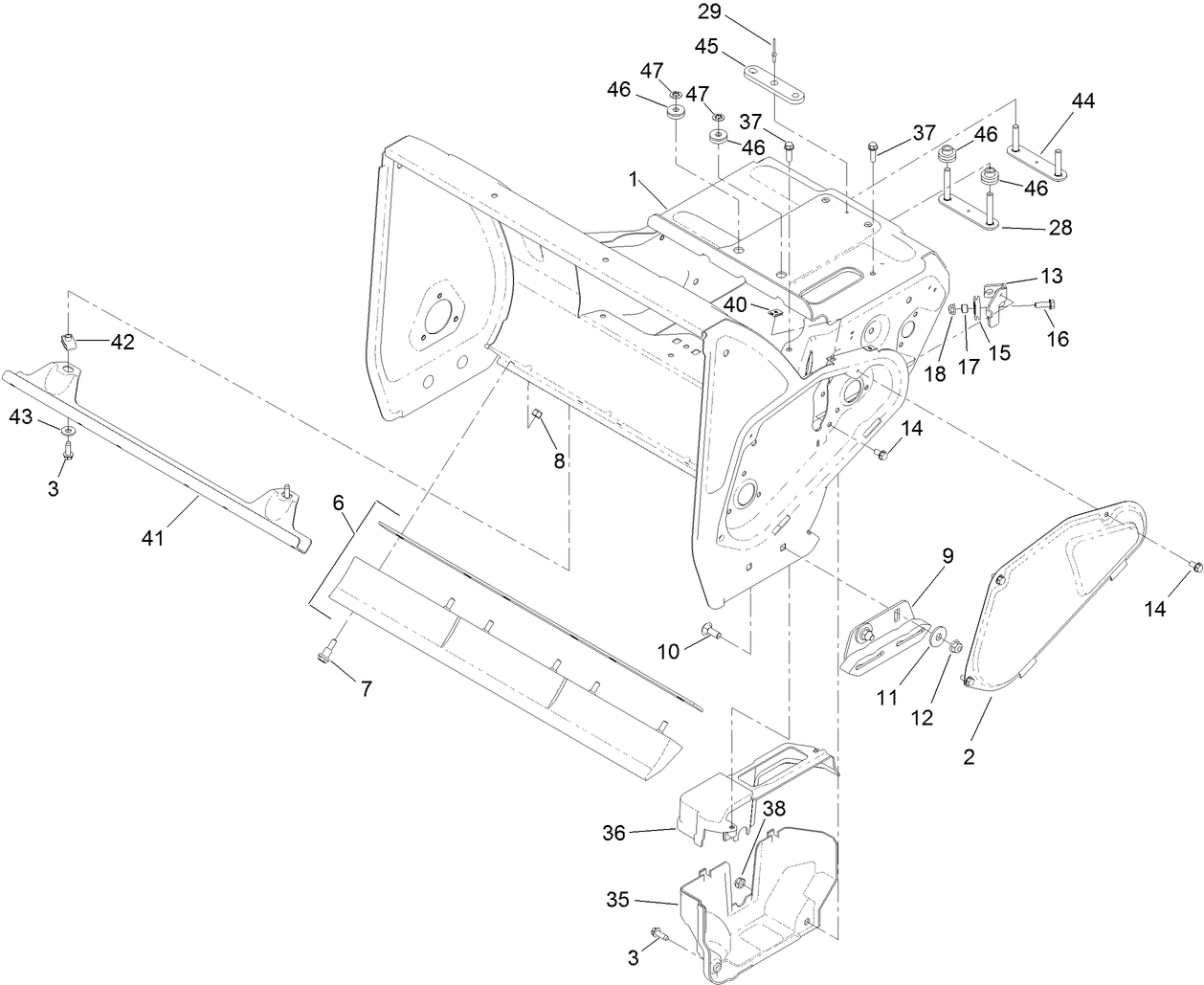

Main Frame Assembly
Main Frame Assembly
Piston and Head Assembly
Piston and Head Assembly
Rotor Assembly
Rotor Assembly
Rotor Drive Assembly
Rotor Drive Assembly
Transmission, Drive and Tire Assembly
Transmission, Drive and Tire Assembly
Download des Ersatzteilkatalogs
Bedienungsanleitung
Ersatzteilkatalog
Produktgarantie
EU-Konformitätserklärung
Motorverdunstungsemissionengarantie
Kurzanleitung

Modellnr.

38721

Seriennr.

400000000 - 408999999

Produktname

SnowMax® 724 QXE Schneefräse 38721

Produktmarke

Toro

Produkttyp

Snowthrowers

Produktserie

Snowthrower, SnowMax

Chassistyp

Single Stage

Arbeitsbreite

24 inch

Auswurf

Single Stage

Motor/Motorhersteller

Toro

Motor/Motortyp

4 Cycle

Anlasser

Electric/Recoil

Getriebetyp

Rear WD

Engine: Spark Plug Gap

.030"/ .76mm

Engine: Engine Speed

3300±100 RPM

Drive System: Ground Speed

0-3.5 mph / 0-5.6 km/h

Engine: Engine Oil Type

23.7 oz. (0.7 L) 10w 30 / 5w 30 Synthetic

Chassis: Tire Pressure

15-20 PSI (103-137 kPa)

Engine: Spark Plug

Champion RN9YC / NGK BPR6ES
