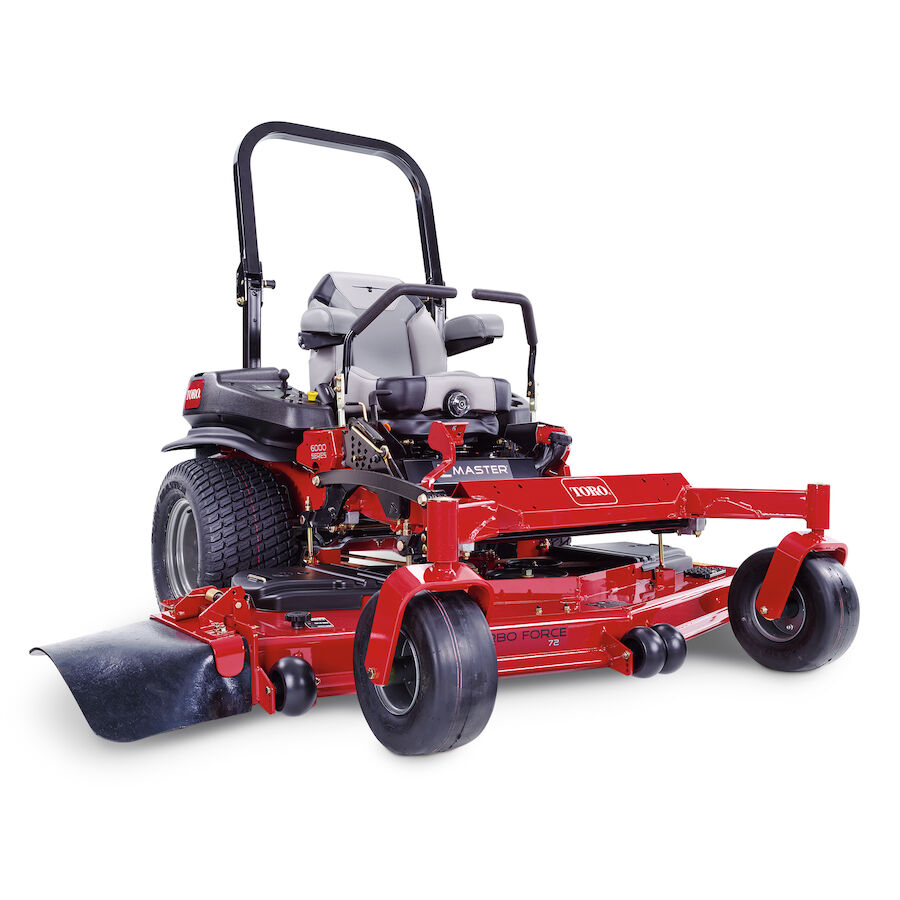

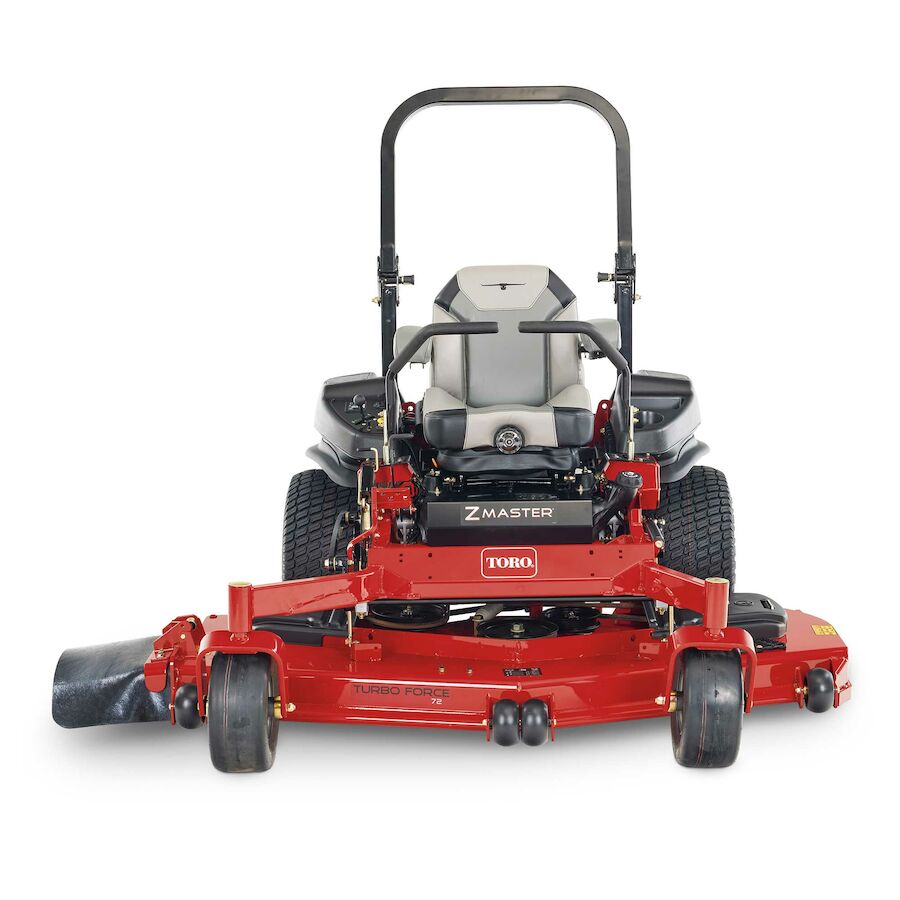

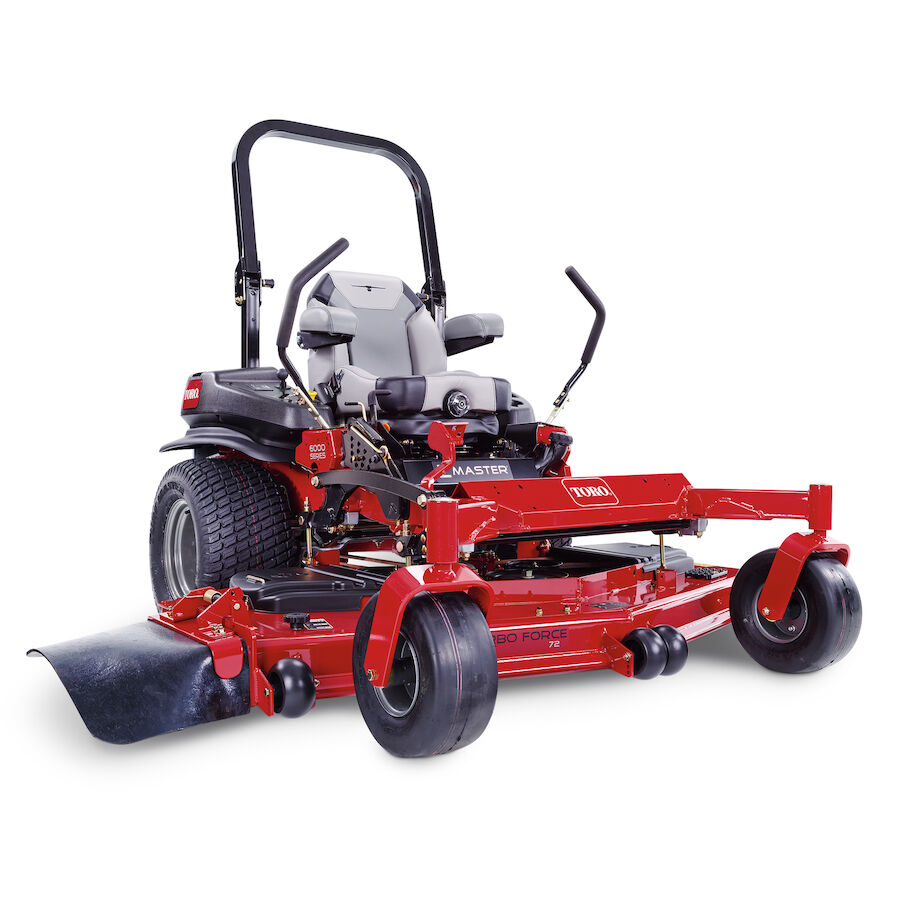

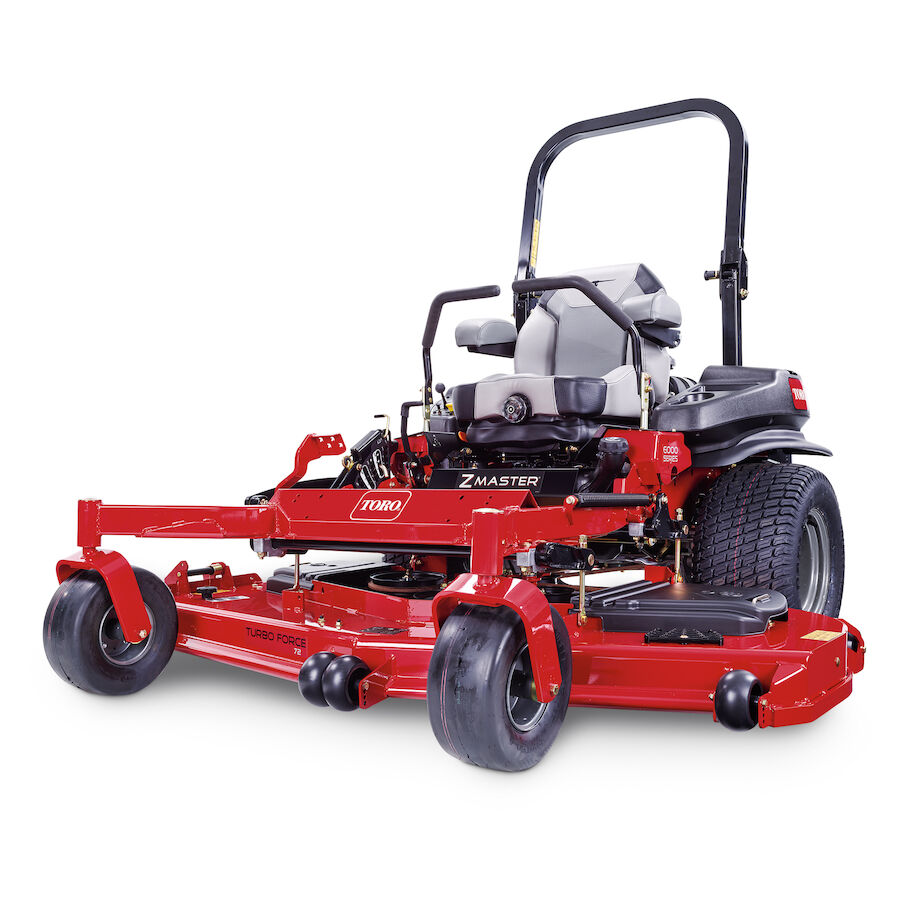

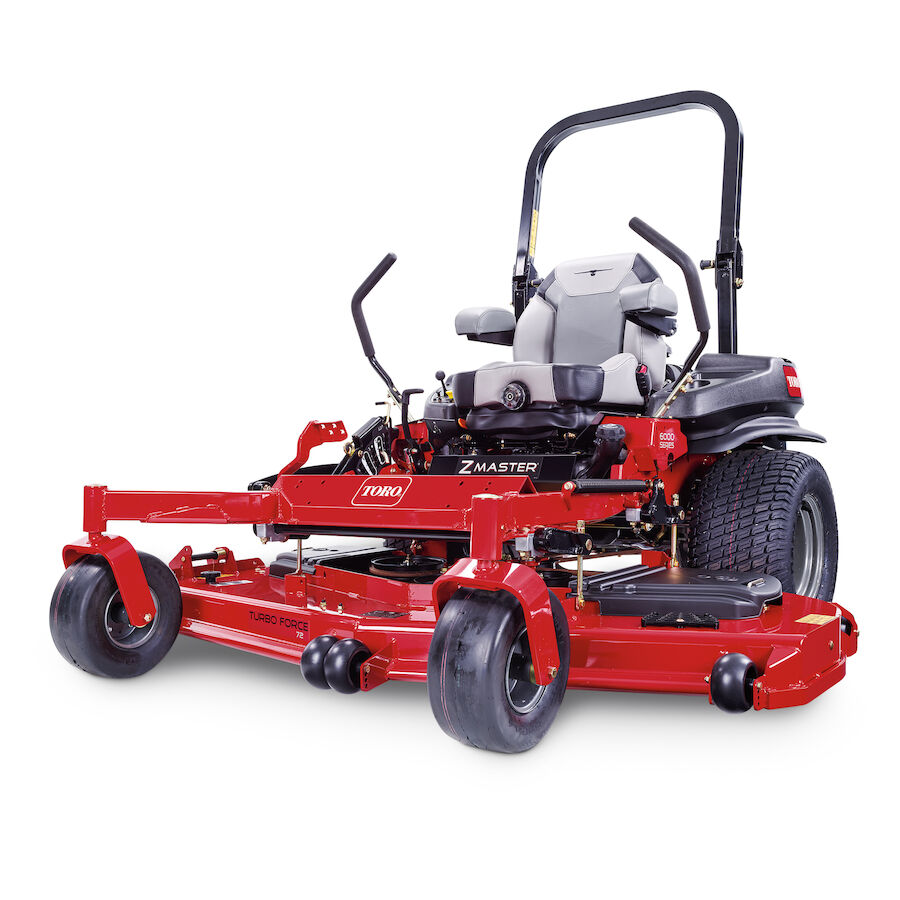

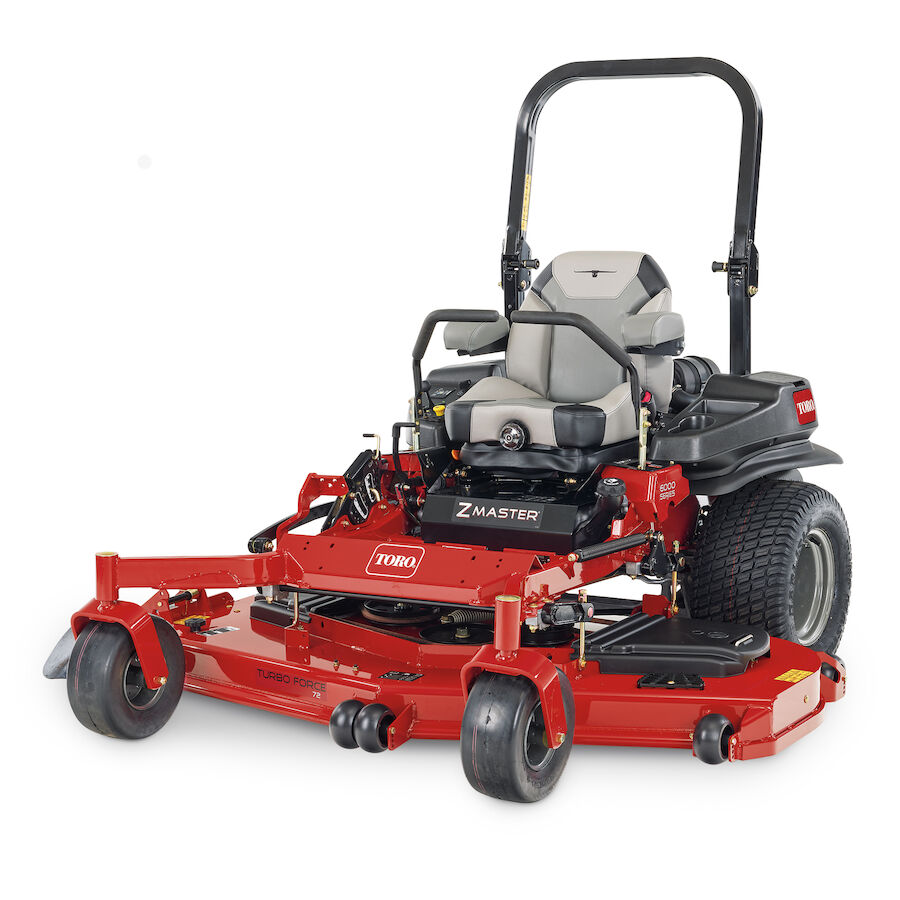

6000 Series 72 in. (183 cm) 31 hp 999cc

  • Model: 72961
  • UPC/EAN: 21038729619
See All Items in Z Master® 6000 Series
Find a Dealer
  • Our TURBO FORCE deck features heat-treated steel blades and our patented adjustable discharge chute, nothing cuts as fast or as well
  • Deluxe suspension seat features thick cushions, large bolsters and 3-D isolator mounts that absorb bumps and vibrations to reduce operator fatigue, fully adjustable to match operator comfort
  • Unitized pump and wheel motor uses proven commercial hydraulic components while eliminating hoses and other potential leak points
  • Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Overview

The Z Master 6000 Series is one of Toro’s most advanced zero-turning radius mowers. It’s also one of our most comfortable. This Z Master® 6000 Series mower has a 31 hp (23.12kW) Kawasaki® FX 999cc Engine with 72 in. (183 cm) TURBO FORCE® deck.

Features

Exclusive TURBO FORCE Deck
Exclusive TURBO FORCE Deck
High-capacity TURBO FORCE decks deliver unsurpassed strength, a superior cut, and increased productivity in extreme mowing conditions. Equipped with a patented adjustable baffle, TURBO FORCE decks can be fine-tuned in order to conquer changing turf conditions.
7-Gauge, High-Strength Steel
7-Gauge, High-Strength Steel
The TURBO FORCE deck is constructed of 7-gauge, high-strength steel which is 33% thicker and 32% higher in yield strength than ordinary 10-gauge commercial steel used in 7/10 decks. The combined effect is 75% stronger, so it easily handles the most demanding conditions and resists damage from impacts and abrasion.
A Flat Crisp Cut with Precision Blades
A Flat Crisp Cut with Precision Blades
(.250) thick precision blades resist flexing to provide a flat, crisp cut. High-strength, heat-treated alloy steel survives impacts and provides resistance to the rapid wear commonly associated with abrasive conditions. Options include Recycler® and Atomic® mulching blades, medium sail Bahai blades, and low sail sand blades.
Deluxe Handcrafted Seat with Arm Rests
Deluxe Handcrafted Seat with Arm Rests
Ultimate padding and back support with a handcrafted seat with arm rests and bullhorn logo.
Rubber Discharge Chute
Rubber Discharge Chute
High performance rubber discharge chute allows for close trimming without damaging chute or landscape structures. Patented design provides exceptional clipping dispersion.
Smarter design in a bull-nose bumper.
Smarter design in a bull-nose bumper
7-gauge bull-nose bumper not only protects against frontal impacts, but also contains an integral underskirt to minimize blowout of debris and dust. The bottom, leading edge of the deck is raised 1/4" (6 mm), allowing grass to stand more upright when entering the cutting chamber, ensuring a level cut. Leaf "plowing" during spring and fall clean-up also is significantly reduced.
Patented Adjustable Baffle
Patented Adjustable Baffle
Allows operator to achieve maximum cutting performance by fine-tuning deck to conquer changing conditions, unique job sites or different times of the season. In extreme conditions, the baffle can be opened in order to conserve power and achieve faster mowing speeds. In less demanding conditions, the baffle can be closed to yield micro-sized particles and maximize discharge velocity.
Smooth, Powerful Response
Smooth, Powerful Response
The new unitized pump and wheel motor use proven commercial hydraulic components while eliminating hoses and other potential leak points. You'll get a smoother, faster response while enjoying an even more reliable machine.
Operator Information Center
Operator Information Center
The instrument panel includes a digital hour meter, fuel gauge, and voltage meter, as well as diagnostic indicators for the safety interlock system.
Folding Rollover Protection System ROPS
Folding Rollover Protection System ROPS
A Rollover Protection System (ROPS), complete with seat belt, comes standard for operator protection in the case of accidental rollovers and tipovers. In situations where sufficient vertical clearance is not available, such as loading on an enclosed trailer, the ROPS can be temporarily unlocked and folded down.
Cast Aluminum Spindle
Cast Aluminum Spindle
Cools quickly for enhanced durability and performance.
Horizon360 system used by contractor
Horizon360® Business Management Software.
Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

For more information click here.

Specifications

Adjustable Discharge Baffle Standard, Tools-Free
Air Filter Heavy-Duty Canister Air Cleaner
Armrests Standard
Blade Tip Speed 18,500 ft/min / 5,638 m/min
Blades .204" (.5 cm) Heat-Treated Steel
Box Dimensions 91.3 in. x 80 in. x 52.5 in. / 232.0 cm x 203.2 cm 133.4 cm
CARB Compliant Not CARB Compliant
Carrier Frame 3" x 1.5" x 10 gauge (7.6 cm x 3.8 cm x 10 gauge)
Caster Tires 13” X 6.5” – 6” (33 cm x 16.5 cm – 15.2 cm) Flat-Free Semi-Pneumatic
Clutch Electromagnetic
Comfort Platform Deluxe Suspension with 3-D Isolation Mounts
Cutting Width 72 in / 183 cm
Deck Design 80-Grade 7-gauge 72" (183 cm) TURBO FORCE® w/bull-nose bumper
Deck Material 7 Gauge Steel
Discharge Chute Rubber
Drive System Unitized Pumps 16cc and Wheel Motors 17.1 cir
Drive Tires 24" x 12" – 12" (61 cm x 30.5 cm – 30.5 cm)
Engine 31 HP* (23.12 kw) Kawasaki® FX 999cc
Engine Brand Kawasaki
Engine Displacement (cc) 999 cc
Engine Horsepower 31.0 hp
Forward Ground/Transport Speed Up to 11.5 mph / 18.5 kph
Front Bumper Reinforced Bull-Nose
Fuel Capacity 12 gal. / 45.4 L / 48 Qt.
Fuel Type Gasoline
Height of Cut 1.0 - 5.5 in. / 2.5 - 14.0 cm
Hour Meter Standard
Hydraulic Fluid Premium synthetic
Product Type Zero Turn Mowers
Roll-Over Protection (ROPS) Folding; Standard
Seat Handcrafted Deluxe Suspension Seat with Arm Rests Featuring Bullhorn Accent
Spindle Bearings Maintenance-free
Spindle Housing 9 in / 22.9 cm Diameter Cast Aluminum
Start Type Electric
Steering Controls 1-5/8" (4.1 cm) Diameter Grips; Adjustable, Dampened
Steering Dampeners Standard Dampers
Weight 1,329 lbs / 602.8 kg

Disclaimer

*The gross horsepower of this engine was laboratory rated at 3600 rpm by the engine manufacturer in accordance with SAE J1940 or SAE J1995. As configured to meet safety, emission, and operating requirements, the actual engine horsepower on this class of mower will be significantly lower.

Accessories

Leaf Bagging Enhancement Kit (Part # 107-1634)
Hitch Kit (Part # 109-9487)
HYPR-OIL 500 -QUART (Part # 114-4713)
HYPR-OIL 500-GALLON (Part # 114-4714)
HYPR-OIL 500-5 GALLON (Part # 114-4715)
BIMINI FOLDING SHADE ASM (Part # 115-4510)
G3 Roller Striping Kit, 72" (Part # 115-7480)
KIT,FRPS LIGHT (Part # 116-1154)
SEAT COVER W/ARM REST - Z MASTERS (Part # 117-0095)
Z Stand Kit, Z Master G3 Riding Mower with 72-in Deck (Part # 117-0354)
Operator-Controlled Discharge Chute Kit (Part # 117-3600)
KIT - SEAT TILT FRAME AND ISO MOUNT (Part # 121-7596)
KIT-ROPS LOCK TORO (Part # 126-4064)
Jack Kit, Zero-Turn-Radius Side-Discharge or Rear-Discharge Riding Mow (Part # 127-6666)
Power Deck Lift Kit, Zero-Turn-Radius Riding Mower (Part # 132-5986)
Worklight Kit (Part # 135-7320)
BUCKET MOUNT KIT- Z-MASTER (Part # 137-9216)
TRIMMER MOUNT, Z-MASTER (Part # 137-9769)
RECYCLER KIT-G3/GM 3300 72" (Part # 139-6659)
24X12N12 - TWEEL TURF (Part # 139-7891)
BLADE (Part # 140-1238)
BLADE-24.50 ATOMIC (Part # 140-1239)
BLADE-24.50 MEDIUM FLOW (Part # 140-4850)
BLADE-24.50 LOW FLOW (Part # 140-4851)
BLADE-24.50 RECYCLER (Part # 140-4852)
6 PACK-BLADE, 24.5 HIGH FLOW (Part # 140-4872)
6 PACK-BLADE, 24.5 MED FLOW (Part # 140-4873)
6 PACK-BLADE, 24.5 LOW FLOW (Part # 140-4874)
6 PACK-BLADE, 24.5 ATOMIC (Part # 140-4875)
6 PACK-BLADE, 24.5 RECYCLER (Part # 140-4876)
WEIGHT KIT, UNDER TOE BOARD (Part # 140-4958)
Slope Sensor-Lazer/Z-Master 3000/5000/6000 (Part # 142-4910)
Jack Mount Kit (Part # 146-0696)
BLADE-24.50 HIGH FLOW (Part # 147-6253)
6 PACK-BLADE, 24.50 HIGH FLOW (Part # 147-6257)
13INX6.5N6 CASTER TWEEL ASM (Part # 147-6295)
TORO RIDER OVER SEAT BAG (Part # 490-7317)
Toro Deluxe Z Cover (Part # 490-7319)
TORO RIDER ARM REST BAG (Part # 490-7320)
Spark Arrestor Screen (Part # 75-6880)
Blower and Drive Kit, 72in E-Z Vac for Z Master G3 Mower (Part # 78554)
72in E-Z Vac Triple Bagging System (Part # 78555)
72in E-Z Vac DFS Collection System (Part # 78556)
Filter Minder Gauge (Part # 99-4664)
KIT, TRASH HOLDER (Part # TC26)

Documents

Title Documents
Z Master 6000 Brochure PDF - Sellsheet-en-CA

Parts & Manuals

Select your model year from the options below to view parts & manuals.

72961 Serial #
416446720-999999999
415300000-416446719
414121574-415299999
413000000-414121573
412413841-412999999
409035563-412413840
400000000-409035562



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
