TimeCutter MX 5025 Riding Mower
Product Information
- Model #: 74776
- Serial #: 404315000 - 999999999
- Product Type: Riding Products
Loading...

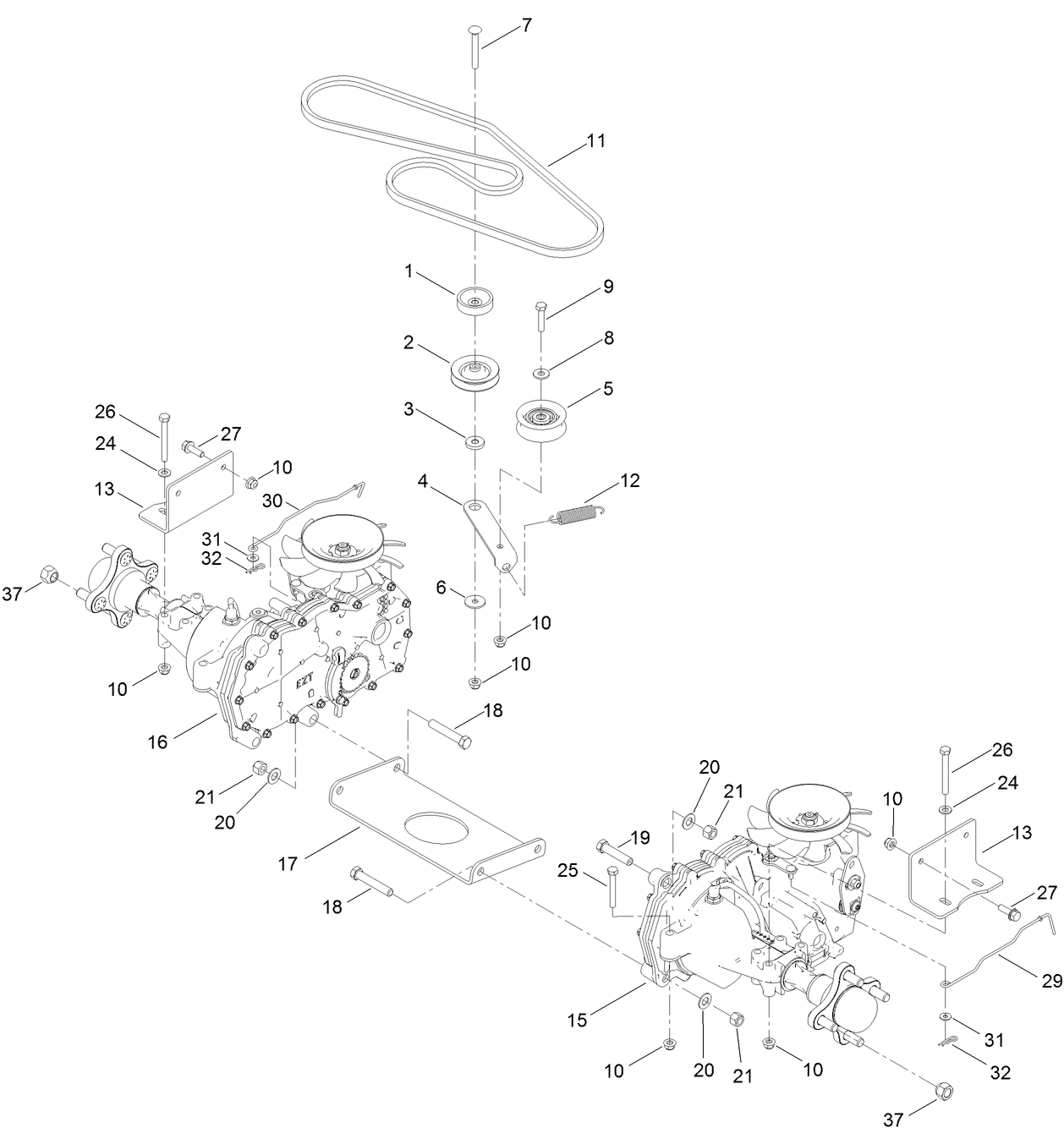

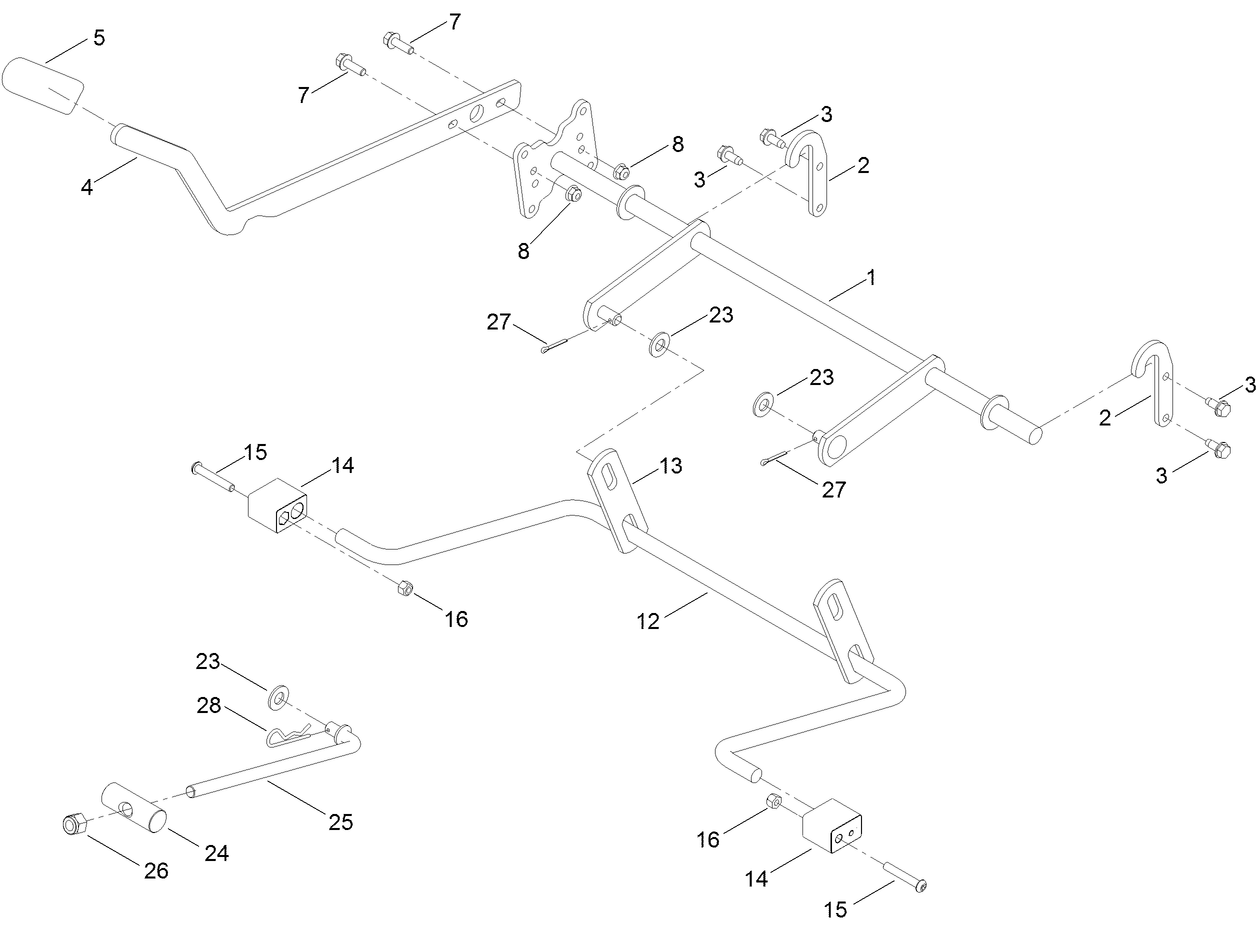

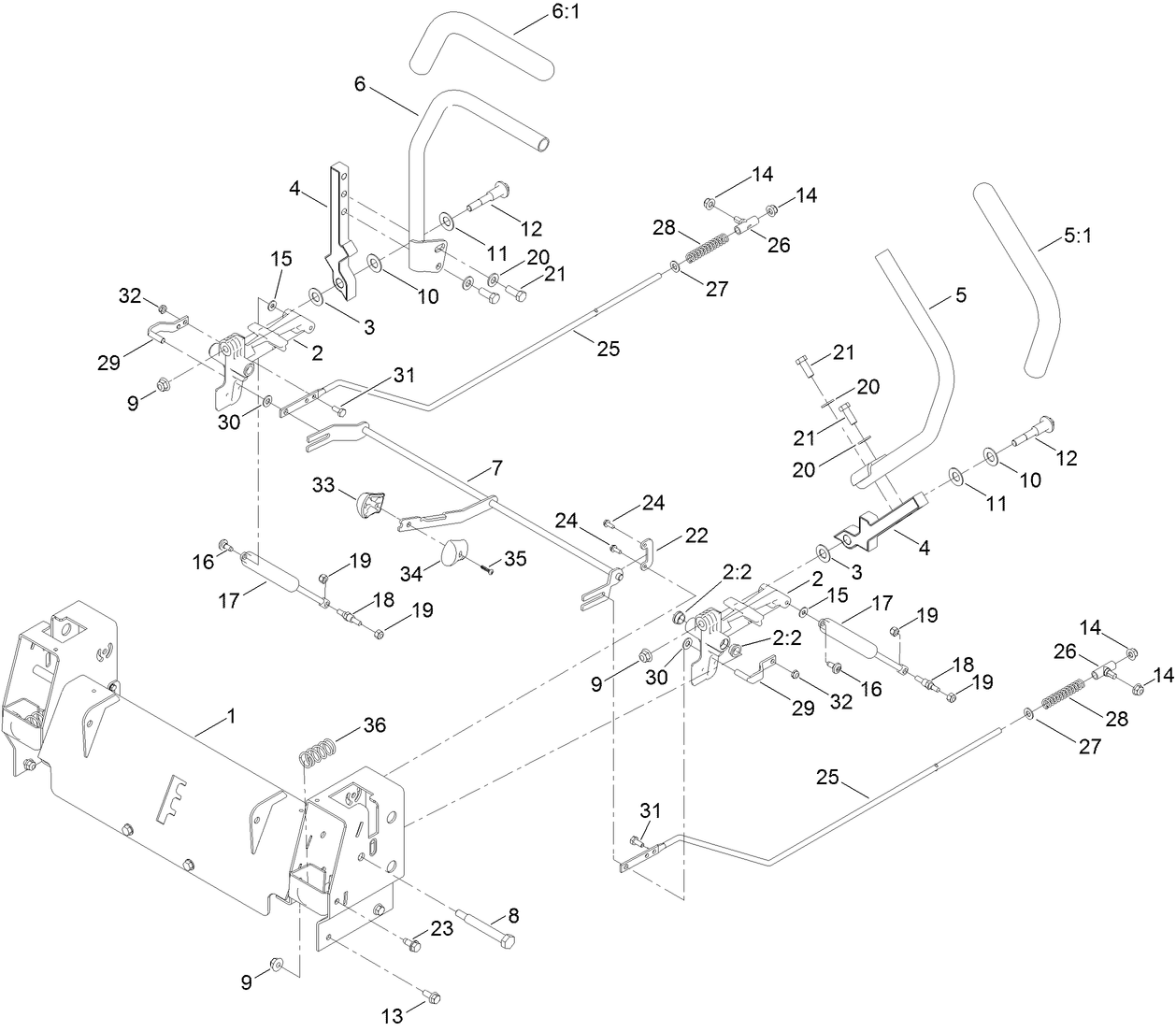

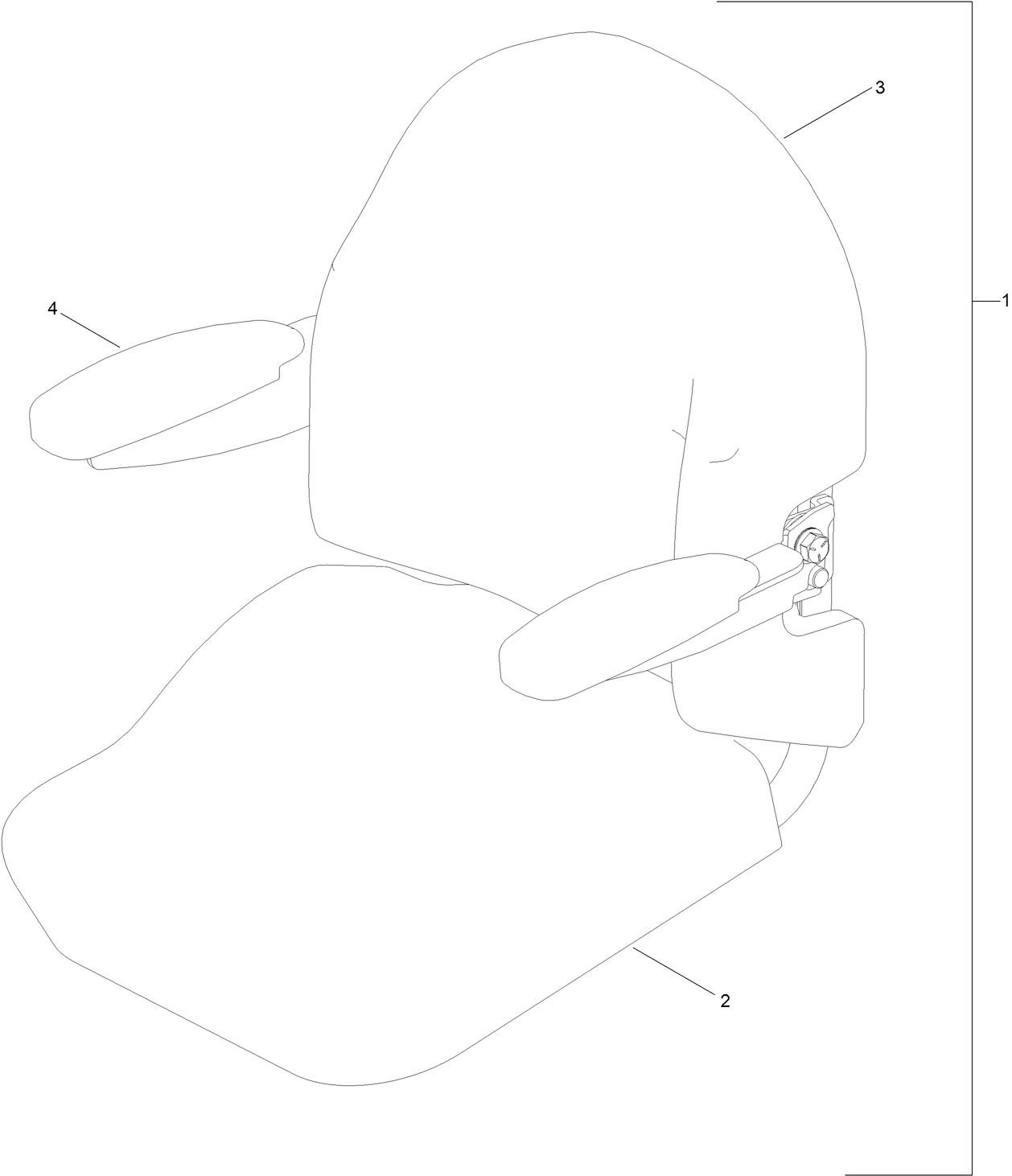

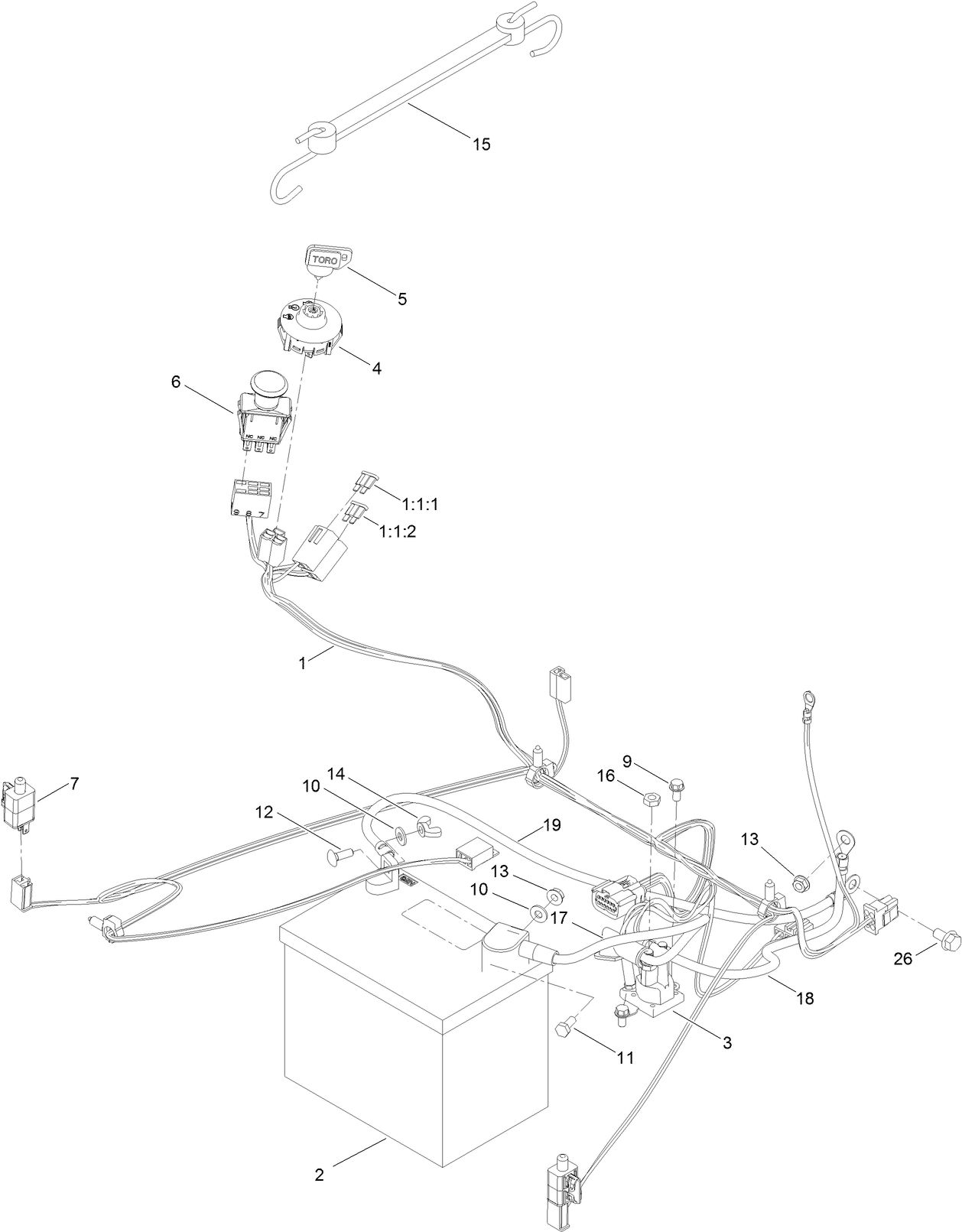

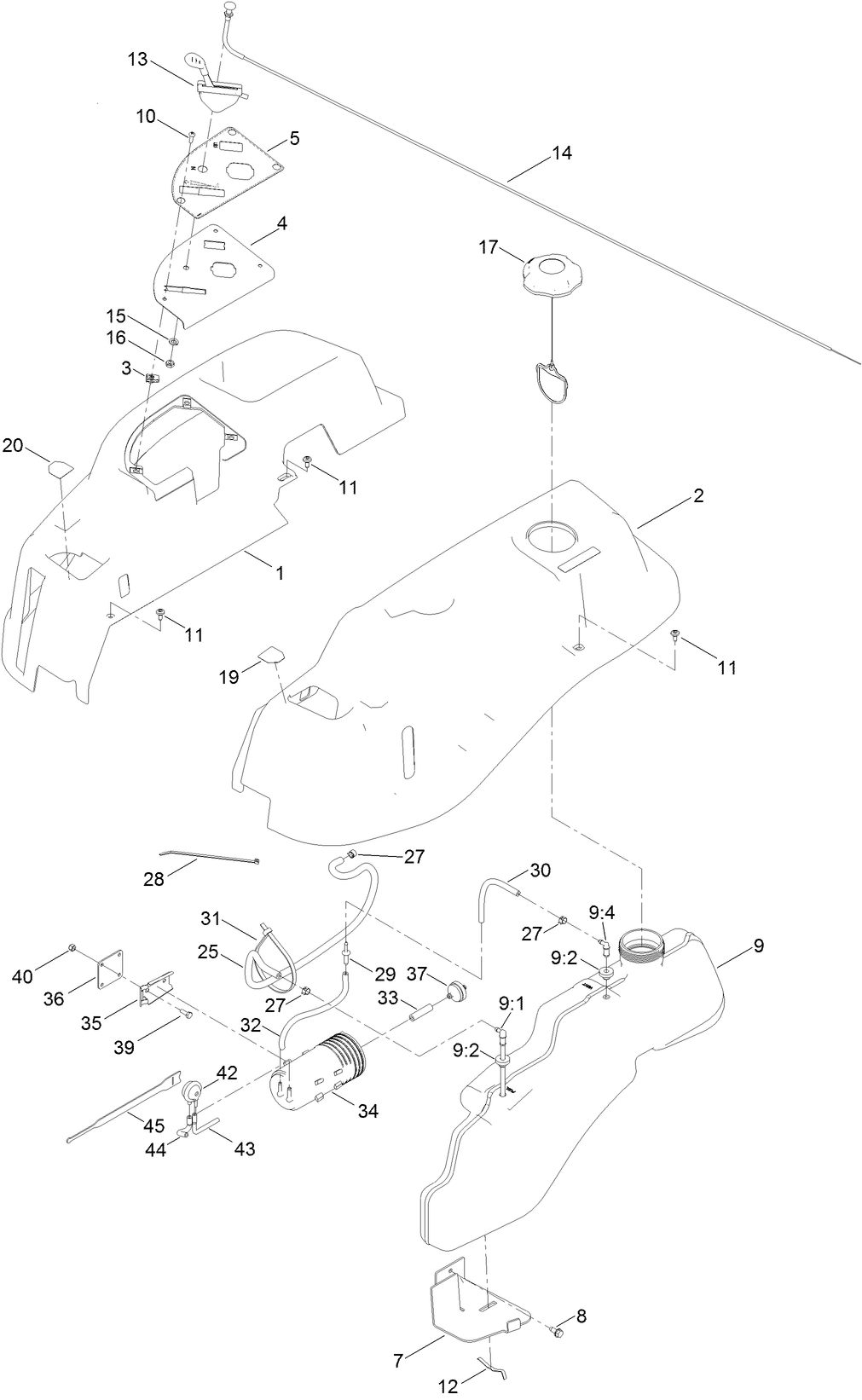

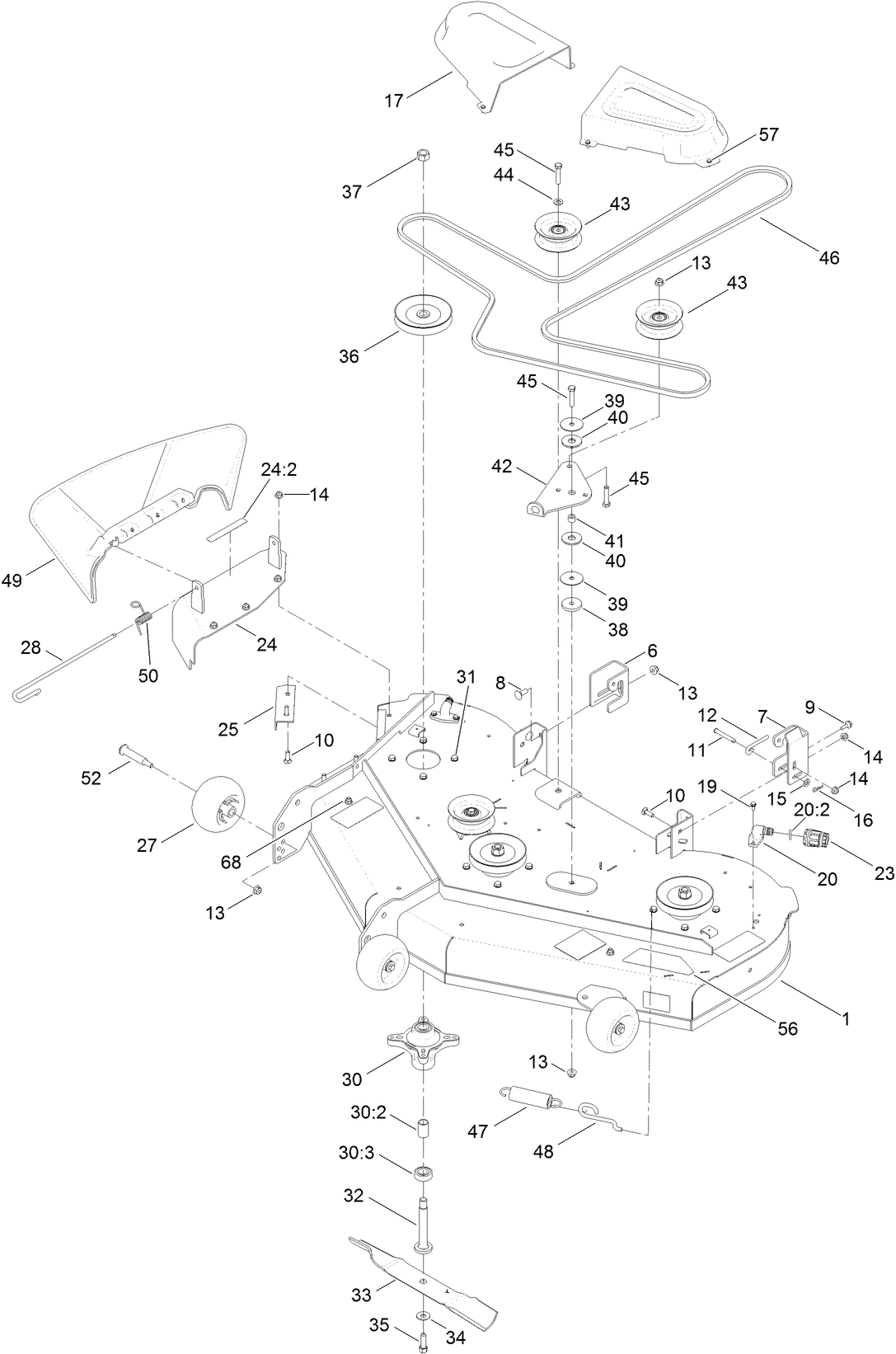

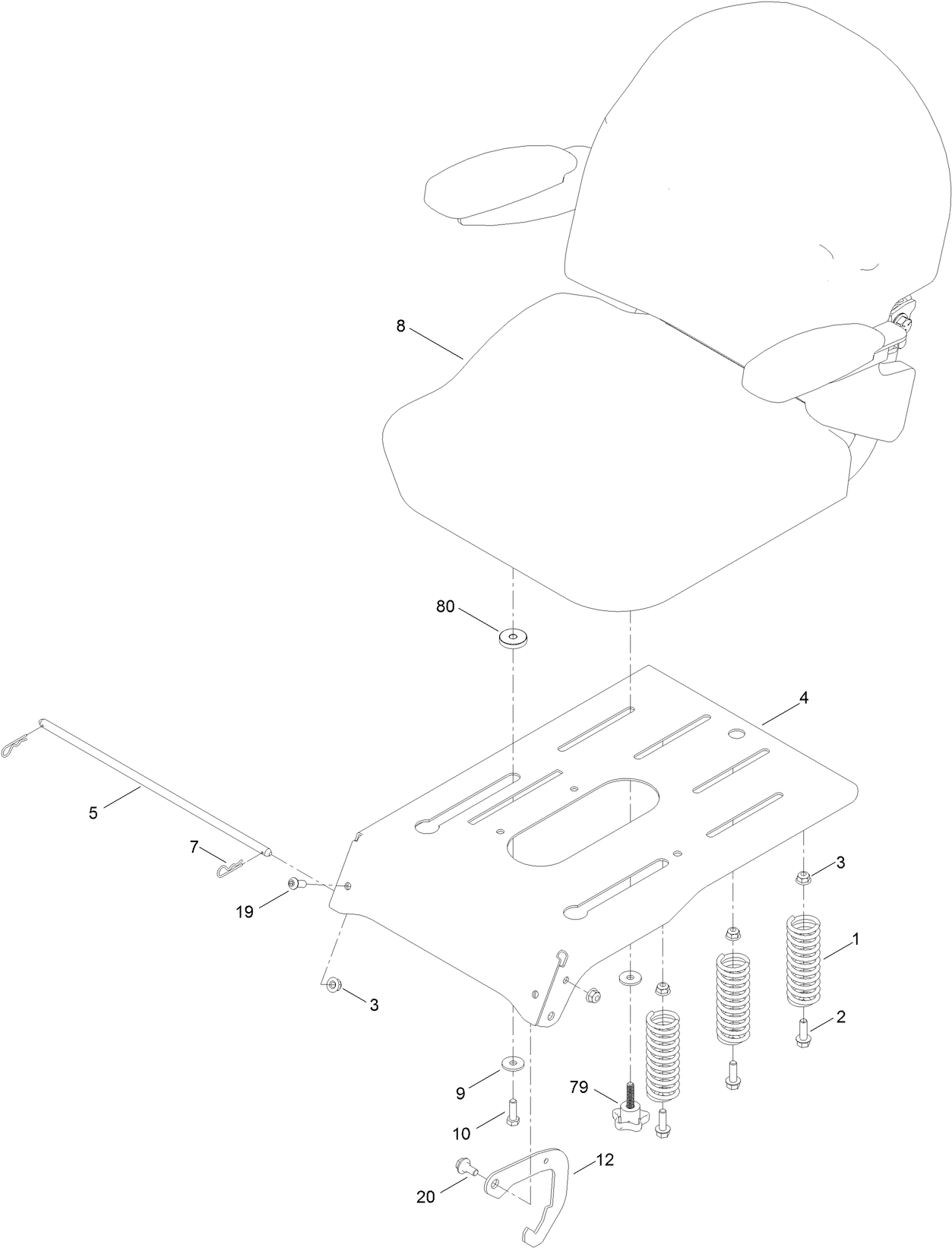

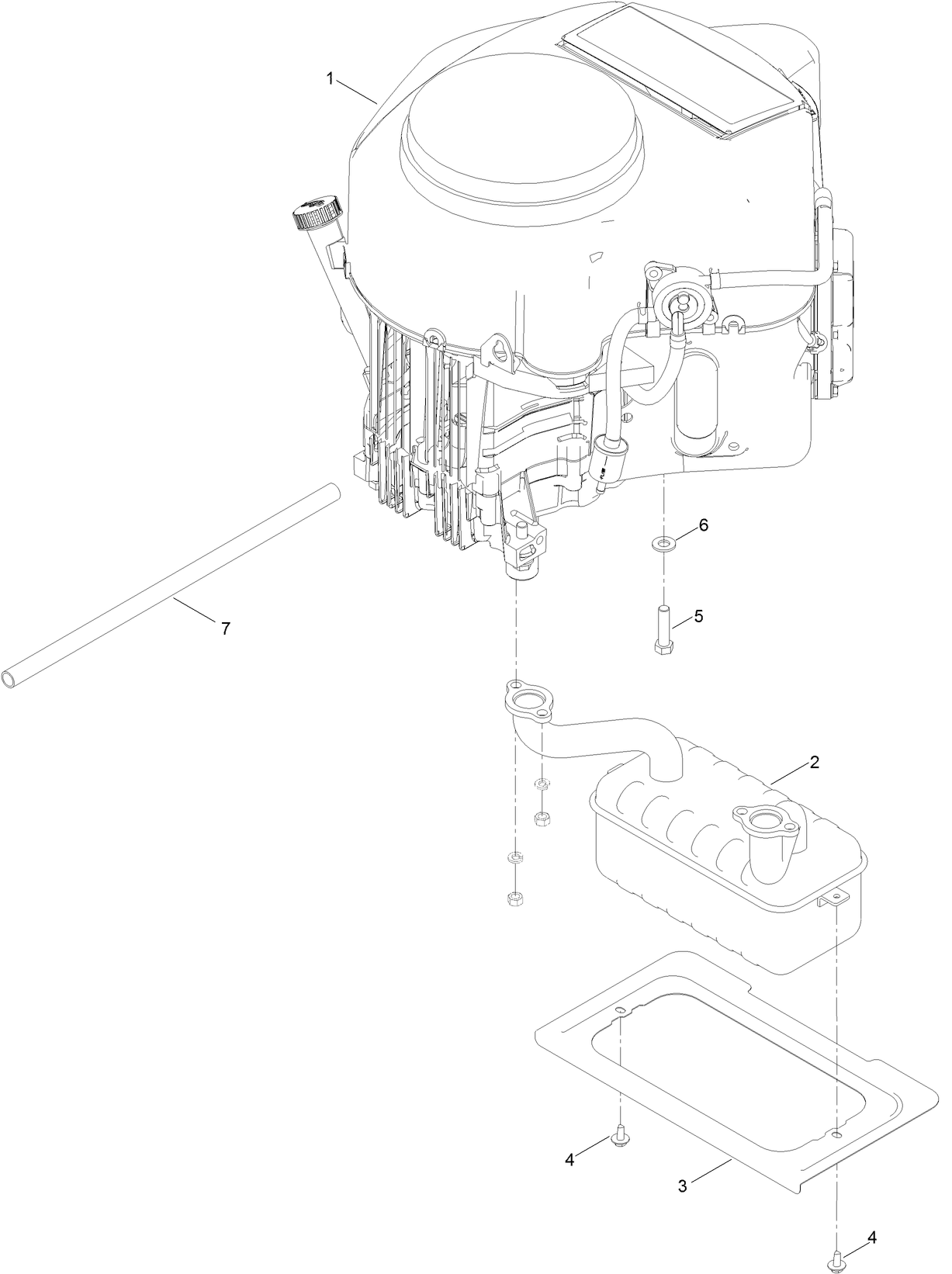

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Parts Catalog
-
Product Warranty
-
Setup Instructions
Hourmeter Kit, 2011 and After Zero-Turn-Radius Riding Mower (Part # 116-5461)
OIL - SYNTHETIC, ALL SEASON (Part # 117-0066)
SEAT COVER W/ARM REST - TC, TITAN 18I (Part # 117-0097)
Bagging Enhancement Kit, Zero-Turn-Radius Riding Mower with 50in Cutti (Part # 121-5692)
Striping Kit, Zero-Turn-Radius Riding Mower with 50in Cutting Unit (Part # 121-5706)
Jack Mount Kit (Part # 126-5251)
Jack Kit, Zero-Turn-Radius Side-Discharge or Rear-Discharge Riding Mow (Part # 127-6666)
Fuel Stabilizer .05 oz (Part # 130-2393)
4-CYCLE FUEL, SNOW AND LAWN, 32OZ CAN (Part # 131-3823)
Attachment Mount Kit, Zero-Turn-Radius Riding Mower (Part # 131-3966)
Toro Premium Fuel Treatment (Part # 131-6572)
Weight Kit, Zero-Turn-Radius Riding Mower (Part # 131-7658)
Floor Mat Kit, Lever Steering Zero-Turn-Radius Riding Mower (Part # 132-6921)
SEAT ASM [RINCON] (Part # 136-5598)
Heat Shield Kit, TimeCutter Riding Mower (Part # 137-7065)
Pro-control Damper Kit (Part # 138-7588)
10W30 4-CYCLE ENGINE OIL 32 OZ BOTTLE (Part # 38280)
TORO 4-CYCLE SAE 30 OIL (32OZ BOTTLE) (Part # 38903)
COVER (Part # 490-7516)
Foot Assist Deck Lift Kit, 2011 and After Zero-Turn-Radius Riding Mowe (Part # 79010)
Sunshade Kit, 2011 and After Zero-Turn-Radius Riding Mower (Part # 79011)
BLADE KIT - TIMECUTTER 50IN (Part # 79016P)
50in Recycler Kit, TimeCutter MX Series Riding Mower (Part # 79024)
Assist Handle and Step Kit, Riding Mower (Part # 79339)
TimeCutter MX & SWX 50 in. Twin Bagger (Part # 79395)
The Toro TimeCutter Twin Bagger with its 6.43 bushel (8 cu. ft.) capacity makes quick work of taking care of grass clippings or fallen leaves. When paired with one of Toro's top discharge decks, its performance can't be beat. It assembles easily and once initially installed, can be removed and put back on without tools. Includes bagger, mount kit and front weights.
-
Model #
74776 -
Serial #
404315000 - 999999999 -
Product Name
TimeCutter MX 5025 Riding Mower -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Zero Radius Turn, Consumer -
Chassis Type
ZRT - Consumer -
Swath
50 inch -
Discharge
Side Discharge -
Engine/Motor Manufacturer
Kawasaki -
Engine/Motor Size
23 hp -
Engine/Motor Type
4 Cycle -
Engine Starter
Electric -
Transmission Type
Hydrostatic -
Traction Type
Rear WD
-
Engine: Ignition Coil Air Gap
.010" / .25mm -
Engine: Spark Plug
NGK BPR4ES -
Engine: Spark Plug Gap
.030"/ .76mm -
Engine: Engine Speed
3250±100 RPM -
Chassis: Tire Pressure
13 psi / 90 kPa -
Chassis: Height of Cut Range
1.5-4.5"; 1/2" increments -
Engine: Battery
12V 230CCA -
Drive System: Ground Speed
Forward: 0-7 mph -
Engine: Engine Oil Type
71 oz. (2.1L) 10w-30 with filter change -
Drive System: Gearbox Lubricant
HYPR-OIL 500 / 20w-50 Synthetic Motor Oil
