T4240 4-Wheel Drive 5-Plex Traction Unit

Product Information

  • Model number: 02750
  • Serial number: 316000001 - 316999999
  • Product Type: Riding Products

Assembly Drawings

Search for a part within assembly drawings:

2 Post Roll Over Protective Structure
2 Post Roll Over Protective Structure
Alternator and Pulley ASM
Alternator and Pulley ASM
Alternator Components Assembly
Alternator Components Assembly
Battery / Hourmeter
Battery / Hourmeter
Camshaft and Idle Gear Shaft Assembly
Camshaft and Idle Gear Shaft Assembly
Centre Arm
Centre Arm
Chassis
Chassis

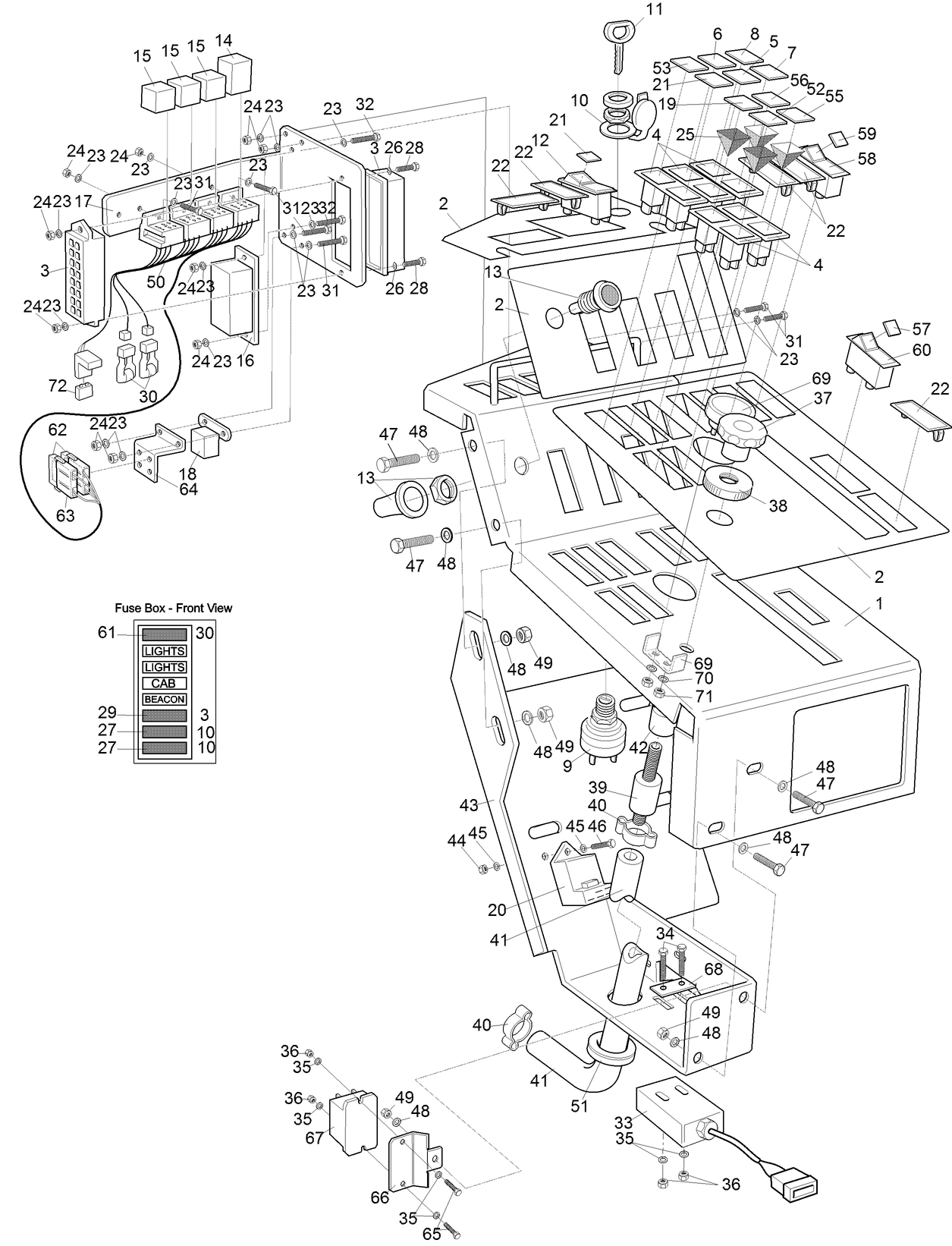

Control Panel
Control Panel
Control Pedals
Control Pedals
Crankcase ASM
Crankcase ASM
Cutter Sub Plate / Control Valve
Cutter Sub Plate / Control Valve
Cutterhead Fixings
Cutterhead Fixings
Cylinder Head ASM
Cylinder Head ASM
Cylinder Head Cover Assembly
Cylinder Head Cover Assembly

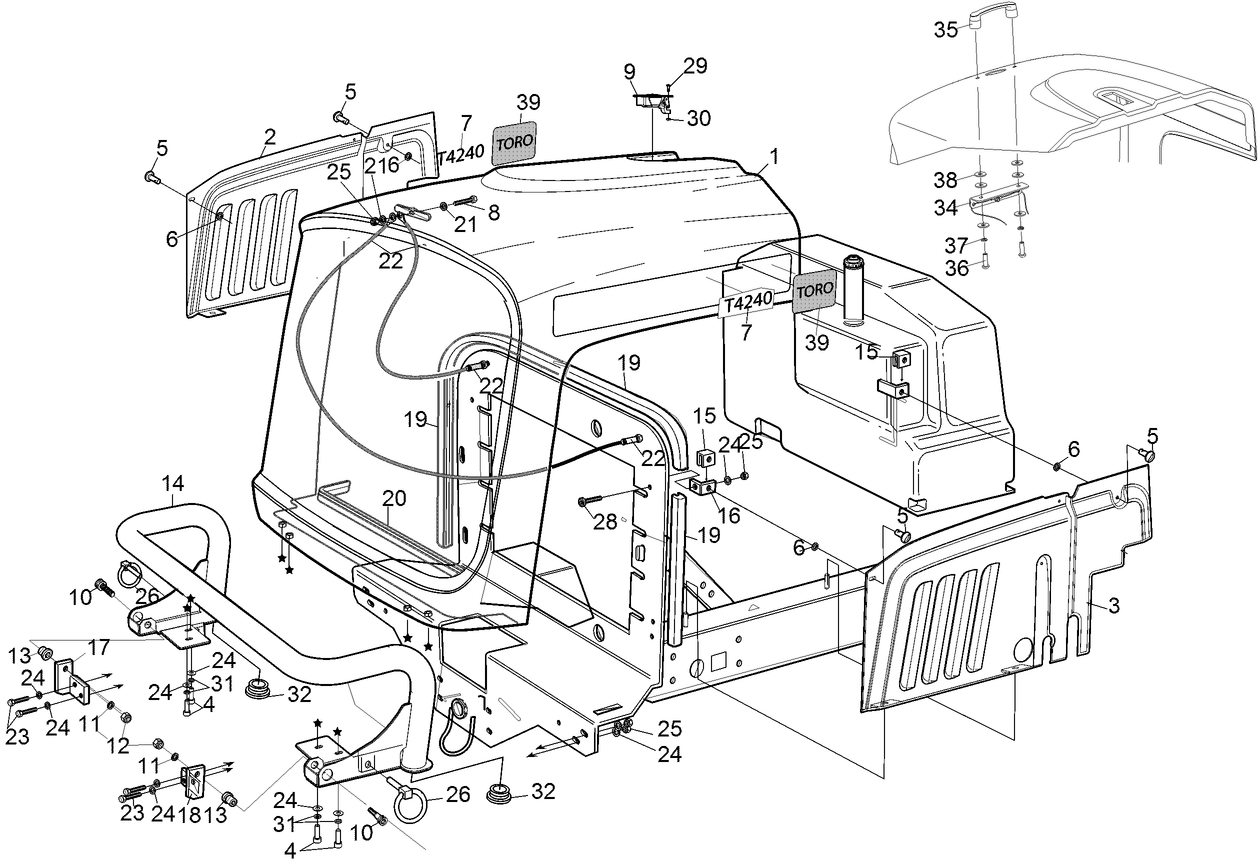

Engine Cover & Side Screen
Engine Cover & Side Screen

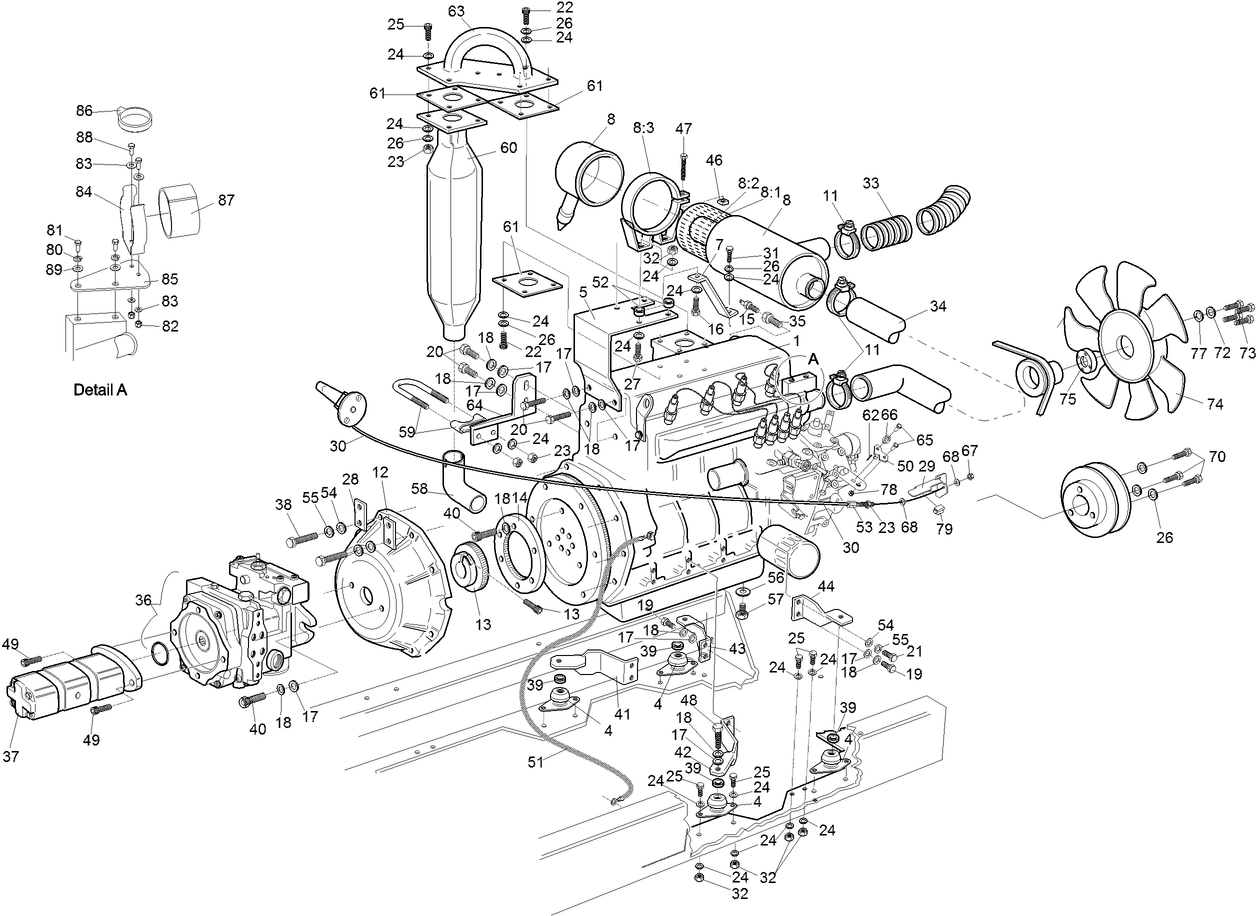

Engine Mounted Components
Engine Mounted Components
Engine Stop Lever and Stop Solenoid Assembly
Engine Stop Lever and Stop Solenoid Assembly
Floating Head Kit
Floating Head Kit
Flywheel ASM
Flywheel ASM
Front Arms Assembly
Front Arms Assembly
Front Wheels & Footsteps
Front Wheels & Footsteps
Fuel Camshaft and Governor Shaft ASM
Fuel Camshaft and Governor Shaft ASM
Fuel Filter Assembly
Fuel Filter Assembly
Fuel Tank Assembly
Fuel Tank Assembly
Gear Case & Oil Filter ASM
Gear Case & Oil Filter ASM
Governor ASM
Governor ASM
Grooved Front Roller Kit
Grooved Front Roller Kit

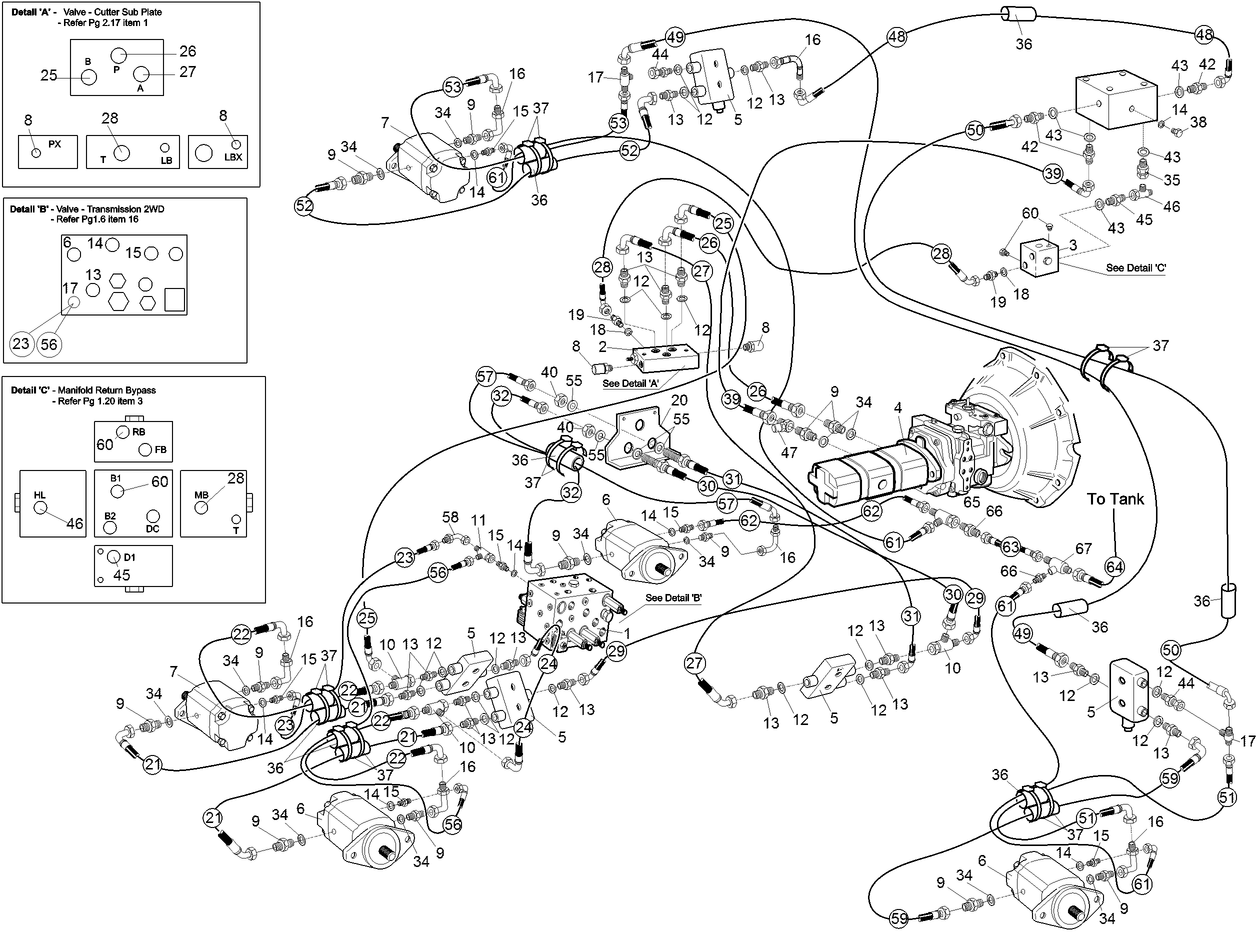

Hydraulic Circuit / Cutter Drive
Hydraulic Circuit / Cutter Drive

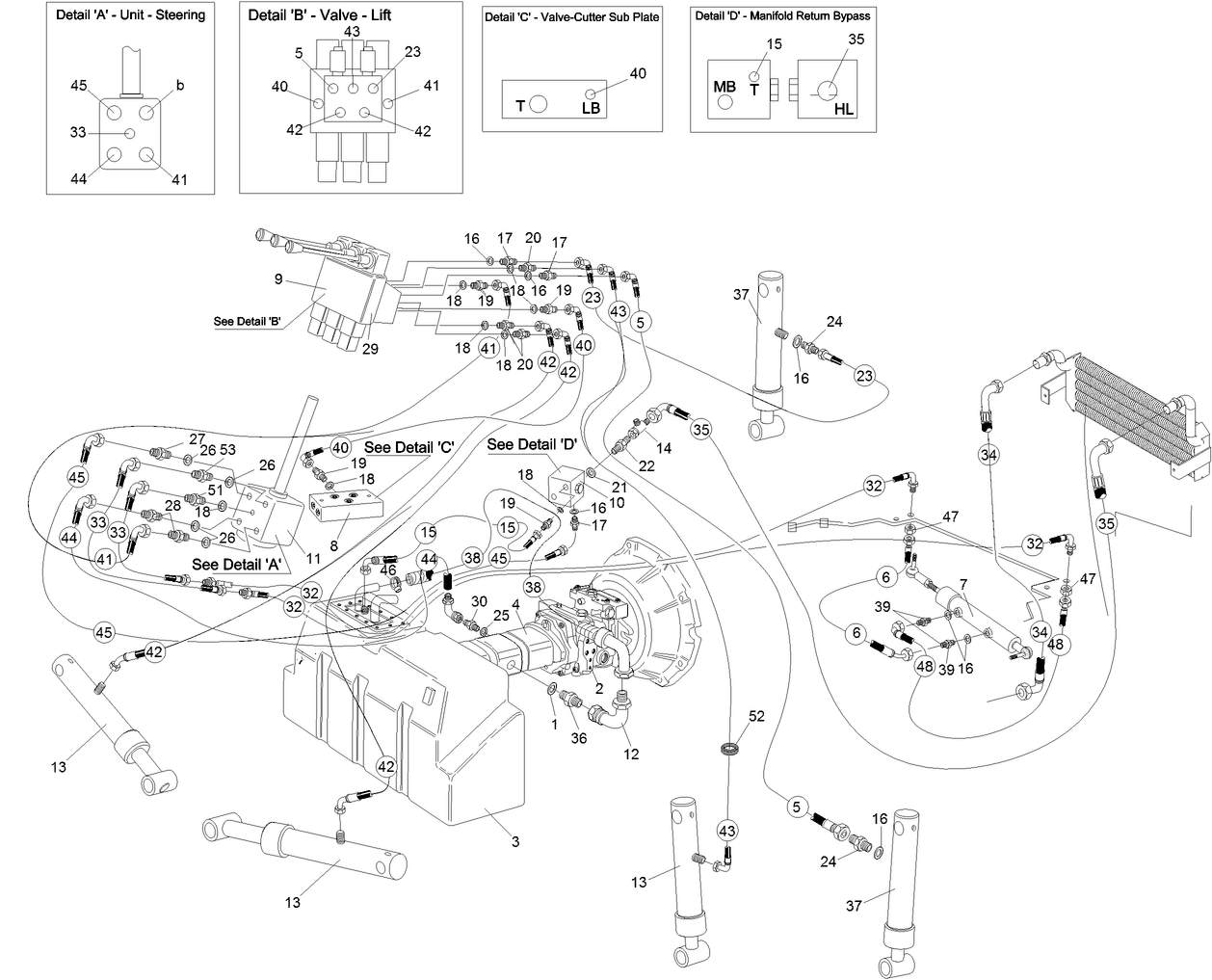

Hydraulic Circuit / Lift & Steering
Hydraulic Circuit / Lift & Steering
Hydraulic Circuit Front Transmission
Hydraulic Circuit Front Transmission
Hydraulic Oil Tank Assembly
Hydraulic Oil Tank Assembly
Idle Apparatus and Injection Pump Cover Assembly
Idle Apparatus and Injection Pump Cover Assembly
Injection Pump and Fuel Pump Assembly
Injection Pump and Fuel Pump Assembly
Intake and Exhaust Manifold Assembly
Intake and Exhaust Manifold Assembly

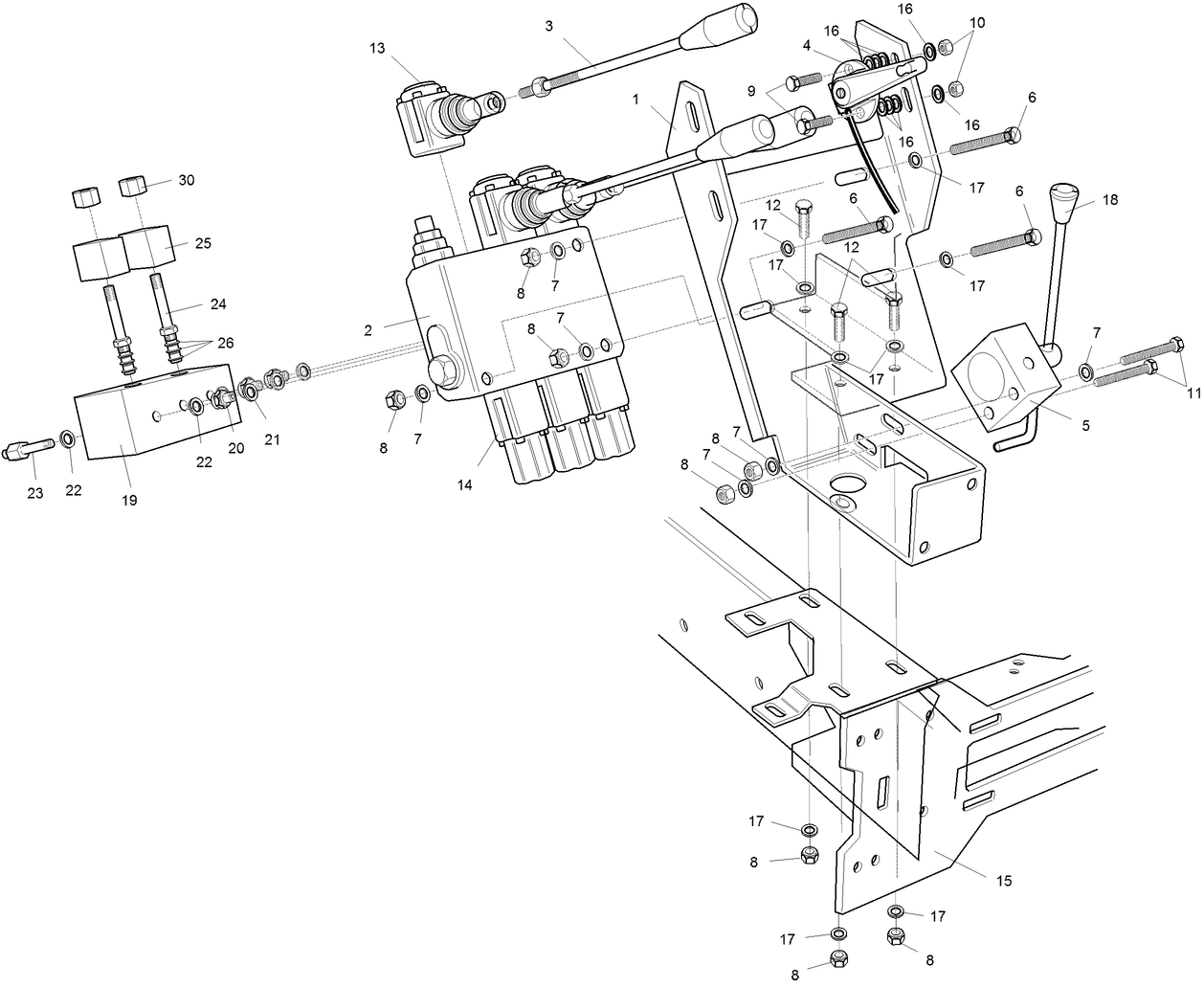

Lift Valve Bracket
Lift Valve Bracket
Main Bearing Case Assembly
Main Bearing Case Assembly
Miscellaneous Engine Parts
Miscellaneous Engine Parts

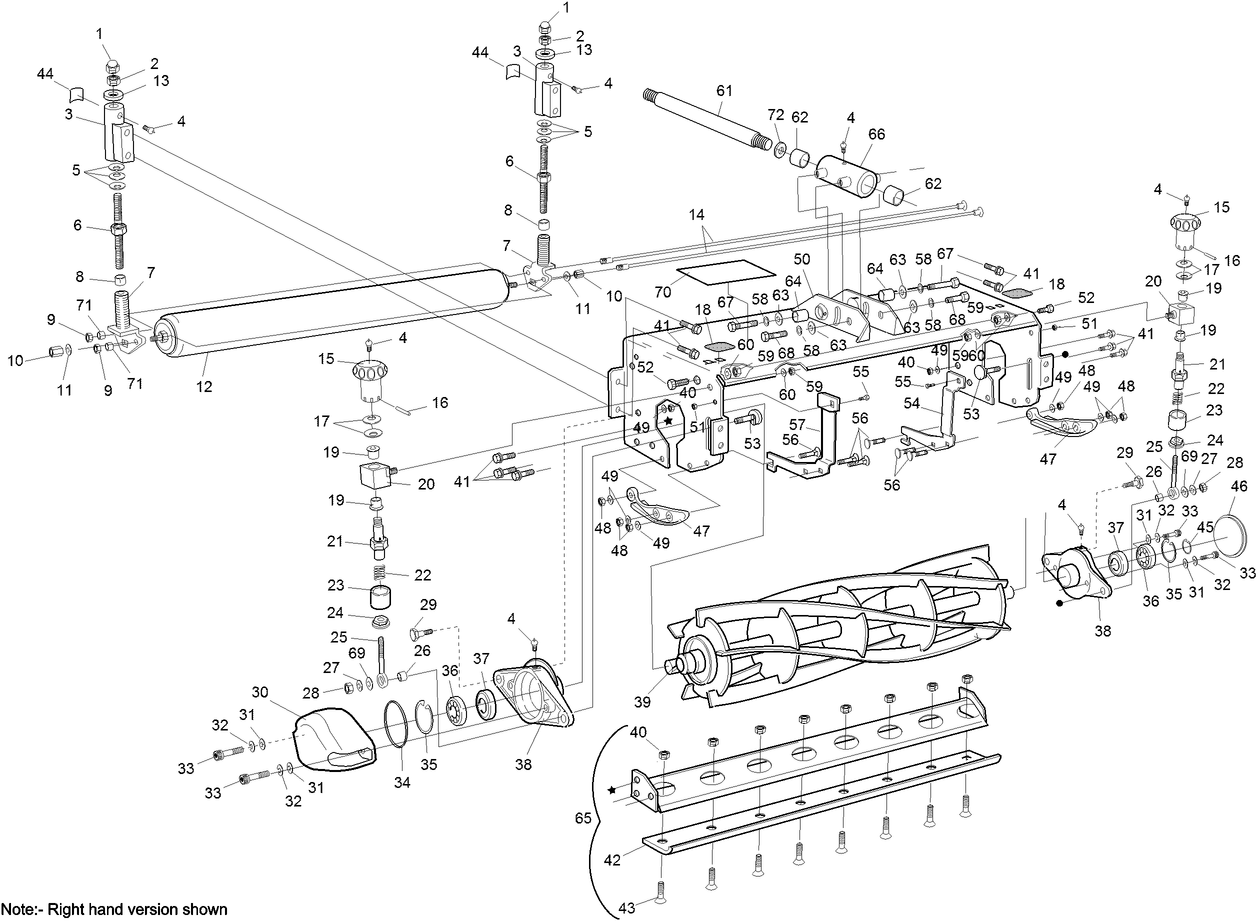

MK3 Cutterhead 200mm
MK3 Cutterhead 200mm

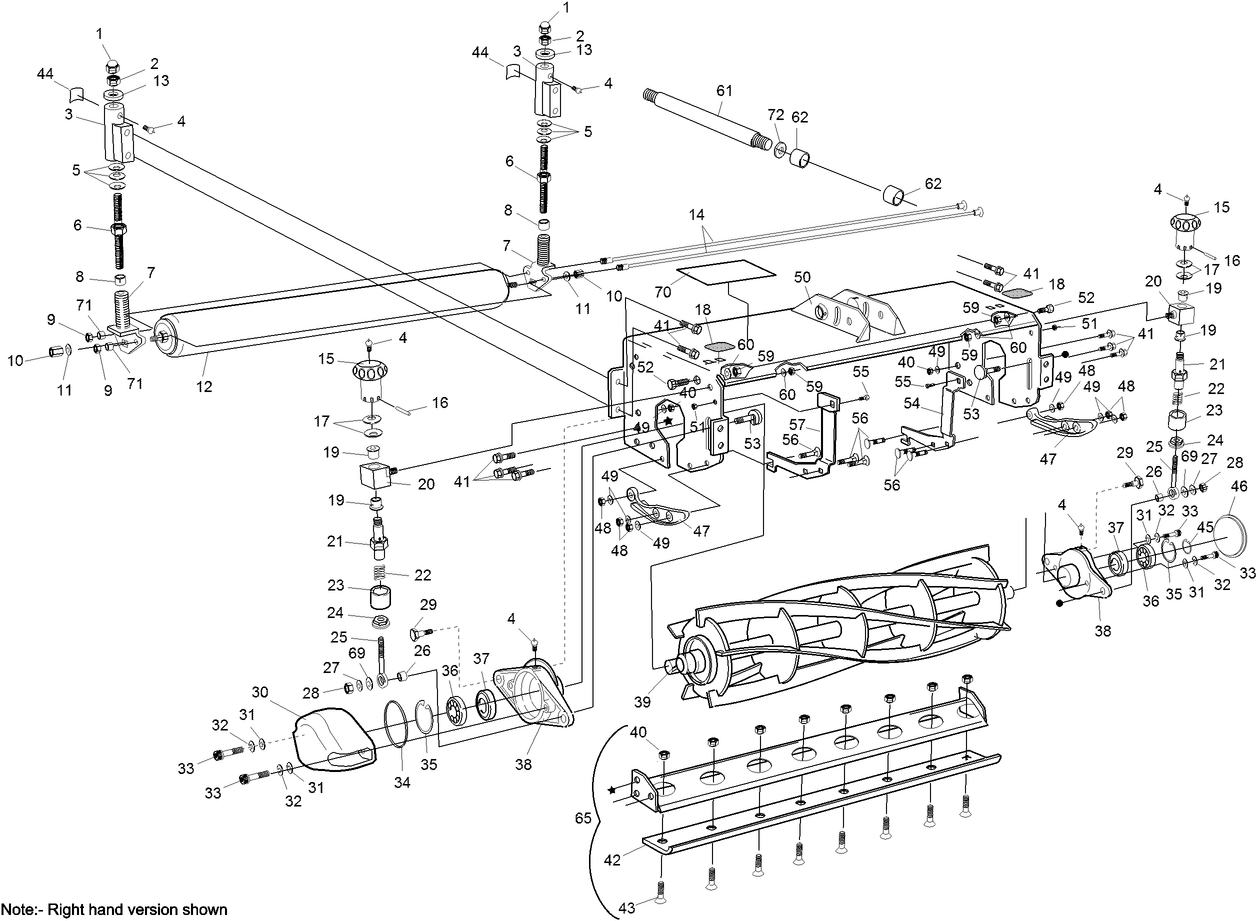

MK3 Cutterhead 254mm
MK3 Cutterhead 254mm

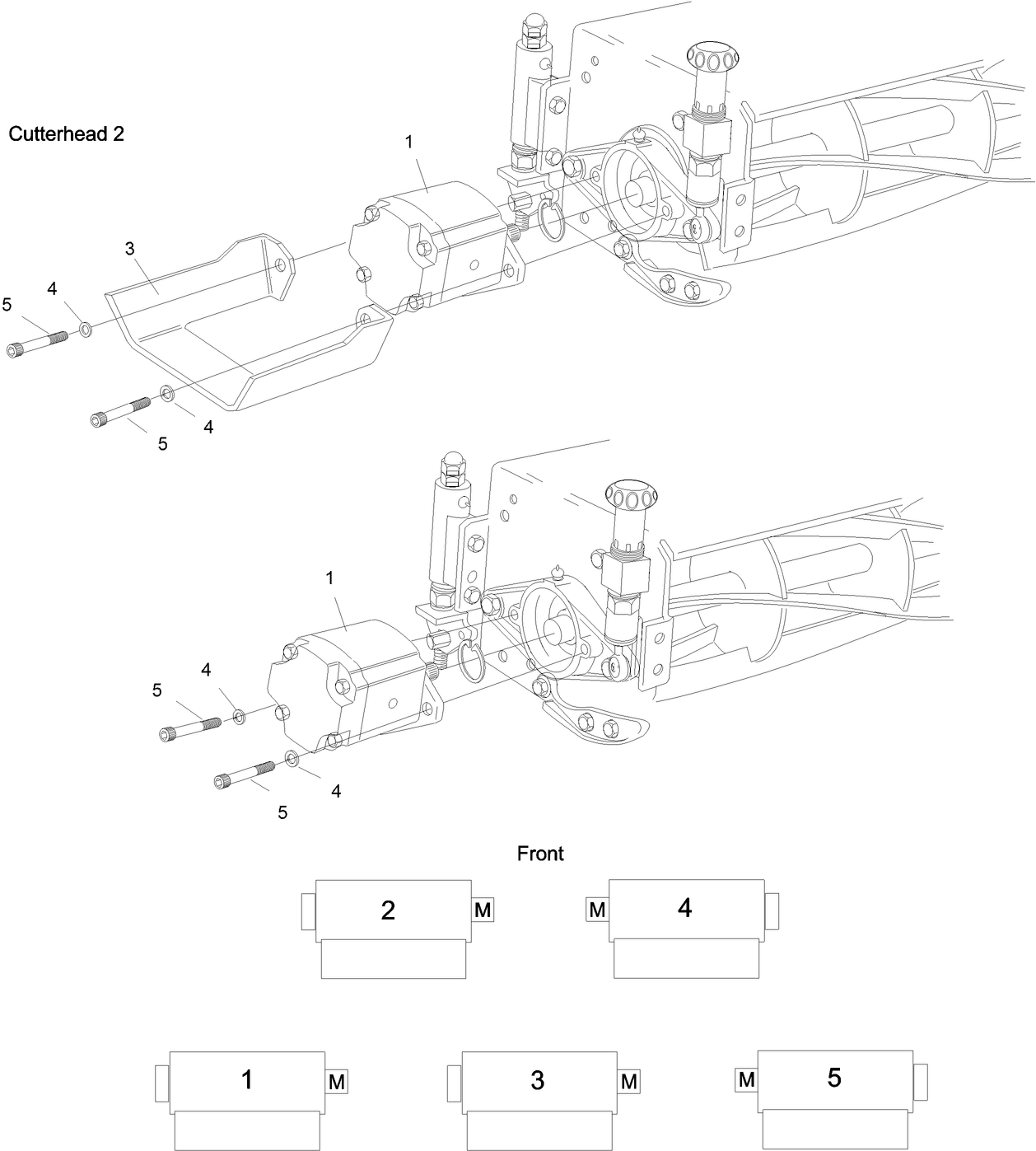

MK3 Cutterhead Motor
MK3 Cutterhead Motor
Nozzle Holder and Glow Plug Assembly
Nozzle Holder and Glow Plug Assembly
Oil Cooler & Radiator Assembly
Oil Cooler & Radiator Assembly
Oil Pan, Oil Pump and Dipstick Assembly
Oil Pan, Oil Pump and Dipstick Assembly

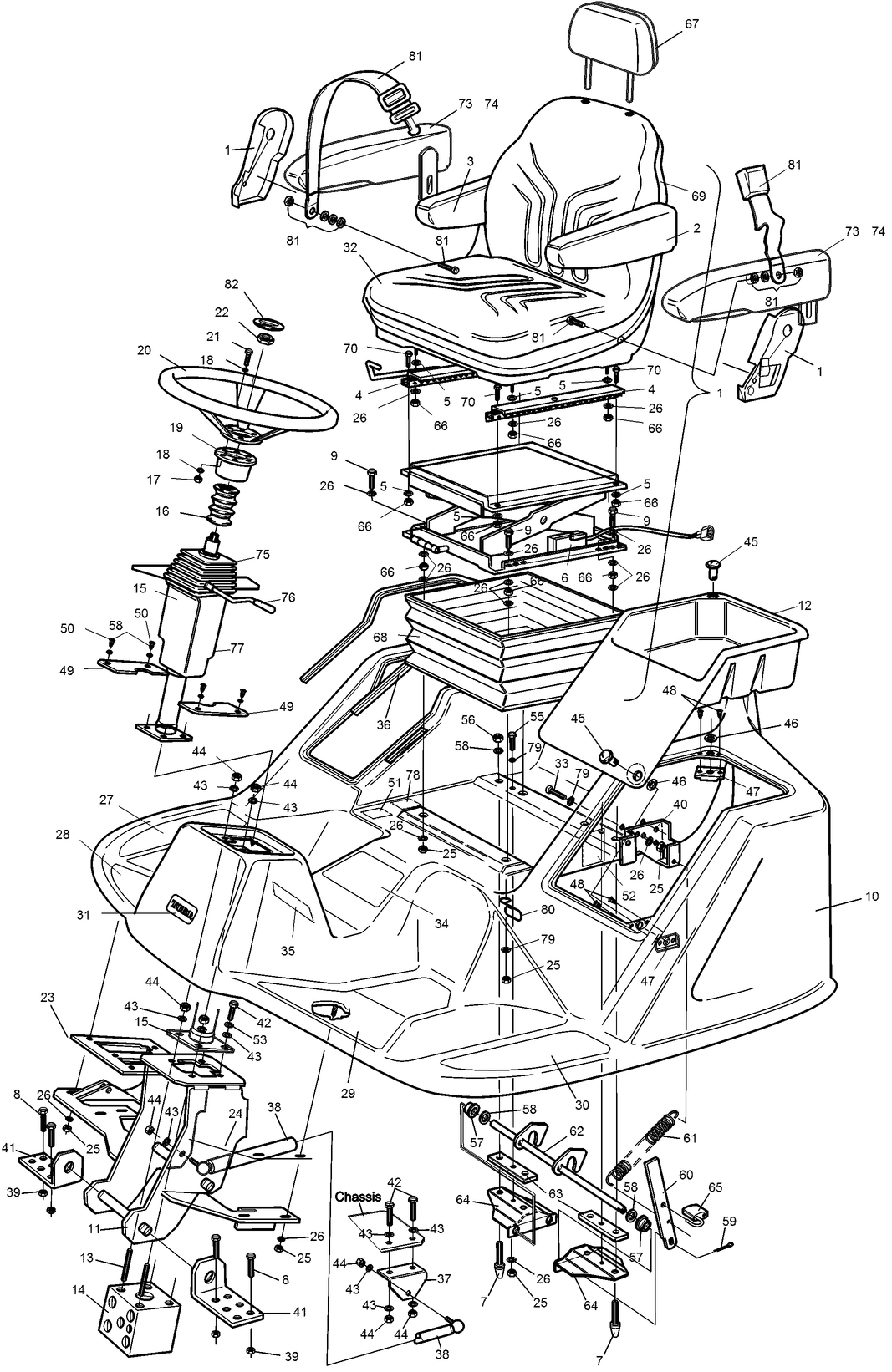

Operator Seat Assembly
Operator Seat Assembly
Piston and Crankshaft Assembly
Piston and Crankshaft Assembly
Rear Axle Assembly
Rear Axle Assembly
Rear Transmission Hydraulic Circuit
Rear Transmission Hydraulic Circuit
Reserve Tank Assembly
Reserve Tank Assembly
Smooth Front Roller Kit
Smooth Front Roller Kit
Speed Control Plate Assembly
Speed Control Plate Assembly
Starter ASM
Starter ASM
Starter Component Assembly
Starter Component Assembly
Transmission Valve
Transmission Valve
Unit 1/5 Cutter Control Valve
Unit 1/5 Cutter Control Valve
Valve and Rocker Arm ASM
Valve and Rocker Arm ASM
Water Flange & Thermostat ASM
Water Flange & Thermostat ASM
Water Pump ASM
Water Pump ASM
Wing Arms
Wing Arms
Download Parts Catalogue

  • Model number
    02750
  • Serial number
    316000001 - 316999999
  • Product Name
    T4240 4-Wheel Drive 5-Plex Traction Unit
  • Product Brand
    Toro
  • Product Type
    Riding Products
  • Product Series
    RM 3000 Series
