22in Recycler Lawn Mower
Product Information
- Model number: 20357
- Serial number: 400000000 - 402084999
- Product Type: Walk Behind Mowers
Loading...

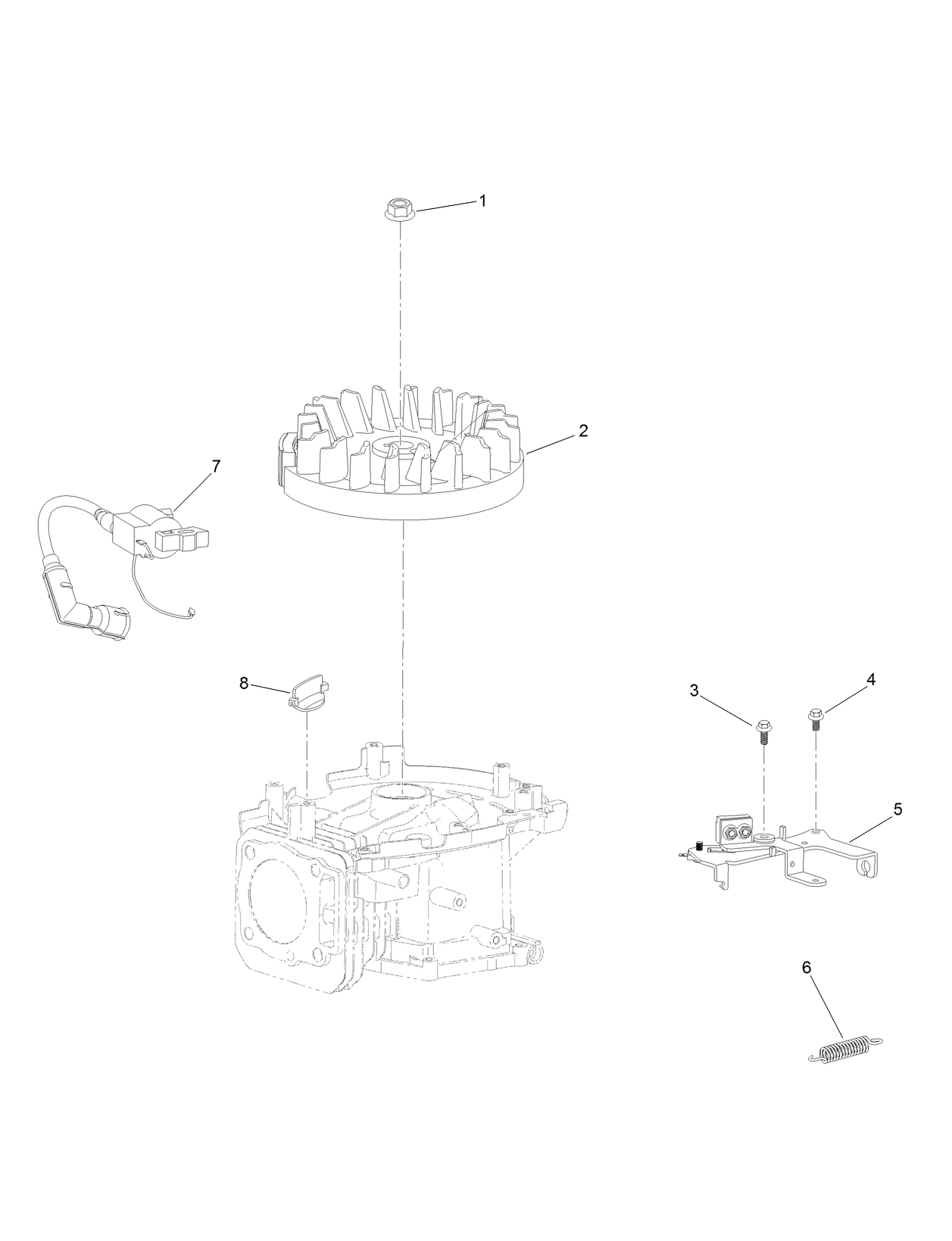

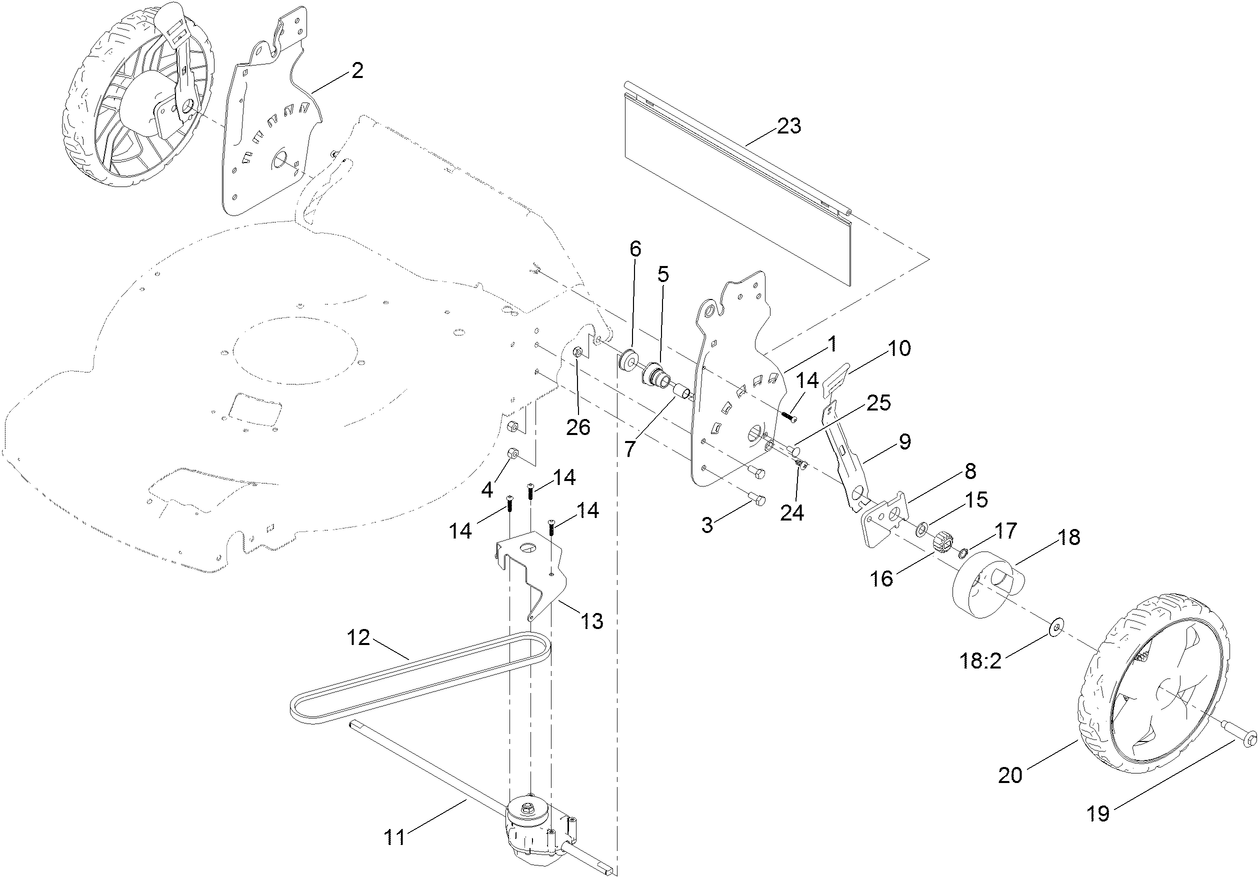

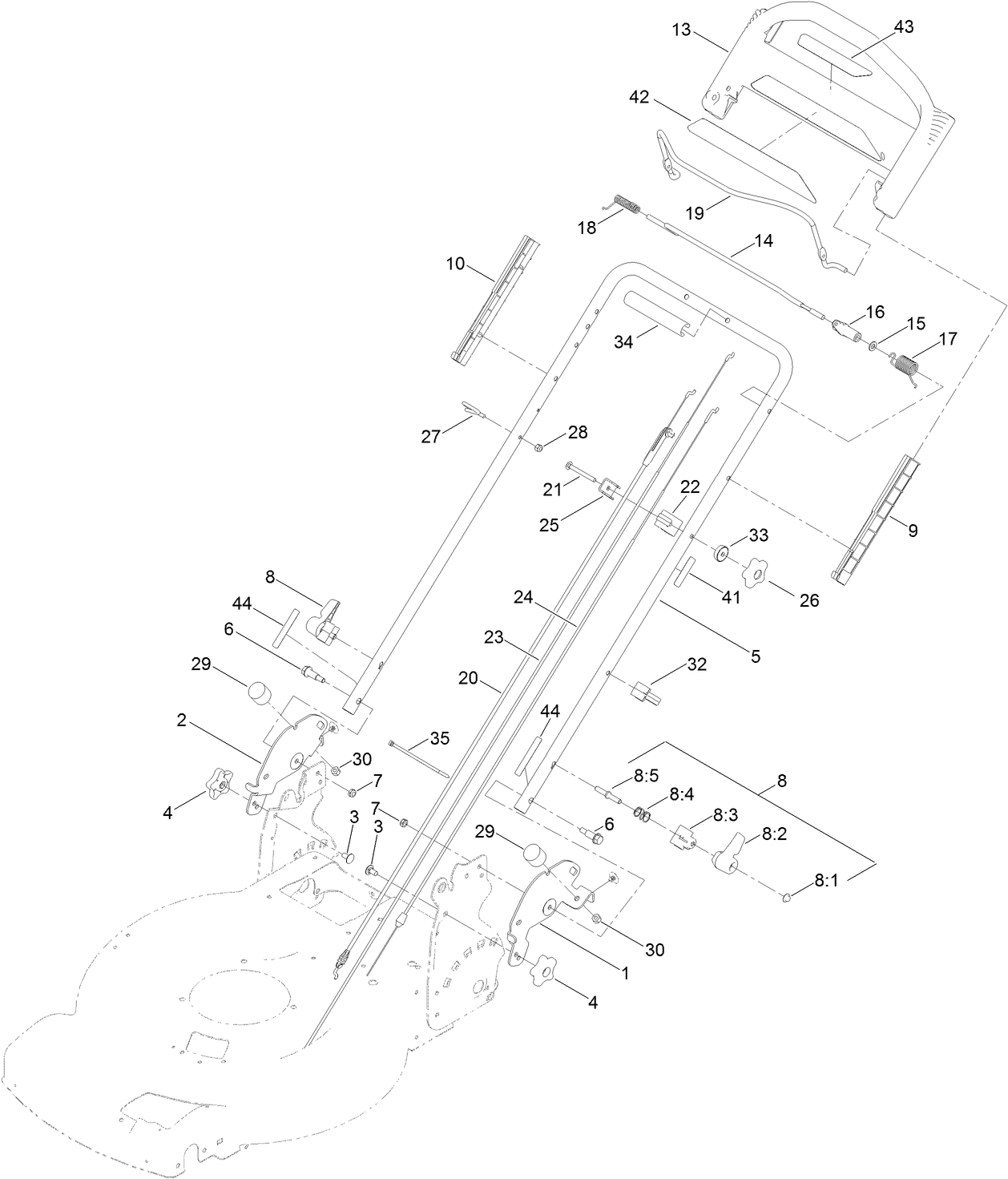

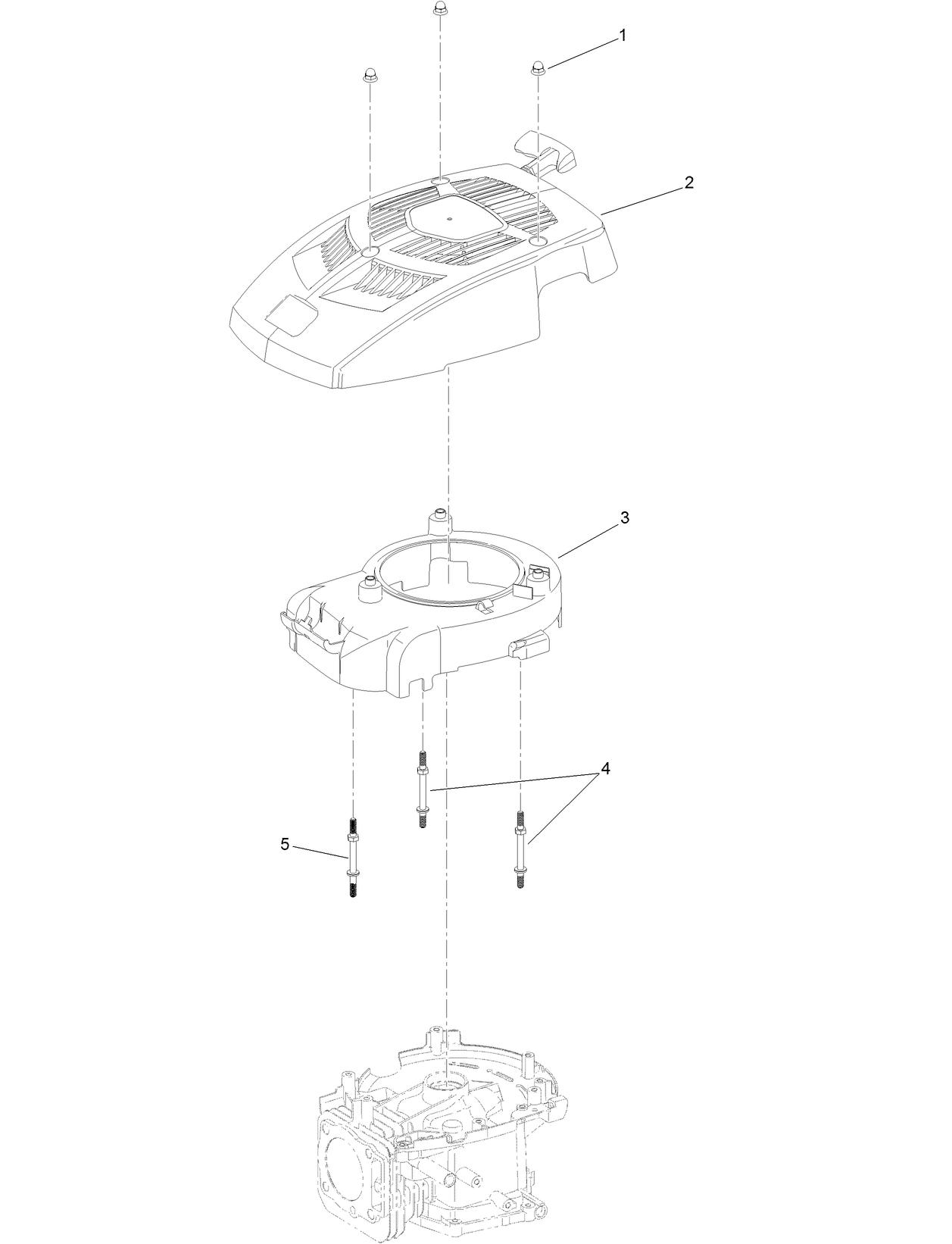

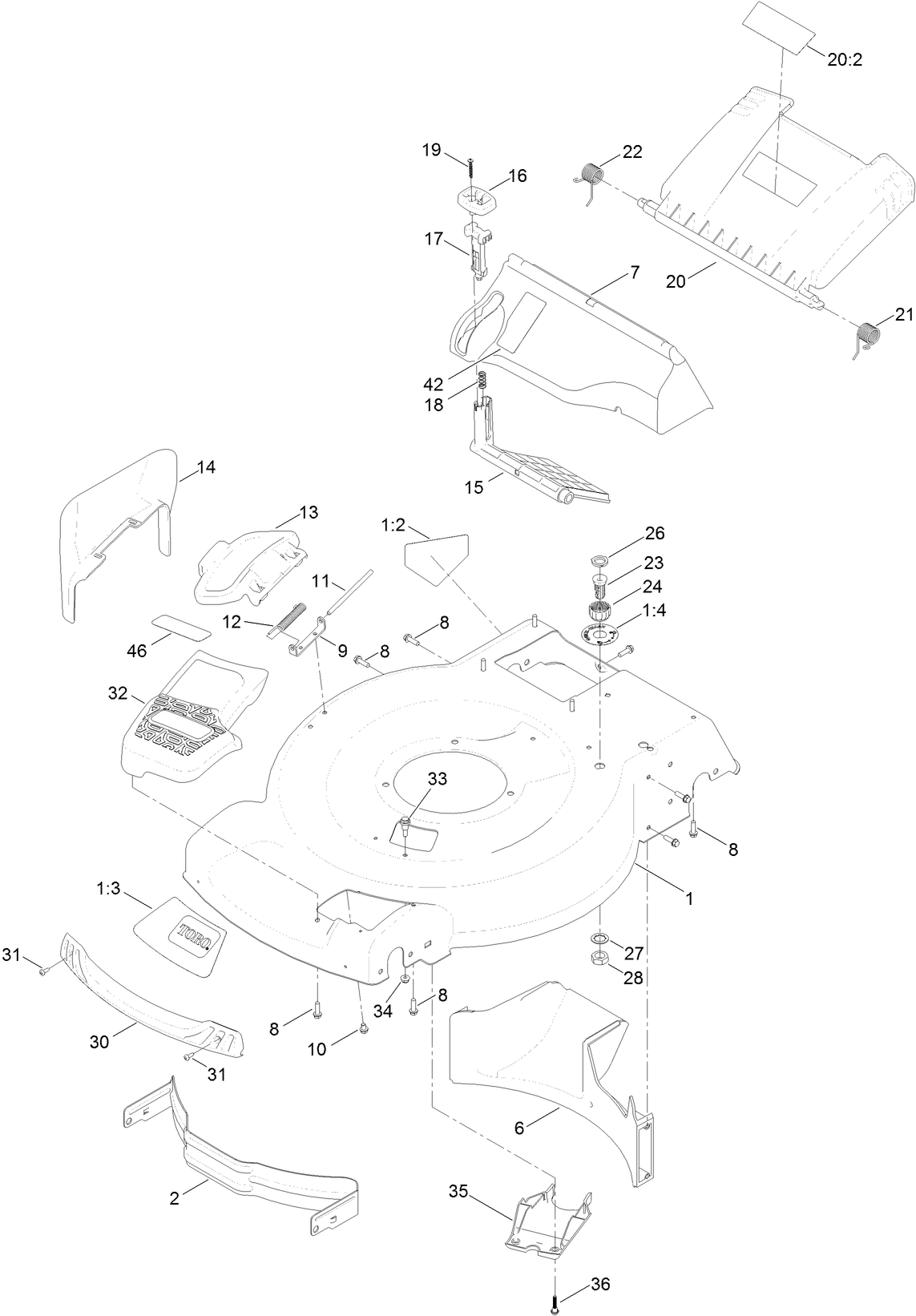

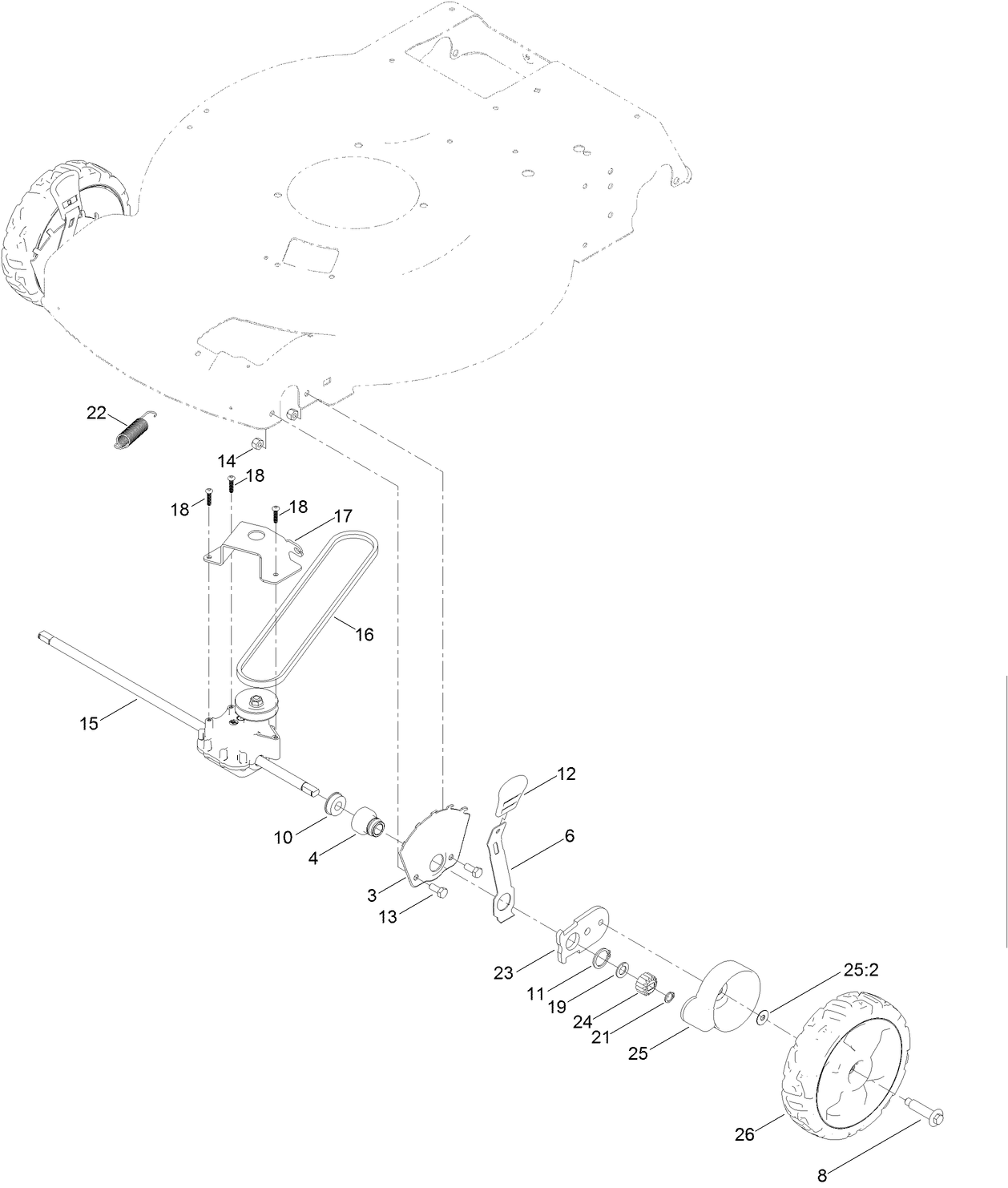

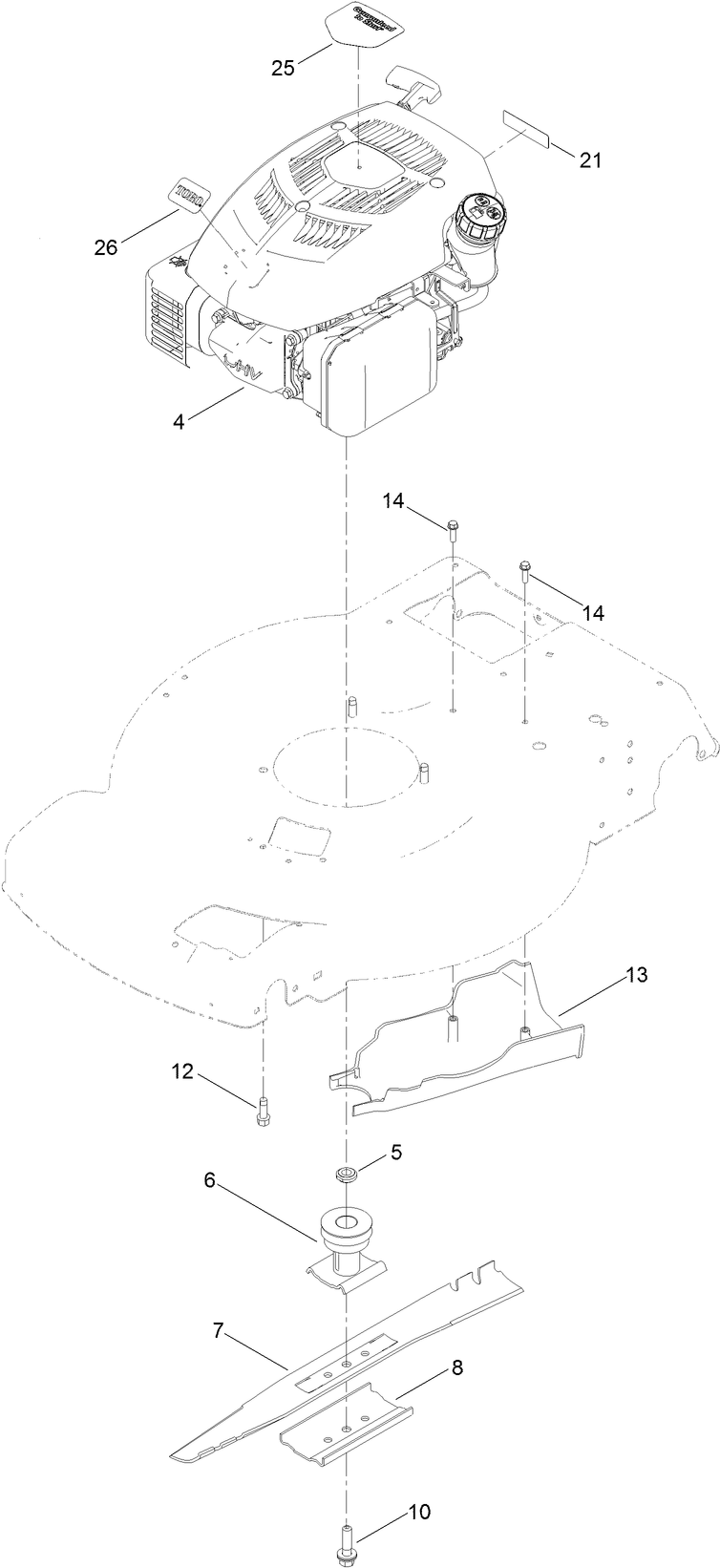

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Parts Catalogue
OIL - SYNTHETIC, ALL SEASON (Part number 117-0066)
Fuel Stabilizer .05 oz (Part number 130-2393)
4-CYCLE FUEL, SNOW AND LAWN, 32OZ CAN (Part number 131-3823)
AWD Replacement Bag and Frame Kit (Part number 131-4556)
TRACTION ASSIST HANDLE KIT (Part number 131-4590)
Toro Premium Fuel Treatment (Part number 131-6572)
Engine Maintenance Kit, Toro-Powered Walk-Behind Lawn Mowers (Part number 20240)
Lawn Striping Kit with 22in Roller, Walk-Behind Lawn Mowers (Part number 20601)
TORO 4-CYCLE SAE 30 OIL (32OZ BOTTLE) (Part number 38903)
Summer Oil, Case of 24 20-Ounce Bottles (Part number 38916)
TORO SMALL WALK BEHIND BAG (Part number 490-7318)
Toro Walk Mower Cover (Part number 490-7462)
TORO ATOMIC BLADE - 22IN, PACKAGED (Part number 59534P)
-
Model number
20357 -
Serial number
400000000 - 402084999 -
Product Name
22in Recycler Lawn Mower -
Product Brand
Toro -
Product Type
Walk Behind Mowers -
Product Series
22" Steel Deck -
Chassis Type
Walk Behind -
Swath
22 inch -
Discharge
Recycler & Side Discharge with Rear Bag -
Engine/Motor Manufacturer
Toro -
Engine/Motor Type
4 Cycle -
Engine Starter
Recoil -
Traction Type
4wd
-
Engine: Spark Plug Gap
.030"/ .76mm -
Chassis: Height of Cut Range
1" - 4" (2.5-10 cm) -
Engine: Engine Speed
3000+/-50 RPM -
Engine: Spark Plug
Champion RL87YC / NGK BPR7HS / NHPS E7RTC (OEM China) -
Engine: Engine Oil Type
16.9 oz (.5L) SAE 30 or SAE 10W-30 / API SJ or higher
