| See All Items in Workman® GTX Series |

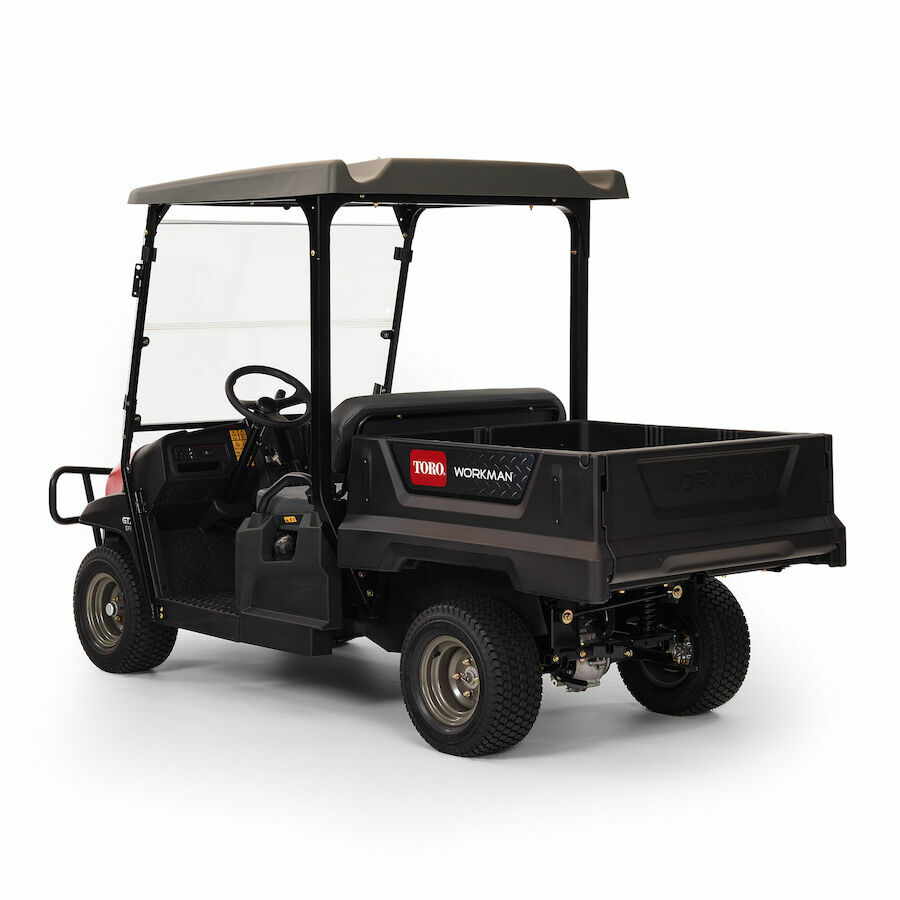

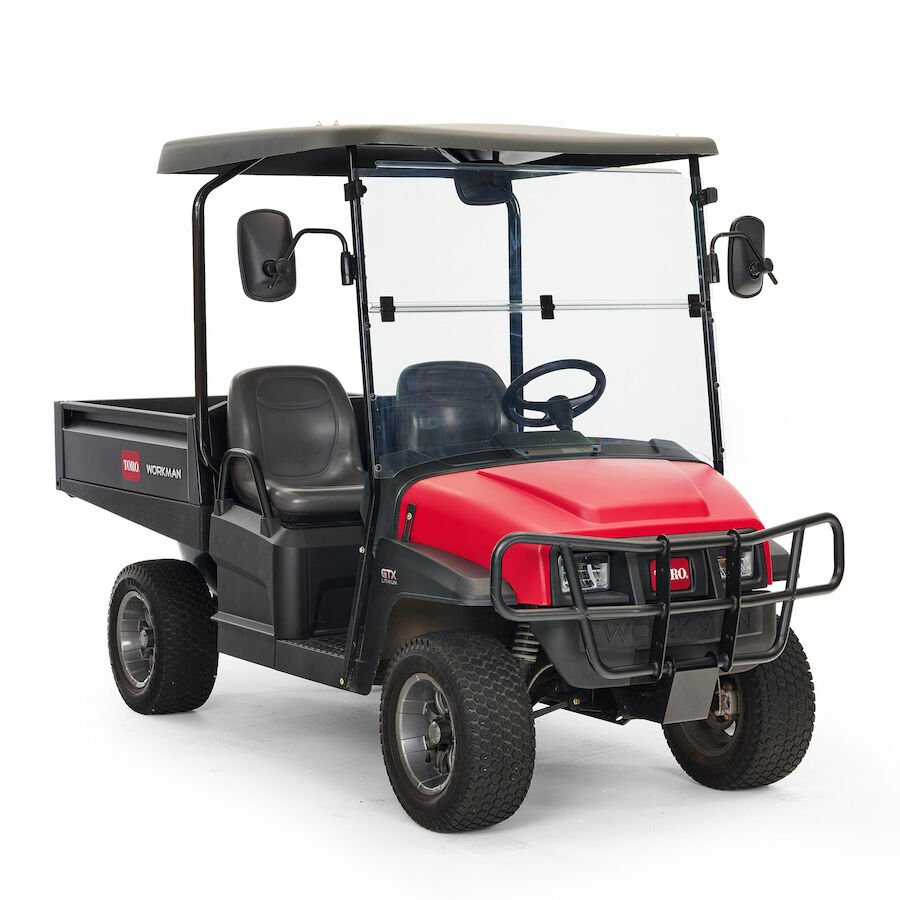

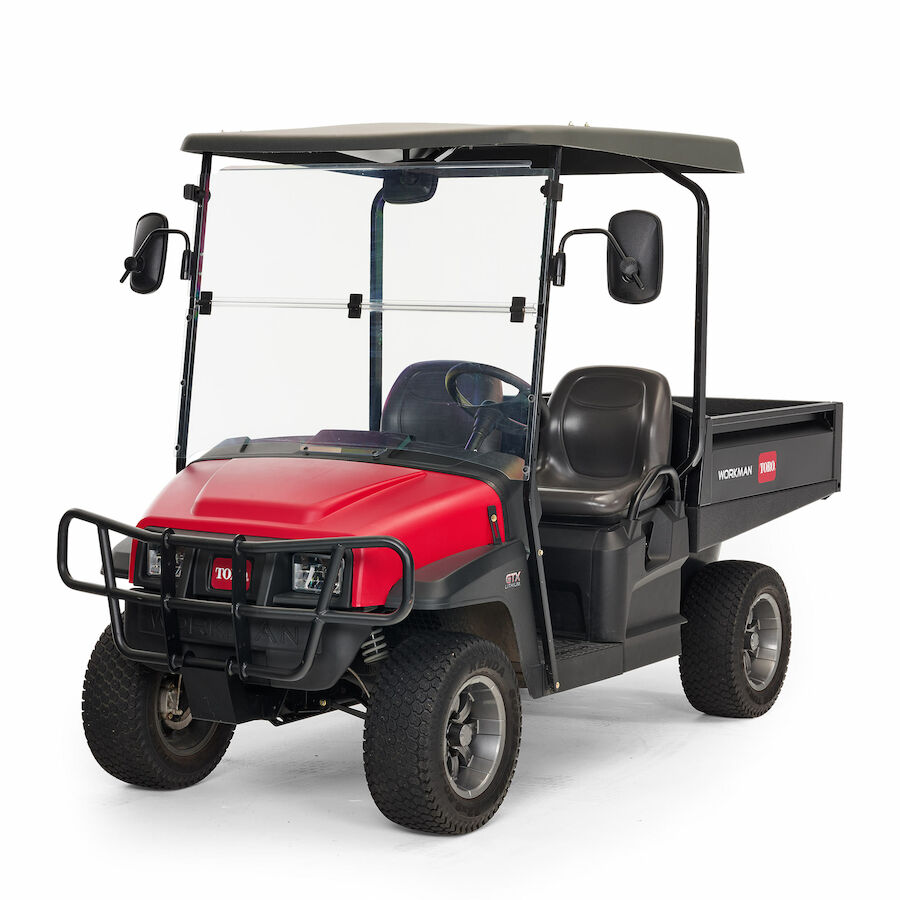

The Workman® GTX Series is a grounds and turf crossover vehicle that boasts an unequalled combination of comfort, utility and control, making it simply superior to the competition. Its increased power, improved steering and exclusive suspension and braking systems make the Workman GTX the most versatile, practical and comfortable utility vehicle in its class.
Available in petrol or electric options, the Workman GTX features hundreds of configurable options that include front and rear attachments, a flatbed and four-seat option, to name a few. So whether you are running to different jobs around the property, moving people or materials, or transporting tools to crews that need them, the Workman GTX has the power and versatility to get the job done right.
| Battery | Eight Trojan® T-125 Advanced Deep Cycle 6V batteries featuring a single port fill system and water level indicators. |
|---|---|
| Brakes - Front | Hydraulic Disc |
| Brakes - Rear | Hydraulic Disc |
| Cargo Capacity | 363 kg |
| Charger | On-board high efficiency 1 kW smart charger with 85-265VAC global input, temperature controlled, sealed & waterproof, remote indicator viewable at charge port |
| Controller | 540 amps max with regenerative motor braking, roll-away protection, thermal cutback, sealed/waterproof, status light, and three power modes |
| Crated Model | Yes |
| Drivetrain | Electric |
| Electric Motor | Brushless high-torque AC induction motor with 5.0 kW continuous power |
| Fuel Type | Electric |
| Gauges/Instrumentation | Hour meter, battery level indicator, USB port, headlight switch, on/off ignition key switch, gear selector and parking brake lever. Two cup holders, radio holder, and three in-dash storage compartments. |
| Ground Clearance | Front: 22.8 cm (9") Rear: 15.2 cm |
| Horn | Standard |
| Lights | Standard LED Headlights |
| NEW - Inside Turning Radius | 153 cm |
| NEW - Outside Turning Radius | 6.3 m |
| Optional Accessories | Canopy, windshield, flat-bed, cargo box, storage box, hose reel mounting bracket, walk spreader carrier, trash can mount, bed racking, brush guard, brake/tail/signal lights, ROPS, cab, range cage, van box, rear facing seat |
| Power Train (Engine Description) | 48V brushless AC induction drive |
| Rear Draw Bar | Standard |
| Roll-Over Protection (ROPS) | Optional |
| Starting | Pedal Start |
| Steering System Description | Manual rack and pinion steering system with ergonomically positioned column. Steering wheel has 2.75 turns lock-to-lock with 35 cm diameter. |
| Suspension - Front | Modified MacPherson Strut, adjustable coil over shocks |
| Suspension - Rear | Articulating swing arm, adjustable coil over shocks |
| Tires - Rear | 20 x 8.00-10, 4-ply. Or alternate 4-ply/6-ply |
| Total Vehicle Capacity | 544 kg |
| Towing Capacity | 680 kg |
| Traction Drive | 2WD |
| Tyres - Front | 20 x 8.00-10, 4-ply. Or alternate 4-ply/6-ply |
| Vehicle Configuration | Standard |
| Vehicle Type | Light Duty |
| Wheelbase | 197 cm |
Select your model year from the options below to view parts & manuals.
**See dealer for Warranty details.
