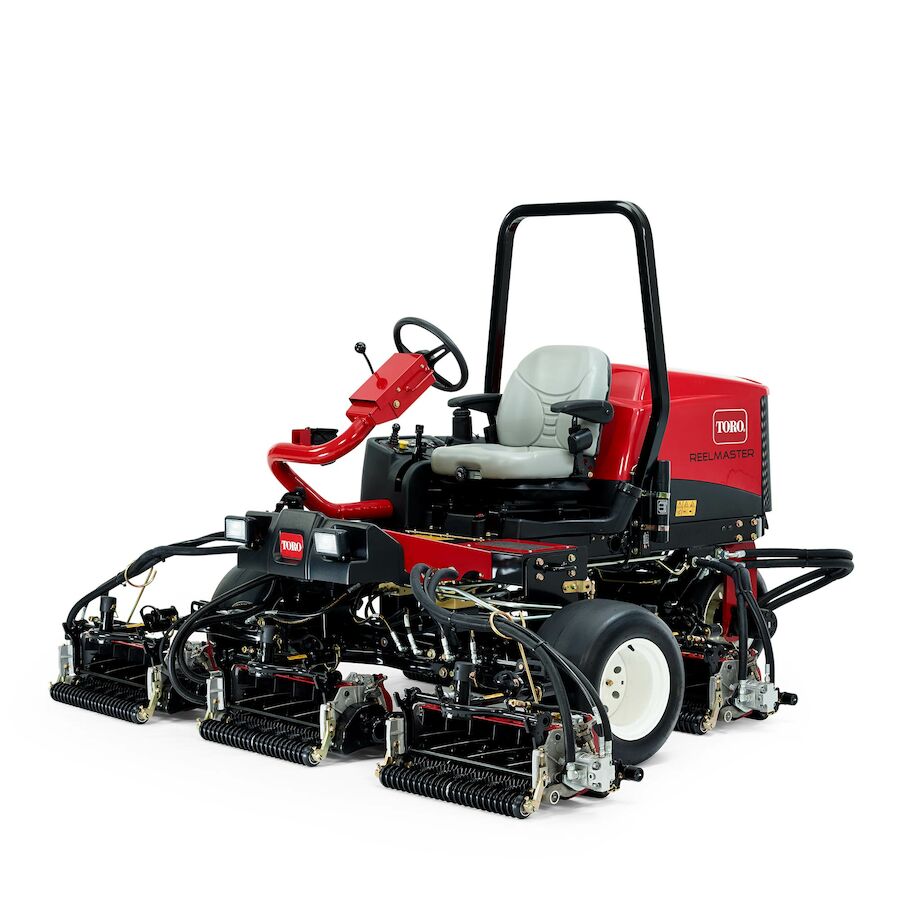

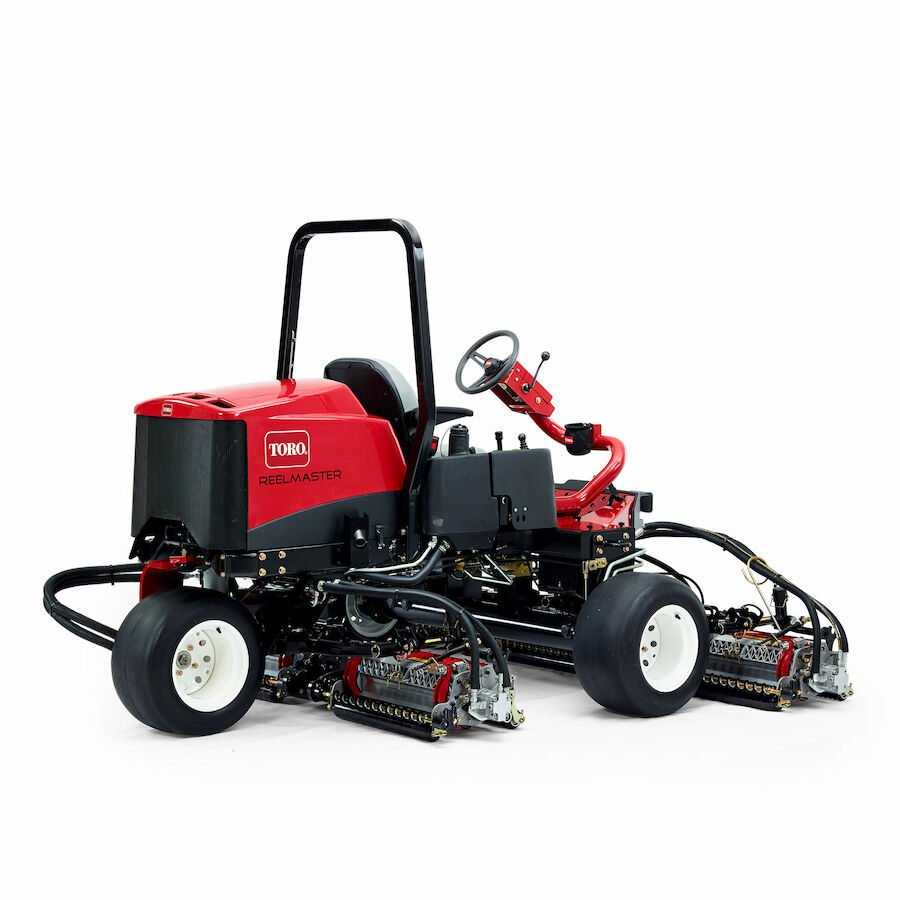

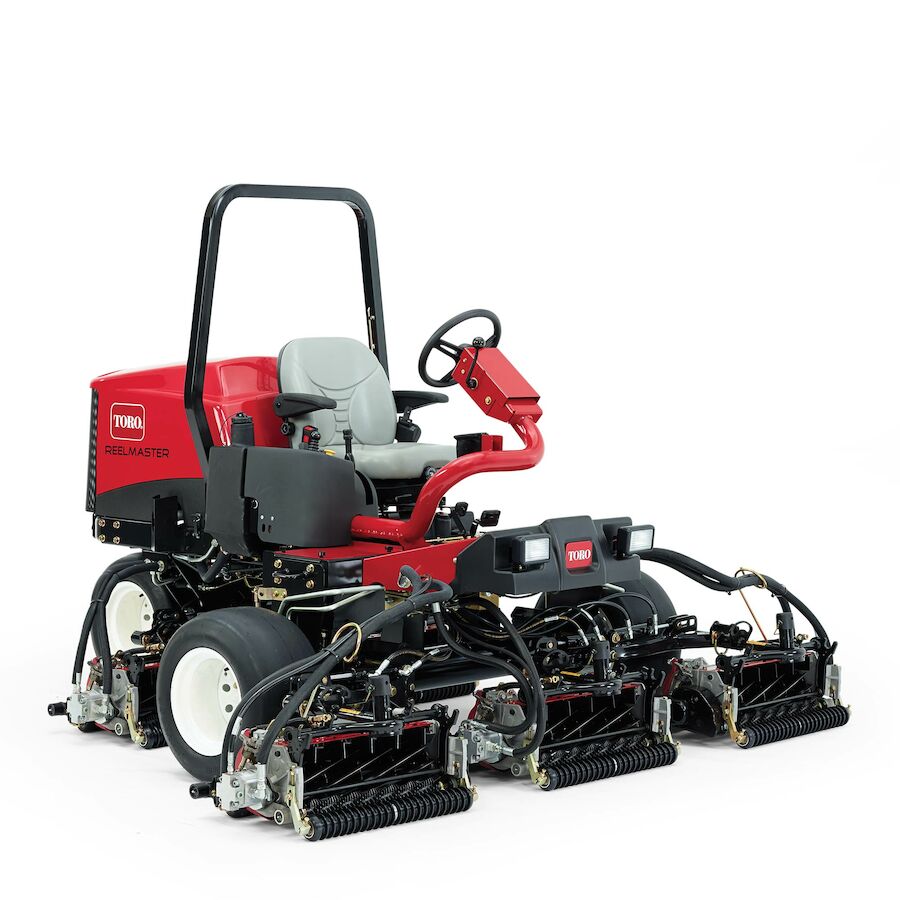

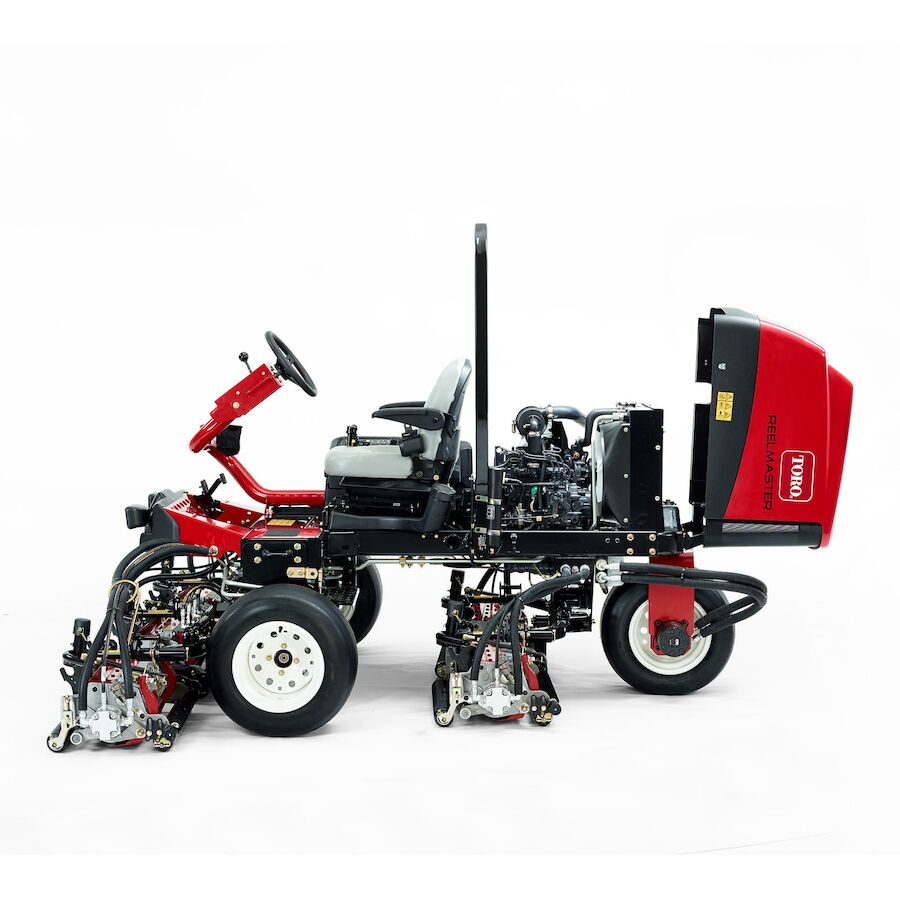

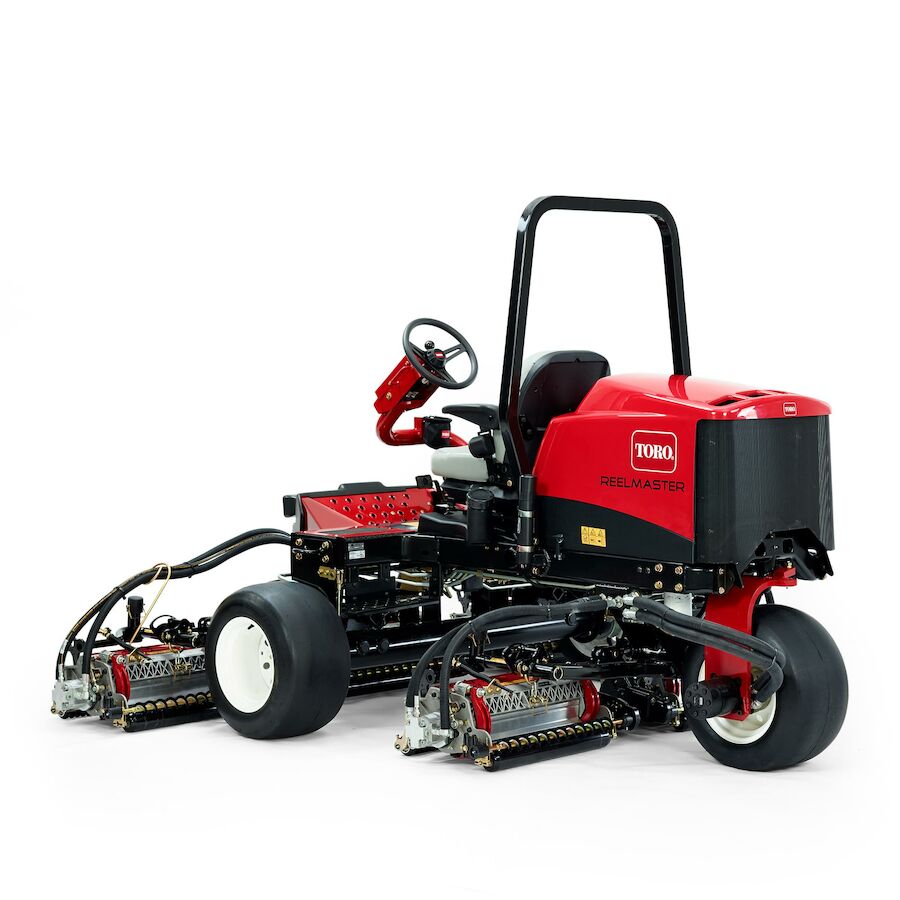

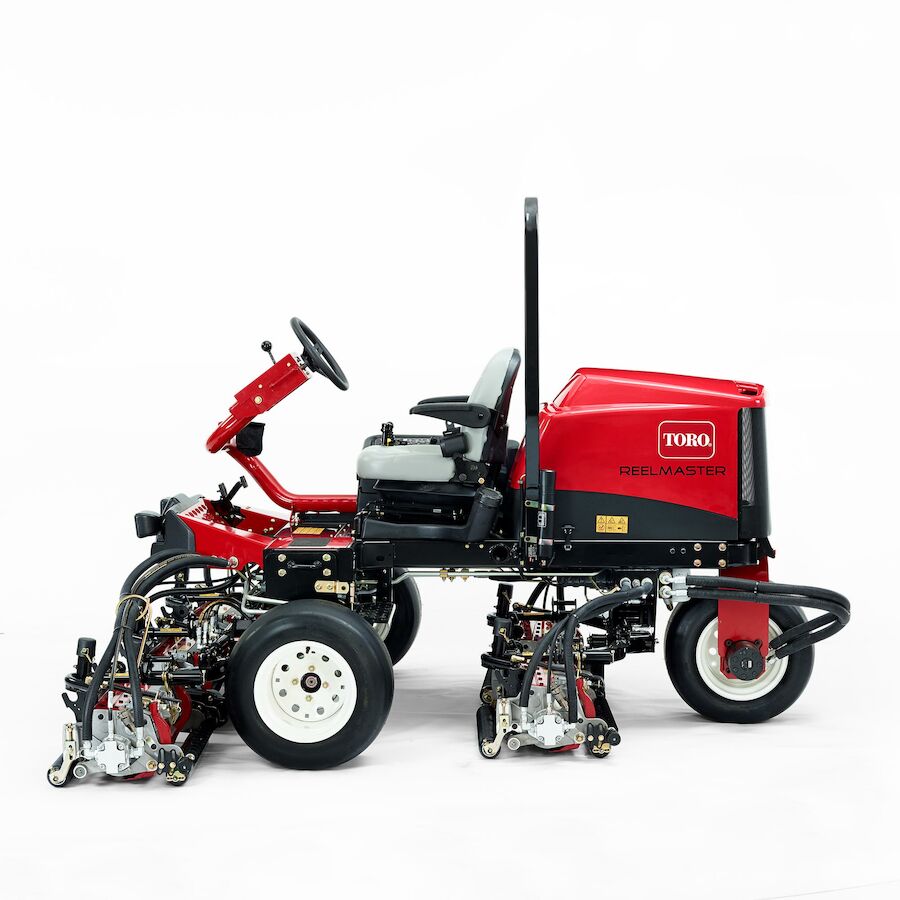

Reelmaster® 3555-D with 5" (17.8 cm) Cutting Reels

  • Model: 03820
See All Items in Reelmaster® 3555/3575 Series
  • Weighing 20% less than a comparably equipped Toro 4-wheel drive, the Reelmaster 3555-D offers optimal turf friendliness and performance.
  • The Reelmaster 3555-D shares a platform with other Toro mowers, reducing training time and boosting productivity.
  • The Reelmaster 3555-D operates quietly at 84 dB(A) at the operator’s ear and 73 dB(A) at a 7.5 m drive by.
  • The three-wheel design maximises productivity with high manoeuvrability and turf-friendly tyres to significantly decrease potential for turf tear. A 2.5 m cutting width and 7 mph mowing speed make the 3555-D fast and efficient.
  • The Reelmaster 3555-D, powered by an 18.5 kW (24.8 hp) Kubota diesel engine, delivers strong hill-climbing power while using less fuel per acre than traditional fairway mowers.
  • The Series/Parallel 3-wheel drive system powers at least two wheels at all times, providing excellent traction on hills and wet ground with minimal turf impact
  • Dual Precision Adjustment (DPA) cutting units with Toro’s EdgeSeries™ reels provide a consistent, high-quality cut and superior after cut appearance while reducing maintenance through improved reel edge retention.

Overview

The Reelmaster® 3555-D 5-inch reel mower provides productivity, efficiency, and simplicity. The 254 cm width of cut and lighter weight makes it perfect for sports fields and golf courses. This mower was designed to be over 20% lighter and much more compact than traditional Toro reel mowers. You get the performance you come to expect from Toro in a size that is not only highly manoeuvrable, but is also engineered to decrease turf compaction.

Features

Lightweight Design
Lightweight Design
With a weight that is 20 percent lighter than a comparably equipped Toro 4-wheel drive reel machine, the Reelmaster 3555-D provides the ideal combination of turf friendliness and productive performance.
Simplicity
Simplicity
The Reelmaster 3555-D and 3575-D utilise a common platform with other popular Toro mowers, which reduces operator training time and increases productivity.

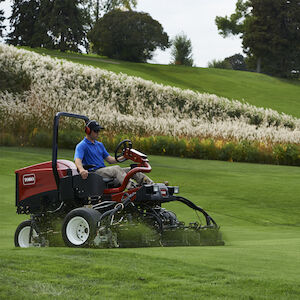

Quiet Operation
Quiet Operation
The Reelmaster 3555-D has a quiet, low noise design with only 84 dB(A) at the operator's ear & 73 dB(A) at a 7.5 m drive by.
Three Wheel Design
Three Wheel Design
The three wheel design is highly manoeuvrable which maximises productivity. Smooth, turf-friendly tyres significantly decrease potential for turf tear in tight turns. The 2.5 m cutting width and up to 7 mph mowing speed make the 3555-D fast and effective.
Engine Efficiency
Engine Efficiency
Powered by a 18.5 kW (24.8 hp) Kubota diesel engine. The Reelmaster 3555-D provides plenty of power to climb hills, even while operating groomers and rear roller brushes, yet it uses less fuel per acre than a traditional fairway mower.

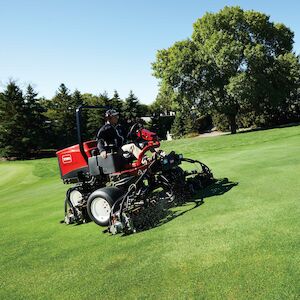

Superior Traction
Superior Traction
The innovative Series/Parallel 3-wheel drive system provides power to at least two wheels at all times. The result is impressive traction in hilly and wet conditions, and minimal wheel slip so it’s gentle on the turf.
EdgeSeries™ Reels
EdgeSeries™ Reels
Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior aftercut appearance, while reducing maintenance with improved reel edge retention.
Watch the Video

Specifications

Armrests Standard
Battery 12V
Bedknife Adjustment Precision machined cutting units maintain levelness and hold adjustments. Dual Precision Adjustment (DPA) allows quick bedknife to reel adjustment.
Blade Style/Type Reel
Blade Type (Description) EdgeSeries™ DPA radial or forward swept reels.
Clip Frequency/Backlapping 5" reel 2,350 (+/- 150) rpm max reel speed, at highest setting. 200 rpm max at low idle and lowest setting for backlapping.

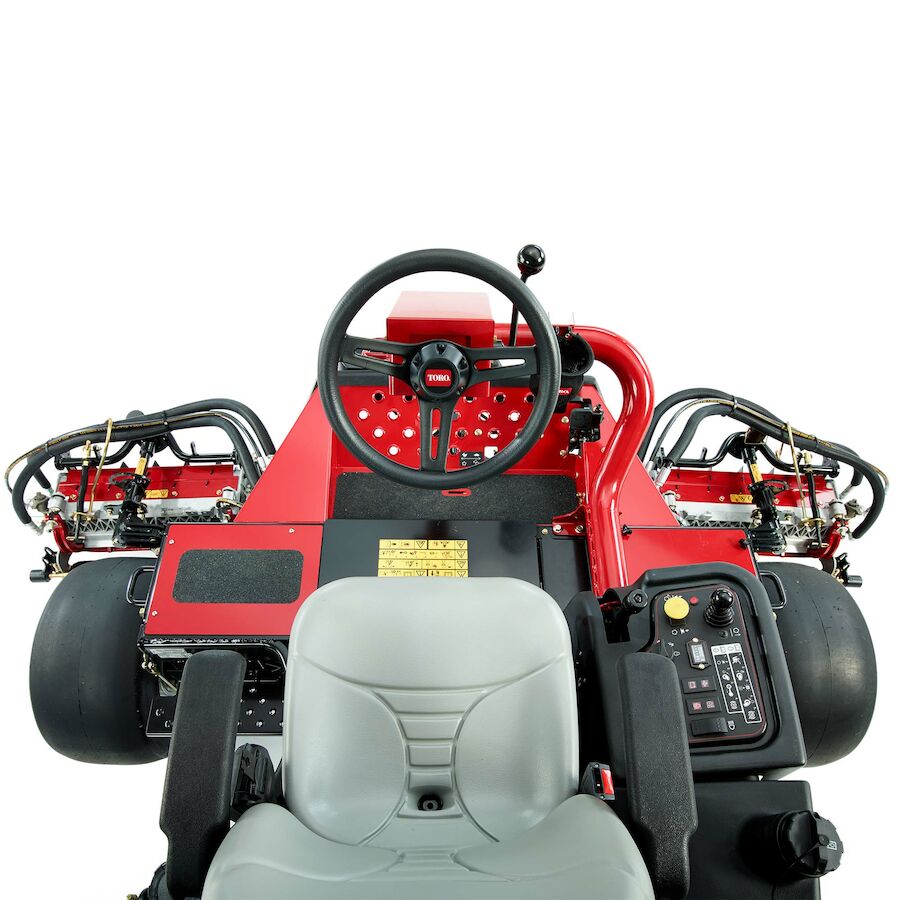

Controls Foot operated controls: Forward and reverse traction pedal, mow/transport speed limiter. Hand operated on control panel: Parking brake lever, ignition switch, engine throttle lever, LED headlight switch, on/off switch for cutting units, joystick for cutting unit lift and lower. Other controls: Steering wheel tilt control, reel speed control, backlap engagement lever.
Cooling System Description Aluminium side-by-side oil cooler/radiator. 8.5 fins per inch, wavy fin, non-louvered. 4.9 litre capacity.
Cup Holder Standard
Cutting Unit Accessories Rear Roller Brush Kit, Universal Groomer, Broomer, Grass Baskets
Cutting Unit Lift/Lower Hydraulic - front and rear cutting unit lift/lower are sequenced for uniform starting and ending points.
Cutting Unit Type/Configuration Five hydraulically driven, balanced, DPA cutting units. Frame precision manufactured, die-cast aluminium for increased strength, simple click adjustment maintenance.
Drivetrain Diesel
Electrical System Heavy-duty 12-volt battery, 570 CCA; 40 amp alternator/regulator. Electronic control unit is microprocessor based, solid state control unit with diagnostic capabilities.
Engine Cooling Liquid Cooled
Fuel Capacity 28.4 litres
Fuel Filter 10 micron spin-on filter with integral water separator.
Fuel Type Diesel / Biodiesel
Gauges/Instrumentation Hour meter, fuel gauge, diagnostic lamp, cluster gauge with glow plug and charge indicator lights. Low engine oil pressure and high coolant temperature warning lights (high temperature safety shut off).
Ground Speed - Forward 0 - 10 mph
Ground Speed - Reverse 0 - 3.5 mph
Height 200 cm
Height of Cut Range 0.25" - 1.5" (6.4 mm - 38.1 mm)
Hydraulic Fluid Capacity 22.7 litres
Hydraulic Fluid Type Toro PX™ Extended Life Hydraulic Fluid
IntelliDash™ Capable Yes
Interlocks Traction pedal neutral, parking brake, operator presence in seat, and cutting unit engage/disengage safety interlock switches.
Length 266 cm
Lighting Standard
Main Frame/Chassis Formed steel, welded steel and steel tubing.
Max Slope Angle Refer to operator’s manual.
Mowing Speed 0 - 7 mph
Number of Blades 11, 8
Oil Capacity 3.3 litres
Oil Cooler Description Pressurised lubrication system.
Optional Accessories Sunshade (with optional operator cooling fan, LED work lights, rotating amber beacon)
Overall Width 274 cm
Parking/Service Brakes Hydrostatic service brake. Hand-operated parking brake.
Power Steering Yes
Power Train (Engine Description) Kubota® liquid-cooled diesel, 3-cylinder, 18.5 kW (24.8 hp) @ 3000 RPM. Engine governed to 3220 RPM high idle (± 50 RPM), 1400 RPM low idle (± 50 RPM). Displacement: 1123 cc (68.5 cu. in.). Peak torque: 77.5 N·m @ 2200 RPM. Tier 4 and Stage V compliant.
Reel Diameter 12.7 cm
Reel/Cylinder Drive Hydraulic
Rollers Wiehle front roller and standard rear roller included. Optional front full and shoulder rollers, and short and long rear rollers available.
Safety/Operator Safety 2-post ROPS and retractable seat belts standard.
Seat Two-piece premium commercial two-tone grey vinyl with two armrests, mechanical suspension standard.
Starting Switch
Steering System Description Hydraulic power steering, tilt wheel.
Tires - Rear 22 x 12.00-12, 4-ply, No Tread
Tool Box Standard
Traction Drive 3WD
Traction Drive Series/Parallel hydraulic traction circuit provides continuous 3-wheel drive, in mow and transport. Hydrostatic traction drive provides infinitely variable speed in forward and reverse.
Transport Width 231 cm
Tyres - Front 22 x 12.00-12, 4-ply, No Tread
Weight 751 kg (1,655 lbs.) with no cutting units. 1,034 kg with (5) 5" reels, 56 cm width, 8-blade cutting units.
Width of Cut 254 cm
