TimeCutter ZX440 Riding Mower
Product Information
- Model #: 74603
- Serial #: 260000001 - 260999999
- Product Type: Riding Products
Loading...

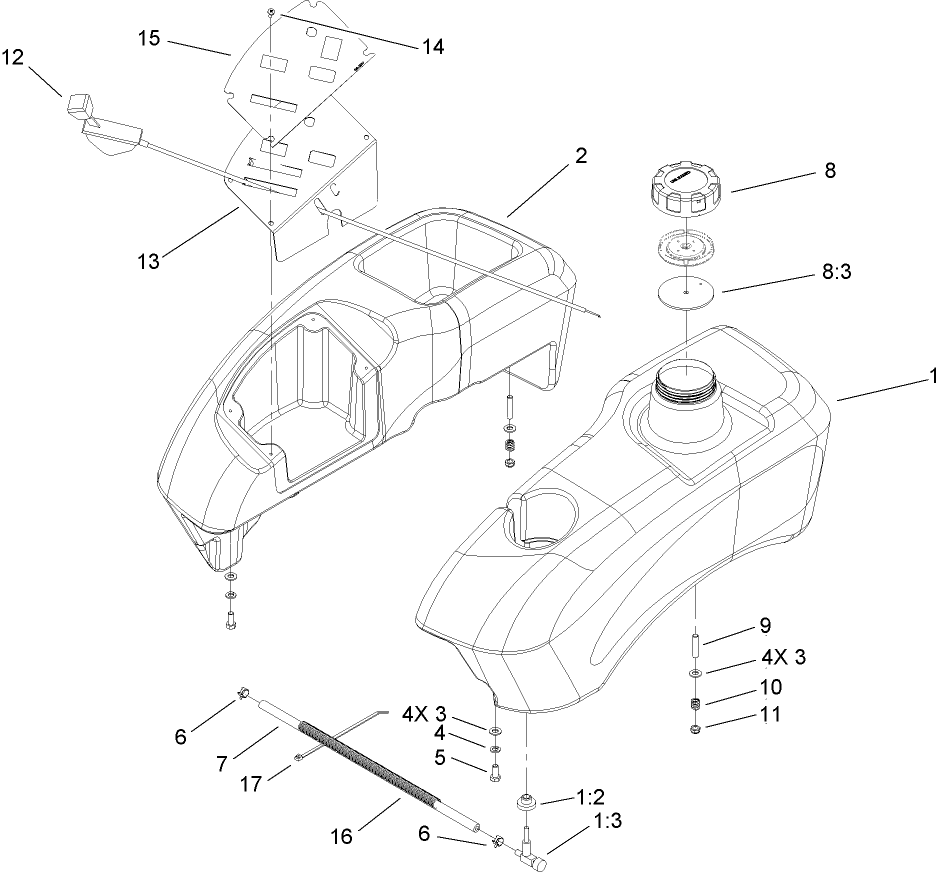

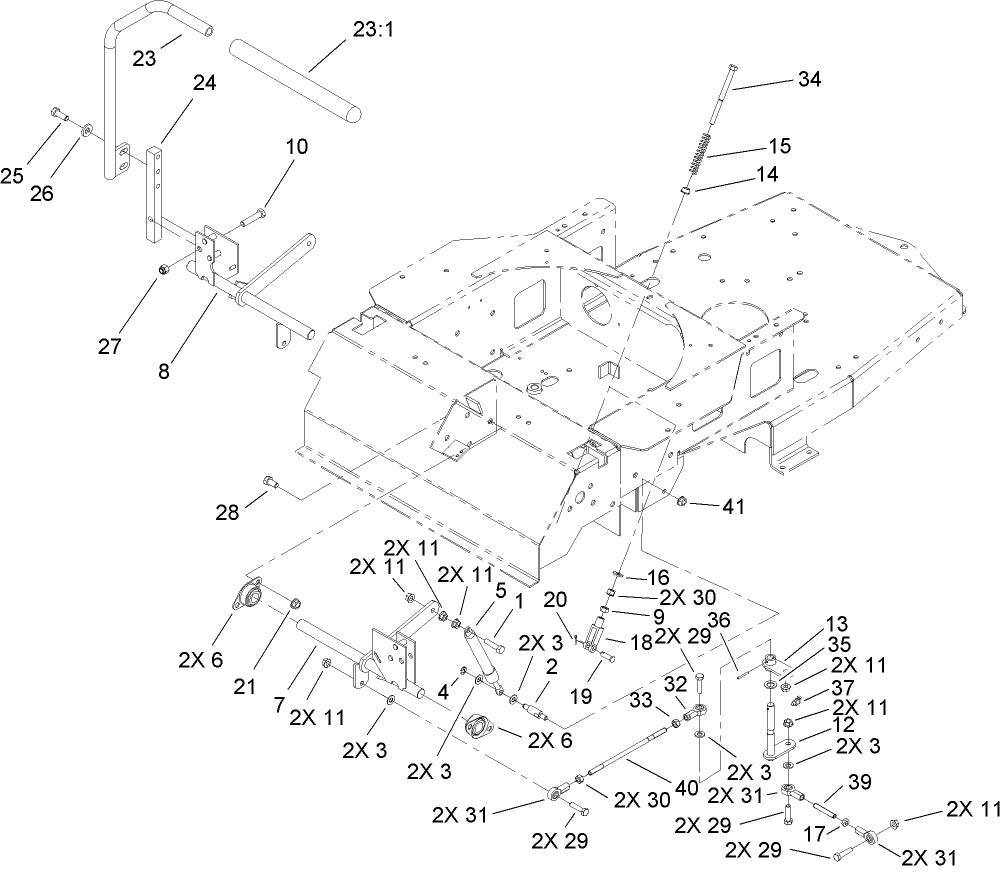

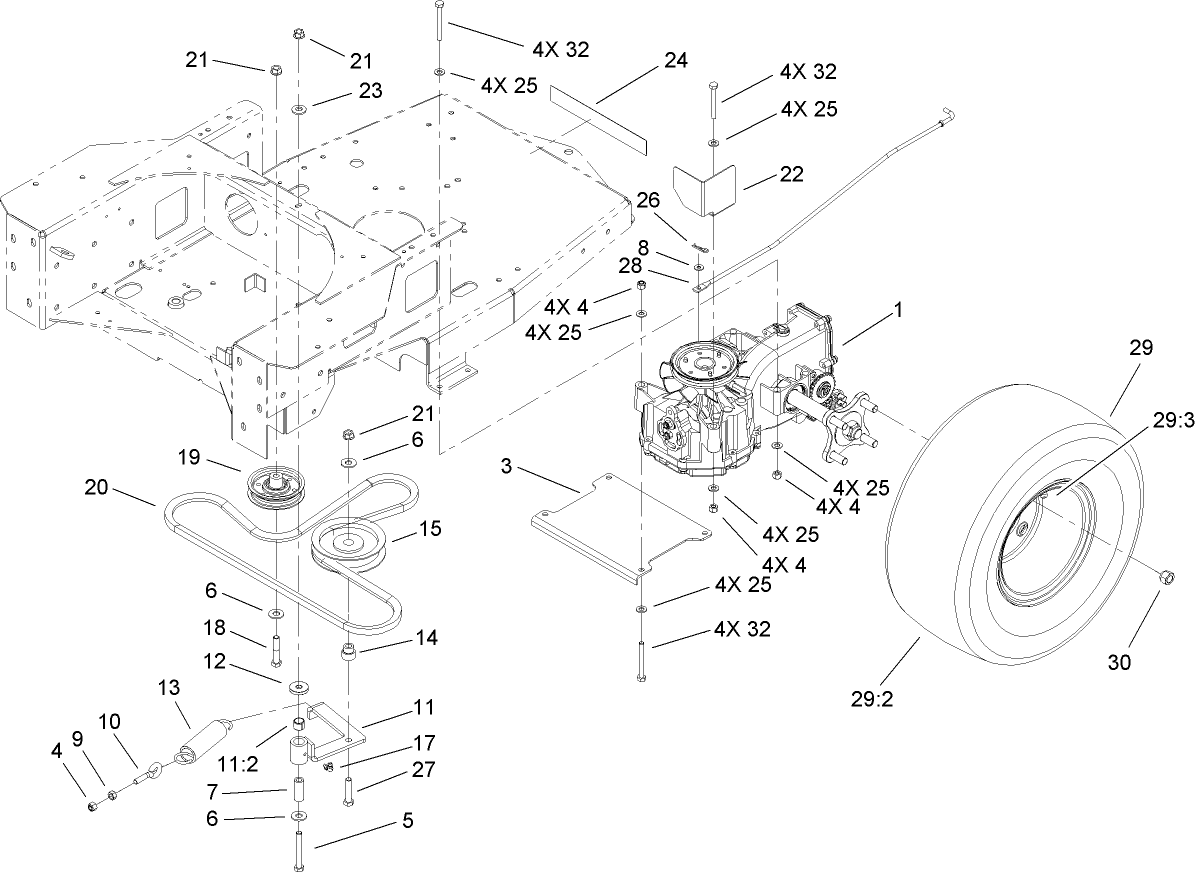

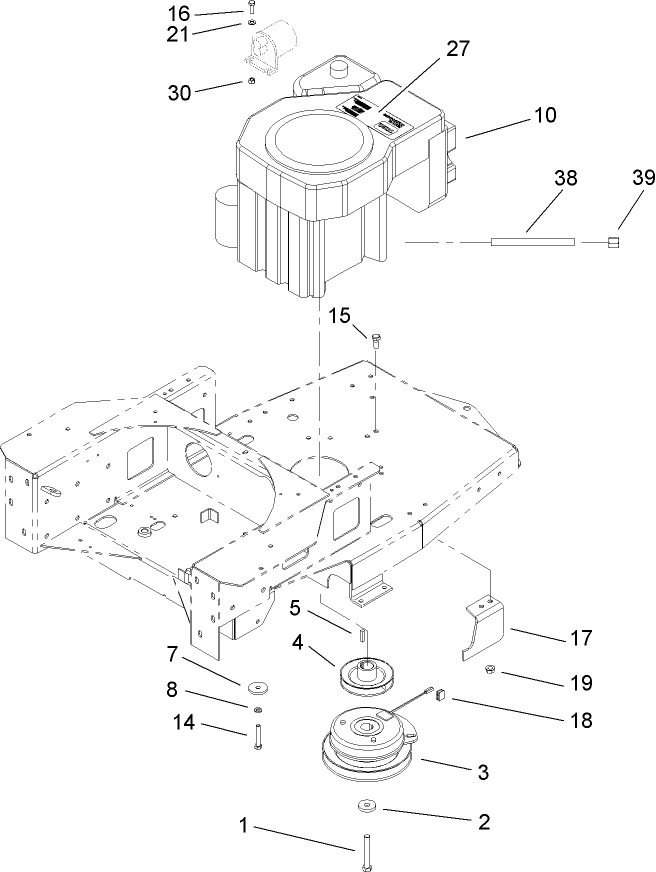

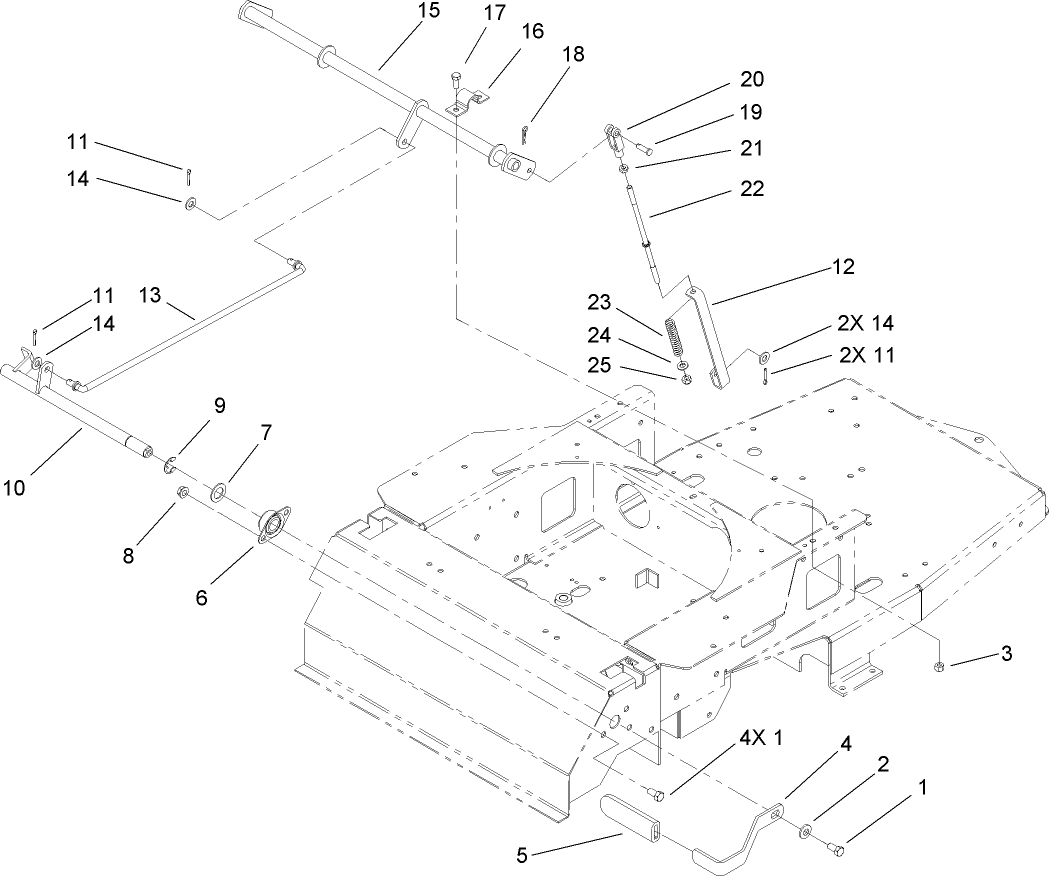

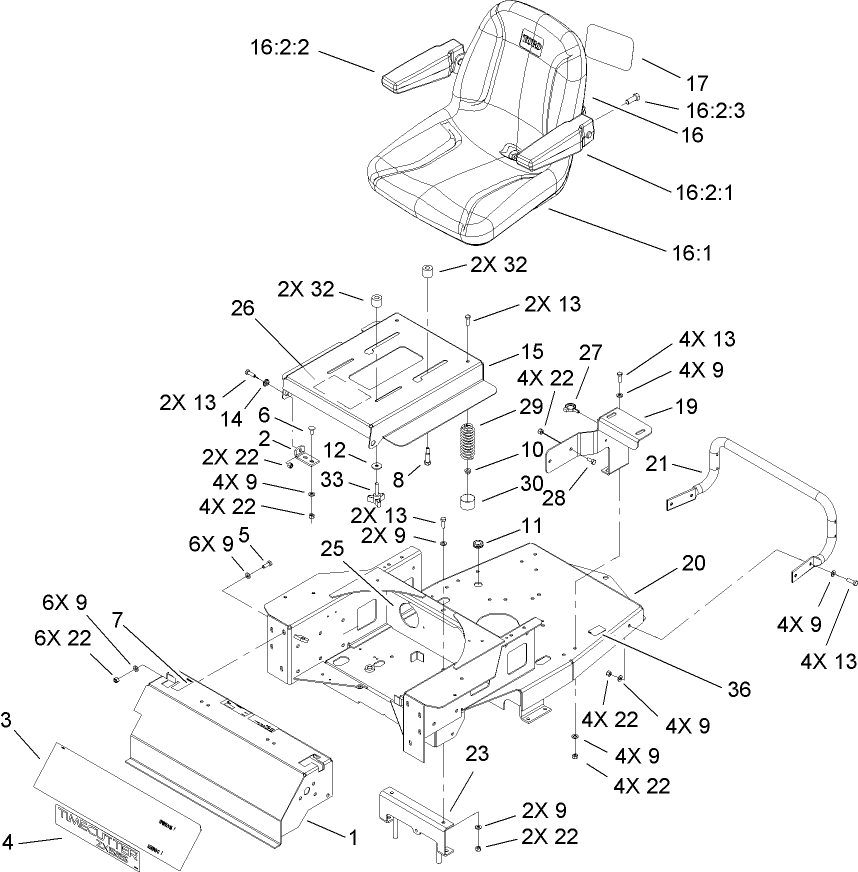

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Parts Catalog
-
Setup Instructions
Light Kit (Part # 104-8041)
Smooth Tread Front Tires (Part # 105-1856)
Tire Chains 18x7.50-8 (Part # 107-1738)
French Decal Kit, TimeCutter ZX Riding Mowers (Part # 107-2493)
ARMREST KIT (Part # 108-6163)
Hourmeter Kit (Part # 108-7158)
Red Paint - Gallon Can (Part # 361-11)
White Spray Paint - 12 oz. Can (Part # 361-7)
Black Spray Paint - Case of 6 (Part # 361-8)
COVER (Part # 490-7516)
ZRT Cover - un-branded (Part # 490-7518)
Red Paint - Quart Can (Part # 5340)
44" Vac-Bagger (Part # 79161)
44in Vac-Bagger, TimeCutter ZX Riding Mowers (Part # 79163)
56" Snow blade (Part # 79165)
Recycler Kit for 44" SD Mower (Part # 86041)
-
Model #
74603 -
Serial #
260000001 - 260999999 -
Product Name
TimeCutter ZX440 Riding Mower -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Zero Radius Turn, Consumer -
Chassis Type
ZRT - Consumer -
Swath
44 inch -
Discharge
Side -
Engine/Motor Manufacturer
Kohler -
Engine/Motor Size
490cc -
Engine/Motor Type
4 Cycle CARB2, EPA2 -
Engine Starter
Electric -
Transmission Type
Hydrostatic
-
Chassis: Tire Pressure
Front 35 PSI / 2.5kg sq. cm, Rear 13 PSI / .9kg sq. cm -
Drive System: Ground Speed
Fwd. 0 - 6.5 Rev. 0 - 3.4 mph -
Engine: Battery
12V 260CCA -
Engine: Ignition Coil Air Gap
.010" / .25mm -
Engine: Engine Speed
High 3400, Low 1400 RPM -
Engine: Spark Plug
Champion RC12YC -
Engine: Spark Plug Gap
.030"/ .76mm -
Engine: Engine Oil Type
2.0 qts. 10w-30 -
Chassis: Height of Cut Range
1.5-4.5"; 1/2" increments
