Parts – 60in Z Master Professional 2000 Series Riding Mower

2000 Series 60" (152 cm) 24.5 HP 708cc (77284)

Product Information

Model #: 77299
Serial #: 411436112 - 999999999
Product Type: Riding Products

No.	Description	Price

Assembly Drawings

Search for a part within assembly drawings:

Showing Results

Drawing Title	Part Number	Description
Title

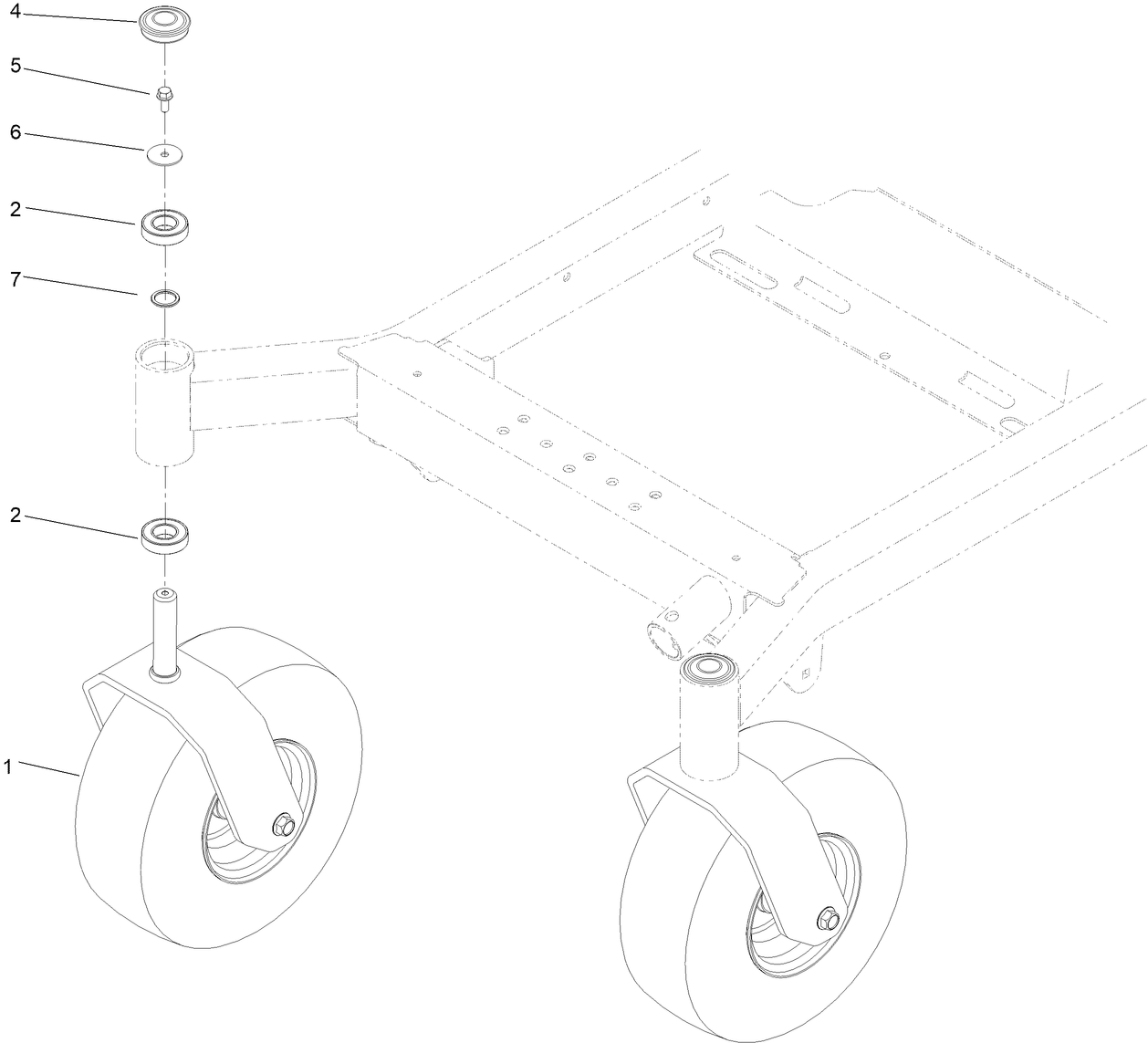

Caster Assembly

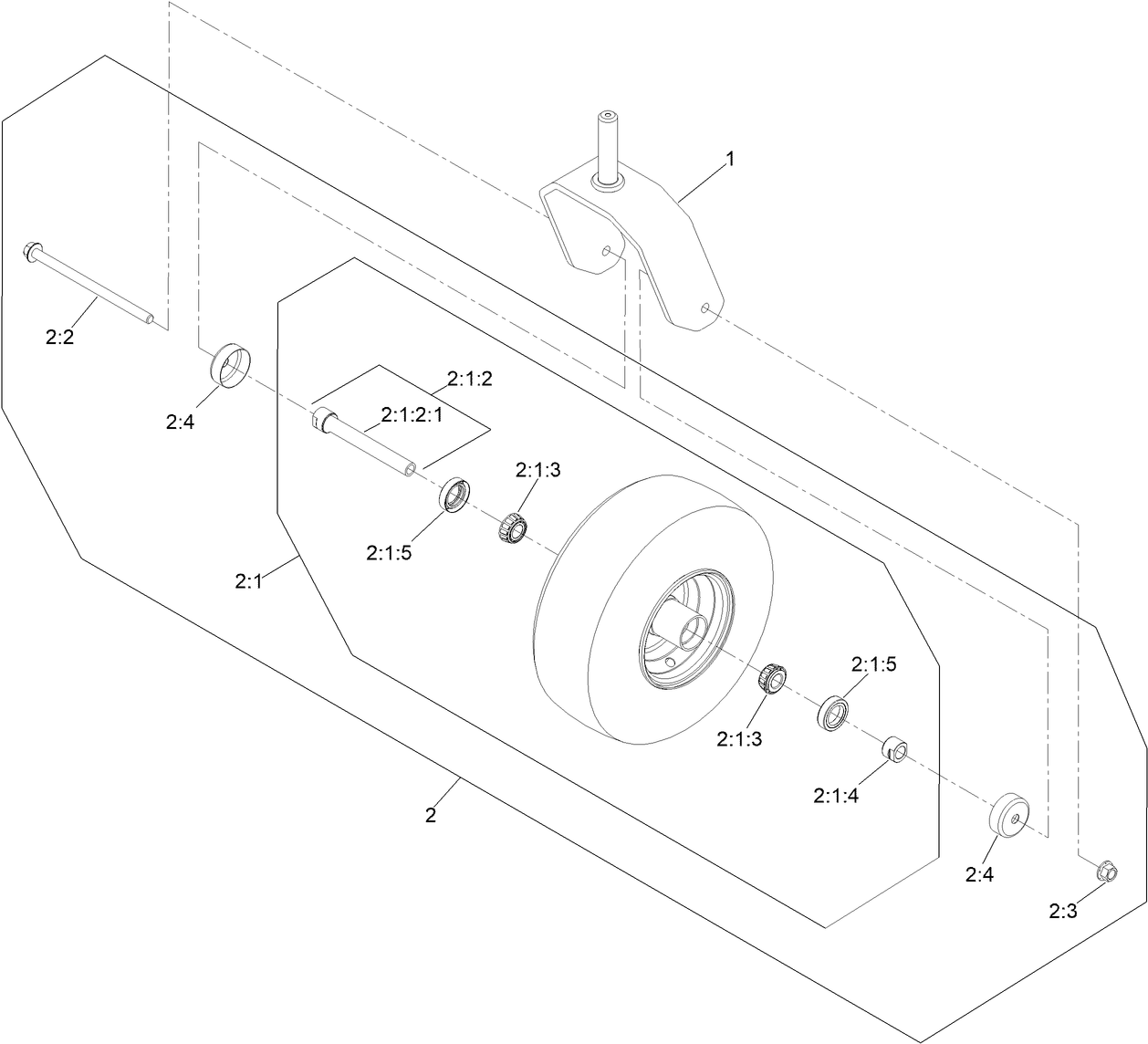

Caster Wheel and Fork Assembly

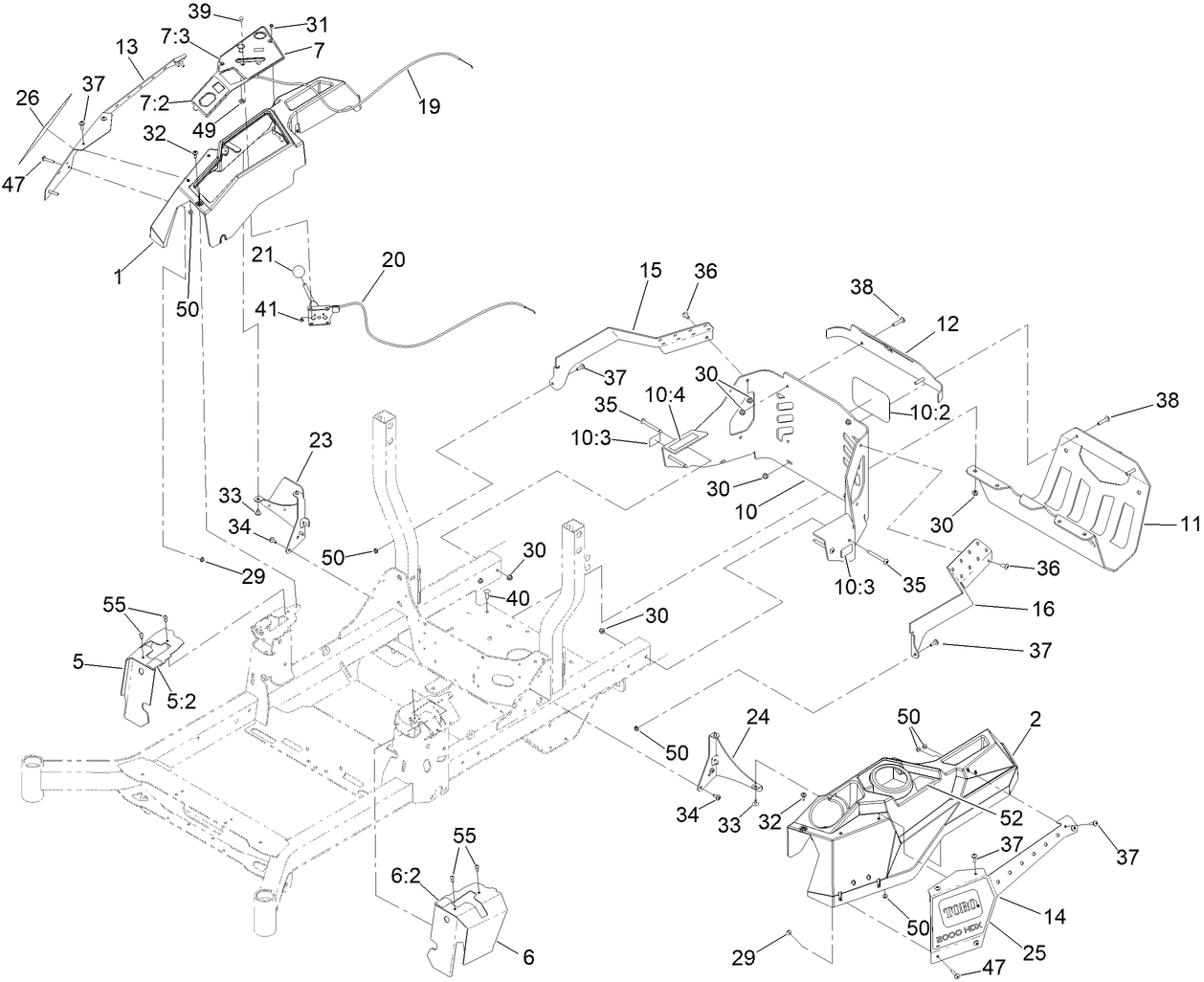

Control Console and Guard Assembly

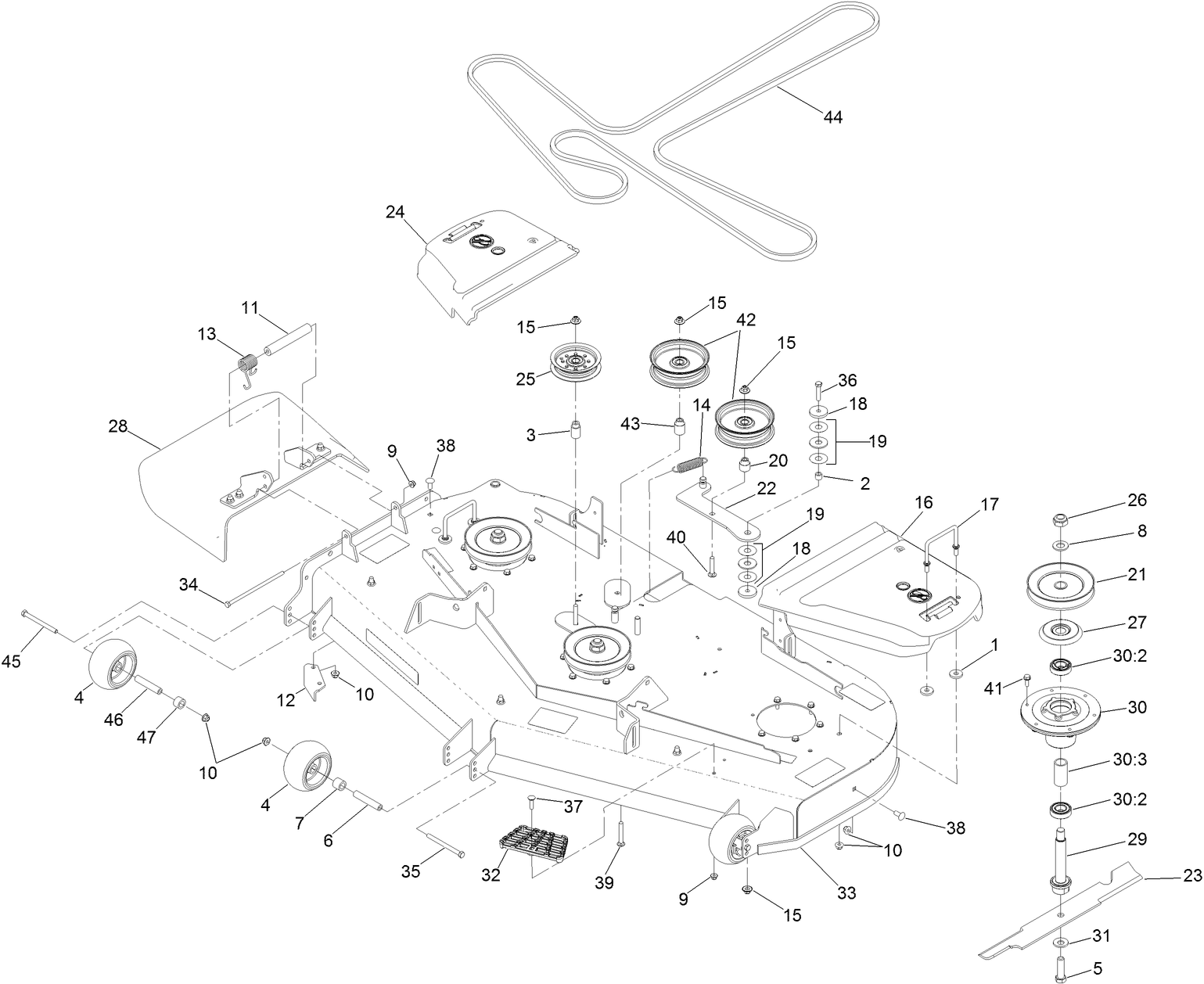

Deck Assembly

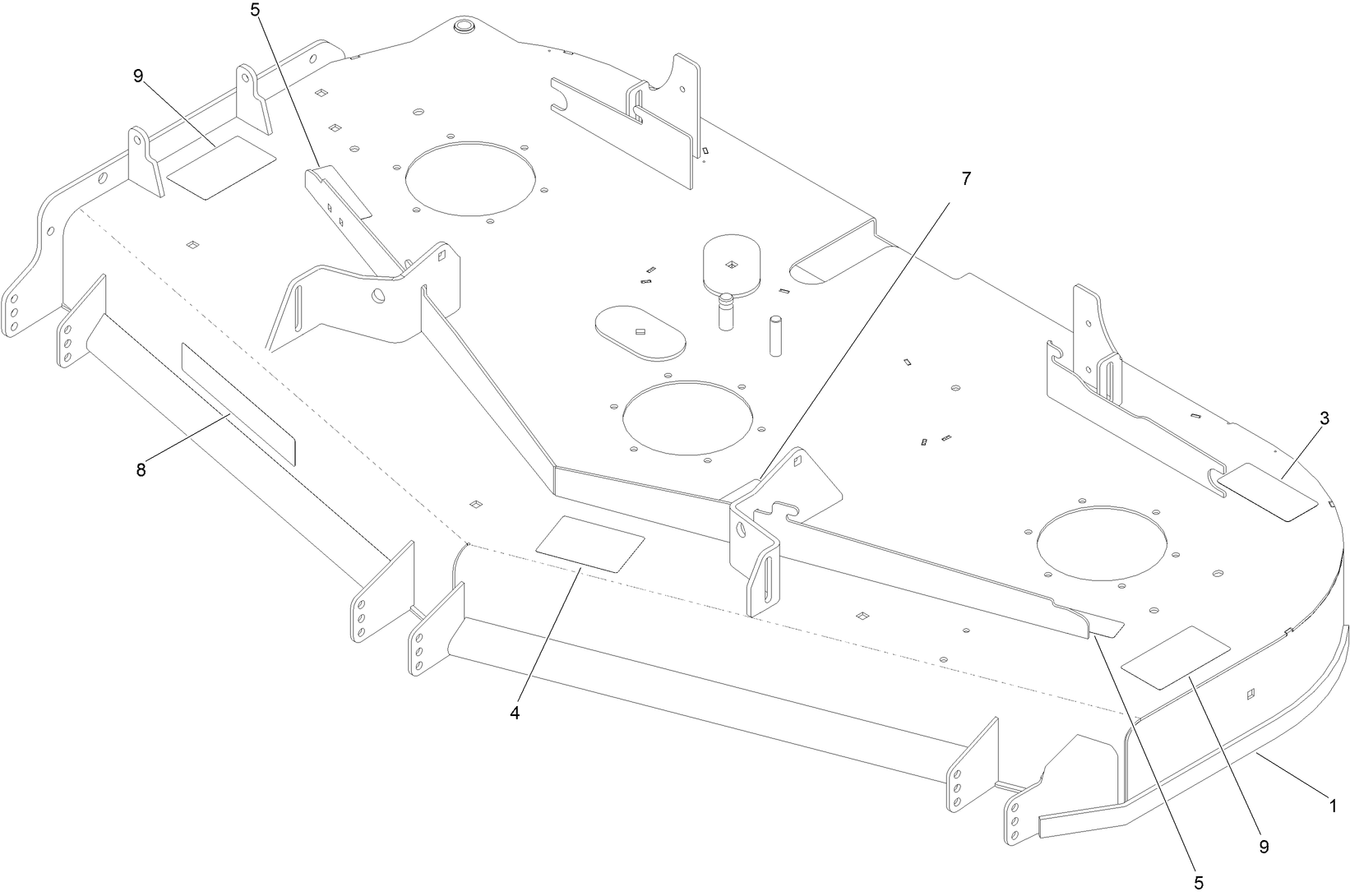

Deck Decal Assembly No. 126-8958

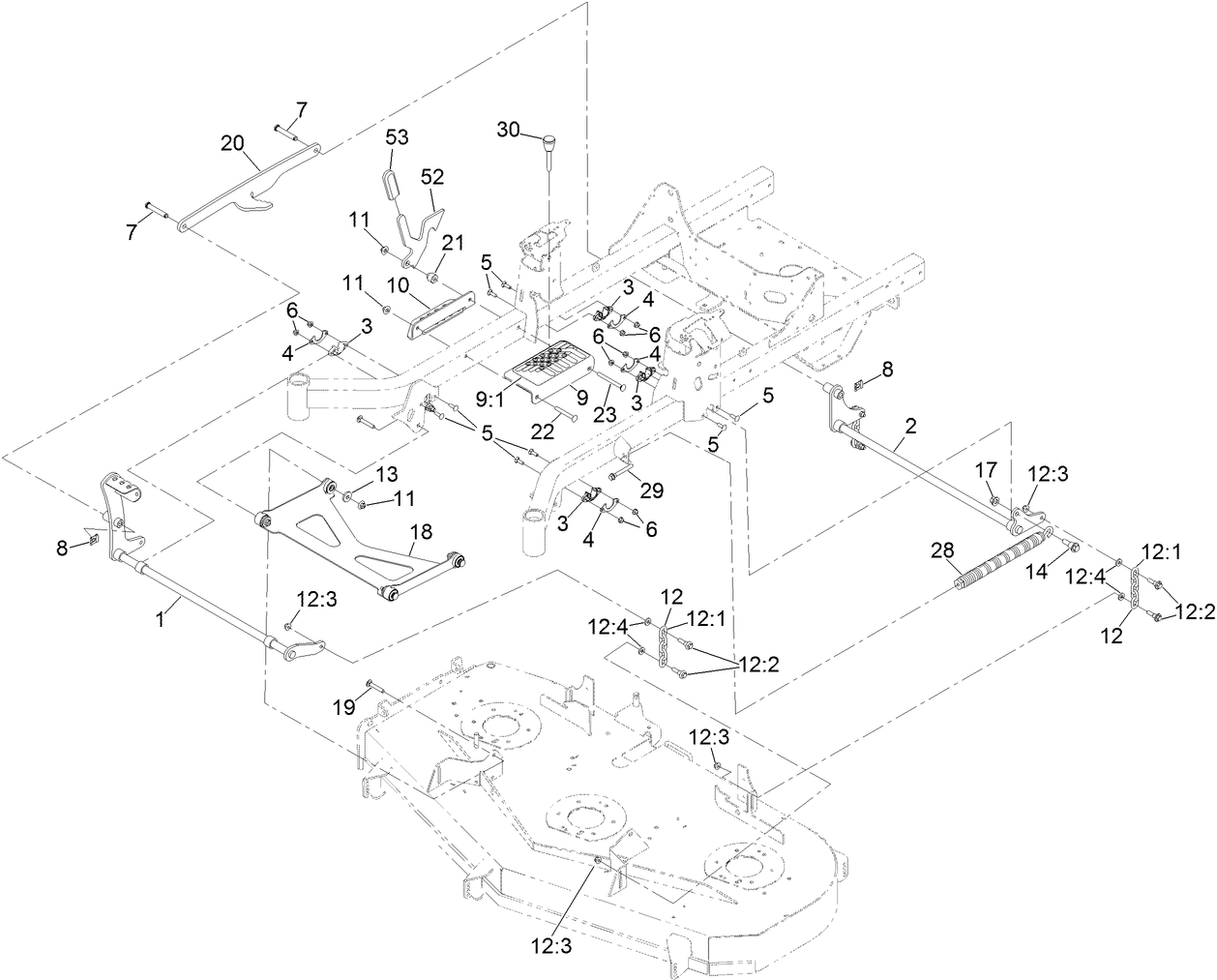

Deck Lift Assembly

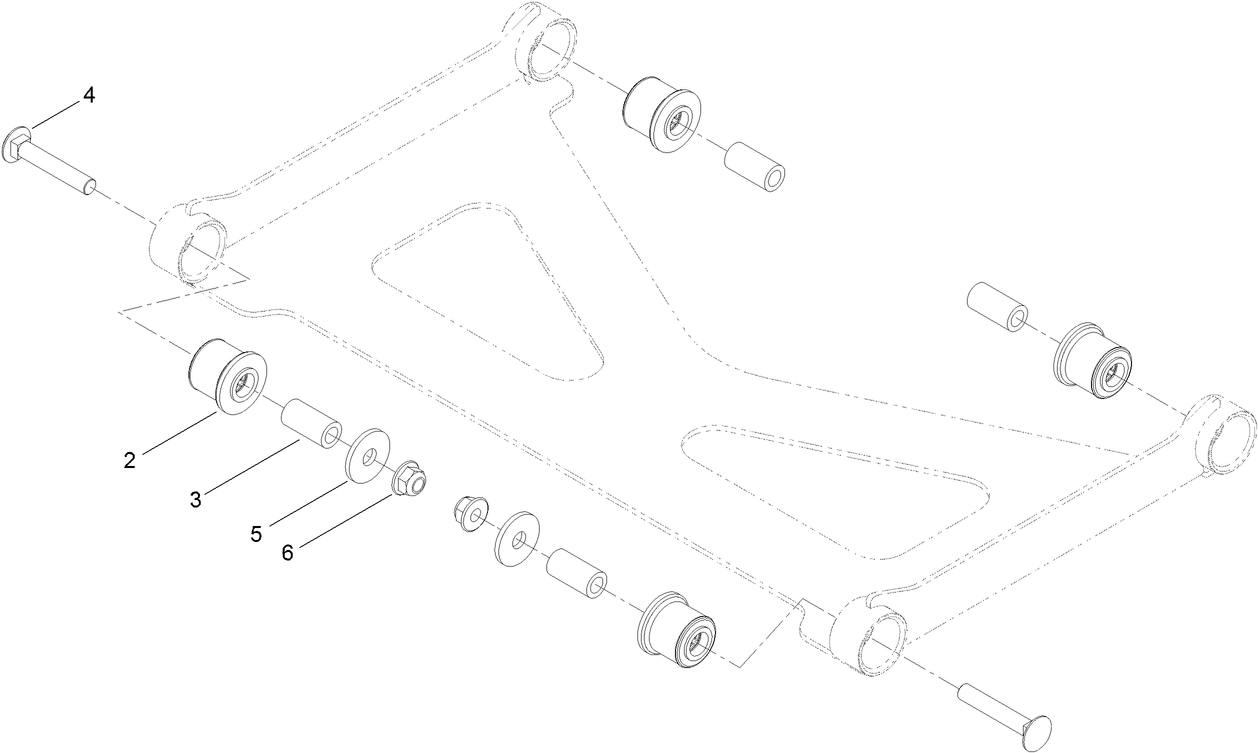

Deck Strut Assembly No. 126-8365

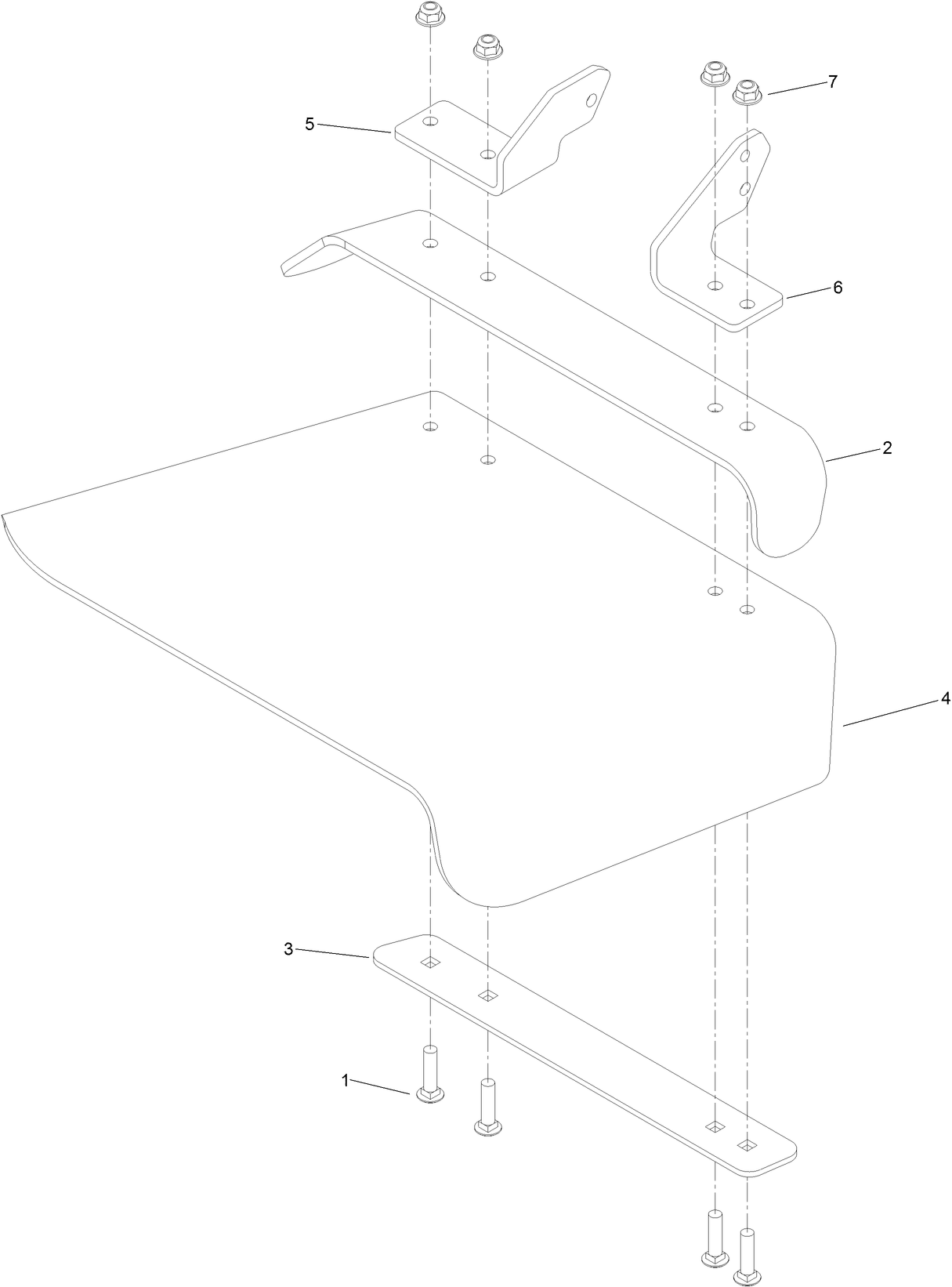

Deflector Assembly No. 120-2451

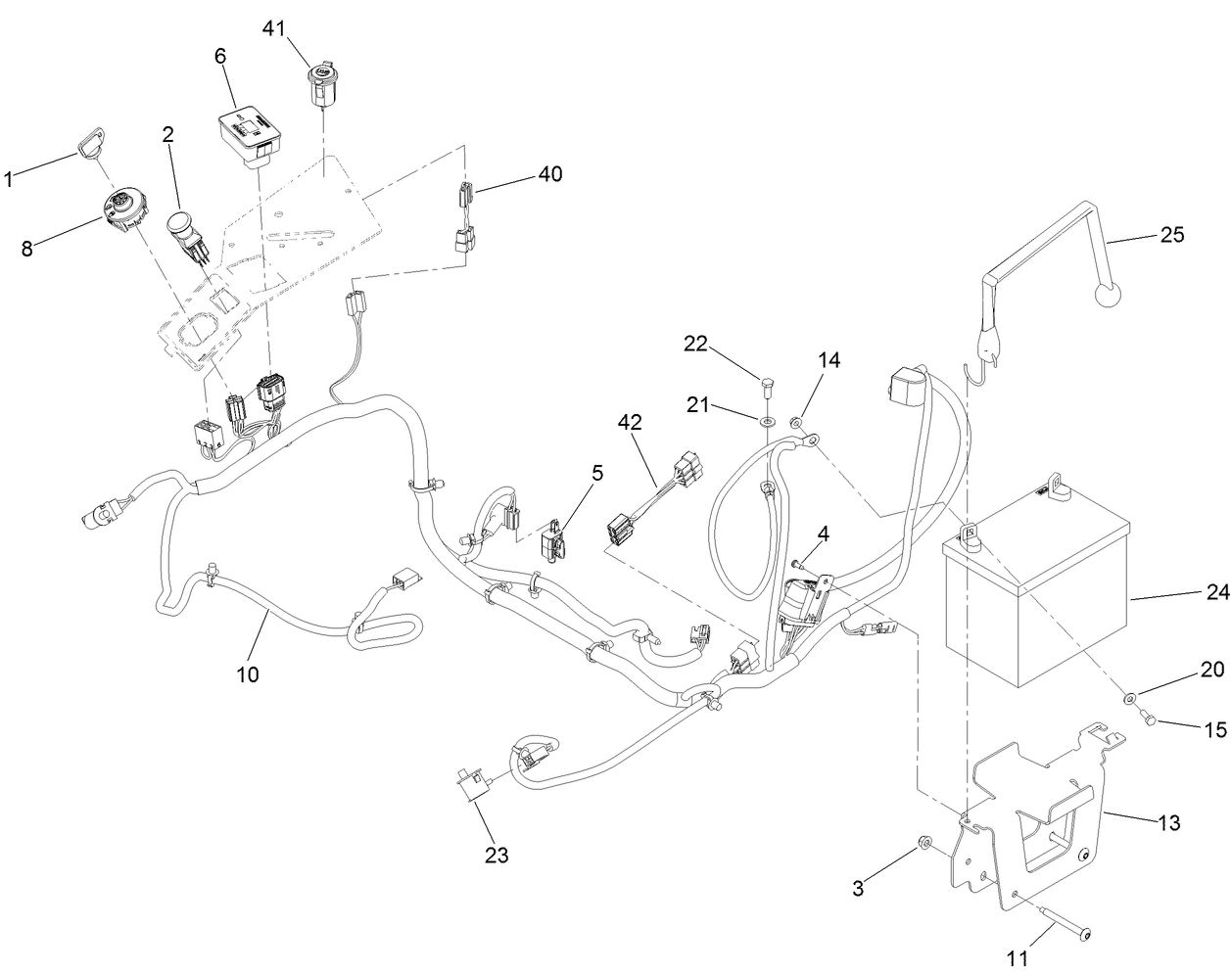

Electrical Assembly

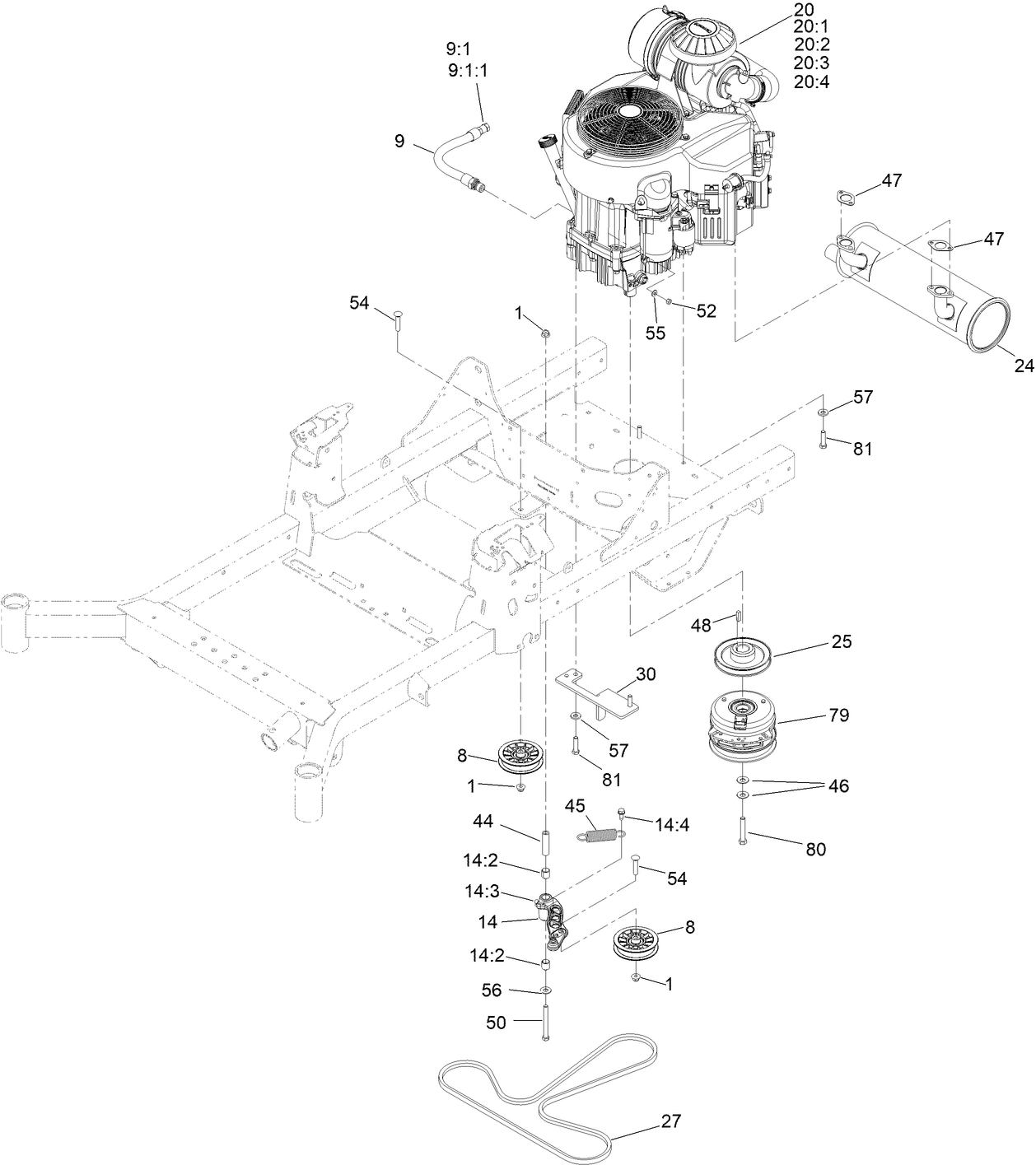

Engine, Clutch and Muffler Assembly

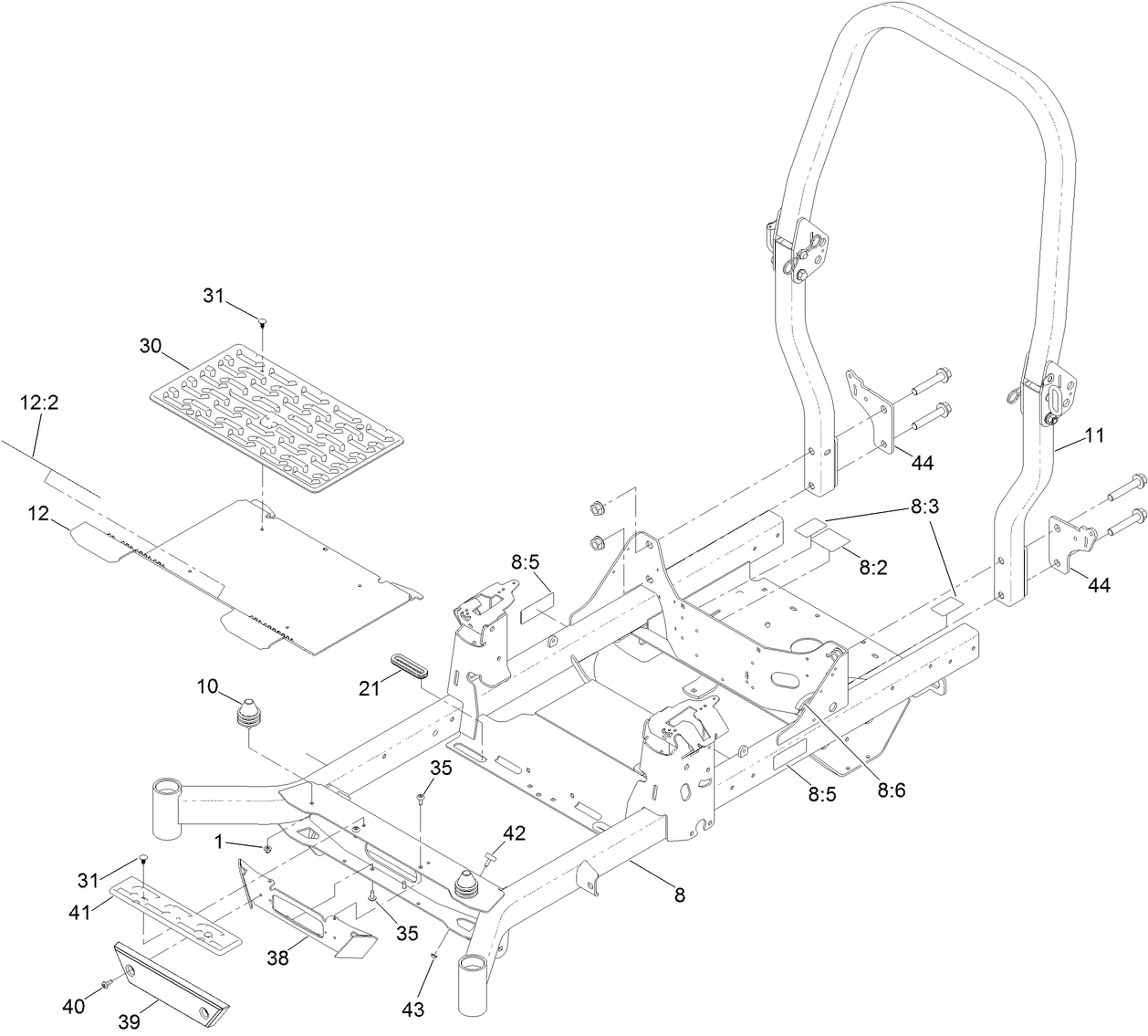

Frame Assembly

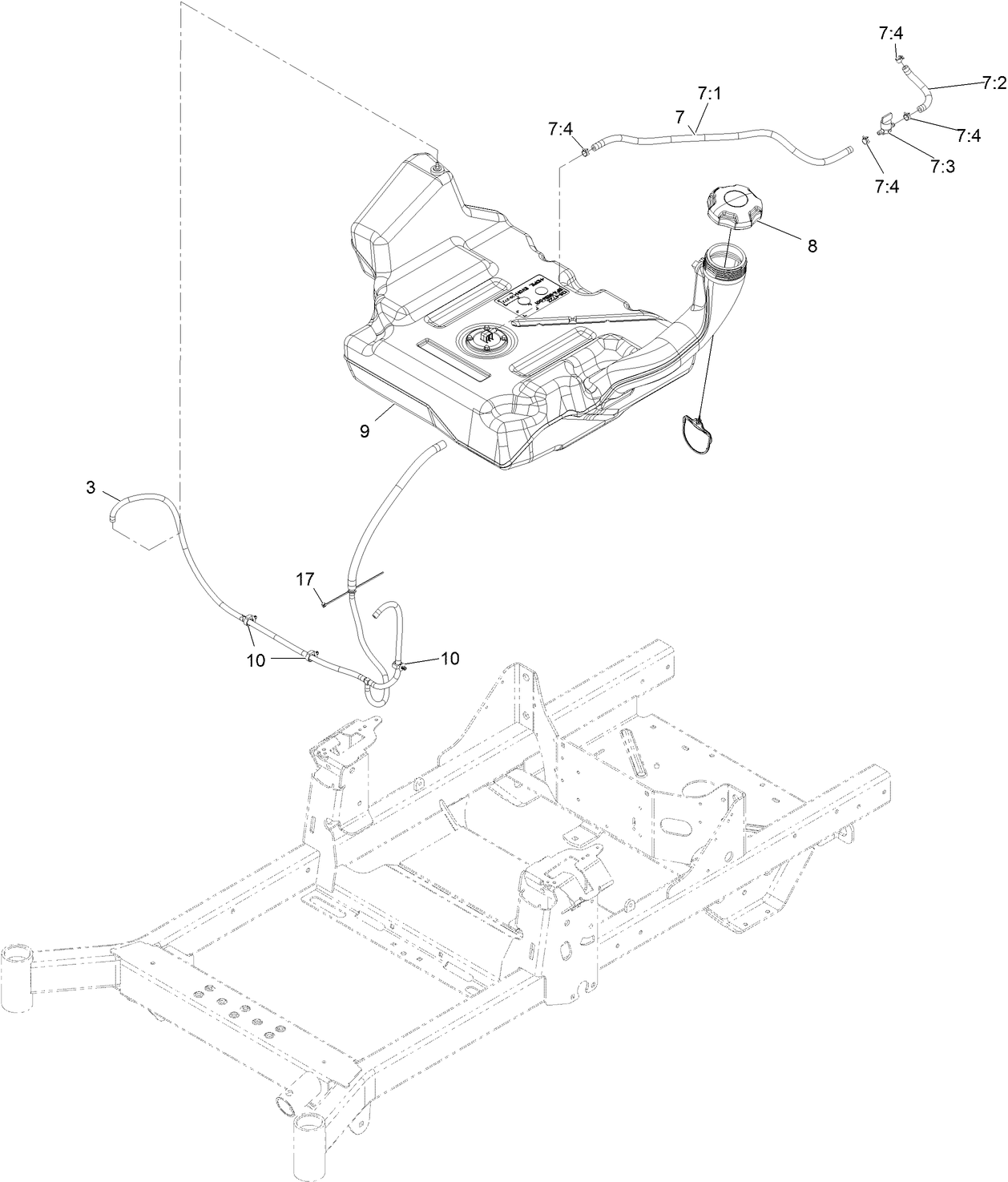

Fuel Assembly

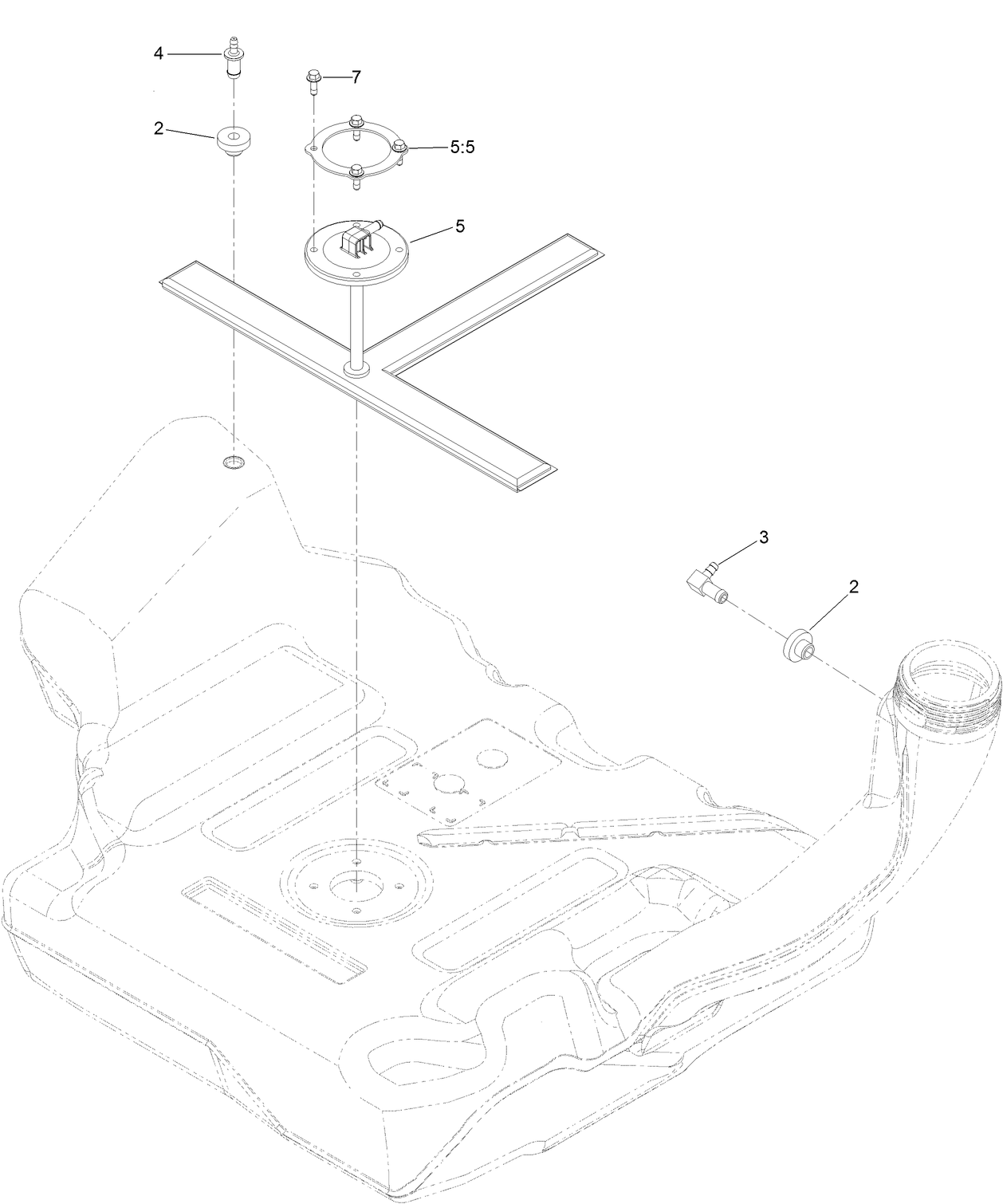

Fuel Tank Assembly No. 126-4724

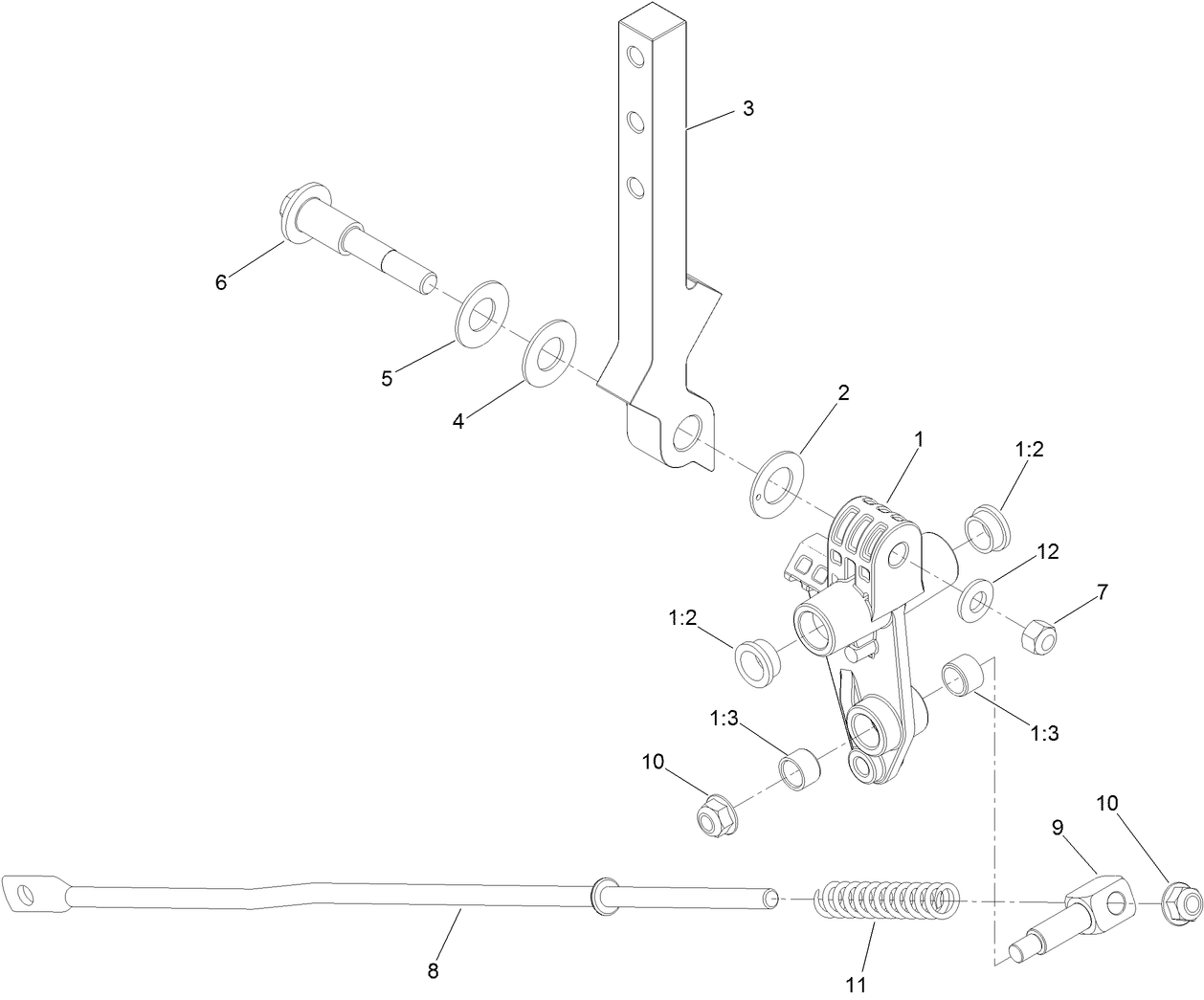

LH and RH Motion Control Assembly

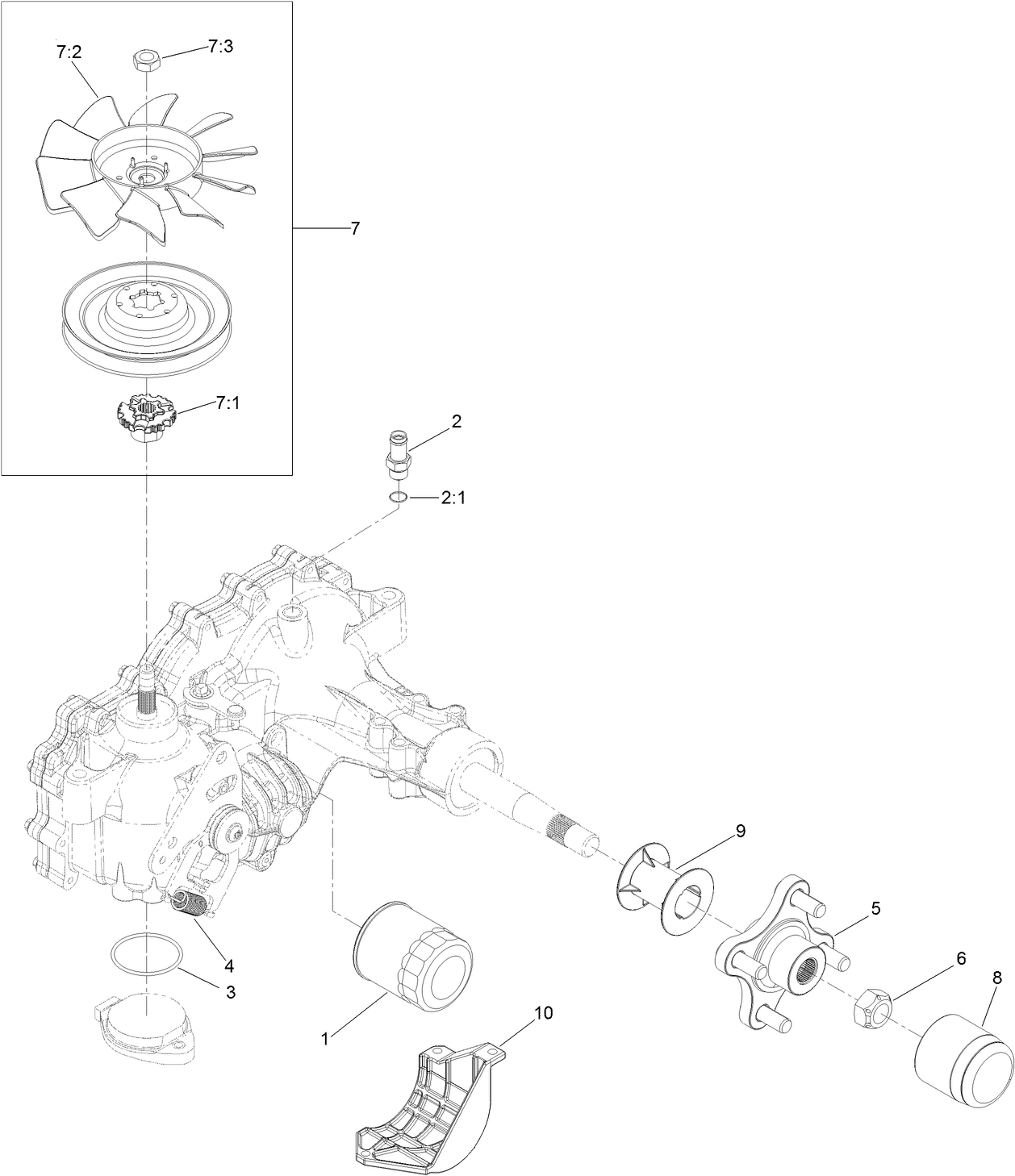

LH Transaxle Assembly No. 140-9489

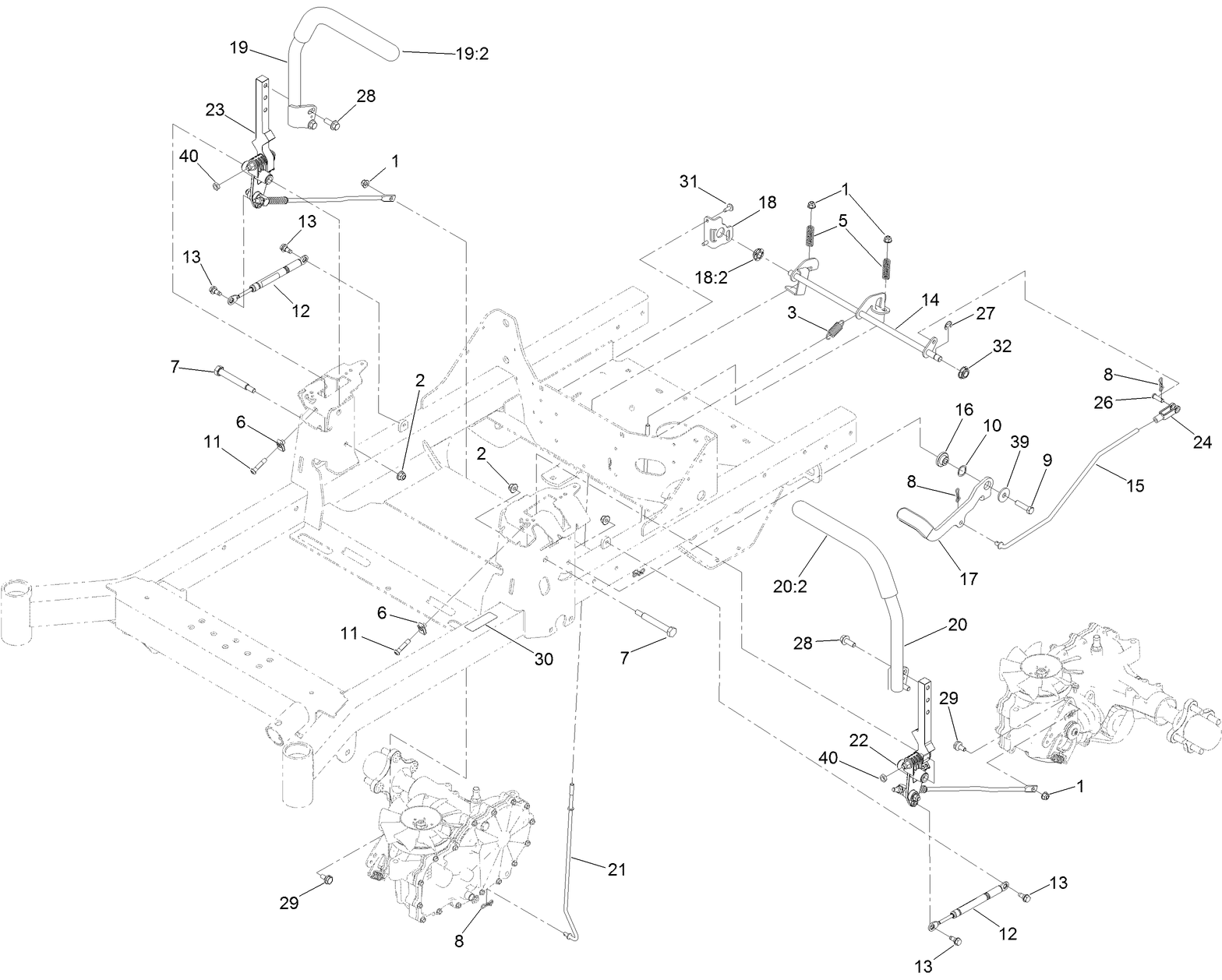

Motion Control Assembly

Rear Wheel Assembly

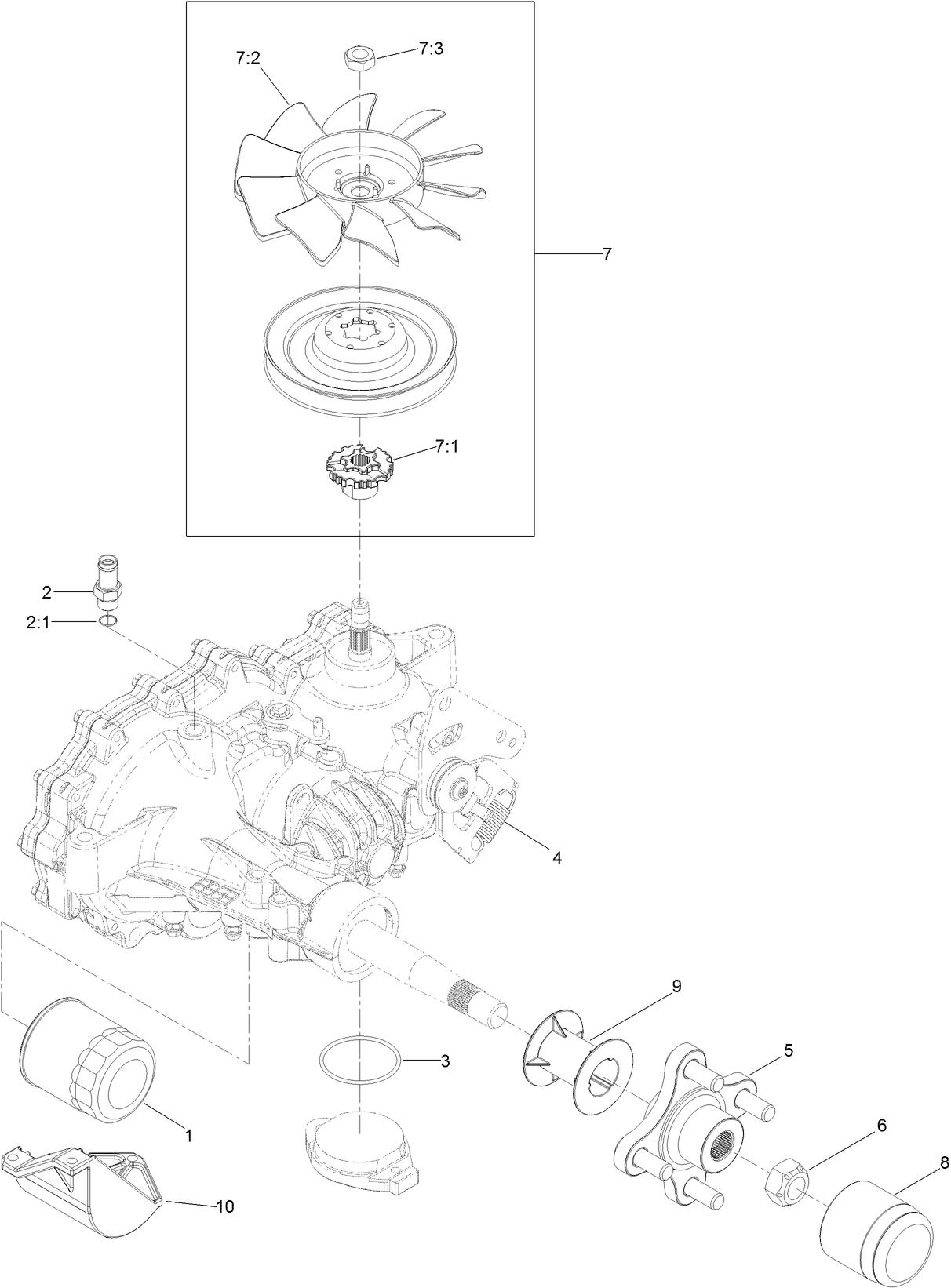

RH Transaxle Assembly No. 140-9490

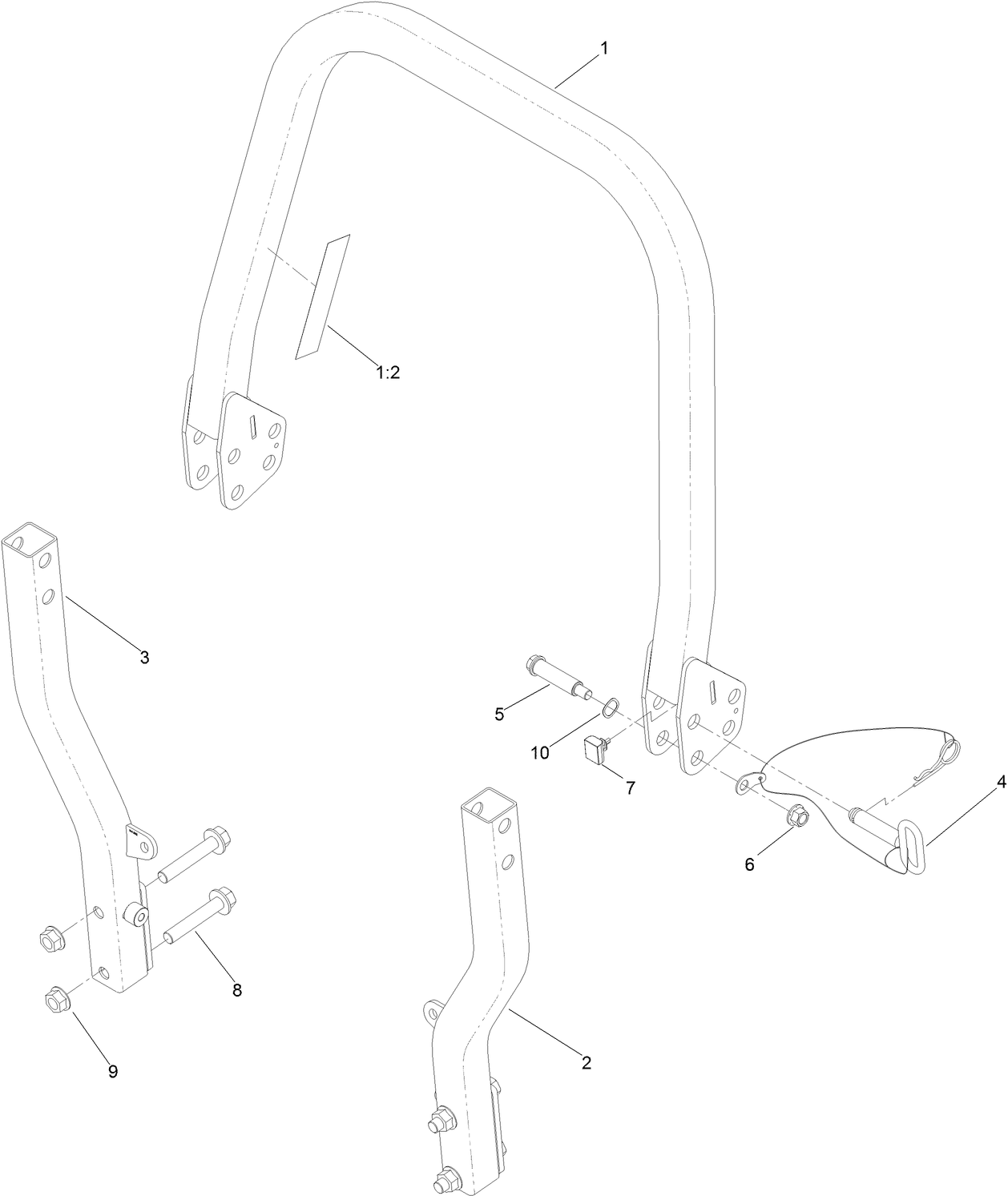

Roll-Over Protection System Assembly No. 144-1848

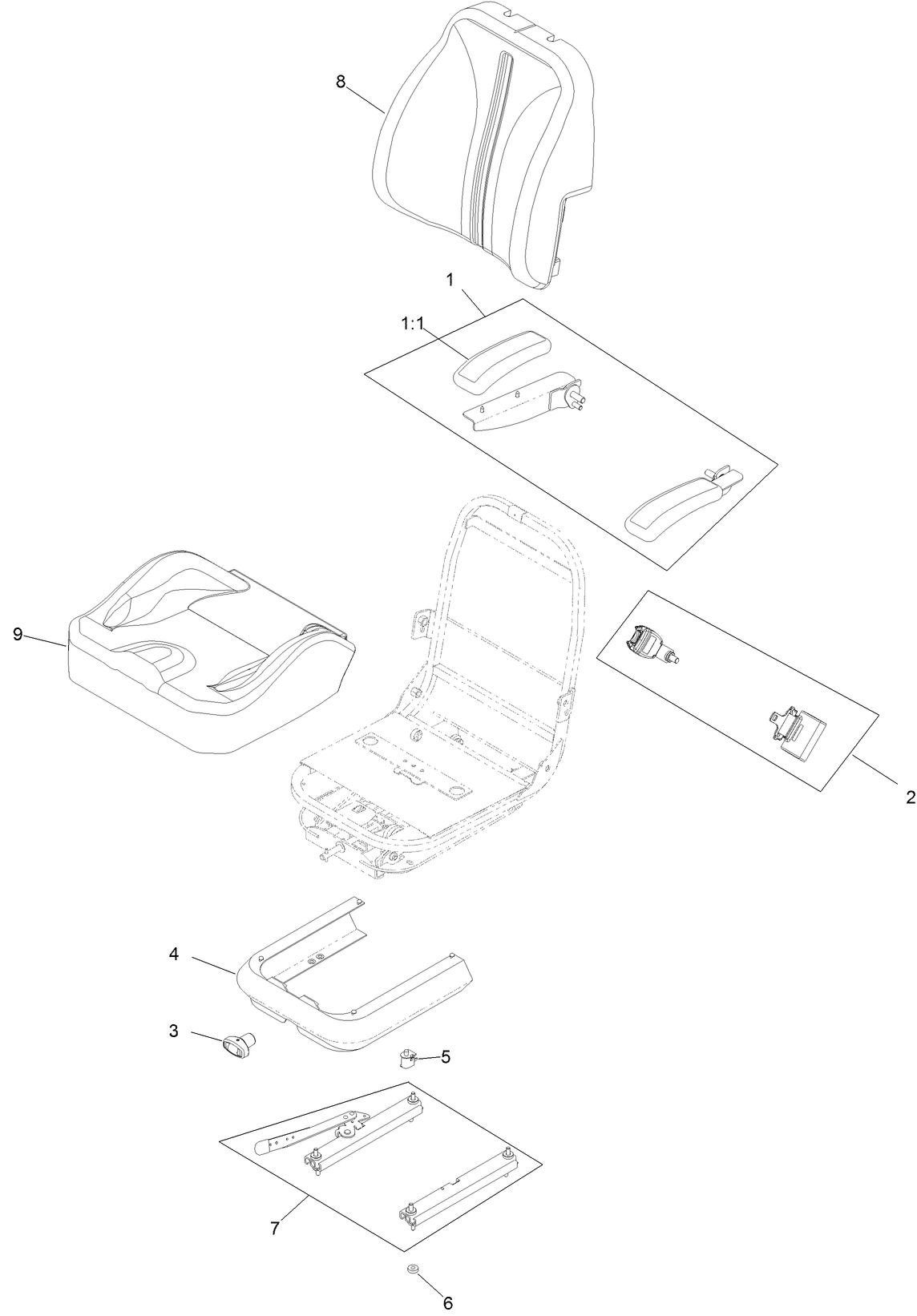

Seat Assembly No. 144-3775

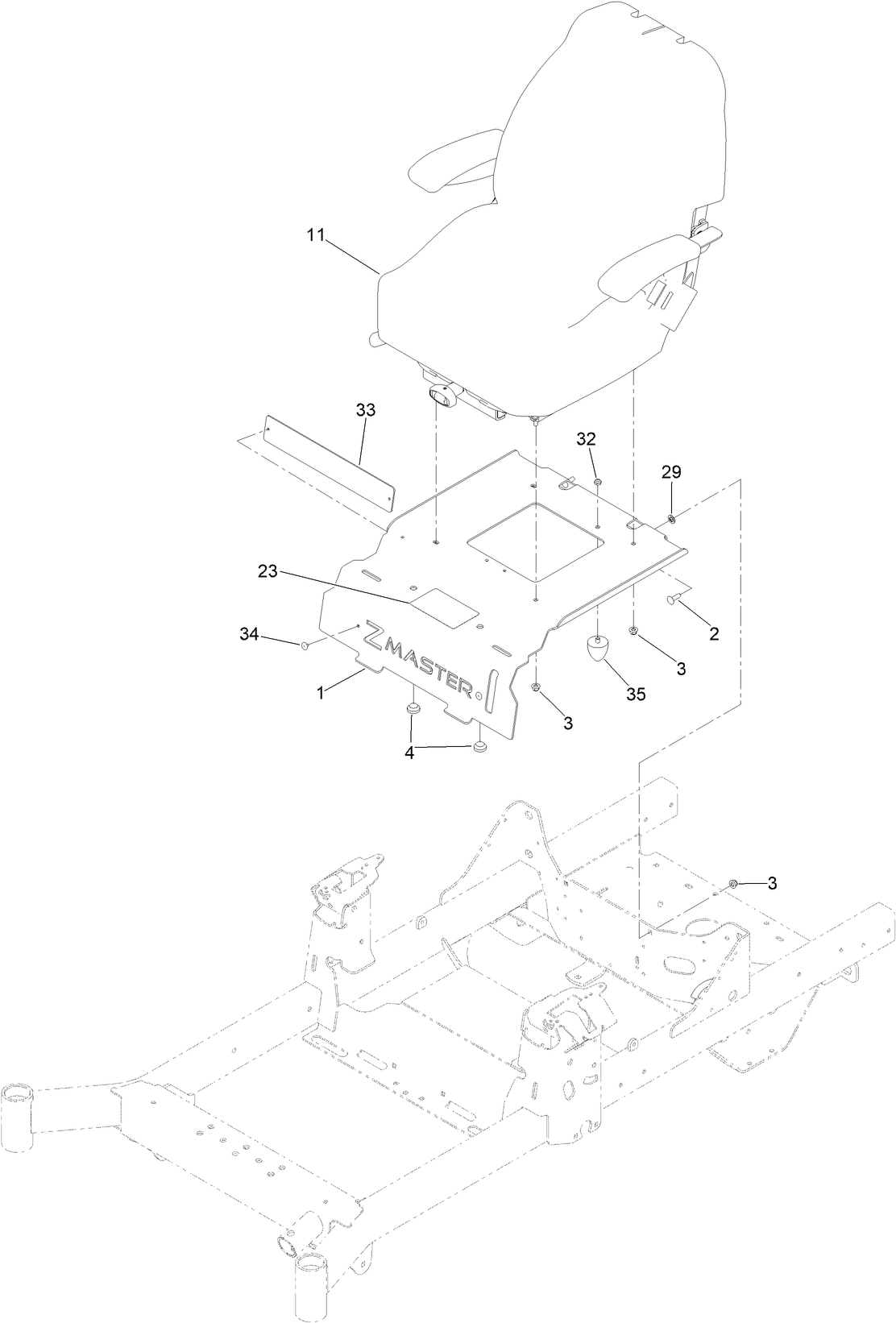

Seat Mount Assembly

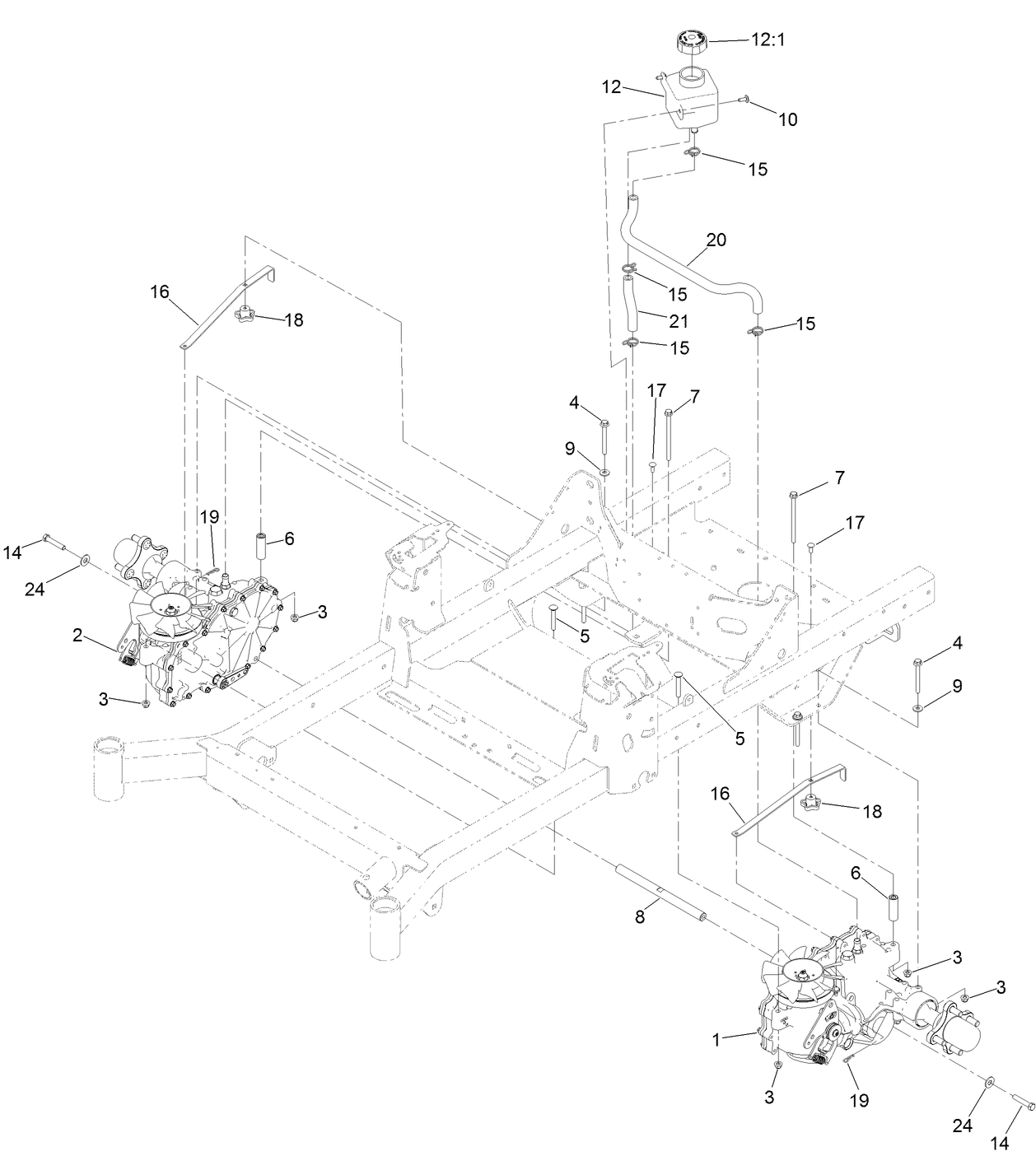

Transaxle Assembly

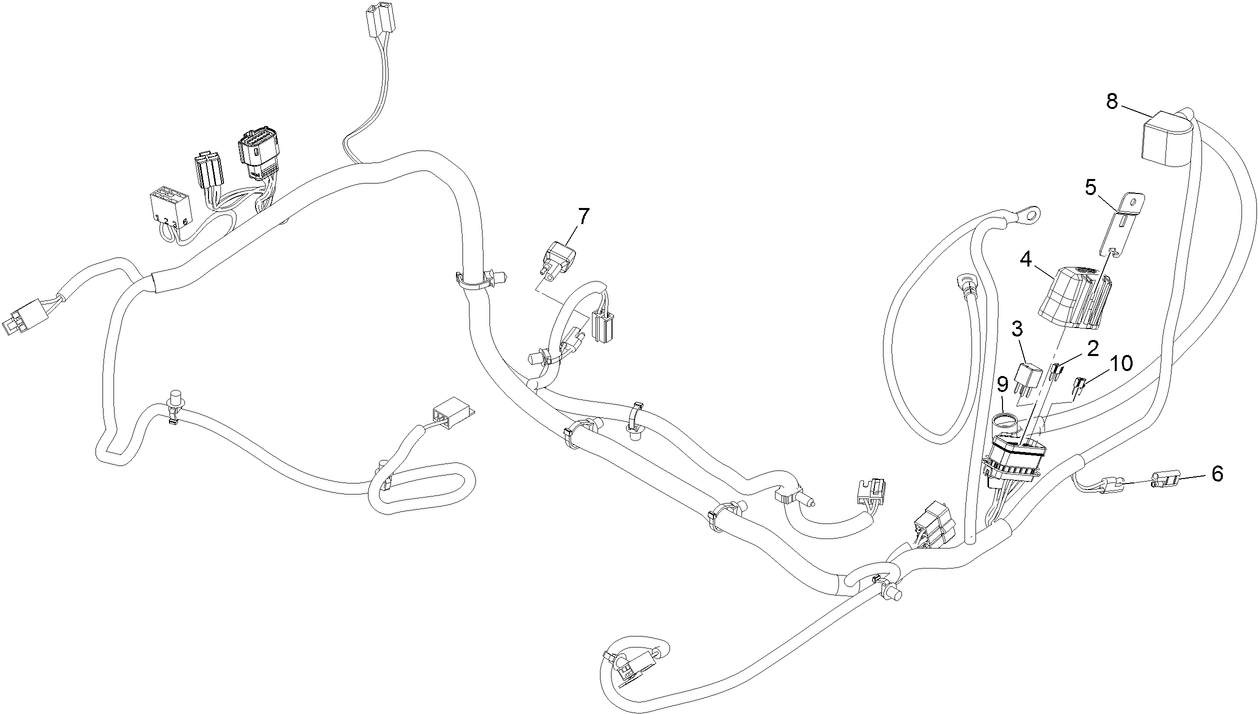

Wire Harness Assembly No. 126-5803

Download Parts Catalog

Manuals

Operator's Manual
Parts Catalog
- English (3453-919)
Product Warranty
Setup Instructions
- English (3433-516)
- English (3433-516-W)

Accessories

Hypr-Oil™ 500 (quart) (Part # 114-4713)

High Performance Hydro Oil

Hypr-Oil™ 500 (gallon) (Part # 114-4714)

High Performance Hydro Oil

HYPR-OIL 500-5 GALLON (Part # 114-4715)

COVER-HITCH (Part # 126-8299)

Trash Container Kit (Part # 126-8379)

Toro genuine rider trash container kit. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

KIT-CASTER WEIGHT (Part # 126-8639)

60in Recycler Kit, TITAN HD 1500 or 2000 Series Riding Mower (Part # 126-8703)

Riding Mower Jack Kit (Part # 127-6666)

Genuine Toro jack mount kit. Mounts to the front of the mower and allows the owner to raise the mower to gain access to the underside of the deck to check blades or wash the deck. To best protect your investment and maintain optimal performance of your turf equipment, count on Toro genuine parts. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

Toro Kawasaki Engine Maintenance Kit (Part # 133-1307)

This Kawasaki Engine maintenance kits is a genuine Toro approved kit designed to help keep your engine operating at peak efficiency. The kit has everything you need to maintain your engine. Every component is factory-specified and test-certified for optimum fit and performance. It's the easiest, most economical way to ensure fast starts, full power and torque, and maximum efficiency from your hard-working equipment. Contains: High-efficiency oil filter designed for your pressurized lubrication system, air filter designed using high-quality polyurethane, media and seals to meet OEM standards for dust-holding capacity, a spark plug matched to your engine for optimum performance, and oil designed specifically for Kawasaki engines.

Toro High Back Seat Cover (Part # 133-1308)

Toro genuine high back seat covers will take a beating and endure the daily wear and tear you put on it. These seat covers are carefully crafted and sewn from the highest quality, waterproof material, nylon/polyester fabric that ensures that your factory seats will always be protected. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

20.5 Inch Hi-Flow Blade (Part # 133-2127)

Toro 20.5 Inch OEM Hi-Flow blade. This sharp replacement Hi-Flow lawn mower blade provides a crisp, clean cut time after time. You can count on the quality and reliability of this Toro replacement Hi-Flow lawn mower blade. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

20.5 Inch Atomic Blade (Part # 133-2157)

Toro 20.5 Inch OEM Atomic blade. The Toro Atomic blade is commonly referenced as a “Gator Style” or “Gator Blade”. Provides the best quality of cut while mulching. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

20.5 Inch Recycler Blade (Part # 133-2161)

Toro 20.5 Inch OEM Recycler blade. Recycler straight edge, standard discharge blade. The blade is designed for a High quality cut and long-lasting durability. These blades are designed with “wings,” called “accelerators” that kind of act like a fan — forcing the tiny bits of grass back into the earth. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

20.5 Inch Hi-Flow Blade Pack - 6 Blades (Part # 133-2174)

Toro 20.5 Inch OEM Hi-Flow blade pack. (6) Hi-Flow blades. This sharp replacement Hi-Flow lawn mower blade provides a crisp, clean cut time after time. You can count on the quality and reliability of this Toro replacement Hi-Flow lawn mower blade. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

20.5 Inch Recycle Blade Pack - 6 Blades (Part # 133-2177)

Toro 60 Inch OEM Recycler blade pack. (6) Recycler blades. Recycler straight edge, standard discharge blade. The blade is designed for a High quality cut and long-lasting durability. These blades are designed with “wings,” called “accelerators” that kind of act like a fan — forcing the tiny bits of grass back into the earth. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

20.5 Inch Atomic Blade Pack - 6 Blades (Part # 133-2180)

Toro 20.5 Inch OEM Atomic blade. (6) blade pack. Atomic blade is commonly referenced as a “Gator Style” or “Gator Blade”. Provides the best quality of cut while mulching. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

Toro genuine 5-Gallon bucket. (Part # 133-2533)

Toro genuine 5 Gallon Bucket. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

60 Inch MVP Blade and Belt Kit (Part # 135-2254)

Toro OEM blade and belt kit for Z-Master riding lawn mowers. To best protect your investment and maintain optimal performance of your turf equipment, count on Toro genuine parts. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

Z-Master Extended Bagging Control Levers Kit (Part # 138-6020)

Toro OEM extended bagging control levers provide an additional 2.5 inches of handle height to help ease reach and control of your Toro lawn care machine. Toro would like to remind you that fitment can vary by sub model, serial number, and/or production date of your equipment. Please refer to the original owners manual in order to verify this is correct part for your machine.

MICHELIN® X® TWEEL® Turf Airless Radial Tires (24") (Part # 139-3649)

A MICHELIN® X® TWEEL® airless radial tire is a single unit that replaces the current tire and wheel assembly. There is no need for complex mounting equipment and once they are bolted on, there is no air pressure to maintain The unique energy transfer within the poly-resin spokes helps reduce the “bounce” associated with pneumatic tires, while providing outstanding handling characteristics. They are designed to perform like pneumatic tires, without the inconvenience and downtime caused by flat tires. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

Wheel and axle assembly (Z Master ) (Part # 140-4896)

Z Master wheel and axel assembly.

Tilt Sensor-Radius (Part # 142-2802)

Toro Titan Mid Mount Light Kit (Part # 144-1992)

Extend your mowing day with these Toro genuine high-intensity, low amperage LED light kit. This lighting kit is built in durable cast aluminum alloy housing with stainless steel mounting hardware and wiring harness and lighted rocker switch. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

Riding Mower Jack Mount Kit (Part # 144-1993)

HARDTOP SUN CANOPY (Part # 144-3719)

Voodoo Trac Assembly 24 x 12-12 (Part # 144-6986)

Genuine OEM Part

Mount-Bagger RH (Part # 145-1995)

Handle Extension Kit (Part # 145-3615)

Genuine OEM Part

Bucket Mount Kit, Z Master Professional 2000 Series Riding Mower (Part # 145-3687)

Universal Mount Kit, Z Master Professional 2000 Series Riding Mower (Part # 145-3688)

Trimmer Mount Kit, Z Master Professional 2000 Series Riding Mower (Part # 145-3689)

KIT-TITAN HD TRIPLE THREAT ATTACHMENT (Part # 145-3691)

Toro Titan Deluxe Cover (Part # 490-7319)

Toro OEM deluxe rider cover keeps your Titan riding lawn mower protected from the elements when not in use. Cover is made to withstand wear and tear and features elastic cord to keep cover in place. Perfect for equipment stored outside or for seasonal use. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

Spark Arrestor Screen (Part # 75-6880)

E-Z Vac Blower & Drive Kit for 60" Deck - 5.0" Standard Bagger (Part # 78403)

Find a Dealer

HD BAGGER KIT (Part # 78431)

E-Z Vac Blower & Drive Kit for 60" Deck - 5.0" Heavy Duty Bagger (Part # 78435)
