Z Master Professional 7000 Series Riding Mower, With 132cm TURBO FORCE Side Discharge Mower
Product Information
- Model number: 74264TE
- Serial number: 312000001 - 312299999
- Product Type: Riding Products
Loading...

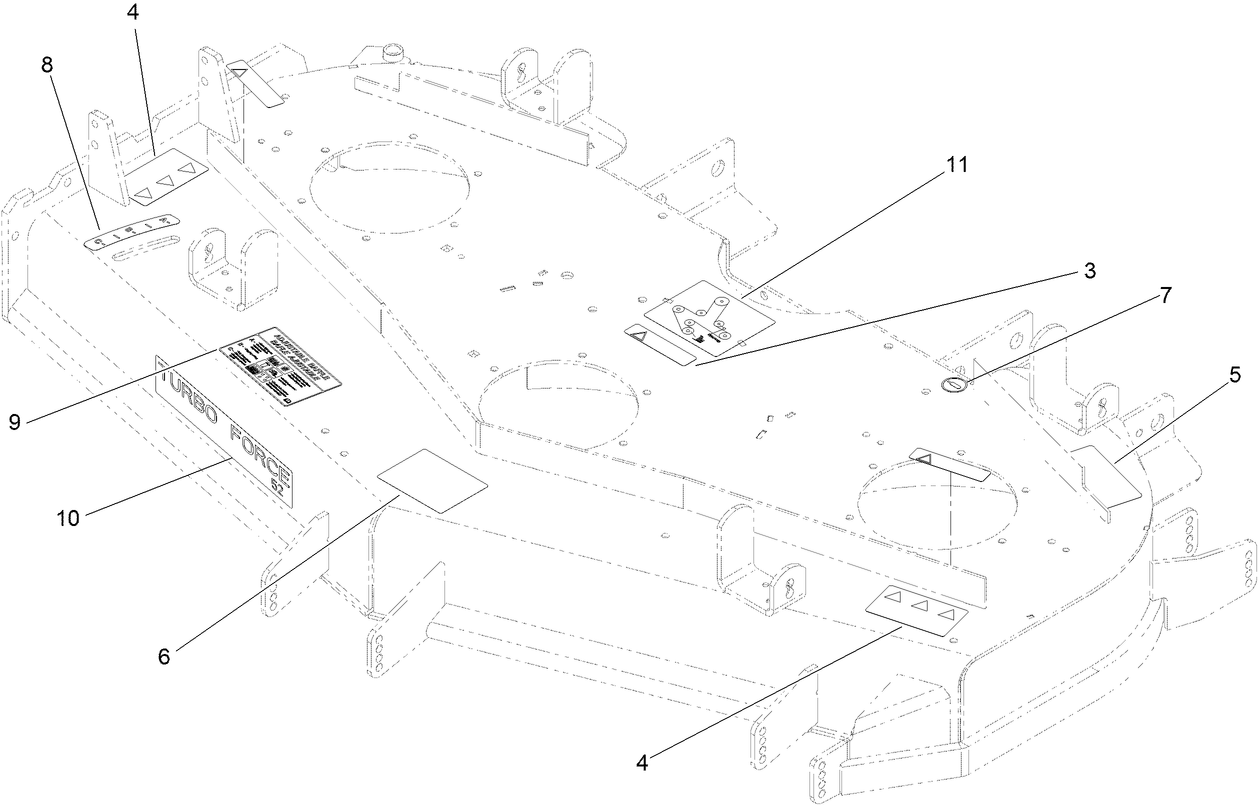

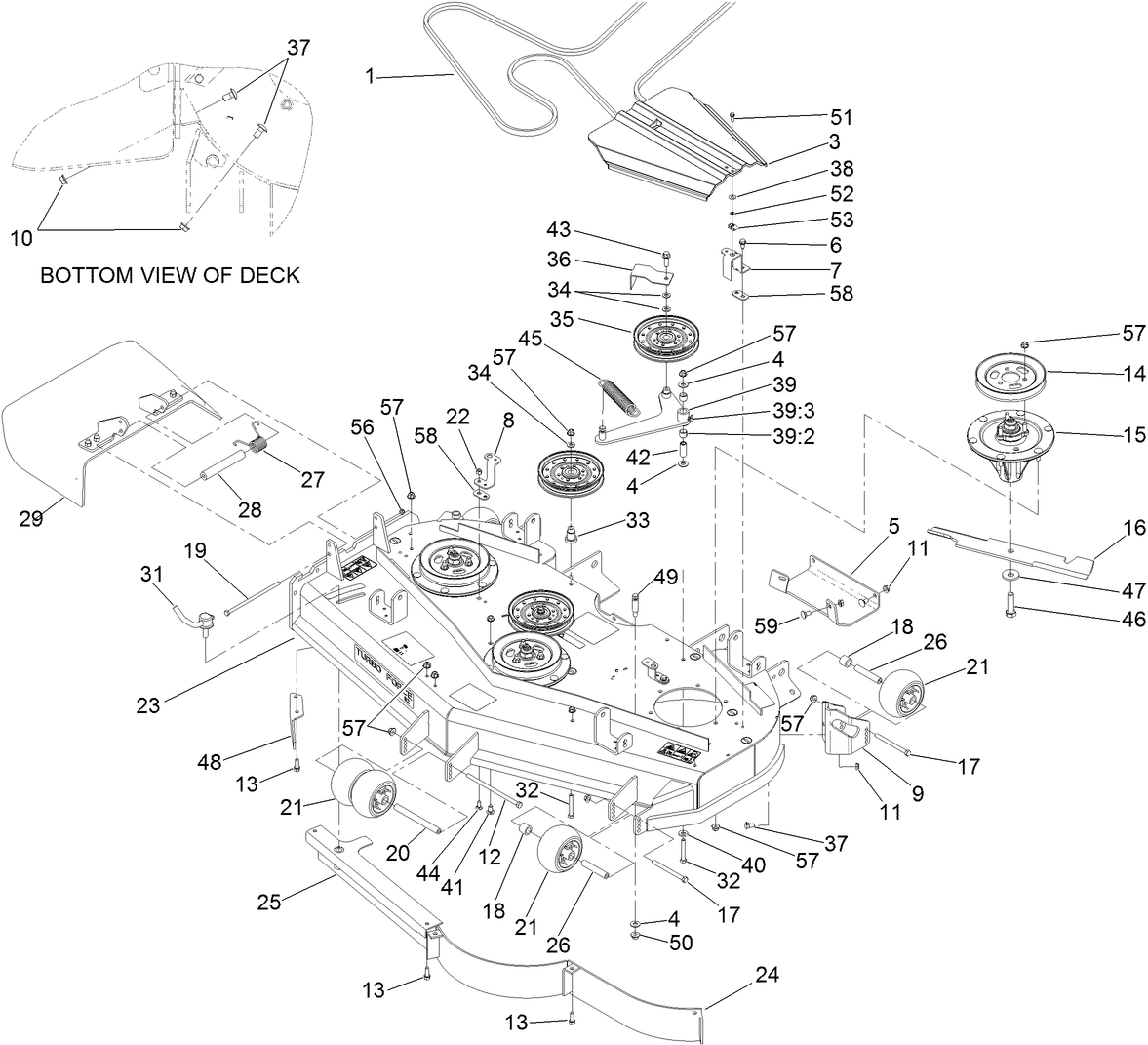

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
EU Declaration of Conformity
-
Setup Instructions
1.25 Inch Spark Arrester Kit (Part number 105-1672)
Blade-Recycler, 18in (Part number 105-7779-03)
BLADE-HI FLOW, 18IN (Part number 105-7781-03)
Blade-Med Flow, 18in (Part number 105-7794-03)
Blade-Low Flow, 18in (Part number 105-7795-03)
Blade-Atomic, 18in (Part number 105-7796-03)
52" Recycler Kit (Part number 107-1610)
Striping Kit (52", 60", 72") (Part number 107-1630)
Leaf Bagging Enhancement Kit (Part number 107-1634)
Work Light Kit, Z500 Series Z Master Mowers (Part number 107-9880)
6 PACK BLADE, 18" HI-FLOW (Part number 108-1117)
6 PACK BLADE, 18" ATOMIC (Part number 108-1118)
Roller Striping Kit, Z Master TURBO FORCE Mowers (Part number 108-2162)
6 PACK-BLADE, 18" LOW-FLOW (Part number 110-0406)
6 PACK-BLADE, 18" RECYCLER (Part number 110-0408)
6 PACK-BLADE, 18" MID-FLOW (Part number 110-0409)
Mounting Kit, DFS Vac Collection System for Z593 Series Z Master (Part number 110-0891)
DFS Pulley Kit (Z-593D) (Part number 110-3944)
Bagger Gusset Kit, Z-593D w/DFS Bagger (Part number 110-3946)
HYPR-OIL 500 -QUART (Part number 114-4713)
HYPR-OIL 500-GALLON (Part number 114-4714)
HYPR-OIL 500-5 GALLON (Part number 114-4715)
BIMINI FOLDING SHADE ASM (Part number 115-4510)
DFS Vac Collection System, Z593 Series Z Master (Part number 78514)
Chute Gate Kit, 48in, 52in and 60in Mowers for Z400 and Z500 Series Z (Part number 78521)
Filter Minder Gauge (Part number 99-4664)
Hitch Kit (Part number 99-8925)
-
Model number
74264TE -
Serial number
312000001 - 312299999 -
Product Name
Z Master Professional 7000 Series Riding Mower, With 132cm TURBO FORCE Side Discharge Mower -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Zero Radius Turn, 500 Series -
Chassis Type
ZRT - LCE -
Swath
132cm -
Discharge
Side Discharge -
Engine/Motor Manufacturer
Kubota -
Engine/Motor Size
23 hp -
Engine/Motor Type
4 Cycle Diesel -
Engine Starter
Electric -
Transmission Type
Hydrostatic -
Traction Type
Rear WD
-
Chassis: Height of Cut Range
1.5" - 5" (38-127mm) -
Chassis: Tire Pressure
13 psi / 90 kPa -
Engine: Battery
12V 540 CCA -
Drive System: Ground Speed
Fwd. 0 - 11 mph / 17.7Km/hr, Rev. 0 - 6.3 mph / 10.1Km/hr -
Engine: Engine Oil Type
w/filter chg 3.9 qt. / 3.7L, SAE20, 10w30, 10w40 -
Engine: Engine Speed
3350+20/-50 RPM -
Drive System: Gearbox Lubricant
HYPR-OIL 500 / 15w-50 Synthetic Motor Oil
