PROLINE™ HDX 36 in. (91 cm) Mid-Size Mower (50-State Model)
Product Information
- Model #: 44436
- Serial #: 410280000 - 999999999
- Product Type: Walk Behind Mowers
Loading...

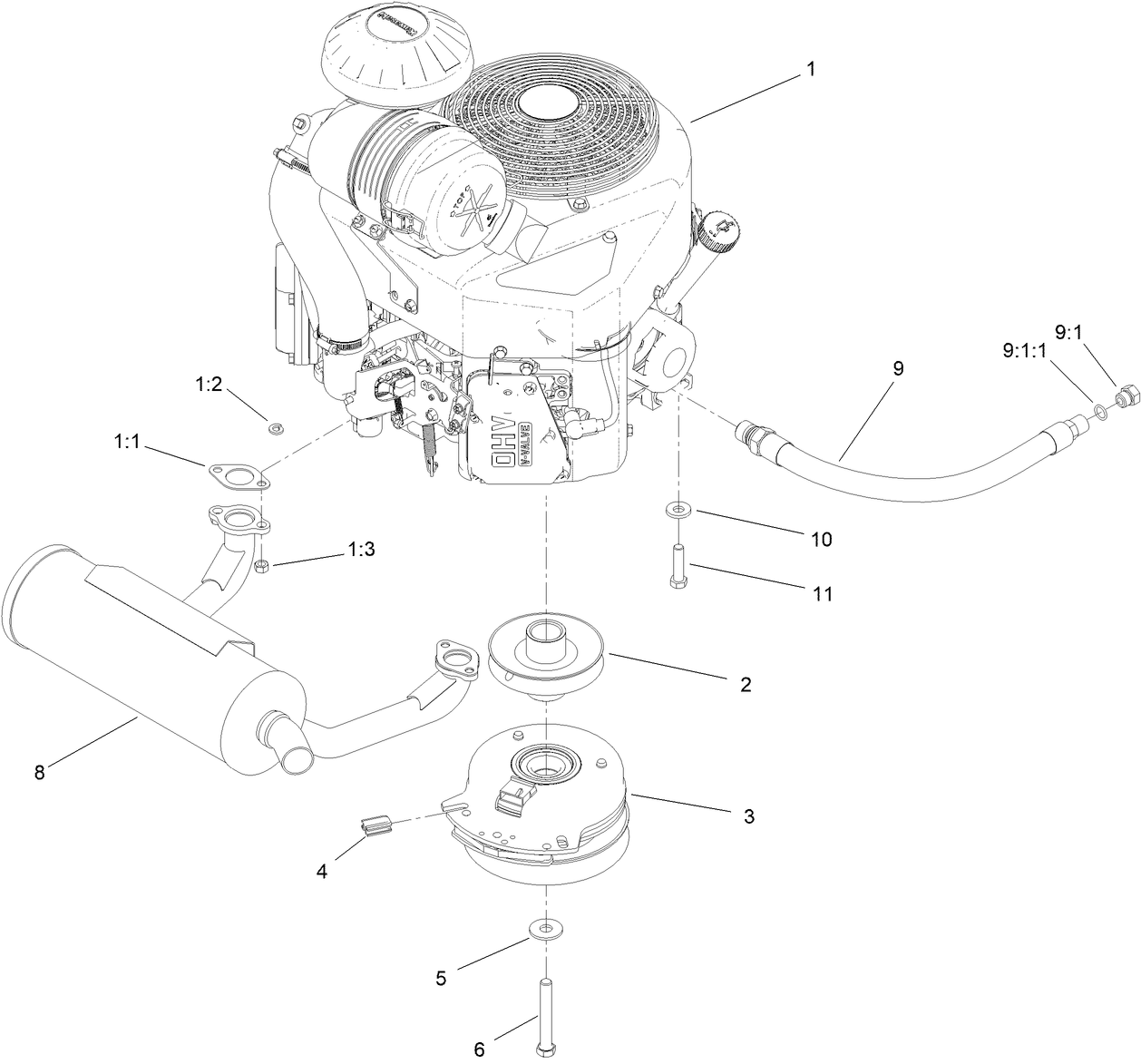

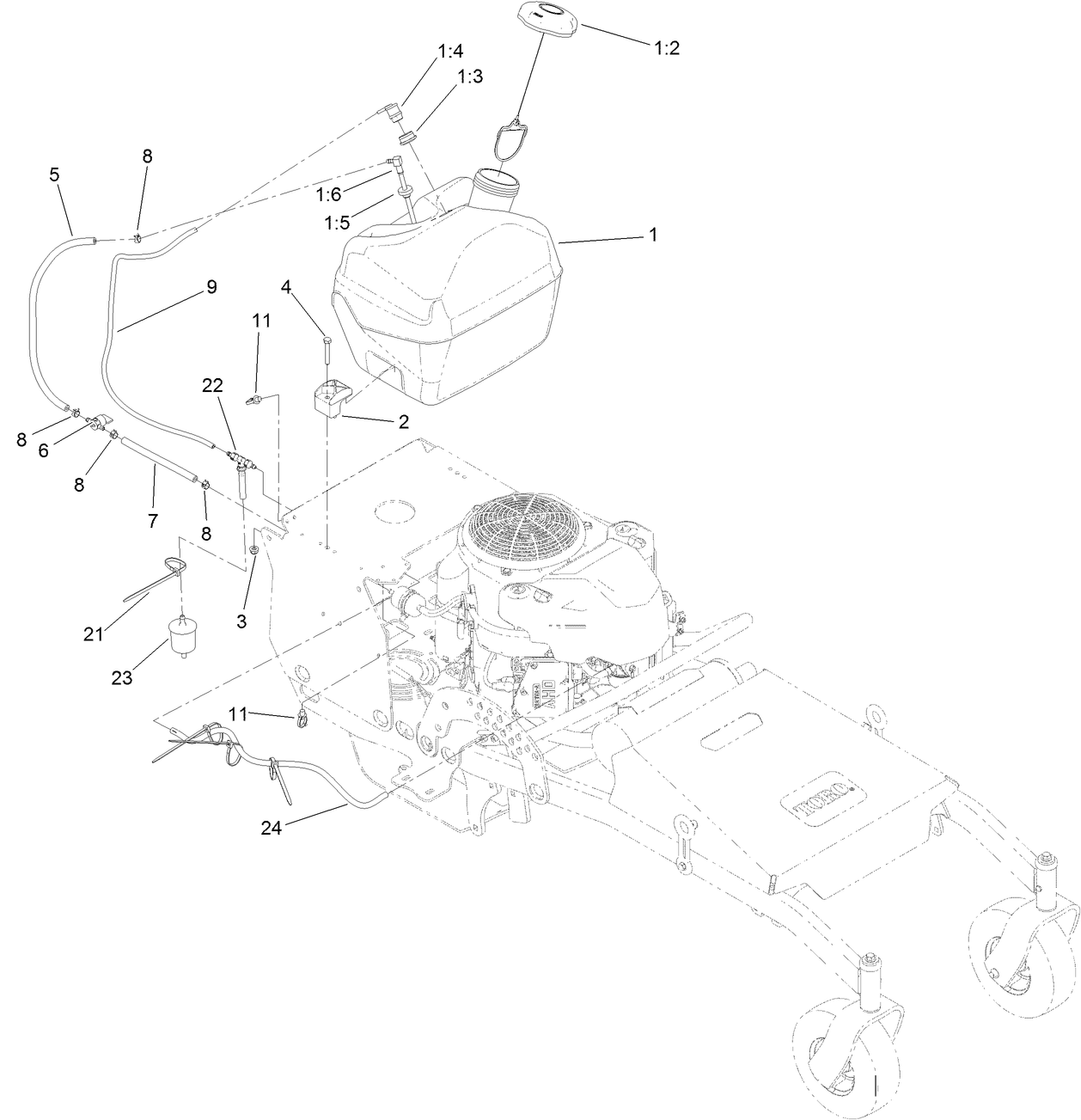

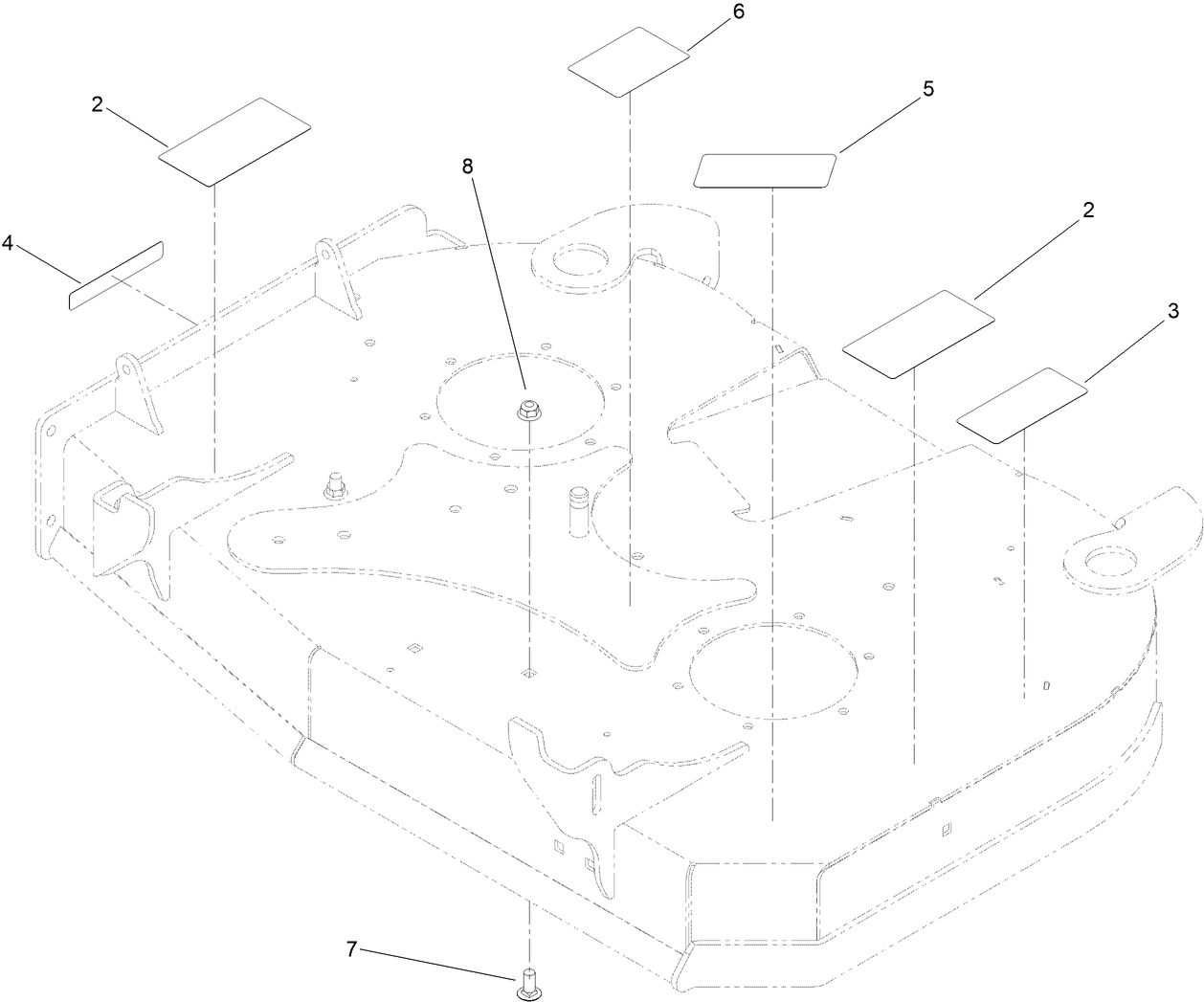

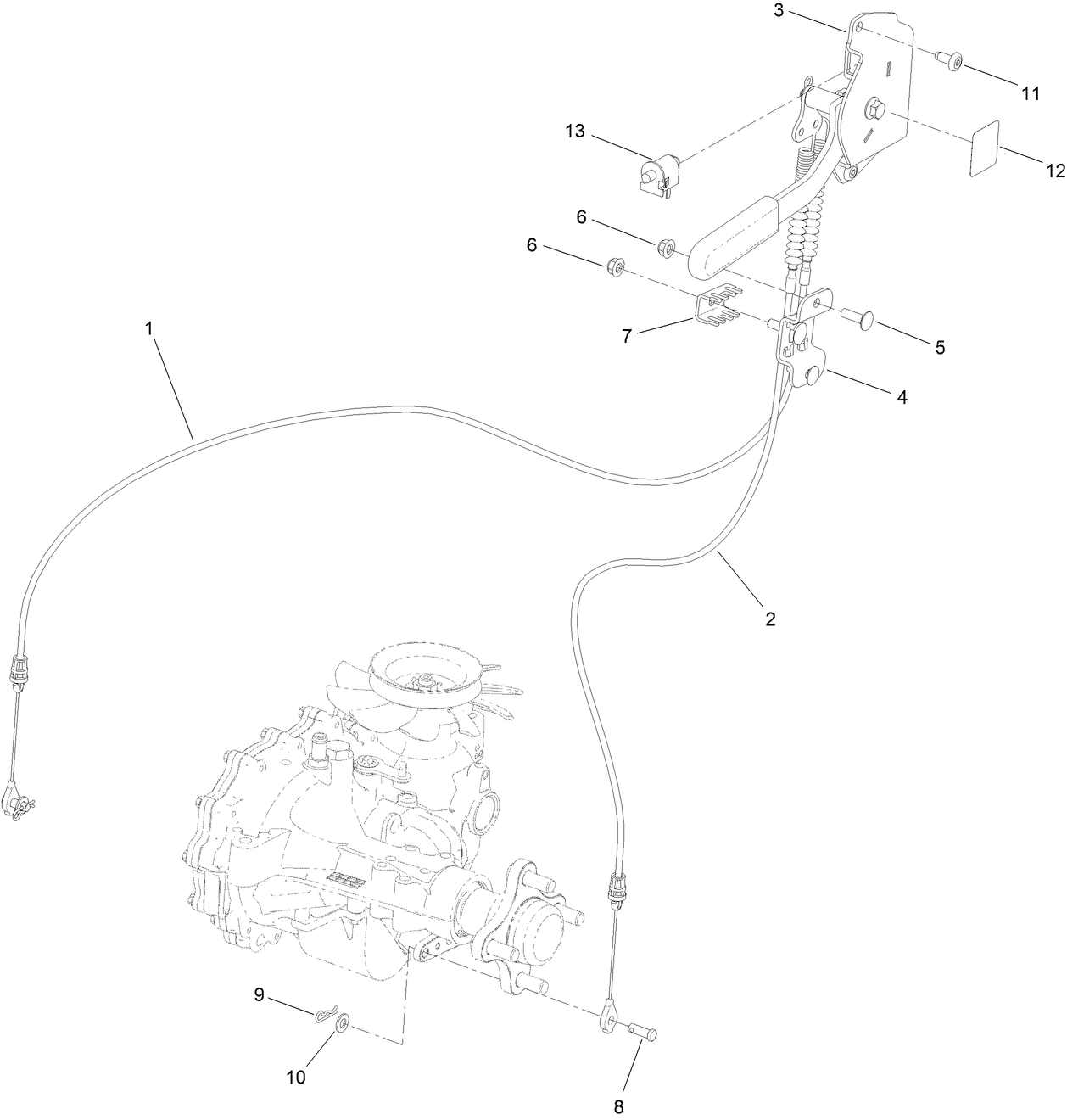

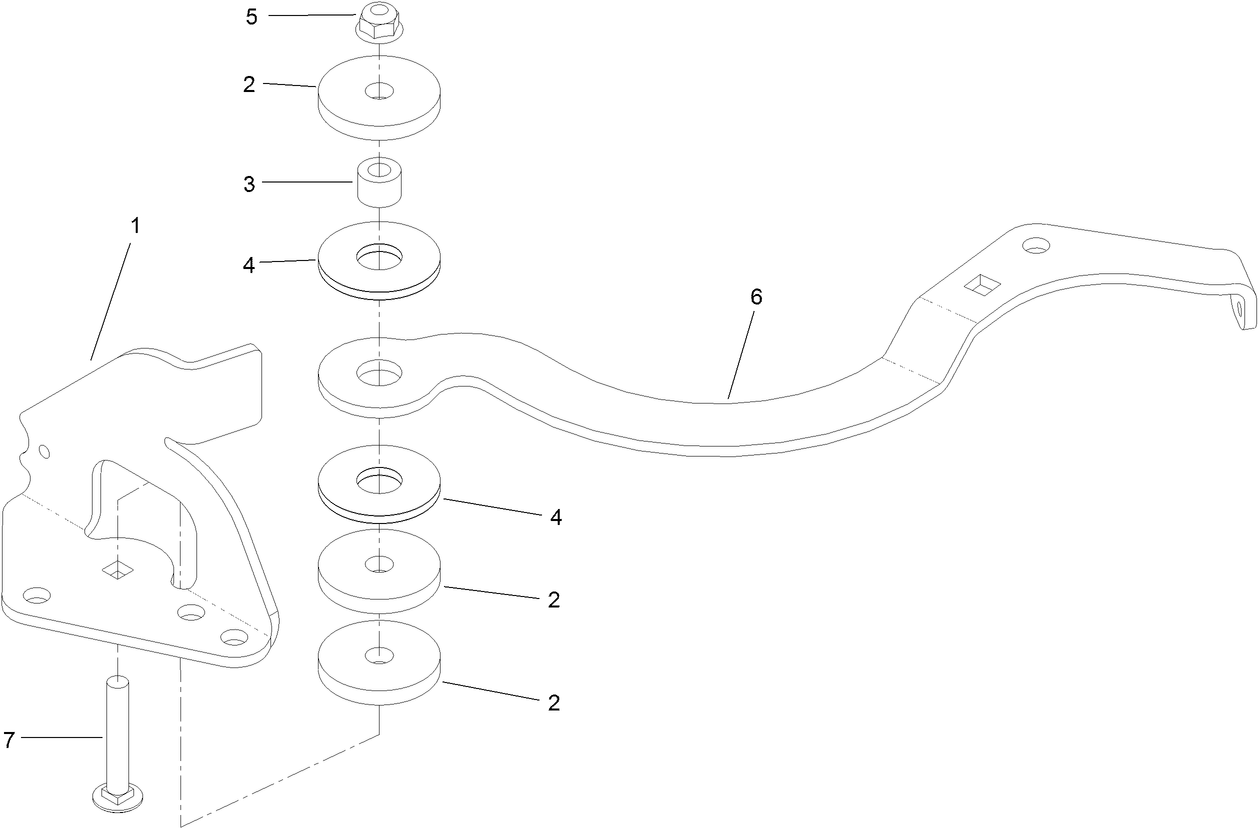

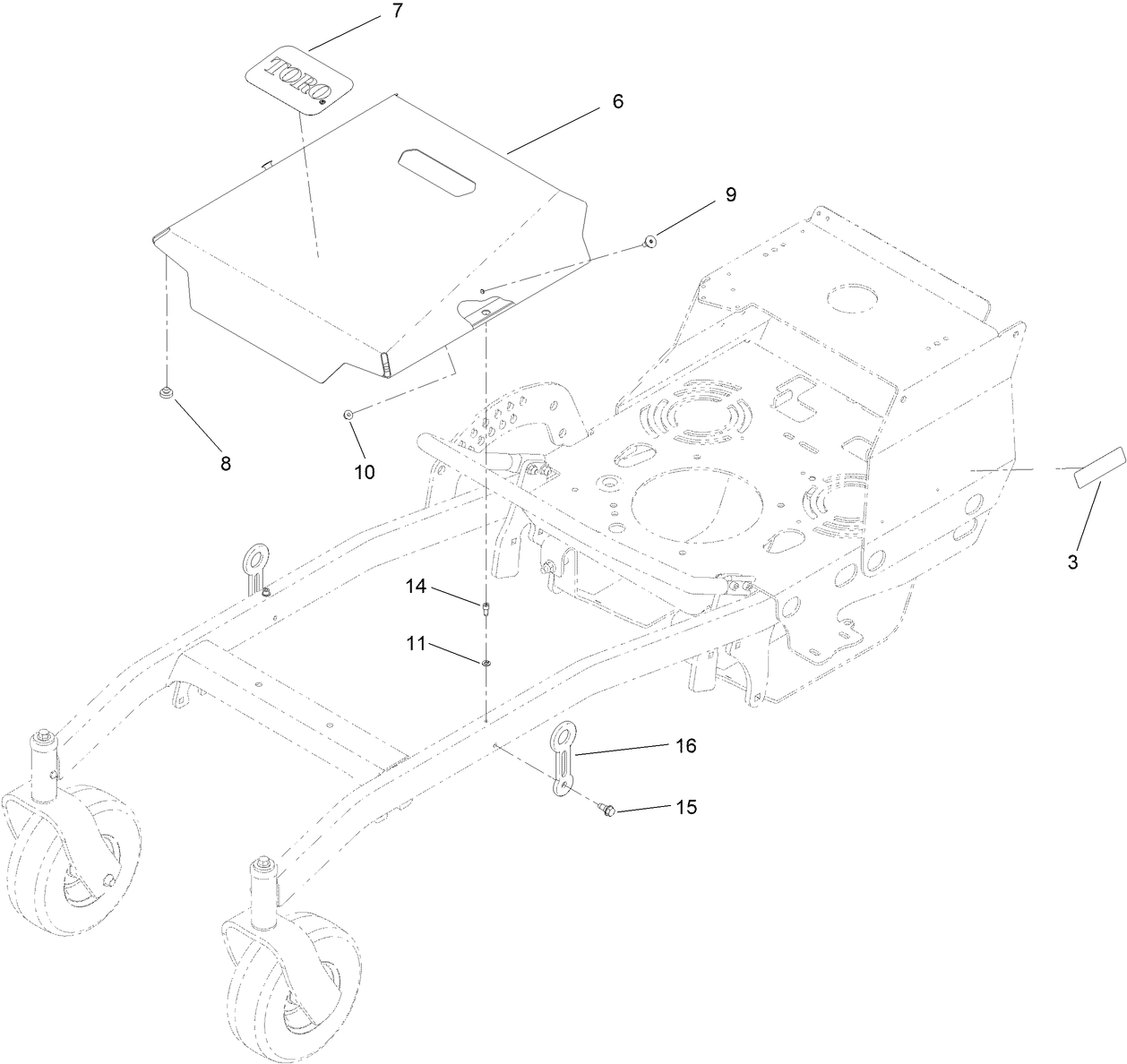

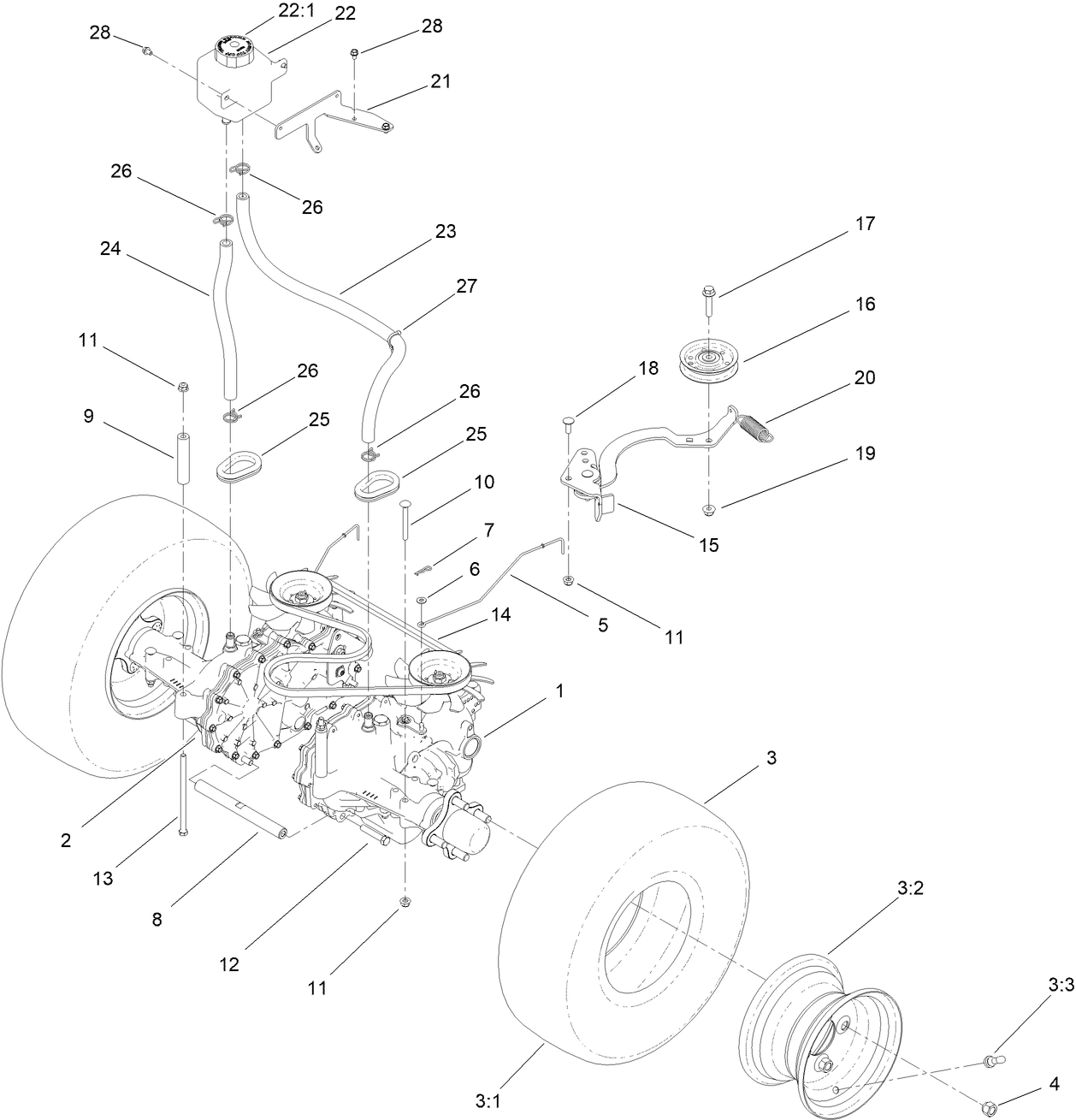

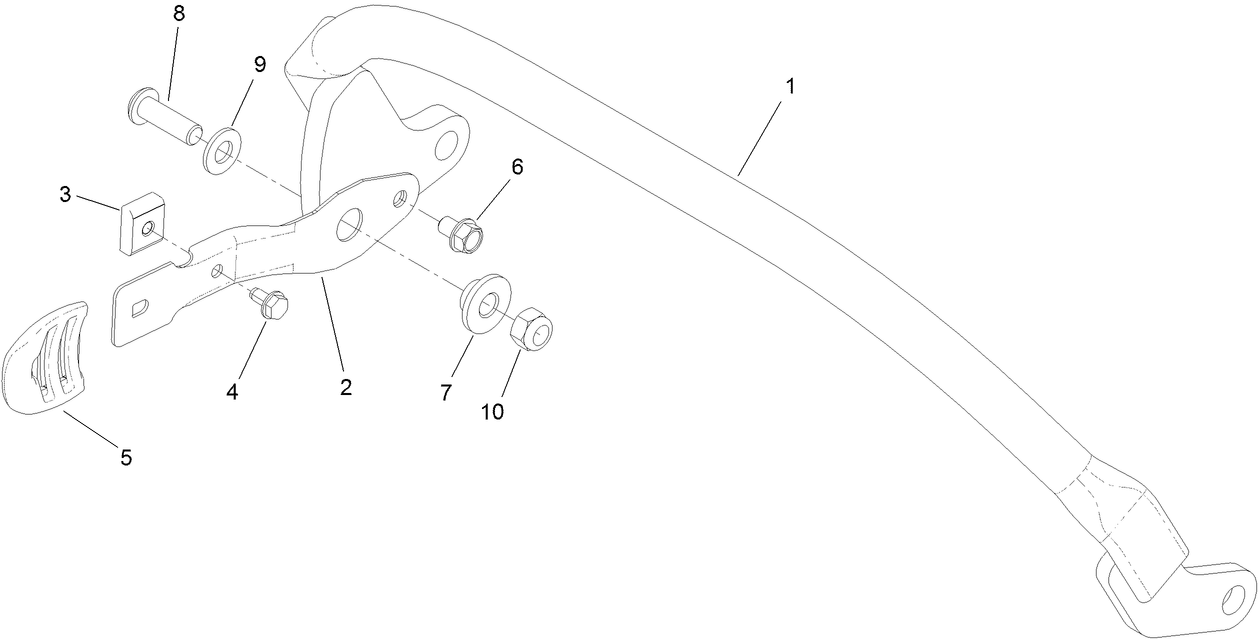

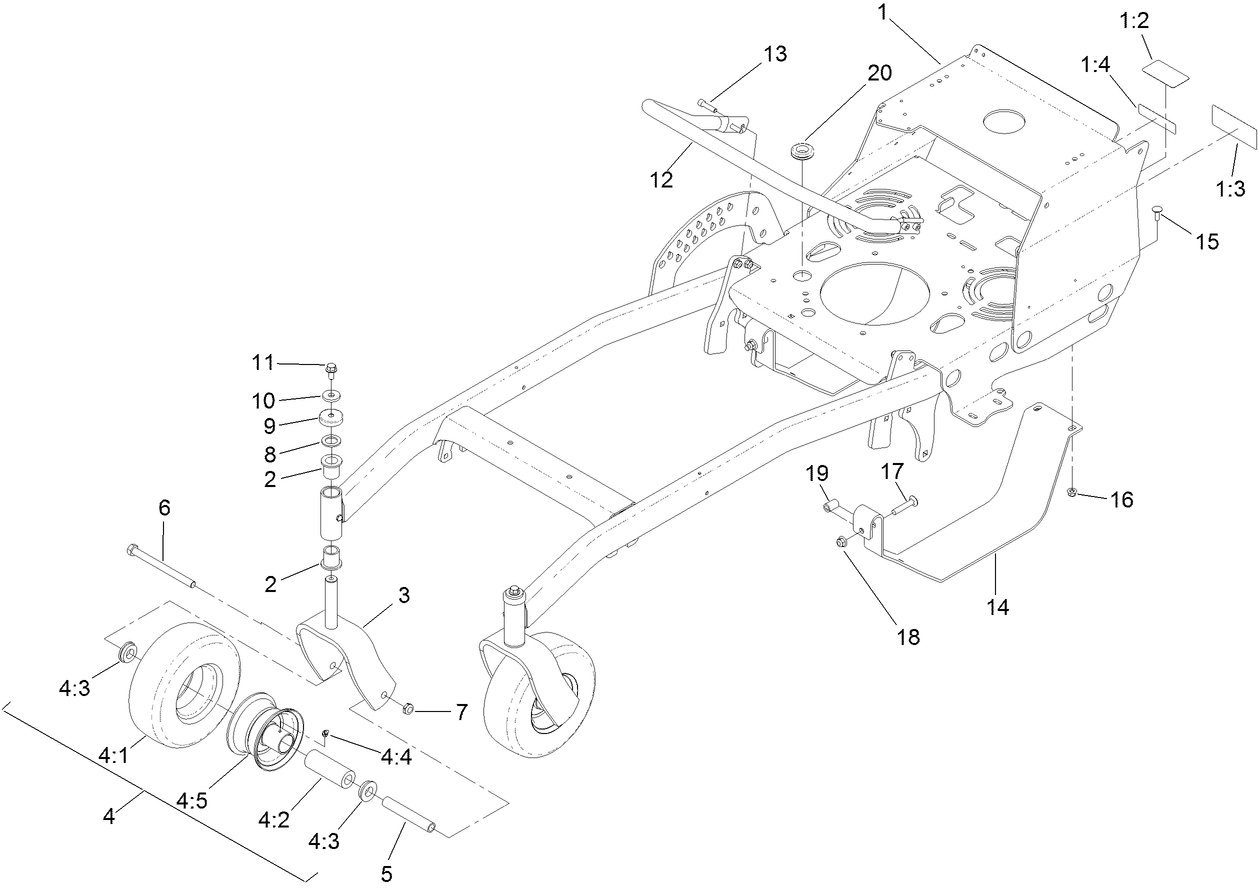

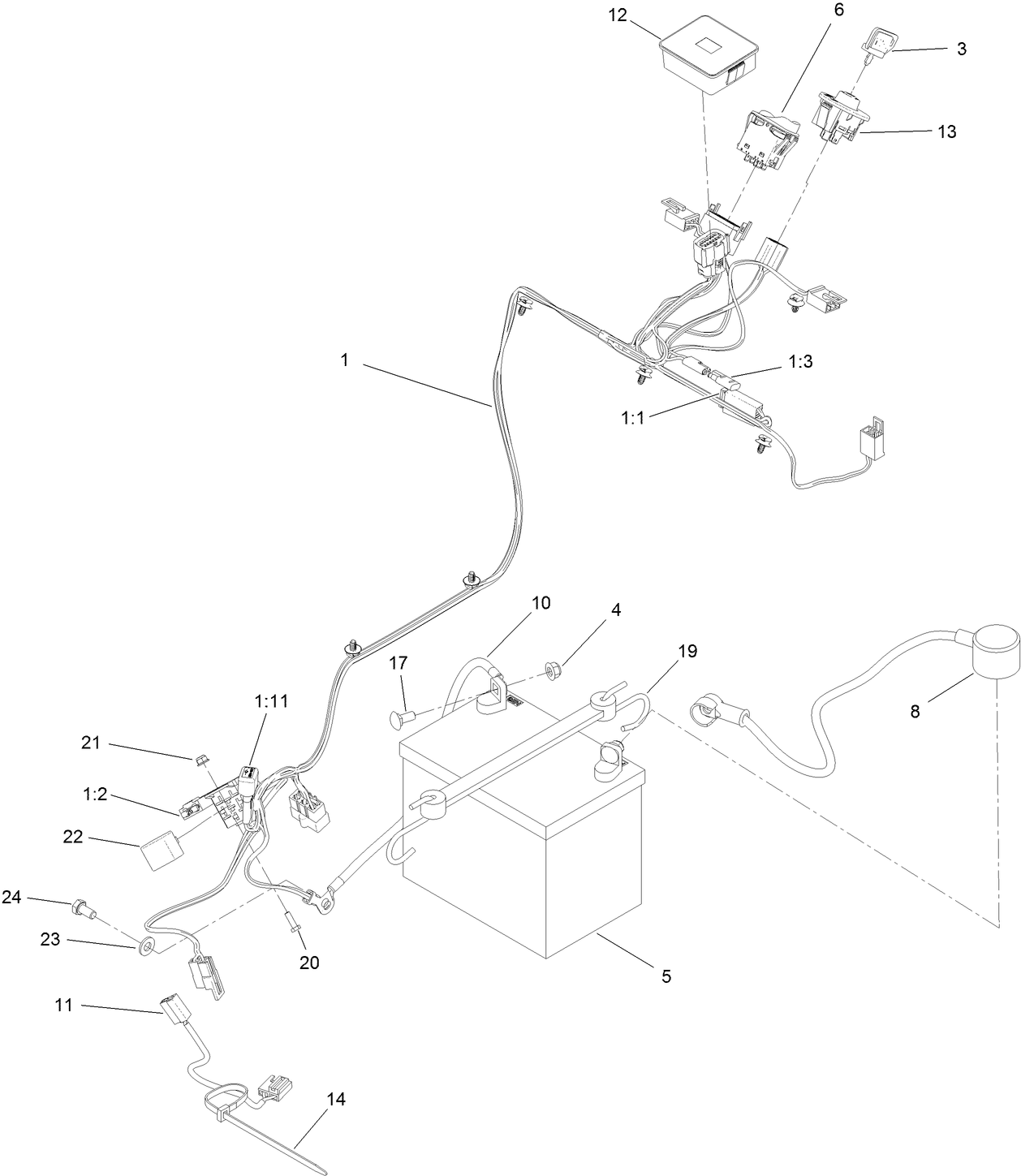

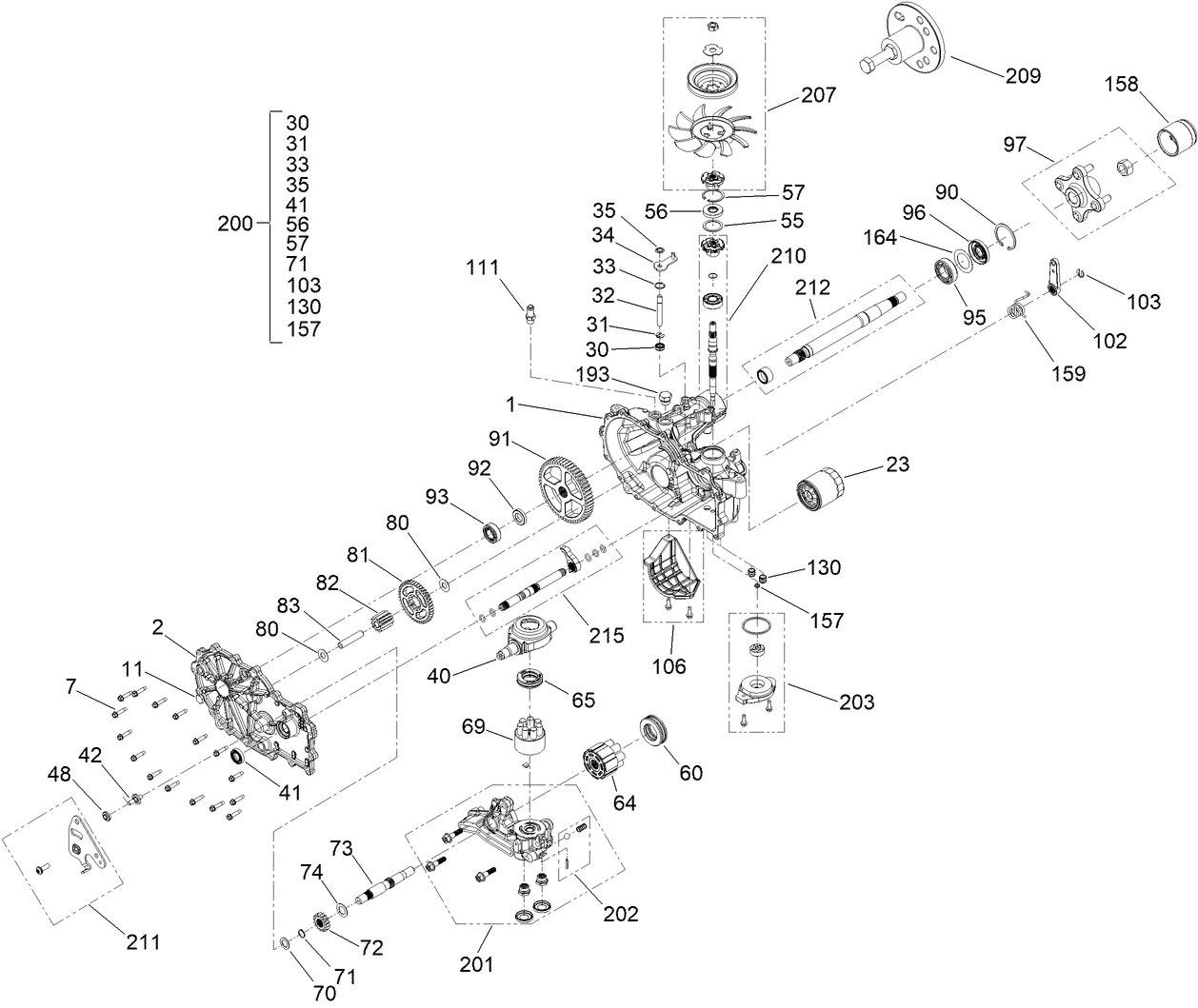

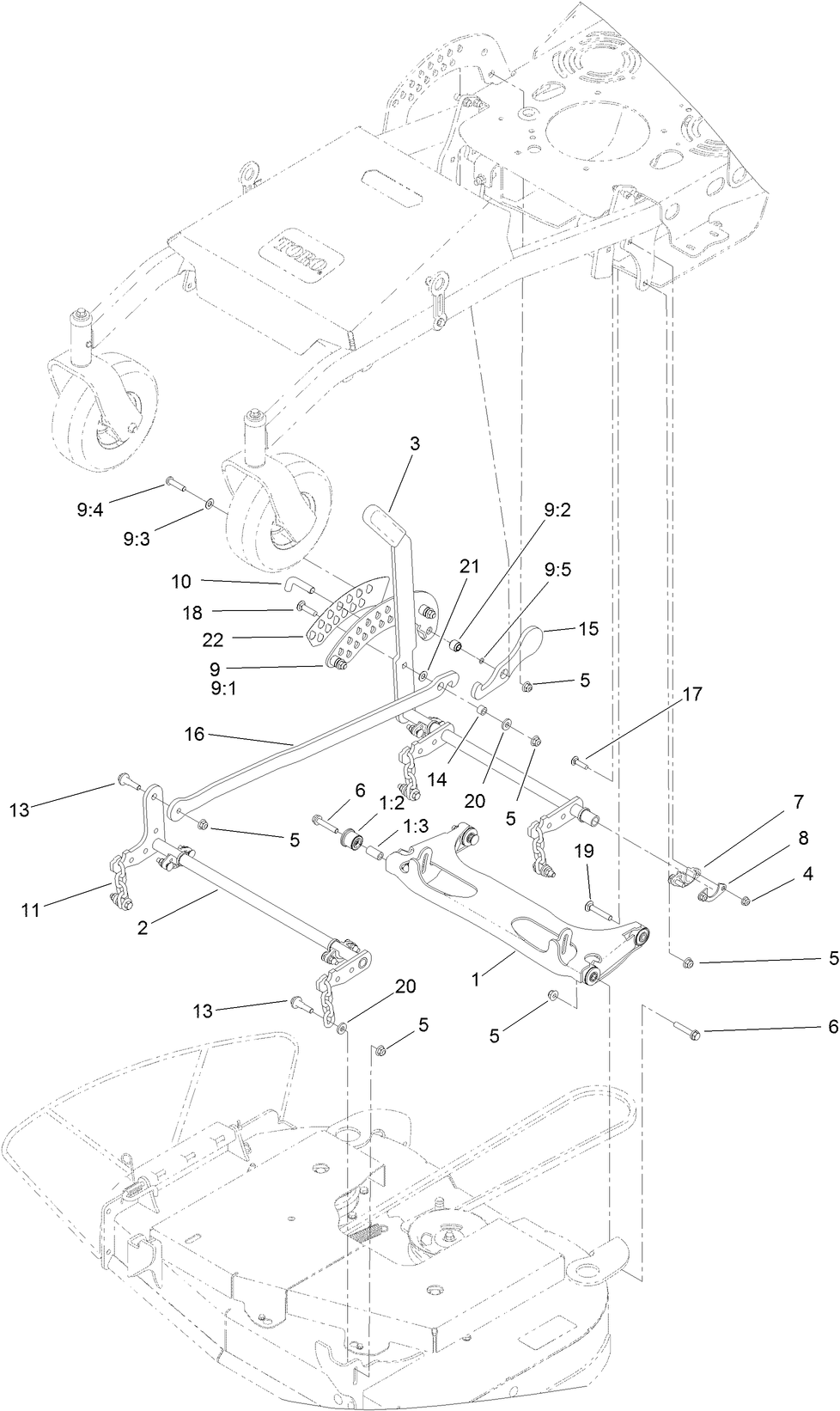

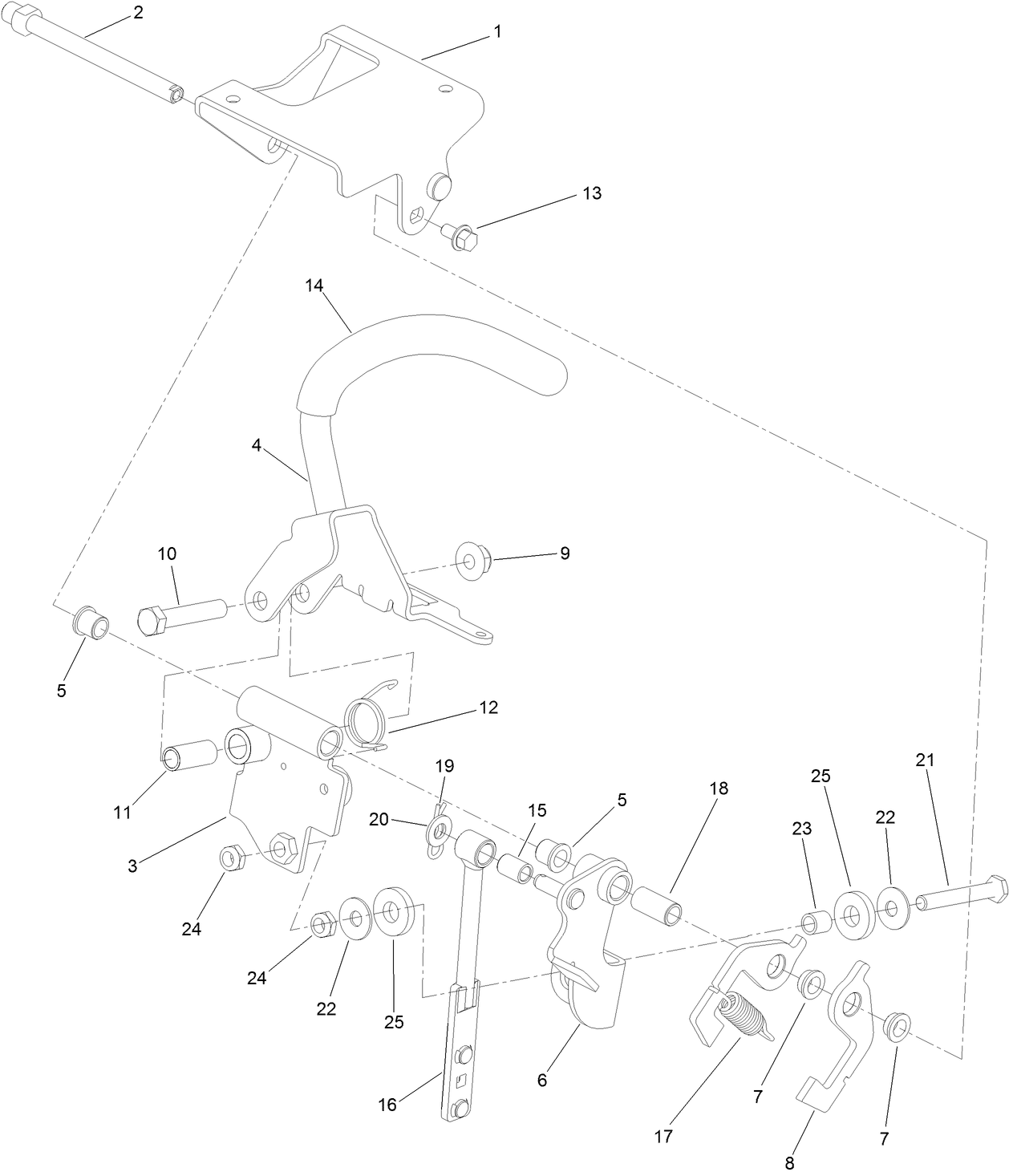

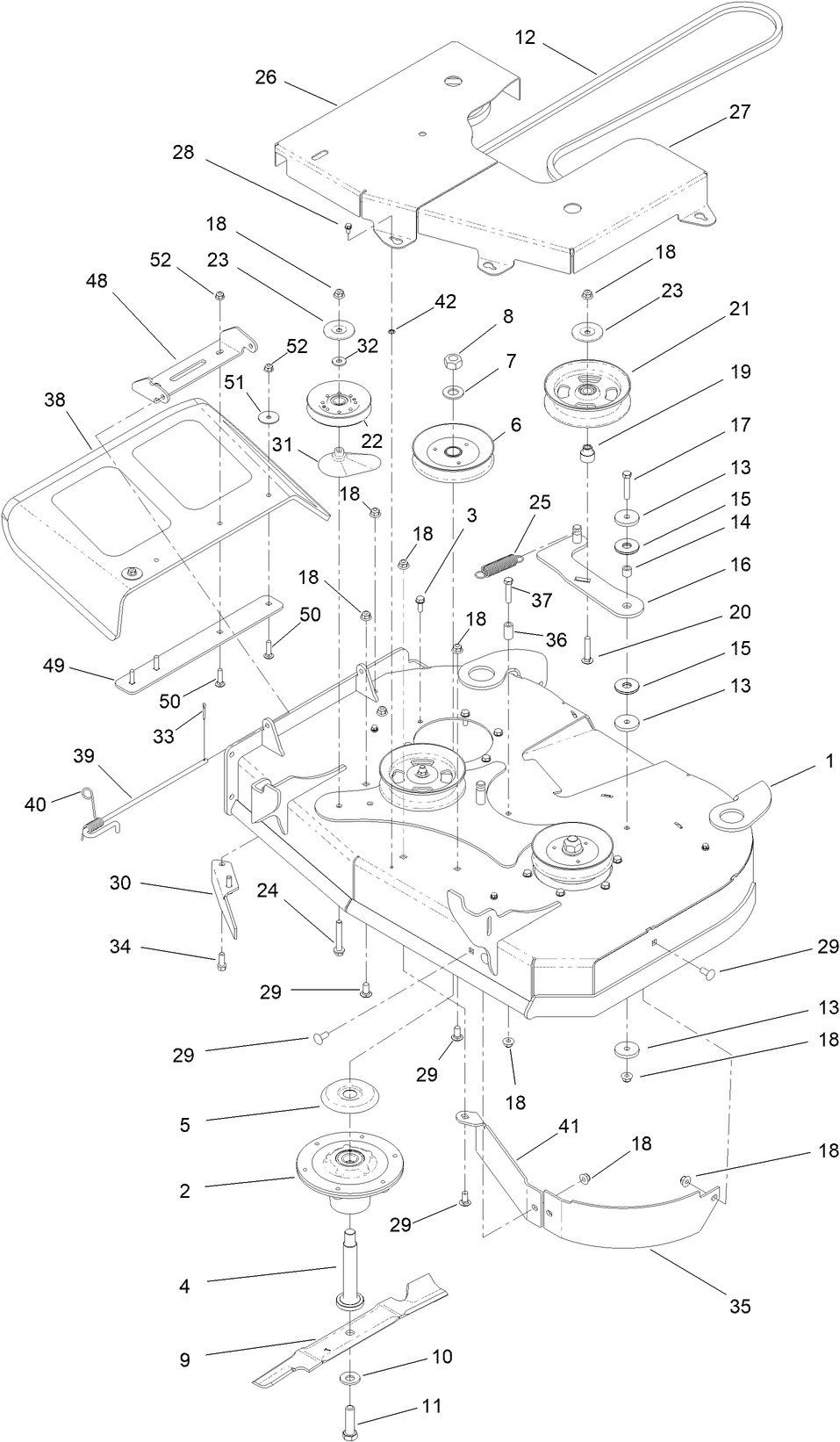

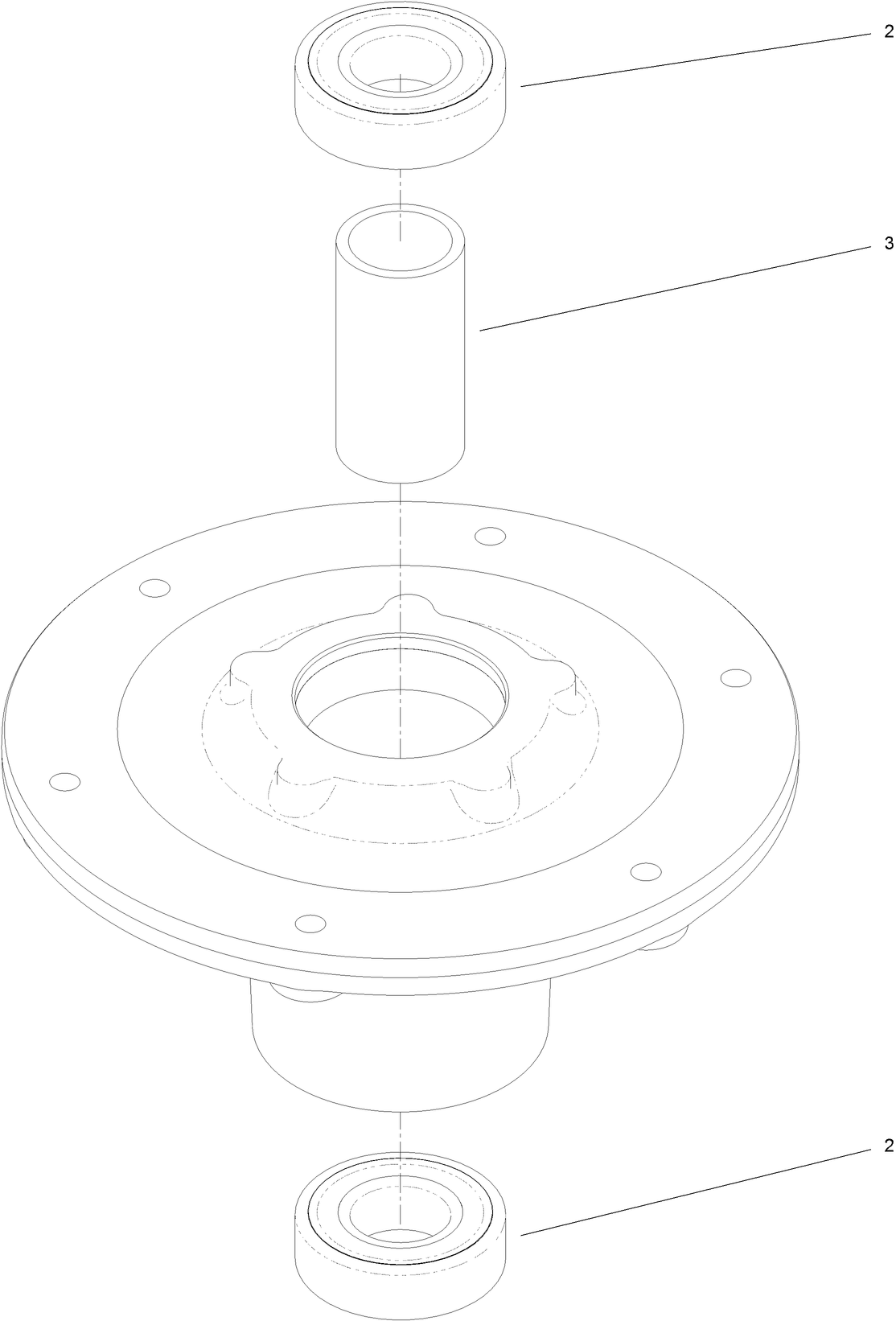

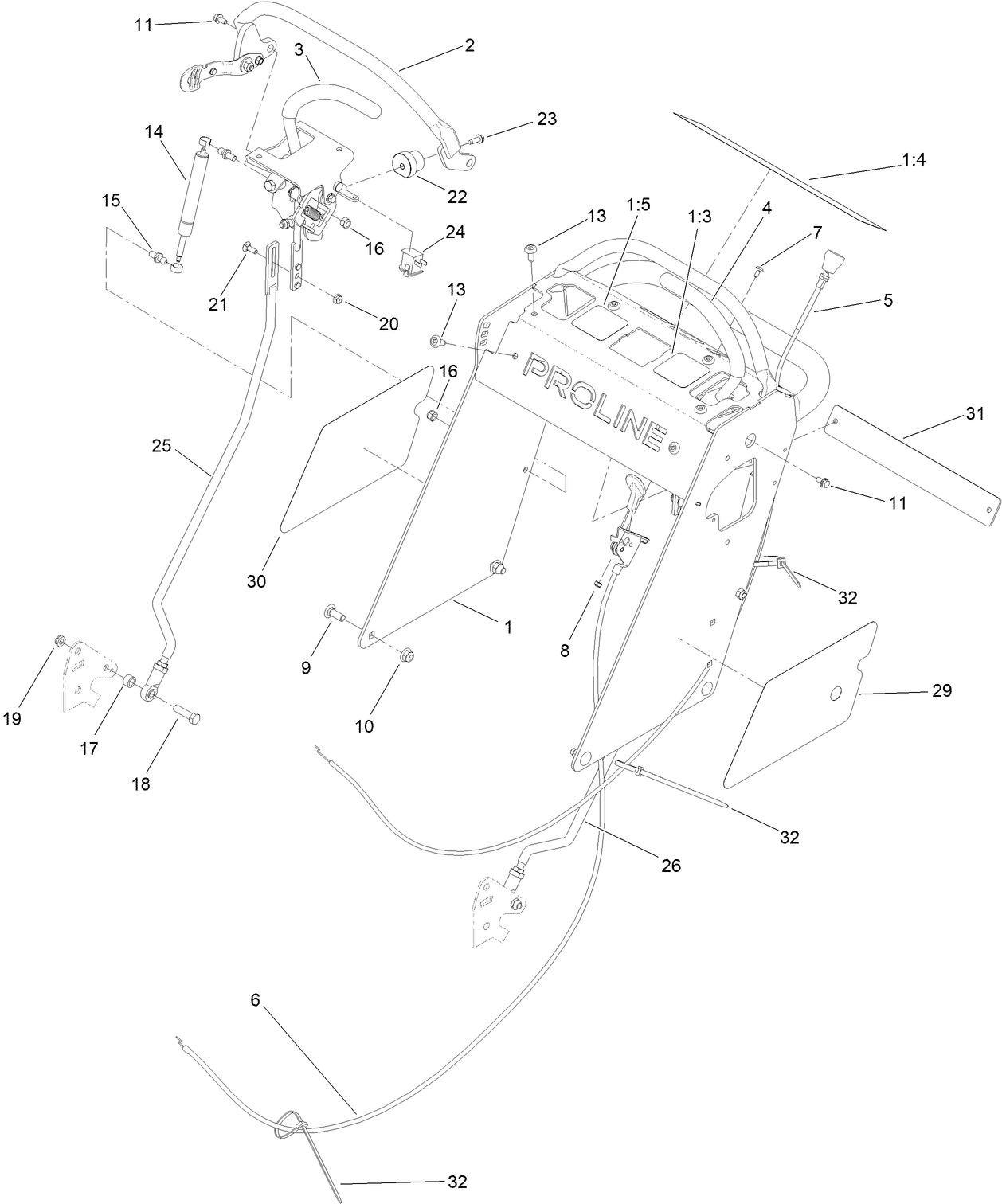

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Product Warranty
-
Quick Start Guide
HYPR-OIL 500 -QUART (Part # 114-4713)
HYPR-OIL 500-GALLON (Part # 114-4714)
HYPR-OIL 500-5 GALLON (Part # 114-4715)
BAGGER ADAPTOR KIT (Part # 121-7515)
Toro Premium Fuel Treatment (Part # 131-6572)
Electric Accessory Port (Part # 133-1438)
WEIGHT KIT (Part # 138-6866)
BLADE - MULCH, 18.00 IN (Part # 138-8883-03)
BLADE - HI FLOW, 18.00 IN (Part # 138-8887-03)
BLADE - HIGH LIFT, 18.00 IN (Part # 138-8894-03)
HOC BRACKETS KIT, WAM (Part # 139-4063)
WAM LIGHT KIT (Part # 139-5595)
SOFT SIDE BAGGER (Part # 139-7860)
36IN RECYCLER KIT (Part # 140-1913)
RUBBER DEFLECTOR KIT (Part # 140-4300)
KIT-BAGGING ENHANCEMENT (Part # 140-4321)
6 PACK-BLADE, 18.00 RECYCLER (Part # 140-7729)
6 PACK-BLADE, 18.00 HI-FLOW (Part # 140-7733)
6 PACK-BLADE, 18.00 HI-LIFT (Part # 140-7737)
10W30 4-CYCLE ENGINE OIL 32 OZ BOTTLE (Part # 38280)
TORO 4-CYCLE SAE 30 OIL (32OZ BOTTLE) (Part # 38903)
TWO-WHEEL SULKY, PROLINE MIDSIZE (Part # 44401)
Spark Arrestor (Meets USDA Forest Service Standard 5100-1A) (Part # 98-9099)
-
Model #
44436 -
Serial #
410280000 - 999999999 -
Product Name
PROLINE™ HDX 36 in. (91 cm) Mid-Size Mower (50-State Model) -
Product Brand
Toro -
Product Type
Walk Behind Mowers -
Product Series
Mid-Size ProLine Mower -
Chassis Type
Mid-size - Floating Deck -
Swath
36 inch / 91 cm -
Discharge
Side Discharge -
Engine/Motor Manufacturer
Kawasaki -
Engine/Motor Size
603cc -
Engine/Motor Type
4 Cycle -
Engine Starter
Electric -
Transmission Type
Hydrostatic -
Traction Type
Rear WD
-
Engine: Battery
12V 300CCA -
Engine: Engine Speed
3600±100 RPM -
Engine: Spark Plug
NGK BPR4ES -
Engine: Spark Plug Gap
.030"/ .76mm -
Engine: Engine Oil Type
1.8 qt (1.7L) 10w-30 engine oil API SF or higher -
Engine: Ignition Coil Air Gap
0.011in (0.3mm) -
Drive System: Ground Speed
Forward: 0-7 mph -
Chassis: Tire Pressure
12-14psi (83-97kPa) -
Drive System: Gearbox Lubricant
HYPR-OIL 500 -
Chassis: Height of Cut Range
1.5" - 4.5" (38-114mm)
