25 cu.ft. Top Dresser 2500
Model: 44507
25 cu.ft. Top Dresser 2500
Model: 44507
Model: 44507
See All Items in Top Dresser 2500 Series
Key Features
- Manufactured of galvanized steel for long term durability.
- Topdresser 2500 has a 60" (152.4 cm) working width.
- 25 cubic feet (.7 cubic m) delivers excellent productivity.
Resources
Product Details
For maximum performance choose the Toro® Top Dresser 2500 - a self-contained, all-wheel drive unit towed by a Toro® Workman® or other utility vehicle. The 25 cubic foot (.7 cu. m.) capacity coupled with 8 mph (12.9 km/h) topdressing speed will tackle the toughest topdressing jobs.

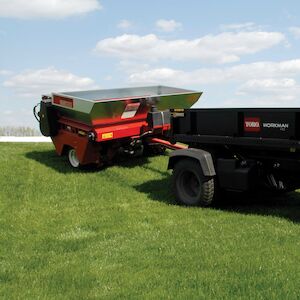

Steel Hopper

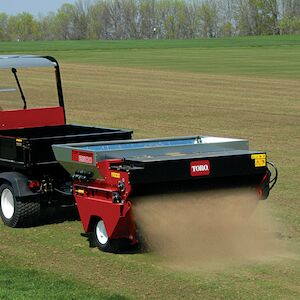

Wide Working Width

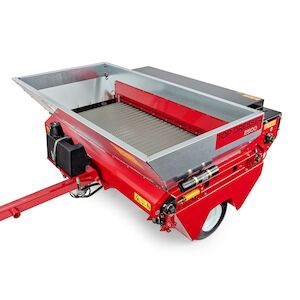

Large Capacity
Controls
12-volt on/off switch at operator’s position to engage conveyor and brush. Metering gate runs full width in front of brush.
Conveyor Belt
Seamless 60" (152.4 cm) wide belt, polyester mono-filament interwoven material with vulcanlized PVC “v-pattern” traction surface.
Height
43" (109 cm)
Hopper Capacity
25 cu. ft. (707 liter) or up to 2,050 lbs. (929.8 kg)
Length
97.5" (247.6 cm)
Metering Gate
Infinitely variable from closed to 3.5" (8.9 cm) opening for light to heavy applications. Flexible edge and spring release.
Operating Speed
2 - 8 mph (3.2 - 12.8 km/h), variable to desired application rate. Transport at up to 12 mph (19.3 km/h), optional brake kit available.
Operating Width (Working Width)
60" (152 cm)
Tires
18" x 10.5" - 8", 4-ply, High Floatation
Traction Drive
Hydraulic with chain driven pumps. Belt motor with chain reduction. Brush motor direct drive. Electric hydraulic solenoid control to activate topdress motors. Closed loop hydraulic system with charge pump and 25 micron filtration.
Weight
1,454 lbs. (659.5 kg)
Width
72.5" (184 cm)
Wireless Controller
No
