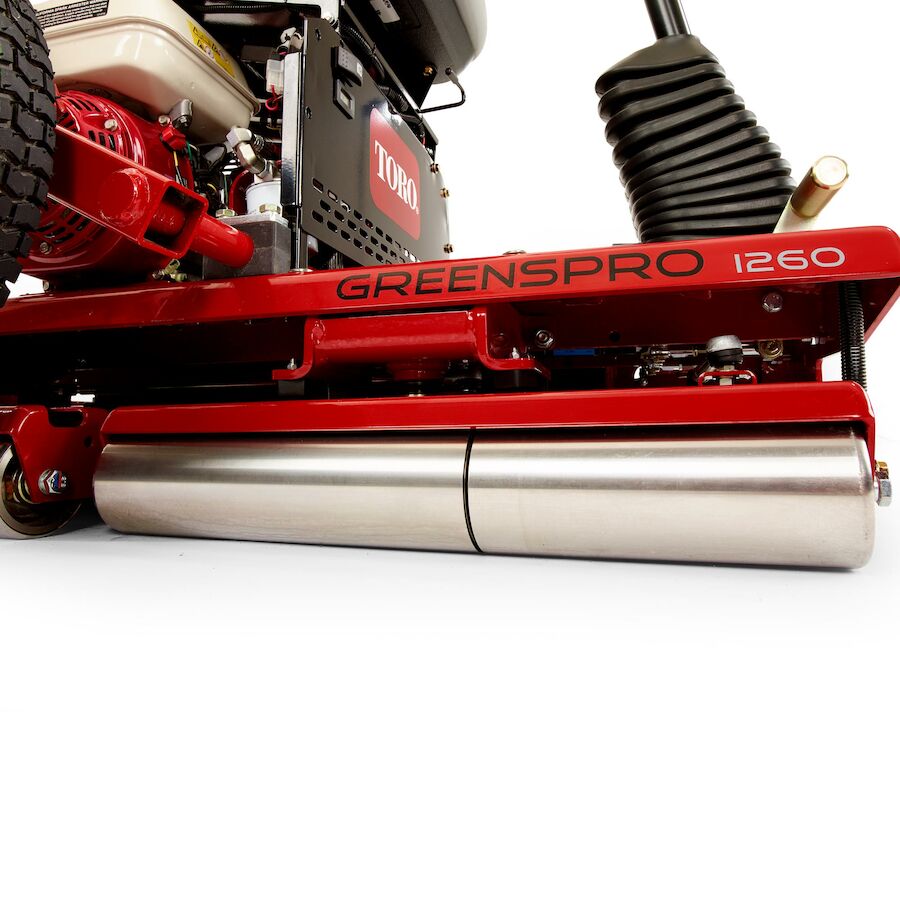

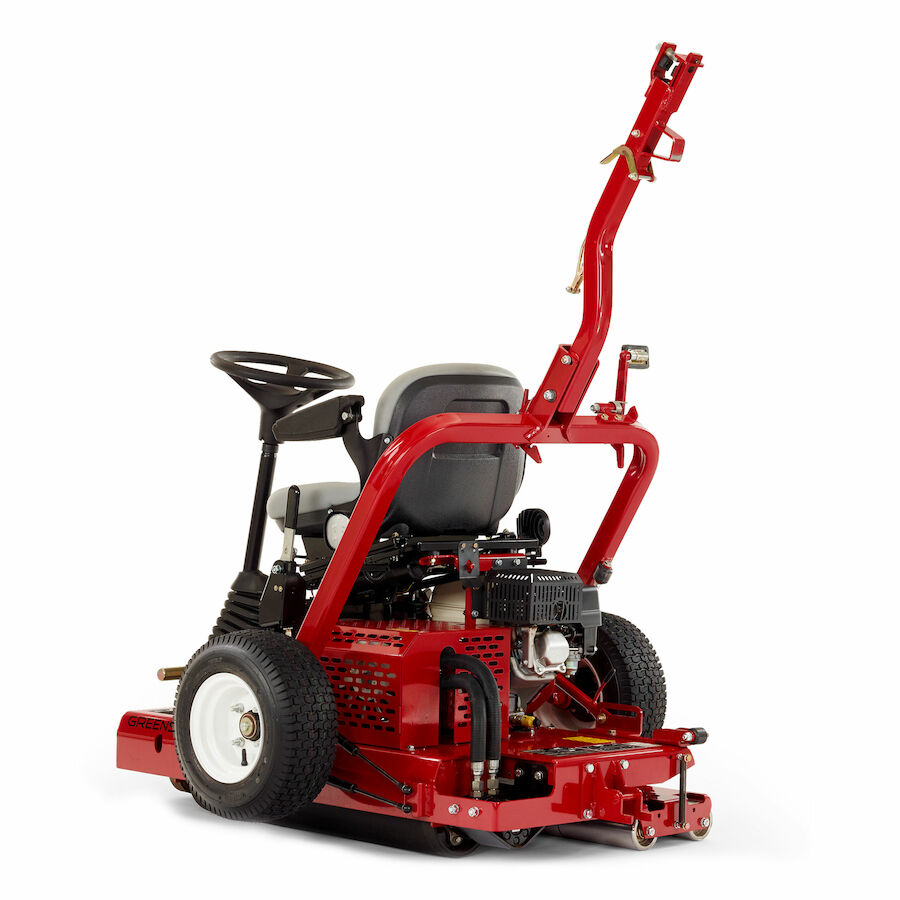

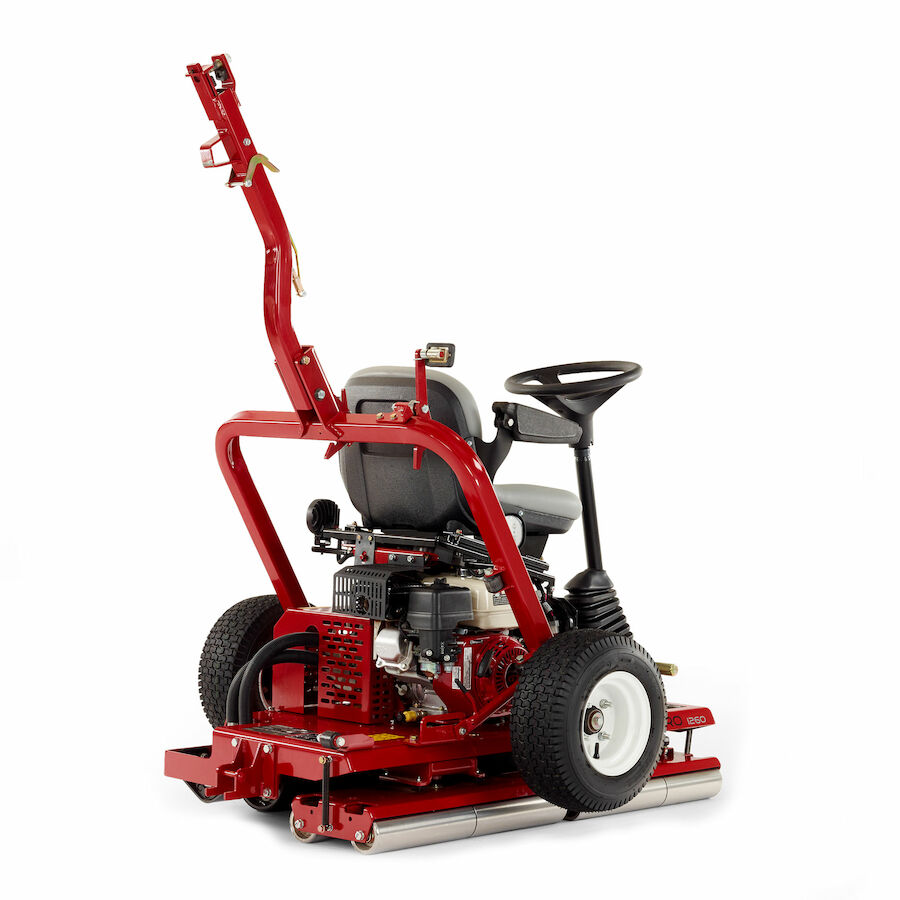

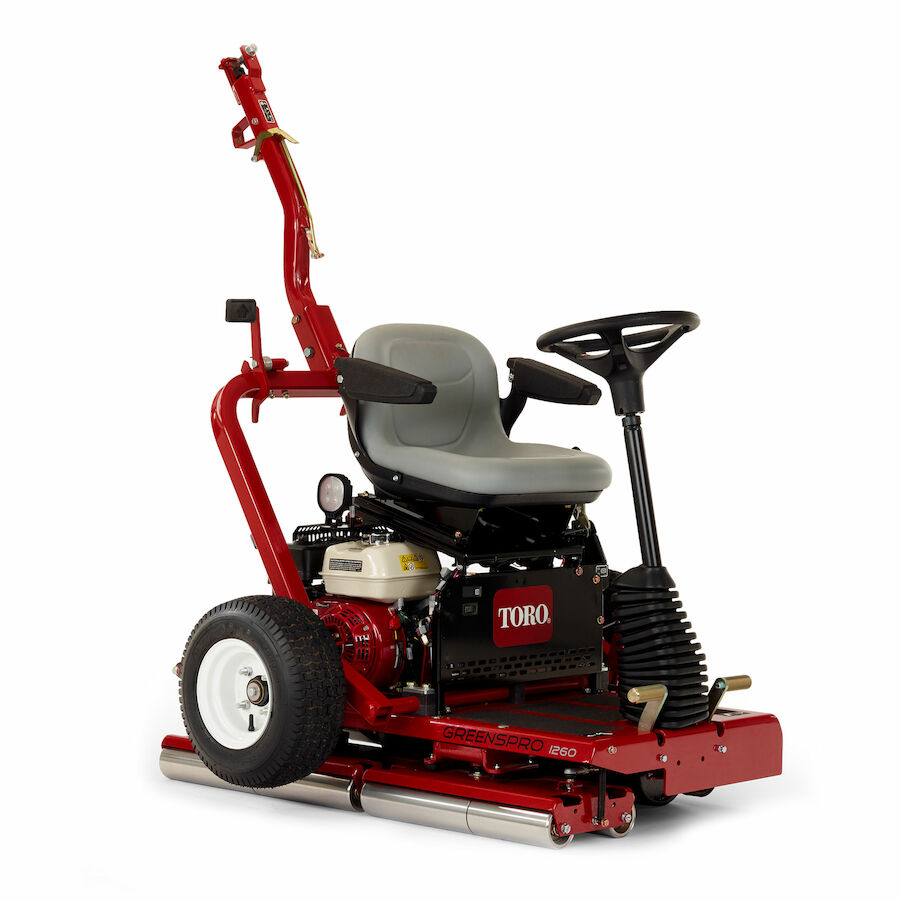

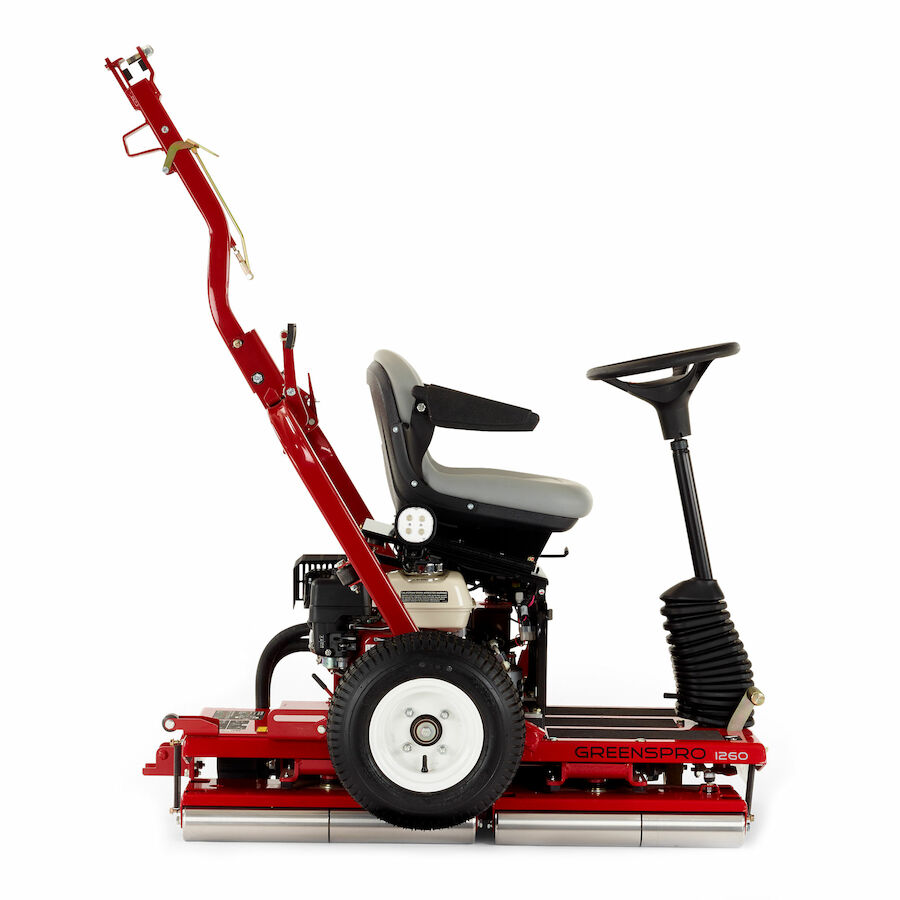

GreensPro® 1260 Greens Roller

  • Model: 44913
  • UPC/EAN: 5015704449135
See All Items in GreensPro® Series Greens Roller
  • Minimizes stress on the greens when turning.
  • Provides full width roller coverage with no unrolled areas during every pass.
  • Provides better smoothing head articulation with minimal maintenance.
  • Increases reliability and removes high maintenance normally seen with a chain and sprocket design.
  • Easy for the operator to attach roller to vehicle with one hand.
  • Reduces stress on operators back and makes the machine easy to maneuver.
  • Minimizes the time required to change engine oil.
  • High-back seat is adjustable and steering wheel tilts up to 40 degrees to easily achieve best ergonomic position for the operator.
  • Minimizes time required for maintenance.

Overview

The GreensPro 1260 is the next evolution of greens roller. With enhanced features like the hydraulically driven drive roller the GreensPro 1260 reduces the maintenance required with the older chain drive systems. The GreensPro 1260 delivers exceptionally smooth and fast greens with a superior operator platform. The split overlapping, contour following smoothing rollers perfectly follow undulations delivering exceptionally smooth putting surfaces. The operator platform is fully adjustable for unmatched comfort and operator safety. The hitch system featuring a QuickLatch coupler makes transporting from green to green unbelievably quick and simple.

Features

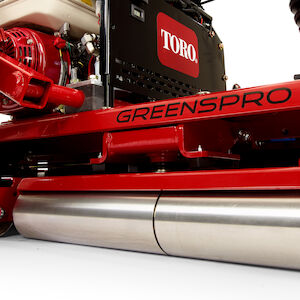

Split Smoothing Rollers
Split Smoothing Rollers
Minimizes stress on the greens when turning.

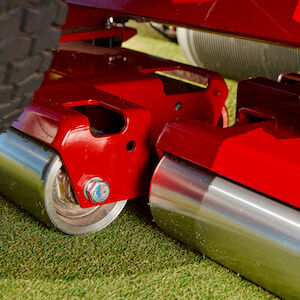

Overlapping Smoothing Rollers
Overlapping Smoothing Heads
Provides full width roller coverage with no unrolled areas during every pass.

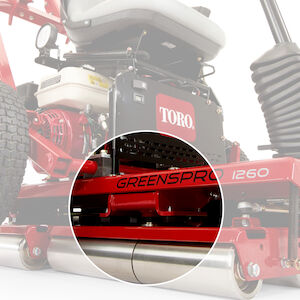

Ball Joint
Ball Joint for Smoothing Head Connection
Provides better smoothing head articulation with minimal maintenance.

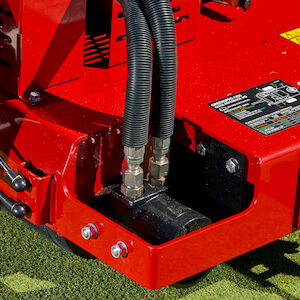

Hydraulic Drive Roller
Hydraulic Drive Roller
Increases reliability and removes high maintenance normally seen with a chain and sprocket design.

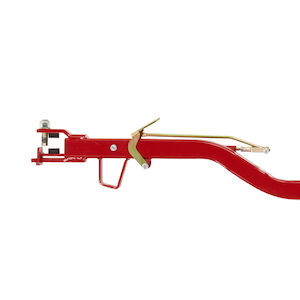

QuickLatch Coupler
QuickLatch Coupler
Easy for the operator to attach roller to vehicle with one hand.
Light Tongue Weight
Light Tongue Weight
Reduces stress on operators back and makes the machine easy to maneuver.
QuickConnect Oil Drain
QuickConnect Oil Drain
Minimizes the time required to change engine oil.

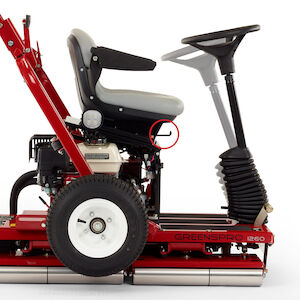

Bidirectional Seat Adjustment
Bidirectional Seat Adjustment & Tilt Steering
High-back seat is adjustable and steering wheel tilts up to 40 degrees to easily achieve best ergonomic position for the operator.

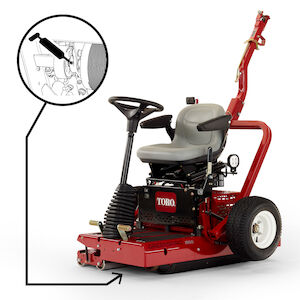

Grease Zerk
1 Grease Zerk
Minimizes time required for maintenance.

Specifications

Contour Follow Yes
Controls Tilt steering wheel, directional foot pedals, hand parking brake, engine stop switch, recoil, choke, fuel shut off, light switch, and hour meter.
Drive Parker hydraulic motor to drive roller
Engine Honda® GX200 5.5 hp (4.1 kW) @3600 RPM, air-cooled, 4-stroke OHV; mechanically governed.
Fuel Unleaded gas
Ground Pressure 3.75 PSI (0.26 Bar)
Ground Speed Roll: 0 - 8 mph (0 - 12.8 km/h) in either direction
Height Storage: 68" (173 cm) Towing: 47" (119 cm)
Hitch Pin style hitch with single hand retractable retention method.
Length Storage: 63" (160 cm) Towing: 93" (236 cm)
Rolling Width 47.2" (120 cm)
Seat High-back, adjustable with standard armrests
Smoothing Rolls 3.44" (87.5 mm) diameter - 4 split rollers. Overlapping twin steering heads.
Steering Wheel, adjustable column tilt of 40°
Traction Drive Roller 7.24" (183.9 mm) diameter vulcanized grooved rubber coated cylinder, 31.5" (80 cm) long
Trailer Integrated with QuickLatch towing system
Transmission Hydrogear PG Pump
Transport Tires 16 x 6.5 - 8 (15 PSI [1.03 Bar])
Weight 679 lbs. (309 kg)
Width 48" (122 cm)

Accessories

Hydraulic Oil Filter
Hydraulic Oil Filter (Part # 1-633750)
Wireless Hourmeter System
Wireless Hourmeter System (Part # 115-4754)
Toro Genuine Parts Logo
Toro 5 Gallon Premium Engine Oil 10W-30 (Part # 121-6393)
Toro 5 Gallon PX Extended Life Hydraulic Fluid
Toro 5 Gallon PX Extended Life Hydraulic Fluid (Part # 133-8086)
Toro Red 12or aerosol can.
Toro Red 12or aerosol can. (Part # 361-10)
Toro Genuine Parts Logo
Red Paint (Gallon) (Part # 361-11)
Toro Genuine Parts Logo
Semi-Gloss Black Paint (Part # 361-9)
Toro Genuine Parts Logo
Red Paint (Part # 5340)



Warranty

2-Year Limited

**See dealer for Warranty details.
