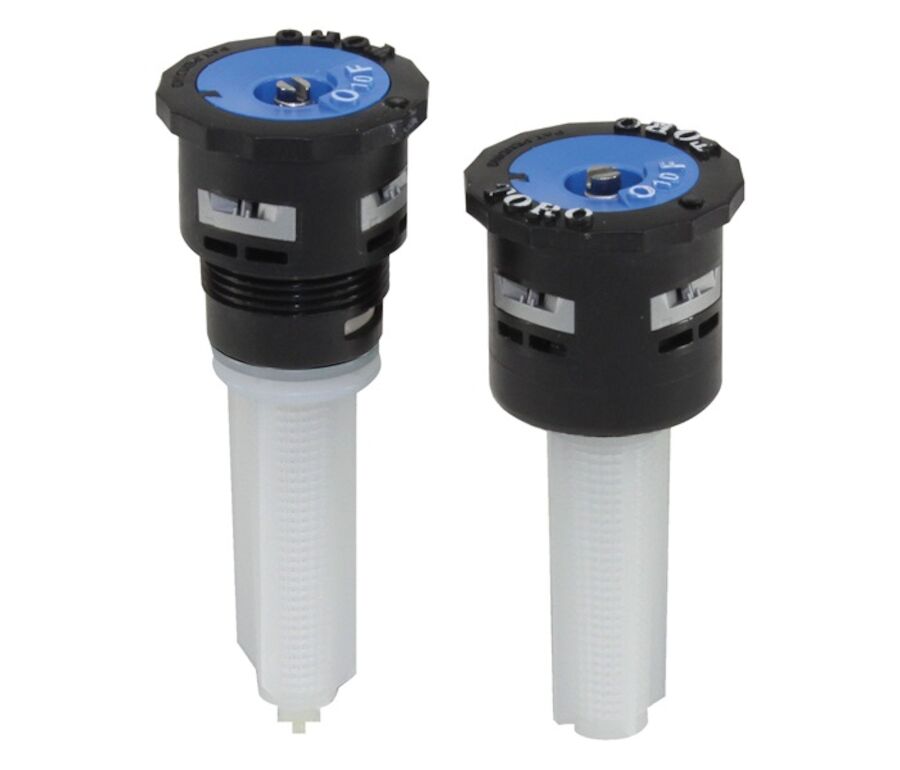

Precision™ Series Spray Nozzles
Model: Precision™ Series Spray Nozzles
Precision™ Series Spray Nozzles
Model: Precision™ Series Spray Nozzles
Model: Precision™ Series Spray Nozzles
Key Features
- CIT (Center for Irrigation Technology) approved
- Patented H2O Chip Technology™ generates larger, more uniform droplets, which results in consistency across the irrigated arc.
- Uses up to 35% less water to reach the radii of conventional spray nozzles
- All models are available with factory-installed Pressure Compensating Discs (PCD)
Resources
Product Details
Toro’s new Precision® Series Spray Nozzles are the most complete and efficient spray nozzle line available to help irrigation professionals manage water use, eliminate runoff and reduce customer water bills.
Third-Party Performance Validation
Precision Series Spray nozzles have been tested and validated in the field and at the Center for Irrigation Technology (CIT).
Patented H²0 Chip Technology
Using patented H²0 chip technology – and no moving parts – each Precision Series Spray nozzles creates one or more high frequency oscillating streams to achieve the desired arc and radius with 1/3 less water usage.
Maximize Irrigation Efficiency
Precision Spray nozzles deliver an industry first 1”/hr (25mm/hr) precipitation rate, which better matches soil infiltration rate. This lower precipitation rate, along with high distribution uniformity make this nozzles family the most efficient nozzle from 5’-15’ (1,5-4,6m).
Design and Retrofit Effectiveness
The lower flow rate of Precision™ Series Spray Nozzles maximizes design efficiency and saves on overall material costs by using fewer valves and less controller stations. In addition, the performance of existing systems with lower pressures can be upgraded with a simple retrofit of the pre-existing high flow nozzles.
Optional Pressure Compensating Device (PCD)
Maintains optimal performance even when inlet pressure rises to 40 psi and higher.
Flow
0.06-2.4 GPM (.2 - 9.6 LPM)
Pattern
60, 90, 120, 150, 180, 210, 240, 270, 360 & Specialty
Precipitation Rate
≤ 1"/hr (25 mm)
Radius
5'-15' (1.5 m - 4.6 m)
Recommended Operating Pressure
30 - 40 PSI
- 26-1045-IRC-PSN-SS.pdf PDF - Sellsheet-en-us
- PSN-SS-CHARTS26-ONLY.pdf PDF - Product Literature-en-us
For complete product warranty information contact Toro Customer Service
**See dealer for Warranty details.
