Reelmaster® 3550

  • Model: 03910
See All Items in Reelmaster® 3550 Series
  • The Reelmaster 3550-D has a quiet, low noise design with only 84 dB(A) at the operator's ear & 73 dB(A) at a 25-foot drive by.
  • 18" (45.7 cm) version of fairway DPA cutting units to better handle fairway undulations. 22" (55.9 cm) rear cutting units can be installed to achieve additional overlap if desired.
  • Powered by a 24.8 hp (18.5 kW) Kubota diesel engine, the Reelmaster® 3550-D provides plenty of power to climb hills, even while running groomers and rear roller brushes.
  • The innovative Series/Parallel 3-wheel drive system provides power to at least two wheels at all times. The result is impressive traction in hilly and wet conditions, and minimal wheel slip so it's gentle on the turf.
  • Smooth turf tires are standard to minimize turf damage.
  • With a weight that is on average 15-20 percent lighter then comparably equipped machines, the Reelmaster® 3550-D provides the ideal combination of turf friendliness and productive performance.
  • Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.

Overview

The Toro® Reelmaster® 3550-D floats effortlessly over contours in fairways and green surrounds. With a productive 82" (2.1m) cutting width, turf-friendly tires, the superior traction of a Series/Parallel 3-wheel drive system, and a weight of less than 2,000 pounds, the Reelmaster® 3550-D is engineered to make a big impression...without leaving one.

Features

Quiet Operation
Quiet Operation
The Reelmaster 3550-D has a quiet, low noise design with only 84 dB(A) at the operator's ear & 73 dB(A) at a 25-foot drive by.
Enhanced Ground Following
Enhanced Ground Following
18" (45.7 cm) version of fairway DPA cutting units to better handle fairway undulations. 22" (55.9 cm) rear cutting units can be installed to achieve additional overlap if desired.
Powerful Engine
Powerful Engine
Powered by a 24.8 hp (18.5 kW) Kubota diesel engine, the Reelmaster® 3550-D provides plenty of power to climb hills, even while running groomers and rear roller brushes.
Superior Traction
Superior Traction
The innovative Series/Parallel 3-wheel drive system provides power to at least two wheels at all times. The result is impressive traction in hilly and wet conditions, and minimal wheel slip so it's gentle on the turf.
Smooth Turf Friendly Tire
Smooth Turf Friendly Tire
Smooth turf tires are standard to minimize turf damage.
Lightweight Design
Lightweight Design
With a weight that is on average 15-20 percent lighter then comparably equipped machines, the Reelmaster® 3550-D provides the ideal combination of turf friendliness and productive performance.
EdgeSeries™ Reels
EdgeSeries™ Reels
Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.
Watch the Video

Specifications

Armrests Standard
Battery 12V
Bedknife Adjustment Precision machined cutting units maintain levelness and hold adjustments. Dual Precision Adjustment (DPA) allows quick bedknife to reel adjustment.
Blade Style/Type Reel
Blade Type (Description) EdgeSeries™ DPA radial or forward swept reels.
Clip Frequency/Backlapping 5" reel 2,350 (+/- 150) rpm max reel speed, at highest setting. 200 rpm max at low idle and lowest setting for backlapping.
Controls Foot operated controls: Forward and reverse traction pedal, mow/transport speed limiter. Hand operated on control panel: Parking brake lever, ignition switch, engine throttle lever, LED work light switch, on/off switch for cutting units, joystick for cutting unit lift and lower. Other controls: Steering wheel tilt control, reel speed control, backlap engagement lever.
Cooling System Description Aluminum side-by-side oil cooler/radiator. 8.5 fins per inch, wavy fin, non-louvered. 5.25 quart (4.9 liter) capacity.
Cup Holder Standard
Cutting Unit Accessories Rear Roller Brush Kit, Universal Groomer, Broomer, Grass Baskets
Cutting Unit Lift/Lower Hydraulic - front and rear cutting unit lift/lower are sequenced for uniform starting and ending points.

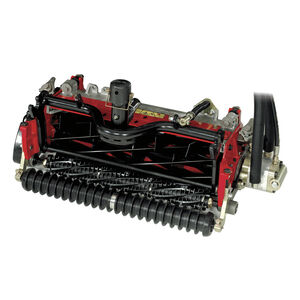

Cutting Unit Type/Configuration Five hydraulically driven, balanced, DPA cutting Units. Frame precision manufactured, die-cast aluminum for increased strength, simple click adjustment maintenance.
Drivetrain Diesel
Electrical System Heavy-duty 12-volt battery, 570 CCA; 40 amp alternator/regulator. Electronic control unit is microprocessor based, solid state control unit with diagnostic capabilities.
Engine Cooling Liquid Cooled
Fuel / Power Source Diesel
Fuel Capacity 7.5 U.S. gal. (28.4 L)
Fuel Filter 10 micron spin-on filter with integral water separator.
Gauges/Instrumentation Hour meter, fuel gauge, diagnostic lamp, cluster gauge with glow plug and charge indicator lights. Low engine oil pressure and high coolant temperature warning lights (high temperature safety shut off).
Ground Speed - Forward 0 - 10 mph (0 - 16.1 km/h)
Ground Speed - Reverse 0 - 3.5 mph (0 - 5.6 km/h)
Height 74" (188 cm)
Height of Cut Range 8-Blade: 0.5" - 1.5" (13 mm - 38 mm)
11-Blade: 0.25" - 0.75” (6 mm -19 mm)
Hydraulic Fluid Capacity 6 U.S. gal. (22.7 L)
Hydraulic Fluid Type Toro PX™ Extended Life Hydraulic Fluid
IntelliDash™ Capable Yes
Interlocks Traction pedal neutral, parking brake, operator presence in seat, and cutting unit engage/disengage.
Lighting Standard
Main Frame/Chassis Formed steel, welded steel and steel tubing.
Max Slope Angle Refer to operator's manual.
Mowing Speed 0 - 7 mph (0 - 11.3 km/h)
Number of Blades 11, 8
Oil Capacity 3.5 U.S. qt. (3.3 L)
Oil Cooler Description Pressurized lubrication system.
Optional Accessories Sunshade (with optional operator cooling fan, LED work lights, rotating amber beacon)
Overall Width 94" (238.8 cm)
Parking/Service Brakes Hydrostatic service brake. Hand-operated parking brake.
Power Steering Yes
Power Train (Engine Description) Kubota® liquid-cooled diesel engine, 3-cylinder, 24.8 hp (18.5 kW) @ 3000 RPM. Engine governed to 3220 RPM high idle (± 50 RPM), 1400 RPM low idle (± 50 RPM). Displacement: 68.5 cu.in. (1123 cc). Peak torque: 57.2 lbs-ft @ 2200 RPM. Tier IV compliant.
Product Length 110" (279.4 cm)
Reel Diameter 5 in. (12.7cm)
Reel/Cylinder Drive Hydraulic
Rollers Wiehle front roller and standard rear roller included. Optional front full and shoulder rollers, and short and long rear rollers available.
Safety/Operator Safety 2-post ROPS and retractable seat belts standard.
Seat Mechanical suspension standard.
Starting Switch
Steering System Description Power steering with tilt steering wheel.
Tires - Front 22" x 12" - 12", 4-ply, No Tread
Tires - Rear 22" x 12" - 12", 4-ply, No Tread
Traction Drive 3WD
Traction Drive (System) Series/Parallel hydraulic traction circuit provides continuous 3-wheel drive, in mow and transport. Hydrostatic traction drive provides infinitely variable speed in forward and reverse.
Transport Width 91" (231 cm)
Weight 1,985 lbs. (900.38 kg) with (5) 18" 8-blade cutting units.
Wheelbase 59.5" (151.1 cm)
Width of Cut 82" (208 cm)
