Twister 1600 Utility Vehicle
Product Information
- Model #: 12004TC
- Serial #: 220000001 - 220999999
- Product Type: Vehicles
Loading...

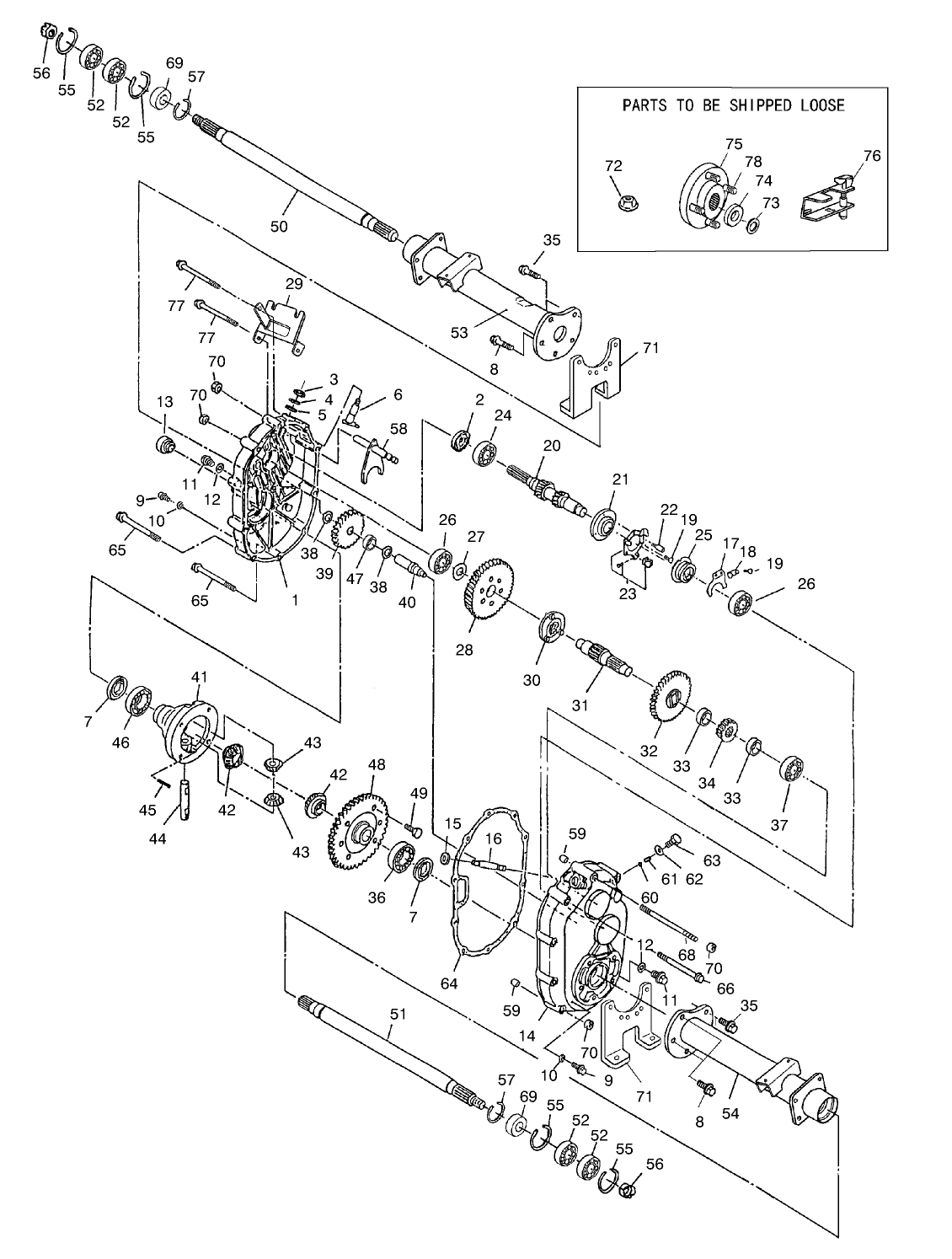

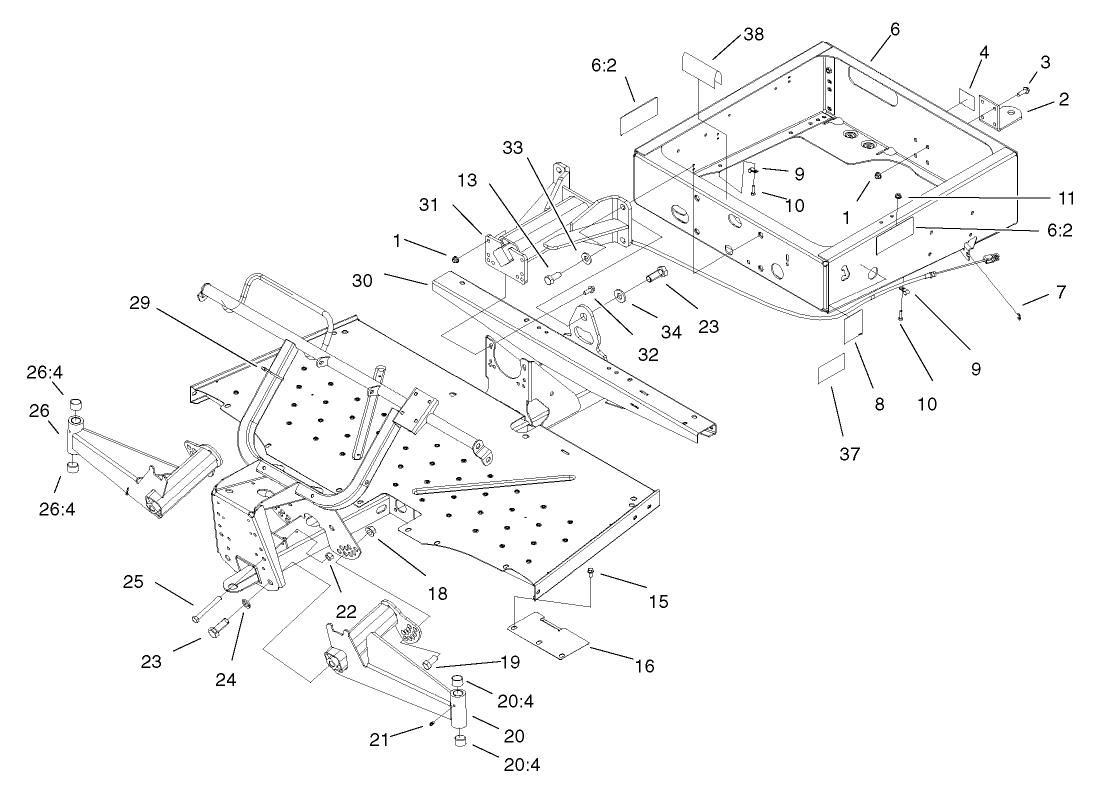

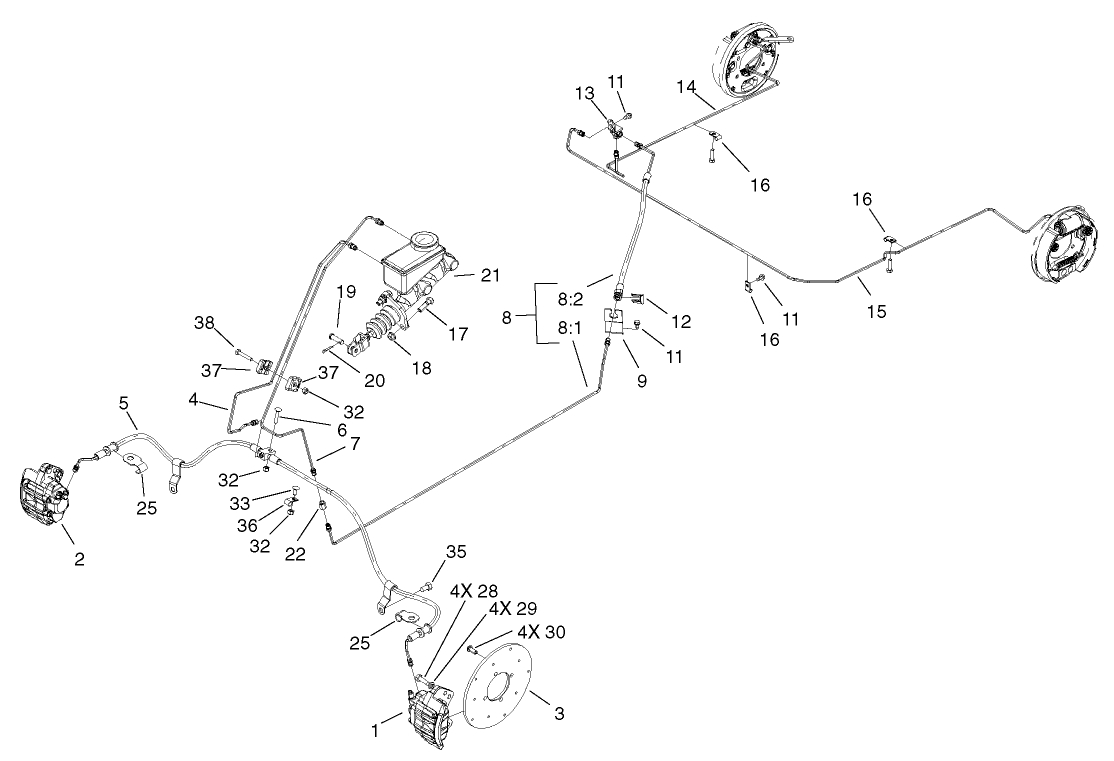

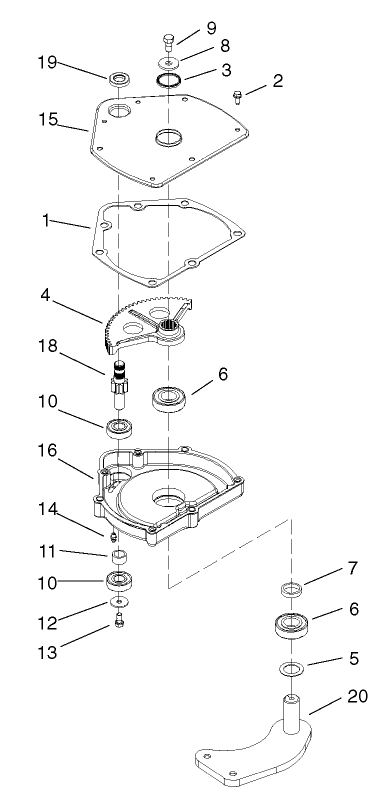

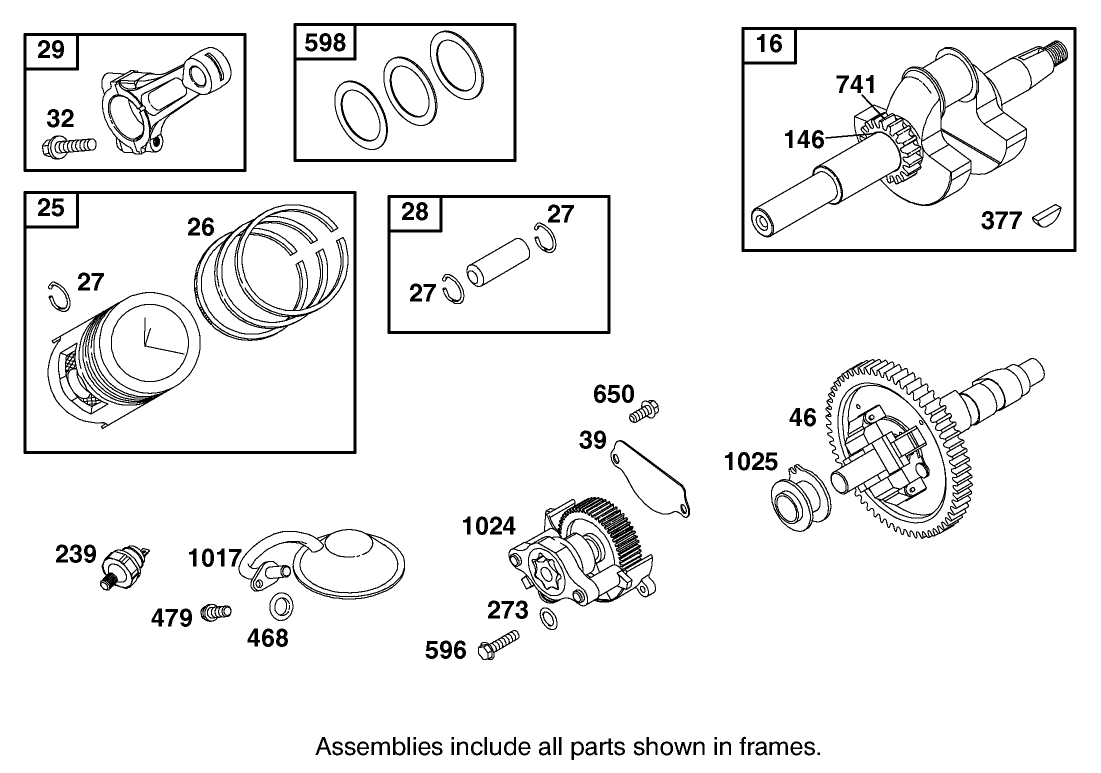

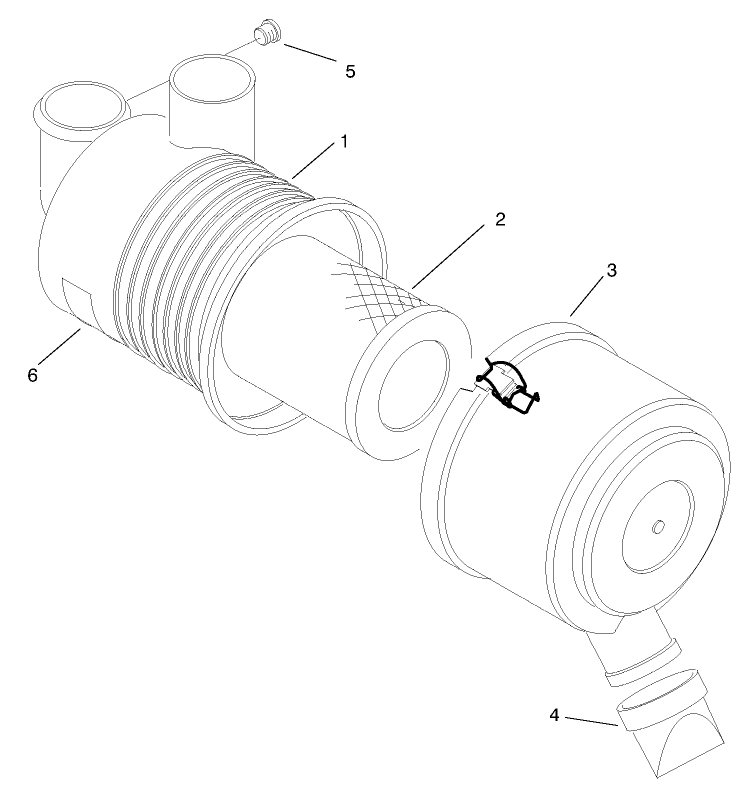

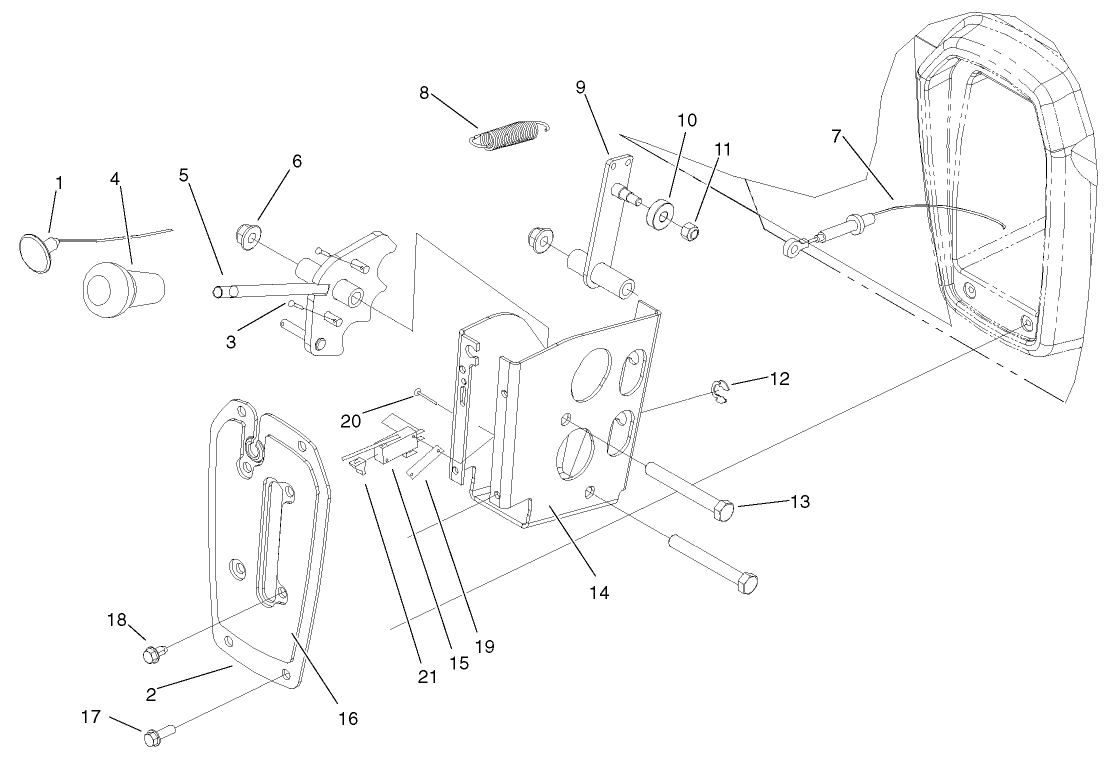

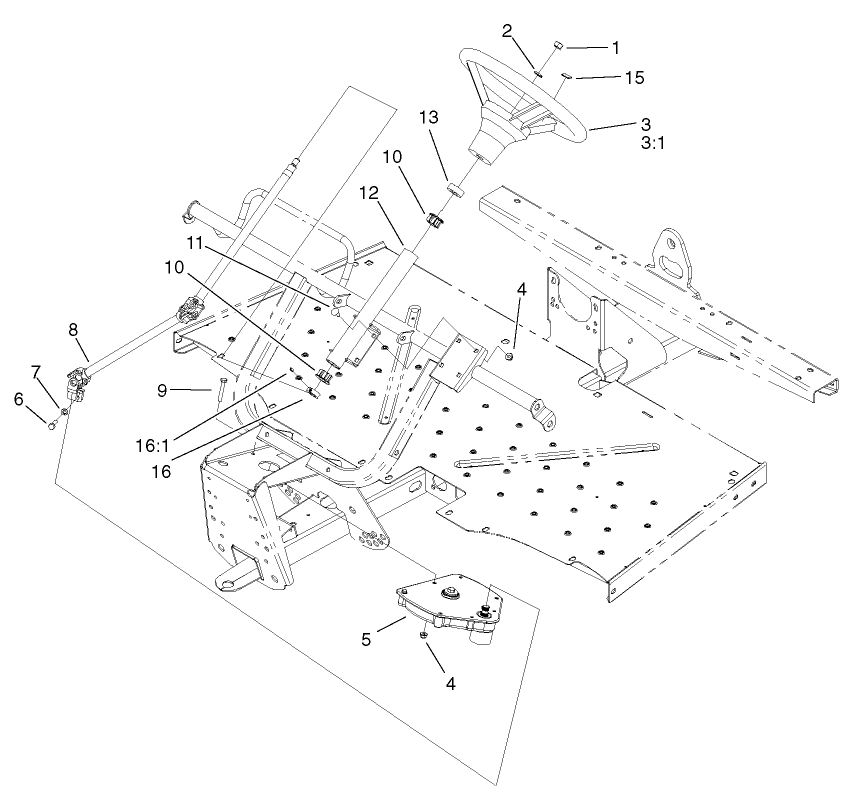

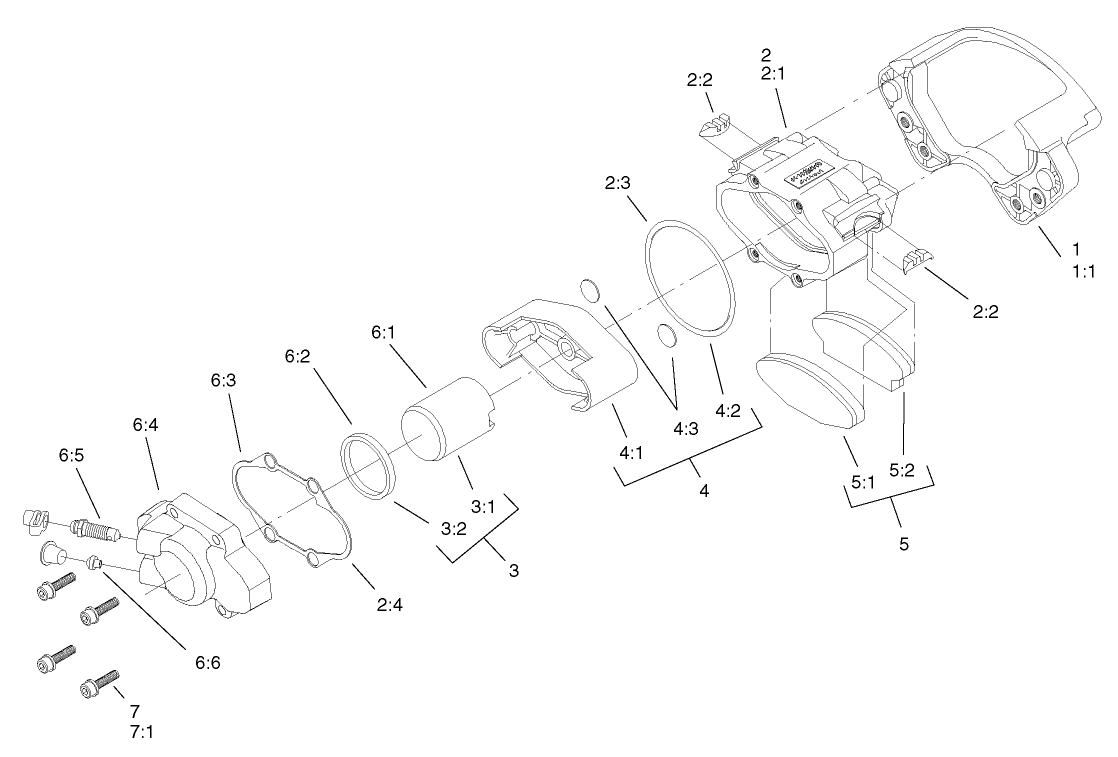

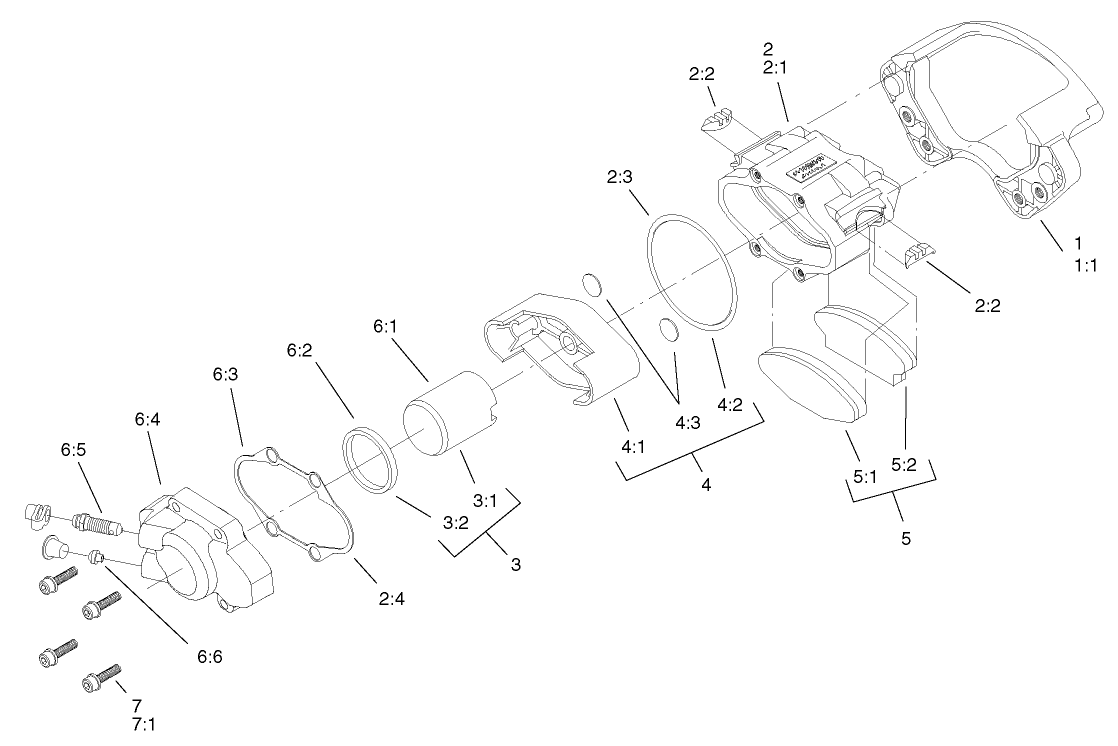

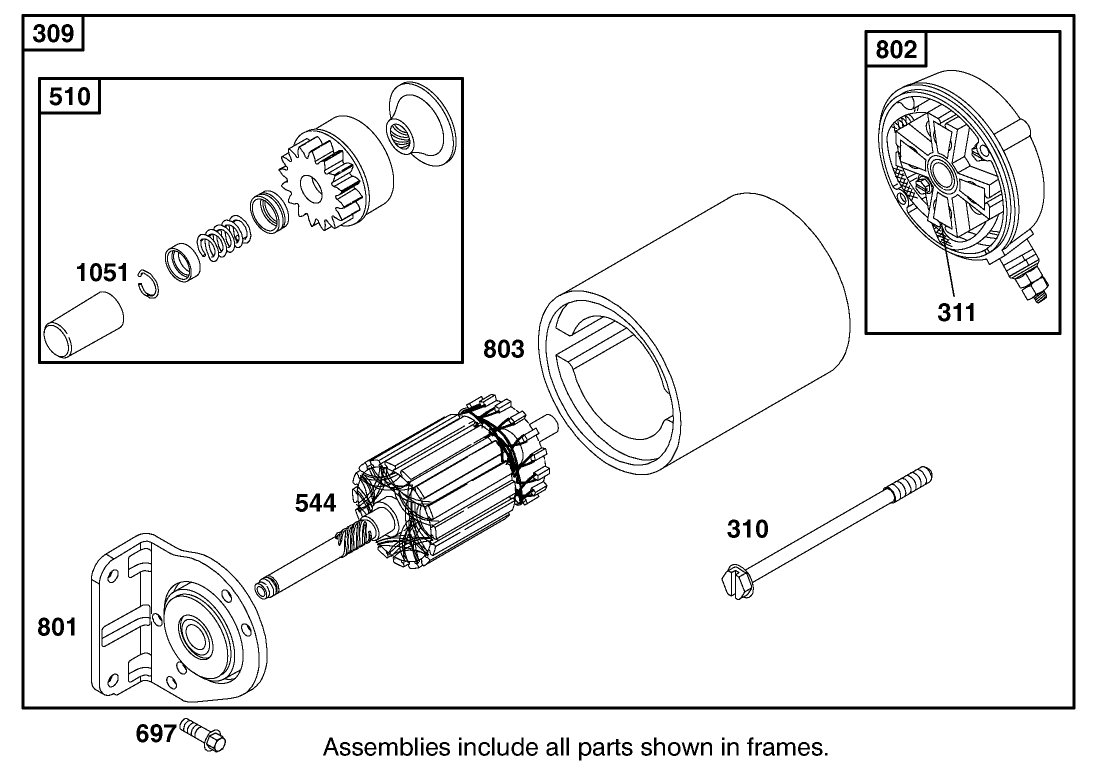

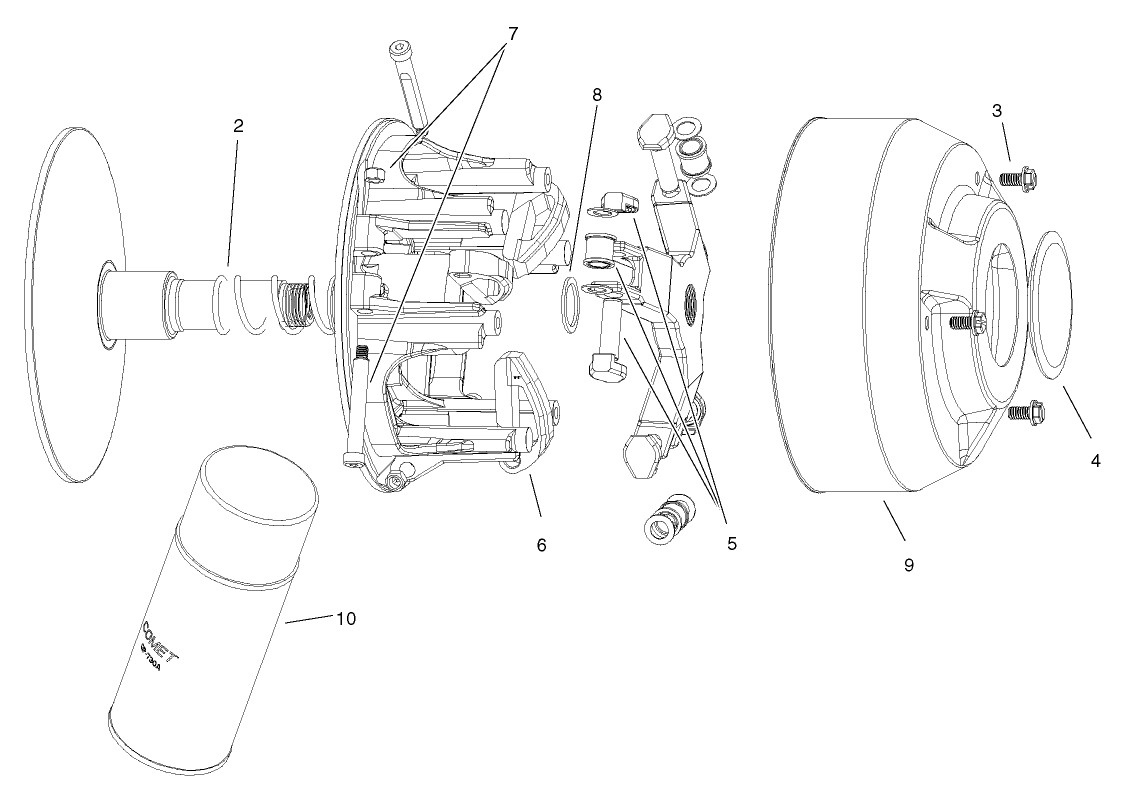

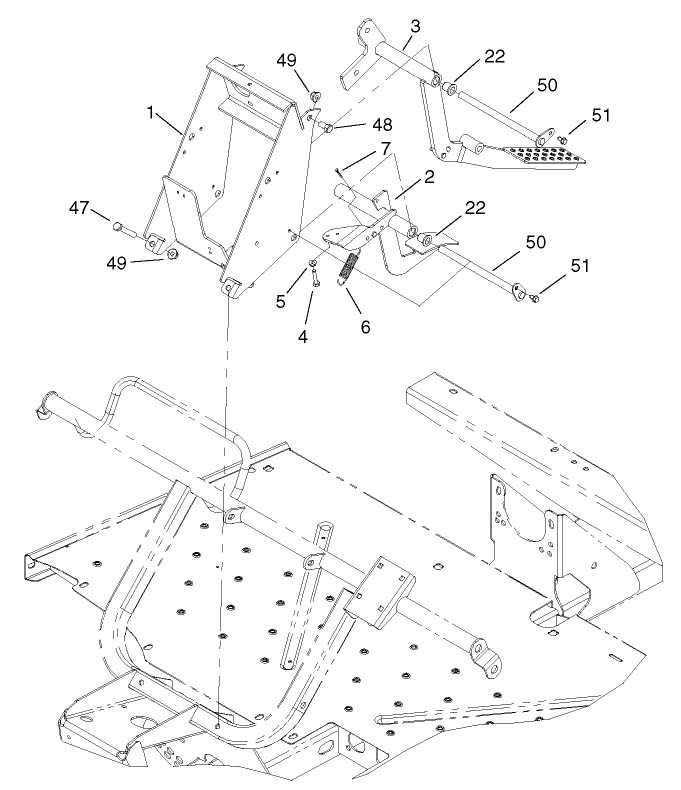

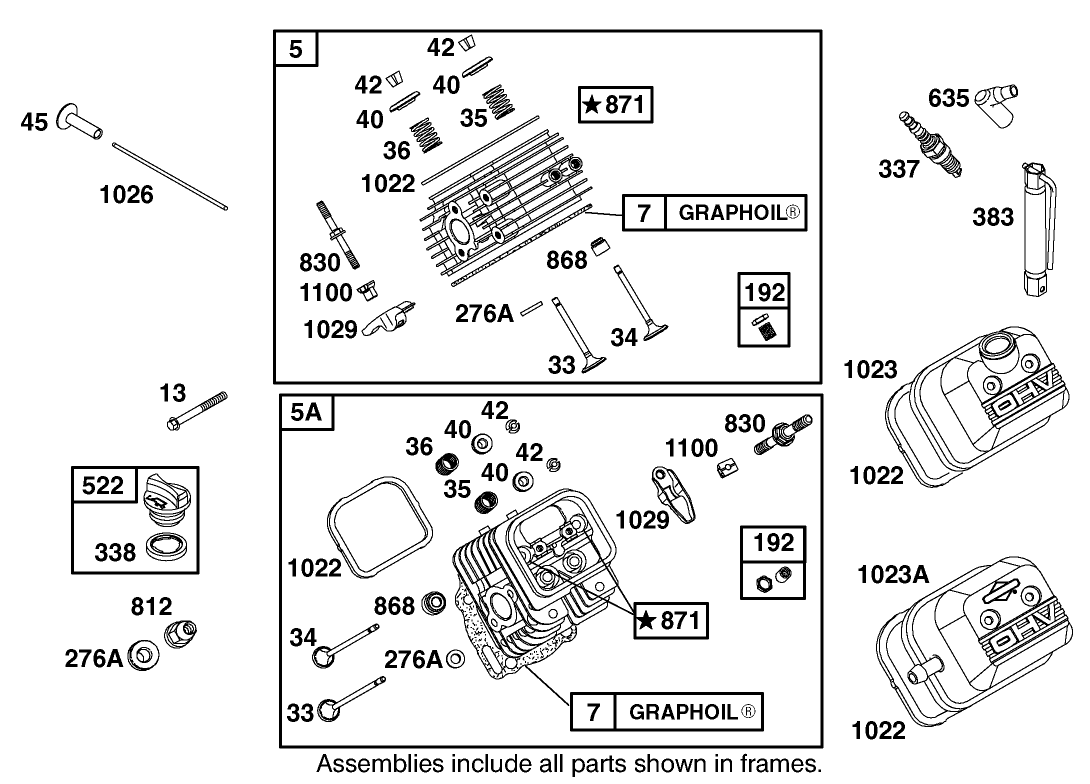

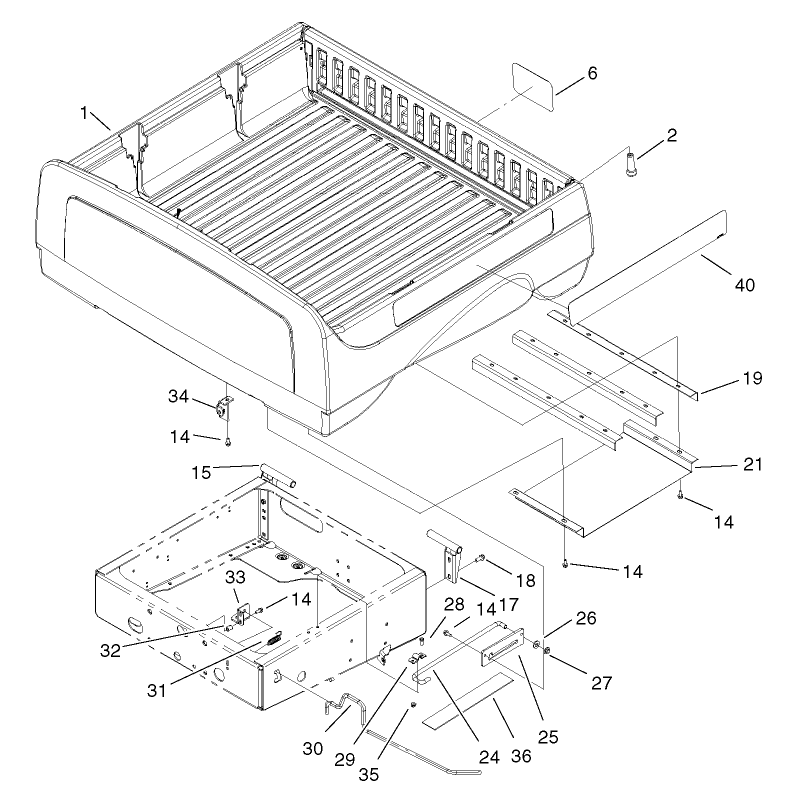

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Parts Catalog
-
EU Declaration of Conformity
Stand Alone Windshield (Part # 07221R)
Electric Bed Lift (Part # 07259R)
Heavy Duty Rear Hitch (Part # 07275R)
Roll-Over Protection System (ROPS) / Seatbelts (Part # 07276R)
Rear Receiver Hitch (Part # 07278R)
Stake Sides (Part # 07290R)
Hard Cab, ROPS certified / Seatbelts / Electric Wiper (Part # 07291R)
66" Snow Plow (Part # 07292R)
Folding Windshield (Part # 07293R)
Solid Windshield (Part # 07294R)
Floor Mat (Part # 07295R)
Hard Canopy (Part # 07297R)
Please contact your local dealer
Please contact your local dealer
Heavy Duty Front Bumper (Part # 19050)
Operator Shield (for front of bed) (Part # 19052)
Electric Winch (2000 lb. Superwinch) (Part # 19053)
Gun Boot (Optional Mounting Bracket, 19055) (Part # 19054)
Gun Boot Mounting Bracket for 19054 (Part # 19055)
Camouflage Glove Box Bag and Trash Bag (Part # 19056)
Camouflage Single Seat Cover (2 req'd. per vehicle) (Part # 19058)
Camouflage Full Vehicle Cover (Part # 19059)
Camouflage Bed Cover (Part # 19060)
Camouflage Hood and Dash Cover (Part # 19061)
Front Brush Guard / Bumper (Part # 19062)
Vinyl Enclosure (Part # 79979R)
Soft Vinyl Bed Cover (Part # 79980R)
Spark Arrestor (Part # 98-9099)
Toro OEM spark arrestor prevents carbon build ups from being ejected from the engine and igniting a fire.
Please contact your local dealer
-
Model #
12004TC -
Serial #
220000001 - 220999999 -
Product Name
Twister 1600 Utility Vehicle -
Product Brand
Toro -
Product Type
Vehicles -
Product Series
Vehicle, Consumer -
Chassis Type
Vehicle - Consumer -
Engine/Motor Manufacturer
Briggs & Stratton -
Engine/Motor Size
16 hp -
Engine/Motor Type
4 Cycle CARB1, EPA1 -
Engine Starter
Electric -
Transmission Type
Gear -
Traction Type
2wd
-
Engine: Battery
12V 300CCA -
Engine: Ignition Coil Air Gap
.008-.012" / .2-.3mm -
Engine: Spark Plug Gap
.030"/ .76mm -
Chassis: Tire Pressure
8-22 PSI / .6-1.5kg sq. cm -
Drive System: Ground Speed
0-19 mph -
Engine: Engine Speed
High 3600, Low 1025 RPM -
Engine: Spark Plug
Champion RC14YC
