22in Recycler Lawnmower
22in Recycler Lawnmower
Product Information
- Model #: 20016
- Serial #: 250000001 - 250999999
- Product Type: Walk Behind Mowers
Search for a part within assembly drawings:
Showing Results
| Drawing Title | Part Number | Description |
|---|---|---|
| Title |

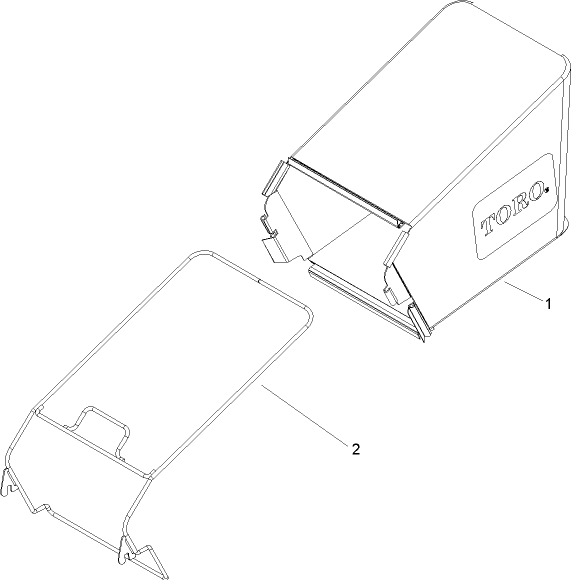

TORO 22" WPM BAG (Part # 59288)
Model #
20016
Serial #
250000001 - 250999999
Product Name
22in Recycler Lawnmower
Product Brand
Toro
Product Type
Walk Behind Mowers
Product Series
22" Steel Deck
Chassis Type
Steel Deck WPM
Swath
22 inch
Discharge
Recycler & Rear Bagger
Engine/Motor Manufacturer
Tecumseh
Engine/Motor Size
6.5 hp
Engine/Motor Type
4 Cycle CARB2, EPA2
Engine Starter
Recoil
Transmission Type
Gear
Traction Type
Front WD
Engine: Engine Speed
2900±150 RPM
Engine: Ignition Coil Air Gap
.012" / .3mm
Engine: Spark Plug
Champion RJ19LM
Engine: Spark Plug Gap
.030"/ .76mm
Chassis: Height of Cut Range
1.25-4.25", 3/8" increments
Drive System: Gearbox Lubricant
1.5 oz. (43gm) #2 Lithium grease
Drive System: Ground Speed
0-3 mph
Engine: Engine Oil Type
20 oz. (.6l) 30w / API SH or higher
