8-Blade DPA Cutting Unit with 5in Reel, Reelmaster 5210/5410 Series Traction Unit
Product Information
- Model #: 03661
- Serial #: 290000001 - 290999999
- Product Type: Attachments
Loading...
Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Parts Catalog
-
EU Declaration of Conformity
Basket Kit, Reelmaster 5010 Series 5in and 7in Cutting Units (Part # 03662)
Rear Roller Brush Kit, Reelmaster 5210/5410 Series Cutting Unit with 5 (Part # 03663)
Verticutter, Reelmaster 5210/5410 Series Cutting Unit with 5in Reel (Part # 03664)
Right-Hand Groomer Kit, Reelmaster 5210/5410 Series Cutting Unit with (Part # 03665)
Left-Hand Groomer Kit, Reelmaster 5210/5410 Series Cutting Unit with 5 (Part # 03666)
Collar Kit (Part # 104-8215)
Contains 100-4959 @ 2, 104-1835 @ 2
22 Inch Wiehle Scraper Assembly (Part # 107-2993-03)
Toro OEM 22 Inch Wiehle Scraper Assembly.
Rear Roller Scraper Kit (22.00 Inch) (Part # 107-3280)
Contains 107-2999 @ 1, 107-3279 @ 1, 107-3281 @ 1, 3290-357 @ 2, 104-8300 @ 4, 104-8301 @ 2
5" 5 BLADE REEL ASM (Part # 108-9070)
Comb/Scraper Kit (Part # 110-1735)
Contains 115-8298-03 @ 1, 104-1844 @ 1, 115-8299 @ 1, 110-1731-03 @ 1, 3296-16 @ 4, 3229-2 @ 4, 3256-67 @ 8
Kickstand (Part # 110-4088-03)
RM Dpa High Hoc Kit (Part # 110-9600)
Contains 120-0404 @ 1, 120-0405 @ 1, 119-0626 @ 8, 106-9758 @ 4, 3230-30 @ 4, 104-8300 @ 4, 112-7451 @ 2, 48-9220 @ 4, 104-8301 @ 4, 322-16 @ 2, 32128-20 @ 2, 32128-20 @ 2
3X22 Inch Full Front Roller Scraper (Part # 110-9602-03)
Toro OEM 3X22 Inch Full Front Roller Scraper.
Basket Cylinder Limit Kit (Part # 110-9604)
Shoulder Roller Scraper (22.00 Inch) (Part # 110-9609-03)
Toro OEM Shoulder Roller Scraper (22.00 Inch).

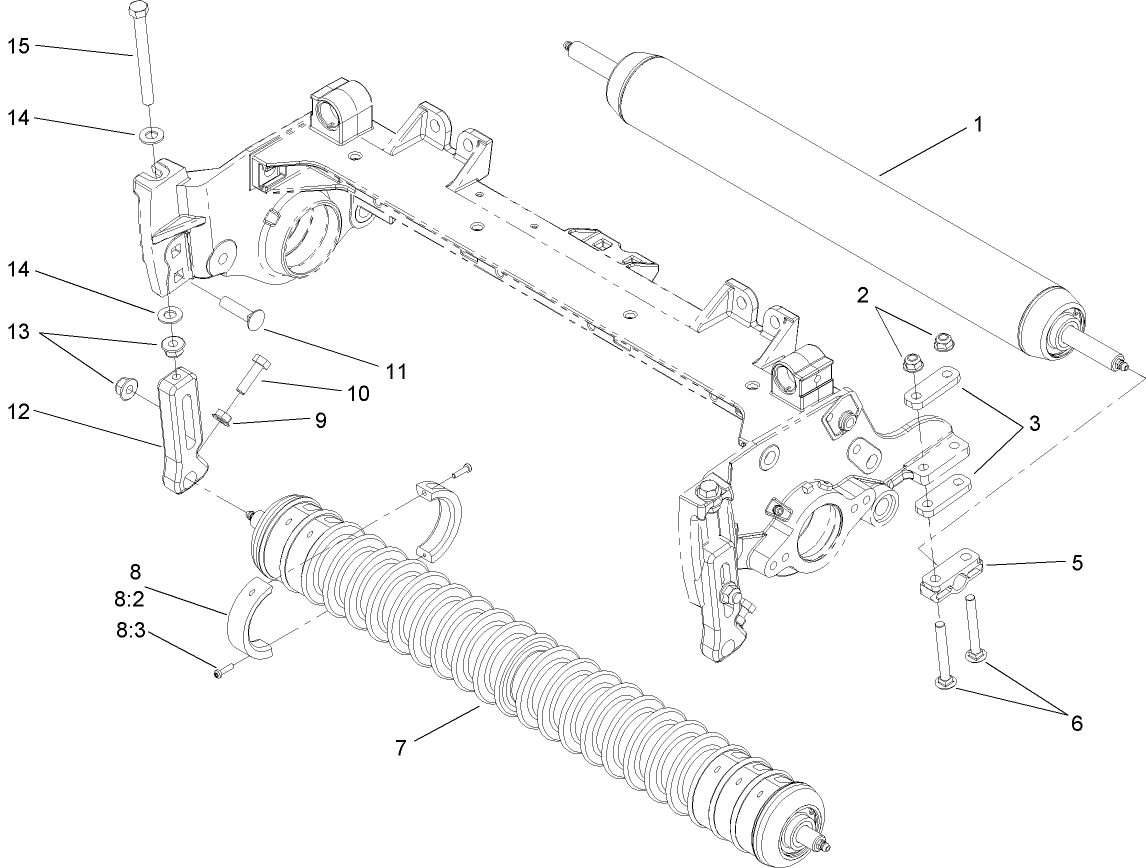

22.00 Inch Full Front Roller Assembly (Part # 114-5412)
Toro 22.00 Inch OEM Full Front Roller Assembly. This roller has a 3.00 inch diameter. This Assembly comes with the roller tube, roller shaft, oil seals, stainless steal bearings, seals, lock nuts, grease fittings, grease & the roller rebuild kit. This roller is smooth, unlike the Wiehle roller that has groves built in. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
22.00 Inch Plastic Shoulder Roller Assembly (Part # 114-5421)
Toro 22.00 Inch OEM Plastic Shoulder Roller Assembly. This roller has a 3.00 inch diameter. This Assembly comes with a plastic roller, roller shaft, oil seals, stainless steal bearings, seals, lock nuts, grease fittings, roller rebuild kit & grease. A Wiehle roller has groves built into the roller. This roller is molded out of an aluminum core, with a plastic molding on the outside. A shoulder roller groves get smaller closer to the edges, where as a standard Wiehle has evenly spaced from one end to the other. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.

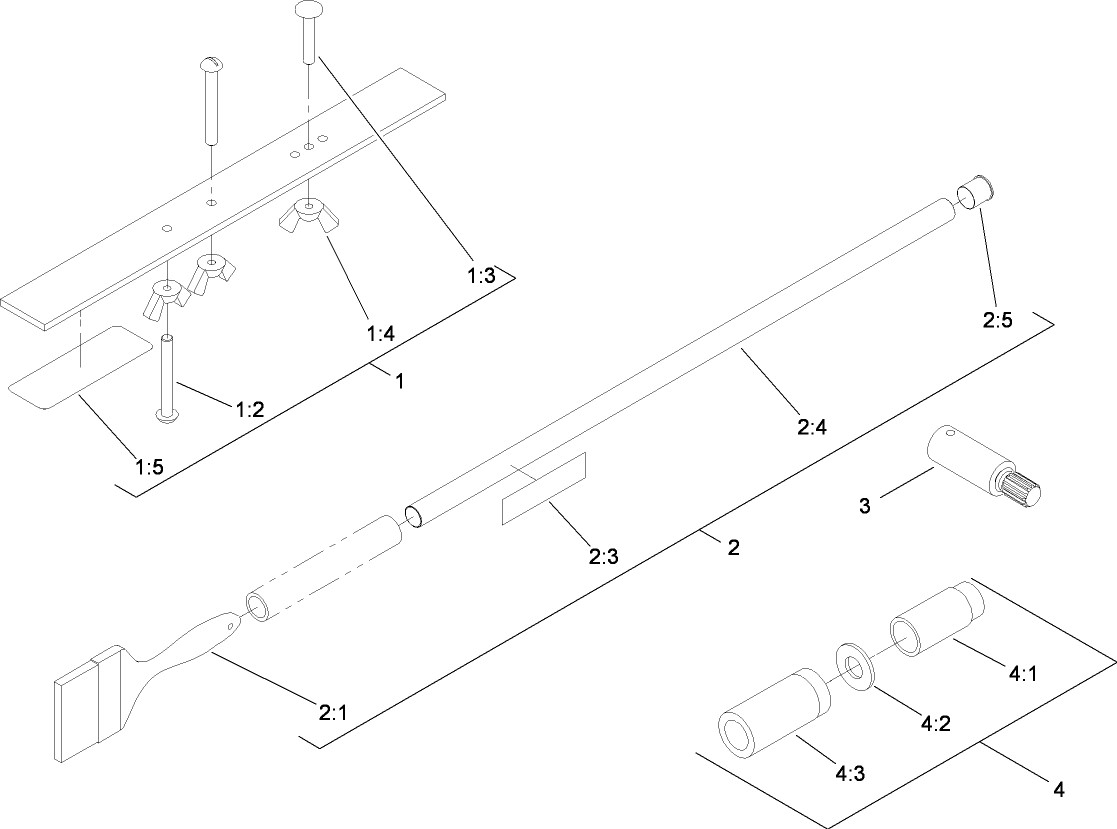

Roller Seal Tool Kit (Part # 115-0803)
22.19 Inch Low Cut EdgeMax™ Bedknife (Part # 137-0832)
Toro 22.19 Inch OEM Low Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Low Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
22.19 Inch Fairway Cut EdgeMax™ Bedknife (Part # 137-0833)
Toro 22.19 Inch OEM Fairway Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Fairway Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
Rear Roller Brush Kit, Reelmaster 5210/5410 Series Cutting Unit with 5 (Part # 137-5991)
8 Blade EdgeSeries (ES) Reels+™ 22 Inch (Part # 137-8422)
Toro 8 Blade 22 Inch OEM EdgeSeries (ES) Reels+™. The EdgeSeries (ES) Reels+™ is an upgraded version of the Standard Reels+™ with stronger steel, longer lasting & more durable. You can count on the quality and reliability of this replacement EdgeSeries (ES) Reels+™. Be sure to verify the make and serial number to ensure correct part.
ADAPTER-DRIVE, REEL (Part # TOR4112)
-
Model #
03661 -
Serial #
290000001 - 290999999 -
Product Name
8-Blade DPA Cutting Unit with 5in Reel, Reelmaster 5210/5410 Series Traction Unit -
Product Brand
Toro -
Product Type
Attachments -
Product Series
RM 5000 Series Accessories
