TimeCutter SS 5060 Riding Mower

TimeCutter SS 5060 Riding Mower

TimeCutter SS 5060 Riding Mower

Product Information

  • Model #: 74632
  • Serial #: 311000001 - 311999999
  • Product Type: Riding Products

Search for a part within assembly drawings:

Showing Results

Drawing Title Part Number Description
Title



13 Inch Wheel and Tire Assembly
13 Inch Wheel and Tire Assembly
50 Inch Deck Assembly
50 Inch Deck Assembly
50 Inch Deck Belt, Spindle and Hi-Lift Blade Assembly
50 Inch Deck Belt, Spindle and Hi-Lift Blade Assembly
50 Inch Deck Decal Assembly No. 119-8841
50 Inch Deck Decal Assembly No. 119-8841
Battery and Electrical Assembly
Battery and Electrical Assembly
Body Styling and Fuel Tank Assembly
Body Styling and Fuel Tank Assembly
Deck Lift Assembly
Deck Lift Assembly

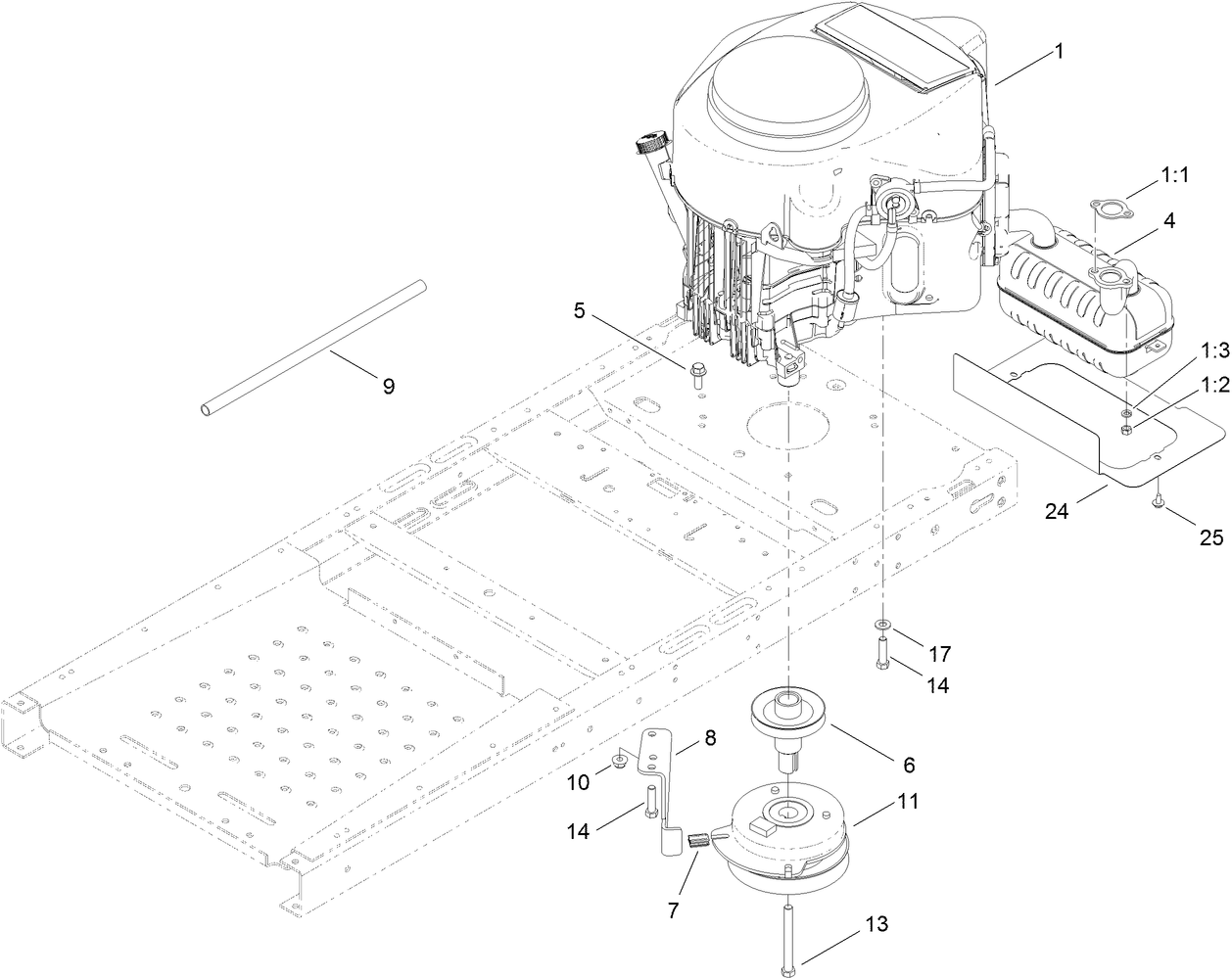

Engine, Muffler and Clutch Assembly
Engine, Muffler and Clutch Assembly

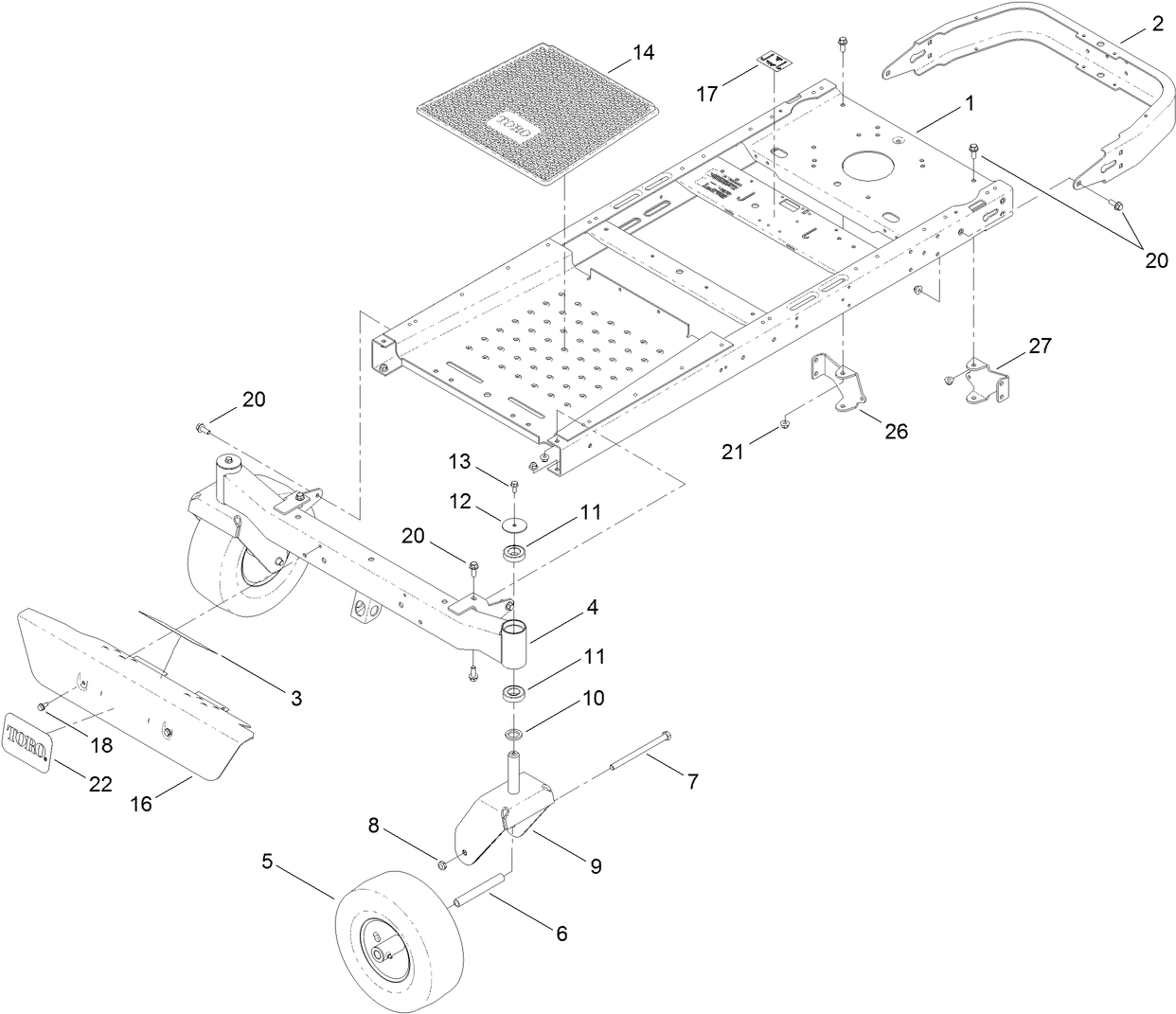

Frame, Front Axle and Caster Wheel Assembly
Frame, Front Axle and Caster Wheel Assembly
Fuel Delivery Assembly
Fuel Delivery Assembly
Hydro Transaxle Drive and Rear Wheel Assembly
Hydro Transaxle Drive and Rear Wheel Assembly
LH Hydro Transaxle Assembly No. 119-3350
LH Hydro Transaxle Assembly No. 119-3350
Motion Control Assembly
Motion Control Assembly
RH Hydro Transaxle Assembly No. 119-3351
RH Hydro Transaxle Assembly No. 119-3351
Seat Assembly
Seat Assembly
Download Parts Catalog
Operator's Manual
Service Manual
Parts Catalog
Setup Instructions
Engine Evaporative Emission Warranty
TimeCutter 50
TimeCutter 50" Bagging Enhancement Kit (Part # 114-1608)
Get that pristine lawn you’ve been dreaming of with the help of the Toro’s Leaf Bagging Enhancement and make short work of it. Decreases leaf blowout on the deck when bagging leaves and increases bagging performance. Fits select models of TimeCutter SS and SW zero turn mowers.
$80.99 USD
Genuine OEM Part 120-7905
TimeCutter Mower Striping Kit (Part # 120-7905)
The Toro Striping Kit allows you to create stripes and patterns to your lawn while you mow. Striping kits lay the grass leaves down in the direction of travel. The differences in direction reflect light to provide light and dark stripes in your lawn.Adjustable to provide more or less downward pressure. This Striping Kit is for 42" and 50" TimeCutter Zero Turn Mowers - Fits select models.
$128.99 USD
High Altitude Kit
High Altitude Kit (Part # 121-4243)
Genuine OEM Part
$12.99 USD
Empty Image Container
KIT-JACK MOUNT (Part # 126-5251)
$125.39 USD
Riding Mower Jack Kit
Riding Mower Jack Kit (Part # 127-6666)
This genuine Toro OEM riding mower jack kit is designed to safely lift and support your Toro riding mower or zero turn, giving you safe, stable under-deck access for blade changes, belt replacements, and routine maintenance. It is one of the most practical purchase-stage accessories for any new mower owner — investing in a proper jack from day one avoids improvised lifting methods that risk injury and equipment damage. Verify your model and serial number before ordering.
$153.99 USD
Please contact your local dealer
Empty Image Container
MAINTENANCE KIT-KAWASAKI 730V ENGINE (Part # 130-8137)
Attachment Mount Kit for Residential Z-Mowers
Attachment Mount Kit for Residential Z-Mowers (Part # 131-3966)
Genuine OEM Part
$267.29 USD
Front Weight Kit for TimeCutter Mowers
Front Weight Kit for TimeCutter Mowers (Part # 131-7658)
This weight kit is required to get the best performance of Toro attachments such as the Cargo Carrier (79030) or the Brinly-Hardy rear mounted spreader or sprayer. The weight balances the machine installed with an attachment. The kit contains one 35 lb. weight and the hardware needed to install it. Can be easily removed when the attachment is not in use. The weight kit is included with the TimeCutter baggers (see baggers for details)
$309.99 USD
Please contact your local dealer
Empty Image Container
TimeCutter SS Sunshade (Part # 79011)
Keep cool and dry while you mow. The Toro TimeCutter sunshade increases operator comfort by shielding you from the elements. Assembles easily and offers a clean line of sight across your entire mowing area. Genuine Toro Parts and accessories are designed specifically for your machine and built to exacting standards with tight tolerances. Other parts simply don't stack up to the quality, performance, and value of Genuine Toro Parts.
$321.99 USD
Empty Image Container
HITCH KIT [TIMECUTTER MY2011 UP] (Part # 79014)
$71.49 USD
Genuine OEM Part 79016P
17.5 Inch High Lift TimeCutter Replacement Blades (3-Pack) (Part # 79016P)
Use this 3-Pack Replacement Blade Kit to maintain your 34 or 50 inch TimeCutter's High quality cutting performance. The sharp 17.5 in. Hi-Flow blades provide a crisp cut and are compatible with select TimeCutters manufactured in and after 2011.
$53.99 USD
50
50" TimeCutter SS and SW Recycler Kit (Part # 79019)
By adding on the Toro Recycler system you create your own natural fertilizer. This patented system cuts grass clippings 6-8 times, turning them into a fine nutrient-rich mulch to feed your lawn all season. The secret lies in the unique 'kickers' that direct clippings back into the blades to be re-cut before being released into your lawn. Kit allows you to recycle with your Toro 50" TimeCutter SS and TimeCutter SW zero turn mower. Fits on select models of TimeCutter SS and SW zero turn mowers.
$269.99 USD
Cargo Carrier, Zero-Turn-Radius Riding Mower (Part # 79040)
Deluxe Small Zero-Turn-Radius Riding Mower Storage Cover (Part # 79317)
Genuine OEM Part 79339
Assist Bar and Step Kit for TimeCutter SS and MX (Part # 79339)
Toro's Step and Assist Bar Kit will help you to step in and out of your TimeCutter with ease. The telescoping bar adjusts to your height and will assist you when entering and exiting the machine. The non-slip step gives offers additional support.
$184.99 USD
TimeCutterTwin Bagger
TimeCutter SS & SW 50 in. / 54 in. Twin Bagger (Part # 79392)
The Toro TimeCutter Twin Bagger with its 6.43 bushel (8 cu. ft.) capacity makes quick work of taking care of grass clippings or fallen leaves. When paired with one of Toro's top discharge decks, its performance can't be beat. It assembles easily and once initially installed, can be removed and put back on without tools. Includes bagger, mount kit and front weights.
$999.00 USD

Model #

74632

Serial #

311000001 - 311999999

Product Name

TimeCutter SS 5060 Riding Mower

Product Brand

Toro

Product Type

Riding Products

Product Series

Zero Radius Turn, Consumer

Chassis Type

ZRT - Consumer

Swath

50 inch

Discharge

Side Discharge

Engine/Motor Manufacturer

Kawasaki

Engine/Motor Size

24 hp

Engine/Motor Type

4 Cycle

Engine Starter

Electric

Transmission Type

Hydrostatic

Traction Type

Rear WD

Engine: Battery

12V 195CCA

Engine: Spark Plug

NGK BPR4ES

Engine: Spark Plug Gap

.030"/ .76mm

Engine: Ignition Coil Air Gap

.008-.016" / .2-.4mm

Engine: Engine Oil Type

67 oz. (2.1 Liter) SAE 10W-30 or 10W-40

Chassis: Height of Cut Range

1.5-4.5"; 1/2" increments

Engine: Engine Speed

3300±100 RPM

Chassis: Tire Pressure

Rear 13 psi; Front See Sidewall of Tire

Drive System: Ground Speed

Fwd. High 0-7.0 MPH, Low 0-4.0 MPH; Rev 0-3.5 MPH
