11-Blade Cutting Unit
Product Information
- Model #: 03486
- Serial #: 316000001 - 316999999
- Product Type: Attachments
Loading...

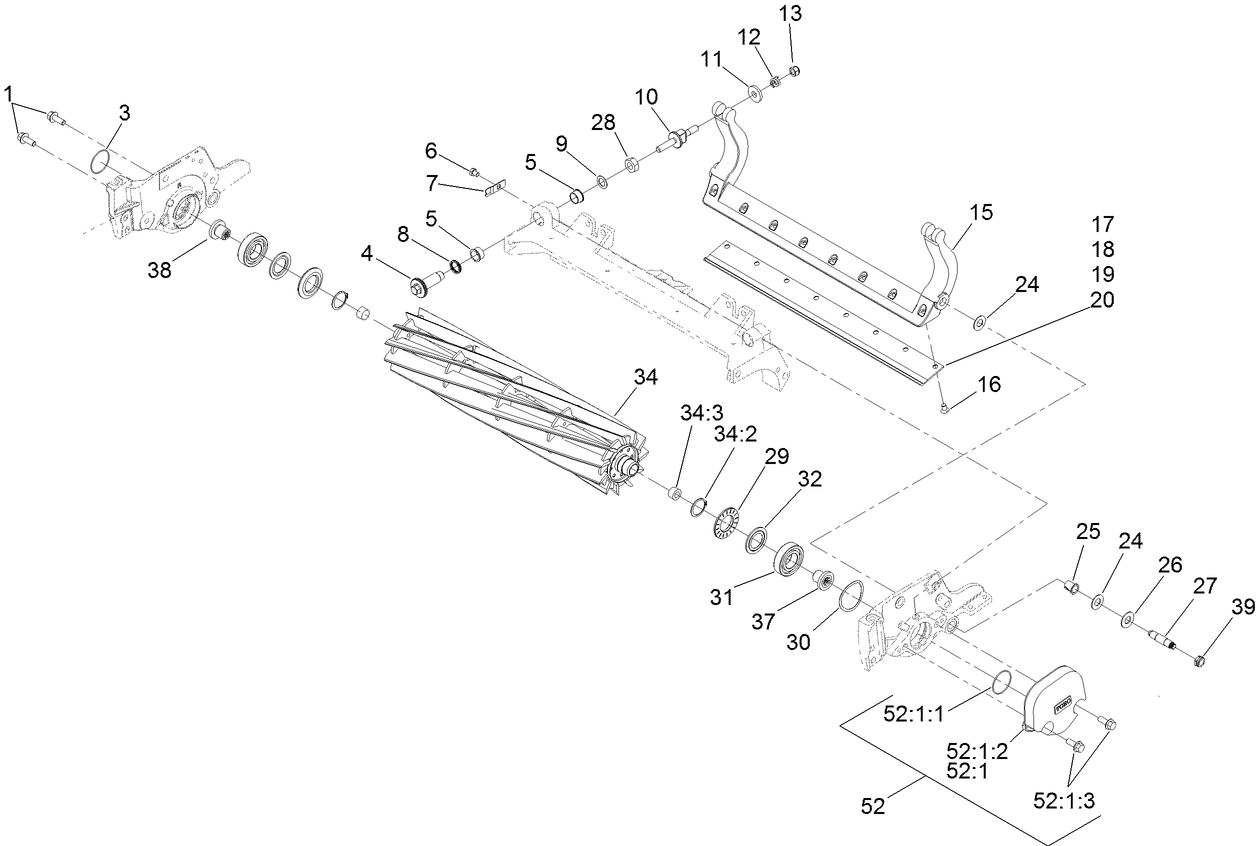

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Parts Catalog
-
Service Bulletin
Weight Kit for 8-Blade or 11-Blade DPA Cutting Unit with 5in Reel, Ree (Part # 03484)
18in Fairway Grooming Brush Kit, Reelmaster 3550 Series Cut (Part # 03717)
Left-Hand Groomer Kit, Reelmaster 3550 Series 18-inch Cutting Unit (Part # 03914)
Right-Hand Groomer Kit, Reelmaster 3550 Series 18-inch Cutting Unit (Part # 03915)
Rear Roller Brush Kit, Reelmaster 3550 Series 18-inch Cutting Unit (Part # 03916)
Rear Roller Brush and Groomer Kit, Reelmaster 3550 Series 18-inch Cutt (Part # 03917)
Rear Roller Brush Kit, Reelmaster 3550 Series 18-inch and 22-inch Cutt (Part # 03918)
Flex Grass Basket Kit (Part # 03923)
Catch grass clippings for easy cleanup and a better look overall.
Extended Flex Grass Basket Kit (Part # 03924)
Catch more grass clippings for easy cleanup and a better look overall with the extended version.
Collar Kit (Part # 104-8215)
Contains 100-4959 @ 2, 104-1835 @ 2
Gauge Bar Assembly (Part # 108-6715)
Toro OEM Gauge Bar Assembly.
RM Dpa High Hoc Kit (Part # 110-9600)
Contains 120-0404 @ 1, 120-0405 @ 1, 119-0626 @ 8, 106-9758 @ 4, 3230-30 @ 4, 104-8300 @ 4, 112-7451 @ 2, 48-9220 @ 4, 104-8301 @ 4, 322-16 @ 2, 32128-20 @ 2, 32128-20 @ 2
18.00 Inch Long Rear Roller Assembly (Part # 112-1728)
Toro 18.00 Inch OEM Long Rear Roller Assembly. This roller has a 2.50 inch diameter. This Assembly comes with the roller tube, roller shaft, oil seals, stainless steel bearings, seals, lock nuts, grease fittings, grease & the roller rebuild kit. This roller is smooth, unlike the Wiehle roller that has groves built in. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
20.50 Inch Full Roller Assembly (Part # 112-1732)
Toro 20.50 Inch OEM Full Roller Assembly. This roller has a 3.00 inch diameter. This Assembly comes with the roller tube, roller shaft, oil seals, stainless steal bearings, seals, lock nuts, grease fittings, grease & the roller rebuild kit. This roller is smooth, unlike the Wiehle roller that has groves built in. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
18.00 Inch Plastic Shoulder Roller Assembly (Part # 112-1733)
Toro 18.00 Inch OEM Plastic Shoulder Roller Assembly. This roller has a 3.00 inch diameter. This Assembly comes with the roller tube, roller shaft, oil seals, stainless steel bearings, seals, lock nuts, grease fittings, grease & the roller rebuild kit. A Wiehle roller has groves built into the roller. This roller is molded out of an aluminum core, with a plastic molding on the outside. A shoulder roller groves get smaller closer to the edges, where as a standard Wiehle has evenly spaced from one end to the other. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
Roller Rebuild Kit (Part # 114-5430)
Contains 114-3717 @ 2, 112-5290 @ 2, 112-7494 @ 4, 114-5411 @ 2
Roller Seal Tool Kit (Part # 115-0803)
Kickstand (Part # 119-8010-03)
FWY BROOMER KIT-18" (Part # 119-9176)
RM Hd Dpa MVP Kit (Part # 120-7230)
Contains 120-5118 @ 2, 120-5116 @ 2, 106-5344 @ 4, 108-0015 @ 2, 3296-33 @ 2, 137-6130 @ 2, 119-4155 @ 2, 120-5120 @ 2, 119-4039 @ 2
18-inch Rear Roller Scraper Kit, Reelmaster 3550 Series Cutting Units (Part # 120-9986)
Edgemax Bedknife (Part # 121-3165)
18.19 Inch Fairway Cut Standard Bedknife (Part # 121-3166)
Toro 18.19 Inch OEM Fairawy Cut Standard Bedknife. You can count on the quality and reliability of this replacement Fairway Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
18.19 Inch Low Cut Standard Bedknife (Part # 121-3167)
Toro 18.19 Inch OEM Low Cut Standard Bedknife. You can count on the quality and reliability of this replacement Low Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
18.00 Inch Wiehle Roller Scraper (Part # 121-3182-03)
Toro 18.00 Inch OEM Wide Wiehle Roller Scraper. This is a solid mounted roller brush created to control grass build up and keep you cutting longer. A Wiehle roller has built in groves, this rides in those groves to remove build up. To insure you are getting the correct part for your equipment, please use our model and serial number search to verify that this will fit your machine.
18.00 Inch Hight Height of Cut Roller Brush (Part # 121-3199)
Toro 18.00 Inch OEM High Height of Cut Roller Brush. This roller has a 3.50 inch diameter. This is a powered roller brush created to control grass build up and keep you cutting longer. To insure you are getting the correct part for your equipment, please use our model and serial number search to verify that this will fit your machine.
SCRAPER-SHOULDER ROLLER (18") (Part # 121-6970-03)
Comb/Scraper Kit, Reelmaster 3550 Series Cutting Units (Part # 121-6995)
SCRAPER-FRONT FULL ROLLER (18") (Part # 121-6996-03)
Rear Roller Adjustment Kit, Reelmaster DPA Reel Mowers (Part # 125-0570)
Paper Reel (Part # 125-5610)
Toro OEM Paper-Reel, Toro (10 Pack).
Reel Shim (Part # 125-5611)
Edgemax Lowcut Bedknife (Part # 130-4745)
BEDBAR-18 INCH, AGRESSIVE (Part # 131-3222-03)
GROOMER/RRB SEAL KIT (Part # 131-3233)
GROOMER ROD KIT (18IN) (Part # 131-6823)
Angle Indicator (Part # 131-6828)
Toro OEM Angle Indicator
Angle Indicator Mount (Part # 131-6829)
Toro OEM Angle Indicator Mount
ADAPTER-DRIVE, REEL (Part # TOR4112)
-
Model #
03486 -
Serial #
316000001 - 316999999 -
Product Name
11-Blade Cutting Unit -
Product Brand
Toro -
Product Type
Attachments -
Product Series
RM 5000 Series Accessories
