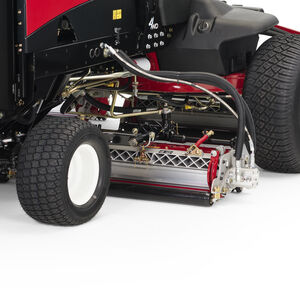

8-Blade Cutting Unit
Product Information
- Model #: 03727
- Serial #: 401420001 - 403447000
- Product Type: Attachments
Loading...
Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Parts Catalog
32IN RRB ONLY KIT (Part # 03246)
Weight Kit for 8-Blade or 11-Blade DPA Cutting Unit with 7in Reel, Ree (Part # 03405)
Turf Evaluator (Part # 04399)
Mirror device used to assess turf conditions
Gauge Bar Assembly (Part # 108-6715)
Toro OEM Gauge Bar Assembly.
Edgemax Bedknife (Part # 112-8956)
Roller Rebuild Kit (Part # 114-5430)
Contains 114-3717 @ 2, 112-5290 @ 2, 112-7494 @ 4, 114-5411 @ 2
Rear Roller Scraper Kit, 2010 and After 32in DPA Cutting Reel for Reel (Part # 114-9369)
WIEHLE SCRAPER ASM 32" [BLACK] (Part # 114-9373-03)
COMB/SCRAPER KIT RM3100 32" (Part # 114-9377)
SHOULDER SCRAPER ASM-32" [BLACK (Part # 114-9382-03)
32.00 Inch Full Front Roller Assembly (Part # 114-9384)
Toro 32.00 Inch OEM Full Front Roller Assembly. This roller has a 3.00 inch diameter. This Assembly comes with the roller tube, roller shaft, oil seals, stainless steal bearings, seals, lock nuts, grease fittings, grease & the roller rebuild kit. This roller is smooth, unlike the Wiehle roller that has groves built in. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
SCRAPER-3" FULL FRONT ROLLER 32" (Part # 114-9387-03)
32.00 Inch Fairway Cut Standard Bedknife (Part # 114-9389)
Toro 32.00 Inch OEM Fairawy Cut Standard Bedknife. You can count on the quality and reliability of this replacement Fairway Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
32.00 Inch Fairway Cut Standard Bedknife (Part # 114-9391)
Toro 32.00 Inch OEM Fairawy Cut Standard Bedknife. You can count on the quality and reliability of this replacement Fairway Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
Roller Seal Tool Kit (Part # 115-0803)
BRUSH-ROLLER (HIGH HOC) (Part # 115-0849)
32.00 Inch Plastic Shoulder Roller Assembly (Part # 119-0640)
Toro 32.00 Inch OEM Plastic Shoulder Roller Assembly. This roller has a 3.00 inch diameter. This assembly comes with plastic roller, roller shaft, oil seal, stainless steal bearing, seals, bearing lock nuts, grease fittings, roller rebuild kit & grease. A Wiehle roller has groves built into the roller. This roller is molded out of an aluminum core, with a plastic molding on the outside. A shoulder roller groves get smaller closer to the edges, where as a standard Wiehle has evenly spaced from one end to the other. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
Collar Kit (Part # 119-0649)
Contains 119-1604 @ 2, 104-1835 @ 2

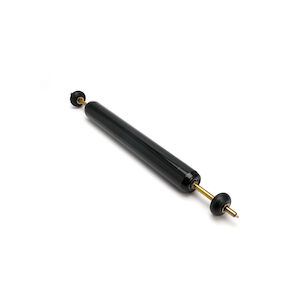

32.00 Inch Short Rear Roller Assembly (Part # 119-4288)
Toro 32.00 Inch OEM Short Rear Roller Assembly. This roller has a 3.00 inch diameter. This Assembly comes with the roller tube, roller shaft, oil seals, stainless steel bearings, seals, lock nuts, grease fittings, retaining rings, washers, roller tippers, grease & the roller rebuild kit. This roller is smooth, unlike the Wiehle roller that has groves built in. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
Kickstand (Part # 119-8010-03)
32.00 Inch Low Cut Standard Bedknife (Part # 120-1642)
Toro 32.00 Inch OEM Fairawy Cut Standard Bedknife. You can count on the quality and reliability of this replacement Low Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
RM Hd Dpa MVP Kit (Part # 120-7230)
Contains 120-5118 @ 2, 120-5116 @ 2, 106-5344 @ 4, 108-0015 @ 2, 3296-33 @ 2, 137-6130 @ 2, 119-4155 @ 2, 120-5120 @ 2, 119-4039 @ 2
Rear Roller Adjustment Kit, Reelmaster DPA Reel Mowers (Part # 125-0570)
Paper Reel (Part # 125-5610)
Toro OEM Paper-Reel, Toro (10 Pack).
Reel Shim (Part # 125-5611)
GROOMER/RRB SEAL KIT (Part # 131-3233)
Angle Indicator (Part # 131-6828)
Toro OEM Angle Indicator
Angle Indicator Mount (Part # 131-6829)
Toro OEM Angle Indicator Mount
High Height-of-Cut Kit, Reelmaster 3000 or 5000 Series DPA Cutting Uni (Part # 137-0890)
5 Blade EdgeSeries (ES) Reels+™ 32 Inch (Part # 137-8482)
Toro 5 Blade 32 Inch OEM EdgeSeries (ES) Reels+™. The EdgeSeries (ES) Reels+™ is an upgraded version of the Standard Reels+™ with stronger steel, longer lasting & more durable. You can count on the quality and reliability of this replacement EdgeSeries (ES) Reels+™. Be sure to verify the make and serial number to ensure correct part.

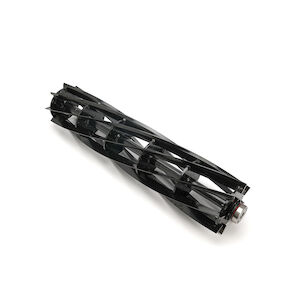

8 Blade EdgeSeries (ES) Reels+™ 32 Inch (Part # 137-8483)
Toro 8 Blade 32 Inch OEM EdgeSeries (ES) Reels+™. The EdgeSeries (ES) Reels+™ is an upgraded version of the Standard Reels+™ with stronger steel, longer lasting & more durable. You can count on the quality and reliability of this replacement EdgeSeries (ES) Reels+™. Be sure to verify the make and serial number to ensure correct part.
Brush And Handle Assembly (Part # 29-9100)
Toro OEM Brush And Handle Assembly.
REEL DRIVE ADAPTER (Part # TOR4074)
-
Model #
03727 -
Serial #
401420001 - 403447000 -
Product Name
8-Blade Cutting Unit -
Product Brand
Toro -
Product Type
Attachments
