Dingo 320-D Compact Utility Loader
Product Information
- Model #: 22303
- Serial #: 250000001 - 250999999
- Product Type: Compact Utility Loaders
Loading...

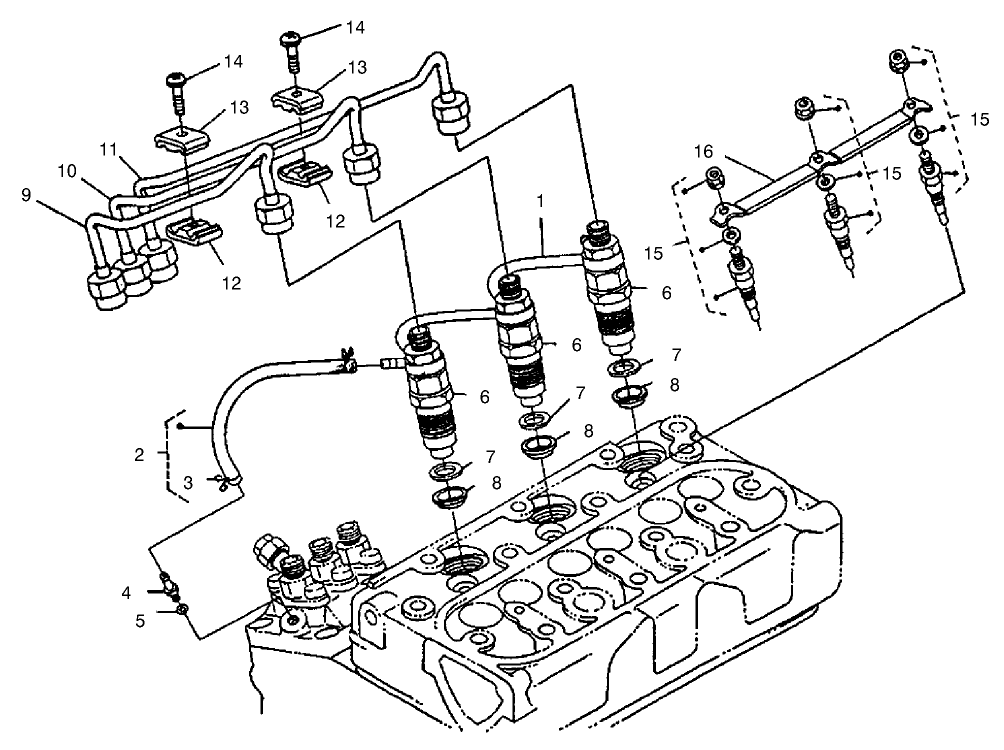

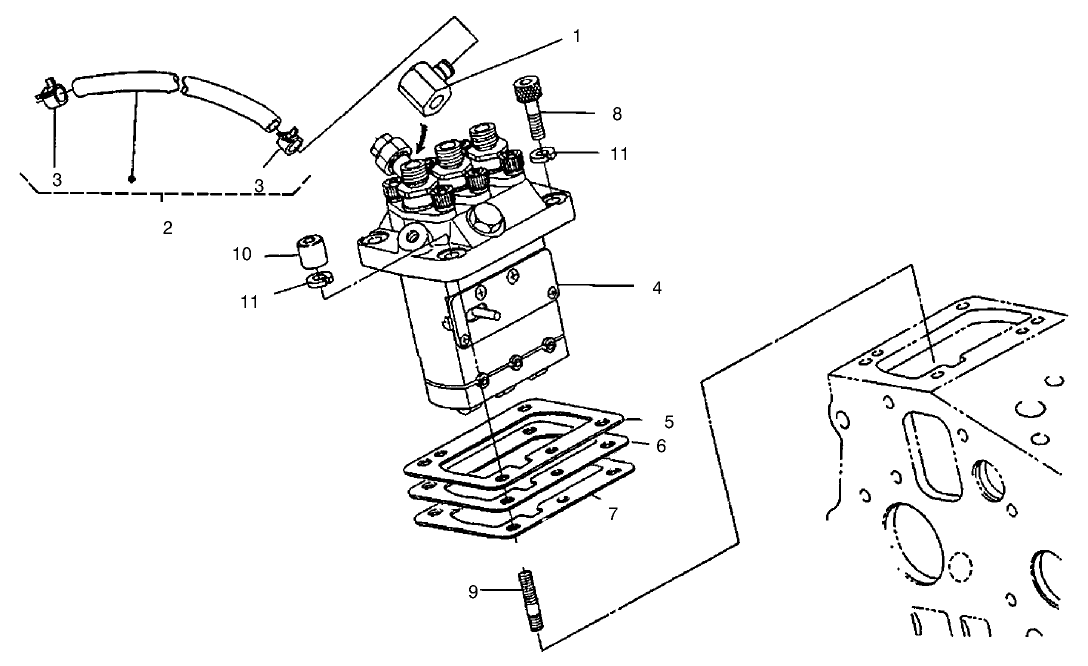

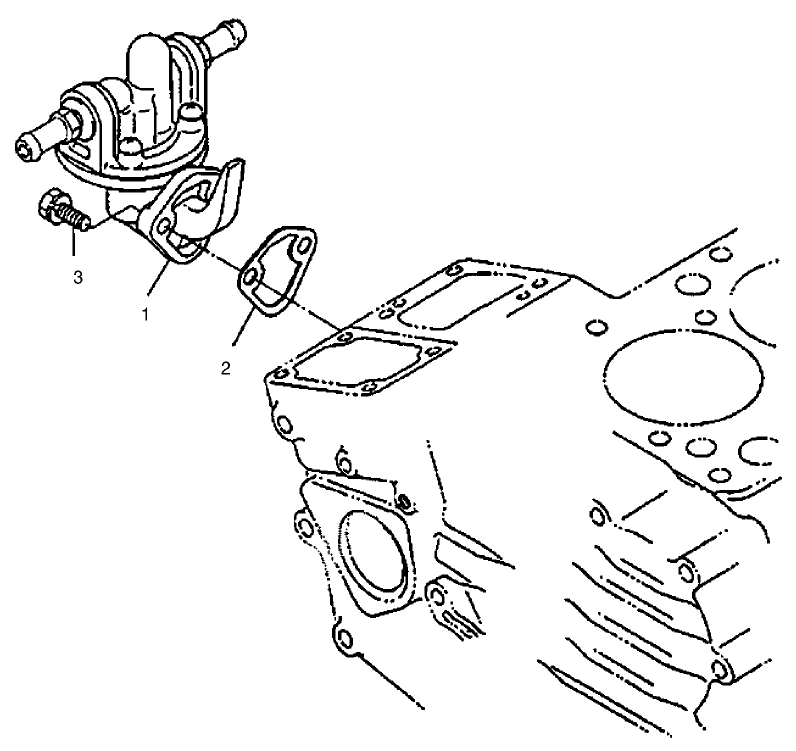

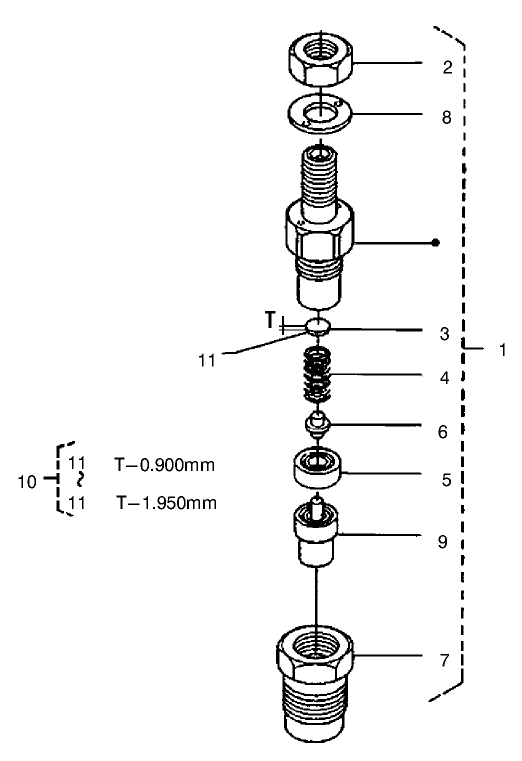

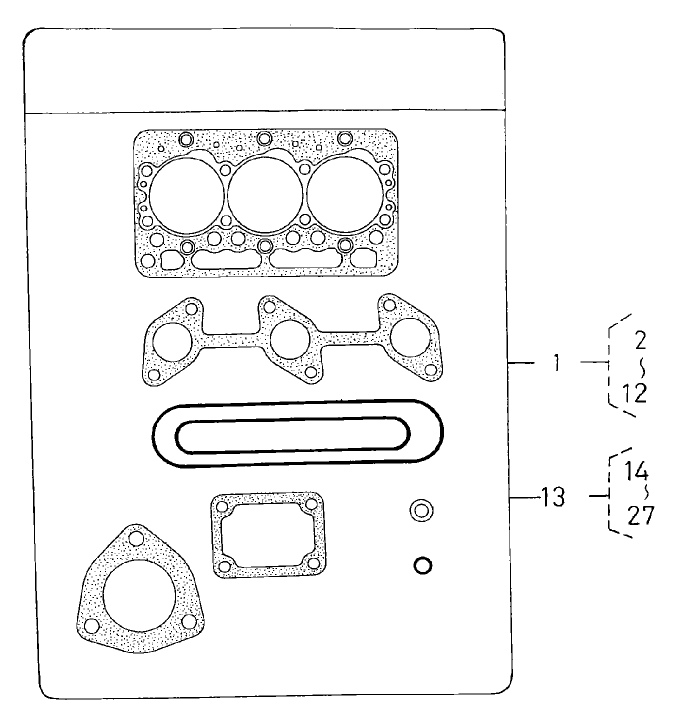

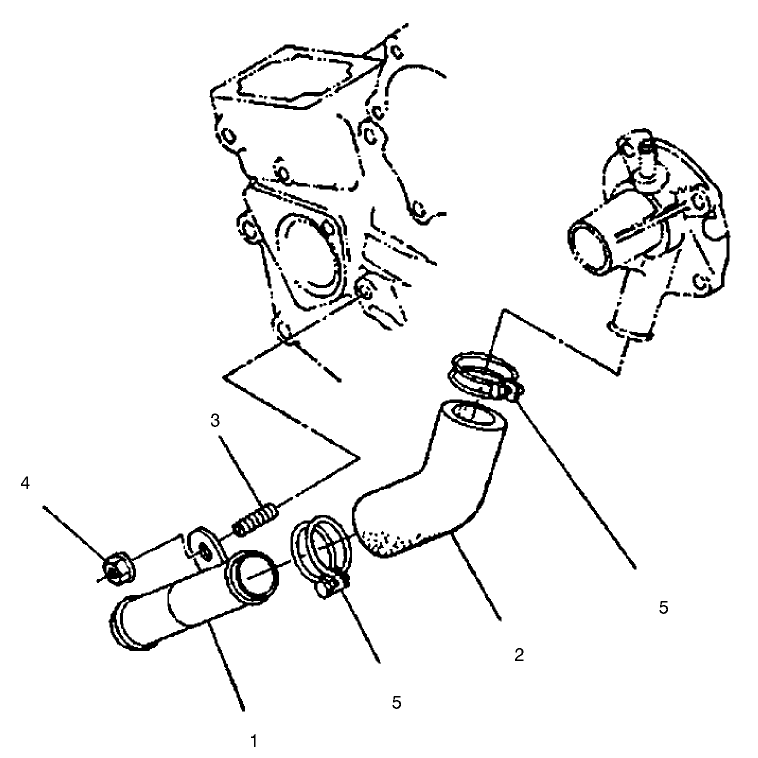

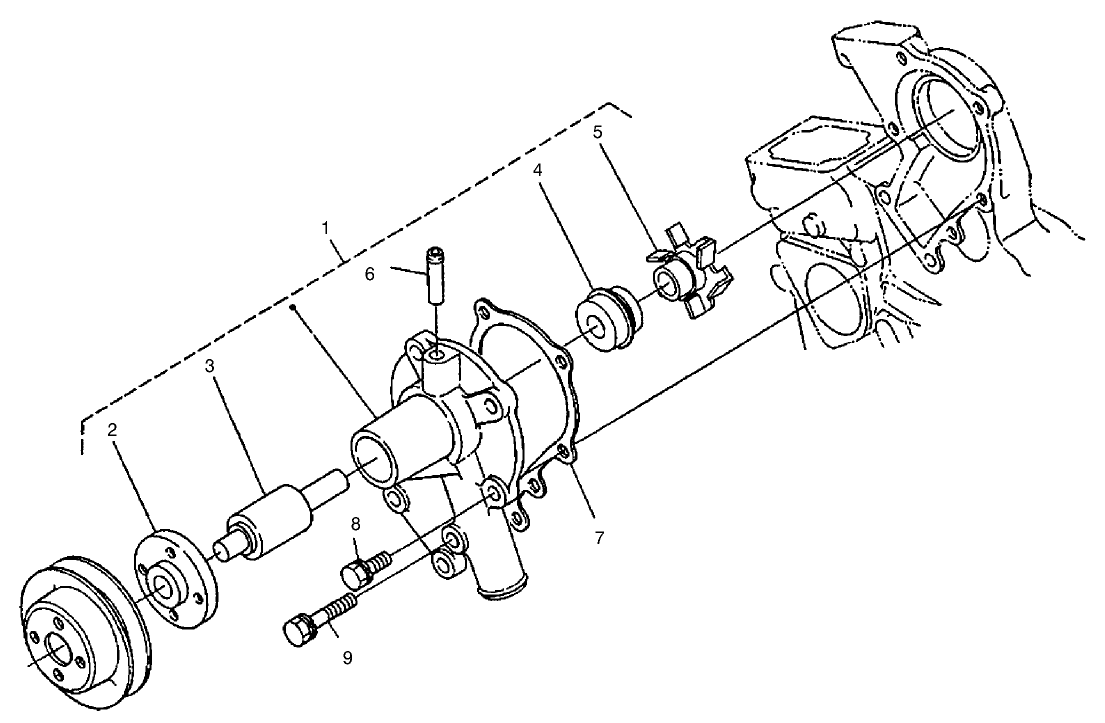

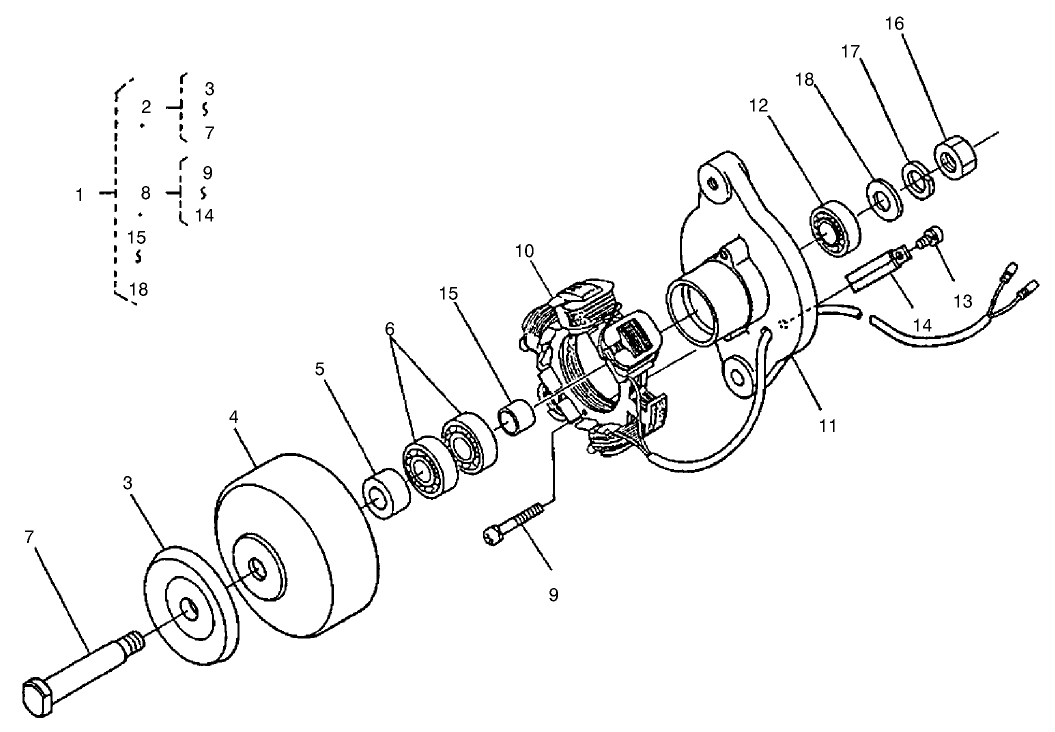

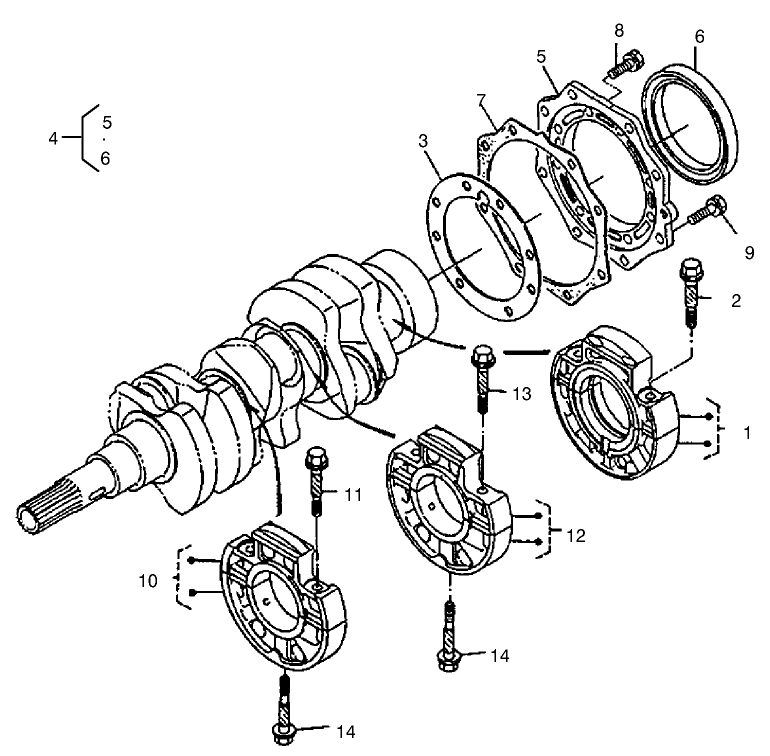

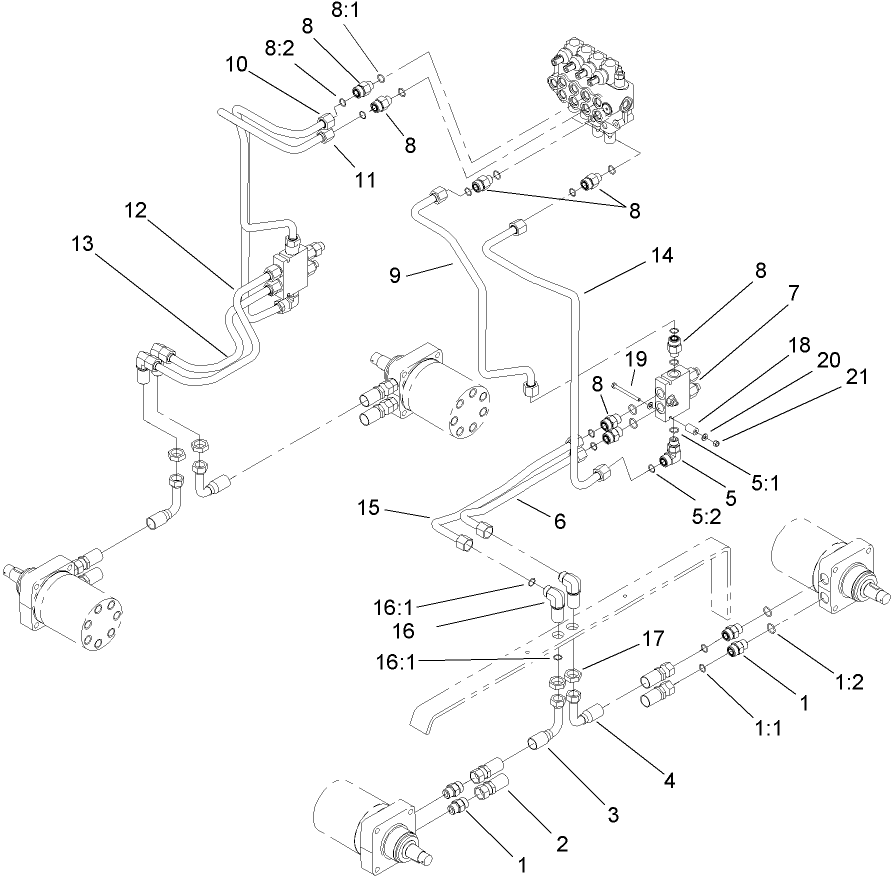

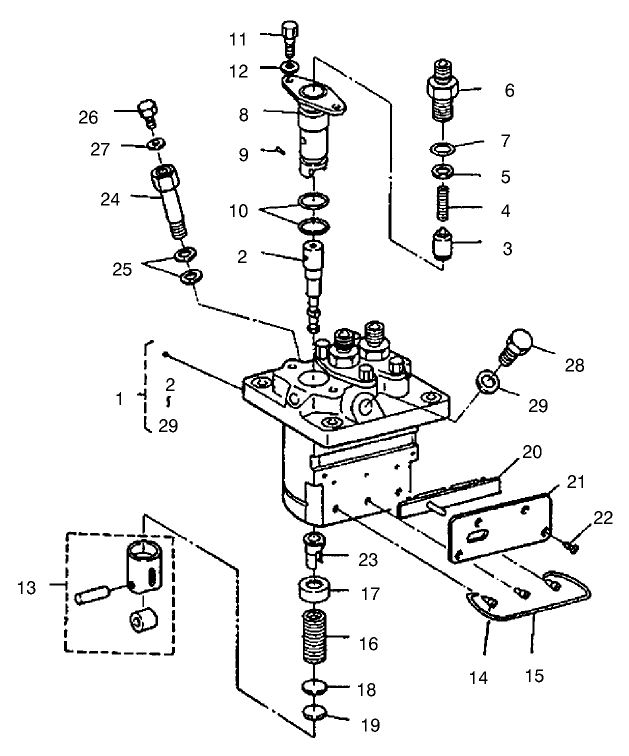

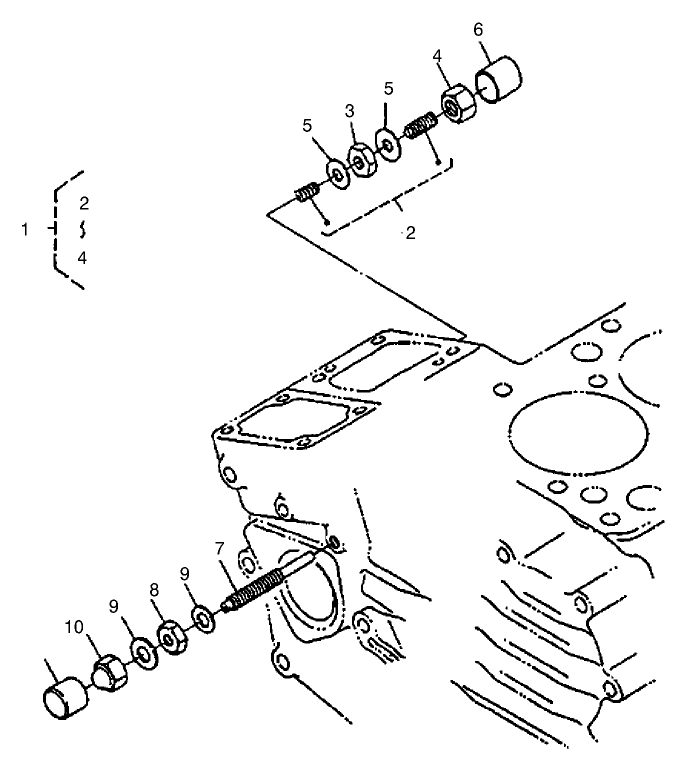

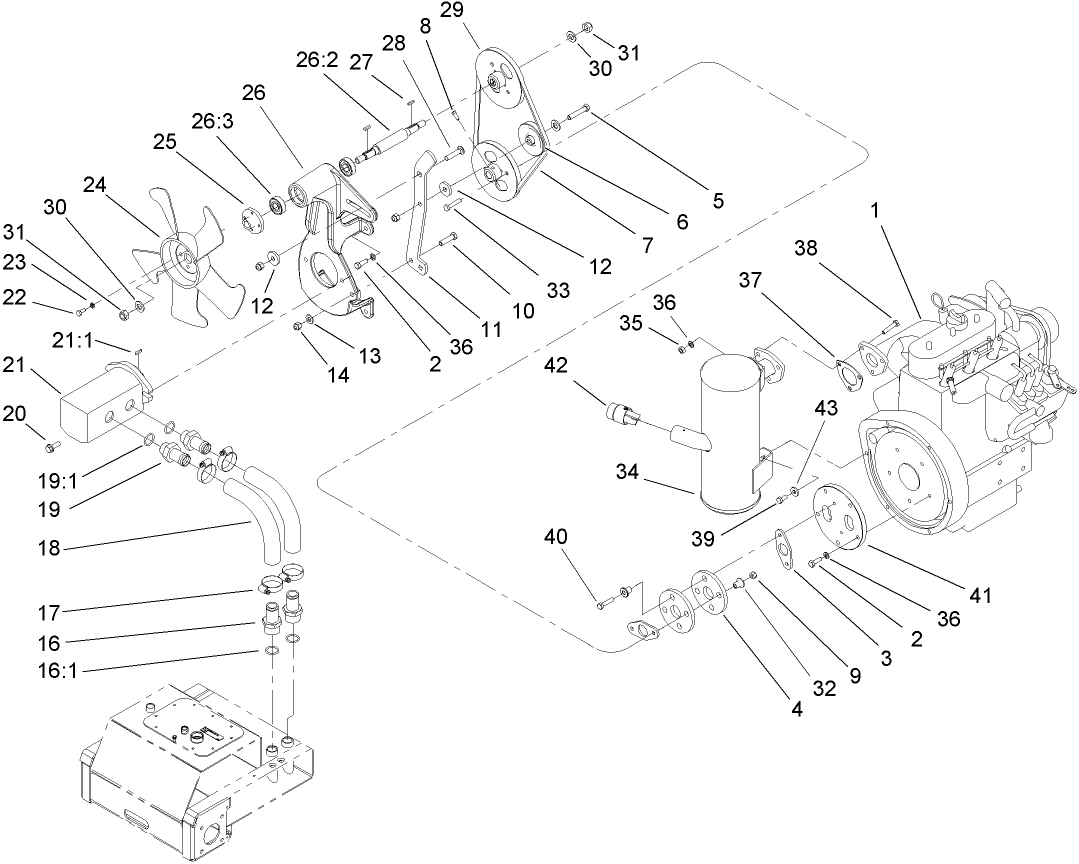

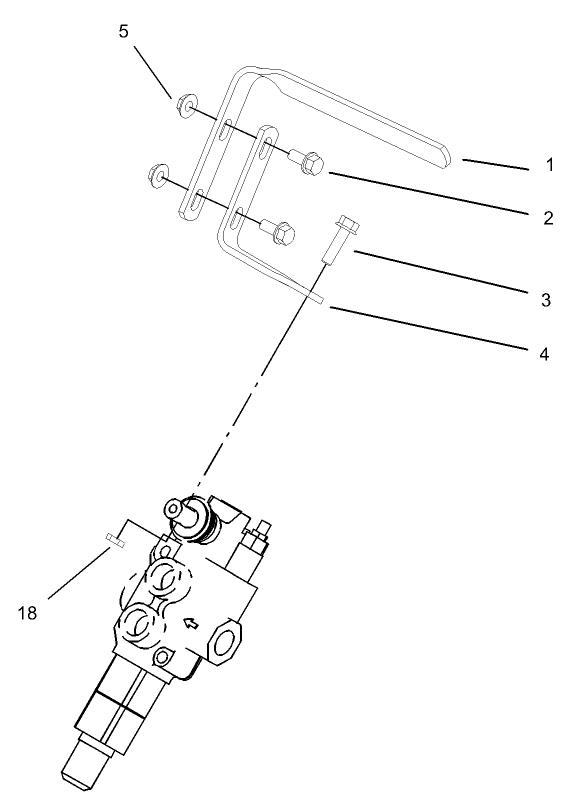

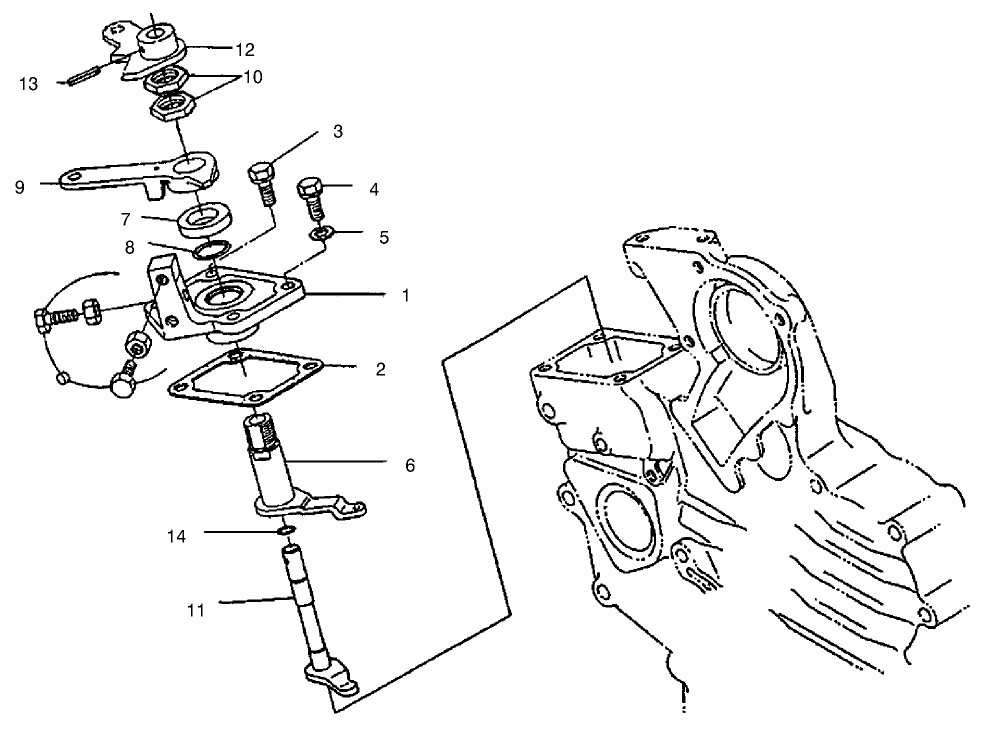

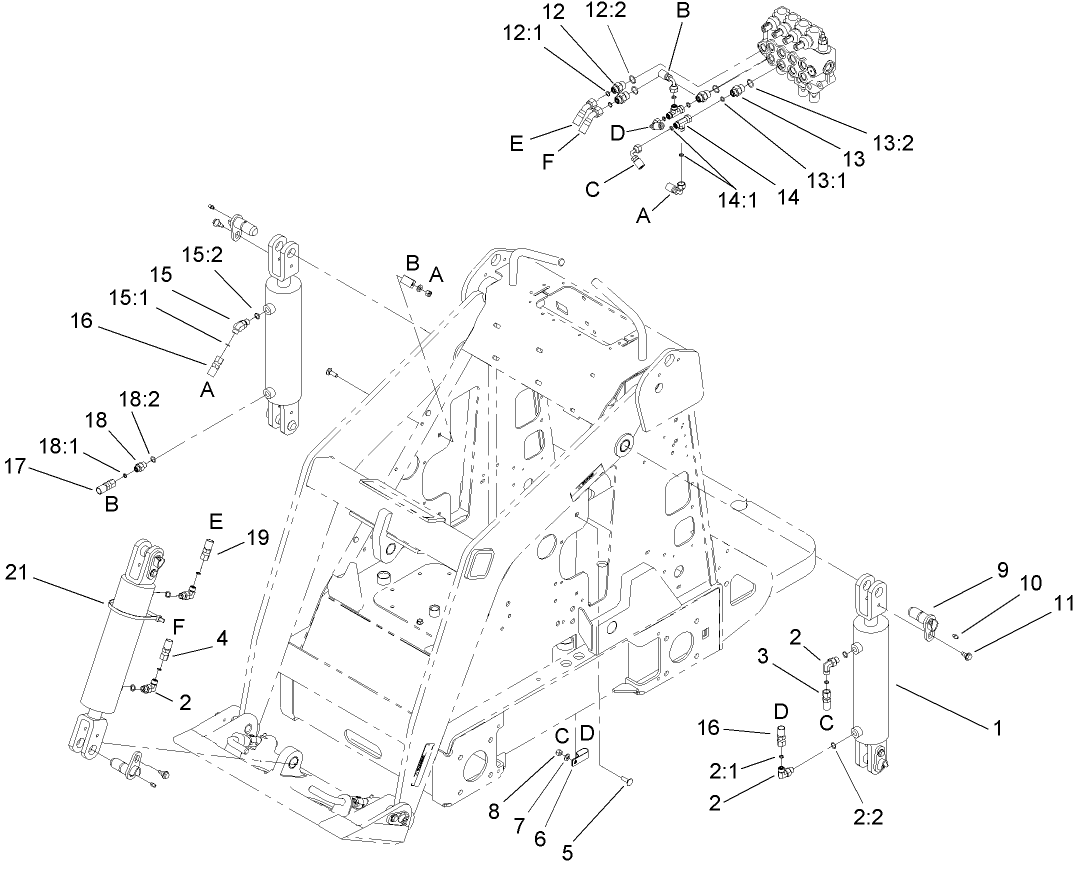

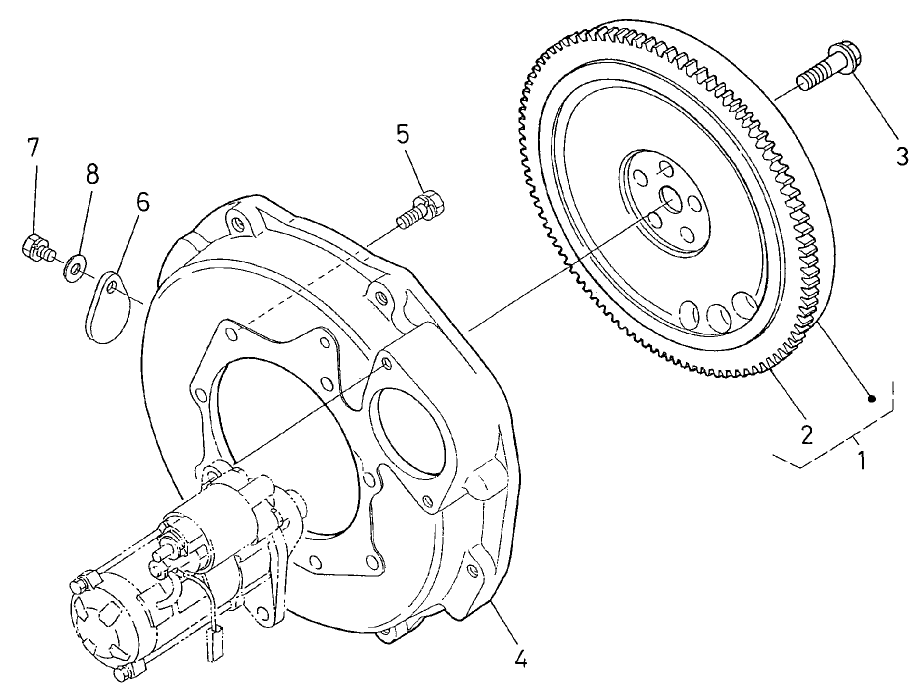

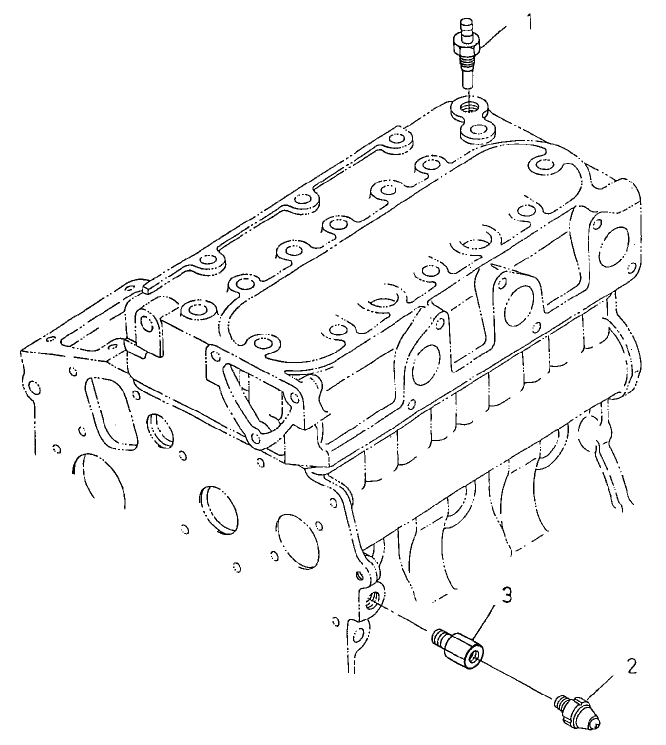

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
EU Declaration of Conformity
Tire Chain Kit, Dingo (Part # 100-4140)
HELMET-FACE SHIELD (Part # 100-4143)

Light Kit for Dingo 323, TX 427, TX 525 (Part # 100-8840)
Light kit fits: Dingo 323, TX 427, TX 525 - LAMP 12V
Narrow Tire Assembly (Part # 104-0572)
Spool Carrier Kit, Dingo (Part # 104-2661)

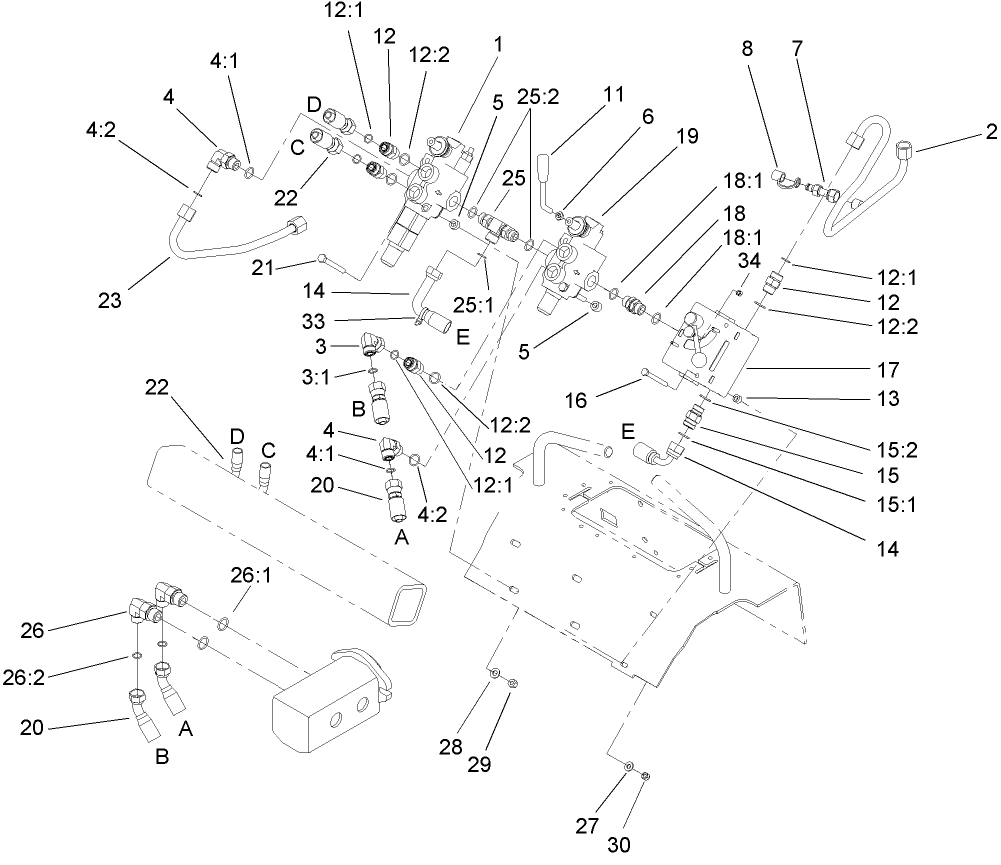

Hydraulic Valve Kit, Dingo (Part # 104-4221)

KIT-VALVE, 4-SPOOL, HYD (Part # 104-7422)
Thigh Support Kit, Dingo Gas-Powered Wheel-Drive Traction Units (Part # 105-0330)
Inner Tube (Part # 105-4070)
Genuine OEM Part
Rubber Foot Mat (Part # 105-5805)
SEAL KIT (Part # 105-8396)

Tire Tube (Part # 106396)
CE Kit, 2002 and Later Dingo 320-D Compact Utility Loader (Part # 22360)
Auger Head, Dingo (Part # 22400)
Standard Bucket (Part # 22409)
Use this standard bucket for moving rock, dirt, sand or other materials off and around the job site. The hardened steel cutting edge offers improved cutting and digging capability for better performance to handle tough digging conditions and affords superior wear. Capacity = 4 cubic feet (1 cu. m.).
Light Materials Bucket (Part # 22410)
Designed for moving light materials like chip-bark, mulch, snow and loam. The larger capacity bucket, 6.4 cubic feet (.2 cu. m.), is great for handling larger loads of lighter materials. The hardened steel cutting edge allows for improved cutting and digging capability for better performance to handle tough digging conditions and affords superior wear.
Four In One Bucket, Dingo (Part # 22411)
Utility Blade (Part # 22414)
The Toro Dingo hydraulic blade greatly increases the versatility of your Dingo system. This incredibly versatile attachment can be used for a variety of earth or snow moving jobs. Fill trenches where rows of trees have been planted or irrigation pipes have been installed. Keep your hydraulic blade working in the winter by pushing snow from sidewalks in one pass.
Rotary Broom, Dingo (Part # 22415)
Counterweight, Dingo (Part # 22417)
Adjustable Forks, Dingo (Part # 22418)
Leveler, Dingo (Part # 22419)
Bore Drive Head (Part # 22420)
The Toro® Dingo® boring unit allows you to dig under sidewalks and driveways to simplify irrigation and cable installations. Shorter rod lengths and the ability to lower the bore head below grade allow you to work in both confined and open areas, increasing your productivity.
Multi-Purpose Tool (Part # 22423)
This versatile attachment is actually 3 tools in 1! Easily converts into a ripper, boom or tow-bar by simply changing a few pins. Use these tools to move, carry, lift, prep, rip, dig up, transport and haul.
U-Blade, Dingo (Part # 22424)
Stump Grinder Attachment (Part # 22429)
The Toro® Dingo® Stump Grinder easily attaches to either Dingo or Dingo TX compact utility loaders. Make grinding stumps quicker and more productive with the stump grinder attachment for your Toro Dingo.
Hydraulic Tree Forks (Part # 22438)
The Toro Dingo hydraulic tree forks can help you plant trees and large shrubs quickly and effortlessly, plus move all sorts of materials around your garden center or nursery. The Dingo Compact Utility Loader is especially easy to maneuver, helping you transport and position trees or shrubs exactly where you want them.
Concrete Breaker, Dingo (Part # 22441)
The Eliminator Scarifier/Groomer, Dingo (Part # 22443)
Tiller (Part # 22445)
The Toro Dingo tiller attachment greatly increases the productivity and performance of your Dingo system. Break through hard soil conditions up to 6" (15.2 cm) deep. Avoid clogging the tiller by using one easy hand control to reverse the direction of the tiller to clear jams from rocks and debris.
Trencher Head, Dingo (Part # 22447)
Snowthrower, Dingo and Dingo TX (Part # 22456)
Trencher Head, Dingo (Part # 22459)
Narrow Bucket (Part # 22520)
Handle compact construction and remodeling sites by moving through 36" (91.4 cm) gates without a problem. This 35" (88 cm) wide bucket allows you to get through narrow spaces, including gates and doorways. Move rock, dirt, sand or other materials off and around the job site. Great for use on any Dingo® model equipped with narrow wheels and tires.
Over-Tire Rubber Tracks, Dingo (Part # 22662)
Steel Track Kit, Dingo (Part # 22665)
Auger Head, Dingo and Dingo TX (Part # 22802)
Universal Swivel Auger Head, Dingo and Dingo TX (Part # 22803)
Vibratory Plow, Dingo (Part # 22910)
Soil Cultivator, Dingo Compact Utility Loader (Part # 23101)
Soil Cultivator (Part # 23102)
The soil cultivator is the ultimate attachment for soil preparation! This incredibly versatile attachment can be used to cultivate and level soil as well as blend landscape materials, compost and fertilizer. This attachment will also bury debris such as stones, soil clods and grass. It transforms rough terrain into a perfect planting bed in one pass.
Backhoe, Dingo (Part # 23160)
Lug Nut (Part # 242-50)
Toro OEM Lug Nut.
Diesel Engine Cylinder Head Heater (Part # 98-2651)

Left Hand Wheel and Tire Assembly (Part # 98-2747)
Left hand wheel and tire fits both front and rear position.
WHEEL (Part # 98-2748)
TIRE (Part # 98-2749)
ASM - WHEEL/TIRE (Part # 98-4709)

Right Hand Wheel and Tire Assembly (Part # 99-1447)
Right hand wheel and tire fits both front and rear position.
WHEEL AND TIRE ASM RH (PO (Part # 99-3140)
WHEEL AND TIRE ASM LH (PO (Part # 99-3141)
Hydraulic Relief Valve Kit, Dingo (Part # 99-4360)
-
Model #
22303 -
Serial #
250000001 - 250999999 -
Product Name
Dingo 320-D Compact Utility Loader -
Product Brand
Toro -
Product Type
Compact Utility Loaders -
Product Series
Compact Utility Loaders -
Chassis Type
CUL - Wheeled -
Engine/Motor Manufacturer
Kubota -
Engine/Motor Size
20 hp -
Engine/Motor Type
4 Cycle Diesel -
Engine Starter
Electric -
Transmission Type
Hydrostatic
-
Chassis: Tire Pressure
20 PSI / 1.4kg sq. cm -
Engine: Spark Plug
None -
Engine: Spark Plug Gap
n/a -
Drive System: Ground Speed
0-3 mph -
Engine: Engine Speed
3600±75 RPM -
Engine: Engine Oil Type
.84 gal. 10w-30 -
Engine: Battery
12V 435 CCA -
Hydraulic: Hydraulic Pressure
3000 psi -
Hydraulic: Hydraulic Flow
3.7 gpm low flow circuit : 8.4 gpm high flow circuit -
Hydraulic: Hydraulic Reservoir
14.8 gallon -
Chassis: Wheels
Standard: 10x6.00, 5 bolt, drop center :: Optional: 8x7.00, 5 bolt, drop center -
Chassis: Tires
Std: 18x8.50-8_8-ply, SSL-LSW. Opt: 18x9.50-8_8-ply, Chevron Tread or 18x8.50-8_8-ply, Turf Tread.
